Solved Get AutoPilotHash in WinPE without network connection


K

kingrose

New member
Local time
4:22 PM
Posts
6
OS
11
Dear Experts,

I want to create a USB stick which automatically reads the hardware hash and serial number and writes that to a CSV.
Like in the following article: WinPE: Adding Windows PowerShell support to Windows PE

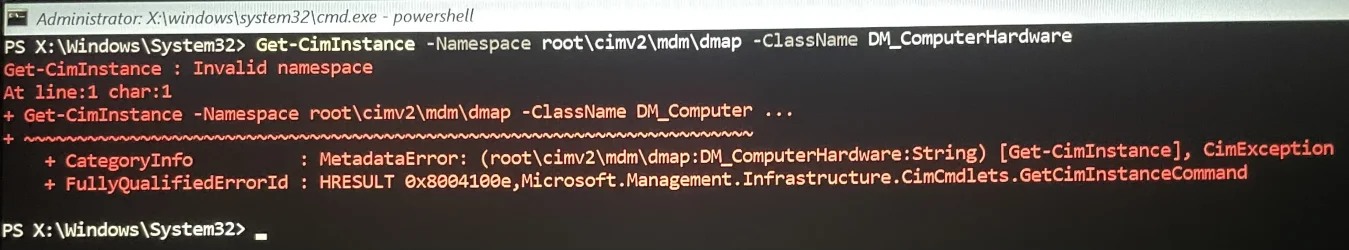

The WinPE works perfectly so far and I have PowerShell mounted in it as well but I'm facing the error messages:
Can you please help to fix this or is it not possible to do this in Windows PE and must do it in a Full Windows environment?
Thank you in advance.


My Computer My Computer

OS
11
The MDM Bridge WMI Provider is implemented in DMWmiBridgeProv.dll. Does PE have that DLL (I can't check at the moment)?

Also, the namespace is root\cimv2\mdm\dmmap. You seem to be missing an m in the last part of the path, in at least one of your error messages.


My Computer My Computer

OS
Windows 11 Pro 25H2
Computer type
PC/Desktop
Manufacturer/Model
Intel NUC12WSHi7
CPU
12th Gen Core i7-1260P
Motherboard
NUC12WSBi7
Memory
64 GB Micron PC4-25600
Graphics Card(s)
Intel Iris Xe Graphics
Sound Card
on-board Realtek HD Audio
Monitor(s) Displays
Dell U3219Q
Screen Resolution
3840 x 2160
Hard Drives
Samsung SSD 990 PRO 1TB
Crucial MX500 2 TB
Antivirus
Microsoft Defender
pseymour said:
The MDM Bridge WMI Provider is implemented in DMWmiBridgeProv.dll. Does PE have that DLL (I can't check at the moment)?

Also, the namespace is root\cimv2\mdm\dmmap. You seem to be missing an m in the last part of the path, in at least one of your error messages.
Click to expand...
I have copied both file DMWmiBridgeProv.dll and .mof to \wbem

robocopy "C:\Temp" "C:\WinPE_Autopilot\mount\Windows\System32\wbem" DMWmiBridgeProv.dll /COPYALL /R:3 /W:5
robocopy "C:\Temp" "C:\WinPE_Autopilot\mount\Windows\System32\wbem" DMWmiBridgeProv.mof /COPYALL /R:3 /W:5

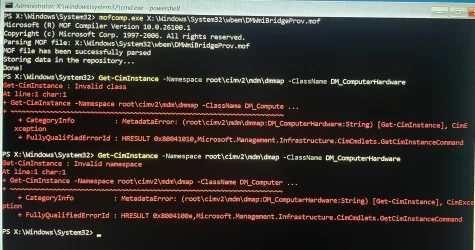

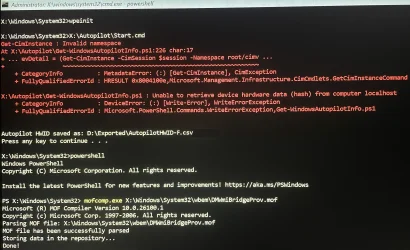

I also tried with both dmmap and dmap, please see the screenshot below:



My Computer My Computer

OS
11
OA3Tool.exe is from the Windows ADK. You copy it from:
C:\Program Files (x86)\Windows Kits\10\Assessment and Deployment Kit\Deployment Tools\amd64\Licensing\OA30\oa3tool.exe


My Computer My Computer

OS
Windows 7
garlin said:
OA3Tool.exe is from the Windows ADK. You copy it from:
C:\Program Files (x86)\Windows Kits\10\Assessment and Deployment Kit\Deployment Tools\amd64\Licensing\OA30\oa3tool.exe
Click to expand...
After running the command: oa3tool.exe /Report /ConfigFile=.\OA3.cfg /NoKeyCheck
How can save the hardware hash to csv in USB?


My Computer My Computer

OS
11
Code:
powershell -ep bypass -f \path\Create_4kHash_using_OA3_Tool.ps1 -Outputfile \path\hash.csv
