 Passing the Window 11 Compatibility Check


Microsoft Tool (unavailable at present)
GitHub Tool
6 Windows Tools


1. Download both the MS and the GitHub tools.

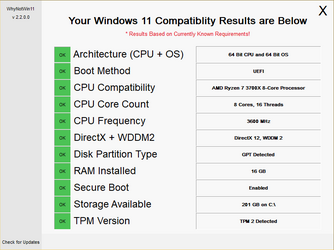

2. Run both tools, and see what your status is.
3. If Secure Boot or TPM has a RED X, head to the BIOS.
4. Enable Secure Boot and under the Secure Boot heading, choose Windows UEFI, rather than Other OS.
5. If these settings cause a failure to boot, just set them back to what they were and post about that problem.

6. Then look for your TPM settings. There are a few kinds...

a. Firmware TPM or Discrete TPM (aka hardware TPM). Some motherboards will have both.​
b. On some boards the TPM setting will be on the Advanced tab in the BIOS.​
c. AMD: Advanced > AMD fTPM configuration > TPM Device Selection : Firmware TPM or AMD CPU fTPM
d. Intel: Advanced > PCH-FW Configuration or PTT Configuration > TPM Device Selection : Firmware TPM or PTT
f. Note: Your TPM 2.0 settings may be worded slightly differently.​

7. Enable the Firmware TPM, or the Discrete hardware TPM (requires a TPM module)
8. IF you need a TPM Module read this: What to know when buying TPM Module

9. Now that you've taken care of Secure Boot and the TPM configuration... Save and Exit the BIOS.

10. Run both the MS Tool and the GitHub Tool again.
11. If you don't pass the test in the MS Tool, the GitHub Tool may help you locate the problem.



Win 11 Supported INTEL Processors
Win 11 Supported AMD Processors
We don't know yet, whether these Supported Processor lists are finalized.


ASUS Motherboard Support Information

Support TPM 2.0 list
ntel 300, 400, 500, DOMINUS, X299, C246, W480, C422, C621 series models
AMD 300, 400, 500, TRX40, WRX80 series models






If you still have issues with the compatibility tests, post them in this topic.
Have your computer make/model or motherboard make/model handy. Please include that info with your post.





000000 Win 11 Install.png






Remember...

Windows 10 will be supported till 2025.
Windows 11 will only be released to Windows Insiders, June 28th 2021.
As for the rest of us... look for a Windows 11 release date towards the end of 2021, or the beginning of 2022.






 What you really came for


Windows 11 ISO download

Windows 11 ISO download (RTM)










 Work-arounds Section


1) How to bypass the TPM 2.0 and Secure Boot requirements (still testing, but seems to work)

1. Use the Microsoft Media Creation Tool to build a bootable Win 10 USB stick... Media Creation Tool
2. OR...get the Win 10 ISO from... TechBench by WZT (v4.1.1) ...and use RUFUS to make a bootable Win 10 USB stick​
3. Go to the Sources folder on the Win 10 USB stick and delete either install.esd or install.wim (w/e one is there)​
4. Next, Mount the Win 11 ISO, and go to the Sources folder and copy the install.wim file you find there.​
5. Go back to the Win 10 USB stick, and paste the install.wim in the Sources folder.​
6. Then boot from the altered Win 10 USB stick to install Win 11.​


2) For old computers running Windows 10, you can also use the "In-Place Upgrade"

Upgrade to Windows 11 (works... and seems to work on old hardware as well)​

[Work around testing done by @Lance1]


3) For computers without TPM or Secure boot (still in Beta)

[Found by @TomJones]



4) Via Registry edit... if you get "This pc can't run Windows 11" during setup




5) Create bootable Windows 11 ISO without TPM, Secure Boot and RAM requirements.


Last edited:

My Computers

System One System Two

  • Operating System
    Win 10 Home 10.0.22000.282 (x64)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security 2020
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Fabler2

Well-known member
Member
VIP
Local time
10:06 PM
Posts
613

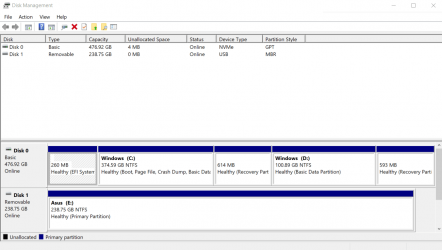

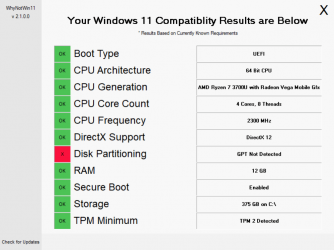

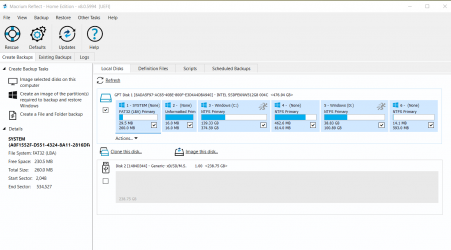

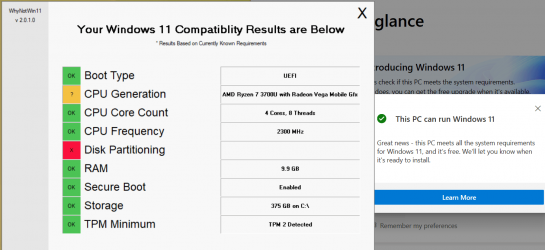

It's not reading the disk partitioning but it is GPT.



My Computers

System One System Two

  • Operating System
    Win 10 Home
    Computer type
    Laptop
    Manufacturer/Model
    ASUS VivoBook
    CPU
    AMD Ryzen 7 3700U with Radeon Vega Mobile Gfx
    Motherboard
    ASUSTeK COMPUTER INC. X509DA (FP5)
    Memory
    12GB
    Graphics Card(s)
    RX Vega 10 Graphics
    Monitor(s) Displays
    Generic PnP Monitor (1920x1080@60Hz)
    Screen Resolution
    1920x1080@60Hz
    Hard Drives
    INTEL SSD 660p 512GB NVMe
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER
    CPU
    AMD Ryzen 7 5800H / 3.2 GHz
    Motherboard
    CZ Scala_CAS (FP6)
    Memory
    16 GB (2 x 8 GB) DDR4 SDRAM 3200 MHz
    Graphics card(s)
    NVIDIA GeForce RTX 3060 6 GB GDDR6 SDRAM
    Sound Card
    Realtek Audio. NVIDIA High Definition Audio
    Monitor(s) Displays
    15.6" LED backlight 1920 x 1080 (Full HD) 144 Hz
    Screen Resolution
    1920 x 1080 (Full HD)
    Hard Drives
    1.024 TB SSD M.2 2280 - Samsung
    PSU
    180 Watt, 19.5 V
    Mouse
    Logitech
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender

Ghot

Well-known member
Power User
VIP
Thread Starter
Local time
5:06 PM
Posts
1,280
Location
PA, USA
It's not reading the disk partitioning but it is GPT.



You have the older version of the GitHub Tool... re-download it. Link is in the 1st post. :)


My Computers

System One System Two

  • Operating System
    Win 10 Home 10.0.22000.282 (x64)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security 2020
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Fabler2

Well-known member
Member
VIP
Local time
10:06 PM
Posts
613

My Computers

System One System Two

  • Operating System
    Win 10 Home
    Computer type
    Laptop
    Manufacturer/Model
    ASUS VivoBook
    CPU
    AMD Ryzen 7 3700U with Radeon Vega Mobile Gfx
    Motherboard
    ASUSTeK COMPUTER INC. X509DA (FP5)
    Memory
    12GB
    Graphics Card(s)
    RX Vega 10 Graphics
    Monitor(s) Displays
    Generic PnP Monitor (1920x1080@60Hz)
    Screen Resolution
    1920x1080@60Hz
    Hard Drives
    INTEL SSD 660p 512GB NVMe
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER
    CPU
    AMD Ryzen 7 5800H / 3.2 GHz
    Motherboard
    CZ Scala_CAS (FP6)
    Memory
    16 GB (2 x 8 GB) DDR4 SDRAM 3200 MHz
    Graphics card(s)
    NVIDIA GeForce RTX 3060 6 GB GDDR6 SDRAM
    Sound Card
    Realtek Audio. NVIDIA High Definition Audio
    Monitor(s) Displays
    15.6" LED backlight 1920 x 1080 (Full HD) 144 Hz
    Screen Resolution
    1920 x 1080 (Full HD)
    Hard Drives
    1.024 TB SSD M.2 2280 - Samsung
    PSU
    180 Watt, 19.5 V
    Mouse
    Logitech
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender

Caledon Ken

Active member
VIP
Local time
5:06 PM
Posts
4
I'm not sure that telling people to just switch to UEFI is a good idea, especially if they are currently using Legacy Boot

Some boards may not activate CSM ( or what ever their board calls this functionality) resulting in a failed boots.

Might suggest they examine what their BIOS / UEFI needs to be set to, to continue booting.


My Computer

System One

  • Operating System
    Windows 10 Pro x64 Version V21H1
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom
    CPU
    i7-8700K
    Motherboard
    Asus Maximus X Code - Z370
    Memory
    G.Skill Trident Z 3200MHz F4-3200C16D-16GTZ (2) 32GB
    Graphics Card(s)
    Intel UHD Graphics 630
    Sound Card
    Integrated ROG SupremeFX
    Monitor(s) Displays
    Asus VP279 27", Samsung BX2431 24"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsung M.2 NVMe 960 EVO 500GB Boot,
    Samsung 840 EVO 250GB (System Copy Drive),
    Samsung 860 EVO 1TB (Primary Data Drive),
    WD Black 500GB (Data Copy Drive)
    ICY Dock 5.25 2.5/3.5 Bays MB971SP-B
    PSU
    Corsair RM 650i +Gold
    Case
    Phanteks Enthroo Primo
    Cooling
    Corsair Hydro H150i, 360mm Rad & Five Corsair 140mm Pro ML Case Fans
    Keyboard
    das Keyboard MX Brown Mechanical Switches Model DASKMKPROSIL-3G7-r1.0
    Mouse
    Logitech MX Master 3 Wireless & Bluetooth
    Internet Speed
    %00Mb +
    Browser
    Chrome (Pri), Firefox (Sec)
    Antivirus
    Malwarebytes Premium, SuperAntiSpyware Pro (Licensed)
    Other Info
    Synology NAS DS918+ 10TB,
    Netgear Nighthawk X8 R8500 Tri-Band,
    Microsoft LifeCam HD,
    APC Back-UPS Pro 1500,
    Macrium (Licensed),
    Password Safe with Yubikey authentication,
    Office 365,
    Wise Disk Cleaner,
    Crystal Disk Info,
    Screenpresso (Licensed),
    AnyDesk (Licensed),
    Authy Authenticator App,
    iPhone 6s

Ghot

Well-known member
Power User
VIP
Thread Starter
Local time
5:06 PM
Posts
1,280
Location
PA, USA

My Computers

System One System Two

  • Operating System
    Win 10 Home 10.0.22000.282 (x64)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security 2020
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Michele

Member
Local time
11:06 PM
Posts
35

My Computer

System One

  • Operating System
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    2.6 GHz Intel i7-6500, has 2 cores
    Memory
    12 GB of RAM
    Graphics Card(s)
    Intel HD Graphics 520 + Radeon M340
    Hard Drives
    447 GB SSD
    Browser
    Firefox > Chrome
    Antivirus
    Windows Defender rocks!

jessewilliams56

Active member
VIP
Local time
4:06 PM
Posts
65
Location
Pell City, Alabama USA
HP 255 G7 Laptop

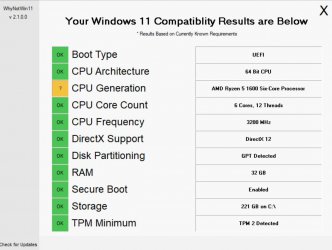

Screenshot 2021-06-26 090913.png


My Computers

System One System Two

  • Operating System
    Windows 11 Home 64-bit
    Computer type
    PC/Desktop
    Manufacturer/Model
    Lenovo IdeaCentre 5 14ARE05
    CPU
    AMD Ryzen 3 4300G
    Motherboard
    LENOVO 3728 (AM4)
    Memory
    8 GB
    Graphics Card(s)
    Radeon Graphics
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    HP 23es
    Screen Resolution
    1920x1080@60Hz
    Hard Drives
    931GB Western Digital WDC WD10EZEX-08WN4A0 (SATA)
    119GB SAMSUNG MZALQ128HBHQ-000L1 (SSD)
    Keyboard
    Lenovo Wired Keyboard
    Mouse
    Logitech
    Internet Speed
    100 Mbps
    Browser
    Microsoft Edge
    Antivirus
    McAfee LiveSafe
  • Operating System
    Windows 10 Home 64-bit
    Computer type
    Laptop
    Manufacturer/Model
    HP Laptop - 15-ef107nr
    CPU
    AMD Ryzen 3 - Picasso 12nm Technology
    Motherboard
    HP 8706 (FP5)
    Memory
    8 GB Single-Channel @1197MHz (17-17-17-39)
    Graphics card(s)
    2048 ATI AMD Radeon Graphics (HP)
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    Generic PnP Monitor (1366x768@60Hz)
    Screen Resolution
    15.6"
    Hard Drives
    238 GB SK hynix BC511 HFM 256GDJTNI-82A0A
    Mouse
    Logitech M325 Wireless Mouse
    Internet Speed
    100 Mbps
    Browser
    Microsoft Edge
    Antivirus
    McAfee LiveSafe

Ghot

Well-known member
Power User
VIP
Thread Starter
Local time
5:06 PM
Posts
1,280
Location
PA, USA
I'm not sure that telling people to just switch to UEFI is a good idea, especially if they are currently using Legacy Boot

Some boards may not activate CSM ( or what ever their board calls this functionality) resulting in a failed boots.

Might suggest they examine what their BIOS / UEFI needs to be set to, to continue booting.


Good point. I added a mention for that. I've also found a work around.
See this topic: Win 11 - PC Health Check Tool - How I passed.

Reminds me of the title of that book in the movie: "Young Frankenstien"... "How I Did It"


My Computers

System One System Two

  • Operating System
    Win 10 Home 10.0.22000.282 (x64)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security 2020
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Ghot

Well-known member
Power User
VIP
Thread Starter
Local time
5:06 PM
Posts
1,280
Location
PA, USA

My Computers

System One System Two

  • Operating System
    Win 10 Home 10.0.22000.282 (x64)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security 2020
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Fabler2

Well-known member
Member
VIP
Local time
10:06 PM
Posts
613

My Computers

System One System Two

  • Operating System
    Win 10 Home
    Computer type
    Laptop
    Manufacturer/Model
    ASUS VivoBook
    CPU
    AMD Ryzen 7 3700U with Radeon Vega Mobile Gfx
    Motherboard
    ASUSTeK COMPUTER INC. X509DA (FP5)
    Memory
    12GB
    Graphics Card(s)
    RX Vega 10 Graphics
    Monitor(s) Displays
    Generic PnP Monitor (1920x1080@60Hz)
    Screen Resolution
    1920x1080@60Hz
    Hard Drives
    INTEL SSD 660p 512GB NVMe
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER
    CPU
    AMD Ryzen 7 5800H / 3.2 GHz
    Motherboard
    CZ Scala_CAS (FP6)
    Memory
    16 GB (2 x 8 GB) DDR4 SDRAM 3200 MHz
    Graphics card(s)
    NVIDIA GeForce RTX 3060 6 GB GDDR6 SDRAM
    Sound Card
    Realtek Audio. NVIDIA High Definition Audio
    Monitor(s) Displays
    15.6" LED backlight 1920 x 1080 (Full HD) 144 Hz
    Screen Resolution
    1920 x 1080 (Full HD)
    Hard Drives
    1.024 TB SSD M.2 2280 - Samsung
    PSU
    180 Watt, 19.5 V
    Mouse
    Logitech
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender

Ghot

Well-known member
Power User
VIP
Thread Starter
Local time
5:06 PM
Posts
1,280
Location
PA, USA

My Computers

System One System Two

  • Operating System
    Win 10 Home 10.0.22000.282 (x64)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security 2020
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Fabler2

Well-known member
Member
VIP
Local time
10:06 PM
Posts
613

My Computers

System One System Two

  • Operating System
    Win 10 Home
    Computer type
    Laptop
    Manufacturer/Model
    ASUS VivoBook
    CPU
    AMD Ryzen 7 3700U with Radeon Vega Mobile Gfx
    Motherboard
    ASUSTeK COMPUTER INC. X509DA (FP5)
    Memory
    12GB
    Graphics Card(s)
    RX Vega 10 Graphics
    Monitor(s) Displays
    Generic PnP Monitor (1920x1080@60Hz)
    Screen Resolution
    1920x1080@60Hz
    Hard Drives
    INTEL SSD 660p 512GB NVMe
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER
    CPU
    AMD Ryzen 7 5800H / 3.2 GHz
    Motherboard
    CZ Scala_CAS (FP6)
    Memory
    16 GB (2 x 8 GB) DDR4 SDRAM 3200 MHz
    Graphics card(s)
    NVIDIA GeForce RTX 3060 6 GB GDDR6 SDRAM
    Sound Card
    Realtek Audio. NVIDIA High Definition Audio
    Monitor(s) Displays
    15.6" LED backlight 1920 x 1080 (Full HD) 144 Hz
    Screen Resolution
    1920 x 1080 (Full HD)
    Hard Drives
    1.024 TB SSD M.2 2280 - Samsung
    PSU
    180 Watt, 19.5 V
    Mouse
    Logitech
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender

Ghot

Well-known member
Power User
VIP
Thread Starter
Local time
5:06 PM
Posts
1,280
Location
PA, USA
Just updated Macrium :)




.


Got me bro... Maybe when the GitHub tool gets the next update.
But you've passed the MS Tools, so you're good to go. :)


My Computers

System One System Two

  • Operating System
    Win 10 Home 10.0.22000.282 (x64)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security 2020
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Fabler2

Well-known member
Member
VIP
Local time
10:06 PM
Posts
613
Got me bro... Maybe when the GitHub tool gets the next update.
But you've passed the MS Tools, so you're good to go. :)

And Macrium doesn't read the SD card 😁


My Computers

System One System Two

  • Operating System
    Win 10 Home
    Computer type
    Laptop
    Manufacturer/Model
    ASUS VivoBook
    CPU
    AMD Ryzen 7 3700U with Radeon Vega Mobile Gfx
    Motherboard
    ASUSTeK COMPUTER INC. X509DA (FP5)
    Memory
    12GB
    Graphics Card(s)
    RX Vega 10 Graphics
    Monitor(s) Displays
    Generic PnP Monitor (1920x1080@60Hz)
    Screen Resolution
    1920x1080@60Hz
    Hard Drives
    INTEL SSD 660p 512GB NVMe
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER
    CPU
    AMD Ryzen 7 5800H / 3.2 GHz
    Motherboard
    CZ Scala_CAS (FP6)
    Memory
    16 GB (2 x 8 GB) DDR4 SDRAM 3200 MHz
    Graphics card(s)
    NVIDIA GeForce RTX 3060 6 GB GDDR6 SDRAM
    Sound Card
    Realtek Audio. NVIDIA High Definition Audio
    Monitor(s) Displays
    15.6" LED backlight 1920 x 1080 (Full HD) 144 Hz
    Screen Resolution
    1920 x 1080 (Full HD)
    Hard Drives
    1.024 TB SSD M.2 2280 - Samsung
    PSU
    180 Watt, 19.5 V
    Mouse
    Logitech
    Internet Speed
    25 Mbps
    Browser
    Edge
    Antivirus
    Defender

lafargeotte

Member
Local time
11:06 PM
Posts
7
Location
France
CPU fails - AMD Ryzen 5 1600 6 CoreCapture.JPG


My Computer

System One

  • Operating System
    Windows 10
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom Build
    CPU
    AMS Ryzen 5 1600 - 6 Core
    Motherboard
    Asus
    Memory
    16GB
    Graphics Card(s)
    Nvidia 1030GT
    Monitor(s) Displays
    LG24

Ghot

Well-known member
Power User
VIP
Thread Starter
Local time
5:06 PM
Posts
1,280
Location
PA, USA
CPU fails - AMD Ryzen 5 1600 6 CoreView attachment 868



Yeah... the 1000 series AMD CPUs don't seem to be on the list of Compatible processors.
I would take a wait and see approach. The Supported Processors list may get... updated, and/or workarounds may be found.


My Computers

System One System Two

  • Operating System
    Win 10 Home 10.0.22000.282 (x64)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security 2020
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

lafargeotte

Member
Local time
11:06 PM
Posts
7
Location
France
Yeah... the 1000 series AMD CPUs don't seem to be on the list of Compatible processors.
I would take a wait and see approach. The Supported Processors list may get... updated, and/or workarounds may be found.
Yes, that is my hope.


My Computer

System One

  • Operating System
    Windows 10
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom Build
    CPU
    AMS Ryzen 5 1600 - 6 Core
    Motherboard
    Asus
    Memory
    16GB
    Graphics Card(s)
    Nvidia 1030GT
    Monitor(s) Displays
    LG24

steve

New member
Local time
10:06 PM
Posts
3
The family have a 3 year old Dell XPS13 I7 7 gen and a HP spectre x360 i7 8 gen neither of which pass the MS cpu compatability tests, WTF is going on M££££$$$$

Last edited:

My Computer

System One

  • Operating System
    windows 10
    Computer type
    Laptop
    Manufacturer/Model
    dell
    CPU
    i7 7500
    Motherboard
    xps 13 9360
    Hard Drives
    ssd
Top Bottom
