Most people assign far too much Disk space to the Windows system


Does anyone besides me have an Ultimate X12 Backgrounds folder in C:\Users\Public\Public Pictures?
Public Pictures is an empty folder for me.


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom built
    CPU
    AMD Ryzen 5 5600X
    Motherboard
    MSI B550-A Pro
    Memory
    16 GB Corsair Vengeance LPX DDR4-3200
    Graphics Card(s)
    PowerColor Red Devil Radeon RX 6600XT with 8GB GDDR6
    Sound Card
    Realtek integrated
    Monitor(s) Displays
    Acer Nitro 24" RG241Y 144hz refresh rate
    Screen Resolution
    1920 X 1080
    Hard Drives
    Western Digital Black SN770 1 TB NVMe SSD
    Samsung 860 QVO 1 TB SATA SSD
    Seagate Barracuda 1 TB HDD
    PSU
    LEPA B650 650 watt
    Case
    Enermax Coenus
    Cooling
    Cooler Master Hyper T4 air
    Keyboard
    CM Storm Devastator
    Mouse
    E-Blue Cobra Jr.
    Internet Speed
    100mbs
    Browser
    Microsoft Edge Chromium
    Antivirus
    Microsoft Defender
    Other Info
    Optical Drives: LG DVD-RW and Pioneer BluRay/ DVD burner
  • Operating System
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Asus ROG Zephyrus G14
    CPU
    AMD Ryzen 9 6900HS
    Motherboard
    Asus board (GA402RK)
    Memory
    16 GB Samsung DDR5-4800
    Graphics card(s)
    Integrated Radeon 680M and discrete Radeon RX 6800S with 8GB GDDR6
    Sound Card
    Integrated Realtek with Dolby Atmos
    Monitor(s) Displays
    Laptop screen 14" WQXGA, IPS, 120hz refresh rate
    Screen Resolution
    2560 X 1600
    Hard Drives
    1TB PCIe Gen 4 SSD (WD Black SN850)
    PSU
    Battery power and Asus power brick/adapter. Also has USB-C charging
    Case
    Laptop
    Cooling
    Laptop fans in vapor chamber
    Mouse
    Touchpad and Omoton bluetooth mouse
    Keyboard
    Built in RGB backlit
    Internet Speed
    100mbps
    Browser
    Edge Chromium
    Antivirus
    Microsoft Defender
Hi folks

On this system I allocated 60 GB of which only around 50% is used.




Cheers
jimbo
How come only 60GB is enough, my windows 11 with Office Home 2019, Firefox, chrome and windows games (like Chess, Free Cell) and a few VPNs takes up 60GB. Of course, when fresh installed, it does take up around 30GB and soon after all the updates goes back to 60GB !


My Computer

System One

  • OS
    Windows 11 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Assembled
    CPU
    Intel i7-7700k
    Motherboard
    Asrock Z270 Taichi
    Memory
    16 GB
    Graphics Card(s)
    Intel 630 onboard
    Sound Card
    Onboard
    Monitor(s) Displays
    Benq 1080p
    Screen Resolution
    1920*1080
    Hard Drives
    NVMe, SSD and HDD
    Case
    Cooler Master
    Keyboard
    Asus wireless
    Mouse
    Asus Wireless
    Internet Speed
    75 Mbps
    Browser
    Chrome, Edge, Arc
    Antivirus
    Windows Defender
when fresh installed, it does take up around 30GB and soon after all the updates goes back to 60GB !
If cleaned up regularly it should go back down again.

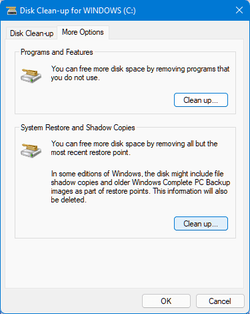

I run the command Dism.exe /online /Cleanup-Image /StartComponentCleanup after each Patch Tuesday cumulative update.

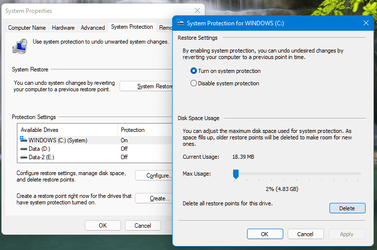

It's also a good idea to clean up restore points, they can add up to quite a few GB. Either use Disk Clean-up to delete all but the latest one, or configure System Protection and delete them all.



Last edited:

My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Internet Speed
    50 Mbps
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022. It got the 23H2 Feature Update on 4th November 2023 through Windows Update.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro (and all my Hyper-V VMs).

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 256GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro RTM and Insider Beta as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro, plus the Insider Beta, Dev, and Canary builds as a native boot .vhdx.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    Intel® Core™ i5-520M
    Motherboard
    0T6M8G
    Memory
    8GB
    Graphics card(s)
    (integrated graphics) Intel HD Graphics
    Screen Resolution
    1366x768
    Hard Drives
    500GB Crucial MX500 SSD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround. Feature Update to 23H2 by manually installing the Enablement Package.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro (and all my Hyper-V VMs).

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 256GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro RTM and Insider Beta as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro, plus the Insider Beta, Dev, and Canary builds as a native boot .vhdx.
60GB if you use the computer for browsing or a server. Or if it is just a back-up system. 60GB will not work for most users.
I usually have separate drives for OS (M.2) , data (HDD) and Insider preview (SSD). I partition the data drive to contain files and games. All apps are in the main system drive. As you can see in the screenshot below, 512GB M.2 OS drive is overkill but I don't want to worry about drive space.
Videos, photos and other files are stored in NAS.


Last edited:

My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 9 3900X
    Motherboard
    MSI MPG Gaming Edge Wifi (X570)
    Memory
    32GB Adata XPG DDR4
    Graphics Card(s)
    ASUS GTX 1070 8GB ROG
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Main Boot Drive : 512GB Adata XPG RGB Gen3x4 NVMe M.2 SSD
    PSU
    EVGA 600 Watts Gold
    Case
    Deepcool Genome II
    Cooling
    Deepcool Fryzen
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    "Moderna"
  • Operating System
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    i7-4790K
    Motherboard
    ASRock Xtreme6 Z97
    Memory
    16GB Corsair Vengeance Pro
    Graphics card(s)
    MSI R9 290
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung M.2
    PSU
    Thermaltake 475 Watts 80 Bronze
    Case
    Thermaltake Commander I Snow Edition
    Cooling
    Deep Cool Archer Air Cooler
    Mouse
    Logitech G402
    Keyboard
    Armageddon MKA-5R RGB-Hornet
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    Moderna :)
Hi folks

If you organise your HDD's etc properly you can get a reasonable size Windows installation on quite a small anount of HDD disk space.
It should go without saying that only the OS and installed apps e.g Ms Office / Photoshop etc should reside on the system disk or partition and all user data and other files should be on other scratch partitions. Apart from not having to recover all your user data if you need to recover the OS you can backup the OS much quicker etc etc.

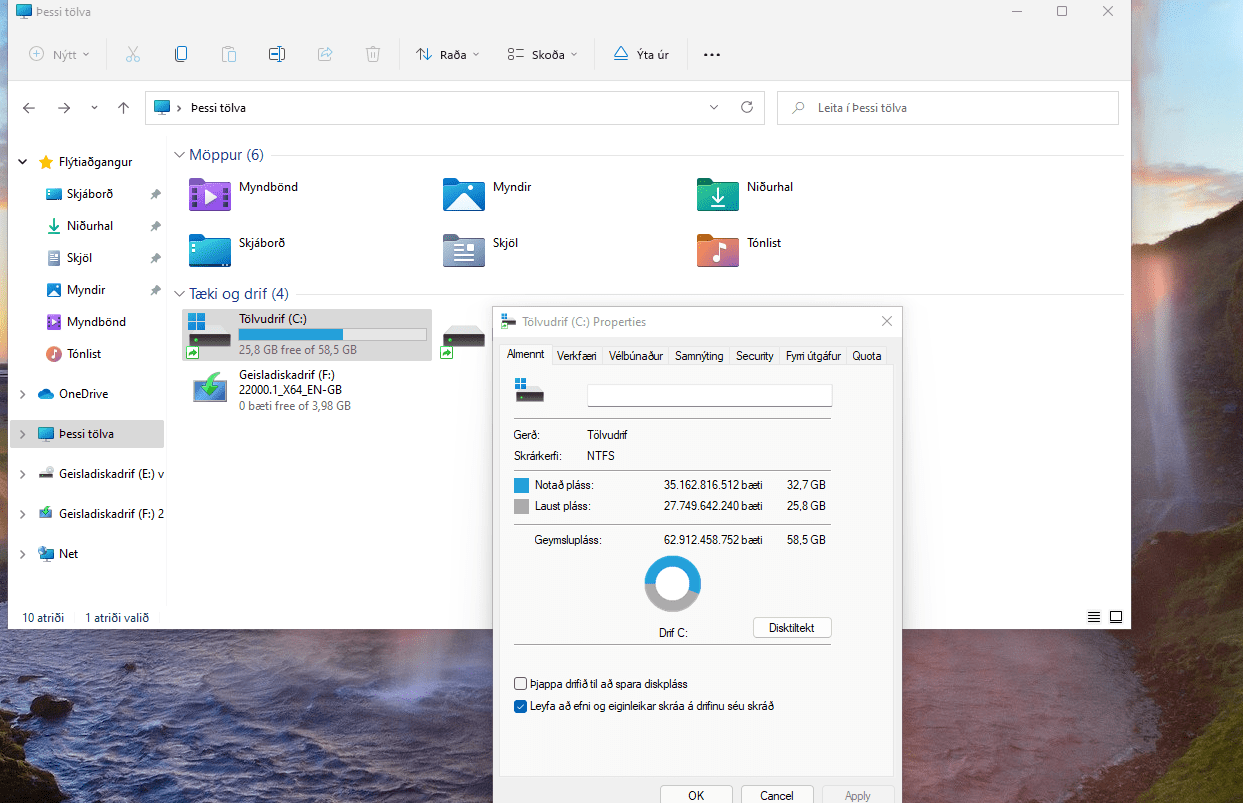

On this system I allocated 60 GB of which only around 50% is used.
I always wonder what people have on their Windows machines when I see an entire 512GB SSD assigned to the windows OS. !!

View attachment 22871

Cheers
jimbo
I have used Windows for several years with just 60 GB assigned to the OS and Programs partition (I install all programs in the same partition as the OS). I have always had about 25% free space.

I think 60 to 120 GB should be good enough for most users. Anything more than that is unnecessary space allocation IMO, unless there is a specific requirement.

The OS must be installed in a separate partition because it has very important benefits. I always keep my files in a separate partition.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy dv7
    CPU
    Intel Core i7 3630QM
    Motherboard
    HP
    Memory
    16 GB
    Graphics Card(s)
    Intel HD Graphics 4000 & Nvidia GeForce GT 635M
    Sound Card
    IDT High Definition
    Screen Resolution
    1080p
    Hard Drives
    1 TB Crucial MX500 on bay 1.
    1 TB Seagate HDD on bay 2.
    Antivirus
    Windows Defender
I got a new ASUS Desktop over 5 years ago, came with a 1TB HDD factory split as 150GB C:\OS and 780GB D:\DATA. I set my browsers to save downloads in the appropriate folder on D:, when that can't be done I move the data from the default on C: over to D: and install most programs on D:.


My Computers

System One System Two

  • OS
    Win11 Pro RTM
    Computer type
    Laptop
    Manufacturer/Model
    Dell Vostro 3400
    CPU
    Intel Core i5 11th Gen. 2.40GHz
    Memory
    12GB
    Hard Drives
    256GB SSD NVMe
  • Operating System
    Windows 11 Pro RTM x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 5890
    CPU
    Intel Core i5 10th Gen. 2.90GHz
    Memory
    16GB
    Graphics card(s)
    Onboard, no VGA, using a DisplayPort-to-VGA adapter
    Monitor(s) Displays
    24" Dell
    Hard Drives
    512GB SSD NVMe, 2TB WDC HDD
    Browser
    Firefox, Edge
    Antivirus
    Windows Defender/Microsoft Security
The OS must be installed in a separate partition because it has very important benefits. I always keep my files in a separate partition.

Care to explain what the importance of having your OS alone on it's own partition and your files in another partition?

If you like to reinstall your OS all of the time, I could see keeping your files on another drive so they don't get wiped and have to be restored....but for somebody who doesn't repeatedly install...that won't be much of a concern.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Beelink SEI8
    CPU
    Intel Core i5-8279u
    Motherboard
    AZW SEI
    Memory
    32GB DDR4 2666Mhz
    Graphics Card(s)
    Intel Iris Plus 655
    Sound Card
    Intel SST
    Monitor(s) Displays
    Asus ProArt PA278QV
    Screen Resolution
    2560x1440
    Hard Drives
    512GB NVMe
    PSU
    NA
    Case
    NA
    Cooling
    NA
    Keyboard
    NA
    Mouse
    NA
    Internet Speed
    500/50
    Browser
    Edge
    Antivirus
    Defender
    Other Info
    Mini PC used for testing Windows 11.
  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom
    CPU
    Ryzen 9 5900x
    Motherboard
    Asus Rog Strix X570-E Gaming
    Memory
    64GB DDR4-3600
    Graphics card(s)
    EVGA GeForce 3080 FT3 Ultra
    Sound Card
    Onboard
    Monitor(s) Displays
    ASUS TUF Gaming VG27AQ. ASUS ProArt Display PA278QV 27” WQHD
    Screen Resolution
    2560x1440
    Hard Drives
    2TB WD SN850 PCI-E Gen 4 NVMe
    2TB Sandisk Ultra 2.5" SATA SSD
    PSU
    Seasonic Focus 850
    Case
    Fractal Meshify S2 in White
    Cooling
    Dark Rock Pro CPU cooler, 3 x 140mm case fans
    Mouse
    Logitech G9 Laser Mouse
    Keyboard
    Corsiar K65 RGB Lux
    Internet Speed
    500/50
    Browser
    Chrome
    Antivirus
    Defender.
Care to explain what the importance of having your OS alone on it's own partition and your files in another partition?

If you like to reinstall your OS all of the time, I could see keeping your files on another drive so they don't get wiped and have to be restored....but for somebody who doesn't repeatedly install...that won't be much of a concern.
Hi there.

some times you might want to switch data files (e.g music, other multi-media, photoshop scratch files / work in progress etc) to another computer or in the case say of a NAS you might want to try a different OS / system. What about those who "Dual or triple" boot too -- you might well want to keep the same data files.

I've been testing Windows 2022 server recently -- still nice to have my data files available without any extra hassle by simply enabling file sharing from attached devices.

I can see plenty of valid reasons for keeping data separate to the OS. Even if you backup the OS regularly you will have much larger backups and on restore your data files could be seriously "back levelled" if you dont exercise a lot of care in the process. My experience is that even incredibly organised people get themselves into a state of "organised chaos" when sitting at a computer screen.

Cheers
jimbo


My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7
Care to explain what the importance of having your OS alone on it's own partition and your files in another partition?

If you like to reinstall your OS all of the time, I could see keeping your files on another drive so they don't get wiped and have to be restored....but for somebody who doesn't repeatedly install...that won't be much of a concern.
1. In the event of the system acting up, you can quickly do a clean install or restore a backup. No need to spend time backing up and restoring your files.

2. Same holds true if the system is infected with malware, or becomes corrupt or unbootable for any reason.

3. System backups and restore are superfast when user files are kept separate.

4. If you use cloud services like OneDrive, Google Drive, Dropbox, etc. the files do not have to download again, in case of a clean install or restoring a backup.

To put it simply, your files are much safer and managing the system becomes a fast and time-efficient process.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy dv7
    CPU
    Intel Core i7 3630QM
    Motherboard
    HP
    Memory
    16 GB
    Graphics Card(s)
    Intel HD Graphics 4000 & Nvidia GeForce GT 635M
    Sound Card
    IDT High Definition
    Screen Resolution
    1080p
    Hard Drives
    1 TB Crucial MX500 on bay 1.
    1 TB Seagate HDD on bay 2.
    Antivirus
    Windows Defender
I see what you are getting at. I guess it doesn't apply to me as much as I have a file server at home that handles all of my actual important files and for other files they are in OneDrive, so have them at home as well as in the cloud.

For enthusiasts I can see some wanting to separate files. for the general population though, i think it's probably a good thing for them to backup their files along with their OS when they make an image. Unlike us, they are likely not dual booting and wouldn't want to set anything up after a restore. The sad truth is probably that the vast majority of people are not backing up their files anyway on a regular basis. I think the cloud storage option has at least helped with that.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Beelink SEI8
    CPU
    Intel Core i5-8279u
    Motherboard
    AZW SEI
    Memory
    32GB DDR4 2666Mhz
    Graphics Card(s)
    Intel Iris Plus 655
    Sound Card
    Intel SST
    Monitor(s) Displays
    Asus ProArt PA278QV
    Screen Resolution
    2560x1440
    Hard Drives
    512GB NVMe
    PSU
    NA
    Case
    NA
    Cooling
    NA
    Keyboard
    NA
    Mouse
    NA
    Internet Speed
    500/50
    Browser
    Edge
    Antivirus
    Defender
    Other Info
    Mini PC used for testing Windows 11.
  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom
    CPU
    Ryzen 9 5900x
    Motherboard
    Asus Rog Strix X570-E Gaming
    Memory
    64GB DDR4-3600
    Graphics card(s)
    EVGA GeForce 3080 FT3 Ultra
    Sound Card
    Onboard
    Monitor(s) Displays
    ASUS TUF Gaming VG27AQ. ASUS ProArt Display PA278QV 27” WQHD
    Screen Resolution
    2560x1440
    Hard Drives
    2TB WD SN850 PCI-E Gen 4 NVMe
    2TB Sandisk Ultra 2.5" SATA SSD
    PSU
    Seasonic Focus 850
    Case
    Fractal Meshify S2 in White
    Cooling
    Dark Rock Pro CPU cooler, 3 x 140mm case fans
    Mouse
    Logitech G9 Laser Mouse
    Keyboard
    Corsiar K65 RGB Lux
    Internet Speed
    500/50
    Browser
    Chrome
    Antivirus
    Defender.
Care to explain what the importance of having your OS alone on it's own partition and your files in another partition?

If you like to reinstall your OS all of the time, I could see keeping your files on another drive so they don't get wiped and have to be restored....but for somebody who doesn't repeatedly install...that won't be much of a concern.
It is faster to make an image backup if your have all you data in separate drive or partition. And also faster to re-image from backup because you don't have to copy your data back and forth.

Last edited:

My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 9 3900X
    Motherboard
    MSI MPG Gaming Edge Wifi (X570)
    Memory
    32GB Adata XPG DDR4
    Graphics Card(s)
    ASUS GTX 1070 8GB ROG
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Main Boot Drive : 512GB Adata XPG RGB Gen3x4 NVMe M.2 SSD
    PSU
    EVGA 600 Watts Gold
    Case
    Deepcool Genome II
    Cooling
    Deepcool Fryzen
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    "Moderna"
  • Operating System
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    i7-4790K
    Motherboard
    ASRock Xtreme6 Z97
    Memory
    16GB Corsair Vengeance Pro
    Graphics card(s)
    MSI R9 290
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung M.2
    PSU
    Thermaltake 475 Watts 80 Bronze
    Case
    Thermaltake Commander I Snow Edition
    Cooling
    Deep Cool Archer Air Cooler
    Mouse
    Logitech G402
    Keyboard
    Armageddon MKA-5R RGB-Hornet
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    Moderna :)
My experience is that even incredibly organised people get themselves into a state of "organised chaos" when sitting at a computer screen.
Examples would be illuminating.


My Computer

System One

  • OS
    Windows 10 Pro
I'm running W11 insider dev of separate SSD. Not much SW installed just some test and benchmark programs,



My Computer

System One

  • OS
    W10 and Insider Dev.+ Linux Mint
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home brewed
    CPU
    AMD Ryzen 9 7900x
    Motherboard
    ASROCK b650 PRO RS
    Memory
    2x8GB Kingston 6000MHz, Cl 32 @ 6200MHz Cl30
    Graphics Card(s)
    Gigabyte Rx 6600XT Gaming OC 8G Pro
    Sound Card
    MB, Realtek Ac1220p
    Monitor(s) Displays
    3 x 27"
    Screen Resolution
    1080p
    Hard Drives
    Kingston KC3000. 1TBSamsung 970 evo Plus 500GB, Crucial P1 NVMe 1TB, Lexar NVMe 2 TB, Silicon Power M.2 SATA 500GB
    PSU
    Seasonic 750W
    Case
    Custom Raidmax
    Cooling
    Arctic Liquid Freezer III 360mm
    Internet Speed
    20/19 mbps
I have a 2TB NVMe drive, one partition is 256GB for Windows, the rest is used for games (which can take a LOT of space!)
I also have another two 1TB NVMe drives - one is like a Windows 'extension' drive where I keep things like the browser caches, Virtual machines.
The other 1TB is my drive for personal files


My Computer

System One

  • OS
    Windows 11 Pro 23H2 (RP channel)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Gigabyte
    CPU
    AMD Ryzen 5900X 12-core
    Motherboard
    X570 Aorus Xtreme
    Memory
    64GB Corsair Platinum RGB 3600MHz CL16
    Graphics Card(s)
    MSI Suprim X 3080 Ti
    Sound Card
    Soundblaster AE-5 Plus
    Monitor(s) Displays
    ASUS TUF Gaming VG289Q
    Screen Resolution
    3840x2160
    Hard Drives
    Samsung 990 Pro 2TB
    Samsung 980 Pro 2TB
    Samsung 970 Evo Plus 1TB
    Samsung 870 Evo 4TB
    Samsung T7 Touch 1TB
    PSU
    Asus ROG Strix 1000W
    Case
    Corsair D750 Airflow
    Cooling
    Noctua NH-D15S
    Keyboard
    Asus ROG Flare
    Mouse
    Logitech G903 with PowerPlay charger
    Internet Speed
    500Mb/sec
    Browser
    Microsoft Edge
    Antivirus
    Windows Defender
You have to adjust you hardware to your needs, I always have a separate physical drive for my OS - the Standard data folders are moved to another drive or partition using windows own "Location" option.

This desktop was put together less than a year ago and was populated from scratch (Data was already located on a data drive transferred from the previous system.

Windows is on a one Terabyte NVME and currently stands at around 260GB with the program files folders taking around 65 GB, but the programs I use also add a lot of internal data on the system drive, [and the added extras, Filters, replacement skys, overlays Etc Etc are all located on data areas on other drives].

Now my setup is not your average home system, as I use a lot of Image processing software that is complex and takes up space. I move a lot of the temporary processing data to another SSD of 500GB whilst processing so the current System drive could handle this itself, though the separation does increase overall performance by splitting the Read/Write over two devices


My Computers

System One System Two

  • OS
    Windows 11 Pro x64 [Latest Release Preview] [Win11 PRO HighEnd MUP-00005 DD]
    Computer type
    PC/Desktop
    Manufacturer/Model
    Scan 3XS to my design
    CPU
    AMD RYZEN 9 7950X OEM
    Motherboard
    *3XS*ASUS TUF B650 PLUS WIFI
    Memory
    64GB [2x32GB Corsair Vengeance 560 AMD DDR5]
    Graphics Card(s)
    3XS* ASUS DUAL RTX 4060 OC 8G
    Sound Card
    On motherboard Feeding SPDiF 5.1 system [plus local sound to each monitor]
    Monitor(s) Displays
    32" UHD 32 Bit HDR Monitor + 43" UHD 4K 32Bit HDR TV
    Screen Resolution
    2 x 3840 x 2160
    Hard Drives
    3XS Samsung 980Pro 2TB M.2 PCIe4 4 x 8TB Data + Various Externals from 1TB to 8TB, 10TB NAS
    PSU
    3XS Corsair RM850x 850w Fully Modular
    Case
    FDesign Define 7 XL BK TGL Case - Black
    Cooling
    3XS iCUE H150i ELITE Liquid Cool, Quiet Case fans
    Keyboard
    Wireless Logitec MX Keys + K830 [Depending on where I'm Sat]
    Mouse
    Wireless Logitec - MX Master 3S +
    Internet Speed
    950 MB Down 55 MB Up
    Browser
    Latest Chrome
    Antivirus
    BitDefender Total Security [Latest]
    Other Info
    Also run...
    Dell XPS 17 Laptop
    HP Laptop 8GB - Windows 10 Pro x64 HP 15.2"
    Nexus 7 Android tablet [x2]
    Samsung 10.2" tablet
    Blackview 10.2 Tablet
    Sony Z3 Android Smartphone
    Samsung S9 Plus Smartphone
    Wacom Pro Medium Pen Pad
    Wacom Pro Small Pen Pad
    Wacom ExpressKey Remote
    Loopdeck+ Graphics Controller
    Shuttle Pro v2 Control Pad
  • Operating System
    Windows 11 Pro x64 [Latest release]
    Computer type
    Laptop
    Manufacturer/Model
    Dell XPS 17 9700
    CPU
    i7 10750H
    Motherboard
    Stock
    Memory
    32 GB
    Graphics card(s)
    Stock Intel + GTX 1650 Ti
    Sound Card
    Stock 4 speaker
    Monitor(s) Displays
    Stock 17" + 32" 4K 3840 x 2160 HDR-10
    Screen Resolution
    3840 x 2400 HDR touchscreen
    Hard Drives
    2TB M2 NVMe
    PSU
    Stock
    Case
    Stock Aluminium / Carbon Fibre
    Cooling
    Stock + 2 fan cooling pad
    Mouse
    Stock Trackpad +Logi Mx Master 3 or MX Ergo Trackball
    Keyboard
    Stock Illuminated + Logi - MX Keys
    Internet Speed
    950 MB Down 55 MB Up
    Browser
    Latest Chrome
    Antivirus
    BitDefender Total Security 2021
    Other Info
    Also use an Adjustable Support for Laptop and Adjustable stand for monitor
Examples would be illuminating.
I'm sure we've all seen sufficient examples -- of course some aren't but it's amazing how many are.

Cheers
jimbo


My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7
You have to adjust you hardware to your needs, I always have a separate physical drive for my OS - the Standard data folders are moved to another drive or partition using windows own "Location" option.

This desktop was put together less than a year ago and was populated from scratch (Data was already located on a data drive transferred from the previous system.

Windows is on a one Terabyte NVME and currently stands at around 260GB with the program files folders taking around 65 GB, but the programs I use also add a lot of internal data on the system drive, [and the added extras, Filters, replacement skys, overlays Etc Etc are all located on data areas on other drives].

Now my setup is not your average home system, as I use a lot of Image processing software that is complex and takes up space. I move a lot of the temporary processing data to another SSD of 500GB whilst processing so the current System drive could handle this itself, though the separation does increase overall performance by splitting the Read/Write over two devices
Photoshop is also a great case where having the scratch files and layers on fast SSD /Nvme drives makes a lot of sense whatever Windows version or computer hardware you are running -- same if you use things like GIMP etc.

Processing a professional quality A3 or even A2 poster size quality print from a professional high end digital camera takes a lot of work and processing !!!!

Cheers
jimbo


My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7
I have an old and dusty 4790K backup rig running different OS at one time. The only drive permanently installed is a data drive.





My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 9 3900X
    Motherboard
    MSI MPG Gaming Edge Wifi (X570)
    Memory
    32GB Adata XPG DDR4
    Graphics Card(s)
    ASUS GTX 1070 8GB ROG
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Main Boot Drive : 512GB Adata XPG RGB Gen3x4 NVMe M.2 SSD
    PSU
    EVGA 600 Watts Gold
    Case
    Deepcool Genome II
    Cooling
    Deepcool Fryzen
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    "Moderna"
  • Operating System
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    i7-4790K
    Motherboard
    ASRock Xtreme6 Z97
    Memory
    16GB Corsair Vengeance Pro
    Graphics card(s)
    MSI R9 290
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung M.2
    PSU
    Thermaltake 475 Watts 80 Bronze
    Case
    Thermaltake Commander I Snow Edition
    Cooling
    Deep Cool Archer Air Cooler
    Mouse
    Logitech G402
    Keyboard
    Armageddon MKA-5R RGB-Hornet
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    Moderna :)

Latest Support Threads

Back
Top Bottom
