New SSD on a win 11 computer, need to clone the HDD problem drive to new SSD


netrate

Member
Local time
5:06 AM
Posts
20
OS
Win 11
I have a laptop that is win 11 with the MS word suite on it (and the customers files). I think it was purchased from walmart or where ever, so the suite came with the laptop.

The hard drive has become an issue, so I installed the new SSD and that seems to have solved the issue. However, I need to take the info and the OS from the old HDD and place it on the new SSD so they can have all of their files, MS word etc.

What would the steps to go about this? I was thinking Macrium reflect to clone the HDD, but I am unsure how to do this considering the old HDD is not working great (it is causing major slowdowns) and it has been removed the system.

I was thinking about using two USB enclosures AND a separate system and clone it that way - is that the best method? Does anyone have another suggestion?


My Computer

System One

  • OS
    Win 11
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Athlon
    Memory
    4 gig
    Graphics Card(s)
    Radeon graphics 2.30
    Other Info
    Win 11 home 226213007
you can use recover keys


My Computer

System One

  • OS
    WIN 11 PRO
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell xps 8940
    CPU
    i-7
    Memory
    16
I just used a USB to SSD adapter. No problems.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Intel NUC 10i5FNH - Lenovo A510 desktop -- Lenovo Laptop -- Acer laptop
    CPU
    i510210u
    Motherboard
    Intel
    Memory
    16g - 16g - 8g -8g
    Graphics Card(s)
    CPU
    Monitor(s) Displays
    acer 21 inch
    Screen Resolution
    1920x1080
    Hard Drives
    500g ssd
    500g spinner
    Keyboard
    cheap from Walmart
    Mouse
    cheap from Walmart
    Internet Speed
    109mbs
    Browser
    Chrome + FireFox+Waterfox+Brave+Edge
    Antivirus
    Emsisoft + Malwarebytes
  • Operating System
    Win 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Lenovo 510
    CPU
    I5
    Motherboard
    Lenovo
    Memory
    16g
    Graphics card(s)
    cpu
    Monitor(s) Displays
    20 inch
    Hard Drives
    SSD
    Internet Speed
    109mbs
    Antivirus
    Emsisoft + Malwarebytes Free
KWEB : how does that work?


My Computer

System One

  • OS
    Win 11
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Athlon
    Memory
    4 gig
    Graphics Card(s)
    Radeon graphics 2.30
    Other Info
    Win 11 home 226213007
It gets power from the USB port which works OK because the SSD doesn't use much power. Not sure where I got, Ebay or Newegg. Check your USB port, if it supplies enough power. You can get an ISO and install WIN11 since your computer has a license already. Moving programs is the only problem.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Intel NUC 10i5FNH - Lenovo A510 desktop -- Lenovo Laptop -- Acer laptop
    CPU
    i510210u
    Motherboard
    Intel
    Memory
    16g - 16g - 8g -8g
    Graphics Card(s)
    CPU
    Monitor(s) Displays
    acer 21 inch
    Screen Resolution
    1920x1080
    Hard Drives
    500g ssd
    500g spinner
    Keyboard
    cheap from Walmart
    Mouse
    cheap from Walmart
    Internet Speed
    109mbs
    Browser
    Chrome + FireFox+Waterfox+Brave+Edge
    Antivirus
    Emsisoft + Malwarebytes
  • Operating System
    Win 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Lenovo 510
    CPU
    I5
    Motherboard
    Lenovo
    Memory
    16g
    Graphics card(s)
    cpu
    Monitor(s) Displays
    20 inch
    Hard Drives
    SSD
    Internet Speed
    109mbs
    Antivirus
    Emsisoft + Malwarebytes Free
What I would have done was to image the HDD (using Macrium Reflect) to an external drive, swapped the new SSD into the laptop, and then used a USB rescue drive to restore the image to the SSD. An image of the HDD would be a good thing to have, in itself.

I suggest getting a USB dock, adapter, or enclosure and imaging the old HDD immediately. I hope that the HDD isn't defective.

You may be able to use a Macrium Reflect rescue USB drive to clone the HDD (adapted to USB) directly to the new SSD. I've not done that, though.


My Computers

System One System Two

  • OS
    Windows 11 22631.2861
    Computer type
    PC/Desktop
    Manufacturer/Model
    homebuilt
    CPU
    Amd Threadripper 7970X
    Motherboard
    Gigabyte TRX50 Aero D
    Memory
    128GB (4 X 32) Kingston DDR5 5200 (RDIMM)
    Graphics Card(s)
    Gigabyte RTX 4090 OC
    Sound Card
    none (USB to speakers), Realtek
    Monitor(s) Displays
    Philips 27E1N8900 OLED
    Screen Resolution
    3840 X 2160 @ 60Hz
    Hard Drives
    Crucial T700 2TB M.2 NVME SSD
    WD 4TB Blue SATA SSD
    Seagate 18TB IronWolf Pro
    PSU
    eVGA SuperNOVA 1600 GT
    Case
    Lian Li 011 Dynamic Evo XL
    Cooling
    Alphacool Eisbaer Pro Aurora 360, with 3 Phanteks T30 fans
    Keyboard
    Logitech K120 (wired)
    Mouse
    Logitech M500s (wired)
    Internet Speed
    1200 Mbps
  • Operating System
    windows 11 22631.2861
    Computer type
    PC/Desktop
    Manufacturer/Model
    homebuilt
    CPU
    Intel I9-13900K
    Motherboard
    Asus RoG Strix Z690-E
    Memory
    64GB G.Skill DDR5-6000
    Graphics card(s)
    Gigabyte RTX 3090 ti
    Sound Card
    built in Realtek
    Monitor(s) Displays
    Asus PA329C
    Screen Resolution
    3840 X 2160 @60Hz
    Hard Drives
    WDC SN850 1TB
    8 TB Seagate Ironwolf
    4TB Seagate Ironwolf
    PSU
    eVGA SuperNOVA 1300 GT
    Case
    Lian Li 011 Dynamic Evo
    Cooling
    Corsair iCUE H150i ELITE CAPELLIX Liquid CPU Cooler
    Mouse
    Logitech M500s (wired)
    Keyboard
    Logitech K120 (wired)
So I have tried to clone the HDD to the SSD, but the HDD is 500 gig and the SSD is 120 gig. The HDD has only 71gigs of used space (enough for the SSD), but I am unsure how to just clone that portion of the HDD drive to the small SSD. Any suggestions?


My Computer

System One

  • OS
    Win 11
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Athlon
    Memory
    4 gig
    Graphics Card(s)
    Radeon graphics 2.30
    Other Info
    Win 11 home 226213007
So I have tried to clone the HDD to the SSD, but the HDD is 500 gig and the SSD is 120 gig. The HDD has only 71gigs of used space (enough for the SSD), but I am unsure how to just clone that portion of the HDD drive to the small SSD. Any suggestions?
That's a small SSD. When I needed to do something lke you want to do, I used the drag and drop a partition to the new drive in Macrium. You should be able to resize the Windows partition so it will fit on the smaller drive.


My Computers

System One System Two

  • OS
    Windows 11 Canary Channel
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Samsung SAM0A87 Samsung SAM0D32
    Screen Resolution
    1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    PSU
    750 Watts (62.5A)
    Case
    PowerSpec/Lian Li ATX 205
    Keyboard
    Logitech K270
    Mouse
    Logitech M185
    Browser
    Microsoft Edge and Firefox
    Antivirus
    ESET Internet Security
  • Operating System
    Windows 11 Canary Channel
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec G156
    CPU
    Intel Core i5-8400 CPU @ 2.80GHz
    Motherboard
    AsusTeK Prime B360M-S
    Memory
    16 MB DDR 4-2666
    Monitor(s) Displays
    23" Speptre HDMI 75Hz
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung 970 EVO 500GB NVMe
    Mouse
    Logitek M185
    Keyboard
    Logitek K270
    Browser
    Firefox, Edge and Edge Canary
    Antivirus
    Windows Defender
I am using the free version of Macrium and I don't see the drag and drop feature. I have now tried to clone the 500 gig to a 256 gig and it says insufficient space, even though only 100gig of space is used on the 500gig drive. I am not tech savvy enough to know how to transfer the info to a smaller drive. I just want the windows OS and the user files so I can boot to win 11.


My Computer

System One

  • OS
    Win 11
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Athlon
    Memory
    4 gig
    Graphics Card(s)
    Radeon graphics 2.30
    Other Info
    Win 11 home 226213007
I just went through this yesterday, was getting tired of doing canary builds so switched my Dell xpx8940 512 ssd to a a 1 T ssd.
for me the key is to make sure you a a Macrium rescue disk, and when you load up the new ssd you will need to do boot from rescue Macrium usb and change bios to ignore boot manager and have the rescue disk correct the boot manager. for me that is what the key is.
If I switch from the new to old ssd I have to redo this to access it, but will be done with the canary builds.


My Computer

System One

  • OS
    WIN 11 PRO
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell xps 8940
    CPU
    i-7
    Memory
    16
I am using the free version of Macrium and I don't see the drag and drop feature. I have now tried to clone the 500 gig to a 256 gig and it says insufficient space, even though only 100gig of space is used on the 500gig drive. I am not tech savvy enough to know how to transfer the info to a smaller drive. I just want the windows OS and the user files so I can boot to win 11.
Then you're going to have to shrink the partition size of drive C so that it's small enough to fit on the smaller drive. It's not the used space, it's the size of the partitions that counts. The total size of all the partition you want to move to the smaller drive have to be equal to or less then the size of the smaller drive. I have the licensed version of Macrium so I don't know first hand if the free version allows the user to drag, drop and resize partitions.


My Computers

System One System Two

  • OS
    Windows 11 Canary Channel
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Samsung SAM0A87 Samsung SAM0D32
    Screen Resolution
    1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    PSU
    750 Watts (62.5A)
    Case
    PowerSpec/Lian Li ATX 205
    Keyboard
    Logitech K270
    Mouse
    Logitech M185
    Browser
    Microsoft Edge and Firefox
    Antivirus
    ESET Internet Security
  • Operating System
    Windows 11 Canary Channel
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec G156
    CPU
    Intel Core i5-8400 CPU @ 2.80GHz
    Motherboard
    AsusTeK Prime B360M-S
    Memory
    16 MB DDR 4-2666
    Monitor(s) Displays
    23" Speptre HDMI 75Hz
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung 970 EVO 500GB NVMe
    Mouse
    Logitek M185
    Keyboard
    Logitek K270
    Browser
    Firefox, Edge and Edge Canary
    Antivirus
    Windows Defender
this a youtube vide that should help you


My Computer

System One

  • OS
    WIN 11 PRO
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell xps 8940
    CPU
    i-7
    Memory
    16
I have the licensed version of Macrium so I don't know first hand if the free version allows the user to drag, drop and resize partitions.

My free version allows drag, drop and resize.

I am using the free version of Macrium and I don't see the drag and drop feature.

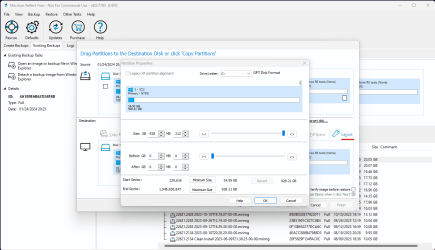

It's not a feature you'll see on any of the menus. First, select the image you wish to restore. then select your target disk.
Now, from the image you want to restore click (and hold) the partition (lets say C drive) you want to copy and drag it to the
appropriate partition on the target disk. Literal Drag and Drop.

Once that's done, click Layout and the resize box appears. Use the slider to resize your disk. Took me a while to figure out. Just play with it
and you'll figure it out too :-)


Last edited:

My Computers

System One System Two

  • OS
    Win 11 Pro 23H2 22631.3235
    Computer type
    PC/Desktop
    Manufacturer/Model
    Me Myself and I
    CPU
    Intel® Core™ i7-12700F
    Motherboard
    ASUS TUF GAMING Z690-PLUS WIFI
    Memory
    G.SKILL Ripjaws S5 Series 64GB (2 x 32GB) DDR5
    Graphics Card(s)
    EVGA GeForce RTX 3050 XC Black Gaming
    Sound Card
    RealTek on-board 7.1
    Monitor(s) Displays
    ASUS TUF Gaming 27" 2K HDR Gaming
    Screen Resolution
    2560 x 1440
    Hard Drives
    Samsung 990 Pro 1TB NVMe (boot)
    SK hynix P41 500GB NVMe (Win 10)
    SK hynix P41 2TB NVMe (x3)
    PSU
    Corsair RM850x Shift
    Case
    Antec Dark Phantom DP502 FLUX
    Cooling
    Noctua NH-U12A chromax.black + 7 Phantek T-30's
    Keyboard
    Logitech MK 320
    Mouse
    Razer Basilisk V3
    Internet Speed
    350Mbs
    Browser
    Firefox
    Antivirus
    Winows Security
    Other Info
    Windows 10 22H2 19045.4123
    On System One
  • Operating System
    Win 11 Pro 23H2 22631.3235
    Computer type
    PC/Desktop
    Manufacturer/Model
    Me Myself and I
    CPU
    Intel Core i7-11700F
    Motherboard
    Asus TUF Gaming Z590 Plus WiFi
    Memory
    64 GB DDR4
    Graphics card(s)
    EVGA RTX 2060 KO Ultra Gaming
    Sound Card
    Realtek
    Monitor(s) Displays
    Samsung F27T350
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung 980 Pro 1TB
    Samsung 970 EVO Plus 2TB
    Samsung 870 EVO 500GB SSD
    PSU
    Corsair HX750
    Case
    Cougar MX330-G Window
    Cooling
    Hyper 212 EVO
    Internet Speed
    350Mbps
    Browser
    Firefox
    Antivirus
    Windows Security
I watched the video and cloned the drive successfully.

I now have an issue when booting - blue screen says it is missing winload.efi file or something. I have gone onto the microsoft site and they send me to a page that doesn't help.

Error : 0xc0000000e

Asking for the recovery disc (which I do not have). Am I able to use the Win 10 media creator this?

Here is the link that did not help :


My Computer

System One

  • OS
    Win 11
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Athlon
    Memory
    4 gig
    Graphics Card(s)
    Radeon graphics 2.30
    Other Info
    Win 11 home 226213007
Ok, I think I know why the issue is here , but I don't know how to resolve it.
When I was cloning I had to drag and drop the partitions into the new smaller drive - but out of order - so I am thinking that is why when trying to boot to the cloned drive, it gives me the error. However, I don't know how to resolve this issue and have tried several website, including this video


My Computer

System One

  • OS
    Win 11
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Athlon
    Memory
    4 gig
    Graphics Card(s)
    Radeon graphics 2.30
    Other Info
    Win 11 home 226213007
I think you need another machine and connect the old and new drives to it, then clone the contents of the old to the new using something like Hasleo (free).


My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom Build
    CPU
    i5-13400F
    Motherboard
    Gigabyte B-760M
    Memory
    16 GB
    Graphics Card(s)
    RTX 4060
    Sound Card
    internal
    Monitor(s) Displays
    AOC 27 gaming
    Screen Resolution
    1920 x 1080
    Hard Drives
    Kingston 2 TB M.2
    PSU
    Thermaltake 700W
    Case
    DarkFlash C285P
You can not reorder the partitions to a different drive and expect it to boot. You can attempt to use Macrium boot media and select "fix boot problems' but I would not bet money in this case but you might get lucky

If you get it to work, IMO, that drive is not large enough. It makes no sense to use a tiny drive that will not handle the needs of the system. The owner will be in a world of hurt when any windows update comes down the pike that creates a windows.old folder. 256 and 512 gb ssd are cheap. You do not say what type of ssd you are using.
If m.2 NVME 256gb are about $25 512gb are about $35 as are m.2 sata. If you are using 2.5" sata ssd prices are about the same as well. (Amazon prices)


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 22631.3155
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    1tb Solidigm m.2 +256gb ssd+512 gb usb m.2 sata
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 22H2 19045.3930
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
Back
Top Bottom
