Questions on SSD problem


Mike C555

Member
Local time
2:34 PM
Posts
43
OS
Windows 11 pro
My brand new (2 months old) Dell XPS8960 has run into boot up problems and I'm only able to interrogate it via the command prompt window (the machine makes it to 'post'). It has a single 2T PCIe M.2 SSD and is showiing as the 'X' drive. The DIR command list folders for Program Files, Program FIles (X86), Sources, Users and Windows. A file is also listed called 'OfflineRecEnvTrace/etl. The Windows folder has System32 subfolder, which has windows-related files. The Users folder has the subfolder 'Public', which has Sources folder has 'folders for documents, photos, etc., but they're all empty.
I have (had?) several hundred GB of personal data on the drive in a 'My Documnets' folder when this problem occurred. Some of it is backed up on a portable HD, but some is not. I would like to recover the data, whos disappearance I suspect is related to the machine not booting up properly.

As I understand it, the X:\ drive is the SSD, and the computer boots from this drive. So the drive is working to an extent and I am able to get to the BIOS and troubleshooting (and command window). I think the free space number is a clue that a large partition of the drive isn't showing (it's a 2T drive) and this is where my personal data (hopefully) still resides.
I've read that I may need to remove the drive and try reading it on another PC to recover the data there, then do a full reinstall of Windows 11. This option would be inconvenient for me. Is there anything I can do with the machine as-is to see if the data is still there?


My Computer

System One

  • OS
    Windows 11 pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell XPS8960
    CPU
    Intel Core i7-13700
    Memory
    32GB DDR5 RAM
I forgot to add, I did contact Dell support and they had me try to boot it using 'BootX64.efi', rather than Windows boot manager. The boot behavior didn't change and at this point Dell said I would have to do a full reinstall of Windows (and losing my data). I'm not ready to concede...


My Computer

System One

  • OS
    Windows 11 pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell XPS8960
    CPU
    Intel Core i7-13700
    Memory
    32GB DDR5 RAM
Some options:

Run the Sea Tools bootable Long generic test to see whether the drive passes or fails testing.

On a working computer create a bootable Ubuntu / Linux flash drive.

Boot the problematic computer to Ubuntu / Linux to see if there are files that can be saved.

Boot the problematic computer to a windows media creation tool / windows iso > command prompt > type:

Notepad
Notepad
Notepad


Run these diagnostic commands and save to notepad > save to a flash drive > post commands with results as images or share links

Bcdedit
Bcdedit | find "osdevice"
Diskpart
Lis dis
Lis vol
Sel dis 0
Det dis
Lis par
Sel par 1
Det par
Sel par 2
Det par
Sel par 3
Det par
Sel par 4
Det par
Sel par 5
Det par
Sel par 6
Det par
Sel dis 1
Det dis
Lis par
Sel par 1
Det par

Exit


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
My brand new (2 months old) Dell XPS8960 has run into boot up problems and I'm only able to interrogate it via the command prompt window (the machine makes it to 'post'). It has a single 2T PCIe M.2 SSD and is showiing as the 'X' drive. The DIR command list folders for Program Files, Program FIles (X86), Sources, Users and Windows. A file is also listed called 'OfflineRecEnvTrace/etl. The Windows folder has System32 subfolder, which has windows-related files. The Users folder has the subfolder 'Public', which has Sources folder has 'folders for documents, photos, etc., but they're all empty.
Dell said I would have to do a full reinstall of Windows (and losing my data). I'm not ready to concede...
Welcome to Eleven Forum.

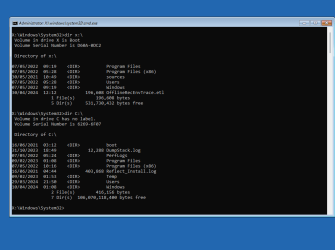

If you are booting to a command prompt from Advanced Startup then the X: drive is not a physical drive, it is a virtual drive that has been loaded into RAM from the Recovery partition before booting from it.

Your actual physical drive is drive C:. You should be able to copy all your data from the C:\Users\<your name> folder to a USB drive before attempting any repairs or reinstall.



My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Internet Speed
    50 Mbps
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022. It got the 23H2 Feature Update on 4th November 2023 through Windows Update.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro (and all my Hyper-V VMs).

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 8GB RAM, 256GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro RTM and Insider Dev, Beta, and RP 24H2 as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro, plus the Insider Beta, Dev, Canary, and Release Preview builds as a native boot .vhdx.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    Intel® Core™ i5-520M
    Motherboard
    0T6M8G
    Memory
    8GB
    Graphics card(s)
    (integrated graphics) Intel HD Graphics
    Screen Resolution
    1366x768
    Hard Drives
    500GB Crucial MX500 SSD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround. Feature Update to 23H2 by manually installing the Enablement Package. Also running Insider Beta, Dev, and Canary builds as a native boot .vhdx.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro (and all my Hyper-V VMs).

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 8GB RAM, 256GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro RTM and Insider Dev, Beta, and RP 24H2 as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro, plus the Insider Beta, Dev, Canary, and Release Preview builds as a native boot .vhdx.
Is there anything I can do with the machine as-is to see if the data is still there?

You can have a look using notepad

at cmd prompt, type

notepad
(then press enter)
when notepad pops up click File then Save

the save dialog will open, select All files in the dropdown an then you can use the dialog to have a browse round.

Depending on your setup, the windows partition you are looking for will not necessarily have been assigned C by winpe/winre you will find out easily with notepad.

Last edited:

My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450
You should be able to copy data off using cmd or one thing at a time using copy and paste, which can be very laborious.

If you get stuck, you can borrow one of my boot media which has explorer , Copy To on the context menu and other fun things.


My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450
Thank you for the replies. The first thing I tried was the DIR C:\ from the command prompt and the reply was 'can't find specified path'. So, I'm creating a bootable usb with Balena and Ubuntu. In the meantime, if the SSD was totally kaput or say the cable became disconnected to it, would this type of behavior be expected? I mean, would the virtual drive X still show up and I'd still be able to get to the troubleshooting menus, BIOS, etc? I did buy one of those adapters that lets you plug the SSD into a different computer (after removing it), but that's a last resort.


My Computer

System One

  • OS
    Windows 11 pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell XPS8960
    CPU
    Intel Core i7-13700
    Memory
    32GB DDR5 RAM
winre.wim booted off the disk, so the disk hasnt completely failed. possibly your winre needs the irst drivers.

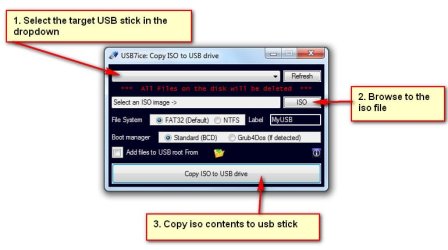

you can borrow one of my boot media. It has the DEll suplied drivers already integrated. Extract the iso file to create bootable usb stick.

➡️ 23v7.iso


My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450
Maybe I'm being too literal-minded, but an M.2 drive has no cable connected to it. It's slotted, and retained by a single screw (or screwless cam). If the drive wasn't properly secured at the factory, I suppose that it could have popped out of its slot, but that seems unlikely.

As already remarked, the X: drive is a virtual drive, in RAM. Its existence says nothing about the state of the M.2 drive.

I hope that the M.2 drive hasn't failed. Good luck.


My Computers

System One System Two

  • OS
    Windows 11 22631.2861
    Computer type
    PC/Desktop
    Manufacturer/Model
    homebuilt
    CPU
    Amd Threadripper 7970X
    Motherboard
    Gigabyte TRX50 Aero D
    Memory
    128GB (4 X 32) Kingston DDR5 5200 (RDIMM)
    Graphics Card(s)
    Gigabyte RTX 4090 OC
    Sound Card
    none (USB to speakers), Realtek
    Monitor(s) Displays
    Philips 27E1N8900 OLED
    Screen Resolution
    3840 X 2160 @ 60Hz
    Hard Drives
    Crucial T700 2TB M.2 NVME SSD
    WD 4TB Blue SATA SSD
    Seagate 18TB IronWolf Pro
    PSU
    eVGA SuperNOVA 1600 GT
    Case
    Lian Li 011 Dynamic Evo XL
    Cooling
    Alphacool Eisbaer Pro Aurora 360, with 3 Phanteks T30 fans
    Keyboard
    Logitech K120 (wired)
    Mouse
    Logitech M500s (wired)
    Internet Speed
    1200 Mbps
  • Operating System
    windows 11 22631.2861
    Computer type
    PC/Desktop
    Manufacturer/Model
    homebuilt
    CPU
    Intel I9-13900K
    Motherboard
    Asus RoG Strix Z690-E
    Memory
    64GB G.Skill DDR5-6000
    Graphics card(s)
    Gigabyte RTX 3090 ti
    Sound Card
    built in Realtek
    Monitor(s) Displays
    Asus PA329C
    Screen Resolution
    3840 X 2160 @60Hz
    Hard Drives
    WDC SN850 1TB
    8 TB Seagate Ironwolf
    4TB Seagate Ironwolf
    PSU
    eVGA SuperNOVA 1300 GT
    Case
    Lian Li 011 Dynamic Evo
    Cooling
    Corsair iCUE H150i ELITE CAPELLIX Liquid CPU Cooler
    Mouse
    Logitech M500s (wired)
    Keyboard
    Logitech K120 (wired)
I hope that the M.2 drive hasn't failed.
winre.wim booted off the disk . Unless he has it on a separate disk which he didnt mention.


My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450
The first thing I tried was the DIR C:\ from the command prompt and the reply was 'can't find specified path'.
To identify the correct drive letter (if it's there) run Diskpart from the command prompt, use the command List volumes, then exit Diskpart.


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Internet Speed
    50 Mbps
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022. It got the 23H2 Feature Update on 4th November 2023 through Windows Update.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro (and all my Hyper-V VMs).

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 8GB RAM, 256GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro RTM and Insider Dev, Beta, and RP 24H2 as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro, plus the Insider Beta, Dev, Canary, and Release Preview builds as a native boot .vhdx.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    Intel® Core™ i5-520M
    Motherboard
    0T6M8G
    Memory
    8GB
    Graphics card(s)
    (integrated graphics) Intel HD Graphics
    Screen Resolution
    1366x768
    Hard Drives
    500GB Crucial MX500 SSD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround. Feature Update to 23H2 by manually installing the Enablement Package. Also running Insider Beta, Dev, and Canary builds as a native boot .vhdx.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro (and all my Hyper-V VMs).

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 8GB RAM, 256GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro RTM and Insider Dev, Beta, and RP 24H2 as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro, plus the Insider Beta, Dev, Canary, and Release Preview builds as a native boot .vhdx.
winre.wim booted off the disk . Unless he has it on a separate disk which he didnt mention.
I find that the thread lacks clarity so far.


My Computers

System One System Two

  • OS
    Windows 11 22631.2861
    Computer type
    PC/Desktop
    Manufacturer/Model
    homebuilt
    CPU
    Amd Threadripper 7970X
    Motherboard
    Gigabyte TRX50 Aero D
    Memory
    128GB (4 X 32) Kingston DDR5 5200 (RDIMM)
    Graphics Card(s)
    Gigabyte RTX 4090 OC
    Sound Card
    none (USB to speakers), Realtek
    Monitor(s) Displays
    Philips 27E1N8900 OLED
    Screen Resolution
    3840 X 2160 @ 60Hz
    Hard Drives
    Crucial T700 2TB M.2 NVME SSD
    WD 4TB Blue SATA SSD
    Seagate 18TB IronWolf Pro
    PSU
    eVGA SuperNOVA 1600 GT
    Case
    Lian Li 011 Dynamic Evo XL
    Cooling
    Alphacool Eisbaer Pro Aurora 360, with 3 Phanteks T30 fans
    Keyboard
    Logitech K120 (wired)
    Mouse
    Logitech M500s (wired)
    Internet Speed
    1200 Mbps
  • Operating System
    windows 11 22631.2861
    Computer type
    PC/Desktop
    Manufacturer/Model
    homebuilt
    CPU
    Intel I9-13900K
    Motherboard
    Asus RoG Strix Z690-E
    Memory
    64GB G.Skill DDR5-6000
    Graphics card(s)
    Gigabyte RTX 3090 ti
    Sound Card
    built in Realtek
    Monitor(s) Displays
    Asus PA329C
    Screen Resolution
    3840 X 2160 @60Hz
    Hard Drives
    WDC SN850 1TB
    8 TB Seagate Ironwolf
    4TB Seagate Ironwolf
    PSU
    eVGA SuperNOVA 1300 GT
    Case
    Lian Li 011 Dynamic Evo
    Cooling
    Corsair iCUE H150i ELITE CAPELLIX Liquid CPU Cooler
    Mouse
    Logitech M500s (wired)
    Keyboard
    Logitech K120 (wired)
Agreed. It's almost as if there is a bootable USB drive that is booting, if it is not what SIW2 proposed:

winre.wim booted off the disk . Unless he has it on a separate disk which he didnt mention.


My Computers

System One System Two

  • OS
    Windows 11 23H2 Current build
    Computer type
    PC/Desktop
    Manufacturer/Model
    HomeBrew
    CPU
    AMD Ryzen 9 3950X
    Motherboard
    MSI MEG X570 GODLIKE
    Memory
    4 * 32 GB - Corsair Vengeance 3600 MHz
    Graphics Card(s)
    EVGA GeForce RTX 3080 Ti XC3 ULTRA GAMING (12G-P5-3955-KR)
    Sound Card
    Realtek® ALC1220 Codec
    Monitor(s) Displays
    2x Eve Spectrum ES07D03 4K Gaming Monitor (Matte) | Eve Spectrum ES07DC9 4K Gaming Monitor (Glossy)
    Screen Resolution
    3x 3840 x 2160
    Hard Drives
    3x Samsung 980 Pro NVMe PCIe 4 M.2 2 TB SSD (MZ-V8P2T0B/AM) } 3x Sabrent Rocket NVMe 4.0 1 TB SSD (USB)
    PSU
    PC Power & Cooling’s Silencer Series 1050 Watt, 80 Plus Platinum
    Case
    Fractal Design Define 7 XL Dark ATX Full Tower Case
    Cooling
    Arctic Liquid Freezer III 420 RGB + Air 3x 140mm case fans (pull front) + 1x 120 mm (push back) and 1 x 120 mm (pull bottom)
    Keyboard
    SteelSeries Apex Pro Wired Gaming Keyboard
    Mouse
    Logitech MX Master 3S | MX Master 3 for Business
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth
    Browser
    Nightly (default) + Firefox (stable), Chrome, Edge , Arc
    Antivirus
    Defender + MB 5 Beta
  • Operating System
    ChromeOS Flex Dev Channel (current)
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude E5470
    CPU
    Intel(R) Core(TM) i5-6300U CPU @ 2.40GHz, 2501 Mhz, 2 Core(s), 4 Logical Processor(s)
    Motherboard
    Dell
    Memory
    16 GB
    Graphics card(s)
    Intel(R) HD Graphics 520
    Sound Card
    Intel(R) HD Graphics 520 + RealTek Audio
    Monitor(s) Displays
    Dell laptop display 15"
    Screen Resolution
    1920 * 1080
    Hard Drives
    Toshiba 128GB M.2 22300 drive
    INTEL Cherryville 520 Series SSDSC2CW180A 180 GB SATA III SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Mouse
    Logitech MX Master 3S (shared w. Sys 1) | Dell TouchPad
    Keyboard
    Dell
    Internet Speed
    AT&T LightSpeed Gigabit Duplex Ftth
No separate disk. I tried Diskpart (from X:\Windows\System32 prompt) and then List Volumes and it just shows me a list of commands. I did open notepad and the only dive I find is X, which has Windows folder and system 32 subfolder. I'm going to see what happens with the Ubuntu bootable usb, but I don't expect to find anything new. It looks like I'll have to open up the box..

Last edited:

My Computer

System One

  • OS
    Windows 11 pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell XPS8960
    CPU
    Intel Core i7-13700
    Memory
    32GB DDR5 RAM
No separate disk. I tried Diskpart (from X:\Windows\System32 prompt) and then List Volumes and it just shows me a list of commands.
try: list volume


My Computer

System One

  • OS
    Windows 11 Pro with Debian Linux in WSL 2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Build to Order machine
    CPU
    Intel Core i7-4790 (Haswell Refresh)
    Motherboard
    MSI Z97 Gaming 7
    Memory
    32 GB
    Graphics Card(s)
    GIGABYTE NVIDIA GeForce RTX 2060 GAMING OC PRO 6G
    Monitor(s) Displays
    LG 27GN650-B IPS HDR Gaming Monitor 27" FHD
    Screen Resolution
    1080p
    Hard Drives
    2 x Samsung 860 EVO SATA SSD 1TB
    1 x Samsung 870 EVO SATA SSD 2TB
    PSU
    Corsair 1000 Watt
    Case
    Corsair Obsidian Series 750D full tower ATX case
    Cooling
    CORSAIR Hydro Series H80i v2
    Internet Speed
    1 Gbps / 1 Gbps symmetrical FTTH (GPON)
    Browser
    Microsoft Edge
I tried Diskpart (from X:\Windows\System32 prompt) and then List Volumes and it just shows me a list of commands.
Sorry, there's no S at the end. In fact, diskpart will recognise just the first 3 characters of a command, you could abbreviate it to LIS VOL


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Internet Speed
    50 Mbps
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022. It got the 23H2 Feature Update on 4th November 2023 through Windows Update.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro (and all my Hyper-V VMs).

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 8GB RAM, 256GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro RTM and Insider Dev, Beta, and RP 24H2 as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro, plus the Insider Beta, Dev, Canary, and Release Preview builds as a native boot .vhdx.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    Intel® Core™ i5-520M
    Motherboard
    0T6M8G
    Memory
    8GB
    Graphics card(s)
    (integrated graphics) Intel HD Graphics
    Screen Resolution
    1366x768
    Hard Drives
    500GB Crucial MX500 SSD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround. Feature Update to 23H2 by manually installing the Enablement Package. Also running Insider Beta, Dev, and Canary builds as a native boot .vhdx.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro (and all my Hyper-V VMs).

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 8GB RAM, 256GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro RTM and Insider Dev, Beta, and RP 24H2 as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro, plus the Insider Beta, Dev, Canary, and Release Preview builds as a native boot .vhdx.
It says 'there are no volumes'


My Computer

System One

  • OS
    Windows 11 pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell XPS8960
    CPU
    Intel Core i7-13700
    Memory
    32GB DDR5 RAM
I did open notepad and the only dive I find is X,
Most likely your winre.wim doesnt have the drivers needed to see your disk. It is a common issue with oem 11/12/13 and presumably also 14th gen intel machines.

I already linked to a copy of my boot media which does have the Dell drivers already integrated. post#8


format an mbr usb stick to fat32, then just use 7-zip or whatever to copy the entire contents of the 23v7.iso onto the root of the usb stick.

then boot from the usb stick and you shoiuld be able to see your disk.

Last edited:

My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450
I'll give it a try. Something went wrong when trying to create the bootable usb with ubuntu and balena flash. It seemed to complete the flash but then when I try and see what's on the stick, the machine says 'you must format the disk first to use it'... give me a break...


My Computer

System One

  • OS
    Windows 11 pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell XPS8960
    CPU
    Intel Core i7-13700
    Memory
    32GB DDR5 RAM
If you have another windows machine you can use this to prepare the usb stick and copy the 23v7.iso contnets onto it



Attachments

  • Usb7ice.zip
    830.8 KB · Views: 2

My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450

Latest Support Threads

Latest Tutorials

Back
Top Bottom
