System Repair Windows Image Component Store in Windows 11



This tutorial will show you how to repair Windows image component store corruption in Windows 11.

If a Windows image becomes unserviceable, you can use the DISM (Deployment Imaging and Servicing Management) tool or Repair-WindowsImage cmdlet to update the files and correct the problem.

For example, to fix Windows image component store corruption when a sfc /scannow command is unable to repair corrupted or modified system files because the component store (source) is corrupted. SFC should be able to repair the files afterwards.

References:
docs.microsoft.com

Repair a Windows Image

Repair a Windows Image
docs.microsoft.com
docs.microsoft.com

Repair-WindowsImage (DISM)

Use this topic to help manage Windows and Windows Server technologies with Windows PowerShell.
docs.microsoft.com


You must be signed in as an administrator to check or repair the Windows image component store



Contents

  • Option One: Check Health of Windows Image Component Store
  • Option Two: Repair Windows Image Component Store using Windows Update as source
  • Option Three: Repair Windows Image Component Store with "install.wim" source from Windows 11 ISO or USB




Option One

Check Health of Windows Image Component Store


1 Open an elevated Windows Terminal, and select Windows Terminal or Command Prompt.

2 Copy and paste the command below into the elevated terminal, and press Enter. (see screenshots below)

(Windows PowerShell)​
Repair-WindowsImage -Online -CheckHealth​

OR​

(Command Prompt)​
Dism /Online /Cleanup-Image /CheckHealth​

3 The command will now check and report whether the image is healthy, repairable, or non-repairable.

If healthy, no component store corruption detected. You are done since no repair is needed.

If repairable, you will need to use Option Two, or Option Three to repair the Windows image component store corruption.

If non-repairable, you will need to either repair install Windows 11, reset Windows 11, or clean install Windows 11.









Option Two

Repair Windows Image Component Store using Windows Update as source


This option requires an Internet connection.


1 Open an elevated Windows Terminal, and select Windows Terminal or Command Prompt.

2 Copy and paste the command below into the elevated terminal, and press Enter. (see screenshots below)

(Windows PowerShell)​
Repair-WindowsImage -Online -RestoreHealth​

OR​

(Command Prompt)​
Dism /Online /Cleanup-Image /RestoreHealth​

3 When completed successfully, you can close the elevated Windows Terminal.







Option Three

Repair Windows Image Component Store with "install.wim" source from Windows 11 ISO or USB


This option is only needed when Option Two is unable to repair Windows image component store corruption.

You will need to use a Windows 11 ISO or USB that is the same build as the currently installed Windows 11 you are wanting to repair.


1 Connect the Windows 11 installation USB, or mount the Windows 11 ISO file, and make note of its drive letter (ex: "F:"). (see screenshot below).


2 Find the index number (ex: "1") for the Windows 11 edition (ex: "Pro") from the ISO or USB.

3 Open an elevated Windows Terminal, and select Windows Terminal or Command Prompt.

4 Type the command below into the elevated terminal, and press Enter. (see screenshots below)

(Windows PowerShell)​
Repair-WindowsImage -Online -RestoreHealth -Source "<Drive Letter>:\sources\install.wim:<Index Number>" -LimitAccess​

OR​

(Command Prompt)​
Dism /Online /Cleanup-Image /RestoreHealth /Source:wim:<Drive Letter>:\sources\install.wim:<Index Number> /limitaccess​

Substitute <Drive Letter> in the command above with the actual drive letter (ex: "F") for the USB or mounted ISO from step 1.

Substitute <Index Number> in the command above with the actual index number (ex: "1") for the edition (ex: "Pro") from step 2.

For example:

(Windows PowerShell)
Repair-WindowsImage -Online -RestoreHealth -Source "F:\sources\install.wim:1" -LimitAccess

(Command Prompt)
Dism /Online /Cleanup-Image /RestoreHealth /Source:wim:F:\sources\install.wim:1 /limitaccess



5 When completed successfully, you can close the elevated Windows Terminal.





That's it,
Shawn Brink


Related Tutorials


Last edited:
Click to expand...
For some reason the PowerShell command doesn't work for me in Windows Terminal (admin). Running a CMD command in it does. The command works in PowerShell admin.





Win 11 Home.


My Computers

System One System Two

  • OS
    Win 11 Home & 🐥.
    Computer type
    Laptop
    Manufacturer/Model
    ACER Nitro AN16-41
    CPU
    AMD Ryzen™ 7 7735HS Processor 3.2Ghz
    Motherboard
    RB Sierra_PEH (FP7)
    Memory
    32 GB DDR5 4800MHz
    Graphics Card(s)
    NVIDIA GeForce RTX 4060 8GB GDDR6
    Monitor(s) Displays
    16" QHD+ 165Hz 16:10 IPS Technology
    Screen Resolution
    1920 X 1200
    Hard Drives
    Samsung 990 PRO 2TB
    PSU
    330 Watts
    Mouse
    Lenovo Bluetooth.
    Internet Speed
    500 Mbps
    Browser
    Edge
    Antivirus
    Defender
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ACER NITRO
    CPU
    AMD Ryzen 7 5800H / 3.2 GHz
    Motherboard
    CZ Scala_CAS (FP6)
    Memory
    32 GB DDR4 SDRAM 3200 MHz
    Graphics card(s)
    NVIDIA GeForce RTX 3060 6 GB GDDR6 SDRAM
    Sound Card
    Realtek Audio. NVIDIA High Definition Audio
    Monitor(s) Displays
    15.6" LED backlight 1920 x 1080 (Full HD) 144 Hz
    Screen Resolution
    1920 x 1080 (Full HD)
    Hard Drives
    Samsung 970 Evo Plus 2TB NVMe M.2
    PSU
    180 Watt, 19.5 V
    Mouse
    Lenovo Bluetooth
    Internet Speed
    500 Mbps
    Browser
    Edge
    Antivirus
    Defender

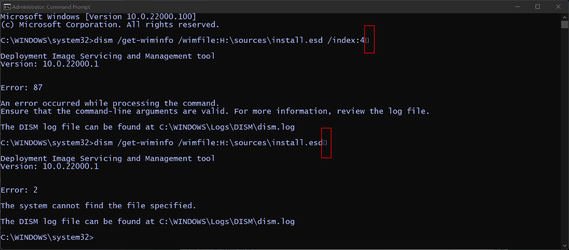

Hello @Fabler2, :-)
