Show us your PC/Setup

Edwin · Jan 21, 2023

SoFine409 said:
One of your previous posts inferred that you were in the business...

Just drafting for a number of years..., as a free-lance, mostly. Lost all my work in a flood some years ago!
Couldn't do it now though, my eyes are shot!

SoFine409 said:
... an 18-inch triangular architects scale. Bet you've never seen one of those bad boys?

Nope, can't say I ever have!

Wynona · Jan 21, 2023

Alex__ASSR said:
my modest setup, with the mic stand made at home from pvc pipes.

I made a skeleton box from PVC, then covered it in those light weight blankets from Walmart. It's Gracie's (dog) warming cave.

RoadBlaster · Feb 3, 2023

Don't be too dissapointed by my build as it was designed by me to be quiet when sat next to it & most of the cables were crimped & soldered together by me.

The PSU fan, the 230mm fan & the 80mm front extraction fans are all connected to my home made fans speed controller (not shown) & they are fed around the PC by the un-used 3.3v pin on the modular cable system. THe only problem I have had is those flaming wire frames that hold the fans on the CPU cooler, I must change that at some point too!

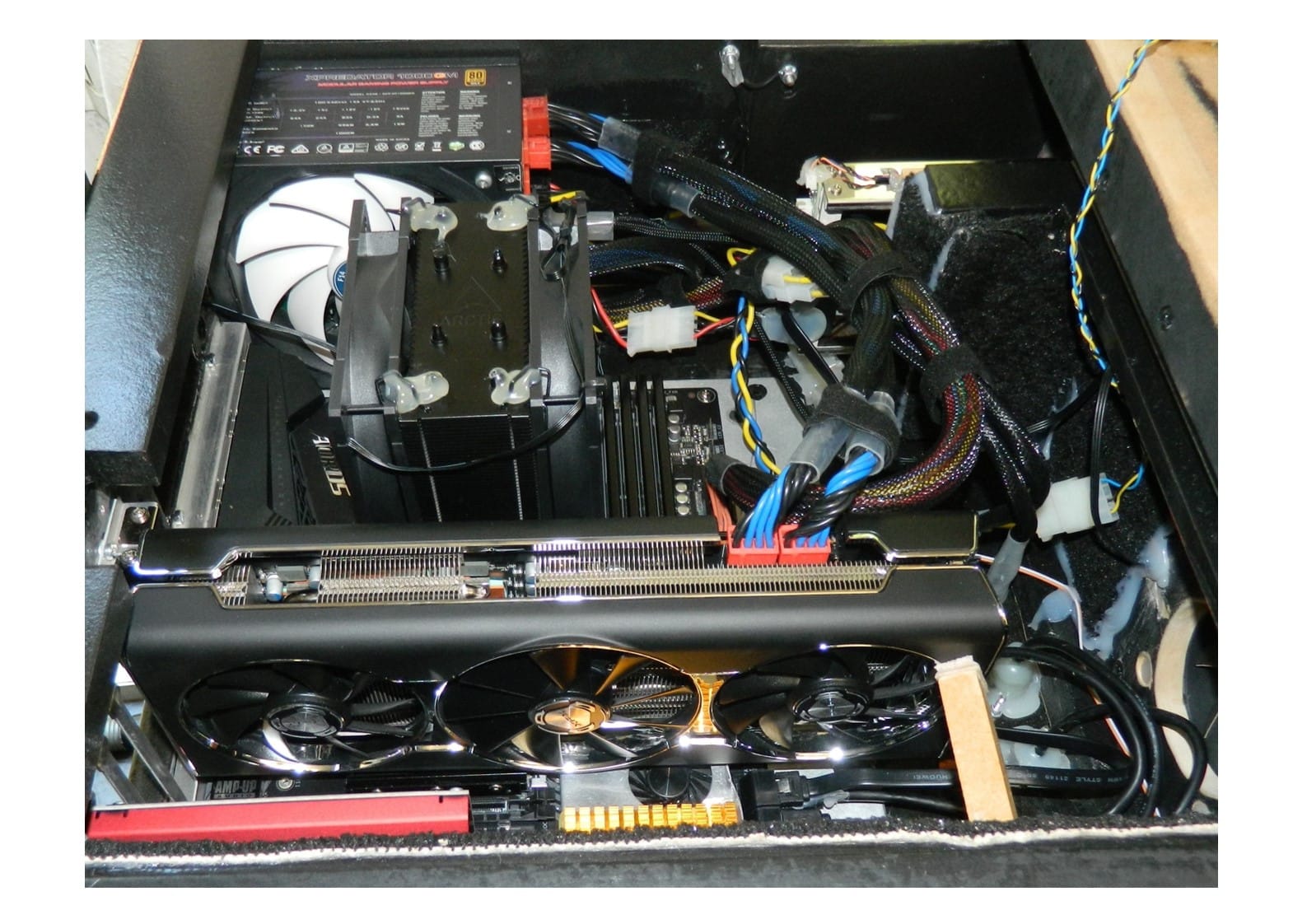

This 2nd picture shows the XFX 5700 XT Thicc III & the fans will spin @3,500 ish (too loud)

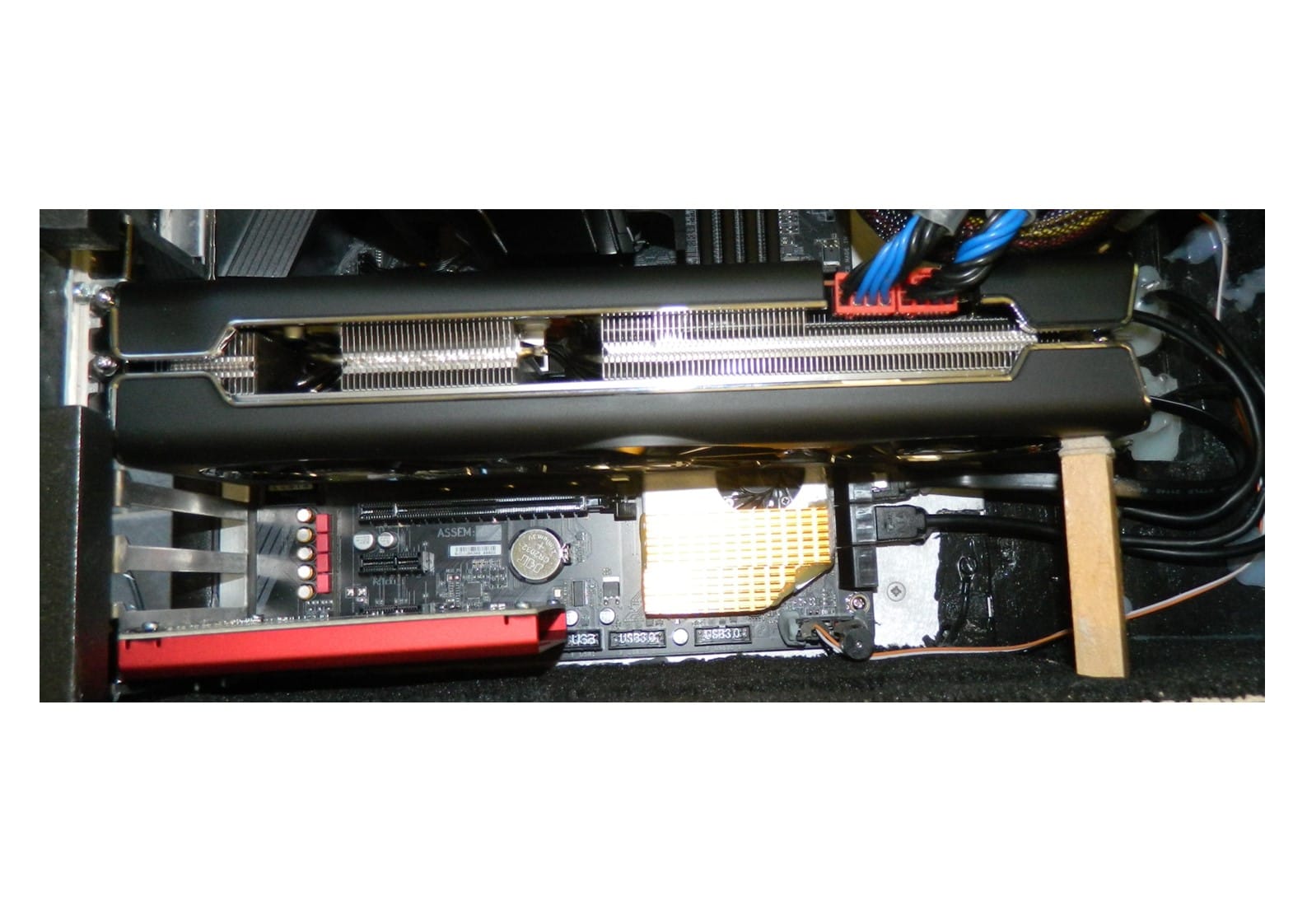

This is a closeup of the X570 mod

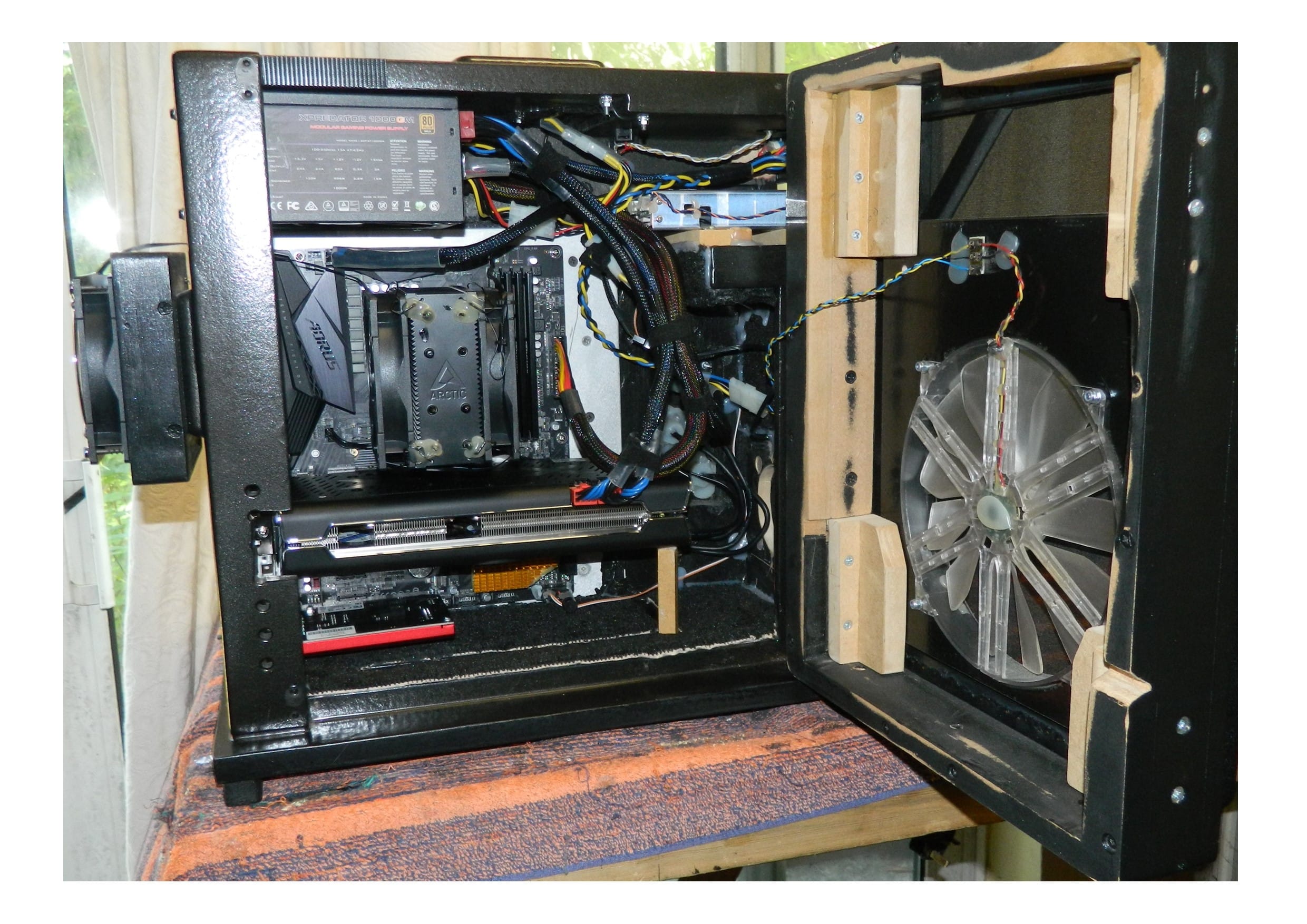

This is a wide view of the case, this is getting old now & done too many mods to the case so it needs re-building this year to a case were the cables are behind so you can not see any. THe glue gun blob on the 230mm fan is covering the rubber bung which get opened every 6 months for re-greasing, fan is now 11 years old & working perfect (touch wood).

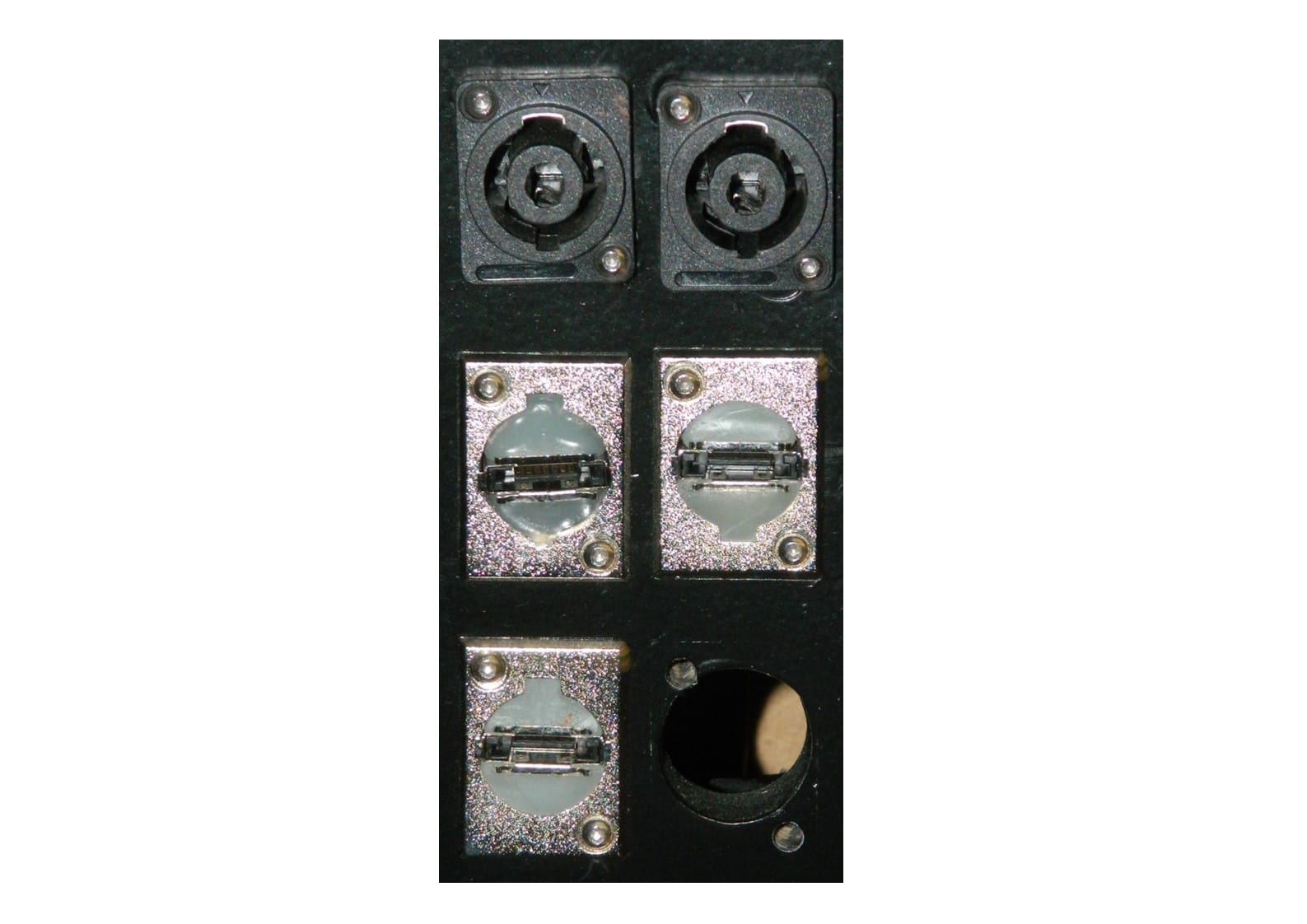

This is an image of the eSata ports "Glue-Gunned" into XLR Chassis for eay connection of my external storage system.

From my point of view I find making this stuff very interesting & the more I do it the better I get at it.

badrobot · Feb 3, 2023

RoadBlaster said:
Don't be too dissapointed by my build as it was designed by me to be quiet when sat next to it & most of the cables were crimped & soldered together by me.

The PSU fan, the 230mm fan & the 80mm front extraction fans are all connected to my home made fans speed controller (not shown) & they are fed around the PC by the un-used 3.3v pin on the modular cable system. THe only problem I have had is those flaming wire frames that hold the fans on the CPU cooler, I must change that at some point too!
View attachment 51779
This 2nd picture shows the XFX 5700 XT Thicc III & the fans will spin @3,500 ish (too loud)

View attachment 51780
This is a closeup of the X570 mod

View attachment 51781
This is a wide view of the case, this is getting old now & done too many mods to the case so it needs re-building this year to a case were the cables are behind so you can not see any. THe glue gun blob on the 230mm fan is covering the rubber bung which get opened every 6 months for re-greasing, fan is now 11 years old & working perfect (touch wood).

View attachment 51782
This is an image of the eSata ports "Glue-Gunned" into XLR Chassis for eay connection of my external storage system.

View attachment 51783
From my point of view I find making this stuff very interesting & the more I do it the better I get at it.

I didn't see a photo of it in action (case lid closed).
Did you make your own case?

03hdfatboy · Feb 3, 2023

RoadBlaster said:
Don't be too dissapointed by my build as it was designed by me to be quiet when sat next to it & most of the cables were crimped & soldered together by me.

The PSU fan, the 230mm fan & the 80mm front extraction fans are all connected to my home made fans speed controller (not shown) & they are fed around the PC by the un-used 3.3v pin on the modular cable system. THe only problem I have had is those flaming wire frames that hold the fans on the CPU cooler, I must change that at some point too!
View attachment 51779
This 2nd picture shows the XFX 5700 XT Thicc III & the fans will spin @3,500 ish (too loud)

View attachment 51780
This is a closeup of the X570 mod

View attachment 51781
This is a wide view of the case, this is getting old now & done too many mods to the case so it needs re-building this year to a case were the cables are behind so you can not see any. THe glue gun blob on the 230mm fan is covering the rubber bung which get opened every 6 months for re-greasing, fan is now 11 years old & working perfect (touch wood).

View attachment 51782
This is an image of the eSata ports "Glue-Gunned" into XLR Chassis for eay connection of my external storage system.

View attachment 51783
From my point of view I find making this stuff very interesting & the more I do it the better I get at it.

I mounted my cooler on the rear also, and I thought I was beig creative LOL

badrobot · Feb 3, 2023

03hdfatboy said:
I mounted my cooler on the rear also, and I thought I was beig creative LOL

I really admire your creativity and wiring wizardry.
In any PC build, 80% of the attention always goes to cable management and 20% for setup and creativity. So while working on your creativity, pay more attention to cable management to get a 100% score. :) The only caveat is you have to invest on modular PSU to achieve a good cable management.
It would be nice if you fill up your PC specs as well. :wink:

03hdfatboy · Feb 3, 2023

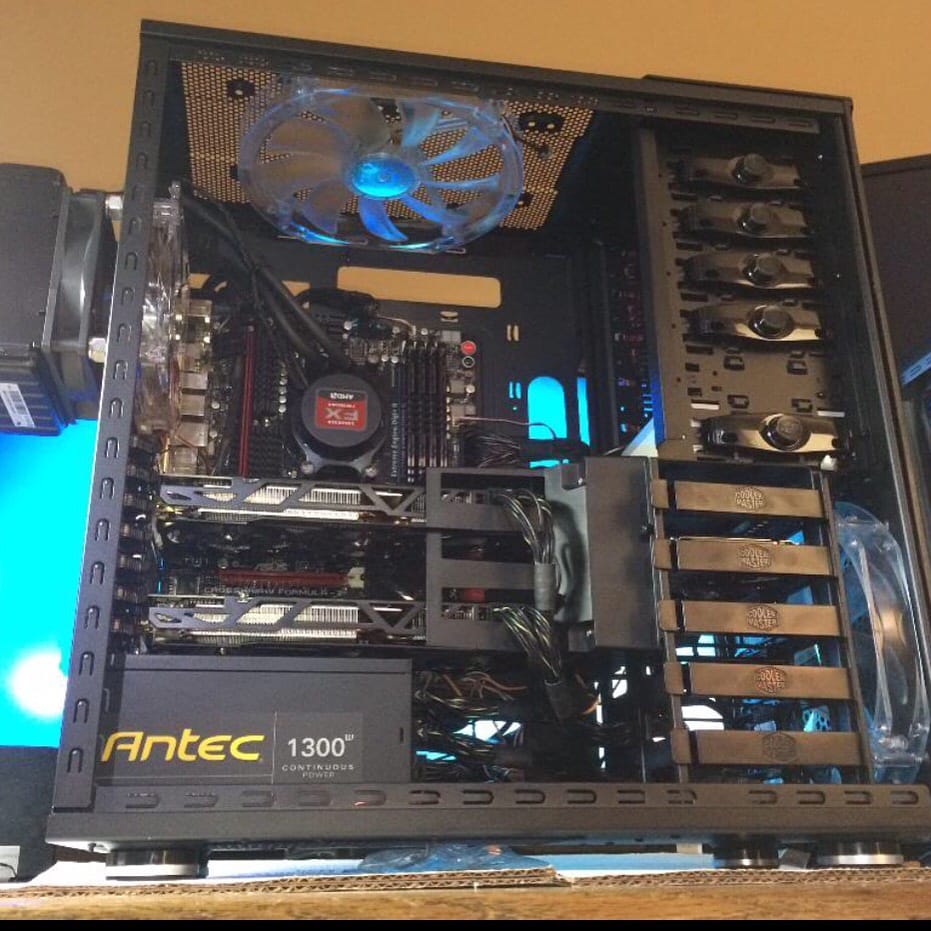

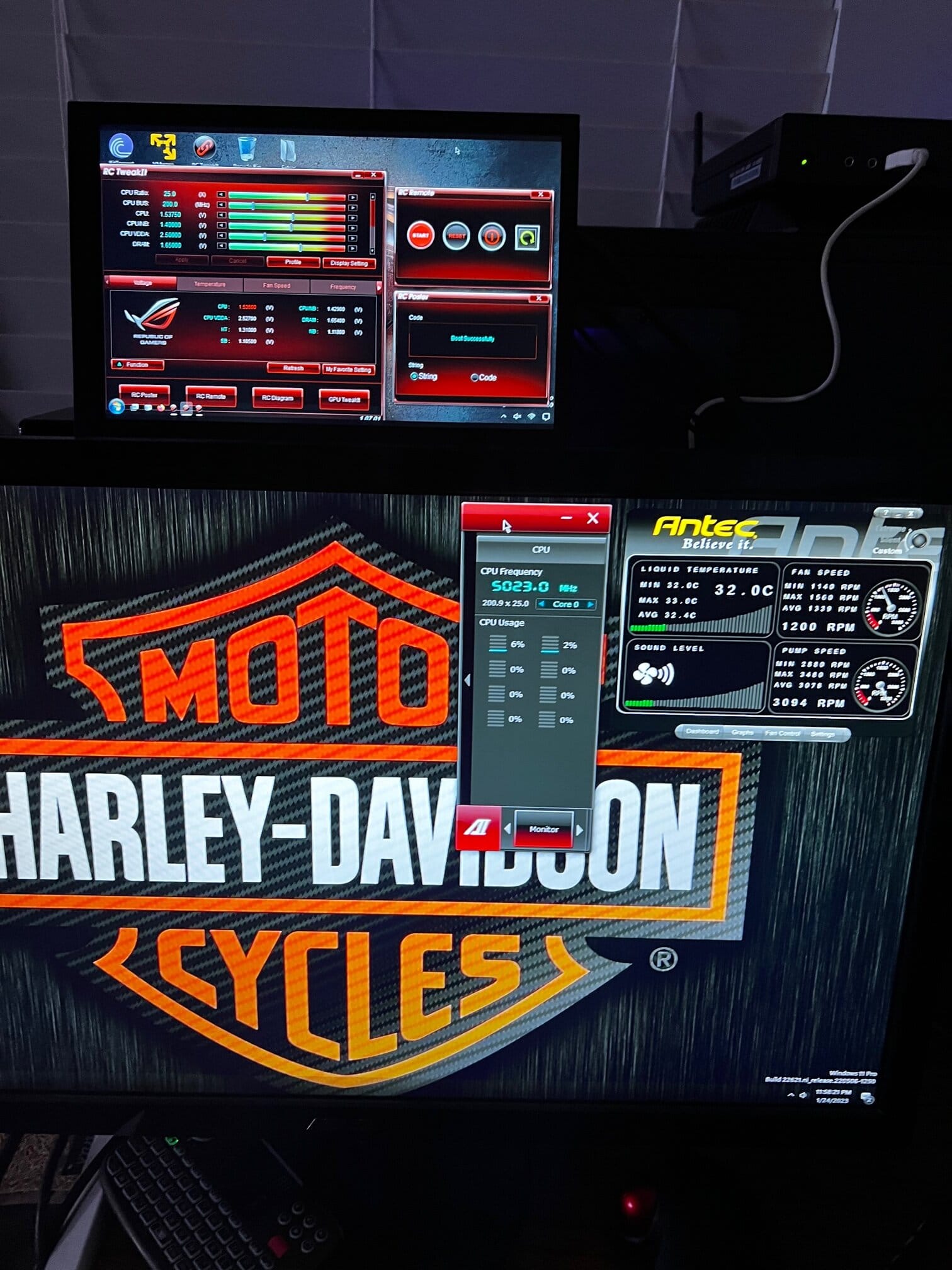

I built this in the spring of 2014 Still does pretty good for its age
AMD FX-9590 Vishera 4.7GHz Stock/5.2GHz OC’d
2 x GIGABYTE GV-R929XOC
16Gb G.SKILL Ripjaws Z
500Gb SSD (Win11)
256Gb SSD (MX21)
4Tb (programs pics music..etc
6Tb (Movies/TV shows for PlexServer)
Logitec G19 KB
Logitec G9 Mouse
3 32” ASUS screens
Lenovo M910q w/10” touchscreen for ROG connect
Cooler Master HAF 932 Advanced Blue Edition
1300W Antec HCP-1300 Platinum
Asus Crosshair Formula Z
ASUS OC Panel

badrobot · Feb 3, 2023

03hdfatboy said:
I built this in the spring of 2014 Still does pretty good for its age
AMD FX-9590 Vishera 4.7GHz Stock/5.2GHz OC’d
2 x GIGABYTE GV-R929XOC
16Gb G.SKILL Ripjaws Z
500Gb SSD (Win11)
256Gb SSD (MX21)
4Tb (programs pics music..etc
6Tb (Movies/TV shows for PlexServer)
Logitec G19 KB
Logitec G9 Mouse
3 32” ASUS screens
Lenovo M910q w/10” touchscreen for ROG connect
Cooler Master HAF 932 Advanced Blue Edition
1300W Antec HCP-1300 Platinum
Asus Crosshair Formula Z
ASUS OC Panel

View attachment 51796 View attachment 51798 View attachment 51799

I watercooled my system once back in 2016 when I first got my Deepcool Genome case with built-in helical reservoir.

Then I got tired of it and went back to air cooling. Still using the same case though. From i7-4790k to AMD Ryzen 9 3900X.

03hdfatboy · Feb 3, 2023

badrobot said:
I watercooled my system once back in 2016 when I first got my Deepcool Genome case with built-in helical reservoir.

Then I got tired of it and went back to air cooling. Still using the same case though. From i7-4790k to AMD Ryzen 9 3900X.

loks very nice.....and CLEAN !

iPanda032 · Feb 3, 2023

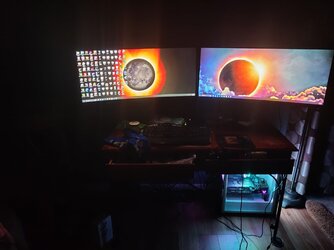

updated my setup again. Added new Ultrawide. Evolution of my setup the last several months.

RoadBlaster · Feb 4, 2023

badrobot said:
I didn't see a photo of it in action (case lid closed).
Did you make your own case?

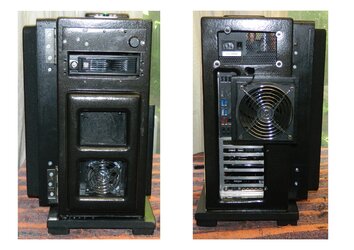

This is the front & back views, case inside is lined with aluminium glued to the 3/4" mdf.

Marcus Vinicus · Apr 19, 2023

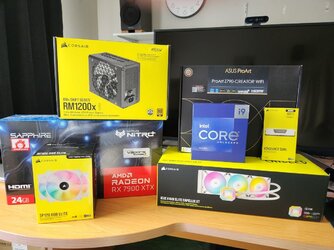

Here is my new PC with an Intel i9 13900K CPU and an Asus ProArt Z790 Creator motherboard. This the first time I've used and AIO cooler. Very pleased with how efficient the Corsair AIO is.

Anyone who has been following my thread over on the BSOD sub forum will know this PC had a difficult birth with many catastrophic BSODs. The issue was faulty DDR5 ram.

The full specs can be found by clicking My Computers below.

Solarstarshines · Apr 20, 2023

My current situation

seek · Apr 21, 2023

My gaming Rig

Ghot · Apr 21, 2023

seek said:
My gaming Rig

But can it run Crysis?

seek · Apr 21, 2023

Ghot said:
But can it run Crysis?

Ahhhhh... Maybe.

A Guy · Apr 21, 2023

A Guy

Dru2 · May 5, 2023

Marcus Vinicus said:
Here is my new PC with an Intel i9 13900K CPU and an Asus ProArt Z790 Creator motherboard. This the first time I've used and AIO cooler. Very pleased with how efficient the Corsair AIO is.

View attachment 58282

How loud are those fans?
