What are the files in Macrium?


Haydon

Well-known member
Member
VIP
Local time
6:03 AM
Posts
958
OS
Windows 10 Pro
I am playing around with a new installation of Macrium Reflect Free version 8, everything is left at their default values.

I created 'image' files (of Full Backups) and the corresponding 'My Backup' files are automatically created by the software.

I notice that deleting an 'image' file does not automatically delete the corresponding 'My Backup' file and vice versa.

For the time being, with only a few file pairs ('image' and 'My Backup') that's not a problem, I can find the correspondence between 'image' and 'My Backup' via the files' creation date and time.

But over time, with many file pairs, there has to be a better house keeping method of keeping the 'image' and 'My Backup' file pairs tightly in sync. How do I do that?


My Computer

System One

  • OS
    Windows 10 Pro

Bree

Well-known member
Pro User
VIP
Local time
11:03 AM
Posts
2,843
Location
S/E England, UK
OS
Windows 11 Home
over time, with many file pairs, there has to be a better house keeping method of keeping the 'image' and 'My Backup' file pairs tightly in sync. How do I do that?
If all these images are of the same PC, then any older 'My backup' definition files are no longer appropriate to use. There's not really any point in keeping them all.

I only ever created my definition file the once. Before running it to create a new Full image (which I do once a month on Patch Tuesday) I edit the backup definition to update the image name and the comments. I uses the comments to record a sort of 'change log' for the machine. Between Full backups I can run the backup definition file as a Differential or Incremental to back up any significant changes, only editing it to add to the comments section.


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB HDD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.

Ghot

Well-known member
Pro User
VIP
Local time
6:03 AM
Posts
3,138
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.778
@Haydon

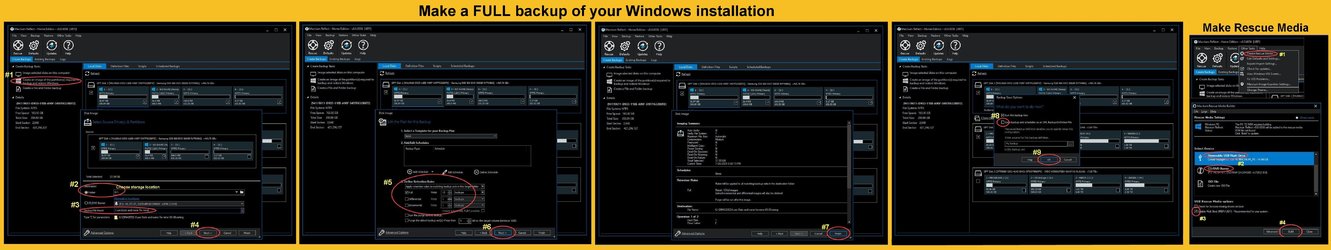

You could do like I do... just uncheck the box (step #8), and it won't even make a My Backup folder. :)

000000 MACRIUM 2.jpg


My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.778
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Haydon

Well-known member
Member
VIP
Thread Starter
Local time
6:03 AM
Posts
958
OS
Windows 10 Pro
Ah, I misunderstood the role of the 'My Backup' file. I will leave it/them alone, still maintaining the defaults for the moment. I confirmed that even after deleting the 'My Backup' file, I can mount/unmount the image in File Explorer, and copy a user file from the image :)

Next is to play with the 'restore' and 'clone' functions, so I have to buy an internal 2.5" SATA SSD and a SATA to USB cable (I think that's the cheapest option)


My Computer

System One

  • OS
    Windows 10 Pro

Bree

Well-known member
Pro User
VIP
Local time
11:03 AM
Posts
2,843
Location
S/E England, UK
OS
Windows 11 Home
Ah, I misunderstood the role of the 'My Backup' file.
The purpose of the backup definition file is to hold the instructions for what will be backed up. When you set up a backup from scratch the default is to save this as the file 'My Backup', though you are free to give it any name you like. Once saved you can run it immediately to make a Full backup, then run it again at any time to make a Differential, Incremental or another Full backup.

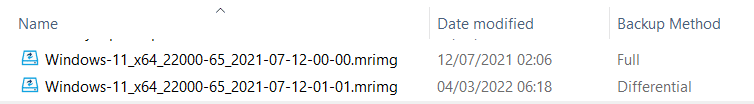

As long as you keep using the same backup file name these will form a backup set, The full will have your base name with -00-00 added to the end, subsequent Differentials/Incrementals will increment this number: -01-01, -02-02, etc. This backup set has the backup file name 'Windows-11_x64_22000-65+2021-07-12' in its backup definition file, for example.


When you change your base backup file name you will start a new backup set.

Once you have created a backup definition you can run it whenever you wish, or you can use Macrium's scheduler to run it automatically for you.


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB HDD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.

Haydon

Well-known member
Member
VIP
Thread Starter
Local time
6:03 AM
Posts
958
OS
Windows 10 Pro
Yeah, I edited the thread title to make it more logical (y)


My Computer

System One

  • OS
    Windows 10 Pro

cereberus

Well-known member
Pro User
VIP
Local time
11:03 AM
Posts
2,033
OS
Windows 10 Pro + others in VHDs
The purpose of the backup definition file is to hold the instructions for what will be backed up. When you set up a backup from scratch the default is to save this as the file 'My Backup', though you are free to give it any name you like. Once saved you can run it immediately to make a Full backup, then run it again at any time to make a Differential, Incremental or another Full backup.

As long as you keep using the same backup file name these will form a backup set, The full will have your base name with -00-00 added to the end, subsequent Differentials/Incrementals will increment this number: -01-01, -02-02, etc. This backup set has the backup file name 'Windows-11_x64_22000-65+2021-07-12' in its backup definition file, for example.

View attachment 23454

When you change your base backup file name you will start a new backup set.

Once you have created a backup definition you can run it whenever you wish, or you can use Macrium's scheduler to run it automatically for you.
You can edit the xml file and change file name if you wish to avoid having multiple xml files - of course any diff/inc has to have same name as parent full. Actually, if you edit the name xml and do an inc/diff before creating a new full, it attachs to most recent full with old nan]me. The name change only takes effect when a new full is created.


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0
