Solved What is the Robocopy syntax?

What is the Robocopy syntax to do the following

Copy all contents of C:\Users\Me

to

a folder on an external drive D:\MeCopy

Haydon said:

What is the Robocopy syntax to do the following

Copy all contents of C:\Users\Me

to

a folder on an external drive D:\MeCopy

Click to expand...

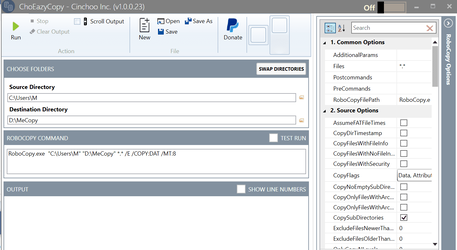

It is easier to use a gui such as ChoEazyCopy. Whilst learning, it shows the command line syntax.


In you case, it would be

Ghot said:

View attachment 23784

Click to expand...

Darn stupid auto interpretation made into a smiley!

Fixed it by use Code tags

cereberus said:

Darn stupid auto interpretation made

Code:

:D

into a smiley!

Fixed it by use Code tags

Click to expand...

If desired, you can also use "Plain" tags to turn off the interpretation.
On TF you would use "NoParse" instead of "Plain"




RoboCopy.exe "C:\Users\Me" "D:\MeCopy" *.* /E /COPY:DAT /MT:8

Thanks, guys, it gives me a start

I use robocopy "C:\folder1" "E:\externalfolder" /mir /e /dst

Haydon said:

What is the Robocopy syntax to do the following

Copy all contents of C:\Users\Me

to

a folder on an external drive D:\MeCopy

Click to expand...

Is there a particular point that is confusing you?

RoboCopy syntax is shown in response to the command

There is further guidance in
Robocopy - SS64
RoboCopy - MSDocs

Denis

Well, I am new to Robocopy and I have not really used CLI at all (grew up with GUI) I am taking this opportunity to dabble in both :):)

In my OP I wrote 'copy' but what I actually want is 'mirror'. I found the following code that probably does that, no?

MIRROR all contents of C:\Users\Me

to

a folder on an external drive D:\MeCopy
------------------------
Backup a Server:
The script below copies data from FileServ1 to FileServ2, the destination holds a full mirror along with file security info. When run regularly to synchronize the source and destination, robocopy will only copy those files that have changed (change in time stamp or size).

@ECHO OFF
SETLOCAL

SET _source=\\FileServ1\e$\users

SET _dest=\\FileServ2\e$\BackupUsers

SET _what=/COPYALL /B /MIR
:: /COPYALL :: COPY ALL file info
:: /B :: copy files in Backup mode.
:: /MIR :: MIRror a directory tree

SET _options=/R:0 /W:0 /LOG:C:\batch\RoboLog.txt /NFL /NDL
:: /R:n :: number of Retries
:: /W:n :: Wait time between retries
:: /LOG :: Output log file
:: /NFL :: No file logging
:: /NDL :: No dir logging

ROBOCOPY %_source% %_dest% %_what% %_options%

Haydon,

I put a sample RoboCopy script in a TenForums thread
and I also posted my attempt at a consolidated RoboCopy post - TenForums
and An explanation of some RoboCopy switches - my post #28 - TenForums
RoboCopy is the same in Windows 10 & 11.

I'm surprised that you have not included the /s switch so that subfolders are also robocopied.

All the best,
Denis

Denis, can you please look at the script below? I am trying to emulate what File History does (mirroring the Users folder to a folder on an external drive) but don't laugh if I make cute mistakes
--------------------------
@ECHO OFF
SETLOCAL

SET _source=\C:\Users\Me

SET _dest=\D:\MeCopy

SET _what=/COPYALL /B /MIR /S
:: /COPYALL :: COPY ALL file info
:: /B :: copy files in Backup mode.
:: /MIR :: MIRror a directory tree
:: /S :: copy subfolders

SET _options=/R:0 /W:0 /LOG:C:\batch\RoboLog.txt /NFL /NDL
:: /R:n :: number of Retries
:: /W:n :: Wait time between retries
:: /LOG :: Output log file
:: /NFL :: No file logging
:: /NDL :: No dir logging

ROBOCOPY %_source% %_dest% %_what% %_options%

Haydon said:

@ECHO OFF

Click to expand...

I suggest you do not include that line until you have finished debugging your script.
It hides some responses so might hide something that would help you.
I run all my scripts minimised [by setting that in their shortcuts] so I don't care what is shown in the command window. For this reason, I never use echo off.

Haydon said:

SETLOCAL

Click to expand...

This is unnecessary. You are not using anything that would be affected by it.

Haydon said:

SET _source=\C:\Users\Me

SET _dest=\D:\MeCopy

Click to expand...

Both variables have a stray \ in front of their paths.
D:\MeCopy might well exist but \D:\MeCopy does not.

I do not know why you include a _ as the first character of every variable name. It does no harm but it also does not good.
It rings a faint bell from many moons ago.

Haydon said:

/COPYALL

Click to expand...

If you read RoboCopy's built in Help or the links I gave you, you will see the defaults RoboCopy uses. I don't see that adding in /CopyAll adds anything useful. I don't recall ever using it myself.

Haydon said:

/R:0

Click to expand...

Having no retries means it might fail when some retries might allow it to work. It's up to you.
I became very conscious of this when I added a very slow computer to my home network. It needed several goes a lot of the time.

Haydon said:

/LOG:C:\batch\RoboLog.txt /NFL /NDL

Click to expand...

Doesn't /log contradict /NFL /NDL?
I never use logs so am only going by their explanations in the Help file etc.


Try your script out on some rough & ready test folders. Just copy any old rubbish into them since you'll delete them afterwards.


Best of luck,
Denis

Denis, is the following a good starting point? Also, what does the last line of the script do?
--------------------------
:: @ECHO OFF
:: Hide this line until script is fully debugged

:: SETLOCAL
:: This line may not affect anything

SET source=C:\Users\Me

SET dest=D:\MeCopy

SET what=/B /MIR /S
:: /COPYALL :: COPY ALL file info BUT superfluous
:: /B :: copy files in Backup mode
:: /MIR :: MIRror a directory tree
:: /S :: copy subfolders

SET options=/R:5 /W:0
:: /R:n :: number of Retries
:: /W:n :: Wait time between retries
:: /LOG :: Output log file BUT illogical in combination with the following switches AND I probably do not read the logs
:: /NFL :: No file logging
:: /NDL :: No dir logging

:: This robocopy script copies the contents of the Me users folder to the MeCopy folder on the external drive, the destination holds a full mirror along with file security info. Run this scipt regularly to synchronize the source and destination, robocopy will only copy those files that have changed (change in time stamp or size).

:: Unclear to me what the last line does
ROBOCOPY %source% %dest% %what% %options%

The last line actually carries out the RoboCopy operation.
- All your earlier lines were just setting it up.
- It does what you have written in the comments :: This robocopy script copies the contents of the Me users folder to the MeCopy folder …
- I was concerned about one word in those comments.

When you test it, you could [if you wanted to] alter it slightly so you can see what it looks like by just adding /l to it
ROBOCOPY %_source% %_dest% %_what% %_options% /l
which makes it show what it will do without actually doing it.

After it is all tested you should read this
Set up my Tools folder ditty - TenForums
to help you decide where to store the batch file.

All the best,
Denis

Haydon said:

:: Unclear to me what the last line does
ROBOCOPY %_source% %_dest% %_what% %_options%

Click to expand...

I missed something essential. You have changed the names of your variables so you need to change their names in the last line as well.
ROBOCOPY %source% %dest% %what% %options%

Now I realise why you asked about what the last line does.

The %---% identify that you are referring to variables that you or Windows have set up.
Your SET source=C:\Users\Me line defines a variable called source and gives it the value C:\Users\Me
So in your last line
%source%
Windows retrieves its value
C:\Users\Me
then uses that in the command.

The same applies to the other variables in your last line %dest% %what% %options%
when the script reads the %-----% it knows you mean a variable so it gets its value to use in their place.

So your last line
ROBOCOPY %source% %dest% %what% %options%
means
ROBOCOPY C:\Users\Me D:\MeCopy /B /MIR /S /R:5 /W:0

You can always write out the values in full every time but variables can add a great deal of power to batch files

Windows creates some variables of its own that you can use but in many batch files it's the ones you set up yourself that you are most interested in. If you open a Command window [not a PowerShell window] and enter the command
Set
on its own without anything following then it will list all the variables that Windows has set up already. Mine, for example, includes the line USERNAME=denis
If, just for example, I was guiding you through doing something, I might suggest pasting this in the File explorer address bar
C:\Users\%UserName%\AppData\Roaming
so you could get straight to the folder I wanted to say something about. Windows would interpret %UserName% using the list I just got you to display so I could get you to the right folder without having to ask what your username was or giving you a long-winded and confusing explanation about how to get there.

I think you will now have lots of questions. I will answer them but I should also point out that if you are learning scripting from scratch your investment of time, effort & grey hair will be better rewarded by studying PowerShell, a well-structured scripting method that is entirely unlike the mish-mash of unstructured batch file commands that have evolved haphazardly over the last several decades.
- You can use almost all commands, such as RoboCopy, in PowerShell scripts but the way PowerShell refers to many things, including variables, is radically different.
- I've listed some PowerShell guides in my ditty Batch file and PowerShell guides [post #7] - ElevenForum

All the best,
Denis

Denis, I am going with the following script, it will take me a while with my 2 thumbs, wish me luck, I will post again if I have more questions, thanks!
--------------------------
:: @ECHO OFF
:: Hide this line until script is fully debugged

:: SETLOCAL
:: This line may not affect anything

SET source=C:\Users\Me

SET dest=D:\MeCopy

SET what=/B /MIR /S
:: /COPYALL :: COPY ALL file info BUT superfluous
:: /B :: copy files in Backup mode
:: /MIR :: MIRror a directory tree
:: /S :: copy subfolders

SET options=/R:5 /W:0
:: /R:n :: number of Retries
:: /W:n :: Wait time between retries
:: /LOG :: Output log file BUT illogical in combination with the following switches AND I probably do not read the logs
:: /NFL :: No file logging
:: /NDL :: No dir logging

:: This robocopy script copies the contents of the Me users folder to the MeCopy folder on the external drive, the destination holds a full mirror along with file security info. Run this scipt regularly to update the destination, robocopy will only copy those files that have changed at the source (change in time stamp or size).

:: The last line below executes the full or incremental backups of what was setup in the above
ROBOCOPY %source% %dest% %what% %options%

OK. You should not have any problems.

Best of luck,
Denis

My first experiments with RoboCopy were a success

I ran the RoboCopy script as a .bat file on the external destination medium to copy the Documents folder onto the external destination medium.

In the first run, RoboCopy created the destination folder on the destination medium and filled it with subfolders and files.

In subsequent runs, RoboCopy supported the addition of new files, the deletion of old files, and the modification of old files.

In other words, RoboCopy provides a true mirror, although the mirror has to be updated with the subsequent runs.

I am pleasantly surprised at how fast RoboCopy works, especially the subsequent runs. At one point, with only a small change in one of the subsequent runs, I almost re-ran it, because I thought it failed to run, but not, it did run, and it just flashes like lightning!

The Documents folder icon is duplicated on the external destination medium. The Documents folder name is also duplicated on the external destination medium, regardless of what name appears in the RoboCopy script. I always had to glance at the navigation pane of File Explorer to ascertain which data I was looking at, at the original or at the copy, LOL

I conducted the above first experiments on my W11 laptop, and I am confident enough to continue my experiments on my W10 main work computer

I will mark this thread 'Solved'. Thanks to all who responded Special thanks to Denis for the help with the RoboCopy script

While trying to copy the entire contents of the Users folder, I discovered that RoboCopy tries to copy the hidden folder AppData. That turns out to be a well known problem (RoboCopy just runs and runs and runs forever) and it appears that there is no good way in RoboCopy to exclude the AppData folder (or exclude any folder or any file, for that matter) So, like many others, I simply listed the folders that I do want to have copied, like in the following 'list' script

robocopy.exe C:\Users\Me\Documents D:\MeCopy\Documents /B /MIR /S /R:2 /W:20
robocopy.exe C:\Users\Me\Pictures D:\MeCopy\Pictures /B /MIR /S /R:2 /W:20

I also noticed that RoboCopy does not copy folders with a blank in their names, e.g. Saved Games

I am still testing the 'list' script, as you can see from the switch /W:20 to give me 20 seconds time to see what is going on when I babysit the process.

The 'list' script does seem to work, but use it at your risk!

Haydon said:

I discovered that RoboCopy tries to copy the hidden folder AppData

Click to expand...

If you look at my sample script, you'll see the switch /XA:SH
I use that to stop it copying hidden and system items.
You could also use the /XD switch [e.g. /XD F:\Whatever\DitchSoon] if you wanted to be more specific but I think /XA:SH is much better.

Try3 said:

I put a sample RoboCopy script in a TenForums thread

Click to expand...

So, in your case, you can add /XA:SH to the variable you've called options.

Haydon said:

I also noticed that RoboCopy does not copy folders with a blank in their names, e.g. Saved Games

Click to expand...

That is easily dealt with. Amend your script to
ROBOCOPY "%source%" "%dest%" %what% %options%
You'll need the same approach to using many other commands in Windows. They think they have finished reading when they see a blank space in a folder-file path unless it is enclosed in quotation marks. It never does any harm to enclose them in quotation marks even if they do not contain spaces and you can also see examples of this in my sample script.



All the best,
Denis
