Been trying to solve this problem, pretty much visit every site, or reddit form, since all the links in my browser results are greyed out.

Problem is Firmware Protection in Windows 11 (win version 23H2 (c build 22631.3447)

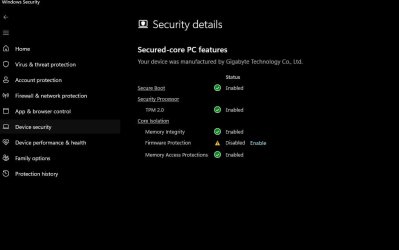

Device Securirity> Secured-core PC > Security details.. which shows Firmware protection disabled, but when pressing enable you will go to the main Core isolation page where
the Firmware option does not show up. (by playing around with regedit sometimes you can make it show up but it will also be greyed out and u need admin rights.

Now since i've tried imo all methods i could find, i have no idea how to fix this.

Im aware of the regedit HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\DeviceGuard\Scenarios
CredentialGuard
GypervisorEnforcedCodeIntegrity
KernelShadowStacks
SystemGuard

In those there are option to set values to 1's or 0's (i've tried all, deleting, reinstalling, setting all to 0, this is day 4 and im about to give up.

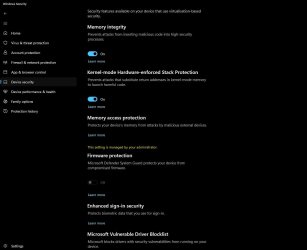

Firmware option sometimes appears back but is greyed out and off, You need admin rights to change it.

As for the group policies i tried 100's of times without success.

Motherboard bios is updated to the latest
Latest drivers , latest windows update

Windows Build/Version
win11 version 23H2 (c build 22631.3447)

Attachments

  • 3.jpg
    50.4 KB · Views: 1
  • 1.jpg
    27 KB · Views: 1
  • 2.jpg
    50.4 KB · Views: 1
  • 4.jpg
    63 KB · Views: 1
  • 5.jpg
    84.4 KB · Views: 1

My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Gigabyte
    CPU
    AMD Ryzen 9 7900X 12-Core Processor, 4701 Mhz
    Motherboard
    A620M GAMING X
    Memory
    Installed Physical Memory (RAM) 32.0 GB
    Graphics Card(s)
    gtx 3080
    Monitor(s) Displays
    samsung
    Screen Resolution
    1920x1080
    Hard Drives
    ssd
    PSU
    850w
    Case
    open
    Cooling
    basic
    Antivirus
    win def
"If the security capability of your device isn't what you'd like it to be, you might need to turn on certain hardware features (such as secure boot, if supported) or change the settings in your system's BIOS. Contact your hardware manufacturer to see what features are supported by your hardware and how to activate them".


My Computer

System One

  • OS
    Microsoft Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    MSI MS-7D98
    CPU
    Intel Core i5-13490F
    Motherboard
    MSI B760 GAMING PLUS WIFI
    Memory
    2 x 16 Patriot Memory (PDP Systems) PSD516G560081
    Graphics Card(s)
    GIGABYTE GeForce RTX 4070 WINDFORCE OC 12G (GV-N4070WF3OC-12GD)
    Sound Card
    Bluetooth Аудио
    Monitor(s) Displays
    INNOCN 15K1F
    Screen Resolution
    1920 x 1080
    Hard Drives
    WD_BLACK SN770 250GB
    KINGSTON SNV2S1000G (ELFK0S.6)
    PSU
    Thermaltake Toughpower GF3 1000W
    Case
    CG560 - DeepCool
    Cooling
    ID-COOLING SE-224-XTS / 2 x 140Mm Fan - rear and top; 3 x 120Mm - front
    Keyboard
    Corsair K70 RGB TKL
    Mouse
    Corsair KATAR PRO XT
    Internet Speed
    100 Mbps
    Browser
    Firefox
    Antivirus
    Microsoft Defender Antivirus
    Other Info
    https://www.userbenchmark.com/UserRun/66553205
"If the security capability of your device isn't what you'd like it to be, you might need to turn on certain hardware features (such as secure boot, if supported) or change the settings in your system's BIOS. Contact your hardware manufacturer to see what features are supported by your hardware and how to activate them".

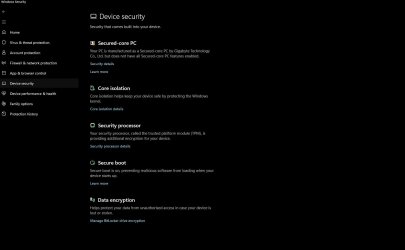

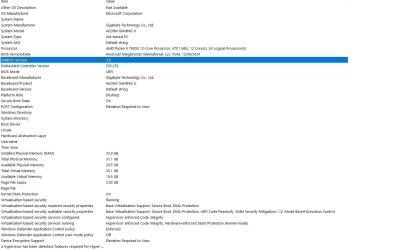

I added some pictures in the post, Secure boot, TPM, Core isolation, Memory integrity they are all enabled in windows via the bios. I include the msinfo32 file showing that for example the secure boot is running etc. But the firmware protection just won't work, i already did a reinstall, same problem. But sure i will try to contact gigabyte about this.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Gigabyte
    CPU
    AMD Ryzen 9 7900X 12-Core Processor, 4701 Mhz
    Motherboard
    A620M GAMING X
    Memory
    Installed Physical Memory (RAM) 32.0 GB
    Graphics Card(s)
    gtx 3080
    Monitor(s) Displays
    samsung
    Screen Resolution
    1920x1080
    Hard Drives
    ssd
    PSU
    850w
    Case
    open
    Cooling
    basic
    Antivirus
    win def
Hello @goldfine and welcome to ElevenForum. ;-)




Briefly, you need to turn on...

1. CPU Virtualization in the BIOS
2. Windows Hypervisor in Programs & Features > Turn Windows features on or off.
3. Then do what it says in the tutorial.

Secure Boot and TPM should already be enabled, since you're on Windows 11.

Last edited:

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22631.3593 ♦♦♦♦♦♦♦23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4702)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?
Actually before i joined the forum, i did follow those steps, as i mentioned before my whole search history is windows 11 firmware protection fix and i checked every page. A couple forums where they talk about changing the regedit and group policy, i've tried all that too. I deleted all regs, reinstalled, bios settings in each possible way, i've been doing this for days now. I need it to be fixed haha. Ow yeah and i dont get any messages of incompatible drivers, infact when i run the windows ready test for win11 it says its all good.


Attachments

  • 7.jpg
    6.5 KB · Views: 1
  • 6.jpg
    55.4 KB · Views: 1

My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Gigabyte
    CPU
    AMD Ryzen 9 7900X 12-Core Processor, 4701 Mhz
    Motherboard
    A620M GAMING X
    Memory
    Installed Physical Memory (RAM) 32.0 GB
    Graphics Card(s)
    gtx 3080
    Monitor(s) Displays
    samsung
    Screen Resolution
    1920x1080
    Hard Drives
    ssd
    PSU
    850w
    Case
    open
    Cooling
    basic
    Antivirus
    win def
Actually before i joined the forum, i did follow those steps, as i mentioned before my whole search history is windows 11 firmware protection fix and i checked every page. A couple forums where they talk about changing the regedit and group policy, i've tried all that too. I deleted all regs, reinstalled, bios settings in each possible way, i've been doing this for days now. I need it to be fixed haha. Ow yeah and i dont get any messages of incompatible drivers, infact when i run the windows ready test for win11 it says its all good.

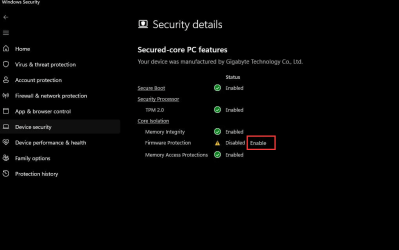

What happens when you click: Enable (RED box)?




My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22631.3593 ♦♦♦♦♦♦♦23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4702)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?
What happens when you click: Enable (RED box)?


View attachment 93996
When i click enable it will return to this page.

Also I included Bios settings.


Ftpm: Enabled
Secured core Auto enablement: Enabled
DRTM Support: Enabled
SMM Isolation Support: Enabled
Firmware Anti Rollback: Enabled
Secure Bio: Enabled
TSME: Enabled
IOMMU: Enabled
SVM Enabled: Enabled
SVM Lock: Enabled
SMEE: Enabled



So basically most people refer to this page Most common refferal but it won't help for everybody. In there you will find the Group Policy explanation, That will show you how to enable the firmware by changing the Group policy. But like i said i tried everything its just not working.


Attachments

  • 6.jpg
    55.4 KB · Views: 1

My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Gigabyte
    CPU
    AMD Ryzen 9 7900X 12-Core Processor, 4701 Mhz
    Motherboard
    A620M GAMING X
    Memory
    Installed Physical Memory (RAM) 32.0 GB
    Graphics Card(s)
    gtx 3080
    Monitor(s) Displays
    samsung
    Screen Resolution
    1920x1080
    Hard Drives
    ssd
    PSU
    850w
    Case
    open
    Cooling
    basic
    Antivirus
    win def
When i click enable it will return to this page.


I dunno then.

Personally, I turned all that stuff OFF. I don't even have a Firmware setting. :(



I use 3rd party backup software. In my opinion, that's far better than all these Microsoft guesswork security settings.



My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22631.3593 ♦♦♦♦♦♦♦23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4702)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?
On AMD platforms, you will only be able to enable firmware protection on cards with the AMD PRO badge.
On intel platforms, you'll get this on cards with the vPro badge.
I don't know much about AMD's chipsets, but for Intel's 12, 13 and 14th generations, the Q670 and W680 chipsets provide that.


My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    ASUS
    CPU
    Intel Core i7-13700KF
    Motherboard
    ASUS TUF GAMING B660M-PLUS D4
    Memory
    16GB DDR4-3731 / PC4-29800 DDR4 SDRAM UDIMM
    Graphics Card(s)
    NVIDIA GeForce RTX 2060
    Sound Card
    RealTek ALC897
    Monitor(s) Displays
    ASUS TUF Gaming VG32V
    Screen Resolution
    2560 x 1440
    Hard Drives
    Corsair MP600 CORE XT 4TB
    PSU
    550 W
    Case
    Cooler Master Elite 300
    Cooling
    Cooler Master Masterair MA624 STEALTH
    Keyboard
    Dell Keyboard
    Mouse
    Alienware Mouse
    Internet Speed
    500 mb/s
    Browser
    Edge
    Antivirus
    Kaspersky Plus
I dunno then.

Personally, I turned all that stuff OFF. I don't even have a Firmware setting. :(



I use 3rd party backup software. In my opinion, that's far better than all this Microsoft guesswork settings.
IF you go to gpedit, Computer configuration, Administrative templates, System, DeviceGuard, Double click on Turn on virtualization bases security, Enable, Select platform security level, Secure boot and DMA Protection, Secure Launch Configuration to Enabled, and you will prolly get that firmware option popping up too. :whistle: or it could blow up your pc. I just going to send gigabyte an email i almost wasted a week trying to fix this myself.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Gigabyte
    CPU
    AMD Ryzen 9 7900X 12-Core Processor, 4701 Mhz
    Motherboard
    A620M GAMING X
    Memory
    Installed Physical Memory (RAM) 32.0 GB
    Graphics Card(s)
    gtx 3080
    Monitor(s) Displays
    samsung
    Screen Resolution
    1920x1080
    Hard Drives
    ssd
    PSU
    850w
    Case
    open
    Cooling
    basic
    Antivirus
    win def
IF you go to gpedit, Computer configuration, Administrative templates, System, DeviceGuard, Double click on Turn on virtualization bases security, Enable, Select platform security level, Secure boot and DMA Protection, Secure Launch Configuration to Enabled, and you will prolly get that firmware option popping up too. :whistle: or it could blow up your pc. I just going to send gigabyte an email i almost wasted a week trying to fix this myself.


I'm on Win 11 HOME.
I don't have gpedit. :-)


My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22631.3593 ♦♦♦♦♦♦♦23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4702)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?
I just going to send gigabyte an email i almost wasted a week trying to fix this myself.



It's probably NOT Gigabyte's problem.
It's probably Microsoft.

Maybe get into a "chat" with Microsoft. Let them share your screen, and they will fix it.
Well... after the first "advisor" you chat with, escalates it to a real tech support person. :-)


My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22631.3593 ♦♦♦♦♦♦♦23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4702)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?
It's been 4 days , 5 now, I'm done with it o_O, here i found another user on reddit having the same problem for those interested in investigating this issue.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Gigabyte
    CPU
    AMD Ryzen 9 7900X 12-Core Processor, 4701 Mhz
    Motherboard
    A620M GAMING X
    Memory
    Installed Physical Memory (RAM) 32.0 GB
    Graphics Card(s)
    gtx 3080
    Monitor(s) Displays
    samsung
    Screen Resolution
    1920x1080
    Hard Drives
    ssd
    PSU
    850w
    Case
    open
    Cooling
    basic
    Antivirus
    win def
It's been 4 days , 5 now, I'm done with it o_O, here i found another user on reddit having the same problem for those interested in investigating this issue.


I just disabled...

Core Isolation, Memory Integrity, Vulnerable Driver Block List, Drivers Included with Windows Update.
I removed 98% of the Win 11 apps.

And what did I discover?
No BSODs, no problems with Windows, everything works just fine.
I use Bitdefender Internet Security (paid), AV/firewall.
And I use Macrium Reflect backup software, (paid).

MS aint the boss.png



I don't want an operating system that runs Microsoft's stuff.
I want an operating system that runs MY stuff. :D

Last edited:

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22631.3593 ♦♦♦♦♦♦♦23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4702)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?
Since I just can't let it rest here i found another long Thread with pretty much the same problem, there has to be a genius in here that can solve this right.

Also I just send an email to Gigabyte support, lets see what they have to say.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Gigabyte
    CPU
    AMD Ryzen 9 7900X 12-Core Processor, 4701 Mhz
    Motherboard
    A620M GAMING X
    Memory
    Installed Physical Memory (RAM) 32.0 GB
    Graphics Card(s)
    gtx 3080
    Monitor(s) Displays
    samsung
    Screen Resolution
    1920x1080
    Hard Drives
    ssd
    PSU
    850w
    Case
    open
    Cooling
    basic
    Antivirus
    win def
Since I just can't let it rest here i found another long Thread with pretty much the same problem, there has to be a genius in here that can solve this right.

Also I just send an email to Gigabyte support, lets see what they have to say.




We ALL used to be geniuses, but then Window 8 and above came along and damaged our brains. :D

This is your brain on Windows.png

Last edited:

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22631.3593 ♦♦♦♦♦♦♦23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4702)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?
Back
Top Bottom
