The evorim UI is a bit weird. Trying to restore individual files from the image is not intuitive.

Apart from that seems to work well enough - quick , decent compression.

Unfortunately as is often the case with imaging programs, I dont see any way to do exclusions from the image and it is a format which cant be handled by anything else as far as I can tell.

It appears to be using wimlib which might explain the speed, but it is not a .wim. Seems to use dokan for mounting as a virtual disk.

I prefer backing up to a .wim using wimlib which has a lot of advantages , though perhaps not something yer average user would do.

Last edited:

My Computer

System One

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    ga b75m ds3h
    Memory
    2x8gb 3200mhz
    Graphics Card(s)
    no thanks
    Hard Drives
    yes
    PSU
    bequiet pure power 11 400CM
    Case
    some old thing
    Cooling
    cryorig m9i

SIW2

Well-known member
Member
VIP
Local time
9:19 PM
Posts
428
OS
Win7
Little test. Same source and target. Using the lowest compression each program allows

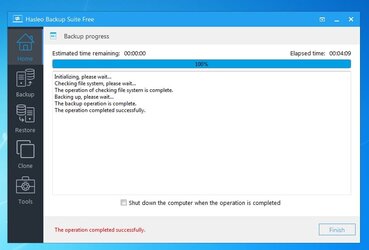

Hasleo

4m 9secs

Image size 28,669,698



Macrium Reflect v8

4m 24 seconds


Image size 27,519,382


-------------------------------------------------------------------------------------------------------------------------------------



Aomei Backupper

It doesnt show the time on the gui but it is in the logfile which coincides with my stopwatch

2m 49 seconds



Image size 28,069,343

______________________________________________________________________________________________________________________


And the winner is :
AdvancedBackup

2 minutes. That is probably reasonably accurate, I was watching the clock but I forgot to start the stopwatch. It might not have included checking the source and target and just shows the bakup time, but it is still about as quick as Aomei and a noticeably smaller image.

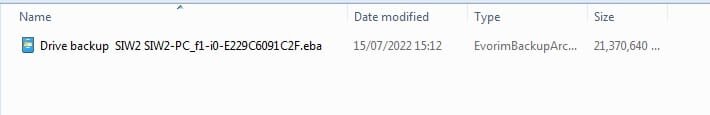

Advanced Backup1.jpg

Image size 21,370,640

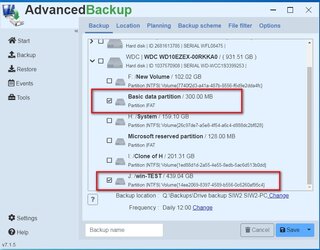

Advanced Backup2.jpg

Last edited:

My Computer

System One

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    ga b75m ds3h
    Memory
    2x8gb 3200mhz
    Graphics Card(s)
    no thanks
    Hard Drives
    yes
    PSU
    bequiet pure power 11 400CM
    Case
    some old thing
    Cooling
    cryorig m9i

cereberus

Well-known member
Pro User
VIP
Local time
9:19 PM
Posts
2,591
OS
Windows 10 Pro + others in VHDs
I'm beginning to think that some of these backup things are getting a bit "Last Century" rather like older Anti Virus type of programs.

Backups should always be taken - but if you switch to using entirely vhdx files for your windows installations (whether in a VM or as a real machine) just saving the vhdx files doesn't need any special backup software whatsoever -- and even mounting an image which was good in MACRIUM can be done by simply diskpart-> select vdisk->attach vdisk->list vol ->assign letter=xx. Just save with file explorer !!! and xmit to a NAS for extra backup.

I have 100% nothing against Macrium or whatever -- great company - but as times and methodology changes then why stick to the ways that it was done 20 years ago,

Still though whatever you use ==>PLEASE always have sufficient backup -- and test it from time to time.

Cheers
jimbo
VHDX files are great but they do attract a performance overhead (around 5-8% on my device) as they do not directly interface with disk storage but indirectly.

Also a vhdx is not so easy to restore if main OS drive has failed. It is easy to attach one to an existing native host bcd - less easy for most when setting up from scratch.


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

William654

Active member
Member
Thread Starter
Local time
10:19 PM
Posts
238
OS
Windows 11
And the winner is :
AdvancedBackup

2 minutes. That is probably reasonably accurate, I was watching the clock but I forgot to start the stopwatch. It might not have included checking the source and target and just shows the bakup time, but it is still about as quick as Aomei and a noticeably smaller image.
Image size 21,370,640

View attachment 34036

Did you see these settings:


Did you use them ? . Aomei hangup my PC twice while backupping the system, it did not does that before though.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    5900x
    Motherboard
    Asus tuf x570
    Memory
    32 GB G.Skill
    Graphics Card(s)
    RX 6800 XT
    Sound Card
    Creative Sound Blaster Z
    Monitor(s) Displays
    Acer and AOC QHD 120Hz
    Screen Resolution
    QHD
    Hard Drives
    2TB Intel 660p and 2TB Sabrent Rokect 4 plus nvme, 4TB HDD HGST
    PSU
    Corsair RM750
    Case
    Bloody rage
    Cooling
    Water cooling gamdias 240
    Keyboard
    razer ornata
    Mouse
    razer da v2
    Browser
    FF and Chrome
    Antivirus
    Malwarebytes

SIW2

Well-known member
Member
VIP
Local time
9:19 PM
Posts
428
OS
Win7
yes, I saw them. I left it at the defaults for my litle test.

It doesnt offer those two blue checkboxes on my humble pc.


My Computer

System One

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    ga b75m ds3h
    Memory
    2x8gb 3200mhz
    Graphics Card(s)
    no thanks
    Hard Drives
    yes
    PSU
    bequiet pure power 11 400CM
    Case
    some old thing
    Cooling
    cryorig m9i

Badger

Active member
Member
Local time
2:19 PM
Posts
177
Location
Idaho
OS
Windows 11 Pro
Earlier today I tested Advanced Backup here. I was impressed by the backup speed but experienced problems here using the USB restore that the program made. Once it restored the backup the restore didn't boot even though I had checked the option to make the disk bootable. Bottom line, basic functionality didn't work here.


My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homemade
    CPU
    AMD Ryzen 7 5700G 8-Core
    Motherboard
    ASUS ROG Strix B550-F Gaming
    Memory
    Corsair Vengeance RGB PRO 16GB (2x8GB) DDR4 3200MHz
    Graphics Card(s)
    Onboard ATI Radeon
    Sound Card
    Onboard
    Monitor(s) Displays
    Asus 28"
    Screen Resolution
    4K - 3840 X 2160
    Hard Drives
    PNY CS2140 500GB M.2 NVMe Gen4 x4
    Western Digital 500GB M.2 NVME Gen3
    OCZ-TRION 100 500GB SSD
    OCZ-TRION 150 500GB SSD

William654

Active member
Member
Thread Starter
Local time
10:19 PM
Posts
238
OS
Windows 11
Earlier today I tested Advanced Backup here. I was impressed by the backup speed but experienced problems here using the USB restore that the program made. Once it restored the backup the restore didn't boot even though I had checked the option to make the disk bootable. Bottom line, basic functionality didn't work here.
any error messages ? check bios boot order ? I dont have another PC to test.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    5900x
    Motherboard
    Asus tuf x570
    Memory
    32 GB G.Skill
    Graphics Card(s)
    RX 6800 XT
    Sound Card
    Creative Sound Blaster Z
    Monitor(s) Displays
    Acer and AOC QHD 120Hz
    Screen Resolution
    QHD
    Hard Drives
    2TB Intel 660p and 2TB Sabrent Rokect 4 plus nvme, 4TB HDD HGST
    PSU
    Corsair RM750
    Case
    Bloody rage
    Cooling
    Water cooling gamdias 240
    Keyboard
    razer ornata
    Mouse
    razer da v2
    Browser
    FF and Chrome
    Antivirus
    Malwarebytes

SIW2

Well-known member
Member
VIP
Local time
9:19 PM
Posts
428
OS
Win7
Earlier today I tested Advanced Backup here. I was impressed by the backup speed but experienced problems here using the USB restore that the program made. Once it restored the backup the restore didn't boot even though I had checked the option to make the disk bootable. Bottom line, basic functionality didn't work here.
What did you include in the image? a single partition ? a selection of partitions? the entire disk?

It doesn't appear to have a "system backup" button, it expects the user to select what they need/want

Last edited:

My Computer

System One

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    ga b75m ds3h
    Memory
    2x8gb 3200mhz
    Graphics Card(s)
    no thanks
    Hard Drives
    yes
    PSU
    bequiet pure power 11 400CM
    Case
    some old thing
    Cooling
    cryorig m9i

Badger

Active member
Member
Local time
2:19 PM
Posts
177
Location
Idaho
OS
Windows 11 Pro
I backed up my entire system disk which includes 4 partitions. I do a lot of crash and burn testing here on occasion so I'm backed up well with other utils etc... :)


My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homemade
    CPU
    AMD Ryzen 7 5700G 8-Core
    Motherboard
    ASUS ROG Strix B550-F Gaming
    Memory
    Corsair Vengeance RGB PRO 16GB (2x8GB) DDR4 3200MHz
    Graphics Card(s)
    Onboard ATI Radeon
    Sound Card
    Onboard
    Monitor(s) Displays
    Asus 28"
    Screen Resolution
    4K - 3840 X 2160
    Hard Drives
    PNY CS2140 500GB M.2 NVMe Gen4 x4
    Western Digital 500GB M.2 NVME Gen3
    OCZ-TRION 100 500GB SSD
    OCZ-TRION 150 500GB SSD

SIW2

Well-known member
Member
VIP
Local time
9:19 PM
Posts
428
OS
Win7
Just tested restore . Worked fine.

Selected the esp and the windows partition on that old wd mechanical disk to image. I doubt beginners would know what is what in that selection displayed below.



This is what is being restored



the "make bootable" was already ticked



No problems.

It did a good job.

Last edited:

My Computer

System One

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    ga b75m ds3h
    Memory
    2x8gb 3200mhz
    Graphics Card(s)
    no thanks
    Hard Drives
    yes
    PSU
    bequiet pure power 11 400CM
    Case
    some old thing
    Cooling
    cryorig m9i

SIW2

Well-known member
Member
VIP
Local time
9:19 PM
Posts
428
OS
Win7
I am not sure I would recommend it for granny. There isnt a "system backup" thing, so you have to make your own selection. The "make bootable" would confuse granny, and it isn't the most intuitive UI.

I quite like the Evorim Advanced Backup so far, but Aomei is still the easiest for the average punter.


My Computer

System One

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    ga b75m ds3h
    Memory
    2x8gb 3200mhz
    Graphics Card(s)
    no thanks
    Hard Drives
    yes
    PSU
    bequiet pure power 11 400CM
    Case
    some old thing
    Cooling
    cryorig m9i

Superfly

Well-known member
Power User
VIP
Local time
10:19 PM
Posts
508
OS
Windows
I am not sure I would recommend it for granny. There isnt a "system backup" thing, so you have to make your own selection. The "make bootable" would confuse granny, and it isn't the most intuitive UI.

I quite like the Evorim Advanced Backup so far, but Aomei is still the easiest for the average punter.
OK, You have always been a Aomei fan AFAIK anyway...so...


My Computer

System One

  • OS
    Windows

SIW2

Well-known member
Member
VIP
Local time
9:19 PM
Posts
428
OS
Win7
My preferred method is baccking up to a .wim using wimlib. It is not for everybody.

Quite nice Evorim has the restore to different hardware function . Not an independent module unfortunately, but it is something not often found in free versions.

That is assuming it works in the free version. Maybe it doesnt and you need to stump up for it. I should have ticked it during the restore to see if just went ahead , or if it would prompt to buy the pro version.

Last edited:

My Computer

System One

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    ga b75m ds3h
    Memory
    2x8gb 3200mhz
    Graphics Card(s)
    no thanks
    Hard Drives
    yes
    PSU
    bequiet pure power 11 400CM
    Case
    some old thing
    Cooling
    cryorig m9i

Badger

Active member
Member
Local time
2:19 PM
Posts
177
Location
Idaho
OS
Windows 11 Pro
Curious, I just did the whole procedure over again and this time it worked fine. It turned out to be user error although they should correct the issue. When using the USB recovery procedure it will list the disk to recover and if you put a checkmark in the box to the left of the disk definition, I assumed it would include all partitions just like it does during the backup process, but it doesn't. You have to down arrow to open the disk and it will list all the partitions and then you have to individually check them off. This is not the way the backup choosing of a disk works. During the backup process when you check the box to the left of the disk definition it will include all the partitions of the drive, or you can expand it and choose which partitions to include. That was my gotcha. lol


My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homemade
    CPU
    AMD Ryzen 7 5700G 8-Core
    Motherboard
    ASUS ROG Strix B550-F Gaming
    Memory
    Corsair Vengeance RGB PRO 16GB (2x8GB) DDR4 3200MHz
    Graphics Card(s)
    Onboard ATI Radeon
    Sound Card
    Onboard
    Monitor(s) Displays
    Asus 28"
    Screen Resolution
    4K - 3840 X 2160
    Hard Drives
    PNY CS2140 500GB M.2 NVMe Gen4 x4
    Western Digital 500GB M.2 NVME Gen3
    OCZ-TRION 100 500GB SSD
    OCZ-TRION 150 500GB SSD

Superfly

Well-known member
Power User
VIP
Local time
10:19 PM
Posts
508
OS
Windows
My preferred method is baccking up to a .wim using wimlib. It is not for everybody.
I agree.. if I can get a conceptual design maybe I can dev an app using the WimLib port.


My Computer

System One

  • OS
    Windows

SIW2

Well-known member
Member
VIP
Local time
9:19 PM
Posts
428
OS
Win7
Yes, it is nice to append each new backup because there is no duplication and is simple to delete earlier ones from the wim. The config file means a lot of pointless stuff can be excluded.

I just use wimlib-imagex.exe from a batch file. The --snapshot option can be used if imaging the running os.

wimlib capture and append


My Computer

System One

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    ga b75m ds3h
    Memory
    2x8gb 3200mhz
    Graphics Card(s)
    no thanks
    Hard Drives
    yes
    PSU
    bequiet pure power 11 400CM
    Case
    some old thing
    Cooling
    cryorig m9i

SIW2

Well-known member
Member
VIP
Local time
9:19 PM
Posts
428
OS
Win7
From my limited testing, Evorim Advanced Backup looks like a good option for people who have some idea of what they are doing.

The Evorim UI is not very easy, so Aomei is easier for many people.

As ever, horses for courses.

Evorim is a Good find by William654 (y)


My Computer

System One

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    ga b75m ds3h
    Memory
    2x8gb 3200mhz
    Graphics Card(s)
    no thanks
    Hard Drives
    yes
    PSU
    bequiet pure power 11 400CM
    Case
    some old thing
    Cooling
    cryorig m9i

Cromax

Active member
Local time
10:19 PM
Posts
135
OS
Windows 11
Is there any way to backup system disk without using third party software or old win 7 backup..


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    -
    CPU
    4770k
    Motherboard
    Asus Maximus Formula VI
    Memory
    16 gb Kingston
    Graphics Card(s)
    2070 super

SIW2

Well-known member
Member
VIP
Local time
9:19 PM
Posts
428
OS
Win7

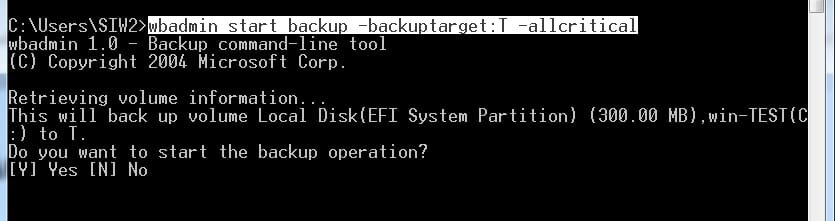

wbadmin start backup . creates an image in the vhdx format stored on the backuptarget you specify

example:


the enable backup command allows you to set a daily schedule. It was added fairly recently, it is in win11, not sure if win10 has the scheduling




One way to restore the image is to use wbadmin start recovery. Obviously recovery has to be done from outside your windows installation , from booted winre or boot.wim The wbadmin recovery commands are a bit fiddly for beginners. However because the format is vhdx, there are other ways to access and/or restore from it.

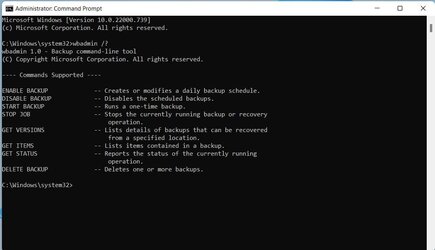

you can get help by typing wbadmin /? at an admin cmd prompt

wbamin.exe in win11 is bigger than earlier versions.

Last edited:

My Computer

System One

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    ga b75m ds3h
    Memory
    2x8gb 3200mhz
    Graphics Card(s)
    no thanks
    Hard Drives
    yes
    PSU
    bequiet pure power 11 400CM
    Case
    some old thing
    Cooling
    cryorig m9i

Latest Tutorials

Top Bottom
