Solved Can't Re-create Disk Cleanup shortcut link in Windows Tools.


PlateauRealm

Member
Local time
3:45 AM
Posts
15
OS
Windows 11 Pro 22H2 build 22621.754
I inadvertently deleted the Disk Cleanup shortcut in the Windows Tools folder: C:\ProgramData\Microsoft\Windows\Start Menu\Programs\Administrative Tools folder.

I can recreate the shortcut on my Desktop and drag-n-drop it into the folder successfully. Disk Cleanup will run from this recreated shortcut. But, the Control Panel\System and Security\Windows Tools window does not display the Disk Cleanup launch icon.

I have run both sfc /scannow and then dism /online /cleanup-image /restorehealth, in an attempt to restore the Disk Cleanup shortcut icon to the Control Panel\System and Security\Windows Tools window, but the Disk Cleanup shortcut icon will not reappear in the Control Panel\System and Security\Windows Tools window although it appears in the C:\ProgramData\Microsoft\Windows\Start Menu\Programs\Administrative Tools folder.

Although written for Win10, I have also tried the following tutorial from tenforums regarding restoration of administrative tool links:


I recreated the Disk Cleanup shortcut in the C:\ProgramData\Microsoft\Windows\Start Menu\Programs\Administrative Tools folder, rebooted and then ran sfc /scannow.
Sfc reported that corrupt files were found but it was unable to fix some of them. The resultant CBS log reports:

CSI 00000051 [SR] Cannot repair member file [l:16]'Disk Cleanup.lnk' of Microsoft-Windows-cleanmgr, version 10.0.22621.1, arch amd64, nonSxS, pkt {l:8 b:31bf3856ad364e35} in the store, hash mismatch

If I then delete the recreated Disk Cleanup shortcut link in the C:\ProgramData\Microsoft\Windows\Start Menu\Programs\Administrative Tools folder, and then run sfc /scannow, sfc reports that it did not find any integrity violations.

I have also searched the registry to find some missing or errant entry regarding Administrative Tools and Windows Tools, but can find nothing associated with what icons will appear in the Control Panel\System and Security\Windows Tools window.

This isn't enough of an issue requiring a re-installation of Win11. I'm just wondering if anyone has a solution to recreating Windows Tools shortcut links that will fix this.

Windows Build/Version
22621.232

Attachments

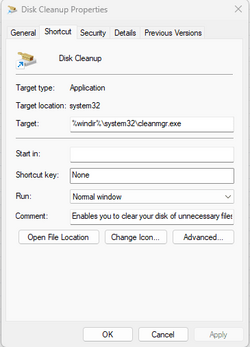

  • Disk Cleanup Properties.png
    Disk Cleanup Properties.png
    7.7 KB · Views: 1
  • sfcdetails.txt
    45.9 KB · Views: 1

My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2 build 22621.754
    Computer type
    PC/Desktop
    Manufacturer/Model
    Acer Aspire T3-715A
    CPU
    Intel(R) Core(TM) i7-6700 CPU @ 3.40GHz 3.40 GHz
    Motherboard
    Acer Aspire T3-715A
    Memory
    16 GBytes
    Graphics Card(s)
    AMD Radeon RX 480
    Sound Card
    Intel Skylake PCH-H - High Definition Audio Controller
    Monitor(s) Displays
    Dual, Acer H236HL
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung SSD 850 EVO 1TB
    Seagate ST2000DM001-1ER164
    WDC WD20NMVW-11AV3S2
    PSU
    500 Watt
    Case
    Tower
    Cooling
    Fan
    Keyboard
    Logitech K800
    Mouse
    Logitech M570
    Internet Speed
    125 Mbps, with VPN active
    Browser
    Brave
    Antivirus
    BitDefender Total Security
  • Operating System
    Windows 11 Pro 22H2 build 22621.382
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP EliteDesk 705 G3 Microtower
    CPU
    AMD PRO A6-8570 R5, 8 COMPUTE CORES 2C+6G 3.50 Ghz
    Motherboard
    HP 8265
    Memory
    40.0 GB
    Graphics card(s)
    AMD Radeon RX 460
    Sound Card
    AMD Family 15h Models 60h-6Fh CPU
    Monitor(s) Displays
    Insignia NS-22E400NA14
    Screen Resolution
    1920x1080
    Hard Drives
    SAMSUNG SSD 860 EVO 1TB
    PSU
    650 Watt
    Case
    Tower
    Cooling
    Fan
    Mouse
    M570
    Keyboard
    Logitech K330
    Internet Speed
    125 Mbps, with VPN active
    Browser
    Brave
    Antivirus
    BitDefender Total Security

SIW2

Well-known member
Member
VIP
Local time
11:45 AM
Posts
495
OS
Win7
Did you try try copying the admin tools folder from install.wim ?


My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450

Tekkie Boy

A member
Member
Local time
12:45 PM
Posts
75
OS
Win 11

My Computer

System One

  • OS
    Win 11

glasskuter

Well-known member
Pro User
VIP
Local time
5:45 AM
Posts
2,906
Location
Paris in the Lone Star State of Texas
OS
Windows 11 Pro 22H2 22621.819

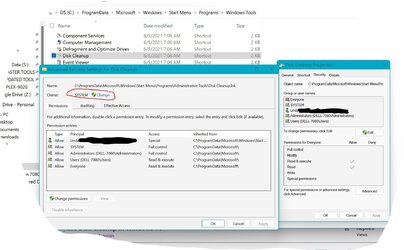

Just speculating here but does the shortcut in C:\ProgramData\Microsoft\Windows\Start Menu\Programs\Administrative Tools have the proper icon and permissions associated with it. Also check that the owner is SYSTEM
Screenshot 2022-07-15 194836.jpg


My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2 22621.819
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium

Bree

Well-known member
Guru
VIP
Local time
11:45 AM
Posts
7,362
Location
S/E England, UK
OS
Windows 11 Home
CSI 00000051 [SR] Cannot repair member file [l:16]'Disk Cleanup.lnk' of Microsoft-Windows-cleanmgr, version 10.0.22621.1, arch amd64, nonSxS, pkt {l:8 b:31bf3856ad364e35} in the store, hash mismatch
Welcome to Eleven Forum.

That error means the copy in the Component Store is corrupted. You can repair the Component Store with the command:
DISM /Online /Cleanup-Image /RestoreHealth

Do that, recreate your disk-cleanup.lnk, then run SFC again. This time it shold run sucesfully, probably saying it has found errors and fixed them.


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.

SIW2

Well-known member
Member
VIP
Local time
11:45 AM
Posts
495
OS
Win7
That error means the copy in the Component Store is corrupted. You can repair the Component Store with the command:
DISM /Online /Cleanup-Image /RestoreHealth

How does it do the repair if the component store is damaged? Where will it get the fresh files from ?

you might need to point it at another source.


My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450

Bree

Well-known member
Guru
VIP
Local time
11:45 AM
Posts
7,362
Location
S/E England, UK
OS
Windows 11 Home
How does it do the repair if the component store is damaged? Where will it get the fresh files from ?
As long as you are connected to the internet it will download new files from Microsoft.


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta as a native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.

PlateauRealm

Member
Thread Starter
Local time
3:45 AM
Posts
15
OS
Windows 11 Pro 22H2 build 22621.754
In the interim, I have restored my system from an earlier disk backup image.

I will re-create the scenario with this Win 11 Pro testing computer, trying all of the suggestions and then report back.

BTW, my Win 11 Pro installation is with a tailored UUP.com ISO that I used with Rufus in creating a USB drive installation configuration that bypasses computer compatibility checks. The system has been running perfectly for weeks without an error of any kind, until now. All MS cumulative updates and security updates have installed without error.

Perhaps I should use the : 'dism /Online /Cleanup-Image /RestoreHealth /Source:wim:I:\sources\install.esd:1 /limitaccess' format instead of the 'dism /online /cleanup-image /restorehealth' format, with the install.esd location from the mounted UUP.com ISO? Is this situation indicative of the major drawback in restoring the health of a system with the DISM command, when the system is installed with such tailored installations that bypass computer compatibility checks?


My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2 build 22621.754
    Computer type
    PC/Desktop
    Manufacturer/Model
    Acer Aspire T3-715A
    CPU
    Intel(R) Core(TM) i7-6700 CPU @ 3.40GHz 3.40 GHz
    Motherboard
    Acer Aspire T3-715A
    Memory
    16 GBytes
    Graphics Card(s)
    AMD Radeon RX 480
    Sound Card
    Intel Skylake PCH-H - High Definition Audio Controller
    Monitor(s) Displays
    Dual, Acer H236HL
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung SSD 850 EVO 1TB
    Seagate ST2000DM001-1ER164
    WDC WD20NMVW-11AV3S2
    PSU
    500 Watt
    Case
    Tower
    Cooling
    Fan
    Keyboard
    Logitech K800
    Mouse
    Logitech M570
    Internet Speed
    125 Mbps, with VPN active
    Browser
    Brave
    Antivirus
    BitDefender Total Security
  • Operating System
    Windows 11 Pro 22H2 build 22621.382
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP EliteDesk 705 G3 Microtower
    CPU
    AMD PRO A6-8570 R5, 8 COMPUTE CORES 2C+6G 3.50 Ghz
    Motherboard
    HP 8265
    Memory
    40.0 GB
    Graphics card(s)
    AMD Radeon RX 460
    Sound Card
    AMD Family 15h Models 60h-6Fh CPU
    Monitor(s) Displays
    Insignia NS-22E400NA14
    Screen Resolution
    1920x1080
    Hard Drives
    SAMSUNG SSD 860 EVO 1TB
    PSU
    650 Watt
    Case
    Tower
    Cooling
    Fan
    Mouse
    M570
    Keyboard
    Logitech K330
    Internet Speed
    125 Mbps, with VPN active
    Browser
    Brave
    Antivirus
    BitDefender Total Security

SIW2

Well-known member
Member
VIP
Local time
11:45 AM
Posts
495
OS
Win7
no.


My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450

PlateauRealm

Member
Thread Starter
Local time
3:45 AM
Posts
15
OS
Windows 11 Pro 22H2 build 22621.754
glasskuter was correct. The shortcut in C:\ProgramData\Microsoft\Windows\Start Menu\Programs\Administrative Tools did not have the owner set to SYSTEM. After changing the owner to SYSTEM, the Disk Cleanup shortcut link now appears in Windows Tools. Running sfc /scannow reported it had '... found corrupt files and successfully repaired them.' and a second run of sfc /scannow reported '... no integrity violations.'

Thanks :)


My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2 build 22621.754
    Computer type
    PC/Desktop
    Manufacturer/Model
    Acer Aspire T3-715A
    CPU
    Intel(R) Core(TM) i7-6700 CPU @ 3.40GHz 3.40 GHz
    Motherboard
    Acer Aspire T3-715A
    Memory
    16 GBytes
    Graphics Card(s)
    AMD Radeon RX 480
    Sound Card
    Intel Skylake PCH-H - High Definition Audio Controller
    Monitor(s) Displays
    Dual, Acer H236HL
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung SSD 850 EVO 1TB
    Seagate ST2000DM001-1ER164
    WDC WD20NMVW-11AV3S2
    PSU
    500 Watt
    Case
    Tower
    Cooling
    Fan
    Keyboard
    Logitech K800
    Mouse
    Logitech M570
    Internet Speed
    125 Mbps, with VPN active
    Browser
    Brave
    Antivirus
    BitDefender Total Security
  • Operating System
    Windows 11 Pro 22H2 build 22621.382
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP EliteDesk 705 G3 Microtower
    CPU
    AMD PRO A6-8570 R5, 8 COMPUTE CORES 2C+6G 3.50 Ghz
    Motherboard
    HP 8265
    Memory
    40.0 GB
    Graphics card(s)
    AMD Radeon RX 460
    Sound Card
    AMD Family 15h Models 60h-6Fh CPU
    Monitor(s) Displays
    Insignia NS-22E400NA14
    Screen Resolution
    1920x1080
    Hard Drives
    SAMSUNG SSD 860 EVO 1TB
    PSU
    650 Watt
    Case
    Tower
    Cooling
    Fan
    Mouse
    M570
    Keyboard
    Logitech K330
    Internet Speed
    125 Mbps, with VPN active
    Browser
    Brave
    Antivirus
    BitDefender Total Security

Latest Support Threads

Top Bottom
