System Change Lid Close Action in Windows 11


  • Staff

This tutorial will show you how to change the default action to take when closing the lid of your laptop in Windows 10 and Windows 11.

The lid switch close action specifies the action to take when the system lid is closed.

Users can specify one of the following actions to take:
  • Do Nothing = No action is taken when the system lid is closed.
  • Sleep = The system enters sleep when the system lid is closed.
  • Hibernate = The system enters hibernate when the system lid is closed.
  • Shut Down = The system shuts down when the system lid is closed.


Contents

  • Option One: Change Lid Close Action for Current Power Plan in Settings
  • Option Two: Change Lid Close Action for Current Power Plan in Power Options
  • Option Three: Change Lid Close Action for Specific Power Plan in Advanced Power Options
  • Option Four: Change Lid Close Action for Current Power Plan in Windows Terminal
  • Option Five: Change Lid Close Action for Specific Power Plan in Windows Terminal
  • Option Six: Specify Lid Close Action for All Power Plans in Local Group Policy Editor
  • Option Seven: Specify Lid Close Action for All Power Plans using REG file




Option One

Change Lid Close Action for Current Power Plan in Settings


This option is only available starting with Windows 11 build 26002 (Canary).


1 Open Settings (Win+I).

2 Click/tap on System on the left side, and click/tap on Power & battery on the right side. (see screenshot below)

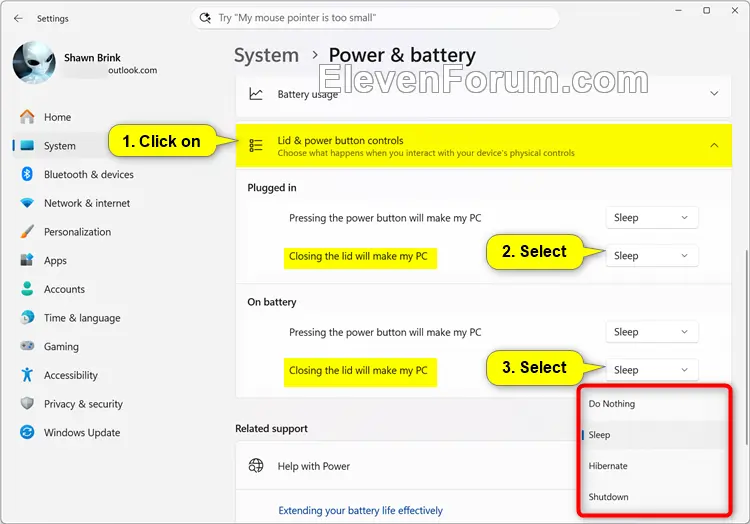

3 Click/tap on Lid & power button controls to expand it open. (see screenshot below)

4 Select Do Nothing, Sleep (default), Hibernate, Shutdown, or Display Off for what you want in the "Plugged in" and "On battery" Closing the lid will make my PC drop menus.


5 You can now close Settings if you like.




Option Two

Change Lid Close Action for Current Power Plan in Power Options


1 Open the Control Panel (icons view), and click/tap on the Power Options icon.

2 Click/tap on the Choose what the power button does link in the left pane. (see screenshot below)


3 In both the On battery and Plugged in drop menus for the When I close the lid setting, select Do nothing, Sleep (default), Hibernate, or Shut down for what you want, and click/tap on Save changes.

Desktop computers will not have separate On battery and Plugged in options available unless it has a data connection to a UPS.







Option Three

Change Lid Close Action for Specific Power Plan in Advanced Power Options


1 Open the Control Panel (icons view), and click/tap on the Power Options icon.

2 Click/tap on the Change plan settings link for the power plan (ex: "Balanced") you want to apply this to. (see screenshot below)


3 Click/tap on the Change advanced power settings link. (see screenshot below)


4 Expand open the Power buttons and lid and Lid close action settings. (see screenshot below step 5)

You can add Lid close action to Power Options if you do not have it available.


5 In both the On battery and Plugged in drop menus for the Lid close action setting, select Do nothing, Sleep (default), Hibernate, or Shut down for what you want, and click/tap on OK.

Desktop computers will not have separate On battery and Plugged in options available unless it has a data connection to a UPS.







Option Four

Change Lid Close Action for Current Power Plan in Windows Terminal


1 Open Windows Terminal, and select either Windows PowerShell or Command Prompt.

2 Copy and paste the command below you want to use for when on battery and/or plugged in into Windows Terminal, and press Enter.

 On battery
(Do nothing)​
powercfg -setdcvalueindex SCHEME_CURRENT 4f971e89-eebd-4455-a8de-9e59040e7347 5ca83367-6e45-459f-a27b-476b1d01c936 0

OR​

(Sleep - default)​
powercfg -setdcvalueindex SCHEME_CURRENT 4f971e89-eebd-4455-a8de-9e59040e7347 5ca83367-6e45-459f-a27b-476b1d01c936 1

OR​

powercfg -setdcvalueindex SCHEME_CURRENT 4f971e89-eebd-4455-a8de-9e59040e7347 5ca83367-6e45-459f-a27b-476b1d01c936 2

OR​

(Shut down)​
powercfg -setdcvalueindex SCHEME_CURRENT 4f971e89-eebd-4455-a8de-9e59040e7347 5ca83367-6e45-459f-a27b-476b1d01c936 3

AND/OR​

 Plugged in

You would use this option for a desktop computer, since desktop computers will not have separate On battery and Plugged in options available unless it has a data connection to a UPS.

(Do nothing)​
powercfg -setacvalueindex SCHEME_CURRENT 4f971e89-eebd-4455-a8de-9e59040e7347 5ca83367-6e45-459f-a27b-476b1d01c936 0

OR​

(Sleep - default)​
powercfg -setacvalueindex SCHEME_CURRENT 4f971e89-eebd-4455-a8de-9e59040e7347 5ca83367-6e45-459f-a27b-476b1d01c936 1

OR​

powercfg -setacvalueindex SCHEME_CURRENT 4f971e89-eebd-4455-a8de-9e59040e7347 5ca83367-6e45-459f-a27b-476b1d01c936 2

OR​

(Shut down)​
powercfg -setacvalueindex SCHEME_CURRENT 4f971e89-eebd-4455-a8de-9e59040e7347 5ca83367-6e45-459f-a27b-476b1d01c936 3

3 You can now close Windows Terminal if you like.




Option Five

Change Lid Close Action for Specific Power Plan in Windows Terminal


1 Open Windows Terminal, and select either Windows PowerShell or Command Prompt.

2 Copy and paste the powercfg /L command into Windows Terminal, and press Enter. Make note of the GUID number (ex: 381b4222-f694-41f0-9685-ff5bb260df2e) of the power plan (ex: "Balanced") you want to apply this to. (see screenshot below)

The power plan (ex: Ultimate Performance) with an asterisk (*) to the right of it is your current active power plan scheme.



3 Type the command below you want to use for when on battery and/or plugged in into Windows Terminal, and press Enter.

 On battery
(Do nothing)​
powercfg -setdcvalueindex GUID 4f971e89-eebd-4455-a8de-9e59040e7347 5ca83367-6e45-459f-a27b-476b1d01c936 0

OR​

(Sleep - default)​
powercfg -setdcvalueindex GUID 4f971e89-eebd-4455-a8de-9e59040e7347 5ca83367-6e45-459f-a27b-476b1d01c936 1

OR​

powercfg -setdcvalueindex GUID 4f971e89-eebd-4455-a8de-9e59040e7347 5ca83367-6e45-459f-a27b-476b1d01c936 2

OR​

(Shut down)​
powercfg -setdcvalueindex GUID 4f971e89-eebd-4455-a8de-9e59040e7347 5ca83367-6e45-459f-a27b-476b1d01c936 3

AND/OR​

 Plugged in

You would use this option for a desktop computer, since desktop computers will not have separate On battery and Plugged in options available unless it has a data connection to a UPS.

(Do nothing)​
powercfg -setacvalueindex GUID 4f971e89-eebd-4455-a8de-9e59040e7347 5ca83367-6e45-459f-a27b-476b1d01c936 0

OR​

(Sleep - default)​
powercfg -setacvalueindex GUID 4f971e89-eebd-4455-a8de-9e59040e7347 5ca83367-6e45-459f-a27b-476b1d01c936 1

OR​

powercfg -setacvalueindex GUID 4f971e89-eebd-4455-a8de-9e59040e7347 5ca83367-6e45-459f-a27b-476b1d01c936 2

OR​

(Shut down)​
powercfg -setacvalueindex GUID 4f971e89-eebd-4455-a8de-9e59040e7347 5ca83367-6e45-459f-a27b-476b1d01c936 3

Substitute GUID in the command above with the actual GUID from step 2 above for the power plan you want to apply this to.

For example: Set to "Shut down" while "Plugged in" for the Balanced power plan GUID (381b4222-f694-41f0-9685-ff5bb260df2e)

powercfg -setacvalueindex 381b4222-f694-41f0-9685-ff5bb260df2e 4f971e89-eebd-4455-a8de-9e59040e7347 5ca83367-6e45-459f-a27b-476b1d01c936 3


4 You can now close Windows Terminal if you like.




Option Six

Specify Lid Close Action for All Power Plans in Local Group Policy Editor


You must be signed in as an administrator to use this option.

The Local Group Policy Editor is only available in the Windows 11 Pro, Enterprise, and Education, editions.

All editions can use Option Seven below to configure the same policy.


1 Open the Local Group Policy Editor (gpedit.msc).

2 Navigate to the policy location below in the left pane of the Local Group Policy Editor. (see screenshot below)

Computer Configuration > Administrative Templates > System > Power Management > Button Settings.​


3 In the right pane of Button Settings, double click/tap on the Select the lid switch action (plugged in) and/or Select the lid switch action (on battery) policy you want to edit. (see screenshot above)

4 Do step 5 (default), step 6 (hibernate), step 7 (shut down), step 8 (sleep), or step 9 (Take no action) below for which default action you want to specify.

5 Default User Choice for Lid Close Action

This will allow users to use Option One, Option Two, Option Three, and Option Four.


A) Select (dot) Not Configured, click/tap on OK, and go to step 10 below. (see screenshot below step 9)​

6 To Specify "Hibernate" for Lid Close Action

This will override and gray out Option One, Option Two, Option Three, Option Four, and Option Five.


A) Select (dot) Enabled, select Hibernate in the Lid Switch Action drop menu under Options, click/tap on OK, and go to step 10 below. (see screenshots below step 9)​

7 To Specify "Shut down" for Lid Close Action

This will override and gray out Option One, Option Two, Option Three, Option Four, and Option Five.


A) Select (dot) Enabled, select Shut down in the Lid Switch Action drop menu under Options, click/tap on OK, and go to step 10 below. (see screenshots below step 9)​

8 To Specify "Sleep" for Lid Close Action

This will override and gray out Option One, Option Two, Option Three, Option Four, and Option Five.


A) Select (dot) Enabled, select Sleep in the Lid Switch Action drop menu under Options, click/tap on OK, and go to step 10 below. (see screenshots below step 9)​

9 To Specify "Take no action" for Lid Close Action

This will override and gray out Option One, Option Two, Option Three, Option Four, and Option Five.


A) Select (dot) Enabled, select Take no action in the Lid Switch Action drop menu under Options, click/tap on OK, and go to step 10 below. (see screenshots below)​


10 When finished, you can close the Local Group Policy Editor if you like.




Option Seven

Specify Lid Close Action for All Power Plans using REG file


You must be signed in as an administrator to use this option.


1 Do step 2 (default), step 3 (hibernate), step 4 (shut down), step 5 (sleep), or step 6 (Take no action) below for which default action you want to specify.


 2. Default User Choice for Lid Close Action

This will allow users to use Option One, Option Two, Option Three, Option Four, and Option Five.


A) Click/tap on the Download button you want below to download the plugged in AND/OR on battery file below, and go to step 7 below.​

Default_user_choice_for_lid_close_action-plugged-in.reg


(Contents of REG file for reference)
Code:
Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Power\PowerSettings\5CA83367-6E45-459F-A27B-476B1D01C936]
"ACSettingIndex"=-

AND/OR​

Default_user_choice_for_lid_close_action-on-battery.reg


(Contents of REG file for reference)
Code:
Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Power\PowerSettings\5CA83367-6E45-459F-A27B-476B1D01C936]
"DCSettingIndex"=-


 3. To Specify "Hibernate" for Lid Close Action

This will override and gray out Option One, Option Two, Option Three, Option Four, and Option Five.


A) Click/tap on the Download button you want below to download the plugged in AND/OR on battery file below, and go to step 7 below.​

Specify_hibernate_for_lid_close_action-plugged-in.reg


(Contents of REG file for reference)
Code:
Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Power\PowerSettings\5CA83367-6E45-459F-A27B-476B1D01C936]
"ACSettingIndex"=dword:00000002

AND/OR​

Specify_hibernate_for_lid_close_action-on-battery.reg


(Contents of REG file for reference)
Code:
Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Power\PowerSettings\5CA83367-6E45-459F-A27B-476B1D01C936]
"DCSettingIndex"=dword:00000002


 4. To Specify "Shut down" for Lid Close Action

This will override and gray out Option One, Option Two, Option Three, Option Four, and Option Five.


A) Click/tap on the Download button you want below to download the plugged in AND/OR on battery file below, and go to step 7 below.​

Specify_shut_down_for_lid_close_action-plugged-in.reg


(Contents of REG file for reference)
Code:
Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Power\PowerSettings\5CA83367-6E45-459F-A27B-476B1D01C936]
"ACSettingIndex"=dword:00000003

AND/OR​

Specify_shut_down_for_lid_close_action-on-battery.reg


(Contents of REG file for reference)
Code:
Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Power\PowerSettings\5CA83367-6E45-459F-A27B-476B1D01C936]
"DCSettingIndex"=dword:00000003


 5. To Specify "Sleep" for Lid Close Action

This will override and gray out Option One, Option Two, Option Three, Option Four, and Option Five.


A) Click/tap on the Download button you want below to download the plugged in AND/OR on battery file below, and go to step 7 below.​

Specify_sleep_for_lid_close_action-plugged-in.reg


(Contents of REG file for reference)
Code:
Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Power\PowerSettings\5CA83367-6E45-459F-A27B-476B1D01C936]
"ACSettingIndex"=dword:00000001

AND/OR​

Specify_sleep_for_lid_close_action-on-battery.reg


(Contents of REG file for reference)
Code:
Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Power\PowerSettings\5CA83367-6E45-459F-A27B-476B1D01C936]
"DCSettingIndex"=dword:00000001


 6. To Specify "Take no action" for Lid Close Action

This will override and gray out Option One, Option Two, Option Three, Option Four, and Option Five.


A) Click/tap on the Download button you want below to download the plugged in AND/OR on battery file below, and go to step 7 below.​

Specify_do_nothing_for_lid_close_action-plugged-in.reg


(Contents of REG file for reference)
Code:
Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Power\PowerSettings\5CA83367-6E45-459F-A27B-476B1D01C936]
"ACSettingIndex"=dword:00000000

AND/OR​

Specify_do_nothing_for_lid_close_action-on-battery.reg


(Contents of REG file for reference)
Code:
Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Power\PowerSettings\5CA83367-6E45-459F-A27B-476B1D01C936]
"DCSettingIndex"=dword:00000000

7 Save the .reg file to your desktop.

8 Double click/tap on the downloaded .reg file to merge it.

9 When prompted, click/tap on Run, Yes (UAC), Yes, and OK to approve the merge.

10 You can now delete the downloaded .reg file if you like.


That's it,
Shawn Brink




Attachments

  • Default_user_choice_for_lid_close_action-on-battery.reg
    636 bytes · Views: 254
  • Default_user_choice_for_lid_close_action-plugged-in.reg
    636 bytes · Views: 277
  • Specify_do_nothing_for_lid_close_action-on-battery.reg
    662 bytes · Views: 274
  • Specify_do_nothing_for_lid_close_action-plugged-in.reg
    662 bytes · Views: 317
  • Specify_hibernate_for_lid_close_action-on-battery.reg
    662 bytes · Views: 231
  • Specify_hibernate_for_lid_close_action-plugged-in.reg
    662 bytes · Views: 246
  • Specify_shut_down_for_lid_close_action-on-battery.reg
    662 bytes · Views: 227
  • Specify_shut_down_for_lid_close_action-plugged-in.reg
    662 bytes · Views: 231
  • Specify_sleep_for_lid_close_action-plugged-in.reg
    662 bytes · Views: 253
  • Specify_sleep_for_lid_closeaction-on-battery.reg
    662 bytes · Views: 236
Last edited:
Tutorial updated to add the new setting in option one. :alien:


My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING (11GB GDDR5X)
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1 14-eu0098nr (2024)
    CPU
    Intel Core Ultra 7 155H 4.8 GHz
    Memory
    16 GB LPDDR5x-7467 MHz
    Graphics card(s)
    Integrated Intel Arc
    Sound Card
    Poly Studio
    Monitor(s) Displays
    14" 2.8K OLED multitouch
    Screen Resolution
    2880 x 1800
    Hard Drives
    2 TB PCIe NVMe M.2 SSD
    Internet Speed
    Intel Wi-Fi 7 BE200 (2x2) and Bluetooth 5.4
    Browser
    Chrome and Edge
    Antivirus
    Windows Defender and Malwarebytes Premium
Back
Top Bottom
