System Disable Modern Standby in Windows 10 and Windows 11


  • Staff

In Windows 10 and Windows 11, there are two power models for PCs: S3 and Modern Standby (S0 Low Power Idle). The S3 power model is an older standard and is not capable of the instant on that consumers expect from modern devices. Modern Standby is capable of leveraging all the capabilities of a modern chipset and can be integrated across the breadth of tablets and PCs today. The first iteration of Modern Standby was Connected Standby, which first shipped in Windows 8 and Windows 8.1. Modern Standby expands upon the Windows 8.x Connected Standby concept, allowing for flexibility in component selection and the ability for the OS to manage network connectivity in standby.

Windows 10 and Windows 11 Modern Standby (Modern Standby) expands the Windows 8.1 Connected Standby power model. Connected Standby, and consequently Modern Standby, enable an instant on / instant off user experience, similar to smartphone power models. Just like the phone, the S0 low power idle model enables the system to stay connected to the network while in a low power mode.

Although Modern Standby enables an instant on/off user experience like Connected Standby, Modern Standby is more inclusive than the Windows 8.1 Connected Standby power model. Modern Standby allows for market segments previously limited to the Traditional Sleep (S3) power model to take advantage of the low power idle model. Example systems include systems based on rotational media and hybrid media (for example, SSD + HDD or SSHD) and/or a NIC that doesn’t support all of the prior requirements for Connected Standby.

Modern Standby systems can be connected (enabled), disconnected (disabled), or managed by Windows to allow network connectivity during standby. This behavior is dictated by the hardware and/or by configuration.
  • Connected Modern Standby will allow you to stay connected to the network while in standby to still receive and get notifications about email, VoIP calls, and such, but it will use more battery.
  • Disconnected Modern Standby will allow longer battery life, but you will no longer have the advantages of staying connected to the network while in standby.
  • Managed by Windows will allow Windows to manage network connectivity during standby.
On any Modern Standby system (whether connected or disconnected), the system remains in S0 while in standby, allowing the following scenarios to work:
  • Background activity
  • Faster resume from a low power state
On systems that are connected while in standby, wakes based on specific network patterns may also be set by the operating system to enable apps to receive the latest content such as incoming email, VoIP calls, or news articles.

See also:
This tutorial will show you how to disable Modern Standby (S0 Low Power Idle) to enable S3 support on a Windows 10 and Windows 11 device.


If you disabled Modern Standby and your PC crashes when entering S3, you can press and hold the power button to force a hard shut down, press the power button again to turn on, and enable Modern Standby again.

This can happen if the OEM has removed S3 from the BIOS/UEFI.


You must be signed in as an administrator to enable or disable Modern Standby.

You cannot enable Modern Standby on a device that didn't originally support it.



Contents

  • Option One: Enable or Disable Modern Standby using Command
  • Option Two: Enable or Disable Modern Standby using REG file


EXAMPLE: Modern Standby enabled and disabled






Option One

Enable or Disable Modern Standby using Command


1 Open an elevated command prompt in Windows 10, or open Windows Terminal (Admin) in Windows 11, and select either Windows PowerShell or Command Prompt.

2 Copy and paste the command below you want to use into the console, and press Enter. (see screenshots below)

(Enable Modern Standby - default)​
reg delete "HKLM\System\CurrentControlSet\Control\Power" /v PlatformAoAcOverride /f


OR​

(Disable Modern Standby)​
reg add HKLM\System\CurrentControlSet\Control\Power /v PlatformAoAcOverride /t REG_DWORD /d 0


3 Restart the computer to apply.




Option Two

Enable or Disable Modern Standby using REG file


1 Do step 2 (enable) or step 3 (disable) below for what you want.

2 Enable Modern Standby

This is the default setting.


A) Click/tap on the Download button below to download the REG file below, and go to step 4 below.​

Enable_Modern_Standby.reg


(Contents of REG file for reference)
Code:
Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Power]
"PlatformAoAcOverride"=-

3 Disable Modern Standby

A) Click/tap on the Download button below to download the REG file below, and go to step 4 below.​

Disable_Modern_Standby.reg


(Contents of REG file for reference)
Code:
Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Power]
"PlatformAoAcOverride"=dword:00000000

4 Save the .reg file to your desktop.

5 Double click/tap on the downloaded .reg file to merge it.

6 When prompted, click/tap on Run, Yes (UAC), Yes, and OK to approve the merge.

7 Restart the computer to apply.

8 You can now delete the downloaded .reg file if you like.


That's it,
Shawn Brink




Attachments

  • Power.png
    15.4 KB · Views: 28
  • Disable_Modern_Standby.reg
    606 bytes · Views: 76
  • Enable_Modern_Standby.reg
    580 bytes · Views: 70
Last edited:

CmdrKeene

Member
MVP
VIP
Local time
6:59 PM
Posts
4
Location
Oklahoma City
OS
Windows 11 dev ring
Thanks for all your great articles on Connected and Modern Standby. Been very informative lately, I guess I lost track of developments after the Connected Standby days.

I'm going out of my mind trying to figure out why my PC fan loves to blow when I think it should be asleep. It's intermittent and I've never found any process consuming a great amount of CPU, it'll just blow and then get quiet continuously every 10 minutes while it's asleep.

After a ton of headscratching and trying to disable wake timers and such, I noticed that powercfg /lastwake was always "wake count=zero", and further observed that the laptop power light did not flash when I put it to sleep mode. Then I thought "maybe it's using the old Away mode" so it can serve up network shares or shared media, but that wasn't it either.

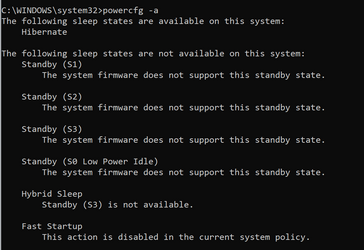

Apparently my system is never actually sleeping and remaining in S0.

I wouldn't care if it would just be quiet. And what's really weird is it WILL be quiet if I disable all power saving options. If my screen is on and sitting at the desktop with no programs running, it will be silent forever. But the moment my screen turns off, the fan starts blowing loud. Then it stops when I wake it back up (or at least make the screen come back on).

I'm about to go reboot into bios options and see what I can do there, might be worth a reinstall, I was going to try out the new smart app control anyway so two birds and all.


My Computers

System One System Two

  • OS
    Windows 11 dev ring
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude 5520
    CPU
    11th Gen Intel Core i7-1185G7 @ 3.00GHz
    Memory
    32 GB
    Graphics Card(s)
    Intel Iris Xe Graphics
    Monitor(s) Displays
    28" Samsung LU28e590DS
    Screen Resolution
    3840×2160
    Hard Drives
    KBG40ZNS512G NVMe KIOXIA 512GB
    Keyboard
    Microsoft Sculpt Desktop
    Mouse
    Logitech Cheap Thing from Walmart
    Internet Speed
    AT&T Fiber 500 GB symmetric
    Browser
    Edge
    Antivirus
    Windows Defender
  • Operating System
    Windows 11 dev ring
    Computer type
    Tablet
    Manufacturer/Model
    Microsoft Surface Book 2
    Memory
    8 GB

glasskuter

Well-known member
Power User
VIP
Local time
6:59 PM
Posts
1,595
Location
The Lone Star State of Texas
OS
Windows 11 Pro 21H2 22000.675
I'm going out of my mind trying to figure out why my PC fan loves to blow
@CmdrKeene You are not alone. IMO modern standby is a nightmare for some laptop users. There are quite a few threads in this forum about it relating to issues such as overheating, loss of internet connection, and battery drain. It might be beneficial to you to read them. If after trying some of the suggestions you still can't tame your laptop, start a thread in the forum section and members will do what we can to help you. Chances are, your new Dell will not support S3 sleep. The general consensus is, about the only thing one can do with a modern standby laptop when it's is not in use is to turn it off or put it in hibernate. And NEVER carry it in a case unless it's off unless you want it to fry.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 22000.675
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900
    Memory
    32 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    standard
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Antivirus
    Defender+MWB Premium

Try3

Well-known member
Power User
VIP
Local time
12:59 AM
Posts
522
Location
The proper part of London
OS
Windows 11 Home x64 Version 21H2 Build 22000.675
Apparently my system is never actually sleeping and remaining in S0.

Correct, if you have S0 then you do not have S3 Sleep.
- I adapted to S0 by using hibernation when I had been used to using S3 Sleep.
- When I got even more fed up with S0, I set my monitor to always stay on [it's the monitor turning off, as set in Power options, that starts S0] and I set a very dark screensaver to come on after a desired time so the screen wouldn't be staring at me all day.
- Eventually, I just used this tutorial to disable S0.
- - In my case, S3 Sleep remained disabled so I carried on having to use hibernation as a second-best choice.​
- - In my case, Task scheduler would not wake the computer from hibernation but others have reported that theirs worked OK.​
- - In my case, my WiFi adapter often fails to restart properly [no networks detected] when it comes out of hibernation so I run a little script to disable it then re-enable it after which it works again.​

See also Enable or Disable Modern Standby Network Connectivity - ElevenForumTutorials

Best of luck,
Denis



Welcome to ElevenForum.

It's really worth making time to browse through the Tutorial index - there's a shortcut to it at the top of every page [within the Tutorials dropdown list].
- At the foot of the Tutorial index is a shortcut to download it as a spreadsheet.
- I download a new copy each month.
- By downloading it as a spreadsheet I can benefit from Excel's excellent filtering capabilities when I search for topics of interest.
- Tutorials are also listed at Tutorials - there's a shortcut to that at the top of every page.

You can search ElevenForum using the search box in the top-right corner of all ElevenForum webpages or using Advanced Search - ElevenForum
- You can also search ElevenForum threads in many general search engines, such as Google, by adding site:elevenforum.com after your search term. For example,
Taskbar setup site:elevenforum.com
- [This is what the search box in the top-right corner of ElevenForum webpages does automatically]

Last edited:

My Computer

System One

  • OS
    Windows 11 Home x64 Version 21H2 Build 22000.675

CmdrKeene

Member
MVP
VIP
Local time
6:59 PM
Posts
4
Location
Oklahoma City
OS
Windows 11 dev ring
I feel like when I first got this laptop, it would use S3. I could be mis-remembering so I'm not 100% certain, but I feel like I used to witness the power light flashing when sleeping, now it just says "on" all the time. From the articles I've read, I need to clean-install to reconfigure the system to use other sleep modes, I'm not sure if I'm ready to take that step although I'm not hard against it.


My Computers

System One System Two

  • OS
    Windows 11 dev ring
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude 5520
    CPU
    11th Gen Intel Core i7-1185G7 @ 3.00GHz
    Memory
    32 GB
    Graphics Card(s)
    Intel Iris Xe Graphics
    Monitor(s) Displays
    28" Samsung LU28e590DS
    Screen Resolution
    3840×2160
    Hard Drives
    KBG40ZNS512G NVMe KIOXIA 512GB
    Keyboard
    Microsoft Sculpt Desktop
    Mouse
    Logitech Cheap Thing from Walmart
    Internet Speed
    AT&T Fiber 500 GB symmetric
    Browser
    Edge
    Antivirus
    Windows Defender
  • Operating System
    Windows 11 dev ring
    Computer type
    Tablet
    Manufacturer/Model
    Microsoft Surface Book 2
    Memory
    8 GB

Try3

Well-known member
Power User
VIP
Local time
12:59 AM
Posts
522
Location
The proper part of London
OS
Windows 11 Home x64 Version 21H2 Build 22000.675
Some people find that disabling S0 enables S3. You might be one of them. It is a quick & simple procedure and equally quick & simple to reverse.

By the way, I've also seen the comment, "clean-install to reconfigure the system to use other sleep modes" but I've never seen it explained.
- Surely clean installing would just leave you back where you are now labouring under the curse of S0.
- I suspect that the comment might be a mis-transfer of something that made sense in the context of some MS dev papers about S0 definitions & hardware requirements.

All the best,
Denis


My Computer

System One

  • OS
    Windows 11 Home x64 Version 21H2 Build 22000.675

Brink

Administrator
Staff member
MVP
Thread Starter
Local time
6:59 PM
Posts
3,714
OS
Windows 11 Pro for Workstations
I feel like when I first got this laptop, it would use S3. I could be mis-remembering so I'm not 100% certain, but I feel like I used to witness the power light flashing when sleeping, now it just says "on" all the time. From the articles I've read, I need to clean-install to reconfigure the system to use other sleep modes, I'm not sure if I'm ready to take that step although I'm not hard against it.

Hello Shawn, :)

So far, I've not needed to clean install windows to disable Modern Standby to use S3 with the method in this tutorial.

I ended up liking Modern Standby better though. If you're having issues with power, you could test disabling network connectivity while in standby below to see if that may help.



My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 980 PRO M.2,
    1TB Samsung 970 EVO Plus M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Motorola MB8611 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S20 Ultra 5G phone
  • Operating System
    Windows 11 Pro for Workstations
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1
    CPU
    i7-1065G7 3.9 GHz
    Memory
    16 GB LPDDR4-3200
    Graphics card(s)
    Intel Iris Plus
    Sound Card
    Intel SST
    Monitor(s) Displays
    13.3" 4K UWVA AMOLED multitouch
    Screen Resolution
    3840 x 2160
    Hard Drives
    512 GB PCIe NVMe M.2 SSD
    Browser
    Google Chrome
    Antivirus
    Windows Defender and Malwarebytes Premium

Try3

Well-known member
Power User
VIP
Local time
12:59 AM
Posts
522
Location
The proper part of London
OS
Windows 11 Home x64 Version 21H2 Build 22000.675
So far, I've not needed to clean install windows to disable Modern Standby to use S3 with the method in this tutorial.
Brink,

Sorry, I don't get it.
In what way does clean installing then using this tutorial method differ from using this tutorial method without clean installing?

All the best,
Denis


My Computer

System One

  • OS
    Windows 11 Home x64 Version 21H2 Build 22000.675

Brink

Administrator
Staff member
MVP
Thread Starter
Local time
6:59 PM
Posts
3,714
OS
Windows 11 Pro for Workstations
Brink,

Sorry, I don't get it.
In what way does clean installing then using this tutorial method differ from using this tutorial method without clean installing?

All the best,
Denis

It was mentioned in older Microsoft reference material that a restart was required, but it's not related to the method in this tutorial.


My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 980 PRO M.2,
    1TB Samsung 970 EVO Plus M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Motorola MB8611 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S20 Ultra 5G phone
  • Operating System
    Windows 11 Pro for Workstations
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1
    CPU
    i7-1065G7 3.9 GHz
    Memory
    16 GB LPDDR4-3200
    Graphics card(s)
    Intel Iris Plus
    Sound Card
    Intel SST
    Monitor(s) Displays
    13.3" 4K UWVA AMOLED multitouch
    Screen Resolution
    3840 x 2160
    Hard Drives
    512 GB PCIe NVMe M.2 SSD
    Browser
    Google Chrome
    Antivirus
    Windows Defender and Malwarebytes Premium

Try3

Well-known member
Power User
VIP
Local time
12:59 AM
Posts
522
Location
The proper part of London
OS
Windows 11 Home x64 Version 21H2 Build 22000.675
I've found a couple of references to the subject in my pile of papers.
What is Modern Standby - MSDocs
What is Modern Standby - MSDocs said:
Switching between S3 and Modern Standby cannot be done by changing a setting in the BIOS. Switching the power model is not supported in Windows without a complete OS re-install.
Modern Standby FAQs - MSDocs
Modern Standby FAQs - MSDocs said:
Q: Can I switch between S3 and Modern Standby by changing a setting in the BIOS?
A: No, switching the power model is not supported in Windows without a complete OS re-install.

Both statements are more unequivocal than I had remembered.
But, as some posts in TenForums & ElevenForum threads demonstrate, they are not universally applicable. Some people have posted that they used this tutorial's method of switching off S0 and found S3 to be enabled afterwards.
I wasn't one of them unfortunately.
But I can quite believe that replacing ACPI firmware intended to support only S0 with one intended to support only S3 might well require a clean install to have an effect.

All the best,
Denis


My Computer

System One

  • OS
    Windows 11 Home x64 Version 21H2 Build 22000.675

rick99

New member
Local time
7:59 PM
Posts
9
OS
Windows 10
I have a Lenovo M90n-1 with Modern Standby (S0). Like CmdrKeene, when my pc went to sleep, intermittently the fan would run high speed for a while. I thought it was Windows Defender doing a scan but it wasn't. I disabled the "Network Connectivity" during Modern Standby but that didn't help. In the BIOS, I have the option to switch to S3 but there is the warning, "Switching between S3 and Modern Standby cannot be done by changing a setting in the BIOS. Switching the power model is not supported in Windows without a complete OS re-install."

I went ahead and added the entry to registry and after a reboot, powercfg /a shows S3 is now available and S0 is not. So far, when my device goes to sleep, the fan no longer runs at high speeds intermittently. I did not make any change in the BIOS so it probably still shows that is S0 mode. I'm hoping that the "override" in PlatformAoAcOverride means override the setting in the BIOS so I don't need to do anything more. I don't know. Hopefully the next version of 11 won't change things. So far, I'm liking S3 mode better. I didn't like my device sounding like a plane getting ready to takeoff frequently when it was in Modern Standby. I would still be curious to know what it is actually doing in case I'm forced to go back to S0.


My Computer

System One

  • OS
    Windows 10

Try3

Well-known member
Power User
VIP
Local time
12:59 AM
Posts
522
Location
The proper part of London
OS
Windows 11 Home x64 Version 21H2 Build 22000.675
when my pc went to sleep
Your computer did not Sleep when you had S0.
S0 Modern standby [aka S0 Low power idle] is an idle condition not Sleep.
S0 computers cannot Sleep.

I'm glad that disabling S0 worked for you and automatically enabled S3 Sleep.
- Several people here & in TenForums have reported the same - that using this tutorial's method of disabling S0 Modern standby automatically enabled S3 Sleep.​
- It didn't work for me. I have disabled S0 and all I'm left with is On and Hibernation.​
There is nothing left for you to do.
- You can look in the Bios out of interest but you will not need to change anything there.​


I would still be curious to know what it is actually doing in case I'm forced to go back to S0.
S0 Modern standby progressively throttles activity except 'approved' activities such as WU & the Windows 10 mail app. Task scheduler, for example, does not work during S0.

There are, in effect, four Power/Computer states for an S0 Modern standby [aka S0 Low power idle] computer
- Computer on, Monitor on - Work can be done on the computer.
- Computer on, Monitor off = S0 {The monitor turning off initiates S0 Modern standby i.e. idle} - S0 progressively shuts down user-initiated processes. No user-desired activities start, only MS-desired ones such as WU & their built-in email app.
- Hibernate
- Off

I could post so many links to S0 technical documents that you could waste an entire month studying them but I have no reason to hate you that much.


Denis


My Computer

System One

  • OS
    Windows 11 Home x64 Version 21H2 Build 22000.675
Top Bottom
