Solved Help with UEFI settings

scopio

Member
Local time
1:43 PM
Posts
20
Location
Droitwich Worcestershire
Help with configuring the correct settings to BOOT have UEFI on a ROG Strix 470-F Gaming mobo.
At present Windows version is Windows 10 C: drive Samsung 860 EVO M.2 NVME SSD

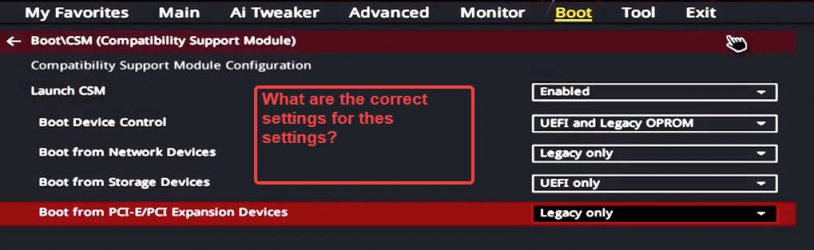

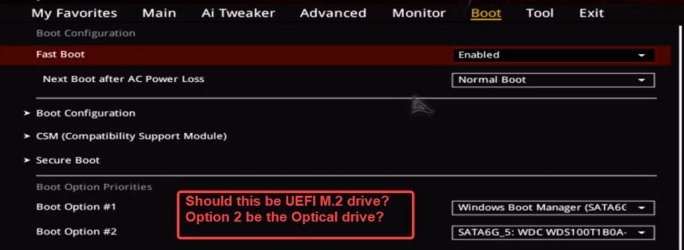

NOTE: these are not the actual BIOS pictures. I will have to give instructions to my daughter who lives in an other town to do this hence my questions!
BOOT Option 1 would be my C: NVMe SSD for Option 2 would be the Optical drive

What would be the correct settings for these?

Appreciate your help


My Computer

System One

  • Operating System
    Windows 10 Home 19043.1237
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self-build 2009
    CPU
    AMDPhenomIIQuadCore 955AM
    Motherboard
    Asus M4A79-T Deluxe AMD 790FX
    Memory
    Corsair DDR3 12Gb
    Graphics Card(s)
    AMD Radeon R7 370 Series Graphics
    Sound Card
    Integrated RealTek HD
    Monitor(s) Displays
    ASUS VH226
    Screen Resolution
    1920 x 1080
    Hard Drives
    SSD Samsung 860 EVO SATA 500Gbs (C:) Disk Device (OS BOOT)
    SSD Samsung 860 EVO SATA 500Gbs (F:) Disk Device (SOFTWARE)
    WDC WD20 EZRX-00D8PB0 SATA 2Tb (E:) Disk Device (VIDEOS)
    WDC WD20 EZRX-22Z5HBO SATA 2Tb (G:) Disk Device (DATA)
    PSU
    Zalman ZM850-HP
    Case
    Zalman GS1000Plus
    Cooling
    4 x 120 case fans
    Keyboard
    Logitech wireless USB
    Mouse
    Logitech wireless USB
    Internet Speed
    37 mbps down 8mbps up
    Browser
    Edge
    Antivirus
    Malwarebytes Premium and Windows Defender
    Other Info
    Two SSDs connected to SATA 6G PCI-E Card as the motherboard is not an SSD enabled motherboard! The SSD appears as Removable Devices so I changed First BOOT Priority to the Removable Devices and all works fine booting from the SSD!
    LG M-DISC WH14NS40 M-DISC Optical drive
    LG Blu-Ray CH08LS10 LightScribe Optical drive

zbook

Active member
Member
VIP
Local time
7:43 AM
Posts
153
One or more of these tutorials may be useful:



My Computer

System One

  • Operating System
    Windows 10

scopio

Member
Thread Starter
Local time
1:43 PM
Posts
20
Location
Droitwich Worcestershire

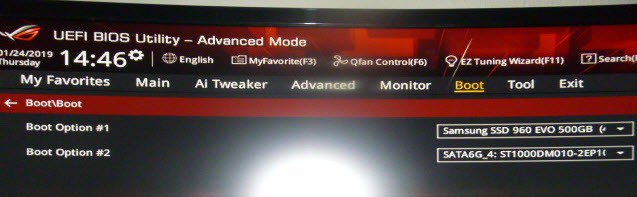

Just remembered that I took some photos when I fist built the pc as shown below;

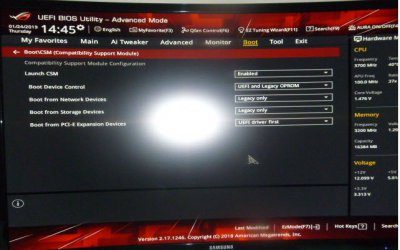

Present settings on the BIOS.

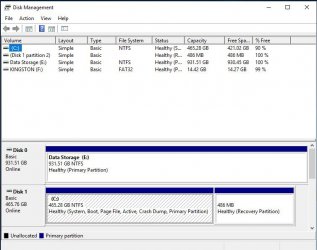

Disk Management 2.JPG


My Computer

System One

  • Operating System
    Windows 10 Home 19043.1237
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self-build 2009
    CPU
    AMDPhenomIIQuadCore 955AM
    Motherboard
    Asus M4A79-T Deluxe AMD 790FX
    Memory
    Corsair DDR3 12Gb
    Graphics Card(s)
    AMD Radeon R7 370 Series Graphics
    Sound Card
    Integrated RealTek HD
    Monitor(s) Displays
    ASUS VH226
    Screen Resolution
    1920 x 1080
    Hard Drives
    SSD Samsung 860 EVO SATA 500Gbs (C:) Disk Device (OS BOOT)
    SSD Samsung 860 EVO SATA 500Gbs (F:) Disk Device (SOFTWARE)
    WDC WD20 EZRX-00D8PB0 SATA 2Tb (E:) Disk Device (VIDEOS)
    WDC WD20 EZRX-22Z5HBO SATA 2Tb (G:) Disk Device (DATA)
    PSU
    Zalman ZM850-HP
    Case
    Zalman GS1000Plus
    Cooling
    4 x 120 case fans
    Keyboard
    Logitech wireless USB
    Mouse
    Logitech wireless USB
    Internet Speed
    37 mbps down 8mbps up
    Browser
    Edge
    Antivirus
    Malwarebytes Premium and Windows Defender
    Other Info
    Two SSDs connected to SATA 6G PCI-E Card as the motherboard is not an SSD enabled motherboard! The SSD appears as Removable Devices so I changed First BOOT Priority to the Removable Devices and all works fine booting from the SSD!
    LG M-DISC WH14NS40 M-DISC Optical drive
    LG Blu-Ray CH08LS10 LightScribe Optical drive

scopio

Member
Thread Starter
Local time
1:43 PM
Posts
20
Location
Droitwich Worcestershire
Thanks @zbook I am doing these tomorrow remotely I know how to convert MBR to GPT its the UEFI settings for this particular mobo that are a bit confusing for me especially as I have to get my daughter to do the BIOS settings while I give her the instructions over the phone!.:unsure:


My Computer

System One

  • Operating System
    Windows 10 Home 19043.1237
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self-build 2009
    CPU
    AMDPhenomIIQuadCore 955AM
    Motherboard
    Asus M4A79-T Deluxe AMD 790FX
    Memory
    Corsair DDR3 12Gb
    Graphics Card(s)
    AMD Radeon R7 370 Series Graphics
    Sound Card
    Integrated RealTek HD
    Monitor(s) Displays
    ASUS VH226
    Screen Resolution
    1920 x 1080
    Hard Drives
    SSD Samsung 860 EVO SATA 500Gbs (C:) Disk Device (OS BOOT)
    SSD Samsung 860 EVO SATA 500Gbs (F:) Disk Device (SOFTWARE)
    WDC WD20 EZRX-00D8PB0 SATA 2Tb (E:) Disk Device (VIDEOS)
    WDC WD20 EZRX-22Z5HBO SATA 2Tb (G:) Disk Device (DATA)
    PSU
    Zalman ZM850-HP
    Case
    Zalman GS1000Plus
    Cooling
    4 x 120 case fans
    Keyboard
    Logitech wireless USB
    Mouse
    Logitech wireless USB
    Internet Speed
    37 mbps down 8mbps up
    Browser
    Edge
    Antivirus
    Malwarebytes Premium and Windows Defender
    Other Info
    Two SSDs connected to SATA 6G PCI-E Card as the motherboard is not an SSD enabled motherboard! The SSD appears as Removable Devices so I changed First BOOT Priority to the Removable Devices and all works fine booting from the SSD!
    LG M-DISC WH14NS40 M-DISC Optical drive
    LG Blu-Ray CH08LS10 LightScribe Optical drive

zbook

Active member
Member
VIP
Local time
7:43 AM
Posts
153
The drive is MBR.
The BIOS is using CSM.

Plan: MBR2GPT
UEFI hybrid (with CSM) > UEFI native (without CSM)


My Computer

System One

  • Operating System
    Windows 10

Ghot

Well-known member
Power User
VIP
Local time
8:43 AM
Posts
1,234
Location
PA, USA
Thanks @zbook I am doing these tomorrow remotely I know how to convert MBR to GPT its the UEFI settings for this particular mobo that are a bit confusing for me especially as I have to get my daughter to do the BIOS settings while I give her the instructions over the phone!.:unsure:



Do this... in this order...

1. Open Command Prompt as Admin and type: mbr2gpt /convert /allowfullOS then hit Enter
2. When it finishes... reboot the cxomputer, and enter the BIOS
3. On the Boot tab do the things circled in RED.
4. Set the Boot Priority however you want. The SSD has to be either the 1st or 2nd item.
5. Hit the F10 key to Save and Exit





Just did this yesterday, and I also have an optical drive (DVD).

For the Boot Priority, I have the DVD 1st and my Windows SSD 2nd... just in case I want to use a bootable DVD. :cool:

Last edited:

My Computers

System One System Two

  • Operating System
    Win 10 Home 10.0.22000.258 (x64)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security 2020
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

scopio

Member
Thread Starter
Local time
1:43 PM
Posts
20
Location
Droitwich Worcestershire
Thanks @Ghot that is what I was needing to be reassured. (y)


My Computer

System One

  • Operating System
    Windows 10 Home 19043.1237
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self-build 2009
    CPU
    AMDPhenomIIQuadCore 955AM
    Motherboard
    Asus M4A79-T Deluxe AMD 790FX
    Memory
    Corsair DDR3 12Gb
    Graphics Card(s)
    AMD Radeon R7 370 Series Graphics
    Sound Card
    Integrated RealTek HD
    Monitor(s) Displays
    ASUS VH226
    Screen Resolution
    1920 x 1080
    Hard Drives
    SSD Samsung 860 EVO SATA 500Gbs (C:) Disk Device (OS BOOT)
    SSD Samsung 860 EVO SATA 500Gbs (F:) Disk Device (SOFTWARE)
    WDC WD20 EZRX-00D8PB0 SATA 2Tb (E:) Disk Device (VIDEOS)
    WDC WD20 EZRX-22Z5HBO SATA 2Tb (G:) Disk Device (DATA)
    PSU
    Zalman ZM850-HP
    Case
    Zalman GS1000Plus
    Cooling
    4 x 120 case fans
    Keyboard
    Logitech wireless USB
    Mouse
    Logitech wireless USB
    Internet Speed
    37 mbps down 8mbps up
    Browser
    Edge
    Antivirus
    Malwarebytes Premium and Windows Defender
    Other Info
    Two SSDs connected to SATA 6G PCI-E Card as the motherboard is not an SSD enabled motherboard! The SSD appears as Removable Devices so I changed First BOOT Priority to the Removable Devices and all works fine booting from the SSD!
    LG M-DISC WH14NS40 M-DISC Optical drive
    LG Blu-Ray CH08LS10 LightScribe Optical drive

Ghot

Well-known member
Power User
VIP
Local time
8:43 AM
Posts
1,234
Location
PA, USA
Thanks @Ghot that is what I was needing to be reassured. (y)



Yeah... if you don't choose "UEFI and Legacy" you won't "see" the DVD in the list for the Boot Priority.


First post in this topic has links for the GitHub Compatibility tool, to check for Win 11 readiness.
And the six Microsoft tools (built into Windows) to check for TPM 2.0 readiness.

How to pass the Windows 11 Compatibility Checks

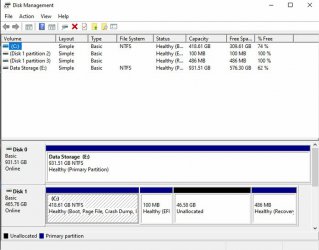

000000 MBR to GPT.png

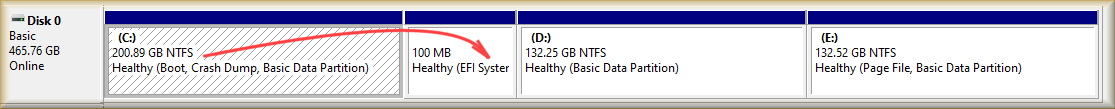

Using that MBR2GPT command, creates the EFI partition, and moves "System" from the C:\ drive to the EFI partition.

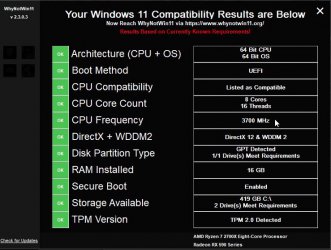

The GitHub tool. (DirectX takes about 15 seconds to finish)




Last edited:

My Computers

System One System Two

  • Operating System
    Win 10 Home 10.0.22000.258 (x64)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security 2020
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

scopio

Member
Thread Starter
Local time
1:43 PM
Posts
20
Location
Droitwich Worcestershire
Today I run WhatNotWin11 for first view it had Boot Method, Disk Partition Type and TPM Version in the red.
Run mbr2gpt /convert /allowfullOS it converted the disk but I am concerned by the following lines
call WinReRpair to repair WinRe
mbr2gpt Failed to update ReAgent.xml, please try to manually disable and enable WinRe

Disk was converted
C drive.jpg

Compatibility

Security Processor Details
TPM version.jpg

So, my only worry is about the WinRe failure, any suggestions on how to resolve?


Attachments

  • mbr2gpt.jpg
    74.9 KB · Views: 4

My Computer

System One

  • Operating System
    Windows 10 Home 19043.1237
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self-build 2009
    CPU
    AMDPhenomIIQuadCore 955AM
    Motherboard
    Asus M4A79-T Deluxe AMD 790FX
    Memory
    Corsair DDR3 12Gb
    Graphics Card(s)
    AMD Radeon R7 370 Series Graphics
    Sound Card
    Integrated RealTek HD
    Monitor(s) Displays
    ASUS VH226
    Screen Resolution
    1920 x 1080
    Hard Drives
    SSD Samsung 860 EVO SATA 500Gbs (C:) Disk Device (OS BOOT)
    SSD Samsung 860 EVO SATA 500Gbs (F:) Disk Device (SOFTWARE)
    WDC WD20 EZRX-00D8PB0 SATA 2Tb (E:) Disk Device (VIDEOS)
    WDC WD20 EZRX-22Z5HBO SATA 2Tb (G:) Disk Device (DATA)
    PSU
    Zalman ZM850-HP
    Case
    Zalman GS1000Plus
    Cooling
    4 x 120 case fans
    Keyboard
    Logitech wireless USB
    Mouse
    Logitech wireless USB
    Internet Speed
    37 mbps down 8mbps up
    Browser
    Edge
    Antivirus
    Malwarebytes Premium and Windows Defender
    Other Info
    Two SSDs connected to SATA 6G PCI-E Card as the motherboard is not an SSD enabled motherboard! The SSD appears as Removable Devices so I changed First BOOT Priority to the Removable Devices and all works fine booting from the SSD!
    LG M-DISC WH14NS40 M-DISC Optical drive
    LG Blu-Ray CH08LS10 LightScribe Optical drive

Ghot

Well-known member
Power User
VIP
Local time
8:43 AM
Posts
1,234
Location
PA, USA
Today I run WhatNotWin11 for first view it had Boot Method, Disk Partition Type and TPM Version in the red.
Run mbr2gpt /convert /allowfullOS it converted the disk but I am concerned by the following lines
call WinReRpair to repair WinRe


So, my only worry is about the WinRe failure, any suggestions on how to resolve?

If C:\$WinREAgent folder is 0 bytes, that's why it failed.
Mine is also like that, from deleting the Recovery partition.

I did notice that you have a Recovery partition, so in your case, I don't know.


My Computers

System One System Two

  • Operating System
    Win 10 Home 10.0.22000.258 (x64)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security 2020
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

scopio

Member
Thread Starter
Local time
1:43 PM
Posts
20
Location
Droitwich Worcestershire
I wonder if I disable reagent and enable it again it will solve the problem?
reagentc /disable
reagentc /enable


My Computer

System One

  • Operating System
    Windows 10 Home 19043.1237
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self-build 2009
    CPU
    AMDPhenomIIQuadCore 955AM
    Motherboard
    Asus M4A79-T Deluxe AMD 790FX
    Memory
    Corsair DDR3 12Gb
    Graphics Card(s)
    AMD Radeon R7 370 Series Graphics
    Sound Card
    Integrated RealTek HD
    Monitor(s) Displays
    ASUS VH226
    Screen Resolution
    1920 x 1080
    Hard Drives
    SSD Samsung 860 EVO SATA 500Gbs (C:) Disk Device (OS BOOT)
    SSD Samsung 860 EVO SATA 500Gbs (F:) Disk Device (SOFTWARE)
    WDC WD20 EZRX-00D8PB0 SATA 2Tb (E:) Disk Device (VIDEOS)
    WDC WD20 EZRX-22Z5HBO SATA 2Tb (G:) Disk Device (DATA)
    PSU
    Zalman ZM850-HP
    Case
    Zalman GS1000Plus
    Cooling
    4 x 120 case fans
    Keyboard
    Logitech wireless USB
    Mouse
    Logitech wireless USB
    Internet Speed
    37 mbps down 8mbps up
    Browser
    Edge
    Antivirus
    Malwarebytes Premium and Windows Defender
    Other Info
    Two SSDs connected to SATA 6G PCI-E Card as the motherboard is not an SSD enabled motherboard! The SSD appears as Removable Devices so I changed First BOOT Priority to the Removable Devices and all works fine booting from the SSD!
    LG M-DISC WH14NS40 M-DISC Optical drive
    LG Blu-Ray CH08LS10 LightScribe Optical drive

Ghot

Well-known member
Power User
VIP
Local time
8:43 AM
Posts
1,234
Location
PA, USA
I wonder if I disable reagent and enable it again it will solve the problem?
reagentc /disable
reagentc /enable


Possibly. I don't know. I have less than zero interest in Recovery partitions.
I live and die by backup software. That hasn't failed me yet in over 18 years.


My Computers

System One System Two

  • Operating System
    Win 10 Home 10.0.22000.258 (x64)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security 2020
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

scopio

Member
Thread Starter
Local time
1:43 PM
Posts
20
Location
Droitwich Worcestershire
I think I'll leave it alone in case it breaks something. I too create backups with Macrium Reflect.

I'll mark this as solved as the settings to be able to run Windows11 have be achieved.(y):coffee:


My Computer

System One

  • Operating System
    Windows 10 Home 19043.1237
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self-build 2009
    CPU
    AMDPhenomIIQuadCore 955AM
    Motherboard
    Asus M4A79-T Deluxe AMD 790FX
    Memory
    Corsair DDR3 12Gb
    Graphics Card(s)
    AMD Radeon R7 370 Series Graphics
    Sound Card
    Integrated RealTek HD
    Monitor(s) Displays
    ASUS VH226
    Screen Resolution
    1920 x 1080
    Hard Drives
    SSD Samsung 860 EVO SATA 500Gbs (C:) Disk Device (OS BOOT)
    SSD Samsung 860 EVO SATA 500Gbs (F:) Disk Device (SOFTWARE)
    WDC WD20 EZRX-00D8PB0 SATA 2Tb (E:) Disk Device (VIDEOS)
    WDC WD20 EZRX-22Z5HBO SATA 2Tb (G:) Disk Device (DATA)
    PSU
    Zalman ZM850-HP
    Case
    Zalman GS1000Plus
    Cooling
    4 x 120 case fans
    Keyboard
    Logitech wireless USB
    Mouse
    Logitech wireless USB
    Internet Speed
    37 mbps down 8mbps up
    Browser
    Edge
    Antivirus
    Malwarebytes Premium and Windows Defender
    Other Info
    Two SSDs connected to SATA 6G PCI-E Card as the motherboard is not an SSD enabled motherboard! The SSD appears as Removable Devices so I changed First BOOT Priority to the Removable Devices and all works fine booting from the SSD!
    LG M-DISC WH14NS40 M-DISC Optical drive
    LG Blu-Ray CH08LS10 LightScribe Optical drive

Ghot

Well-known member
Power User
VIP
Local time
8:43 AM
Posts
1,234
Location
PA, USA
I think I'll leave it alone in case it breaks something. I too create backups with Macrium Reflect.


I've noticed that MS keeps adding things (like a Recovery partition), that aren't really needed.
My guess is... things like that are for people that don't keep backups.

On Ten Forums there are tutorials for making bootable rescue media, that do far more than the Recovery partition can do.



For example: Create a WinPE USB or ISO

or... Win10XPE - Build Your Own Rescue Media - Windows 10 Help Forums


My Computers

System One System Two

  • Operating System
    Win 10 Home 10.0.22000.258 (x64)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security 2020
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724
Top Bottom
