Solved In-place Upgrade test Failure


Bastet

Well-known member
Member
VIP
Local time
6:32 AM
Posts
223
Location
Manchester. UK.
OS
Windows 11 Pro 64bit
Testing an in-place repair of Win 11 for future use (repair or to upgrade to an newer build if required) & have come across a problem:
The laptop then rolled back to Win 11 & showed:
SSD is fine at 96% OK. No problem after chkdsk. I’ve removed external HDD. Running Windows Defender & MalwareBytes premium (currently doing the in-place repair after disabling MB & turning off self protection). The laptop is not Win 11 compatible - TPM & Secure boot OK, the CPU is not supported).
I would prefer not to try a clean boot if possible. If there isn’t a simple solution then I’ll go back to Windows 10.

Thanks in advance.


My Computer

System One

  • OS
    Windows 11 Pro 64bit
    Computer type
    Laptop
    Manufacturer/Model
    PC Specialist Optimus VII V17-960 Gaming Laptop.
    CPU
    6th Gen Intel Core i7-6700HQ Quad Core processor.
    Memory
    16GB HyperX IMPACT 1600MHz SODIMM DDR3 (2 x 8GB)
    Graphics Card(s)
    NVIDIA® GeForce® GTX 960M - 2.0GB DDR5 Video RAM - DirectX® 12
    Sound Card
    Intel 2 Channel High Def. Audio + SoundBlaster™ Cinema 2 & Realtek
    Monitor(s) Displays
    Optimus Series: 17.3" Matte Full HD IPS LED Widescreen (1920x1080)
    Screen Resolution
    Full HD IPS display (1920 x 1080).
    Hard Drives
    2TB SSD (internal).
    1x 1TB & 1x 5TB external HDDs.
    Cooling
    STANDARD THERMAL PASTE FOR SUFFICIENT COOLING
    Keyboard
    Logitech K800 wireless keyboard
    Mouse
    Logitech M705 wireless mouse
    Internet Speed
    Upto 100Mbps
    Browser
    Edge.
    Antivirus
    Windows Defender & MalwareBytes pro.

Brink

Administrator
Staff member
MVP
Local time
12:32 AM
Posts
4,162
OS
Windows 11 Pro for Workstations
Hello @Bastet, :)

The issue could be from the laptop not being compatible with Windows 11. It may be failing the check during setup.


My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 980 PRO M.2,
    1TB Samsung 970 EVO Plus M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Motorola MB8611 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S20 Ultra 5G phone
  • Operating System
    Windows 11 Pro for Workstations
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1
    CPU
    i7-1065G7 3.9 GHz
    Memory
    16 GB LPDDR4-3200
    Graphics card(s)
    Intel Iris Plus
    Sound Card
    Intel SST
    Monitor(s) Displays
    13.3" 4K UWVA AMOLED multitouch
    Screen Resolution
    3840 x 2160
    Hard Drives
    512 GB PCIe NVMe M.2 SSD
    Browser
    Google Chrome
    Antivirus
    Windows Defender and Malwarebytes Premium

Bastet

Well-known member
Member
VIP
Thread Starter
Local time
6:32 AM
Posts
223
Location
Manchester. UK.
OS
Windows 11 Pro 64bit
Hello @Bastet, :)

The issue could be from the laptop not being compatible with Windows 11. It may be failing the check during setup.
Thanks Brink. I’d already upgraded to win 11 via the registry hack, I also removed mentioned in another post from the USB installation media.
Disabling MB & turning off self protection I now get a different error:
All drivers are up to date - especially graphics drivers - but there’s no BIOS update available.


My Computer

System One

  • OS
    Windows 11 Pro 64bit
    Computer type
    Laptop
    Manufacturer/Model
    PC Specialist Optimus VII V17-960 Gaming Laptop.
    CPU
    6th Gen Intel Core i7-6700HQ Quad Core processor.
    Memory
    16GB HyperX IMPACT 1600MHz SODIMM DDR3 (2 x 8GB)
    Graphics Card(s)
    NVIDIA® GeForce® GTX 960M - 2.0GB DDR5 Video RAM - DirectX® 12
    Sound Card
    Intel 2 Channel High Def. Audio + SoundBlaster™ Cinema 2 & Realtek
    Monitor(s) Displays
    Optimus Series: 17.3" Matte Full HD IPS LED Widescreen (1920x1080)
    Screen Resolution
    Full HD IPS display (1920 x 1080).
    Hard Drives
    2TB SSD (internal).
    1x 1TB & 1x 5TB external HDDs.
    Cooling
    STANDARD THERMAL PASTE FOR SUFFICIENT COOLING
    Keyboard
    Logitech K800 wireless keyboard
    Mouse
    Logitech M705 wireless mouse
    Internet Speed
    Upto 100Mbps
    Browser
    Edge.
    Antivirus
    Windows Defender & MalwareBytes pro.

Brink

Administrator
Staff member
MVP
Local time
12:32 AM
Posts
4,162
OS
Windows 11 Pro for Workstations
@Bastet,

Error 0xC1900101 – 0x4000D is usually from bad or incompatible drivers. The fun part is finding out which one.


My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 980 PRO M.2,
    1TB Samsung 970 EVO Plus M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Motorola MB8611 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S20 Ultra 5G phone
  • Operating System
    Windows 11 Pro for Workstations
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1
    CPU
    i7-1065G7 3.9 GHz
    Memory
    16 GB LPDDR4-3200
    Graphics card(s)
    Intel Iris Plus
    Sound Card
    Intel SST
    Monitor(s) Displays
    13.3" 4K UWVA AMOLED multitouch
    Screen Resolution
    3840 x 2160
    Hard Drives
    512 GB PCIe NVMe M.2 SSD
    Browser
    Google Chrome
    Antivirus
    Windows Defender and Malwarebytes Premium

zbook

Well-known member
Power User
VIP
Local time
12:32 AM
Posts
1,063
OS
Windows 10
LOL



The 1900101 indicates that the computer has already rolled back to Windows 10.

If the computer specifications do not meet the Microsoft update / upgrade criteria for Windows 11 they are designed to rollback.

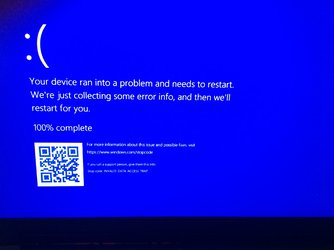

The in place upgrade presented with the BSOD bugcheck 4.

Only for interest you can run V2 and the bugcheck debugged to see if there was any non-Microsoft driver causing the BSOD.


If it was a Microsoft driver then little will learned from the bugcheck.


Also you can run setupdiag to see what it found.

And for more detailed log collection of the Panther files you can run:


The second upgrade failure displayed a different error code but it too is often related to a problematic driver.

Why not try clean boot?

Logs can be collected but it takes time to troubleshoot them.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

Bastet

Well-known member
Member
VIP
Thread Starter
Local time
6:32 AM
Posts
223
Location
Manchester. UK.
OS
Windows 11 Pro 64bit
Brief summary:
currently running Windows 11 Pro which was successfully upgraded from Windows 10 Pro. As the laptop is not compatible with this OS I decided to test an in-place repair in case this was ever required to upgrade to a new build. repair failed with the BSOD error messages already posted.
Purchased laptop around 5 years ago.
No overclocking. No warranty.
All drivers are up to date AFAIK.
Under Windows 10 I have no problem running an in-place repair.
SetupDiag File too large to upload so it's on my Mediafire account: Setup Diagnostics [2022-03-31_at_23-38-21]
V2 Log attached.


Attachments

  • DOCTOR9FAN-(2022-03-31_23-43-07).zip
    1.3 MB · Views: 1

My Computer

System One

  • OS
    Windows 11 Pro 64bit
    Computer type
    Laptop
    Manufacturer/Model
    PC Specialist Optimus VII V17-960 Gaming Laptop.
    CPU
    6th Gen Intel Core i7-6700HQ Quad Core processor.
    Memory
    16GB HyperX IMPACT 1600MHz SODIMM DDR3 (2 x 8GB)
    Graphics Card(s)
    NVIDIA® GeForce® GTX 960M - 2.0GB DDR5 Video RAM - DirectX® 12
    Sound Card
    Intel 2 Channel High Def. Audio + SoundBlaster™ Cinema 2 & Realtek
    Monitor(s) Displays
    Optimus Series: 17.3" Matte Full HD IPS LED Widescreen (1920x1080)
    Screen Resolution
    Full HD IPS display (1920 x 1080).
    Hard Drives
    2TB SSD (internal).
    1x 1TB & 1x 5TB external HDDs.
    Cooling
    STANDARD THERMAL PASTE FOR SUFFICIENT COOLING
    Keyboard
    Logitech K800 wireless keyboard
    Mouse
    Logitech M705 wireless mouse
    Internet Speed
    Upto 100Mbps
    Browser
    Edge.
    Antivirus
    Windows Defender & MalwareBytes pro.

zbook

Well-known member
Power User
VIP
Local time
12:32 AM
Posts
1,063
OS
Windows 10
The Macrium reflect tracking file was reported as corrupt.

Consider reinstalling the software /making a new backup image.



During the crash there was no mini or memory or live kernel files created.

A setupmem.dmp was created with bugcheck 4.



See if you can reinstall the Intel chipset drivers and uninstall the printer drivers.

IASTORAC.SYS

Then perform another update > post new logs if there is another dump or rollback.






Code:
\\?\C:\$WINDOWS.~BT\Sources\Panther\setupact.log
\\?\C:\$WINDOWS.~BT\Sources\Panther\diagerr.xml
\\?\C:\$WINDOWS.~BT\Sources\Rollback\setupact.log
\\?\C:\$WINDOWS.~BT\Sources\Rollback\setupmem.dmp
\\?\C:\$WINDOWS.~BT\Sources\Rollback\setupapi\setupapi.dev.log
\\?\C:\$WINDOWS.~BT\Sources\Rollback\setupapi\setupapi.offline.log
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER.c268f412-bab5-4df4-a08d-9fe2fd236627.tmp.WERInternalMetadata.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER.6769c24c-febb-438d-9af0-91ce422d1439.tmp.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER.be6387ef-d662-40d4-a543-a1a0e22959f8.tmp.csv
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER.f7e1dc2a-4919-481d-8f21-4b08a732c430.tmp.txt
\\?\C:\$windows.~bt\sources\rollback\seclogs\scecomp.log
\\?\C:\$windows.~bt\sources\rollback\seclogs\SceSetupLog.etl
\\?\C:\$windows.~bt\sources\rollback\seclogs\sceupgrade.log
\\?\C:\WINDOWS\logs\cbs\CBS.log
\\?\C:\$windows.~bt\sources\panther\unattendgc\diagerr.xml
\\?\C:\$windows.~bt\sources\panther\unattendgc\diagwrn.xml
\\?\C:\$windows.~bt\sources\panther\unattendgc\setupact.log
\\?\C:\$windows.~bt\sources\panther\unattendgc\setuperr.log
\\?\C:\WINDOWS\logs\setupdiag\setupdiagresults.xml
\\?\C:\$windows.~bt\sources\panther\AltData.cab
\\?\C:\$windows.~bt\sources\panther\appraiser.sdb
\\?\C:\$windows.~bt\sources\panther\Appraiser_Data.ini
\\?\C:\$windows.~bt\sources\panther\Appraiser_TelemetryRunList.xml
\\?\C:\$windows.~bt\sources\panther\CompatData_2022_03_31_15_10_19_3_00000021.xml
\\?\C:\$windows.~bt\sources\panther\CompatData_2022_03_31_15_10_29_3_00000021.xml
\\?\C:\$windows.~bt\sources\panther\CompatData_2022_03_31_15_10_42_3_00000140.xml
\\?\C:\$windows.~bt\sources\panther\CompatData_2022_03_31_15_15_42_3_006f0018.xml
\\?\C:\$windows.~bt\sources\panther\CompatData_2022_03_31_15_18_51_3_006f0018.xml
\\?\C:\$windows.~bt\sources\panther\compatscancache.dat
\\?\C:\$windows.~bt\sources\panther\diagerr.xml
\\?\C:\$windows.~bt\sources\panther\diagwrn.xml
\\?\C:\$windows.~bt\sources\panther\DlTel.Merge.00001.etl
\\?\C:\$windows.~bt\sources\panther\GenuineTicket.xml
\\?\C:\$windows.~bt\sources\panther\KernelAct.log
\\?\C:\$windows.~bt\sources\panther\LatentAcquisitionActionList.xml
\\?\C:\$windows.~bt\sources\panther\MigLog.xml
\\?\C:\$windows.~bt\sources\panther\Plbj6KCpjUaFTnkn.9.4.0.1_APPRAISER_EverythingSys.bin
\\?\C:\$windows.~bt\sources\panther\Plbj6KCpjUaFTnkn.9.4.0.1_APPRAISER_HumanReadable.xml
\\?\C:\$windows.~bt\sources\panther\Plbj6KCpjUaFTnkn.9.4.0.1_APPRAISER_SetupOutput.xml
\\?\C:\$windows.~bt\sources\panther\Plbj6KCpjUaFTnkn.9.4.0.1_APPRAISER_SetupOutputHw.xml
\\?\C:\$windows.~bt\sources\panther\Plbj6KCpjUaFTnkn.9.8.0.0_APPRAISER_EverythingAppInteresting.bin
\\?\C:\$windows.~bt\sources\panther\Plbj6KCpjUaFTnkn.9.8.0.0_APPRAISER_EverythingAppUninteresting.bin
\\?\C:\$windows.~bt\sources\panther\Plbj6KCpjUaFTnkn.9.8.0.0_APPRAISER_EverythingDevInteresting.bin
\\?\C:\$windows.~bt\sources\panther\Plbj6KCpjUaFTnkn.9.8.0.0_APPRAISER_EverythingDevUninteresting.bin
\\?\C:\$windows.~bt\sources\panther\Plbj6KCpjUaFTnkn.9.8.0.0_APPRAISER_HumanReadable.xml
\\?\C:\$windows.~bt\sources\panther\Plbj6KCpjUaFTnkn.9.8.0.0_APPRAISER_Migration.xml
\\?\C:\$windows.~bt\sources\panther\Plbj6KCpjUaFTnkn.9.8.0.0_APPRAISER_SetupOutput.xml
\\?\C:\$windows.~bt\sources\panther\Plbj6KCpjUaFTnkn.9.8.0.0_APPRAISER_SetupOutputDrv.xml
\\?\C:\$windows.~bt\sources\panther\RbTel.etl
\\?\C:\$windows.~bt\sources\panther\ScanResult.xml
\\?\C:\$windows.~bt\sources\panther\setup.etl
\\?\C:\$windows.~bt\sources\panther\setupact.log
\\?\C:\$windows.~bt\sources\panther\setuperr.log
\\?\C:\$windows.~bt\sources\panther\windlp.state-old.xml
\\?\C:\$windows.~bt\sources\panther\windlp.state.xml
\\?\C:\$windows.~bt\sources\panther\WinSetupMon.log
\\?\C:\$windows.~bt\sources\panther\_s_1C2E.tmp
\\?\C:\$windows.~bt\sources\SetupPlatform.ini
\\?\C:\$windows.~bt\sources\rollback\setupapi\setupapi.dev.log
\\?\C:\$windows.~bt\sources\rollback\setupapi\setupapi.offline.20210605_121033.log
\\?\C:\$windows.~bt\sources\rollback\setupapi\setupapi.offline.log
\\?\C:\$windows.~bt\sources\rollback\setupapi\setupapi.upgrade.log
\\?\C:\$windows.~bt\sources\rollback\$MARKER.LOGS
\\?\C:\$windows.~bt\sources\rollback\$MARKER.MOVE
\\?\C:\$windows.~bt\sources\rollback\$MARKER.RELOC
\\?\C:\$windows.~bt\sources\rollback\$MARKER.SETUP
\\?\C:\$windows.~bt\sources\rollback\checkpoint.info
\\?\C:\$windows.~bt\sources\rollback\diagerr.xml
\\?\C:\$windows.~bt\sources\rollback\diagwrn.xml
\\?\C:\$windows.~bt\sources\rollback\FolderMoveLog.txt
\\?\C:\$windows.~bt\sources\rollback\MigLog.xml
\\?\C:\$windows.~bt\sources\rollback\RelocateOsJrn.txt
\\?\C:\$windows.~bt\sources\rollback\rollbackinfo.ini
\\?\C:\$windows.~bt\sources\rollback\rollbackstate.dat
\\?\C:\$windows.~bt\sources\rollback\setupact.log
\\?\C:\$windows.~bt\sources\rollback\setuperr.log
\\?\C:\$windows.~bt\sources\rollback\setupmem.dmp
\\?\C:\$windows.~bt\sources\rollback\SetupPlatform.Drivers.ini
\\?\C:\$windows.~bt\sources\rollback\SetupPlatform.ini
\\?\C:\$windows.~bt\sources\rollback\TrackedVolumes.ini
\\?\C:\$windows.~bt\sources\rollback\WinSetupMon.DAT
\\?\C:\$windows.~bt\sources\rollback\WinSetupMon.log
\\?\C:\$windows.~bt\sources\rollback\scmlogs\SCM.EVM
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Application.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\HardwareEvents.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Internet Explorer.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Key Management Service.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Client-Licensing-PlatformNot availableAdmin.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-AADNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Application-ExperienceNot availableProgram-Compatibility-Assistant.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-AppModel-RuntimeNot availableAdmin.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-AudioNot availableCaptureMonitor.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-AudioNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-AudioNot availablePlaybackManager.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-CodeIntegrityNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Containers-BindFltNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Containers-WcifsNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Crypto-NCryptNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-DeviceSetupManagerNot availableAdmin.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-DeviceSetupManagerNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Dhcp-ClientNot availableAdmin.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Dhcpv6-ClientNot availableAdmin.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-GroupPolicyNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-HelloForBusinessNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-HotspotAuthNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Hyper-V-Hypervisor-Admin.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Hyper-V-Hypervisor-Operational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Hyper-V-VmSwitch-Operational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Kernel-BootNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Kernel-CacheNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Kernel-PnPNot availableConfiguration.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Kernel-PnPNot availableDevice Management.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Kernel-PnPNot availableDriver Watchdog.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Kernel-PowerNot availableThermal-Operational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Kernel-ShimEngineNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Kernel-WHEANot availableErrors.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Kernel-WHEANot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Known Folders API Service.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-LiveIdNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-NcdAutoSetupNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-NCSINot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-NetworkProfileNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-NtfsNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-NtfsNot availableWHC.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-PartitionNot availableDiagnostic.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-PrintServiceNot availableAdmin.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Privacy-AuditingNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Program-Compatibility-AssistantNot availableCompatAfterUpgrade.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-ReadyBoostNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Security-MitigationsNot availableKernelMode.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Security-MitigationsNot availableUserMode.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-SMBServerNot availableAudit.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-SMBServerNot availableConnectivity.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-SMBServerNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-SMBServerNot availableSecurity.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-StateRepositoryNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-StateRepositoryNot availableRestricted.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Storage-ClassPnPNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Storage-StorportNot availableHealth.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Storage-StorportNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-StorageSpaces-DriverNot availableDiagnostic.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-StorageSpaces-DriverNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-TerminalServices-LocalSessionManagerNot availableAdmin.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-TerminalServices-LocalSessionManagerNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-UniversalTelemetryClientNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-User Profile ServiceNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-UserPnpNot availableActionCenter.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-UserPnpNot availableDeviceInstall.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-VolumeSnapshot-DriverNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-WcmsvcNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-WebAuthNNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Windows Firewall With Advanced SecurityNot availableConnectionSecurity.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Windows Firewall With Advanced SecurityNot availableFirewall.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-Windows Firewall With Advanced SecurityNot availableFirewallDiagnostics.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-WinINet-ConfigNot availableProxyConfigChanged.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-WLAN-AutoConfigNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-WMI-ActivityNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-Windows-WPD-ClassInstallerNot availableOperational.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Microsoft-WindowsPhone-Connectivity-WiFiConnSvc-Channel.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\OAlerts.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\OneApp_IGCC.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Parameters.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\RemoteDesktopServices-RemoteFX-SessionLicensing-Debug.etl
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Security.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\State.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\System.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\USER_ESRV_SVC_QUEENCREEK.evtx
\\?\C:\$windows.~bt\sources\rollback\evtlogs\Windows PowerShell.evtx
\\?\C:\$windows.~bt\sources\rollback\bootstat\BCD
\\?\C:\$windows.~bt\sources\rollback\bootstat\BCD.LOG
\\?\C:\$windows.~bt\sources\rollback\bootstat\BCD.LOG1
\\?\C:\$windows.~bt\sources\rollback\bootstat\BCD.LOG2
\\?\C:\$windows.~bt\sources\rollback\winpe\bootstat.dat
\\?\C:\$windows.~bt\sources\rollback\cbslogs\CBS.log
\\?\C:\$windows.~bt\sources\rollback\netlogs\LwtNetLog.etl
\\?\C:\$windows.~bt\sources\rollback\netlogs\service.0.etl
\\?\C:\WINDOWS\logs\mosetup\ActionList.xml
\\?\C:\WINDOWS\logs\mosetup\BlueBox.log
\\?\C:\WINDOWS\logs\mosetup\DeviceInventory.xml
\\?\C:\WINDOWS\logs\mosetup\PFL_Package_for_RollupFix~~amd64~~22000.593.1.11.xml
\\?\C:\WINDOWS\logs\mosetup\UpdateAgent.log
\\?\C:\WINDOWS\logs\dism\dism.log
\\?\C:\WINDOWS\system32\winevt\logs\Application.evtx
\\?\C:\WINDOWS\system32\winevt\logs\System.evtx
\\?\C:\WINDOWS\inf\setupapi.dev.log
\\?\C:\WINDOWS\inf\setupapi.offline.20210605_121033.log
\\?\C:\WINDOWS\inf\setupapi.offline.log
\\?\C:\WINDOWS\inf\setupapi.setup.log
\\?\C:\WINDOWS\inf\setupapi.upgrade.log
\\?\C:\WINDOWS\setupact.log
\\?\C:\Windows\SystemTemp\WER.d3410d3d-f983-4e23-b2ed-928aa180cc2e.tmp.reg.txt
\\?\C:\Windows\SystemTemp\WER.ef0ddb0b-e693-4d49-a3a7-24fea89e6231.tmp.WERDataCollectionStatus.txt

These files may be available here:
\\?\C:\ProgramData\Microsoft\Windows\WER\ReportArchive\NonCritical_1_8e36a66eea925bea608c9ecd4c6f7529d9f24af_00000000_cab_1cab7cf2-5b6f-4a9d-8812-ec6d00986be8



Code:
Event[1422]
  Log Name: System
  Source: mrcbt
  Date: 2022-03-17T13:38:14.7210000Z
  Event ID: 2004
  Task: N/A
  Level: Error
  Opcode: Info
  Keyword: N/A
  User: S-1-5-18
  User Name: NT AUTHORITY\SYSTEM
  Computer: Doctor9fan
  Description:
The tracking file on device \Device\HarddiskVolume7 (C:) is corrupt



Code:
    Analyzing system in C:\WINDOWS
2022-03-31 23:01:30, Info                         CheckCrashInfo: 1 page files found:
2022-03-31 23:01:30, Info                         CheckCrashInfo: PageFile 0: 'C:\pagefile.sys'
2022-03-31 23:01:30, Info                         CheckCrashInfo: Crash detected, exiting.
2022-03-31 23:01:31, Info                  SP     Crash 0x00000004 detected
2022-03-31 23:01:31, Info                  SP       Frame  0, module: nt
2022-03-31 23:01:31, Info                  SP       Frame  1, module: WinSetupMon.sys
2022-03-31 23:01:31, Info                  SP       Frame  2, module: WinSetupMon.sys
2022-03-31 23:01:31, Info                  SP       Frame  3, module: FLTMGR.sys
2022-03-31 23:01:31, Info                  SP       Frame  4, module: FLTMGR.sys
2022-03-31 23:01:31, Info                  SP       Frame  5, module: FLTMGR.sys
2022-03-31 23:01:31, Info                  SP       Frame  6, module: FLTMGR.sys
2022-03-31 23:01:31, Info                  SP       Frame  7, module: nt
2022-03-31 23:01:31, Info                  SP       Frame  8, module: nt
2022-03-31 23:01:31, Info                  SP       Frame  9, module: nt
2022-03-31 23:01:31, Info                  SP       Frame 10, module: nt
2022-03-31 23:01:31, Info                  IBSLIB Successfully extracted crash dump from C:\pagefile.sys to C:\$WINDOWS.~BT\Sources\Rollback\setupmemtmp.dmp.
2022-03-31 23:01:31, Info                  IBSLIB Successfully converted crash dump to minidump C:\$WINDOWS.~BT\Sources\Rollback\setupmem.dmp.
2022-03-31 23:01:31, Info                  SP     Cannot recover the system.
2022-03-31 23:01:31, Info                  SP     Rollback: (2) Showing splash window with restoring text: Undoing changes made to your computer...



Code:
2022-03-31 22:18:48, Info                  CBS    InternalOpenPackage failed for Package_for_KB3025096~31bf3856ad364e35~amd64~~6.4.1.0 [HRESULT = 0x800f0805 - CBS_E_INVALID_PACKAGE]
2022-03-31 22:18:48, Info                  CBS    Failed to internally open package. [HRESULT = 0x800f0805 - CBS_E_INVALID_PACKAGE]
2022-03-31 22:18:48, Info                  CBS    Failed to create open package. [HRESULT = 0x800f0805 - CBS_E_INVALID_PACKAGE]
2022-03-31 22:18:48, Info                  CBS    Failed to OpenPackage using worker session [HRESULT = 0x800f0805]
2022-03-31 22:18:48, Info                  CBS    Session: 30950724_3919921846 initialized by client WindowsUpdateAgent, external staging directory: (null)
2022-03-31 22:18:48, Info                  CBS    InternalOpenPackage failed for Package_for_KB3025096~31bf3856ad364e35~x86~~6.4.1.0 [HRESULT = 0x800f0805 - CBS_E_INVALID_PACKAGE]



Code:
Name    Intel(R) 100 Series/C230 Chipset Family SATA AHCI Controller
Manufacturer    Intel Corporation
Status    OK
PNP Device ID    PCI\VEN_8086&DEV_A103&SUBSYS_01521558&REV_31\3&11583659&0&B8
Memory Address    0xDF328000-0xDF329FFF
Memory Address    0xDF32C000-0xDF32C0FF
I/O Port    0x0000F090-0x0000F097
I/O Port    0x0000F080-0x0000F083
I/O Port    0x0000F060-0x0000F07F
Memory Address    0xDF32B000-0xDF32B7FF
IRQ Channel    IRQ 4294967294
Driver    C:\WINDOWS\SYSTEM32\DRIVERS\IASTORAC.SYS (16.8.4.1011, 1.04 MB (1,094,848 bytes), 12/03/2021 04:05 PM)


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

Bastet

Well-known member
Member
VIP
Thread Starter
Local time
6:32 AM
Posts
223
Location
Manchester. UK.
OS
Windows 11 Pro 64bit
Still no dice. uninstalled Macrium completely using revo & uninstalled the Printer drivers. Uninstalled Intel(R) 100 Series/C230 Chipset Family SATA AHCI Controller & deleted the driver which installed the default/an older driver on restart.
Setup diagnostic: Setup Diagnostics [2022-04-01_at_13-47-41]


Attachments

  • DOCTOR9FAN-(2022-04-01_13-36-46).zip
    1.4 MB · Views: 1

My Computer

System One

  • OS
    Windows 11 Pro 64bit
    Computer type
    Laptop
    Manufacturer/Model
    PC Specialist Optimus VII V17-960 Gaming Laptop.
    CPU
    6th Gen Intel Core i7-6700HQ Quad Core processor.
    Memory
    16GB HyperX IMPACT 1600MHz SODIMM DDR3 (2 x 8GB)
    Graphics Card(s)
    NVIDIA® GeForce® GTX 960M - 2.0GB DDR5 Video RAM - DirectX® 12
    Sound Card
    Intel 2 Channel High Def. Audio + SoundBlaster™ Cinema 2 & Realtek
    Monitor(s) Displays
    Optimus Series: 17.3" Matte Full HD IPS LED Widescreen (1920x1080)
    Screen Resolution
    Full HD IPS display (1920 x 1080).
    Hard Drives
    2TB SSD (internal).
    1x 1TB & 1x 5TB external HDDs.
    Cooling
    STANDARD THERMAL PASTE FOR SUFFICIENT COOLING
    Keyboard
    Logitech K800 wireless keyboard
    Mouse
    Logitech M705 wireless mouse
    Internet Speed
    Upto 100Mbps
    Browser
    Edge.
    Antivirus
    Windows Defender & MalwareBytes pro.

zbook

Well-known member
Power User
VIP
Local time
12:32 AM
Posts
1,063
OS
Windows 10
Please open a new thread for Windows in place upgrade troubleshooting.

Place a link into this thread for the new thread.

Uninstall:
Driver Booster 9
Driver Easy 5.7.1
Driver Reviver
Malwarebytes version 4.5.7.186


In the new thread please run:



Open administrative command prompt and type or copy and paste:

reagentc /info
reagentc /enable
reagentc /info
findstr /c:"conx" c:\windows.~bt\sources\panther\setupact.log >"userprofile%\desktop\setupactdetails.txt"

Post images or share links displaying the command with results into this thread.
Look for a new text file on the desktop > post a share link into this thread.

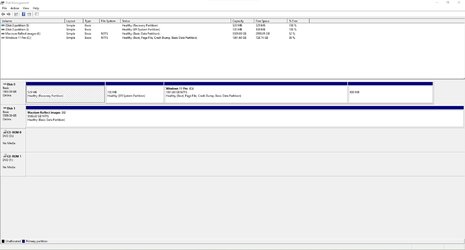

Open disk management:
a) widen rows: disk 0, disk 1, etc. > make sure that no characters are cut off
b) widen columns: Volume and Status > make sure that no characters are cut off
Post images or share links into this thread.

Please read this link on Windows Driver Verifier (WDV):

Learn the methods to turn off the tool in safe mode using commands:
verifier /reset
verifier /bootmode resetonbootfail

Make a new restore point:


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

Bastet

Well-known member
Member
VIP
Thread Starter
Local time
6:32 AM
Posts
223
Location
Manchester. UK.
OS
Windows 11 Pro 64bit

My Computer

System One

  • OS
    Windows 11 Pro 64bit
    Computer type
    Laptop
    Manufacturer/Model
    PC Specialist Optimus VII V17-960 Gaming Laptop.
    CPU
    6th Gen Intel Core i7-6700HQ Quad Core processor.
    Memory
    16GB HyperX IMPACT 1600MHz SODIMM DDR3 (2 x 8GB)
    Graphics Card(s)
    NVIDIA® GeForce® GTX 960M - 2.0GB DDR5 Video RAM - DirectX® 12
    Sound Card
    Intel 2 Channel High Def. Audio + SoundBlaster™ Cinema 2 & Realtek
    Monitor(s) Displays
    Optimus Series: 17.3" Matte Full HD IPS LED Widescreen (1920x1080)
    Screen Resolution
    Full HD IPS display (1920 x 1080).
    Hard Drives
    2TB SSD (internal).
    1x 1TB & 1x 5TB external HDDs.
    Cooling
    STANDARD THERMAL PASTE FOR SUFFICIENT COOLING
    Keyboard
    Logitech K800 wireless keyboard
    Mouse
    Logitech M705 wireless mouse
    Internet Speed
    Upto 100Mbps
    Browser
    Edge.
    Antivirus
    Windows Defender & MalwareBytes pro.

zbook

Well-known member
Power User
VIP
Local time
12:32 AM
Posts
1,063
OS
Windows 10
Yes, z3r010 was planning ahead and immediately moved the post to a new thread.
Thx.

So please continue here.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

Bastet

Well-known member
Member
VIP
Thread Starter
Local time
6:32 AM
Posts
223
Location
Manchester. UK.
OS
Windows 11 Pro 64bit
I’ve had to roll back to yesterday’s image due to a problem, should I uninstall Macrium & the printer drivers & roll back the Intel driver again as well?


My Computer

System One

  • OS
    Windows 11 Pro 64bit
    Computer type
    Laptop
    Manufacturer/Model
    PC Specialist Optimus VII V17-960 Gaming Laptop.
    CPU
    6th Gen Intel Core i7-6700HQ Quad Core processor.
    Memory
    16GB HyperX IMPACT 1600MHz SODIMM DDR3 (2 x 8GB)
    Graphics Card(s)
    NVIDIA® GeForce® GTX 960M - 2.0GB DDR5 Video RAM - DirectX® 12
    Sound Card
    Intel 2 Channel High Def. Audio + SoundBlaster™ Cinema 2 & Realtek
    Monitor(s) Displays
    Optimus Series: 17.3" Matte Full HD IPS LED Widescreen (1920x1080)
    Screen Resolution
    Full HD IPS display (1920 x 1080).
    Hard Drives
    2TB SSD (internal).
    1x 1TB & 1x 5TB external HDDs.
    Cooling
    STANDARD THERMAL PASTE FOR SUFFICIENT COOLING
    Keyboard
    Logitech K800 wireless keyboard
    Mouse
    Logitech M705 wireless mouse
    Internet Speed
    Upto 100Mbps
    Browser
    Edge.
    Antivirus
    Windows Defender & MalwareBytes pro.

zbook

Well-known member
Power User
VIP
Local time
12:32 AM
Posts
1,063
OS
Windows 10
Please keep the computer as it is now.

Once you can confirm recovery options: safe mode, system restore etc. then you can start Windows Driver Verifier (WDV).

This should rule in / rule out driver related problems.

If it's a problematic driver then in most cases this should fix the failed upgrade repair.

If it's more than a driver then it could be time consuming.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

Bastet

Well-known member
Member
VIP
Thread Starter
Local time
6:32 AM
Posts
223
Location
Manchester. UK.
OS
Windows 11 Pro 64bit

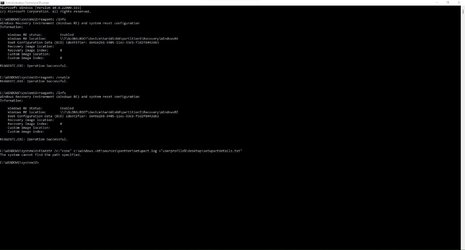

Done the scans. Reagent stated that it can't find the path specified.

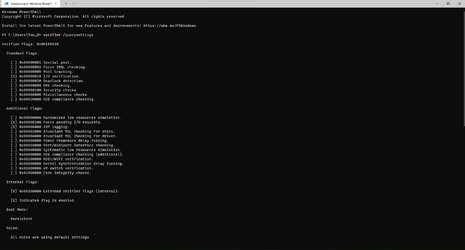

Will now run driver verifier. Btw is there any indication of when it has finished testing? I understand it should bluescreen/blackscreen if there’s a problem, if there’s not then I assume I would need to stop it manually.

If there’s no solution from these logs & DV I’ll return to Windows 10.


Attachments

  • reagent.jpg
    72.1 KB · Views: 3
  • Tuneup.log
    5.8 KB · Views: 1
  • DiskParInfo.log
    11.3 KB · Views: 1
  • disks.jpg
    87.3 KB · Views: 3
Last edited:

My Computer

System One

  • OS
    Windows 11 Pro 64bit
    Computer type
    Laptop
    Manufacturer/Model
    PC Specialist Optimus VII V17-960 Gaming Laptop.
    CPU
    6th Gen Intel Core i7-6700HQ Quad Core processor.
    Memory
    16GB HyperX IMPACT 1600MHz SODIMM DDR3 (2 x 8GB)
    Graphics Card(s)
    NVIDIA® GeForce® GTX 960M - 2.0GB DDR5 Video RAM - DirectX® 12
    Sound Card
    Intel 2 Channel High Def. Audio + SoundBlaster™ Cinema 2 & Realtek
    Monitor(s) Displays
    Optimus Series: 17.3" Matte Full HD IPS LED Widescreen (1920x1080)
    Screen Resolution
    Full HD IPS display (1920 x 1080).
    Hard Drives
    2TB SSD (internal).
    1x 1TB & 1x 5TB external HDDs.
    Cooling
    STANDARD THERMAL PASTE FOR SUFFICIENT COOLING
    Keyboard
    Logitech K800 wireless keyboard
    Mouse
    Logitech M705 wireless mouse
    Internet Speed
    Upto 100Mbps
    Browser
    Edge.
    Antivirus
    Windows Defender & MalwareBytes pro.

BrianInEngland

Active member
Member
VIP
Local time
6:32 AM
Posts
250
OS
Windows 11 Pro 22H2 (RP channel)
I've done an in-place upgrade twice on this PC and once on another, all worked fine


My Computer

System One

  • OS
    Windows 11 Pro 22H2 (RP channel)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Gigabyte
    CPU
    AMD Ryzen 5900X 12-core
    Motherboard
    X570 Aorus Xtreme
    Memory
    32GB Corsair Platinum RGB 3600MHz
    Graphics Card(s)
    MSI Suprim X 3080 Ti
    Sound Card
    Soundblaster AE-5 Plus
    Monitor(s) Displays
    ASUS TUF Gaming VG289
    Screen Resolution
    3840x2160
    Hard Drives
    Samsung 980 Pro 2TB
    Samsung 970 Pro Plus 1TB
    Samsung 970 Pro 1TB
    Samsung T7 Touch 1TB
    PSU
    Asus ROG Strix 1000W
    Case
    Corsair D750 Airflow
    Cooling
    Noctua NH-D15S
    Keyboard
    Logitech G810
    Mouse
    Logitech G903 with PowerPlay charger

Bastet

Well-known member
Member
VIP
Thread Starter
Local time
6:32 AM
Posts
223
Location
Manchester. UK.
OS
Windows 11 Pro 64bit

My Computer

System One

  • OS
    Windows 11 Pro 64bit
    Computer type
    Laptop
    Manufacturer/Model
    PC Specialist Optimus VII V17-960 Gaming Laptop.
    CPU
    6th Gen Intel Core i7-6700HQ Quad Core processor.
    Memory
    16GB HyperX IMPACT 1600MHz SODIMM DDR3 (2 x 8GB)
    Graphics Card(s)
    NVIDIA® GeForce® GTX 960M - 2.0GB DDR5 Video RAM - DirectX® 12
    Sound Card
    Intel 2 Channel High Def. Audio + SoundBlaster™ Cinema 2 & Realtek
    Monitor(s) Displays
    Optimus Series: 17.3" Matte Full HD IPS LED Widescreen (1920x1080)
    Screen Resolution
    Full HD IPS display (1920 x 1080).
    Hard Drives
    2TB SSD (internal).
    1x 1TB & 1x 5TB external HDDs.
    Cooling
    STANDARD THERMAL PASTE FOR SUFFICIENT COOLING
    Keyboard
    Logitech K800 wireless keyboard
    Mouse
    Logitech M705 wireless mouse
    Internet Speed
    Upto 100Mbps
    Browser
    Edge.
    Antivirus
    Windows Defender & MalwareBytes pro.

x BlueRobot

Member
Member
Local time
6:32 AM
Posts
62
OS
Windows 11
@Bastet

Could you please check if there is a dump file called setupmem.dmp in the following directories:

Rich (BB code):
%SystemDrive%\$Windows.~bt\Sources\Rollback
%WinDir%\Panther\NewOS\Rollback


My Computer

System One

  • OS
    Windows 11

zbook

Well-known member
Power User
VIP
Local time
12:32 AM
Posts
1,063
OS
Windows 10
The V2 log collector had displayed that the recovery partition was disabled.
The image displayed that it was enabled.
Somewhere there was a command that had converted it from disabled to enabled.

Windows driver verifier is designed to stress test the drivers.

If there is a misbehaving driver the computer will crash.

If a dump file is created it can be debugged.

Misbehaving drivers can be uninstalled or uninstalled and reinstalled.

The tool will then be restarted with modified customized settings.

Plan to run the tool in the background for approximately 48 hours.

There may be performance problems while running the tool.

If there are performance problems or very slow boot please comment into this thread and the customized tests can be modified.

After any BSOD please post a new V2.

If there is no immediate BSOD after starting the tool please run the administrative command prompt command:
verifier /querysettings

Post a share link into this thread.





Code:
Windows Recovery Environment (Windows RE) and system reset configuration
Information:

    Windows RE status:         Disabled


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

Ghot

Well-known member
Pro User
VIP
Local time
1:32 AM
Posts
3,107
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.739
@Bastet

I don't think an In-Place upgrade is going to work... with a generic ISO.
Because you are doing this on a non-compatible comp, you will probably have to use an ISO that doesn't "do" the compatibility checks.


My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.739
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Bastet

Well-known member
Member
VIP
Thread Starter
Local time
6:32 AM
Posts
223
Location
Manchester. UK.
OS
Windows 11 Pro 64bit
No BSOD so far.
Settings attached.
cmd prompt shows RE is enabled.
I did use EaseUS partition manager to extend the recovery partition as after Win 11 upgrade from 10 it showed red.
EaseUS still shows it is entitled 'recovery partition' How would I enable it again?


Attachments

  • check1.jpg
    79.6 KB · Views: 1
  • check2.jpg
    40.2 KB · Views: 1
  • RE.jpg
    41.7 KB · Views: 1

My Computer

System One

  • OS
    Windows 11 Pro 64bit
    Computer type
    Laptop
    Manufacturer/Model
    PC Specialist Optimus VII V17-960 Gaming Laptop.
    CPU
    6th Gen Intel Core i7-6700HQ Quad Core processor.
    Memory
    16GB HyperX IMPACT 1600MHz SODIMM DDR3 (2 x 8GB)
    Graphics Card(s)
    NVIDIA® GeForce® GTX 960M - 2.0GB DDR5 Video RAM - DirectX® 12
    Sound Card
    Intel 2 Channel High Def. Audio + SoundBlaster™ Cinema 2 & Realtek
    Monitor(s) Displays
    Optimus Series: 17.3" Matte Full HD IPS LED Widescreen (1920x1080)
    Screen Resolution
    Full HD IPS display (1920 x 1080).
    Hard Drives
    2TB SSD (internal).
    1x 1TB & 1x 5TB external HDDs.
    Cooling
    STANDARD THERMAL PASTE FOR SUFFICIENT COOLING
    Keyboard
    Logitech K800 wireless keyboard
    Mouse
    Logitech M705 wireless mouse
    Internet Speed
    Upto 100Mbps
    Browser
    Edge.
    Antivirus
    Windows Defender & MalwareBytes pro.
Top Bottom
