Many of you want to run Dev versions of Windows 11 in a virtual machine.

In my opinion, the best vm environment is Hyper-V for this, but that is not available on Home.

I posted this method how to use it on W10 Home a year ago in Tenforums, but tonight I tested the method to see if it still works on W11, and I am glad to say it does.

You can equally use it on W10 as well.

It is actually very easy.

1. Optional but strongly recommended - create image backup of your pc using Macrium Reflect Free or similar in case something goes wrong (it never has for me but just in case).

2. Select the text below and store as text in a file called HyperV.bat and save on desktop (or any location you prefer)

3. Ensure your bios is set to enable virtualisation.

4. Run HyperV.bat with admin rights

5. Follow this tutorial - Create Windows 11 Virtual Machine with Hyper-V.

Code:
pushd "%~dp0"

dir /b %SystemRoot%\servicing\Packages\*Hyper-V*.mum >c:\users\public\hyper-v.txt

for /f %%i in ('findstr /i . c:\users\public\hyper-v.txt 2^>nul') do dism /online /norestart /add-package:"%SystemRoot%\servicing\Packages\%%i"

del c:\users\public\hyper-v.txt

Dism /online /enable-feature /featurename:Microsoft-Hyper-V -All /LimitAccess /ALLpause

Last edited by a moderator:

My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

Kari

PhD in Malt Based Liquids
Power User
VIP
Local time
10:26 PM
Posts
755
Location
Expat from Finland in Leipzig Germany
OS
Windows 11 PRO x64 Dev
Martin, tutorial link in step 5 is wrong. Correct URL:


Code:
https://www.elevenforum.com/t/create-windows-11-virtual-machine-with-hyper-v.182/

Kari


My Computers

System One System Two

  • OS
    Windows 11 PRO x64 Dev
    Manufacturer/Model
    Hyper-V Virtual Machine (host in System 2 specs)
    CPU
    Intel Core i7-8550U
    Memory
    6 GB
    Graphics Card(s)
    Microsoft Hyper-V Video
    Monitor(s) Displays
    Laptop display (17.1") & Samsung U28E590 (27.7")
  • Operating System
    Windows 11 PRO x64 Dev Channel
    Computer type
    Laptop
    Manufacturer/Model
    HP HP ProBook 470 G5
    CPU
    Intel Core i7-8550U
    Motherboard
    HP 837F KBC Version 02.3D.00
    Memory
    16 GB
    Graphics card(s)
    Intel(R) UHD Graphics 620 & NVIDIA GeForce 930MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    Laptop display (17.1") & Samsung U28E590 (27.7")
    Hard Drives
    128 GB SSD & 1 TB HDD
    Mouse
    Wireless Logitech MSX mouse
    Keyboard
    Wireless Logitech MK710 keyboard
    Internet Speed
    100 Mbps down, 20 Mbps up
    Browser
    Edge Chromium Dev Channel
    Antivirus
    Windows Defender
    Other Info
    2 * 3 TB USB HDD
    6 TB WD Mirror NAS

cereberus

Well-known member
Pro User
VIP
Thread Starter
Local time
9:26 PM
Posts
2,298
OS
Windows 10 Pro + others in VHDs
Martin, tutorial link in step 5 is wrong. Correct URL:


Code:
https://www.elevenforum.com/t/create-windows-11-virtual-machine-with-hyper-v.182/

Kari
I do not follow - link works ok for me?


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

Almighty1

Well-known member
Member
VIP
Local time
1:26 PM
Posts
667
Location
San Francisco, California USA
OS
Windows XP/7/8/8.1/10/11, Linux, Android, FreeBSD Unix
@cereberus - I can also confirm that your link works fine for me too.


My Computer

System One

  • OS
    Windows XP/7/8/8.1/10/11, Linux, Android, FreeBSD Unix
    Computer type
    Laptop
    Manufacturer/Model
    Dell XPS 15 9570
    CPU
    Intel® Core™ i7-8750H 8th Gen Processor 2.2Ghz up to 4.1Ghz
    Motherboard
    Dell XPS 15 9570
    Memory
    32GB using 2x16GB modules
    Graphics Card(s)
    Intel UHD 630 & NVIDIA GeForce GTX 1050 Ti with 4GB DDR5
    Sound Card
    Realtek ALC3266-CG
    Monitor(s) Displays
    15.6" 4K Touch UltraHD 3840x2160 made by Sharp
    Screen Resolution
    3840x2160
    Hard Drives
    Toshiba KXG60ZNV1T02 NVMe 1024GB/1TB SSD
    PSU
    Dell XPS 15 9570
    Case
    Dell XPS 15 9570
    Cooling
    Stock
    Keyboard
    Stock
    Mouse
    SwitftPoint ProPoint
    Internet Speed
    Comcast/XFinity 1.44Gbps/42.5Mbps
    Browser
    Microsoft EDGE (Chromium based) & Google Chrome
    Antivirus
    Windows Defender that came with Windows

Kari

PhD in Malt Based Liquids
Power User
VIP
Local time
10:26 PM
Posts
755
Location
Expat from Finland in Leipzig Germany
OS
Windows 11 PRO x64 Dev
@Martin, my post was posted on Friday at 12:37 CET. Your post with that link shows this (bottom right):


I guess that a mod (@Nigel?) saw my post, and edited the link 5 minutes after I posted it. Link was most definitely wrong when I posted.

Kari


My Computers

System One System Two

  • OS
    Windows 11 PRO x64 Dev
    Manufacturer/Model
    Hyper-V Virtual Machine (host in System 2 specs)
    CPU
    Intel Core i7-8550U
    Memory
    6 GB
    Graphics Card(s)
    Microsoft Hyper-V Video
    Monitor(s) Displays
    Laptop display (17.1") & Samsung U28E590 (27.7")
  • Operating System
    Windows 11 PRO x64 Dev Channel
    Computer type
    Laptop
    Manufacturer/Model
    HP HP ProBook 470 G5
    CPU
    Intel Core i7-8550U
    Motherboard
    HP 837F KBC Version 02.3D.00
    Memory
    16 GB
    Graphics card(s)
    Intel(R) UHD Graphics 620 & NVIDIA GeForce 930MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    Laptop display (17.1") & Samsung U28E590 (27.7")
    Hard Drives
    128 GB SSD & 1 TB HDD
    Mouse
    Wireless Logitech MSX mouse
    Keyboard
    Wireless Logitech MK710 keyboard
    Internet Speed
    100 Mbps down, 20 Mbps up
    Browser
    Edge Chromium Dev Channel
    Antivirus
    Windows Defender
    Other Info
    2 * 3 TB USB HDD
    6 TB WD Mirror NAS

z3r010

Administrator
Staff member
Local time
9:26 PM
Posts
2,092
Location
Worsley, Manchester, UK
OS
Windows 11 Workstation
It was me.


My Computers

System One System Two

  • OS
    Windows 11 Workstation
    Computer type
    PC/Desktop
    Manufacturer/Model
    doofenshmirtz evil incorporated
    CPU
    Ryzen 9 5950X
    Motherboard
    Asus ROG Crosshair VIII Formula
    Memory
    Corsair Vengeance RGB PRO Black 64GB (4x16GB) 3600MHz AMD Ryzen Tuned DDR4
    Graphics Card(s)
    ASUS AMD Radeon RX 6900 XT 16GB ROG Strix LC OC
    Sound Card
    Sound BlasterX Katana
    Monitor(s) Displays
    3 x27" Dell U2714H & 1 x 34" Dell
    Hard Drives
    Samsung 980 Pro 1TB M.2 2280 PCI-e 4.0 x4 NVMe Solid State
    Drive
    PSU
    ASUS ROG THOR 850W 80 Plus Platinum
    Case
    ASUS ROG Strix Helios Midi-Tower ARGB Gaming Case
    Cooling
    ASUS ROG Strix LC Performance RGB AIO CPU Liquid Cooler - 360mm
    Keyboard
    Logi Ergo
    Mouse
    Logitech MX Master 3
    Internet Speed
    900/100 Mbps
    Browser
    Chrome
    Antivirus
    Windows Defender, Malwarebytes Pro
    Other Info
    HP M281 Printer
    Logitech Brio Stream webcam
    Yeti X mic
  • Operating System
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    Surface Laptop
    CPU
    i7

cereberus

Well-known member
Pro User
VIP
Thread Starter
Local time
9:26 PM
Posts
2,298
OS
Windows 10 Pro + others in VHDs

My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

jimbo45

Well-known member
Power User
VIP
Local time
8:26 PM
Posts
1,899
Location
Hafnarfjörður IS
OS
Windows XP,7,10,11 Linux Arch Linux
Hi folks

@Kari
@cereberus

I tried a rediculously bonkers thing but your link works !!

1) on WSL for Linux running DEBIAN with GUI (GNOME desktop) on latest version of W11 (not preview insider edition)

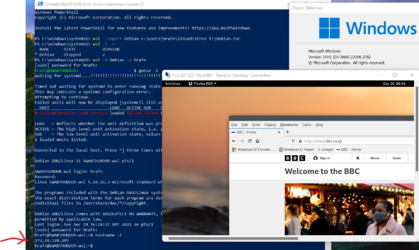

Screenshot 2021-12-20 083638.png

2) Installed a W11 Home version VM on the Linux WSL (iso from UUPDUMP - don't have Windows 11 Home - so I couldn't activate it --) no probs there as I just wanted to use it for a test to see if it would boot and start something like Edge for a test
3) Ran Hyper-V on it and created another VM

I used KVM to create the VM on the WSL "VM" so effectively 2 HyperVisors running cocurrently..

It worked albeit not very fast !! so effectively W11 Host --VM level 1 WSL VM level 2 Windows 11 Host with HYPER-V VM level 3 W10 Pro !!!!

Cheers
Happy Xmas / New year everone -- at least whatever else this year there's loads of things to "play with" on computers currently.


Cheers
jimbo

Last edited:

My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7

cereberus

Well-known member
Pro User
VIP
Thread Starter
Local time
9:26 PM
Posts
2,298
OS
Windows 10 Pro + others in VHDs
Hi folks

@Kari
@cereberus

I tried a rediculously bonkers thing but your link works !!

1) on WSL for Linux running DEBIAN with GUI (GNOME desktop) on latest version of W11 (not preview insider edition)

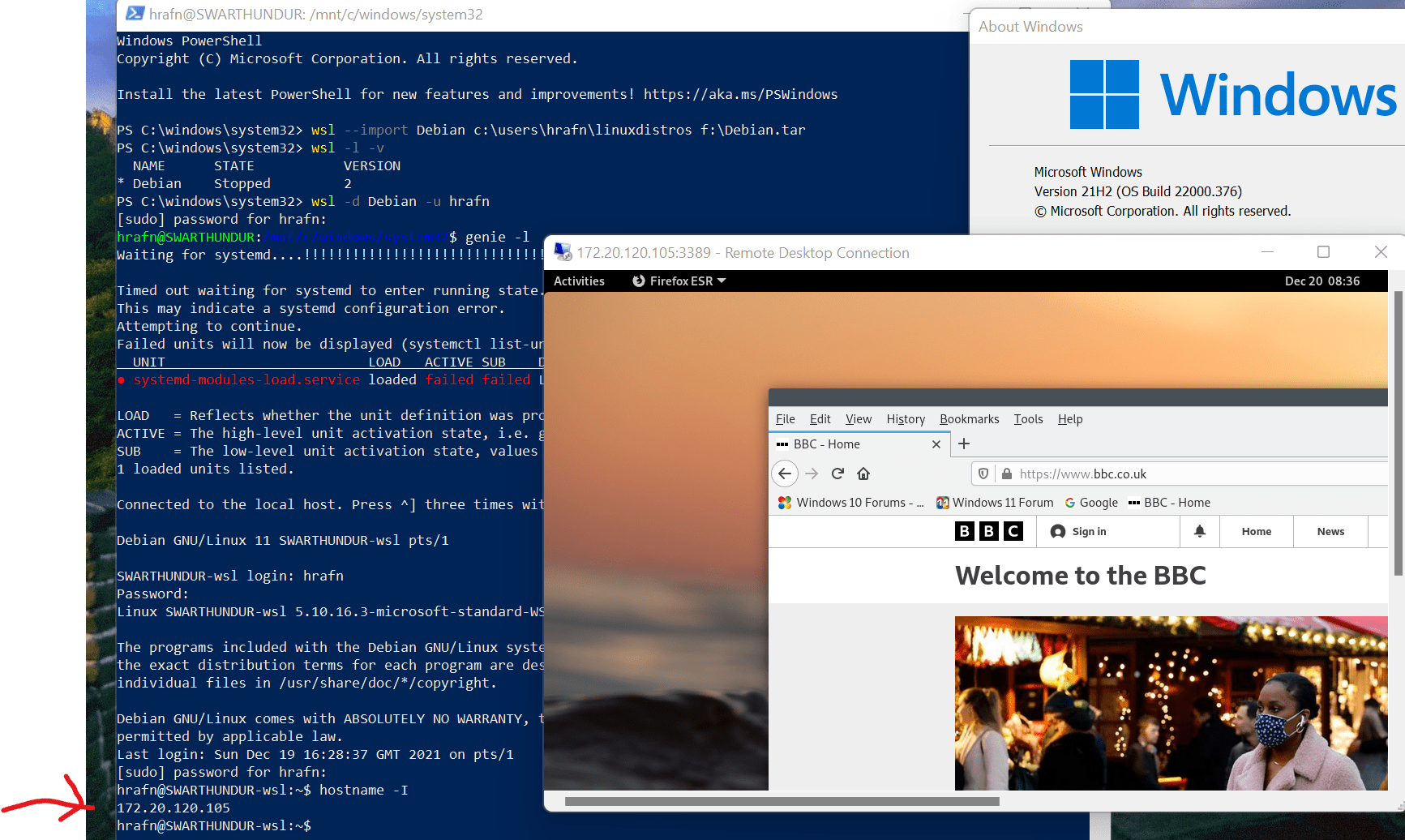

View attachment 16664

2) Installed a W11 Home version VM on the Linux WSL (iso from UUPDUMP - don't have Windows 11 Home - so I couldn't activate it --) no probs there as I just wanted to use it for a test to see if it would boot and start something like Edge for a test
3) Ran Hyper-V on it and created another VM

I used KVM to create the VM on the WSL "VM" so effectively 2 HyperVisors running cocurrently..

It worked albeit not very fast !! so effectively W11 Host --VM level 1 WSL VM level 2 Windows 11 Host with HYPER-V VM level 3 W10 Pro !!!!

Cheers
Happy Xmas / New year everone -- at least whatever else this year there's loads of things to "play with" on computers currently.


Cheers
jimbo
Yep - that is barmy LOL
