Insider KB5040557 Windows 11 Insider Dev build 26120.1340 (24H2) - Aug. 5

Mooly · Aug 7, 2024

I'm reading up on it... I see what it is and why it was created that way.

Bree · Aug 7, 2024

rseiler said:
It's really interesting that it works for you. But there's some variable between us.

Maybe it's the edition?

Often it's a mismatch between languages, using an en-us ISO on an en-gb install, or vice-versa.

rseiler · Aug 7, 2024

Bree said:
Often it's a mismatch between languages, using an en-us ISO on an en-gb install, or vice-versa.

Right, I read about that one, but I'm always using En-US.

It's also not the fact that he was using the same version as he was on, since I've now tried the 26120.1330 ISO too.

I now suspect it's the edition.

magilla · Aug 7, 2024

Installation complete.

Brink · Aug 7, 2024

Microsoft Store August 2024 update rolling out to Windows 11 Insiders

Windows Blogs: Hello Windows Insiders, today we are beginning to roll out our August 2024 update for the Microsoft Store to Windows Insiders in the Canary and Dev Channels. The update will be available for Windows 11 devices (version 22407.xxxx.x and higher). An updated library experience In...

www.elevenforum.com

fg2001gf11F · Aug 7, 2024

Mooly said:
Well that went better than I might ever have imagined tbh. It took a while, around 40 minutes I guess but the result seems good. Everything as it was apart from custom font and icon sizes, however as well as notes of the settings used I also had a reg file I made of the Windows Metrics from back when I started on the Dev build. A couple of seconds to apply that and all seems good.

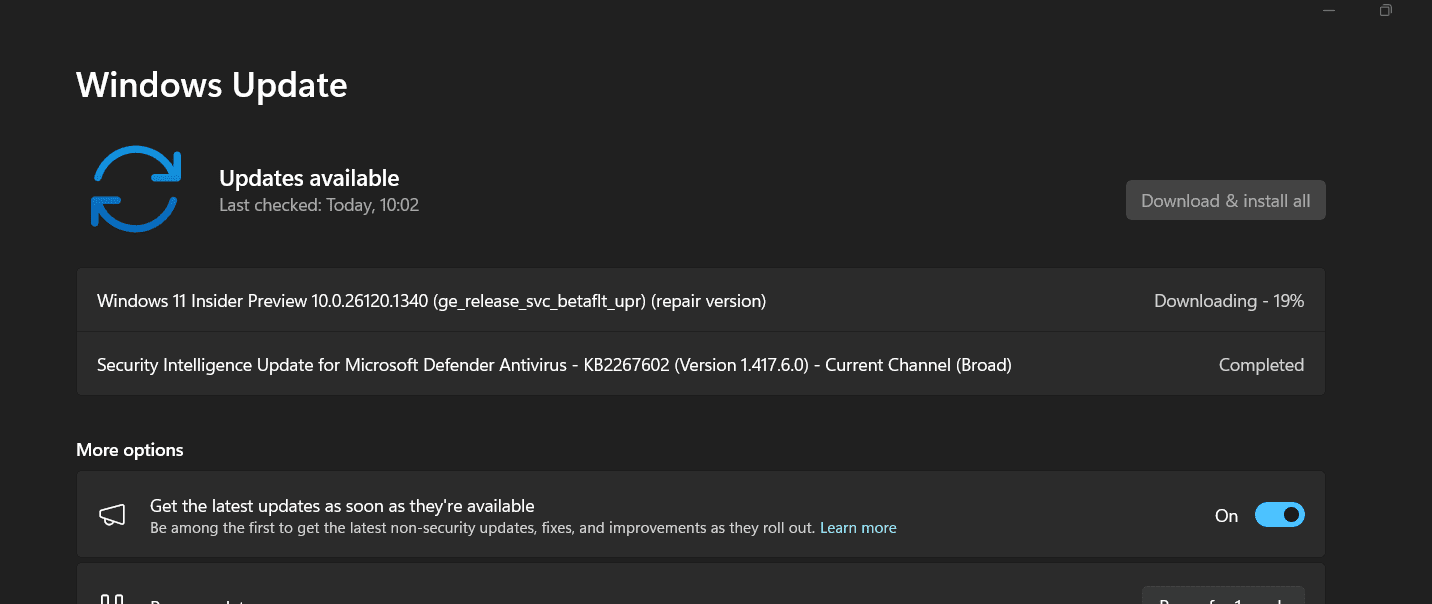

This is what got installed using the recovery option:

View attachment 103396

And lots to clean up afterwards:

View attachment 103397

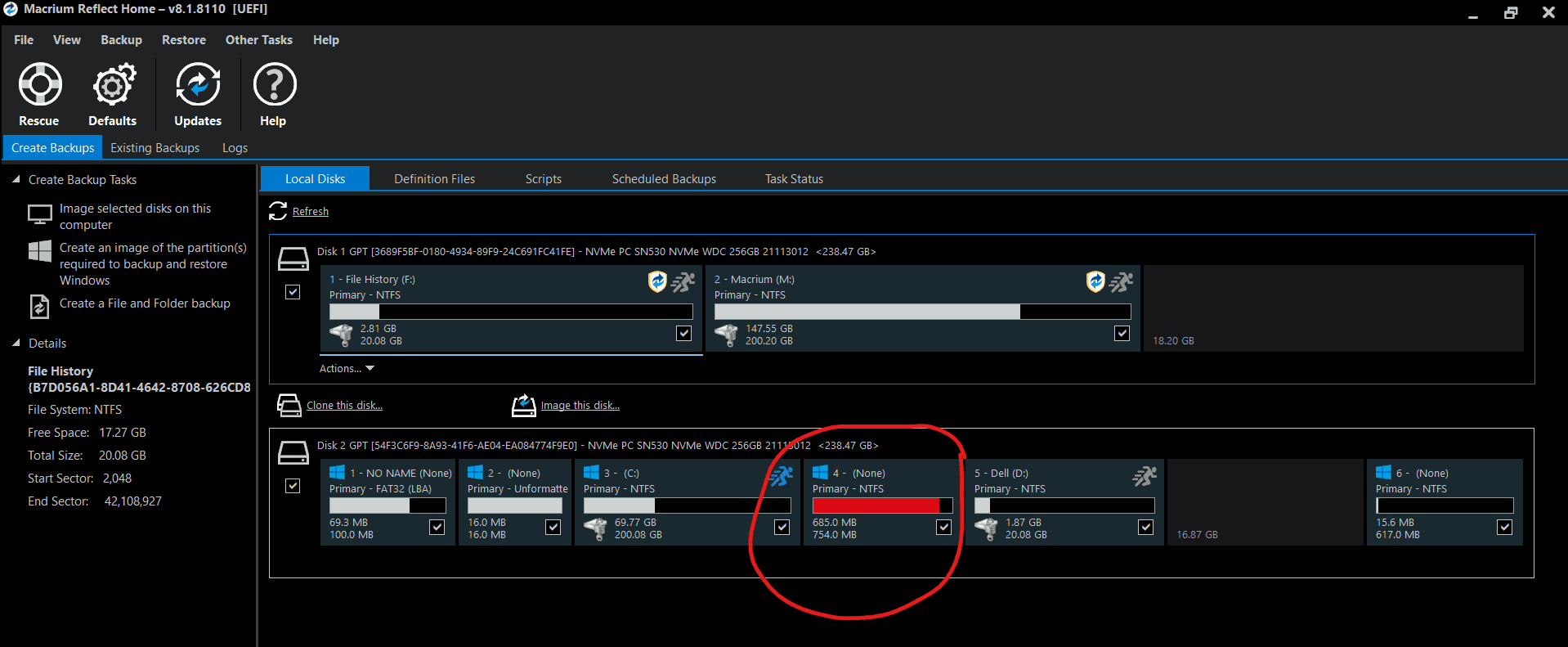

I'm not sure if this is a new partition of some sort or whether it has just been altered and is near its space limit. There was certainly no red anywhere before but I can't say for sure if it is a new 'partition' of some sort. Anyone know the answer to that?

View attachment 103399

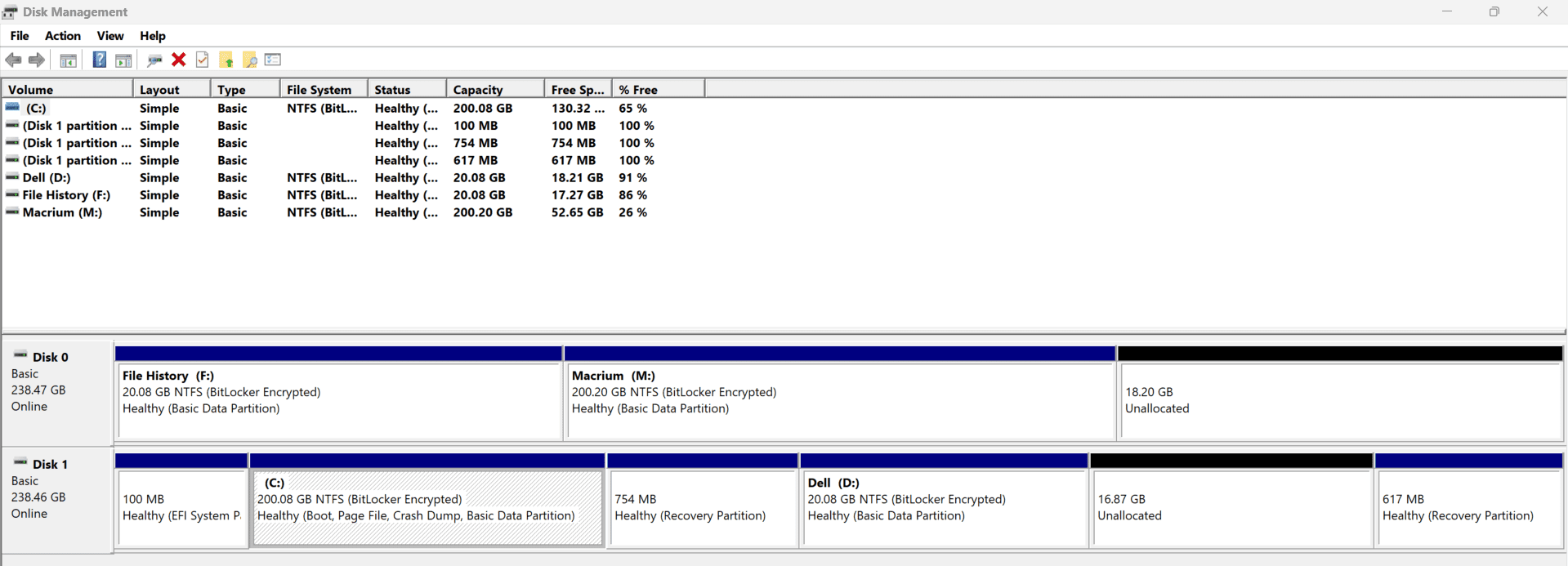

And the view in Disk Management. Is it new (the 754MB partition)? I haven't an old screen shot to compare.

View attachment 103398

Your recovery partition is running out of space.

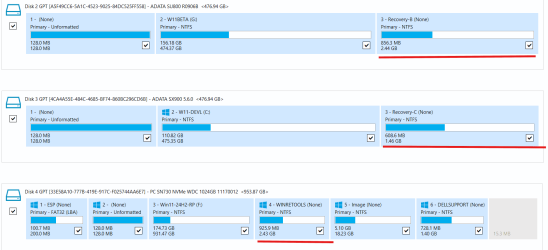

I expanded my recovery partitions some time ago to avoid that problem. See the sizes below for Beta, Dev, and R.P. on this multiboot system.

rseiler · Aug 7, 2024

@fg2001gf11F Wow, so per my system and the system of the user you replied to, Disk Management is incapable of showing USAGE of Recovery. His is 0. Mine is 0. But the "modern" UI in Settings for same shows 540MB of 616MB used. Which may or may not be a problem, it's hard to know. I remember increasing this many, many years ago.

Mooly · Aug 7, 2024

Thanks @fg2001gf11F I wish I had done something like that earlier, I just wasn't aware it would do that

but its all good learning and reading up on this.

Toying with the idea of moving it using the free AOMEI Partition Wizard. More research needed...

Seems partition #4 is my active recovery one (used cmd and reagentc /info) but I'm not sure what if anything is on #6 as it shows just 15.6MB used. One for tomorrow and as long as I have disk images I feel fairly safe.

fg2001gf11F · Aug 7, 2024

Mooly said:
Thanks @fg2001gf11F I wish I had done something like that earlier, I just wasn't aware it would do that but its all good learning and reading up on this.

Toying with the idea of moving it using the free AOMEI Partition Wizard. More research needed...

Seems partition #4 is my active recovery one (used cmd and reagentc /info) but I'm not sure what if anything is on #6 as it shows just 15.6MB used. One for tomorrow and as long as I have disk images I feel fairly safe.

I use Minitool Partition Wizard to expand the Recovery partition when I need to.
After I shrink the C: volume partition I expand the recovery using the free space created at the end on the C: volume and then reboot.
I assume AOMEI can do the same. Good luck.

fg2001gf11F · Aug 7, 2024

rseiler said:
@fg2001gf11F Wow, so per my system and the system of the user you replied to, Disk Management is incapable of showing USAGE of Recovery. His is 0. Mine is 0. But the "modern" UI in Settings for same shows 540MB of 616MB used. Which may or may not be a problem, it's hard to know. I remember increasing this many, many years ago.

I use Macrium to see all the partitions and the actual space used. Disk management is quite useless for that.

fg2001gf11F · Aug 7, 2024

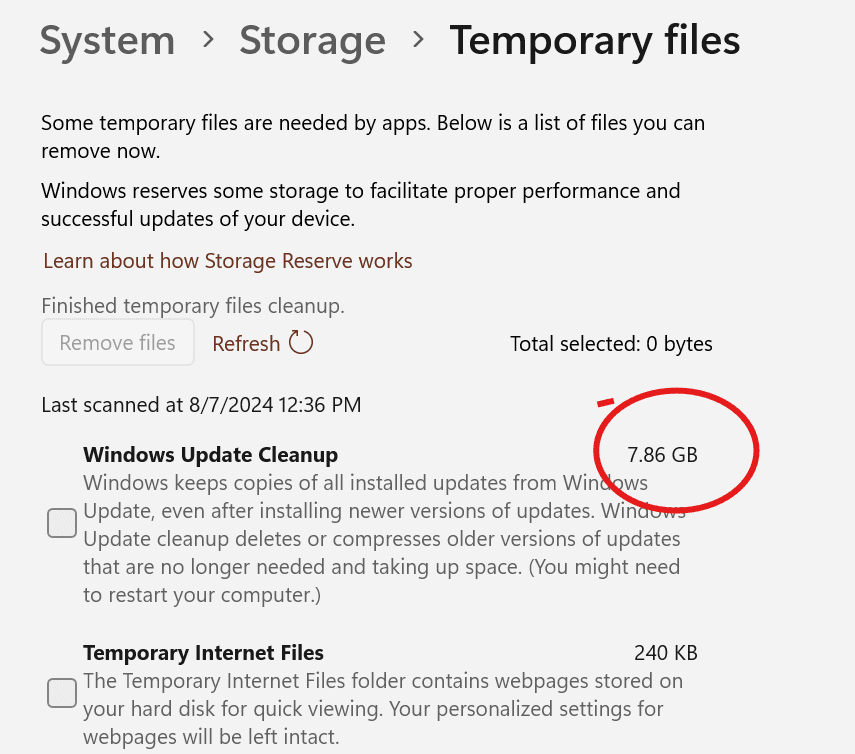

This is still a bug with 26120.1340 like it was with 26120.1330.
7.86 GB leftover in Windows Update Cleanup after trying to clear the temp files.
Weird that 7.86 GB is the size of the whole ISO 26120.1340 created from uupdump.

rseiler · Aug 7, 2024

fg2001gf11F said:
I use Macrium to see all the partitions and the actual space used. Disk management is quite useless for that.

I'm going to shoot for over 250MB free after seeing this, so maybe just rounding up to a 1GB total size

KB5034441: Windows Recovery Environment update for Windows 10, version 21H2 and 22H2: January 9, 2024 - Microsoft Support

support.microsoft.com

A command-line way to check is:

Code:

reagentc /info

And then:

Code:

fsutil volume diskfree <append  Windows RE location here>

OAT · Aug 7, 2024

fg2001gf11F said:
This is still a bug with 26120.1340 like it was with 26120.1330.
7.86 GB leftover in Windows Update Cleanup after trying to clear the temp files.
Weird that 7.86 GB is the size of the whole ISO 26120.1340 created from uupdump.

View attachment 103437

It will go away when the RP & Dev separate again.

fg2001gf11F · Aug 7, 2024

rseiler said:
I'm going to shoot for over 250MB free after seeing this, so maybe just rounding up to a 1GB total size

KB5034441: Windows Recovery Environment update for Windows 10, version 21H2 and 22H2: January 9, 2024 - Microsoft Support

support.microsoft.com

A command-line way to check is:

Code:

reagentc /info

And then:

Code:

fsutil volume diskfree <append Windows RE location here>

500MB or more of free space are needed for some backup applications depending on the size of the partition being backed up.

Minimum requirement:

For volumes less than 500 megabytes, the minimum is 50 megabytes of free space.
For volumes more than 500 megabytes, the minimum is 320 megabytes of free space.

Recommended:

At least 1 gigabyte of free disk space on each volume if volume size is more than 1 gigabyte.

fg2001gf11F · Aug 7, 2024

OAT said:
It will go away when the RP & Dev separate again.

I hope they fix it before that.

OAT · Aug 7, 2024

fg2001gf11F said:
I hope they fix it before that.

It's intentional, there is nothing to fix.
Will save from having to download it all over again when Dev is again fully Dev, not a hybrid of RP/Dev.

fg2001gf11F · Aug 7, 2024

OAT said:
It's intentional, there is nothing to fix.
Will save from having to download it all over again when Dev is again fully Dev, not a hybrid of RP/Dev.

Where did you get that explanation?

rseiler · Aug 7, 2024

fg2001gf11F said:
500MB or more of free space are needed for some backup applications depending on the size of the partition being backed up.

Minimum requirement:

For volumes less than 500 megabytes, the minimum is 50 megabytes of free space.

For volumes more than 500 megabytes, the minimum is 320 megabytes of free space.

Recommended:

At least 1 gigabyte of free disk space on each volume if volume size is more than 1 gigabyte.

Which seems to be a reference to shadow copies? Isn't that just free space free space then, not recovery partition free space?

"The last backup did not complete successfully" error message when you back up a Windows 8 system - Microsoft Support

Discusses that you receive a "The last backup did not complete successfully" error message when you try to back up a Windows 8 system. Provides a resolution and a workaround.

support.microsoft.com

fg2001gf11F · Aug 7, 2024

rseiler said:
Which seems to be a reference to shadow copies? Isn't that just free space free space then, not recovery partition free space?

"The last backup did not complete successfully" error message when you back up a Windows 8 system - Microsoft Support

Discusses that you receive a "The last backup did not complete successfully" error message when you try to back up a Windows 8 system. Provides a resolution and a workaround.

support.microsoft.com

It is the free space required on every partition, depending on the size of the partition. That is true also for the Recovery partition.
Each NTFS partition needs its own free space.

JGToy · Aug 7, 2024

@fg2001gf11F

Used those options, Cleanup / ResetBase set to 1 and it was almost 3GB less.

Question though... Do you know of any downside on doing it?
