New SSD drive - fresh install - critical precautions.


KingDing

New member
Local time
5:37 AM
Posts
16
OS
Windows 11 Home
Dell latitude 5590 laptop.

Currently rocking Windows 11 Home OEM. (Upgraded from 10 Home OEM).

Current Ssd is 256gb. Ripping it out and inserting a brand new, factory fresh (blank) 2TB SSD in its place.

I will be buying a win 11 pro key from ElectronicsFirst.

OS install - Windows media creation tool with Win 11 Pro Retail key.

It will be a fresh/clean install.

I haven't done this on a Win 11 machine before.

I am asking for guidance on the critical settings I need to change, before fresh os installation:

(e.g Bios settings such as Raid/Ahci, tpm modifications/clearing, secure boot settings etc. + anything else that needs changing like bitlocker on/off etc etc).

Then, once 11 PRO Retail is on - what settings do I need to change back?

My thanks to any willing to guide.

KD

Windows Build/Version
11 HOME to PRO

My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Hp Pavillion Desktop
Just to start with, Dell support said that if the bios setting is set to Raid - I should change it to AHCI - until the install is complete.

Then, once complete - set it back to Raid.

I have no idea if I need to turn secure boot on or off. I have no idea if TPM needs to be cleared.

Asking for guidance on how to get this right.


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Hp Pavillion Desktop
Do you need RAID? Do have or will you have 2 or more drives IN the computer? My experience came with an early install of Win10, had 2 drives in the case and Win10 automatically picked the RAID part of the BIOS setting for AHCI/RAID. Later removal of the second drive broke the booting process, had to reinstall with only one drive in the case. I later added another drive for storage but did not change the BIOS. The only RAID I use now is RAID 1 on a 2-disk NAS drive attached to my Router. RAID 0 stripes data across 2 or more drives to increase storage, lose one and all data is lost. RAID 1 is mirroring, second drive is a duplicate of first drive but total capacity of 2 x 2TB drives is 2TB. There's other type of RAID.

RAID​



RAID is a data storage virtualization technology that combines multiple physical disk drive components into one or more logical units for the purposes of data redundancy, performance improvement, or both. This is in contrast to the previous concept of highly reliable mainframe disk drives referred to as "single large expensive disk". Wikipedia


My Computers

System One System Two

  • OS
    Win11 Pro RTM
    Computer type
    Laptop
    Manufacturer/Model
    Dell Vostro 3400
    CPU
    Intel Core i5 11th Gen. 2.40GHz
    Memory
    12GB
    Hard Drives
    256GB SSD NVMe
  • Operating System
    Windows 11 Pro RTM x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 5890
    CPU
    Intel Core i5 10th Gen. 2.90GHz
    Memory
    16GB
    Graphics card(s)
    Onboard, no VGA, using a DisplayPort-to-VGA adapter
    Monitor(s) Displays
    24" Dell
    Hard Drives
    512GB SSD NVMe, 2TB WDC HDD
    Browser
    Firefox, Edge
    Antivirus
    Windows Defender/Microsoft Security
Dell ships with raid by default for some dumb reason on most of their machines (Even laptops with one drive slot!). Set it to ahci, and turn on secure boot and tpm in the bios. (probably already enabled) Then install windows 11 on the drive. Make any windows changes you like, run through all windows updates etc. Then Download and Run dell support assist if you want an easy way to get all the latest drivers.

Done. Enjoy

Last edited:

My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell G15 5525
    CPU
    Ryzen 7 6800H
    Memory
    32 GB DDR5 4800mhz
    Graphics Card(s)
    RTX 3050 4GB Vram
    Screen Resolution
    1920 x 1080
    Hard Drives
    2TB Solidigm™ P41 Plus nvme
    Internet Speed
    800mbps down, 20 up
  • Operating System
    Windows 11
    Computer type
    Tablet
    Manufacturer/Model
    Lenovo ideapad flex 14API 2 in 1
    CPU
    Ryzen 5 3500u
    Motherboard
    LENOVO LNVNB161216 (FP5)
    Memory
    12GB DDR4
    Graphics card(s)
    AMD Radeon Vega 8 Graphics
    Hard Drives
    256 GB Samsung ssd nvme
Many discussions about the RAID thing. If you're not going to use RAID then it doesn't need to be ON. There may be some specific instances where it is required especially if using the not supported anymore Optane Drives. TPM shouldn't need to be tweaked but you never know. Secure Boot is a requirement for Win11 but the requirement for it to be Secure Boot capable, not necessarily ON.
The one question is do you desire to have to use a Microsoft Account during install? Unless you use one of the several methods to bypass that Microsoft Account during the install process you'll have to enter that to fully install Win11. The thought is generally to use a Local Acct to sign in to the OS vs using your Microsoft acct.


My Computer

System One

  • OS
    Win 7/10/11
    Computer type
    PC/Desktop
    Other Info
    I'm a computer enthusiast so have quite a few systems that I run. More like an advanced hobby.
The one question is do you desire to have to use a Microsoft Account during install? Unless you use one of the several methods to bypass that Microsoft Account during the install process you'll have to enter that to fully install Win11. The thought is generally to use a Local Acct to sign in to the OS vs using your Microsoft acct.
Keep secure boot on. Also, They have windows 11 pro, they can just hit other option to sign in and click domain join. Then enter the user info and password they want and that skips the account creation.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell G15 5525
    CPU
    Ryzen 7 6800H
    Memory
    32 GB DDR5 4800mhz
    Graphics Card(s)
    RTX 3050 4GB Vram
    Screen Resolution
    1920 x 1080
    Hard Drives
    2TB Solidigm™ P41 Plus nvme
    Internet Speed
    800mbps down, 20 up
  • Operating System
    Windows 11
    Computer type
    Tablet
    Manufacturer/Model
    Lenovo ideapad flex 14API 2 in 1
    CPU
    Ryzen 5 3500u
    Motherboard
    LENOVO LNVNB161216 (FP5)
    Memory
    12GB DDR4
    Graphics card(s)
    AMD Radeon Vega 8 Graphics
    Hard Drives
    256 GB Samsung ssd nvme
A) Do I need to clear the TPM? (Installing PRO where previous drive was HOME).

B) I prefer Local Account to MS account.

C) This Dell Laptop came with Raid enabled - yet it only has one drive. I do not understand why.


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Hp Pavillion Desktop
A. I don't think that needs to be done. The Operating System reads the BIOS to know about the resources it has to work with. I've not cleared it on either of mine.

B. That can be done, go ahead and install Windows then after it's working go into Accounts/Users and set up a new User with a slightly different name then reboot into the new User and remove the original User.

C. I've had issue with installing when RAID was active in the BIOS, I'd set it to AHCI on a Notebook as most can't handle a second internal drive. An issue with 2 drives set as RAID and one fails the machine either won't boot or if one drive fails all is lost [RAID 0 striping]. RAID 1 is mirroring, second drive copy of first drive and removal of one causes boot issue [been there and done that].


My Computers

System One System Two

  • OS
    Win11 Pro RTM
    Computer type
    Laptop
    Manufacturer/Model
    Dell Vostro 3400
    CPU
    Intel Core i5 11th Gen. 2.40GHz
    Memory
    12GB
    Hard Drives
    256GB SSD NVMe
  • Operating System
    Windows 11 Pro RTM x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 5890
    CPU
    Intel Core i5 10th Gen. 2.90GHz
    Memory
    16GB
    Graphics card(s)
    Onboard, no VGA, using a DisplayPort-to-VGA adapter
    Monitor(s) Displays
    24" Dell
    Hard Drives
    512GB SSD NVMe, 2TB WDC HDD
    Browser
    Firefox, Edge
    Antivirus
    Windows Defender/Microsoft Security
C) This Dell Laptop came with Raid enabled - yet it only has one drive. I do not understand why.
Dell defaults to RAID for the Intel RST (Rapid Storage Technology) driver. You can switch to AHCI as others have mentioned, which uses the Windows native driver. Doing so means lower performance though.


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 [rev. 3447]
    Computer type
    PC/Desktop
    Manufacturer/Model
    Intel NUC12WSHi7
    CPU
    12th Gen Intel Core i7-1260P, 2100 MHz
    Motherboard
    NUC12WSBi7
    Memory
    64 GB
    Graphics Card(s)
    Intel Iris Xe
    Sound Card
    built-in Realtek HD audio
    Monitor(s) Displays
    Dell U3219Q
    Screen Resolution
    3840x2160 @ 60Hz
    Hard Drives
    Samsung SSD 990 PRO 1TB
    Keyboard
    CODE 104-Key Mechanical Keyboard with Cherry MX Clears
  • Operating System
    Linux Mint 21.2 (Cinnamon)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Intel NUC8i5BEH
    CPU
    Intel Core i5-8259U CPU @ 2.30GHz
    Memory
    32 GB
    Graphics card(s)
    Iris Plus 655
    Keyboard
    CODE 104-Key Mechanical Keyboard - Cherry MX Clear
Dell defaults to RAID for the Intel RST (Rapid Storage Technology) driver. You can switch to AHCI as others have mentioned, which uses the Windows native driver. Doing so means lower performance though.
thats been the opposite of my experience with over 300+ DELL's. Interesting. Maybe it is so little its not noticable?

A) Do I need to clear the TPM? (Installing PRO where previous drive was HOME).

B) I prefer Local Account to MS account.

C) This Dell Laptop came with Raid enabled - yet it only has one drive. I do not understand why.

A. No but you can if you want.

B. With windows 11 pro, you can just hit other option set up for work or school, then sign in options and click domain join. Then enter the user info and password you want and that skips the account creation.

C. It is the intel rapid storage driver as pseymour pointed out, but we disagree on the reason. See above.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell G15 5525
    CPU
    Ryzen 7 6800H
    Memory
    32 GB DDR5 4800mhz
    Graphics Card(s)
    RTX 3050 4GB Vram
    Screen Resolution
    1920 x 1080
    Hard Drives
    2TB Solidigm™ P41 Plus nvme
    Internet Speed
    800mbps down, 20 up
  • Operating System
    Windows 11
    Computer type
    Tablet
    Manufacturer/Model
    Lenovo ideapad flex 14API 2 in 1
    CPU
    Ryzen 5 3500u
    Motherboard
    LENOVO LNVNB161216 (FP5)
    Memory
    12GB DDR4
    Graphics card(s)
    AMD Radeon Vega 8 Graphics
    Hard Drives
    256 GB Samsung ssd nvme
My latest computer with the IRST which includes Optane memory, has less storage available on the 512GB NVMe drive than just what the formatting does:



My Computers

System One System Two

  • OS
    Win11 Pro RTM
    Computer type
    Laptop
    Manufacturer/Model
    Dell Vostro 3400
    CPU
    Intel Core i5 11th Gen. 2.40GHz
    Memory
    12GB
    Hard Drives
    256GB SSD NVMe
  • Operating System
    Windows 11 Pro RTM x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 5890
    CPU
    Intel Core i5 10th Gen. 2.90GHz
    Memory
    16GB
    Graphics card(s)
    Onboard, no VGA, using a DisplayPort-to-VGA adapter
    Monitor(s) Displays
    24" Dell
    Hard Drives
    512GB SSD NVMe, 2TB WDC HDD
    Browser
    Firefox, Edge
    Antivirus
    Windows Defender/Microsoft Security
thats been the opposite of my experience with over 300+ DELL's. Interesting. Maybe it is so little its not noticable?

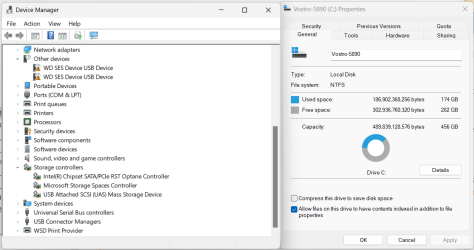

Could be, depending on other things in the system. We have a little over 6,000 Dells, and we had to decide whether to switch to AHCI or integrate the RST driver, so we ran a few different benchmarks and kept the "RAID."


My Computers

System One System Two

  • OS
    Windows 11 Pro 23H2 [rev. 3447]
    Computer type
    PC/Desktop
    Manufacturer/Model
    Intel NUC12WSHi7
    CPU
    12th Gen Intel Core i7-1260P, 2100 MHz
    Motherboard
    NUC12WSBi7
    Memory
    64 GB
    Graphics Card(s)
    Intel Iris Xe
    Sound Card
    built-in Realtek HD audio
    Monitor(s) Displays
    Dell U3219Q
    Screen Resolution
    3840x2160 @ 60Hz
    Hard Drives
    Samsung SSD 990 PRO 1TB
    Keyboard
    CODE 104-Key Mechanical Keyboard with Cherry MX Clears
  • Operating System
    Linux Mint 21.2 (Cinnamon)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Intel NUC8i5BEH
    CPU
    Intel Core i5-8259U CPU @ 2.30GHz
    Memory
    32 GB
    Graphics card(s)
    Iris Plus 655
    Keyboard
    CODE 104-Key Mechanical Keyboard - Cherry MX Clear
One thing to note on the Windows 11 install. The computer has a product key for Windows 10/11 Home stored in BIOS. The standard Windows setup will read that key and not give you any options - it will install Windows 10 or 11 Home without asking you to change it. In order to prevent that, on the USB drive for installing Windows you need to create a text file in the root directory, it needs to be called ei.cfg

It needs to contain the lines:
[Channel]
Retail
