Non-default disk partition layout


Haydon

Well-known member
Power User
VIP
Local time
1:42 PM
Posts
1,306
Visit site
OS
Windows 10 Pro
I did a bit of reading and according to


The Recovery partition on my W10 machine is on the far left (rather than on the far right as in the above pic) 499 MB of which 432.5 MB is used.

Is there any cause for concern?

(I don't know what happened, I wasn't aware that there was a default partition layout and I didn't pay attention)


My Computer

System One

  • OS
    Windows 10 Pro

Ghot

Well-known member
Pro User
VIP
Local time
1:42 PM
Posts
5,655
Location
PA, USA
Visit site
OS
Win 11 Home ♦♦♦22621.1194 ♦♦♦♦♦♦♦22H2
I did a bit of reading and according to

View attachment 47220

The Recovery partition on my W10 machine is on the far left (rather than on the far right as in the above pic) 499 MB of which 432.5 MB is used.

Is there any cause for concern?

(I don't know what happened, I wasn't aware that there was a default partition layout and I didn't pay attention)


No cause for concern.
The only one that seems to always be in the same place is the 16 MB MSR partition... if it even exists.

The EFI System and the Recovery partitions pop up in various places, depending on a few factors.
Like if you convert from MBR to GPT the EFI partition usually follows right after the C: partition.

I always remove the MSR and the Recovery partitions, anyway.

Last edited:

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22621.1194 ♦♦♦♦♦♦♦22H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4201)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    300/300
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    300/300
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Sir_George

Well-known member
Member
VIP
Local time
11:42 AM
Posts
124
Location
Denver, CO
Visit site
OS
Windows 11 Professional
I did a bit of reading and according to

View attachment 47220

The Recovery partition on my W10 machine is on the far left (rather than on the far right as in the above pic) 499 MB of which 432.5 MB is used.

Is there any cause for concern?

(I don't know what happened, I wasn't aware that there was a default partition layout and I didn't pay attention)
If the system is functioning properly, there is no reason to be concerned. Partitions can be moved/relocated, and the recovery partition is not necessary. The Recovery partition is a part of the disk drive on your computer whose purpose is to save the computer system image. It can help you recover Windows or fix system problems. Usually, the recovery partition simply saves the system state as the manufacturer first set up the PC.


My Computer

System One

  • OS
    Windows 11 Professional
    Computer type
    PC/Desktop
    Manufacturer/Model
    Microcenter B677
    CPU
    Intel Core i5-9400
    Motherboard
    ASRock H310CM-HDV/M.2
    Memory
    32GB
    Graphics Card(s)
    Integrated Intel UHD Graphics 630
    Sound Card
    Intel Kaby Lake - High Definition Audio / cAVS (Audio, Voice, Speech) [A0]
    Monitor(s) Displays
    LG Model: GSM59F1
    Screen Resolution
    2560x1080
    Case
    Lian Li 205M
    Antivirus
    Kaspersky AV

DigitalGoat

Well-known member
Power User
VIP
Local time
6:42 PM
Posts
443
Location
United Kingdom
Visit site
OS
Windows 11 Pro 22H2, build: 22621.521
I did a bit of reading and according to

View attachment 47220

The Recovery partition on my W10 machine is on the far left (rather than on the far right as in the above pic) 499 MB of which 432.5 MB is used.

Is there any cause for concern?

(I don't know what happened, I wasn't aware that there was a default partition layout and I didn't pay attention)

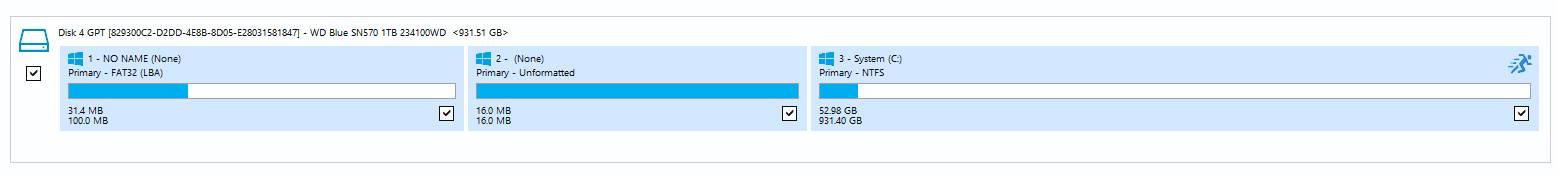

One thing you could do is to disable the recovery environment, reboot, then re enable the recovery environment. This will place the contents of the recovery partition into a Recovery folder on the System partition, you could then delete the recovery partition and extend the Windows partition into that space.
On a large disk 450 Mb or so is not really worth worrying about but if you use Macrium Reflect or similar software to work with system images then the recovery partition is pretty much redundant, IMHO.
The recovery folder works just the same in most other regards, including the contents being updated as needed.


My Computer

System One

  • OS
    Windows 11 Pro 22H2, build: 22621.521
    Computer type
    PC/Desktop
    Manufacturer/Model
    Scan 3XS Custom 1700
    CPU
    Intel i7-12700K 3.6GHz Base (5.0GHz Turbo)
    Motherboard
    Asus ProArt Creator B660 D4
    Memory
    64GB DDR 3600Mhz
    Graphics Card(s)
    Asus Tuff RTX 3080 10GB OC
    Sound Card
    Onboard Realtek
    Monitor(s) Displays
    Gigabyte G32QC 32inch 16:9 curved @2560 x 1440p 165Hz Freesync Premium Pro/ Dell SE2422H 24inch 16:9 1920 x 1080p 75Hz Freesync
    Screen Resolution
    2560 x 1440p & 1920 x 1080p
    Hard Drives
    WD SN570 1TB NVME (Boot), Samsung 870QVO 1TB (SSD), SanDisk 3D Ultra 500Gb (SSD) x2, Seagate 3Tb Expansion Desk (Ext HDD), 2x Toshiba 1Tb P300 (Ext HDD)
    PSU
    Corsair RM1000X Modular
    Case
    Corsair 4000D Airflow Desktop
    Cooling
    Corsair Hydro H150i RGB Pro XT 360mm Liquid Cooler, 3 x 120mm fans, 1x Exhaust
    Keyboard
    Microsoft Ergonomic
    Mouse
    Logitech G402
    Internet Speed
    800Mbs
    Browser
    Edge Chromium
    Antivirus
    Defender, Malwarebytes

Haydon

Well-known member
Power User
VIP
Thread Starter
Local time
1:42 PM
Posts
1,306
Visit site
OS
Windows 10 Pro
OK, I won't change anything on my present system, then. I have GPT on my present system, BTW.

However, if I create an mrimg of my present system and do a restore on new hardware, and the new hardware comes with the default partition layout, do I only restore C: ?


My Computer

System One

  • OS
    Windows 10 Pro

DigitalGoat

Well-known member
Power User
VIP
Local time
6:42 PM
Posts
443
Location
United Kingdom
Visit site
OS
Windows 11 Pro 22H2, build: 22621.521
In theory you can drag and drop any partition to any disk for 'restore' in any order you want, however if an environmental variable references the wrong partition ID or letter it could cause issues, most can be easily solved. My disk is also GPT.
I beleive the full version of Macrium can prepare an image for transfering to different hardware, never done that myself though, it is probably best to replace existing system created partitions in such a scenario.


My Computer

System One

  • OS
    Windows 11 Pro 22H2, build: 22621.521
    Computer type
    PC/Desktop
    Manufacturer/Model
    Scan 3XS Custom 1700
    CPU
    Intel i7-12700K 3.6GHz Base (5.0GHz Turbo)
    Motherboard
    Asus ProArt Creator B660 D4
    Memory
    64GB DDR 3600Mhz
    Graphics Card(s)
    Asus Tuff RTX 3080 10GB OC
    Sound Card
    Onboard Realtek
    Monitor(s) Displays
    Gigabyte G32QC 32inch 16:9 curved @2560 x 1440p 165Hz Freesync Premium Pro/ Dell SE2422H 24inch 16:9 1920 x 1080p 75Hz Freesync
    Screen Resolution
    2560 x 1440p & 1920 x 1080p
    Hard Drives
    WD SN570 1TB NVME (Boot), Samsung 870QVO 1TB (SSD), SanDisk 3D Ultra 500Gb (SSD) x2, Seagate 3Tb Expansion Desk (Ext HDD), 2x Toshiba 1Tb P300 (Ext HDD)
    PSU
    Corsair RM1000X Modular
    Case
    Corsair 4000D Airflow Desktop
    Cooling
    Corsair Hydro H150i RGB Pro XT 360mm Liquid Cooler, 3 x 120mm fans, 1x Exhaust
    Keyboard
    Microsoft Ergonomic
    Mouse
    Logitech G402
    Internet Speed
    800Mbs
    Browser
    Edge Chromium
    Antivirus
    Defender, Malwarebytes

cereberus

Well-known member
Pro User
VIP
Local time
6:42 PM
Posts
3,391
Visit site
OS
Windows 10 Pro + others in VHDs
The only minor problem with the recovery partition being first is when you get a full build upgrade, a new recovery partition will be created by shrinking the C drive and a new one created after the C drive. So you end up with 2 recovery partitions.

The original default layout for Windows had the recovery partition on the left, but updates created issues ending up with multiple partitions sometimes. That is why MS changed partition layout but even that is not perfect.

No big deal - easy to sort with minitool partition wizard free or similar.


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

DigitalGoat

Well-known member
Power User
VIP
Local time
6:42 PM
Posts
443
Location
United Kingdom
Visit site
OS
Windows 11 Pro 22H2, build: 22621.521
I'm pretty sure that if you change it so that the recovery environment is on the Windows partition, in the folder, then a new recovery partition won't be created, the folder contents will just be replaced/ updated.
To my mind this is a far more elegant solution, avoids having to resize/ add partitions, free space in the Windows partition allowing of course.


My Computer

System One

  • OS
    Windows 11 Pro 22H2, build: 22621.521
    Computer type
    PC/Desktop
    Manufacturer/Model
    Scan 3XS Custom 1700
    CPU
    Intel i7-12700K 3.6GHz Base (5.0GHz Turbo)
    Motherboard
    Asus ProArt Creator B660 D4
    Memory
    64GB DDR 3600Mhz
    Graphics Card(s)
    Asus Tuff RTX 3080 10GB OC
    Sound Card
    Onboard Realtek
    Monitor(s) Displays
    Gigabyte G32QC 32inch 16:9 curved @2560 x 1440p 165Hz Freesync Premium Pro/ Dell SE2422H 24inch 16:9 1920 x 1080p 75Hz Freesync
    Screen Resolution
    2560 x 1440p & 1920 x 1080p
    Hard Drives
    WD SN570 1TB NVME (Boot), Samsung 870QVO 1TB (SSD), SanDisk 3D Ultra 500Gb (SSD) x2, Seagate 3Tb Expansion Desk (Ext HDD), 2x Toshiba 1Tb P300 (Ext HDD)
    PSU
    Corsair RM1000X Modular
    Case
    Corsair 4000D Airflow Desktop
    Cooling
    Corsair Hydro H150i RGB Pro XT 360mm Liquid Cooler, 3 x 120mm fans, 1x Exhaust
    Keyboard
    Microsoft Ergonomic
    Mouse
    Logitech G402
    Internet Speed
    800Mbs
    Browser
    Edge Chromium
    Antivirus
    Defender, Malwarebytes

hsehestedt

Well-known member
Power User
VIP
Local time
12:42 PM
Posts
1,350
Location
Texas, USA
Visit site
OS
Windows 11 Pro 22H2
Let me explain this scenario just a little bit more ...

There is a specific reason that Microsoft now recommends that the recovery partition be placed last.

Let's assume that you have a recovery partition that is located BEFORE the Windows partition. What can potentially happen is that a new version of Windows is installed as an upgrade at a later date. That new version requires more space in the recovery partition than is currently available. Because the existing partition cannot be grown since another partition exists after it, Windows has no choice but to shrink the Windows partition to free up some space at the end of the disk, then create a whole new recovery partition. So now you have two recovery partitions, one of which is completely useless and obsolete. Does this cause any problems? Other than wasting a little disk space, no.

However, if the recovery partition is placed last on the disk, then in order to increase the size of that partition, the Windows partition can be shrunk, the recovery partition can be deleted, then recreated with the new larger size. This avoids the situation where you end up with multiple unused recovery partitions over time.

On most systems, this will make no difference since the recovery partition is so small. Where it is of greater concern is systems such as tablets that may only have small disks such as 64 GB.

Note that if you do not perform upgrade installations of Windows, if you perform clean installs when a new major version is released, then this will not affect you.

Some additional notes: When you manually install Windows clean, it will automatically install the recovery partition last. However, if you install Windows using an unattended setup, the Windows partition will be placed last. This can easily be worked around, but by default, this is what happens. I won't go into the details here because it may be a bit lengthy, and I suspect that no one cares :-). However, if you do want more detail, let me know and I will explain.


My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Dual Boot Windows 11 Pro 22H2 and Windows 10 Pro 22H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 15-BL012DX
    CPU
    Intel i7-7500U
    Memory
    32GB
    Graphics card(s)
    Dual Intel HD 620 and Nvidia GeForce 940MX
    Sound Card
    Built-in Realtek HD Audio
    Monitor(s) Displays
    4k 15-inch
    Screen Resolution
    4k (3840 x 2160)
    Hard Drives
    1TB Seagate FireCuda 510 NVMe SSD
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    RAM Upgraded from 16GB to 32GB WiFi Upgraded from WiFi 5 to WiFi 6 SSD upgraded from 512GB NVMe SSD to 1TB Seagate FireCuda 510 NVMe SSD

Haydon

Well-known member
Power User
VIP
Thread Starter
Local time
1:42 PM
Posts
1,306
Visit site
OS
Windows 10 Pro
Something of interest for BitLocker users like me (from the link in my OP)Screenshot_20221209_065856.png
BitLocker does work with the Recovery partition on the far left (as on my machine) but the words seem to say that with the default partition layout with the Recovery partition on the far right, I gain the WinRE bit. I don't know what that exactly means, though.


My Computer

System One

  • OS
    Windows 10 Pro

Latest Support Threads

Top Bottom
