PC constantly crashing; IRQL_NOT_LESS_OR_EQUAL


peyton

New member
Local time
7:54 PM
Posts
22
OS
Windows 11
Hello, so I've been having this issue for quite some time now. But lately it's getting to the point where I can barely play my computer due to it getting blue screened with the error code IRQL_NOT_LESS_OR_EQUAL. I ran perfmon and it said there was an issue with Windows - Hardware error. I'm not too sure what is causing this & I'm not too good with this sort of stuff on computers. I tried looking up some fixes, majority of them were issues with graphics cards, etc - But my pc says that my cards are working fine.

Could someone please help me if anyone has any clue how to fix it.

(I ran UEFI Bios and it said that there were no errors, couldn't run legacy bios due to not owning a USB).

Came from the windows 10 forum; PC constantly crashing; IRQL_NOT_LESS_OR_EQUAL - Windows 10 Help Forums - there's a little bit more info about my problem in there.

Windows Build/Version
Windows 11

My Computer

System One

  • OS
    Windows 11

zbook

Well-known member
Power User
VIP
Local time
4:54 AM
Posts
930
OS
Windows 10
Today is 04/01/2022.

The V2 that was posted was from 03/28/2022.

Please post a new V2 into the newest post.



Please run this script and post a share link into this thread:





See if you can find a friend, neighbor, relative, or local computer store to borrow or purchase a flash drive.


Run Memtest86 for two tests of four passes each (total eight passes) (free version)


Please take pictures with a camera or smartphone camera and post images or share links into this thread.

Memtest86 has a feature to create text reports.

If possible please include text reports with images in the posts or share links.

For share links please use one drive, drop box, or google drive.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

peyton

New member
Thread Starter
Local time
7:54 PM
Posts
22
OS
Windows 11
hello, I found a USB and went through the MemTest steps.

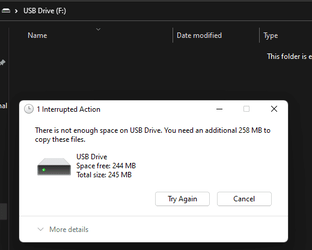

I got up to here and I'm not too sure what to do now. Could you guide me through it.


My Computer

System One

  • OS
    Windows 11

zbook

Well-known member
Power User
VIP
Local time
4:54 AM
Posts
930
OS
Windows 10

My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

peyton

New member
Thread Starter
Local time
7:54 PM
Posts
22
OS
Windows 11
Here's the new V2 you requested;
Microsoft Windows 11 Home Version 21H2 (OS Build 22000.556)

==================================================================

Started on Sat 02/04/2022 at 13:09:33.96

[SFC /ScanNow]

Beginning system scan. This process will take some time.

Results:

Windows Resource Protection did not find any integrity violations.

==================================================================

Started on Sat 02/04/2022 at 13:24:38.16

[DISM /online /cleanup-image /ScanHealth]

Deployment Image Servicing and Management tool
Version: 10.0.22000.1

Image Version: 10.0.22000.556

No component store corruption detected.

The operation completed successfully.

==================================================================

Started on Sat 02/04/2022 at 13:42:39.43

[DISM /online /cleanup-image /RestoreHealth]

Deployment Image Servicing and Management tool
Version: 10.0.22000.1

Image Version: 10.0.22000.556

The restore operation completed successfully.

The operation completed successfully.

==================================================================

The second "SFC /ScanNow" was skipped, as the first output the following:

Windows Resource Protection did not find any integrity violations.

==================================================================

Started on Sat 02/04/2022 at 13:57:03.43

[ChkDsk /Scan]

The type of the file system is NTFS.

Stage 1: Examining basic file system structure ...
695040 file records processed.
File verification completed.
Phase duration (File record verification): 15.24 seconds.
14217 large file records processed.
Phase duration (Orphan file record recovery): 6.98 milliseconds.
0 bad file records processed.
Phase duration (Bad file record checking): 0.04 milliseconds.

Stage 2: Examining file name linkage ...
45512 reparse records processed.
803896 index entries processed.
Index verification completed.
Phase duration (Index verification): 1.31 minutes.
0 unindexed files scanned.
Phase duration (Orphan reconnection): 444.06 milliseconds.
0 unindexed files recovered to lost and found.
Phase duration (Orphan recovery to lost and found): 8.93 milliseconds.
45512 reparse records processed.
Phase duration (Reparse point and Object ID verification): 93.36 milliseconds.

Stage 3: Examining security descriptors ...
Security descriptor verification completed.
Phase duration (Security descriptor verification): 160.15 milliseconds.
54429 data files processed.
Phase duration (Data attribute verification): 0.09 milliseconds.
CHKDSK is verifying Usn Journal...
36900000 USN bytes processed.
Usn Journal verification completed.
Phase duration (USN journal verification): 1.99 seconds.

Windows has scanned the file system and found no problems.

No further action is required.

1952909311 KB total disk space.
230065948 KB in 201290 files.
141360 KB in 54430 indexes.
0 KB in bad sectors.
872231 KB in use by the system.
65536 KB occupied by the log file.
1721829772 KB available on disk.

4096 bytes in each allocation unit.
488227327 total allocation units on disk.
430457443 allocation units available on disk.
Total duration: 1.61 minutes (96875 ms).

==================================================================

Started on Sat 02/04/2022 at 13:59:09.87

AutoReboot

TRUE

==================================================================

[Set AutoReboot = False]

Updating property(s) of '\\PEYTON\ROOT\CIMV2:Win32_OSRecoveryConfiguration.Name="Microsoft Windows 11 Home|C:\\WINDOWS|\\Device\\Harddisk0\\Partition2"'
Property(s) update successful.
==================================================================

AutoReboot

FALSE

==================================================================

DebugInfoType

7

==================================================================

[Set DebugInfoType = 7]

Updating property(s) of '\\PEYTON\ROOT\CIMV2:Win32_OSRecoveryConfiguration.Name="Microsoft Windows 11 Home|C:\\WINDOWS|\\Device\\Harddisk0\\Partition2"'
Property(s) update successful.
==================================================================

DebugInfoType

7

==================================================================

[WMIC PageFile list]

AllocatedBaseSize=1920
CurrentUsage=33
Description=C:\pagefile.sys
InstallDate=20211021120128.449052+660
Name=C:\pagefile.sys
PeakUsage=35
Status=
TempPageFile=FALSE

==================================================================

AutomaticManagedPagefile

TRUE

==================================================================

[Set AutomaticManagedPagefile = True]

Updating property(s) of '\\PEYTON\ROOT\CIMV2:Win32_ComputerSystem.Name="PEYTON"'
Property(s) update successful.
==================================================================

AutomaticManagedPagefile

TRUE

==================================================================

[BcdEdit /enum {badmemory}]

RAM Defects
-----------
identifier {badmemory}

==================================================================

Finished on Sat 02/04/2022 at 13:59:12.94
It took 49 minutes and 39 seconds to complete the operations.


My Computer

System One

  • OS
    Windows 11

zbook

Well-known member
Power User
VIP
Local time
4:54 AM
Posts
930
OS
Windows 10
The results were unremarkable.

Memtest86 can run overnight.

Please make sure that there are two test of four passes each.

Post images or share links into this thread.







The BIOS: Version/Date American Megatrends Inc. R01-C2, 16/04/2019

Upgrade the BIOS: R01-C2 > R01-D1





Download and install: Intel® Driver & Support Assistant

Report any updated drivers.



Please post a new V2 into the newest post after completing all of the above steps

Last edited:

My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

peyton

New member
Thread Starter
Local time
7:54 PM
Posts
22
OS
Windows 11
thank you so much for all the steps & help,

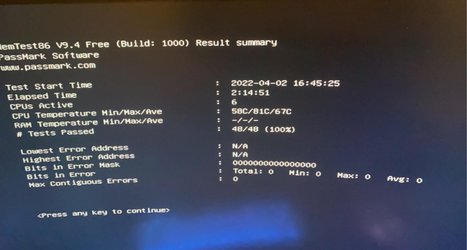

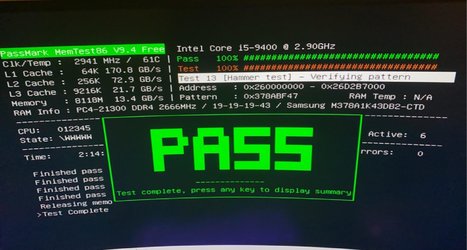

here's the screenshots, newest V2, etc;

Microsoft Windows 11 Home Version 21H2 (OS Build 22000.556)

==================================================================

Started on Sat 02/04/2022 at 19:48:14.08

[SFC /ScanNow]

Beginning system scan. This process will take some time.

Results:

Windows Resource Protection did not find any integrity violations.

==================================================================

Started on Sat 02/04/2022 at 20:08:08.04

[DISM /online /cleanup-image /ScanHealth]

Deployment Image Servicing and Management tool
Version: 10.0.22000.1

Image Version: 10.0.22000.556

No component store corruption detected.

The operation completed successfully.

==================================================================

Started on Sat 02/04/2022 at 20:28:43.86

[DISM /online /cleanup-image /RestoreHealth]

Deployment Image Servicing and Management tool
Version: 10.0.22000.1

Image Version: 10.0.22000.556

The restore operation completed successfully.

The operation completed successfully.

==================================================================

The second "SFC /ScanNow" was skipped, as the first output the following:

Windows Resource Protection did not find any integrity violations.

==================================================================

Started on Sat 02/04/2022 at 20:44:30.19

[ChkDsk /Scan]

The type of the file system is NTFS.

Stage 1: Examining basic file system structure ...
695040 file records processed.
File verification completed.
Phase duration (File record verification): 15.20 seconds.
14105 large file records processed.
Phase duration (Orphan file record recovery): 56.66 milliseconds.
0 bad file records processed.
Phase duration (Bad file record checking): 0.08 milliseconds.

Stage 2: Examining file name linkage ...
45494 reparse records processed.
804286 index entries processed.
Index verification completed.
Phase duration (Index verification): 1.47 minutes.
0 unindexed files scanned.
Phase duration (Orphan reconnection): 442.10 milliseconds.
0 unindexed files recovered to lost and found.
Phase duration (Orphan recovery to lost and found): 31.72 milliseconds.
45494 reparse records processed.
Phase duration (Reparse point and Object ID verification): 99.32 milliseconds.

Stage 3: Examining security descriptors ...
Security descriptor verification completed.
Phase duration (Security descriptor verification): 139.13 milliseconds.
54624 data files processed.
Phase duration (Data attribute verification): 0.06 milliseconds.
CHKDSK is verifying Usn Journal...
40475064 USN bytes processed.
Usn Journal verification completed.
Phase duration (USN journal verification): 1.13 seconds.

Windows has scanned the file system and found no problems.

No further action is required.

1952909311 KB total disk space.
235696080 KB in 203996 files.
142080 KB in 54625 indexes.
0 KB in bad sectors.
875291 KB in use by the system.
65536 KB occupied by the log file.
1716195860 KB available on disk.

4096 bytes in each allocation unit.
488227327 total allocation units on disk.
429048965 allocation units available on disk.
Total duration: 1.76 minutes (105605 ms).

==================================================================

Started on Sat 02/04/2022 at 20:46:47.68

AutoReboot

FALSE

==================================================================

[Set AutoReboot = False]

Updating property(s) of '\\PEYTON\ROOT\CIMV2:Win32_OSRecoveryConfiguration.Name="Microsoft Windows 11 Home|C:\\WINDOWS|\\Device\\Harddisk0\\Partition2"'
Property(s) update successful.
==================================================================

AutoReboot

FALSE

==================================================================

DebugInfoType

7

==================================================================

[Set DebugInfoType = 7]

Updating property(s) of '\\PEYTON\ROOT\CIMV2:Win32_OSRecoveryConfiguration.Name="Microsoft Windows 11 Home|C:\\WINDOWS|\\Device\\Harddisk0\\Partition2"'
Property(s) update successful.
==================================================================

DebugInfoType

7

==================================================================

[WMIC PageFile list]

AllocatedBaseSize=3113
CurrentUsage=271
Description=C:\pagefile.sys
InstallDate=20211021120128.449052+660
Name=C:\pagefile.sys
PeakUsage=292
Status=
TempPageFile=FALSE

==================================================================

AutomaticManagedPagefile

TRUE

==================================================================

[Set AutomaticManagedPagefile = True]

Updating property(s) of '\\PEYTON\ROOT\CIMV2:Win32_ComputerSystem.Name="PEYTON"'
Property(s) update successful.
==================================================================

AutomaticManagedPagefile

TRUE

==================================================================

[BcdEdit /enum {badmemory}]

RAM Defects
-----------
identifier {badmemory}

==================================================================

Finished on Sat 02/04/2022 at 20:46:50.34
It took 58 minutes and 35 seconds to complete the operations.


Attachments

  • Screenshot_5.png
    6.3 KB · Views: 1
  • unnamed (1).jpg
    unnamed (1).jpg
    145.3 KB · Views: 1
  • unnamed.jpg
    96.9 KB · Views: 1

My Computer

System One

  • OS
    Windows 11

zbook

Well-known member
Power User
VIP
Local time
4:54 AM
Posts
930
OS
Windows 10
Nice progress.

After completing the second Memtest86 of four passes if possible include the text report with the image and upload a new V2.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

peyton

New member
Thread Starter
Local time
7:54 PM
Posts
22
OS
Windows 11
Nice progress.

After completing the second Memtest86 of four passes if possible include the text report with the image and upload a new V2.

Would you like me to run the memtest again? - if so I’ll do it in the morning & how do I access the text report?


My Computer

System One

  • OS
    Windows 11

zbook

Well-known member
Power User
VIP
Local time
4:54 AM
Posts
930
OS
Windows 10
See if you can find a menu option for the text report.

The second Memtest can be run overnight.
Please upload a new V2.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

peyton

New member
Thread Starter
Local time
7:54 PM
Posts
22
OS
Windows 11
hey so, when I was updating the BIOS I deleted memtest out of my USB. I'm currently trying to readd it & it says that the usb is full? even though there's nothing in the folder any idea why it's doing this. It has like 7+ gbs on it but it's saying 244mb is available;


Attachments

  • Screenshot_6.png
    5.9 KB · Views: 1

My Computer

System One

  • OS
    Windows 11

zbook

Well-known member
Power User
VIP
Local time
4:54 AM
Posts
930
OS
Windows 10

My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

peyton

New member
Thread Starter
Local time
7:54 PM
Posts
22
OS
Windows 11
Disk 0 : HDD. It has 3 partition(s). Model: TOSHIBA DT01ACA200
Disk 1 : SSD. It has 4 partition(s). Model: HFM256GDJTNG-8310A
Disk 2 : USB. It has 2 partition(s). Model: Lexar USB Flash Drive
Disk 3 : HDD. Error: It is not valid. Model: MSFT XVDD

The script has found the above 3 storage device(s) in total.

=============================================================================

Drive
Letter Drive Label Fs Free Space Used Space Capacity Free
------ --------------- ------ ---------- ---------- ---------- -----
NTFS 82.99 MB 433.00 MB 516.00 MB 16 %
FAT32 67.02 MB 28.98 MB 96.00 MB 70 %
NTFS 0 B 5.54 MB 5.54 MB 0 %
NTFS 81.14 MB 491.85 MB 573.00 MB 14 %
FAT 241.43 MB 7.28 MB 248.71 MB 97 %
C NTFS 1.59 TB 232.64 GB 1.82 TB 88 %
D NTFS 137.73 GB 94.07 GB 231.80 GB 59 %
E 0 B 0 B 0 B
F FAT32 244.99 MB .01 MB 245.00 MB 100 %

=============================================================================

Microsoft DiskPart version 10.0.22000.1

The "Free" column below refers to unallocated space rather than unused space.
On computer: PEYTON

Disk ### Status Size Free Dyn Gpt
-------- ------------- ------- ------- --- ---
Disk 0 Online 1863 GB 1024 KB *
Disk 1 Online 238 GB 6198 MB *
Disk 2 Online 7634 MB 7133 MB *

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
Volume 0 E DVD-ROM 0 B No Media
Volume 1 C NTFS Partition 1862 GB Healthy Boot
Volume 2 NTFS Partition 573 MB Healthy Hidden
Volume 3 D NTFS Partition 231 GB Healthy
Volume 4 FAT32 Partition 100 MB Healthy System
Volume 5 NTFS Partition 516 MB Healthy Hidden
Volume 6 F FAT32 Removable 249 MB Healthy

Disk 0 is now the selected disk.

TOSHIBA DT01ACA200
Disk ID: {BC6BA90C-B6CF-4C12-9FB7-7FBD3E4FA698}
Type : RAID
Status : Online
Path : 0
Target : 1
LUN ID : 0
Location Path : PCIROOT(0)#PCI(1700)#RAID(P00T01L00)
Current Read-only State : No
Read-only : No
Boot Disk : Yes
Pagefile Disk : Yes
Hibernation File Disk : No
Crashdump Disk : Yes
Clustered Disk : No

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
Volume 1 C NTFS Partition 1862 GB Healthy Boot
Volume 2 NTFS Partition 573 MB Healthy Hidden

Partition ### Type Size Offset
------------- ---------------- ------- -------
Partition 1 Reserved 16 MB 1024 KB
Partition 2 Primary 1862 GB 17 MB
Partition 3 Recovery 573 MB 1862 GB

Partition 1 is now the selected partition.

Partition 1
Type : e3c9e316-0b5c-4db8-817d-f92df00215ae
Hidden : Yes
Required: No
Attrib : 0X8000000000000000
Offset in Bytes: 1048576

There is no volume associated with this partition.

Partition 2 is now the selected partition.

Partition 2
Type : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden : No
Required: No
Attrib : 0000000000000000
Offset in Bytes: 17825792

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 1 C NTFS Partition 1862 GB Healthy Boot

Partition 3 is now the selected partition.

Partition 3
Type : de94bba4-06d1-4d40-a16a-bfd50179d6ac
Hidden : Yes
Required: Yes
Attrib : 0X8000000000000001
Offset in Bytes: 1999796961280

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 2 NTFS Partition 573 MB Healthy Hidden

Disk 1 is now the selected disk.

HFM256GDJTNG-8310A
Disk ID: {8939853F-7364-435D-B0EC-30C1F5D1F57F}
Type : RAID
Status : Online
Path : 2
Target : 0
LUN ID : 0
Location Path : PCIROOT(0)#PCI(1700)#RAID(P02T00L00)
Current Read-only State : No
Read-only : No
Boot Disk : No
Pagefile Disk : No
Hibernation File Disk : No
Crashdump Disk : No
Clustered Disk : No

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
Volume 3 D NTFS Partition 231 GB Healthy
Volume 4 FAT32 Partition 100 MB Healthy System
Volume 5 NTFS Partition 516 MB Healthy Hidden

Partition ### Type Size Offset
------------- ---------------- ------- -------
Partition 1 System 100 MB 1024 KB
Partition 2 Reserved 16 MB 101 MB
Partition 3 Primary 231 GB 117 MB
Partition 4 Recovery 516 MB 231 GB

Partition 1 is now the selected partition.

Partition 1
Type : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden : Yes
Required: No
Attrib : 0X8000000000000000
Offset in Bytes: 1048576

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 4 FAT32 Partition 100 MB Healthy System

Partition 2 is now the selected partition.

Partition 2
Type : e3c9e316-0b5c-4db8-817d-f92df00215ae
Hidden : Yes
Required: No
Attrib : 0X8000000000000000
Offset in Bytes: 105906176

There is no volume associated with this partition.

Partition 3 is now the selected partition.

Partition 3
Type : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden : No
Required: No
Attrib : 0000000000000000
Offset in Bytes: 122683392

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 3 D NTFS Partition 231 GB Healthy

Partition 4 is now the selected partition.

Partition 4
Type : de94bba4-06d1-4d40-a16a-bfd50179d6ac
Hidden : Yes
Required: Yes
Attrib : 0X8000000000000001
Offset in Bytes: 249020022784

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 5 NTFS Partition 516 MB Healthy Hidden

Disk 2 is now the selected disk.

Lexar USB Flash Drive USB Device
Disk ID: {175E4872-FDE5-4E8D-9184-32A1E1E6D490}
Type : USB
Status : Online
Path : 0
Target : 0
LUN ID : 0
Location Path : UNAVAILABLE
Current Read-only State : No
Read-only : No
Boot Disk : No
Pagefile Disk : No
Hibernation File Disk : No
Crashdump Disk : No
Clustered Disk : No

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
Volume 6 F FAT32 Removable 249 MB Healthy

Partition ### Type Size Offset
------------- ---------------- ------- -------
Partition 1 Primary 249 MB 1024 KB
Partition 2 System 248 MB 251 MB

Partition 1 is now the selected partition.

Partition 1
Type : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden : No
Required: No
Attrib : 0X0000000000000004
Offset in Bytes: 1048576

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
* Volume 6 F FAT32 Removable 249 MB Healthy

Partition 2 is now the selected partition.

Partition 2
Type : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden : Yes
Required: No
Attrib : 0000000000000000
Offset in Bytes: 263192576

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------

===============================================================================

Windows Recovery Environment (Windows RE) and system reset configuration
Information:

Windows RE status: Enabled
Windows RE location: \\?\GLOBALROOT\device\harddisk0\partition3\Recovery\WindowsRE
Boot Configuration Data (BCD) identifier: 1e2ef010-482f-11ec-a089-eee8075f4738
Recovery image location:
Recovery image index: 0
Custom image location:
Custom image index: 0

REAGENTC.EXE: Operation Successful.

===============================================================================

Firmware Boot Manager
---------------------
identifier {fwbootmgr}
displayorder {bootmgr}
timeout 1

Windows Boot Manager
--------------------
identifier {bootmgr}
device partition=\Device\HarddiskVolume4
path \EFI\Microsoft\Boot\bootmgfw.efi
description Windows Boot Manager
locale en-US
inherit {globalsettings}
default {current}
resumeobject {5fa5475c-ad48-11ec-83ac-c93fa2dddddd}
displayorder {current}
{8ee19edb-ea6f-11eb-81b8-964b470c2f3e}
toolsdisplayorder {memdiag}
timeout 3

Windows Boot Loader
-------------------
identifier {1e2ef010-482f-11ec-a089-eee8075f4738}
device ramdisk=[\Device\HarddiskVolume3]\Recovery\WindowsRE\Winre.wim,{1e2ef011-482f-11ec-a089-eee8075f4738}
path \windows\system32\winload.efi
description Windows Recovery Environment
locale en-US
inherit {bootloadersettings}
displaymessage Recovery
osdevice ramdisk=[\Device\HarddiskVolume3]\Recovery\WindowsRE\Winre.wim,{1e2ef011-482f-11ec-a089-eee8075f4738}
systemroot \windows
nx OptIn
bootmenupolicy Standard
winpe Yes

Windows Boot Loader
-------------------
identifier {current}
device partition=C:
path \WINDOWS\system32\winload.efi
description Windows 11
locale en-US
inherit {bootloadersettings}
recoverysequence {1e2ef010-482f-11ec-a089-eee8075f4738}
displaymessageoverride Recovery
recoveryenabled Yes
isolatedcontext Yes
allowedinmemorysettings 0x15000075
osdevice partition=C:
systemroot \WINDOWS
resumeobject {5fa5475c-ad48-11ec-83ac-c93fa2dddddd}
nx OptIn
bootmenupolicy Standard

Windows Boot Loader
-------------------
identifier {8ee19edb-ea6f-11eb-81b8-964b470c2f3e}
device partition=D:
path \Windows\system32\winload.efi
description Windows 10
locale en-GB
inherit {bootloadersettings}
recoverysequence {8ee19edc-ea6f-11eb-81b8-964b470c2f3e}
displaymessageoverride Recovery
recoveryenabled Yes
osdevice partition=D:
systemroot \Windows
resumeobject {8ee19eda-ea6f-11eb-81b8-964b470c2f3e}
nx OptIn

Windows Boot Loader
-------------------
identifier {8ee19edc-ea6f-11eb-81b8-964b470c2f3e}
device ramdisk=[\Device\HarddiskVolume7]\Recovery\WindowsRE\Winre.wim,{8ee19edd-ea6f-11eb-81b8-964b470c2f3e}
path \windows\system32\winload.efi
description Windows Recovery Environment
locale en-gb
inherit {bootloadersettings}
displaymessage Recovery
osdevice ramdisk=[\Device\HarddiskVolume7]\Recovery\WindowsRE\Winre.wim,{8ee19edd-ea6f-11eb-81b8-964b470c2f3e}
systemroot \windows
nx OptIn
bootmenupolicy Standard
winpe Yes

Resume from Hibernate
---------------------
identifier {5fa5475c-ad48-11ec-83ac-c93fa2dddddd}
device partition=C:
path \WINDOWS\system32\winresume.efi
description Windows Resume Application
locale en-US
inherit {resumeloadersettings}
recoverysequence {1e2ef010-482f-11ec-a089-eee8075f4738}
recoveryenabled Yes
isolatedcontext Yes
allowedinmemorysettings 0x15000075
filedevice partition=C:
custom:21000026 partition=C:
filepath \hiberfil.sys
bootmenupolicy Standard
debugoptionenabled No

Resume from Hibernate
---------------------
identifier {8ee19eda-ea6f-11eb-81b8-964b470c2f3e}
device partition=D:
path \Windows\system32\winresume.efi
description Windows Resume Application
locale en-GB
inherit {resumeloadersettings}
recoverysequence {8ee19edc-ea6f-11eb-81b8-964b470c2f3e}
recoveryenabled Yes
isolatedcontext Yes
allowedinmemorysettings 0x15000075
filedevice partition=D:
filepath \hiberfil.sys
bootmenupolicy Standard
debugoptionenabled No

Windows Memory Tester
---------------------
identifier {memdiag}
device partition=\Device\HarddiskVolume4
path \EFI\Microsoft\Boot\memtest.efi
description Windows Memory Diagnostic
locale en-US
inherit {globalsettings}
badmemoryaccess Yes

EMS Settings
------------
identifier {emssettings}
bootems No

Debugger Settings
-----------------
identifier {dbgsettings}
debugtype Local

RAM Defects
-----------
identifier {badmemory}

Global Settings
---------------
identifier {globalsettings}
inherit {dbgsettings}
{emssettings}
{badmemory}

Boot Loader Settings
--------------------
identifier {bootloadersettings}
inherit {globalsettings}
{hypervisorsettings}

Hypervisor Settings
-------------------
identifier {hypervisorsettings}
hypervisordebugtype Serial
hypervisordebugport 1
hypervisorbaudrate 115200

Resume Loader Settings
----------------------
identifier {resumeloadersettings}
inherit {globalsettings}

Device options
--------------
identifier {1e2ef011-482f-11ec-a089-eee8075f4738}
description Windows Recovery
ramdisksdidevice partition=\Device\HarddiskVolume3
ramdisksdipath \Recovery\WindowsRE\boot.sdi

Device options
--------------
identifier {8ee19edd-ea6f-11eb-81b8-964b470c2f3e}
description Windows Recovery
ramdisksdidevice partition=\Device\HarddiskVolume7
ramdisksdipath \Recovery\WindowsRE\boot.sdi


My Computer

System One

  • OS
    Windows 11

zbook

Well-known member
Power User
VIP
Local time
4:54 AM
Posts
930
OS
Windows 10
When posting text into the thread the column alignment is lost unless it is pasted into code
Code:
 brackets.
If the code brackets are not working then use a share link (one drive, drop box, or google drive.

Please repost as a share link or with code brackets:  menu bar </>


When available please post a new V2: V2 Log Collector


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

peyton

New member
Thread Starter
Local time
7:54 PM
Posts
22
OS
Windows 11
is this fine


Attachments

  • PEYTON-(2022-04-03_14-36-44).zip
    1.8 MB · Views: 1

My Computer

System One

  • OS
    Windows 11

zbook

Well-known member
Power User
VIP
Local time
4:54 AM
Posts
930
OS
Windows 10
Please repost the diskpar info results using codecode brackets


This section lost column alignment:

=============================================================================

Drive
Letter Drive Label Fs Free Space Used Space Capacity Free
------ --------------- ------ ---------- ---------- ---------- -----
NTFS 82.99 MB 433.00 MB 516.00 MB 16 %
FAT32 67.02 MB 28.98 MB 96.00 MB 70 %
NTFS 0 B 5.54 MB 5.54 MB 0 %
NTFS 81.14 MB 491.85 MB 573.00 MB 14 %
FAT 241.43 MB 7.28 MB 248.71 MB 97 %
C NTFS 1.59 TB 232.64 GB 1.82 TB 88 %
D NTFS 137.73 GB 94.07 GB 231.80 GB 59 %
E 0 B 0 B 0 B
F FAT32 244.99 MB .01 MB 245.00 MB 100 %

=============================================================================

Microsoft DiskPart version 10.0.22000.1[/code]



Open administrative command prompt and copy and paste:

PowerShell $D=(New-Object -ComObject Wscript.Shell).SpecialFolders(4);Compress-Archive "%WinDir%\MEMORY.DMP" "$D\Memory_dmp"



Run: Gather_additional_dump_files.bat ─ Click here to go to the BSOD batch repository to download and run this batch file.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

zbook

Well-known member
Power User
VIP
Local time
4:54 AM
Posts
930
OS
Windows 10

My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
Top Bottom
