Solved Please, help me increase the size of my EFI partition


Tuneup plus results were good.

When available update the progress with:
a) V2
b) restore point
c) suspending bitlocker

If you still want to resize the partition and not troubleshoot please comment into the thread.

If you want to troubleshoot now with very quick response times then comment.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
1) For V2:

a) Temporarily uninstall any non-Microsoft AV software


b) Make sure Microsoft defender is on

c) Click extract all before launching V2
I still cannot run V2, I am getting the same error. No other antivirus software is running on my laptop. Windows Defender is ON. I have disabled Folder protection. Still, it does not run.

Can you please remind me how do I suspend BitLocker?


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy 17
    CPU
    Intel Core i7 1260P
    Motherboard
    Intel Integrated SoC
    Memory
    32 GB
    Graphics Card(s)
    Intel Iris Xᵉ Graphics
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    17" 4K UHD IPS
    Screen Resolution
    3840 x 2160
    Hard Drives
    1 TB PCIe NVMe
    Internet Speed
    1 Gbit / 100 Mbps
    Browser
    MS Edge

My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
Approximately 3- 4 hrs have passed.

Please indicate whether you want to resize or troubleshoot.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
I had the same issue, resolved this way:
-Download latest bios update
-Disconnet all connected peripherals from your pc and insert an USB drive in one of your usb port
-Run the bios file and choose option two: "create recovery usb flash drive"
-At the operation completed, turn off your computer
-Disconnet the power cord, wait ten seconds or so, then reconnect power cord
-Press and hold the Windows key and the B key at the same time, then press and hold the power button for 2 to 3 seconds.
-Release the power button but continue pressing the Windows key and the B key (you might hear a series of beeps)
-The HP BIOS Update screen displays and the recovery-update begins automatically.
(If the HP BIOS Update screen does not display, repeat the previous steps but press the Windows key and the V key)


My Computer

System One

  • OS
    Windows 11 22H2 22621.2215
    Computer type
    Laptop
    Manufacturer/Model
    HP OMEN 17''
    CPU
    Intel Core i7-11800H
    Motherboard
    HP 88F7 - Intel HM570 (Tiger Lake PCH-H) chipset
    Memory
    64 GB
    Graphics Card(s)
    Intel Tiger Lake-H - GT1 Integrated Graphics [Hewlett-Packard] + NVIDIA GeForce RTX 3070
    Screen Resolution
    2560x1440
    Hard Drives
    Crucial nvme (CT2000P5PSSD8+CT2000P3SSD8) with Intel RST WMD controller
May I just make one other suggestion? You may just want to try this first before proceeding with other steps because this is a really simple thing to try:

Try plugging in a USB Thumb Drive. Format it with FAT32. It should have at a bare minimum 150MB of free space. Then, with that drive attached, try your BIOS update once again.

Why am I suggesting this? Doing a quick search on the web I see that I lot of people getting the exact same error as you were able to resolve the issue by doing the above. It would appear that any FAT32 drive with sufficient space will satisfy the needs of update.

Give that a quick shot and let me know if that helped at all.


My Computers

System One System Two

  • OS
    Win11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kamrui Mini PC, Model CK10
    CPU
    Intel i5-12450H
    Memory
    32GB
    Graphics Card(s)
    No GPU - Built-in Intel Graphics
    Sound Card
    Integrated
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 2TB NVMe SSD
    1 x 4TB NVMe SSD
    1 x 4TB 2.5" SSD
    PSU
    120W "Brick"
    Keyboard
    Corsair K70 Mechanical Keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
The HP BIOS menu and the HP uefi hardware diagnostic both missing the commands to launch a bios update from an USB drive. This operation can be performed or from OS via the BIOS update .exe file or forcing the update from a recovery USB drive following the steps i mentioned in my post


My Computer

System One

  • OS
    Windows 11 22H2 22621.2215
    Computer type
    Laptop
    Manufacturer/Model
    HP OMEN 17''
    CPU
    Intel Core i7-11800H
    Motherboard
    HP 88F7 - Intel HM570 (Tiger Lake PCH-H) chipset
    Memory
    64 GB
    Graphics Card(s)
    Intel Tiger Lake-H - GT1 Integrated Graphics [Hewlett-Packard] + NVIDIA GeForce RTX 3070
    Screen Resolution
    2560x1440
    Hard Drives
    Crucial nvme (CT2000P5PSSD8+CT2000P3SSD8) with Intel RST WMD controller
Approximately how old is the computer?

Which Windows version was present when the computer was purchased (11 or 10)?


If you're willing to make backup images there may be more than one method to fix the problems reported in the error message.

With backup images an image could be restored and then another method could be performed.

Then new viewers of this thread could have more than one possible fix.



There are two methods that have a high likelihood of fixing the problems reported in the error message.


1) Follow the recommended fix in the error message:

Delete some files to free disk space then retry again.


2) Create a new EFI partition that is 500 MB


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
Hello everyone, thank you very much for your replies!

Apologies for the delayed response but, as I've already mentioned, I am located in the UK and last night was past midnight and I could not stay longer.

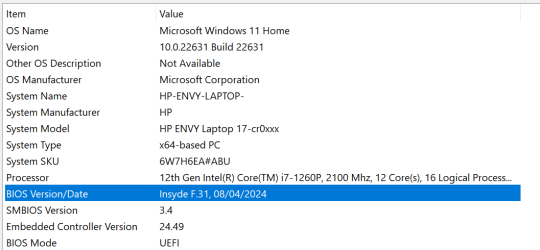

I have managed to successfully instal the latest BIOS by downloading the BIOS installer on my desktop and run it from there!
I cannot understand why it was not working yesterday. This morning it just worked! The only different thing I have done is that, last night I have disabled Device Encryption from Windows Settings. It took some time to do it.

This morning, I have also removed the nano USB receiver of my Cherry Stream Wireless Desktop Set and attempted to install the BIOS again.
It just worked this time, I do not know how.

@Alan Smithee is absolutely right: Firmware Management or BIOS Management is not available in Hardware Diagnostics UEFI so there is no way to update the BIOS via USB stick. One other thing that I've observed is that on the HP Software and Driver Downloads, my OS does not appear. When I give the Serial Number of my laptop, it does mention version 23H2 which I am running.

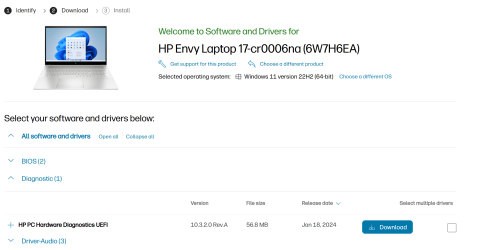

Finally, HP Hardware Diagnostics UEFI shows outdated in my BIOS and it is prompting me to go to the website and update but the update fails.

Anyways, I am glad I have installed the latest BIOS successfully!

Thank you very much for all your help and support. We haven't discovered what's causing the issue or a definite solution but I've made it work.


Attachments

  • BIOS.png
    17.6 KB · Views: 2
  • DE.png
    120.1 KB · Views: 1

My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy 17
    CPU
    Intel Core i7 1260P
    Motherboard
    Intel Integrated SoC
    Memory
    32 GB
    Graphics Card(s)
    Intel Iris Xᵉ Graphics
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    17" 4K UHD IPS
    Screen Resolution
    3840 x 2160
    Hard Drives
    1 TB PCIe NVMe
    Internet Speed
    1 Gbit / 100 Mbps
    Browser
    MS Edge
I have tried for the first time, earlier today. The tool was called Mini Partition Wizard, I think. The problem was that I could only shrink my C:\ from the right side. This created unallocated space to the right. I could not shrink my C:\ from the left side to make space for EFI to be expanded.

If you ever want to shrink the os partition from the left, it has to be done from outside windows. Most partition managers will create boot media for you.


My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450
If you ever want to shrink the os partition from the left, it has to be done from outside windows. Most partition managers will create boot media for you.

Thank you

Just to learn something and to be prepared for the future, as this time it kind of randomly fixed itself, which applications I could use to increase the size of the EFI partition on Windows 11 Home? Is there any tutorial on this site, or other sites, explaining how to do this and the implications it might have?


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy 17
    CPU
    Intel Core i7 1260P
    Motherboard
    Intel Integrated SoC
    Memory
    32 GB
    Graphics Card(s)
    Intel Iris Xᵉ Graphics
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    17" 4K UHD IPS
    Screen Resolution
    3840 x 2160
    Hard Drives
    1 TB PCIe NVMe
    Internet Speed
    1 Gbit / 100 Mbps
    Browser
    MS Edge
The EFI and other partitions are created with a clean install of Windows in accordance with what it needs or defaults to. Making changes later usually has to be done outside of Windows using third-party software such as a GPARTED LiveCD burned from a downloaded .iso file. I use Linux LiveDVD or LiveUSB which includes GPARTED, there's other programs available, I'd check with www.majorgeeks.com.


My Computers

System One System Two

  • OS
    Win11 Pro RTM
    Computer type
    Laptop
    Manufacturer/Model
    Dell Vostro 3400
    CPU
    Intel Core i5 11th Gen. 2.40GHz
    Memory
    12GB
    Hard Drives
    256GB SSD NVMe
  • Operating System
    Windows 11 Pro RTM x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 5890
    CPU
    Intel Core i5 10th Gen. 2.90GHz
    Memory
    16GB
    Graphics card(s)
    Onboard, no VGA, using a DisplayPort-to-VGA adapter
    Monitor(s) Displays
    24" Dell
    Hard Drives
    512GB SSD NVMe, 2TB WDC HDD
    Browser
    Firefox, Edge
    Antivirus
    Windows Defender/Microsoft Security
Thank you

Just to learn something and to be prepared for the future, as this time it kind of randomly fixed itself, which applications I could use to increase the size of the EFI partition on Windows 11 Home? Is there any tutorial on this site, or other sites, explaining how to do this and the implications it might have?
Boot the partition program media. They usually have something called Move/resize which has arrows or some kind of symbol at each side of the partition that can be dragged. Some of them ( e.g. diskgenius ) do not show an arrow until you place the mouse cursor on the edge of the partition.

They show what the changes will be. Check the proposed changes before confirming. There will be a button called "Apply" or something similar which is used to confirm the changes.

You might have a hidden msr partition between the esp and the start of the os partition. It is not necessary so could be deleted, and then optionally reconstructed in the space created by shrinking the os partition from the left.

I usually have a 300mb esp and a 128mb msr ( ms suggests minimum 100mb and 16mb msr ) before the os partition.

Last edited:

My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450
Just to learn something and to be prepared for the future, as this time it kind of randomly fixed itself, which applications I could use to increase the size of the EFI partition on Windows 11 Home? Is there any tutorial on this site, or other sites, explaining how to do this and the implications it might have?
The free AOMEI Partition Assistant Standard can do it without having to create/use any kind of bootable media.
The only downside is that the steps that you have to go through to get where you want to be can tend to be a bit like a sliding puzzle, but anyway. It works.


My Computers

System One System Two

  • OS
    11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Asus TUF Gaming F16 (2024)
    CPU
    i7 13650HX
    Memory
    16GB DDR5
    Graphics Card(s)
    GeForce RTX 4060 Mobile
    Sound Card
    Eastern Electric MiniMax DAC Supreme; Emotiva UMC-200; Astell & Kern AK240
    Monitor(s) Displays
    Sony Bravia XR-55X90J
    Screen Resolution
    3840×2160
    Hard Drives
    512GB SSD internal
    37TB external
    PSU
    Li-ion
    Cooling
    2× Arc Flow Fans, 4× exhaust vents, 5× heatpipes
    Keyboard
    Logitech K800
    Mouse
    Logitech G402
    Internet Speed
    20Mbit/s up, 250Mbit/s down
    Browser
    FF
  • Operating System
    11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Medion S15450
    CPU
    i5 1135G7
    Memory
    16GB DDR4
    Graphics card(s)
    Intel Iris Xe
    Sound Card
    Eastern Electric MiniMax DAC Supreme; Emotiva UMC-200; Astell & Kern AK240
    Monitor(s) Displays
    Sony Bravia XR-55X90J
    Screen Resolution
    3840×2160
    Hard Drives
    2TB SSD internal
    37TB external
    PSU
    Li-ion
    Mouse
    Logitech G402
    Keyboard
    Logitech K800
    Internet Speed
    20Mbit/s up, 250Mbit/s down
    Browser
    FF

My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
This is the latest version of the HP UEFI hardware diagnostics:

HP PC Hardware Diagnostics UEFI – v10.5.0.0: https://ftp.hp.com/pub/softpaq/sp152001-152500/sp152465.exe

Thank you, I wish it was!

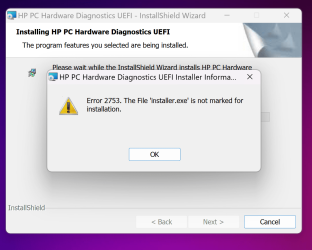

When I've tried to install it, I got the error shown in the screenshot.

Additionally, when I go on my laptop's page the Diagnostic utility offered there has version 10.3.2.0 Rev.A. The crazy thing is that I already have version 10.3.2.0 not sure if it is Rev.A but my BIOS says it is outdated.


Attachments

  • err.png
    94.6 KB · Views: 1
  • diag.png
    69 KB · Views: 2

My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy 17
    CPU
    Intel Core i7 1260P
    Motherboard
    Intel Integrated SoC
    Memory
    32 GB
    Graphics Card(s)
    Intel Iris Xᵉ Graphics
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    17" 4K UHD IPS
    Screen Resolution
    3840 x 2160
    Hard Drives
    1 TB PCIe NVMe
    Internet Speed
    1 Gbit / 100 Mbps
    Browser
    MS Edge
These are the HP links for the latest versions of each:

a) HP UEFI hardware diagnostics

b) HP Windows hardware diagnostics

c) HP support assistant





My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
Thank you, I wish it was!

When I've tried to install it, I got the error shown in the screenshot.

Additionally, when I go on my laptop's page the Diagnostic utility offered there has version 10.3.2.0 Rev.A. The crazy thing is that I already have version 10.3.2.0 not sure if it is Rev.A but my BIOS says it is outdated.

The "laptop's page" may have a delayed update or may never be updated.

See if you can install directly from the HP link.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
The "laptop's page" may have a delayed update or may never be updated.

See if you can install directly from the HP link.

I have used the link you provided, logged in to my account and downloaded the same file you have provided, as it is the only one available.

I am getting the same error - see my previous screenshot. It does not work, it does not install it.

Anyways, I do not care. I've installed the latest BIOS and it is enough for me. There is nothing much else I can do.


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy 17
    CPU
    Intel Core i7 1260P
    Motherboard
    Intel Integrated SoC
    Memory
    32 GB
    Graphics Card(s)
    Intel Iris Xᵉ Graphics
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    17" 4K UHD IPS
    Screen Resolution
    3840 x 2160
    Hard Drives
    1 TB PCIe NVMe
    Internet Speed
    1 Gbit / 100 Mbps
    Browser
    MS Edge

Latest Support Threads

Back
Top Bottom
