Solved Potentially bad news installing on unsupported hardware with latest Dev build


hsehestedt

Well-known member
Pro User
VIP
Local time
8:46 AM
Posts
2,636
Location
Texas, USA
OS
Win11 Pro 23H2
I have Win 11 Dev Channel Insider Build running in a VM using the pre-release VMware Workstation Tech Preview. When I attempted to upgrade to build 25179, it fails with a green screen BSOD during installation reporting an unsupported processor.

As a test, I downloaded the ISO for this build directly from Microsoft and tried a clean install. No go, same thing (except that it is a blue screen rather than green).

So, I tried again, this time entering "reg add HKLM\System\Setup\LabConfig /v BypassCPUCheck /t reg_dword /d 0x00000001 /f" at the first static screen to bypass the CPU check. Bad news - it fails again.

I should point out that the underlying physical machine does have a fully supported CPU.

I'm wondering if anyone has tried to install the dev build on a real physical computer that does not meet the CPU requirements to see if the workarounds still work on physical hardware. I'll try this in the morning, but was just curious to see if anyone has already tried this.


My Computers

System One System Two

  • OS
    Win11 Pro 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
I have Win 11 Dev Channel Insider Build running in a VM using the pre-release VMware Workstation Tech Preview. When I attempted to upgrade to build 25179, it fails with a green screen BSOD during installation reporting an unsupported processor.

As a test, I downloaded the ISO for this build directly from Microsoft and tried a clean install. No go, same thing (except that it is a blue screen rather than green).

So, I tried again, this time entering "reg add HKLM\System\Setup\LabConfig /v BypassCPUCheck /t reg_dword /d 0x00000001 /f" at the first static screen to bypass the CPU check. Bad news - it fails again.

I should point out that the underlying physical machine does have a fully supported CPU.

I'm wondering if anyone has tried to install the dev build on a real physical computer that does not meet the CPU requirements to see if the workarounds still work on physical hardware. I'll try this in the morning, but was just curious to see if anyone has already tried this.
Note - NOT for Unattended installs as there's a bit of manual stuff needed here.

I tried on Intel laptop with GEN 6 i5 processor (not supported)

What I did was install on VM with KVM/ QEMU on Arch Linux (also works on Debian Bookworm or any other distro where you can install package swtpm / swtpm-tools for a TPM v2 emulator -- the IBM one and can "poodlefake the CPU" on the VM to one that IS supported) and package ovmf for sec boot /uefi for the VM.

Then simply image it with macrium and restore to appropriate real system. Update the drivers via WU, also "Install from this computer" - from drivers (physical) from either a working W10 real install image or vhdx file mounted as a disk and update each missing driver from the other systems system32/Driverstore directory. If the system won't boot ist time round boot any windows install media or other media that gives access to windows command mode and re-install the bootloader via bcdboot (point to the windows directory of the system you want to install and ensure the EFI partition is mounted as a separate partition - diskpart is the tool needed there.

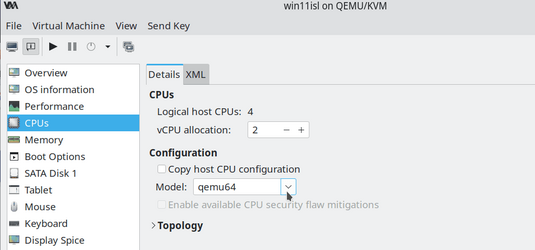

In KVM this is the CPU I'm using that restores to a Real machine -- the dropdown also allows you to select a whole different set of them - the best one is to say "Hypervisor Default" which in my case came out as qemu64.


Have fun !!! Its a bit long winded this way but so far it's still working.

Cheers
jimbo

Last edited:

My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7
Thanks, Jimbo. I should be sleeping, but this was bugging me way too much. So, I just performed a clean install on an 11 year old laptop. No TPM, no UEFI BIOS, so that also means no secure boot, and an intel i5 M 450 CPU. It installed flawlessly.

Time to file another report with VMware.

I guess I'll also test this on Hyper-V in the morning.

Phew! Was getting a bit worried!


My Computers

System One System Two

  • OS
    Win11 Pro 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
Check the following. It's a sweet lil utility. Yes I know there many ways to bypass the sys checks.

MediaCreationTool.bat/bypass11 at main · AveYo/MediaCreationTool.bat · GitHub

Works great.
Tim


Get 11 on 'unsupported' PC via Windows Update or mounted ISO (no patching needed)​


Step 1: use Skip_TPM_Check_on_Dynamic_Update.cmd to automatically bypass setup requirements
It's a set it and forget it script, with built-in undo - v7 using more reliable /Product Server trick
V9 rebased on cmd due to defender transgression; skips already patched media (0b)


Step 2: use OfflineInsiderEnroll to subscribe to the channel you want
while on 10, use BETA for Windows 11 22000.x builds (release), DEV for Windows 11 225xx.x builds (experimental)

Step 3: check for updates via Settings - Windows Update and select Upgrade to Windows 11

Get 11 on 'unsupported' PC via MediaCreationTool.bat​


MediaCreationTool.bat creates 11 media that will automatically skip clean install checks
Auto Upgrade preset, or launching auto.cmd from the created media will automatically skip upgrade checks
Running setup.exe from the created media is not guaranteed to bypass setup checks (it should for now)
To NOT add bypass to the media, use MCT Defaults preset or rename the script as def MediaCreationTool.bat

Regarding the bypass method, for a more reliable and future-proof experience,
clean installation is still handled via winsetup.dll patching in boot.wim
upgrade is now handled only via auto.cmd with the /Product Server trick
Just ignore the 'Windows Server' label, please!
NEWS: temporarily added back my old-style 0-byte bypass as it still works on release

Skip_TPM_Check_on_Dynamic_Update.cmd acts globally and skips setup.exe upgrade checks as well
regardless of mounted iso / usb media already having a bypass added or not

Already have a 11 ISO, USB or extracted Files and want to add a bypass​


Use Quick_11_iso_esd_wim_TPM_toggle.bat from the confort of right-click - SendTo menu


Switches installation type to Server skipping install checks, or back to Client if run again on the same file, restoring hash!
directly on any downloaded windows 11 iso or extracted esd and wim, so there's no iso / dism mounting
defiantly quick

Works great with business / enterprise media since it comes with ei.cfg so setup won't ask for product key at start
for consumer / core media you can add a generic EI.cfg to the media\sources yourself with this content:

[Channel]
_Default

if setup still asks for product key, input retail or gvlk keys found in media\sources\product.ini
gvlkprofessional=W269N-WFGWX-YVC9B-4J6C9-T83GX gvlkcore=TX9XD-98N7V-6WMQ6-BX7FG-H8Q99
gvlkenterprise=NPPR9-FWDCX-D2C8J-H872K-2YT43 gvlkeducation=NW6C2-QMPVW-D7KKK-3GKT6-VCFB2 etc.


Skip_TPM_Check_on_Dynamic_Update.cmd acts globally and skips setup.exe upgrade checks as well
regardless of mounted iso / usb media already having a bypass added or not

Offline local account on 11 Home / Pro​

MediaCreationTool.bat creates media that re-enables the I dont have internet OOBE choice (OOBE\BypassNRO)
It does so via AutoUnattend.xml, inserted into boot.wim to not cause setup.exe issues under windows
More conveniently can be placed at the root of 11 media, along with auto.cmd to use for upgrades
Should work with any 11 Release (22000.x) or Dev (22xxx.x) media - and it hides unsupported PC nags as a bonus :wink:
If you have already connected at OOBE, can try email: a password: a to switch to local account

Manage and troubleshoot Windows Update on any windows version and edition​


Use windows_update_refresh.bat to clear pending updates (including sneaky feature upgrades)
Use windows_drivers_update_toggle.bat to block driver updates even on Home editions
Use windows_feature_update_toggle.bat to block feature upgrades on 1507 - 21H2 even on Home editions!



My Computer

System One

  • OS
    Windows 11 22H2 - Linux Debian Sid - FreeBSD 12.4-RC2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebrew
    CPU
    AMD Ryzen 9 7950X
    Motherboard
    ASRock X670E Taichi
    Memory
    Corsair CMK32GX5M2X6400C38 - 32GB DDR5-6400
    Graphics Card(s)
    Nvidia RTX 4090
    Sound Card
    Realtek ALC1220+Creative Labs
    Monitor(s) Displays
    AOC 34' 144Hz G-Sync IPS
    Screen Resolution
    WQHD
    Hard Drives
    Samsung 980 Pro 2TB NVME PCIE x 4 M2 Drive
    Corsair MP600 2TB NVME PCIE x 4 M2 Drive
    PSU
    Thermaltake Toughpower GF3 1350W PCIe 5.0
    Case
    Corsair Crystal 570X
    Cooling
    iCUE H100i ELITE CAPELLIX Liquid CPU Cooler
    Keyboard
    Logitech G910 RGB
    Mouse
    Logitech G502 Hero
    Internet Speed
    Symmetrical 2.5Gbit FTTH w/ Static IP- Metronet
    Browser
    Linux: Tor; Windows: Tor
    Antivirus
    Included w/ Win11 - Linux: Plesae....LOL
    Other Info
    Logitech X56 Flight Control System - HOTAS
I have Win 11 Dev Channel Insider Build running in a VM using the pre-release VMware Workstation Tech Preview. When I attempted to upgrade to build 25179, it fails with a green screen BSOD during installation reporting an unsupported processor.

As a test, I downloaded the ISO for this build directly from Microsoft and tried a clean install. No go, same thing (except that it is a blue screen rather than green).

So, I tried again, this time entering "reg add HKLM\System\Setup\LabConfig /v BypassCPUCheck /t reg_dword /d 0x00000001 /f" at the first static screen to bypass the CPU check. Bad news - it fails again.

I should point out that the underlying physical machine does have a fully supported CPU.

I'm wondering if anyone has tried to install the dev build on a real physical computer that does not meet the CPU requirements to see if the workarounds still work on physical hardware. I'll try this in the morning, but was just curious to see if anyone has already tried this.
I have vmWare workstation pro and i run win 11 just fine and my pc specs have Celeron G540, 12 gb ram and i run it too on my other pc with Core i3 3220 and 8 gb ram. Since i put it on hdd it slowed down but on ssd perfomance bumped up a little.


My Computer

System One

  • OS
    Windows 10
I have vmWare workstation pro and i run win 11 just fine and my pc specs have Celeron G540, 12 gb ram and i run it too on my other pc with Core i3 3220 and 8 gb ram. Since i put it on hdd it slowed down but on ssd perfomance bumped up a little.
Yeah, that quote from me was over a year ago. That issue has long ago been addressed :-)


My Computers

System One System Two

  • OS
    Win11 Pro 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
I have vmWare workstation pro and i run win 11 just fine and my pc specs have Celeron G540, 12 gb ram and i run it too on my other pc with Core i3 3220 and 8 gb ram. Since i put it on hdd it slowed down but on ssd perfomance bumped up a little.

Yeah, that quote from me was over a year ago. That issue has long ago been addressed :-)

If you have unsupported physical hardware - then :

Easy enough if you can create a VM first -- then simply clone it to the real machine and update drivers. If necessary update bootloader via bcdboot.exe - epending on what VM system you are using this step might not be necessary.

Still working on all latest insider builds - running (as real mainstalls) on a laptop with unsupported CPU.

Running dism.exe /Apply-Image also is still working whether on a rteal or VM. If you use this method then you will need to install the boorloader too (bcdboot.exe)

Cheers
jimbo


My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7

Latest Support Threads

Back
Top Bottom
