Privacy and Security Suspend or Resume BitLocker Protection for Drive in Windows 11



This tutorial will show you how to suspend (pause) or resume BitLocker protection for a drive encrypted by BitLocker or Device Encryption in Windows 10 and Windows 11.

Device Encryption is a Windows feature that enables BitLocker encryption automatically for the Operating System drive and fixed drives. When you first sign in or set up a device with a Microsoft account, or work or school account, Device Encryption is turned on and a recovery key is attached to that account. If you're using a local account, Device Encryption isn't turned on automatically. Unlike BitLocker Drive Encryption, which is available on Windows Pro, Enterprise, or Education editions, Device Encryption is available on a wider range of devices, including those running Windows Home.

BitLocker Drive Encryption is a data protection feature that integrates with the operating system and addresses the threats of data theft or exposure from lost, stolen, or inappropriately decommissioned drives and computers. You can turn on BitLocker protection for operating system drives, fixed drives, and removable drives.

You can suspend BitLocker protection for an unlocked drive encrypted by BitLocker or Device Encryption, and resume BitLocker protection for the drive at any time.

Sometimes you may need to suspend BitLocker protection on an operating system drive to prevent certain problems and allow successful firmware and hardware updates.

Suspend keeps the data encrypted but encrypts the BitLocker volume master key with a clear key. The clear key is a cryptographic key stored unencrypted and unprotected on the disk drive. By storing this key unencrypted, the Suspend option allows for changes or upgrades to the computer without the time and cost of decrypting and re-encrypting the entire drive. After the changes are made and BitLocker is again enabled, BitLocker will reseal the encryption key to the new values of the measured components that changed as a part of the upgrade, the volume master key is changed, the protectors are updated to match and the clear key is erased.

When you suspend BitLocker protection for an OS drive, it will remain unlocked and unprotected until you either manually resume BitLocker protection for the drive, have it automatically resume BitLocker protection after a specified number of times (RebootCount) you restart the computer, or have it automatically resume BitLocker protection the next time you restart the computer.

When you suspend BitLocker protection for a fixed data drive, it will remain unlocked and unprotected until you manually resume BitLocker protection for the drive. This is even after you restart the computer.

When you suspend BitLocker protection for a removable data drive, it will remain unlocked and unprotected until you manually resume BitLocker protection for the drive. This is even after you restart the computer, or disconnect and reconnect the drive.

Reference:

You must be signed in as an administrator to suspend and resume BitLocker protection for drives.



Contents

  • Option One: Suspend BitLocker Protection for OS Drive in Control Panel
  • Option Two: Resume BitLocker Protection for Drive in Control Panel
  • Option Three: Resume BitLocker Protection for Drive in File Explorer
  • Option Four: Suspend BitLocker Protection for Drive using manage-bde Command
  • Option Five: Resume BitLocker Protection for Drive using manage-bde Command
  • Option Six: Suspend BitLocker Protection for Drive using Suspend-BitLocker Command
  • Option Seven: Suspend BitLocker Protection for OS Drive with RebootCount using Suspend-BitLocker Command
  • Option Eight: Suspend BitLocker Protection for All Drives using Suspend-BitLocker Command
  • Option Nine: Resume BitLocker Protection for Drive using Resume-BitLocker Command
  • Option Ten: Resume BitLocker Protection for All Drives using Resume-BitLocker Command




Option One

Suspend BitLocker Protection for OS Drive in Control Panel


This option can only be used to suspend BitLocker protection for an operating system drive.


1 Open the Control Panel (icons view), and click/tap on the BitLocker Drive Encryption icon.

2 Under Operating system drive, click/tap on the Suspend protection link for the OS drive (ex: "C:" you want. (see screenshot below)


3 Click/tap on Yes to confirm. (see screenshot below)


4 BitLocker protection for this OS drive will remain suspended until you either manually resume or restart the computer.




Option Two

Resume BitLocker Protection for Drive in Control Panel


1 Open the Control Panel (icons view), and click/tap on the BitLocker Drive Encryption icon.

2 Under Operating system drive, expand open the suspended drive you want, and click/tap on the Resume protection link. (see screenshot below)






Option Three

Resume BitLocker Protection for Drive in File Explorer

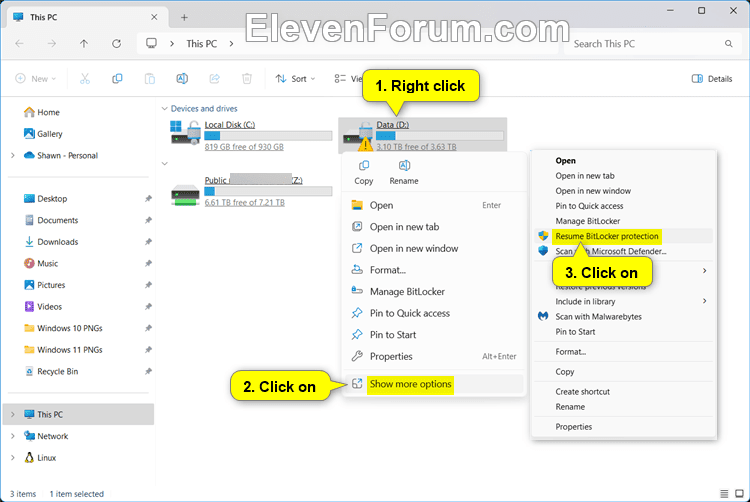

1 Open This PC in File Explorer (Win+E). (see screenshot below)

2 Right click on the suspended drive, and click/tap on Show more options.

Step 2 is only available in Windows 11, and not for Windows 10.


3 Click/tap on Resume BitLocker protection.






Option Four

Suspend BitLocker Protection for Drive using manage-bde Command


1 Open Windows Terminal (Admin), and select either Windows PowerShell or Command Prompt.

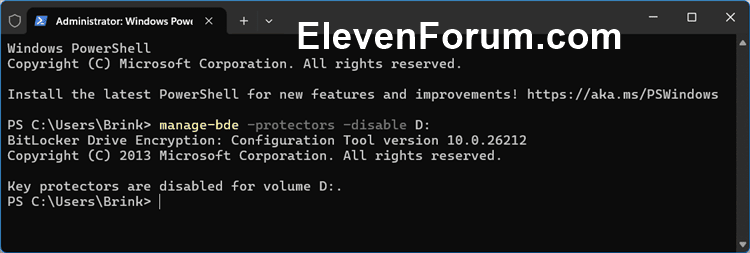

2 Type the command below into Windows Terminal (Admin), press Enter. (see screenshot below)

manage-bde -protectors -disable <drive letter>:

Substitute <drive letter> in the command above with the actual drive letter of the drive you want to suspend BitLocker protection.

For example: manage-bde -protectors -disable D:







Option Five

Resume BitLocker Protection for Drive using manage-bde Command


1 Open Windows Terminal (Admin), and select either Windows PowerShell or Command Prompt.

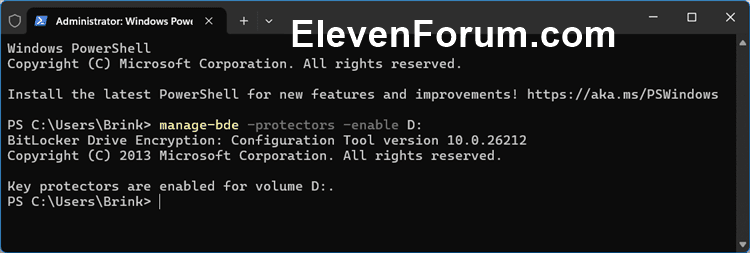

2 Type the command below into Windows Terminal (Admin), press Enter. (see screenshot below)

manage-bde -protectors -enable <drive letter>:

Substitute <drive letter> in the command above with the actual suspended drive letter of the drive you want to resume BitLocker protection.

For example: manage-bde -protectors -enable D:







Option Six

Suspend BitLocker Protection for Drive using Suspend-BitLocker Command


1 Open Windows Terminal (Admin), and select Windows PowerShell.

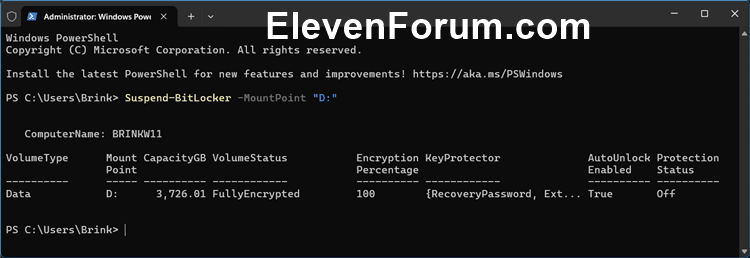

2 Type the command below into Windows Terminal (Admin), press Enter. (see screenshot below)

Suspend-BitLocker -MountPoint "<drive letter>:"

Substitute <drive letter> in the command above with the actual drive letter of the drive you want to suspend BitLocker protection.

For example: Suspend-BitLocker -MountPoint "D:"







Option Seven

Suspend BitLocker Protection for OS Drive with RebootCount using Suspend-BitLocker Command


This option only gets applied to the specific "C:" operating system drive, and allows you to specify the number of computer restarts before automatically restoring BitLocker protection for this OS drive. You will still be able to manually resume BitLocker protection for this OS drive at anytime.


1 Open Windows Terminal (Admin), and select Windows PowerShell.

2 Type the command below into Windows Terminal (Admin), press Enter. (see screenshot below)

Suspend-BitLocker -MountPoint "C:" -RebootCount <restarts #>

Substitute <restarts #> in the command above with a number between 0 to 15 for how many times to restart the computer before automatically restoring BitLocker protection for this OS drive.

Setting 0 for the RebootCount will suspend BitLocker protection for this OS drive until you manually resume BitLocker protection for this OS drive.

For example: Suspend-BitLocker -MountPoint "C:" -RebootCount 0







Option Eight

Suspend BitLocker Protection for All Drives using Suspend-BitLocker Command


1 Open Windows Terminal (Admin), and select Windows PowerShell.

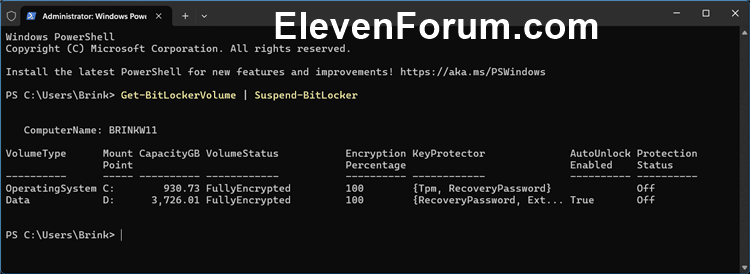

2 Copy and paste the command below into Windows Terminal (Admin), press Enter. (see screenshot below)

Get-BitLockerVolume | Suspend-BitLocker






Option Nine

Resume BitLocker Protection for Drive using Resume-BitLocker Command


1 Open Windows Terminal (Admin), and select Windows PowerShell.

2 Type the command below into Windows Terminal (Admin), press Enter. (see screenshot below)

Resume-BitLocker -MountPoint "<drive letter>:"

Substitute <drive letter> in the command above with the actual drive letter of the suspended drive you want to resume BitLocker protection.

For example: Resume-BitLocker -MountPoint "D:"







Option Ten

Resume BitLocker Protection for All Drives using Resume-BitLocker Command


1 Open Windows Terminal (Admin), and select Windows PowerShell.

2 Copy and paste the command below into Windows Terminal (Admin), press Enter. (see screenshot below)

Get-BitLockerVolume | Resume-BitLocker




That's it,
Shawn Brink



Last edited:
