Solved USB key partitioned - need to get the extra space back


B

BobD

( ͡° ͜ʖ ͡°)
Member
VIP
Local time
5:48 PM
Posts
183
Location
Mornington Peninsula, Australia
OS
Windows 11 Pro 22H2
Edition Windows 11 Pro
Version 22H2
Installed on ‎9/‎11/‎2022
OS build 22621.1848
Experience Windows Feature Experience Pack 1000.22642.1000.0
I have a 64GB USB key which has somehow been set to a partition of about 1GB.
It was OK originally. I went to use it today and was told not enough space.

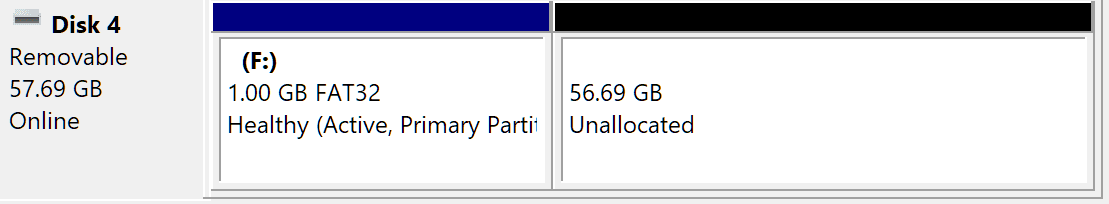

Checking in Disk Manager it shows as a 1GB partition and 56GB unallocated.
What's the best way to get the unallocated space back?


Solved
The solution was staring me in the face. I used Windows Disk Manager.

Last edited:

My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Bob the Builder
    CPU
    Intel i7-13700KF @ 5.4GHz
    Motherboard
    MSI MPG Z790 Edge WiFi DDR4
    Memory
    G-Skill F4-3200C16-16GVK x 2 (32GB total)
    Graphics Card(s)
    GeForce RTX 3060 Ti Ventus 2X 8G OCV1 LHR
    Sound Card
    Realtek® ALC4080 (mobo chipset)
    Monitor(s) Displays
    Philips 28 inch Display 288E2UAE
    Screen Resolution
    3840 x 2160 (16 x 9)
    Hard Drives
    Samsung 980 Pro NVMe M2 500GB, Samsung 980 NVMe M2 500GB, Samsung 2.5" SSD 1TB, Seagate 2.5" ST5000 5TB, Seagate Barracuda NVMe M2 1TB, Samsung MZVL2512HCJQ OEM NVMe M2 1TB
    PSU
    MSI MPG R850GF PSU (850W)
    Case
    Fractal Design Define 7 Compact ATX
    Cooling
    CoolerMaster MA610P
    Keyboard
    HAVIT mechanical keyboard HV-KB390L TKL
    Mouse
    Logitech M350 Pebble Mouse BT + wireless
    Internet Speed
    50 x 20 megabits / second fibre
    Browser
    Microsoft Edge
    Antivirus
    Microsoft
    Other Info
    Intel Ethernet 1226-V 2.5GHz @ 1GHz
    Intel Wi-Fi 6E AX210
    ASUS router RT-AX86U with Wi-Fi 6
    Logitech BRIO webcam
    Macrium Reflect 8.1 paid for backups etc.
  • Operating System
    Win 11 Pro 22H2
    Computer type
    Laptop
    Manufacturer/Model
    MSI SUMMIT E16 FLIP EVO A11MT-013AU
    CPU
    Intel i7-1195G7
    Memory
    16 GB
    Graphics card(s)
    Iris Xe graphics
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    16" 120Hz Pen Touch panel
    Screen Resolution
    2560 x 1600 (16 x 10)
    Hard Drives
    Samsung NVMe 980 Pro 1TB
    PSU
    Delta Electronics ADP-65SD B, HP 1HE08AA
    Mouse
    Logitech M350 Pebble Mouse BT + wireless
    Keyboard
    Full Keyboard
    Internet Speed
    50 x 20 megabits / second fibre
    Browser
    Firefox
    Antivirus
    Microsoft
    Other Info
    Killer Wi-Fi 6E 1675x (210NGW)
    MSI Pen
    Web Cam with Windows Hello Face
    Fingerprint Reader
    ASUS router RT-AX86U with Wi-Fi 6
    Macrium Reflect 8 paid for backups etc.
Use Disk Management.
If there something on the flash drive then copy it somewhere safe before you continue.
Right-click on 1GB partition and select Delete Volume
Right-click on Unallocated space and select New Simple Volume
Click Next
Click Next
Click Next
For File system select FAT32
Click Next
Click Finish


My Computers

System One System Two

  • OS
    Windows 11 Pro 24H2
    Computer type
    Laptop
    Manufacturer/Model
    ASUS TUF Gaming A15 (2022)
    CPU
    AMD Ryzen 7 6800H with Radeon 680M GPU (486MB RAM)
    Memory
    Crucial DDR5-4800 (2400MHz) 32GB (2 x 16GB)
    Graphics Card(s)
    NVIDIA RTX 3060 Laptop (6GB RAM)
    Sound Card
    n/a
    Monitor(s) Displays
    15.6-inch
    Screen Resolution
    1920x1080 300Hz
    Hard Drives
    2 x Samsung 990 Evo Plus (2TB M.2 NVME SSD)
    PSU
    n/a
    Mouse
    Wireless Mouse M510
    Internet Speed
    2000Mbps/300Mbps
    Browser
    Firefox
    Antivirus
    Malwarebytes
  • Operating System
    Windows 11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom build
    CPU
    AMD Ryzen 7 5700X3D
    Motherboard
    ASUS ROG Strix B550-F Gaming WiFi II
    Memory
    G.SKILL Flare X 32GB (2x16GB) DDR4
    Graphics card(s)
    ASUS ROG-STRIX-RTX3060TI-08G-V2-GAMING (RTX 3060-Ti, 8GB RAM)
    Monitor(s) Displays
    Samsung G50D IPS 27"
    Screen Resolution
    1440p/180Hz
    Hard Drives
    2TB XPG SX8200 Pro (M2. PCIe SSD) || 2TB Intel 660P (M2. PCIe SSD)
    PSU
    Corsair RM750x (750 watts)
    Case
    Cooler Master MasterCase 5
    Cooling
    Scythe Mugen 6
    Mouse
    Logitech M310 (MK540 keyboard/mouse combo)
    Keyboard
    Logitech K520 (MK540 keyboard/mouse combo)
    Internet Speed
    2000 Mbps down / 300 Mbps up
    Browser
    Firefox, Edge, Chrome
    Antivirus
    Malwarebytes (Premium)
    Other Info
    ASUS Blu-ray Burner BW-16D1HT (SATA) || Western Digital Easystore 20TB USB 3.0 external hard drive used with Acronis True Image 2025 backup software || HP OfficeJet Pro 6975 Printer/Scanner
garlin said:
Did you mean NTFS, instead of FAT32?
Click to expand...
It normally doesn't matter on a flash drive. It's your choice. However, FAT32 is limited to 4GB files.


My Computers

System One System Two

  • OS
    Windows 11 Pro 24H2
    Computer type
    Laptop
    Manufacturer/Model
    ASUS TUF Gaming A15 (2022)
    CPU
    AMD Ryzen 7 6800H with Radeon 680M GPU (486MB RAM)
    Memory
    Crucial DDR5-4800 (2400MHz) 32GB (2 x 16GB)
    Graphics Card(s)
    NVIDIA RTX 3060 Laptop (6GB RAM)
    Sound Card
    n/a
    Monitor(s) Displays
    15.6-inch
    Screen Resolution
    1920x1080 300Hz
    Hard Drives
    2 x Samsung 990 Evo Plus (2TB M.2 NVME SSD)
    PSU
    n/a
    Mouse
    Wireless Mouse M510
    Internet Speed
    2000Mbps/300Mbps
    Browser
    Firefox
    Antivirus
    Malwarebytes
  • Operating System
    Windows 11 Pro 24H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom build
    CPU
    AMD Ryzen 7 5700X3D
    Motherboard
    ASUS ROG Strix B550-F Gaming WiFi II
    Memory
    G.SKILL Flare X 32GB (2x16GB) DDR4
    Graphics card(s)
    ASUS ROG-STRIX-RTX3060TI-08G-V2-GAMING (RTX 3060-Ti, 8GB RAM)
    Monitor(s) Displays
    Samsung G50D IPS 27"
    Screen Resolution
    1440p/180Hz
    Hard Drives
    2TB XPG SX8200 Pro (M2. PCIe SSD) || 2TB Intel 660P (M2. PCIe SSD)
    PSU
    Corsair RM750x (750 watts)
    Case
    Cooler Master MasterCase 5
    Cooling
    Scythe Mugen 6
    Mouse
    Logitech M310 (MK540 keyboard/mouse combo)
    Keyboard
    Logitech K520 (MK540 keyboard/mouse combo)
    Internet Speed
    2000 Mbps down / 300 Mbps up
    Browser
    Firefox, Edge, Chrome
    Antivirus
    Malwarebytes (Premium)
    Other Info
    ASUS Blu-ray Burner BW-16D1HT (SATA) || Western Digital Easystore 20TB USB 3.0 external hard drive used with Acronis True Image 2025 backup software || HP OfficeJet Pro 6975 Printer/Scanner
Fat32 is also limited to maximum drive size 32GB if you use Windows to format it.
You can use MiniToolPartitionWizard to format larger drives as Fat32 and Windows is then perfectly happy to work with them correctly.
I keep one large disk as Fat32 because I can then connect it to my Android phone for its explorer-equivalent to read-write the disk. [Getting Androids to read NTFS disks currently requires specialist, paid-for add-ons.]


Denis


My Computer

System One

  • OS
    Windows 11 Home x64 Version 23H2 Build 22631.3447
In case you need multiple bootable partitions on the 64 GB flash drive another option is Ventoy:

Ventoy

Ventoy is an open source tool to create bootable USB drive for ISO files. With ventoy, you don't need to format the disk again and again, you just need to copy the iso file to the USB drive and boot it.
www.ventoy.net www.ventoy.net


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
Try3 said:
Fat32 is also limited to maximum drive size 32GB if you use Windows to format it.
You can use MiniToolPartitionWizard to format larger drives as Fat32 and Windows is then perfectly happy to work with them correctly.
I keep one large disk as Fat32 because I can then connect it to my Android phone for its explorer-equivalent to read-write the disk. [Getting Androids to read NTFS disks currently requires specialist, paid-for add-ons.]


Denis
Click to expand...
Have you tried exFAT? It doesn't have the same limitations as FAT.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Asus Tuf F17
    CPU
    Intel Core i5-11400H
    Motherboard
    Asus
    Memory
    16 GB (8+8)
    Graphics Card(s)
    3050 Ti
    Monitor(s) Displays
    17.3"
    Screen Resolution
    1080p
    Hard Drives
    500 GB NVMe OS drive + 1 TB NVMe for games and space
    Internet Speed
    50 Mbps
    Browser
    Edge (Primary), Firefox
    Antivirus
    Kaspersky Security Cloud Free.
Yes, I have tried exFat.
It had no particular advantage.

[I omitted from my earlier post that PowerShell can also format large drives as Fat32. It is painfully slow though.]


Denis


My Computer

System One

  • OS
    Windows 11 Home x64 Version 23H2 Build 22631.3447
@Try3 exFAT is the successor to FAT32, it doesn't have the same 4GB max file size limitation. Plus, exFAT is compatible with more devices than NTFS.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Asus Tuf F17
    CPU
    Intel Core i5-11400H
    Motherboard
    Asus
    Memory
    16 GB (8+8)
    Graphics Card(s)
    3050 Ti
    Monitor(s) Displays
    17.3"
    Screen Resolution
    1080p
    Hard Drives
    500 GB NVMe OS drive + 1 TB NVMe for games and space
    Internet Speed
    50 Mbps
    Browser
    Edge (Primary), Firefox
    Antivirus
    Kaspersky Security Cloud Free.
I know.


My Computer

System One

  • OS
    Windows 11 Home x64 Version 23H2 Build 22631.3447
