Veracrypt full system disk encryption failure

wtchdrmd · Nov 11, 2025

I really do appreciate everyone's time and help, but there is a system partition in front of the C: boot partition that I cannot delete nor move. I am therefore going to start from the beginning by erasing my drive. If I partition it correctly, will windows 11 load into my partitions or will it just re-partition the drive ? How do I assure that the new C: boot partition is the first one on the drive ?

XxXxX · Nov 11, 2025

wtchdrmd said:
I really do appreciate everyone's time and help, but there is a system partition in front of the C: boot partition that I cannot delete nor move. I am therefore going to start from the beginning by erasing my drive. If I partition it correctly, will windows 11 load into my partitions or will it just re-partition the drive ? How do I assure that the new C: boot partition is the first one on the drive ?

when you start the installation you will have the chance to delete all partitions
then in the free space let Windows set the default partition table.

then just Windows install you will then be able to encrypt the C: drive with VeraCrypt.
best of luck Steve ..

wtchdrmd · Nov 11, 2025

But my goal is not just to encrypt the system partition, the goal is to encrypt the entire system disk.

XxXxX · Nov 11, 2025

wtchdrmd said:
But my goal is not just to encrypt the system partition, the goal is to encrypt the entire system disk.

if the C: drive for Windows is one disk and takes up the whole drive that is installed on
that's not a problem VeraCrypt will just encrypt the whole drive C: system drive.

best of luck Steve ..

das10 · Nov 11, 2025

wtchdrmd said:
Unfortunately I am still having a problem, and "thank you" to XxXxX. I did just what he said, choosing SYSTEM at the top of Veracrypt, then 'encrypt system partition/drive', but when I get to the screen where I have to choose to encrypt just the system or the entire disk, the entire disk option is greyed out and can't be selected.

Your System appears to use the EFI boot mode. So I think this might be relevant with regard to trying to encrypt the whoe drive:

"Note: By default, Windows 7 and later boot from a special small partition. The partition contains files that are required to boot the system. Windows allows only applications that have administrator privileges to write to the partition (when the system is running). In
boot mode, which is the default on modern PCs, VeraCrypt can not encrypt this partition since it must remain unencrypted so that the BIOS can load the EFI bootloader from it. This in turn implies that in EFI boot mode, VeraCrypt offers only to encrypt the system partition where Windows is installed (the user can later manually encrypt other data partitions using VeraCrypt). In MBR legacy boot mode, VeraCrypt encrypts the partition only if you choose to encrypt the whole system drive (as opposed to choosing to encrypt only the partition where Windows is installed)."

VeraCrypt - Free Open source disk encryption with strong security for the Paranoid

VeraCrypt is free open-source disk encryption software for Windows, Mac OS X and Linux. In case an attacker forces you to reveal the password, VeraCrypt provides plausible deniability. In contrast to file encryption, data encryption performed by VeraCrypt is real-time (on-the-fly), automatic...

veracrypt.io

XxXxX · Nov 11, 2025

das10 said:
Your System appears to use the EFI boot mode. So I think this might be relevant with regard to trying to encrypt the whoe drive:

"Note: By default, Windows 7 and later boot from a special small partition. The partition contains files that are required to boot the system. Windows allows only applications that have administrator privileges to write to the partition (when the system is running). In
boot mode, which is the default on modern PCs, VeraCrypt can not encrypt this partition since it must remain unencrypted so that the BIOS can load the EFI bootloader from it. This in turn implies that in EFI boot mode, VeraCrypt offers only to encrypt the system partition where Windows is installed (the user can later manually encrypt other data partitions using VeraCrypt). In MBR legacy boot mode, VeraCrypt encrypts the partition only if you choose to encrypt the whole system drive (as opposed to choosing to encrypt only the partition where Windows is installed)."

VeraCrypt - Free Open source disk encryption with strong security for the Paranoid

VeraCrypt is free open-source disk encryption software for Windows, Mac OS X and Linux. In case an attacker forces you to reveal the password, VeraCrypt provides plausible deniability. In contrast to file encryption, data encryption performed by VeraCrypt is real-time (on-the-fly), automatic...

veracrypt.io

my system and wife's system are both UEFI and GPT both system drives are encrypted using VeraCrypt
its an encryption program i have used for many years.

both the NVMe M2 SSD's are partitioned C: drive and D: drive
VeraCrypt encrypts the C: system drive only using the default system encryption routine.
D: drive is also encrypted but that is added to favourites at boot and is also unencrypted at boot along with the C: system drive.

after the OP has re-installed with the default partition table VeraCrypt should be able encrypt the OP's C: system drive.
best of luck Steve ..

wtchdrmd · Nov 11, 2025

So, I wiped my disk with Killdisk, did a clean reinstall of Windows 11 but was still unable to choose the 'Encrypt the full system disk' option. I have therefore chosen to encrypt the system partition, which went normally, and I will then create a Veracrypt encrypted file container for almost all of the remaining space on the disk.

XxXxX · Nov 11, 2025

edit.
please now go in to your BIOS setup and find the boot section
then the boot manager and set VeraCrypt as the first boot option in the boot menu.

this will ensure you don't get boot errors and enter auto boot recovery when it is not needed
which can sometimes happen if VeraCrypt is not set as first in the boot menu.

#####
i am glad you have the system partition encrypted now.
if you require any other partition or drive encrypted this maybe of help.

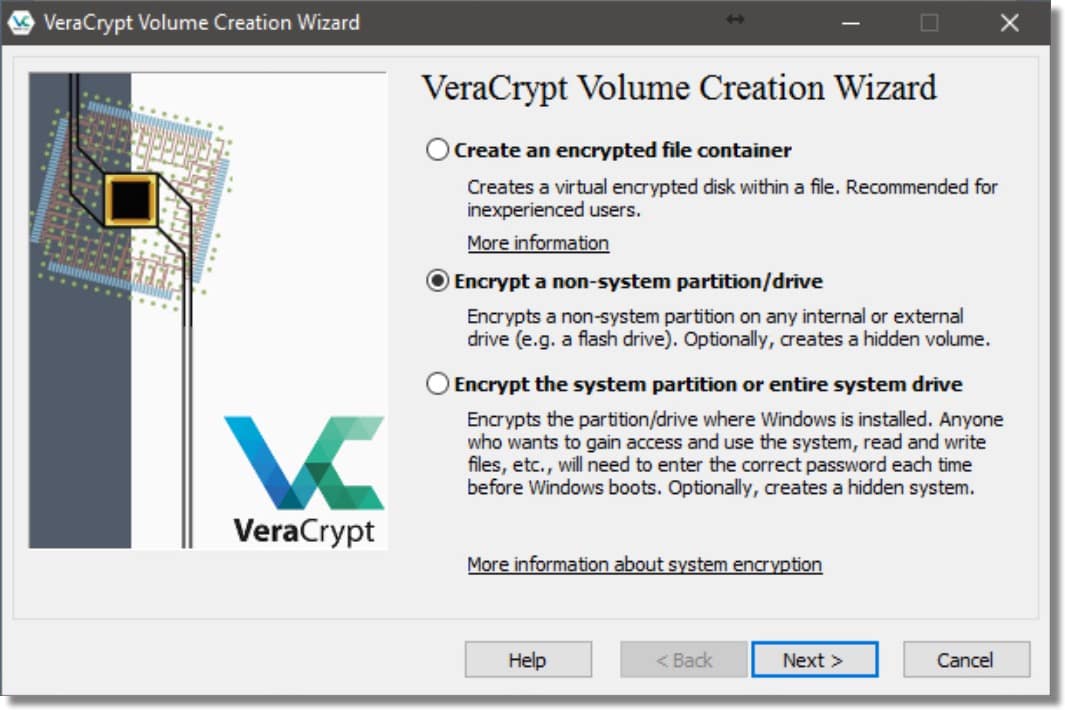

How to Encrypt a Storage Device with VeraCrypt

How Do I Encrypt a Hard Drive Using VeraCrypt? - Ask Leo!

VeraCrypt makes is easy to encrypt whole drives, making it safer to travel with your data. Here's how to safely encrypt and then access your data.

askleo.com

also it maybe worthwhile creating a recovery/rescue USB stick drive after you have
completed any and all your encryption needs.

VeraCrypt - Free Open source disk encryption with strong security for the Paranoid

VeraCrypt is free open-source disk encryption software for Windows, Mac OS X and Linux. In case an attacker forces you to reveal the password, VeraCrypt provides plausible deniability. In contrast to file encryption, data encryption performed by VeraCrypt is real-time (on-the-fly), automatic...

veracrypt.io

best of luck Steve ..
