What are "Sparse files"


jimbo45

Well-known member
Power User
VIP
Local time
3:24 AM
Posts
1,639
Location
Hafnarfjörður IS
OS
Windows XP,7,10,11 Linux Arch Linux
Hi folks
bit confused as to the meaning of Sparse files. Google explanations not clear.
Anybody !!!

Thanks

Cheers
jimbo


My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7

Bree

Well-known member
Pro User
VIP
Local time
4:24 AM
Posts
2,801
Location
S/E England, UK
OS
Windows 11 Home
bit confused as to the meaning of Sparse files. Google explanations not clear.
Wikipedia seems clear enough. A sparse file is one where empty space is not stored in the file itself. A typical example of a sparse file would be an expanding .vhdx file for a Hyper-V VM.

The advantage of sparse files is that storage space is only allocated when actually needed: Storage capacity is conserved, and large files can occasionally be created even if insufficient free space for the original file is available on the storage media....

For example, a virtual machine image with max size of 100 GB that has 2 GB of files actually written would require the full 100 GB when backed by pre-allocated storage, yet only 2 GB on a sparse file.


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB HDD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.

glasskuter

Well-known member
Power User
VIP
Local time
10:24 PM
Posts
1,839
Location
The Lone Star State of Texas
OS
Windows 11 Pro 21H2 22000.778
I didn't know either, but I think MS's explanation says it best.

"A file in which much of the data is zeros is said to contain a sparse data set. Files like these are typically very large for example, a file that contains image data to be processed or a matrix within a high-speed database. The problem with files that contain sparse data sets is that the majority of the file does not contain useful data and, because of this, they are an inefficient use of disk space.

The file compression in the NTFS file system is a partial solution to the problem. All data in the file that is not explicitly written is explicitly set to zero. File compression compacts these ranges of zeros. However, a drawback of file compression is that access time may increase due to data compression and decompression.

Support for sparse files is introduced in the NTFS file system as another way to make disk space usage more efficient. When sparse file functionality is enabled, the system does not allocate hard disk drive space to a file except in regions where it contains nonzero data."


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 22000.778
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900
    Memory
    32 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    standard
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Antivirus
    Defender+MWB Premium

Edwin

♦ ♦
Pro User
VIP
Local time
11:24 PM
Posts
4,063
OS
Windows 10
Is not Sparse Files a method many Disk Cleaners use to perform a Drive Wipe?


My Computers

System One System Two

  • OS
    Windows 10
    Computer type
    PC/Desktop
    Manufacturer/Model
    ASUS ROG Strix
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ASUS VivoBook

Ghot

Well-known member
Pro User
VIP
Local time
11:24 PM
Posts
3,118
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.778
Sparse file

A file with all the "few and far between" sucked out of it.



My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.778
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Winuser

Well-known member
Pro User
VIP
Local time
11:24 PM
Posts
2,919
OS
Windows 11
A file in which much of the data is zeros is said to contain a sparse data set. Files like these are typically very large for example, a file that contains image data to be processed or a matrix within a high-speed database. The problem with files that contain sparse data sets is that the majority of the file does not contain useful data and, because of this, they are an inefficient use of disk space.
Unless I'm missing something, it sounds like they are only good for wasting drive space.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Samsung SAM0A87 Samsung SAM0D32
    Screen Resolution
    1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    PSU
    750 Watts (62.5A)
    Case
    PowerSpec/Lian Li ATX 205
    Keyboard
    Logitech K270
    Mouse
    Logitech M185
    Browser
    Microsoft Edge and Firefox
    Antivirus
    ESET Internet Security
  • Operating System
    Windows 11 Dev
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy x360 15-ds1083cl
    CPU
    AMD Ryzen 7 4700U 2.0GHZ
    Memory
    16 MB DDR 4-2666
    Graphics card(s)
    AMD Radeon
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1920x1080
    Hard Drives
    PCIe NVMe M.2 512GB
    Browser
    Firefox, Edge and Edge Canary
    Antivirus
    ESET Internet Security

Bree

Well-known member
Pro User
VIP
Local time
4:24 AM
Posts
2,801
Location
S/E England, UK
OS
Windows 11 Home
Unless I'm missing something, it sounds like they are only good for wasting drive space.
What you are missing is that a sparse file with a lot of empty space in it doesn't actually use any physical storage for the unused space.

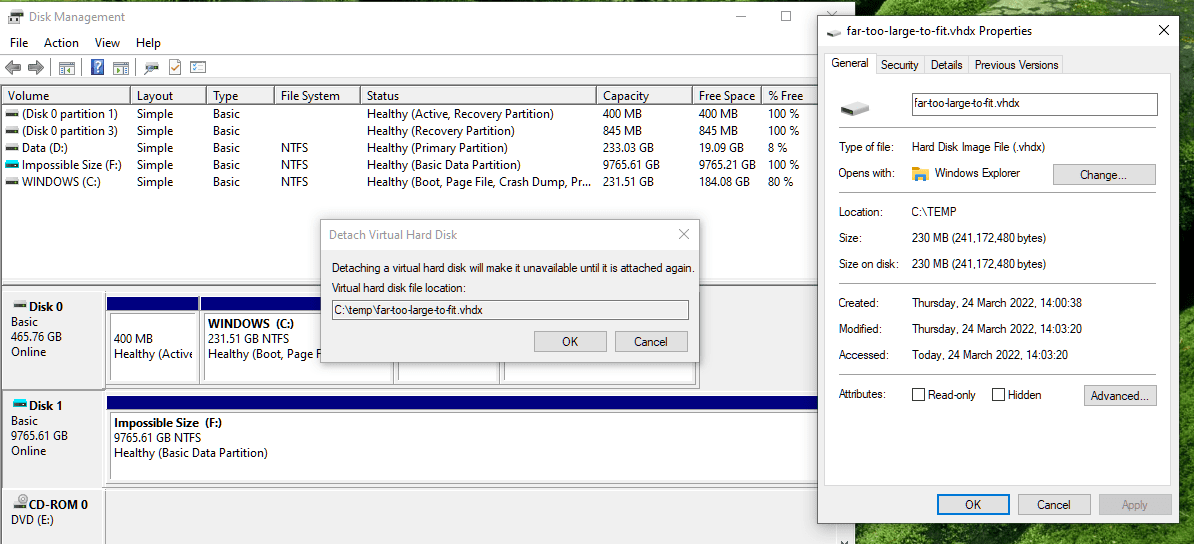

For example, I can create a .vhdx file for a 10TB virtual drive. But as a sparse file its physical size is just 230MB until I start to write to it. It looks and behaves as a full 10TB file, and as I write real data to it then it will expand. But at around 180GB written I will not be able to add any more data, as it would have expanded to occupy all the available space of the C: partition where the file is located.

sparse file example.png


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB HDD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.

Winuser

Well-known member
Pro User
VIP
Local time
11:24 PM
Posts
2,919
OS
Windows 11
What you are missing is that a sparse file with a lot of empty space in it doesn't actually use any physical storage for the unused space.

For example, I can create a .vhdx file for a 10TB virtual drive. But as a sparse file its physical size is just 230MB until I start to write to it. It looks and behaves as a full 10TB file, and as I write real data to it then it will expand. But at around 180GB written I will not be able to add any more data, as it would have expanded to occupy all the available space of the C: partition where the file is located.

View attachment 25253
I'm only going by what MS said. because of this, they are an inefficient use of disk space.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Samsung SAM0A87 Samsung SAM0D32
    Screen Resolution
    1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    PSU
    750 Watts (62.5A)
    Case
    PowerSpec/Lian Li ATX 205
    Keyboard
    Logitech K270
    Mouse
    Logitech M185
    Browser
    Microsoft Edge and Firefox
    Antivirus
    ESET Internet Security
  • Operating System
    Windows 11 Dev
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy x360 15-ds1083cl
    CPU
    AMD Ryzen 7 4700U 2.0GHZ
    Memory
    16 MB DDR 4-2666
    Graphics card(s)
    AMD Radeon
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1920x1080
    Hard Drives
    PCIe NVMe M.2 512GB
    Browser
    Firefox, Edge and Edge Canary
    Antivirus
    ESET Internet Security

Haydon

Well-known member
Member
VIP
Local time
11:24 PM
Posts
957
OS
Windows 10 Pro
sparse file = balloon file, it expands/shrinks with content/air you let in/out, it has been invented to be most efficient with physical resources

OP, please mark this thread 'Solved' (y)


My Computer

System One

  • OS
    Windows 10 Pro

geneo

Well-known member
Power User
VIP
Local time
11:24 PM
Posts
1,135
OS
Windows 11 Pro x64
I'm only going by what MS said. because of this, they are an inefficient use of disk space.

You misunderstood what Microsoft is saying. They were talking about sparse data (unused segments of the file) in a non-sparse file being inefficient because disk blocks for the unused space are reserved and unavailable for use. Sparse files do not reserve disk blocks for unused file segments, so are efficient when the whole file is not populated. Sparse files have nothing to do with compression, so Microsoft's use of sparse data to include zeros (compressible data) confuses their explanation. Sparse files can contain a series of consecutive zeros or other data and hence can be compressed to a smaller size. Sparse files have nothing to do with file compression.

Sparse files are efficient and most useful for use cases where segments of the file are not filled, are deleted, or written to after creation. So a file that contains database information is continually updated like this, or a system mapped to a virtual image as mentioned already. And another use is encrypted folders that may be implemented as an encrypted sparse file, since you can add and remove files from an encrypted folder, and you want it to take as little disk space as needed - an example is Apple's sparse bundle.

Last edited:

My Computers

System One System Two

  • OS
    Windows 11 Pro x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    DIY
    CPU
    10900KF, 5.1 GHz all-core, delid
    Motherboard
    Asus Maximus Hero XIII Wifi
    Memory
    32GB G.skill TridentZ RGB 3200CL14 B-die @ 4100CL16
    Graphics Card(s)
    Asus ROG Strix 2070 Super A8G
    Sound Card
    Onboard Audio, Vanatoo Transparent One; Klipsch R-12SWi Sub
    Monitor(s) Displays
    Eizo CG2730, ViewSonic VP2768
    Screen Resolution
    2560 x 1440p x 2
    Hard Drives
    WDC SN850 1TB (OS+), Samsung 980 1TB (games), Raid 0: 1TB 850 EVO + 1TB 860 EVO. Sabrent USB-C DS-SC5B docking station: 6TB WDC Black, 6TB Ironwolf Pro; 2TB WDC Black
    PSU
    750W Seasonic Prime Ultra Titanium Plus
    Case
    Fractal Design Meshify 2 dark tint glass
    Cooling
    EK-AIO 360 D-RGB w/Phanteks T30-120 fans, Noctua NF-A14 Chromax case fan
    Keyboard
    Glorious GMMK TKL - Brown mechanical, lubed modded
    Mouse
    Logitech G305 wireless gaming
    Internet Speed
    238 Mb/s down, 12 Mb/s up
    Browser
    Firefox
    Antivirus
    Defender, Macrium Reflect 8 ;-)
    Other Info
    Logitech C920e Webcam (crap don't buy)
  • Operating System
    Mac OS Monterey
    Computer type
    Laptop
    Manufacturer/Model
    Apple 13" Macbook Pro 2020 (m1)
    CPU
    M1
    Monitor(s) Displays
    2560x1600

Winuser

Well-known member
Pro User
VIP
Local time
11:24 PM
Posts
2,919
OS
Windows 11
@Bree and @geneo, both of you are probably correct but this is the complete sentence I'm going by. "The problem with files that contain sparse data sets is that the majority of the file does not contain useful data and, because of this, they are an inefficient use of disk space." I don't see how I'm missunderstanding that sentence.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Samsung SAM0A87 Samsung SAM0D32
    Screen Resolution
    1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    PSU
    750 Watts (62.5A)
    Case
    PowerSpec/Lian Li ATX 205
    Keyboard
    Logitech K270
    Mouse
    Logitech M185
    Browser
    Microsoft Edge and Firefox
    Antivirus
    ESET Internet Security
  • Operating System
    Windows 11 Dev
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy x360 15-ds1083cl
    CPU
    AMD Ryzen 7 4700U 2.0GHZ
    Memory
    16 MB DDR 4-2666
    Graphics card(s)
    AMD Radeon
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1920x1080
    Hard Drives
    PCIe NVMe M.2 512GB
    Browser
    Firefox, Edge and Edge Canary
    Antivirus
    ESET Internet Security

geneo

Well-known member
Power User
VIP
Local time
11:24 PM
Posts
1,135
OS
Windows 11 Pro x64
@Bree and @geneo, both of you are probably correct but this is the complete sentence I'm going by. "The problem with files that contain sparse data sets is that the majority of the file does not contain useful data and, because of this, they are an inefficient use of disk space." I don't see how I'm missunderstanding that sentence.

As I mentioned, "sparse data" is not the same as a "sparse file". They are trying to say that sparse data in a regular file is inefficient, while sparse data in a sparse file is not.


My Computers

System One System Two

  • OS
    Windows 11 Pro x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    DIY
    CPU
    10900KF, 5.1 GHz all-core, delid
    Motherboard
    Asus Maximus Hero XIII Wifi
    Memory
    32GB G.skill TridentZ RGB 3200CL14 B-die @ 4100CL16
    Graphics Card(s)
    Asus ROG Strix 2070 Super A8G
    Sound Card
    Onboard Audio, Vanatoo Transparent One; Klipsch R-12SWi Sub
    Monitor(s) Displays
    Eizo CG2730, ViewSonic VP2768
    Screen Resolution
    2560 x 1440p x 2
    Hard Drives
    WDC SN850 1TB (OS+), Samsung 980 1TB (games), Raid 0: 1TB 850 EVO + 1TB 860 EVO. Sabrent USB-C DS-SC5B docking station: 6TB WDC Black, 6TB Ironwolf Pro; 2TB WDC Black
    PSU
    750W Seasonic Prime Ultra Titanium Plus
    Case
    Fractal Design Meshify 2 dark tint glass
    Cooling
    EK-AIO 360 D-RGB w/Phanteks T30-120 fans, Noctua NF-A14 Chromax case fan
    Keyboard
    Glorious GMMK TKL - Brown mechanical, lubed modded
    Mouse
    Logitech G305 wireless gaming
    Internet Speed
    238 Mb/s down, 12 Mb/s up
    Browser
    Firefox
    Antivirus
    Defender, Macrium Reflect 8 ;-)
    Other Info
    Logitech C920e Webcam (crap don't buy)
  • Operating System
    Mac OS Monterey
    Computer type
    Laptop
    Manufacturer/Model
    Apple 13" Macbook Pro 2020 (m1)
    CPU
    M1
    Monitor(s) Displays
    2560x1600

Winuser

Well-known member
Pro User
VIP
Local time
11:24 PM
Posts
2,919
OS
Windows 11
As I mentioned, "sparse data" is not the same as a "sparse file". They are trying to say that sparse data in a regular file is inefficient, while sparse data in a sparse file is not.
Like I said, I'm only going on that one sentence.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Samsung SAM0A87 Samsung SAM0D32
    Screen Resolution
    1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    PSU
    750 Watts (62.5A)
    Case
    PowerSpec/Lian Li ATX 205
    Keyboard
    Logitech K270
    Mouse
    Logitech M185
    Browser
    Microsoft Edge and Firefox
    Antivirus
    ESET Internet Security
  • Operating System
    Windows 11 Dev
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy x360 15-ds1083cl
    CPU
    AMD Ryzen 7 4700U 2.0GHZ
    Memory
    16 MB DDR 4-2666
    Graphics card(s)
    AMD Radeon
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1920x1080
    Hard Drives
    PCIe NVMe M.2 512GB
    Browser
    Firefox, Edge and Edge Canary
    Antivirus
    ESET Internet Security

Haydon

Well-known member
Member
VIP
Local time
11:24 PM
Posts
957
OS
Windows 10 Pro
Like I said, I'm only going on that one sentence.
That is the problem. Context plays a role in what that one sentence means. The meaning is in the message as a whole.


My Computer

System One

  • OS
    Windows 10 Pro

Bree

Well-known member
Pro User
VIP
Local time
4:24 AM
Posts
2,801
Location
S/E England, UK
OS
Windows 11 Home
this is the complete sentence I'm going by. "The problem with files that contain sparse data sets is that the majority of the file does not contain useful data and, because of this, they are an inefficient use of disk space." I don't see how I'm missunderstanding that sentence.
Your not, but MS were not describing a sparse file in that sentence. They were setting out the scenario for which a sparse file is the solution.

They then went on to say why a sparse file is the solution to that problem.

Microsoft said:
When sparse file functionality is enabled, the system does not allocate hard disk drive space to a file except in regions where it contains nonzero data.... maintenance of the sparse file is transparent to all processes that access it, and is more efficient than compression for this particular scenario.

Full document here:



My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB HDD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.
Top Bottom
