Which DLL files have the system icons?

spapakons

Active member
Member
Local time
10:29 PM
Posts
130
Hello!

I recently installed Windows 11 in a virtual machine just to look at it and familiarize. I liked the new system icons, so I wanted to extract them using a utility such as Customizer God and be able to use it in Windows 10. I launched Customizer God but for some weird incompatibility reason loaded without displaying any application window, so it is useless. Compatibility mode to Windows 8 or whatever else made no difference. So I copied the known files, batmeter.dll, imageres.dll etc from Windows\System32 folder and tried to open them in Windows 10, only to get the message that "this file contains no icons"! Only pnidui.dll contained the Windows 10 familiar networking icons, so it is of no use, I have these already. All the other DLL files contain no icons! So does anyone knows which system files contain the system icons and how to extract or replace them? Thank you in advance.


My Computer

System One

  • Operating System
    Windows 11 Pro 21H2 64-bit (build 22000.282)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER

jbcarreon123

C:\>sudo apt install chrome
Member
VIP
Local time
3:29 AM
Posts
681
Location
Quezon City, Philippines
Normally imageres.dll.mun file or shell32.dll.mun file.


My Computer

System One

  • Operating System
    Windows 10, Windows 10 Ghost Spectre, Windows 11 (multi-boot)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 270s
    CPU
    Core i3 2100 3.2Ghz
    Memory
    4gb DDR3-1333
    Graphics Card(s)
    iGPU
    Sound Card
    Realtek
    Monitor(s) Displays
    HP Compaq LA2006x
    Screen Resolution
    900p
    Internet Speed
    10MBit/s
    Browser
    Chrome, FFox and my homemade browser IE11-based
    Antivirus
    WD
    Other Info
    Second-hand PC,
    No TPM, having WDDM 1.2, unsupported CPU.
    Installed Windows 11 using the registry hack..
    Clean installed even Windows 10

abactuon

Active member
Member
Local time
2:29 AM
Posts
117
Win10:
%systemroot%\system32\imageres.dll
%systemroot%\system32\shell32.dll
%systemroot%\system32\pifmgr.dll
%systemroot%\explorer.exe
%systemroot%\system32\accessibilitycpl.dll
%systemroot%\system32\ddores.dll
%systemroot%\system32\moricons.dll
%systemroot%\system32\mmcndmgr.dll
%systemroot%\system32\netcenter.dll
%systemroot%system32netshell.dll
%systemroot%\system32\networkexplorer.dll
%systemroot%\system32\pnidui.dll
%systemroot%\system32\sensorscpl.dll
%systemroot%\system32\setupapi.dll
%systemroot%\system32\wmploc.dll
%systemroot%\system32\wpdshext.dll
%systemroot%\system32\compstui.dll
%systemroot%\system32\ieframe.dll
%systemroot%\system32\dmdskres.dll
%systemroot%\system32\dsuiext.dll
%systemroot%\system32\mstscax.dll
%systemroot%\system32\wiashext.dll
%systemroot%\system32\comres.dll
%systemroot%\system32\mstsc.exe

Win11 ?

IcoFX, 1.6.4 - Free


My Computer

System One

  • Operating System
    Microsoft Windows 10 Home (x64)
    Computer type
    Laptop
    Manufacturer/Model
    MSI GF65 Thin 9SD
    CPU
    Intel Core i5-9300H
    Motherboard
    MSI MS-16W1
    Memory
    2 x Kingston KHX2666C15S4/16G
    Graphics Card(s)
    GeForce GTX 1660 Ti
    Sound Card
    Intel Cannon Lake-H/S - cAVS
    Monitor(s) Displays
    AU Optronics B156HAN13.0
    Screen Resolution
    1920 x 1080
    Hard Drives
    1. Noname 128GB SSD
    2. SAMSUNG MZVLB512HAJQ
    PSU
    180W
    Mouse
    HP USB Fingerprint Mouse
    Internet Speed
    50 Mbps
    Browser
    Firefox

abactuon

Active member
Member
Local time
2:29 AM
Posts
117
"this file contains no icons"
I use IcoFX.

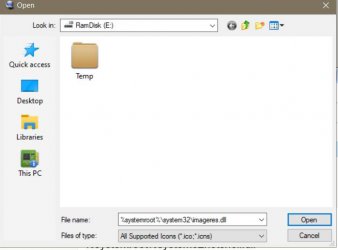

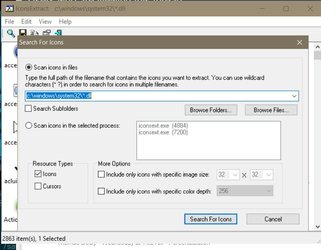

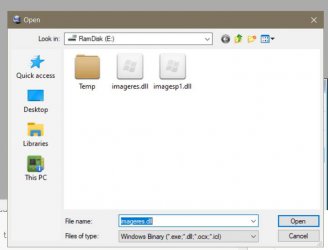

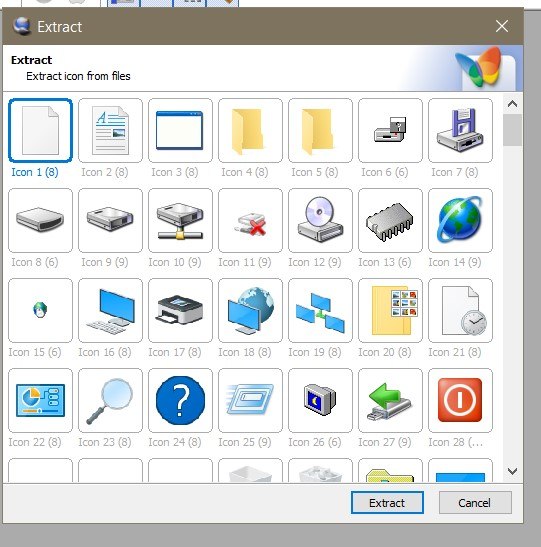

If I open a dll as .dll - no icons(pic.1-2), you need to choose the type ico (pic.3-4)
Maybe.

+ %systemroot%\system32\imageres1.dll


Attachments

  • 1.jpg
    24.5 KB · Views: 15
  • 2.jpg
    12.7 KB · Views: 9
  • 3.jpg
    19.9 KB · Views: 13
  • 4.jpg
    67.6 KB · Views: 15

My Computer

System One

  • Operating System
    Microsoft Windows 10 Home (x64)
    Computer type
    Laptop
    Manufacturer/Model
    MSI GF65 Thin 9SD
    CPU
    Intel Core i5-9300H
    Motherboard
    MSI MS-16W1
    Memory
    2 x Kingston KHX2666C15S4/16G
    Graphics Card(s)
    GeForce GTX 1660 Ti
    Sound Card
    Intel Cannon Lake-H/S - cAVS
    Monitor(s) Displays
    AU Optronics B156HAN13.0
    Screen Resolution
    1920 x 1080
    Hard Drives
    1. Noname 128GB SSD
    2. SAMSUNG MZVLB512HAJQ
    PSU
    180W
    Mouse
    HP USB Fingerprint Mouse
    Internet Speed
    50 Mbps
    Browser
    Firefox

spapakons

Active member
Member
Thread Starter
Local time
10:29 PM
Posts
130
I tried to open imageres.dll, no icons. To double check I even tried to change the default icon of a shortcut with an icon from imageres.dll, there wasn't any. So the system icons in Windows 11 have to be in other files, not the usual DLL (batmeter.dll, imageres dll, stobject.dll etc)


My Computer

System One

  • Operating System
    Windows 11 Pro 21H2 64-bit (build 22000.282)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER

Edwin

Well-known member
Power User
VIP
Local time
3:29 PM
Posts
1,054
I tried to open imageres.dll, no icons. To double check I even tried to change the default icon of a shortcut with an icon from imageres.dll, there wasn't any. So the system icons in Windows 11 have to be in other files, not the usual DLL (batmeter.dll, imageres dll, stobject.dll etc)


My Computer

System One

  • Operating System
    Windows

jbcarreon123

C:\>sudo apt install chrome
Member
VIP
Local time
3:29 AM
Posts
681
Location
Quezon City, Philippines

My Computer

System One

  • Operating System
    Windows 10, Windows 10 Ghost Spectre, Windows 11 (multi-boot)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro 270s
    CPU
    Core i3 2100 3.2Ghz
    Memory
    4gb DDR3-1333
    Graphics Card(s)
    iGPU
    Sound Card
    Realtek
    Monitor(s) Displays
    HP Compaq LA2006x
    Screen Resolution
    900p
    Internet Speed
    10MBit/s
    Browser
    Chrome, FFox and my homemade browser IE11-based
    Antivirus
    WD
    Other Info
    Second-hand PC,
    No TPM, having WDDM 1.2, unsupported CPU.
    Installed Windows 11 using the registry hack..
    Clean installed even Windows 10

jimbo45

Well-known member
Member
VIP
Local time
7:29 PM
Posts
635
Location
Hafnarfjörður IS
Hi there
@spapakons
@jbcarreon123

You can check manually -- bit of a pain but do-able.

Just create any desktop short cut .
In its properties go to change icon.

E.G Filezilla here as an example -- but any desktop short cut will do -->properties-->advanced
Browse to any program in the program dropdown you think has an ICON in it including dll's
Those that do will show a selectable list from which you can choose.


For those who want a basic ICON creator you can still google for the last ICOFX FREE version before they "went Pro" --i.e PAY. Version I.6.4 -- still works perfectly for typical stuff - no need to buy latest version. GOOGLE for it if you want to use it. Working fine on W11.


I hate it when companies who offer Freeware suddenly go "All Pro" - especially if the basic free version does what I suspect here about 90% of users for this type of thing want. - I can understand need for Pro quality software as well with loads of extra features which a studio etc might want - but basic home users !!!!


Cheers
jimbo

Last edited:

My Computer

System One

  • Operating System
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7

abactuon

Active member
Member
Local time
2:29 AM
Posts
117

My Computer

System One

  • Operating System
    Microsoft Windows 10 Home (x64)
    Computer type
    Laptop
    Manufacturer/Model
    MSI GF65 Thin 9SD
    CPU
    Intel Core i5-9300H
    Motherboard
    MSI MS-16W1
    Memory
    2 x Kingston KHX2666C15S4/16G
    Graphics Card(s)
    GeForce GTX 1660 Ti
    Sound Card
    Intel Cannon Lake-H/S - cAVS
    Monitor(s) Displays
    AU Optronics B156HAN13.0
    Screen Resolution
    1920 x 1080
    Hard Drives
    1. Noname 128GB SSD
    2. SAMSUNG MZVLB512HAJQ
    PSU
    180W
    Mouse
    HP USB Fingerprint Mouse
    Internet Speed
    50 Mbps
    Browser
    Firefox

jimbo45

Well-known member
Member
VIP
Local time
7:29 PM
Posts
635
Location
Hafnarfjörður IS

My Computer

System One

  • Operating System
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7

davidvkimball

Digital Marketing Guy
Member
VIP
Local time
12:29 PM
Posts
125
Location
Tacoma, WA
This is helpful, thanks. I managed to find an unused 3D Objects folder icon and OneDrive folder icon!



My Computers

System One System Two

  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    CPU
    Intel Core i7-4790K Haswell Quad-Core 4.0GHz LGA 1150
    Motherboard
    ASUS Z97-A LGA 1150 Intel Z97 HDMI SATA 6Gb/s USB 3.0 ATX
    Memory
    16 GB: G.SKILL Ripjaws X Series 16GB (2 x 8GB)
    Graphics Card(s)
    ASUS GeForce GTX 1660 (6GB)
    Sound Card
    NVIDIA High Definition Audio
    Monitor(s) Displays
    ASUS VG248QE Black 24" 144Hz 1ms (GTG), ASUS VE278H 27", and 23" Dell UltraSharp U2311H
    Screen Resolution
    1920 x 1080 for all
    Hard Drives
    HP EX920 M.2 1TB (OS + apps + high performance files), WD Blue 3D NAND SSD 1TB (video editing + games), WD Blue 1 TB HDD: 3.5 Inch, 7200 RPM (rest of personal files), two WD My Book 3 TB drives (backup + games) and two 8TB Seagate Backup + Hub archive drives.
    PSU
    Antec HCG M Series HCG-620M 620W ATX12V
    Case
    AZZA Solano 1000 Black Japanese SECC Steel/Metal mesh in front MicroATX/ATX/Full ATX
    Cooling
    5 fans + Cooler Master Hyper 212 EVO - CPU Cooler with 120 mm PWM Fan Heat Sink for CPU
    Keyboard
    WASD V3 Custom Mechanical Keyboard
    Mouse
    Logitech M720 Triathlon Mouse
    Internet Speed
    1,000 Mbps download, 25 Mbps upload
    Browser
    Mozilla Firefox
    Antivirus
    MalwareBytes
    Other Info
    View full equipment here: http://davidvkimball.com/pc
  • Operating System
    Windows 11 Pro
    Computer type
    Tablet
    Manufacturer/Model
    Microsoft Surface Pro 3
    CPU
    Intel Core i5
    Memory
    4GB
    Monitor(s) Displays
    10.8” ClearType Full HD Plus Display
    Screen Resolution
    1920 x 1280
    Hard Drives
    128GB SSD
    Browser
    Firefox
    Antivirus
    MalwareBytes
    Other Info
    Originally shipped with Windows 8.1 Pro in 2014, upgraded to 10, and now Windows 11.

fafhrd

Member
VIP
Local time
8:29 PM
Posts
57
Location
Portsmouth UK
You need to look in fonts also: Ever since Windows 95, Microsoft Windows has used fonts as a low level resource to build the interface, instead of separate image files or embedded icons in executable files or dynamic link libraries. It all began with Marlett TTF:1625954480792.png

More recently in Windows 8 the SegoeUI font family has been used has been used for various elements of Windows 8 and in Windows 10 screen elements come from Segoe MDL2 Assets and Hololens MDL2 Assets, which may be stacked, colorized and animated, see the Windows document here:


My Computer

System One

  • Operating System
    Windows 11, update 21H2 29/06/2021 10.0.22000.51
    Computer type
    PC/Desktop
    Manufacturer/Model
    Apple iMac9,1
    CPU
    Intel(R) Core(TM)2 Duo E8435 @ 3.06GHz
    Motherboard
    Apple Inc. Mac-F2218FA9
    Memory
    8 GB DDR3
    Graphics Card(s)
    Nvidia GForce GT 130
    Sound Card
    Realtek HD audio
    Monitor(s) Displays
    Imac 2009 23"
    Screen Resolution
    1920x1200
    Hard Drives
    WDC WD1001FALS-40K1B0 SATA 1TB
    PSU
    Apple
    Case
    Aluminium (or is it Aluminum?)
    Cooling
    Fan
    Keyboard
    USB UK extended generic
    Mouse
    Novatech USB wheel optical mouse
    Internet Speed
    51.4 down 16.7 up ethernet
    Browser
    Chrome
    Antivirus
    MS Defender
    Other Info
    obtained secondhand from CEX 2018 £140

abactuon

Active member
Member
Local time
2:29 AM
Posts
117
"Latest Windows 10 builds are using *.MUN files for storing resources, which are located in C:\Windows\SystemResources\*.mun -- that said, for the file C:\Windows\System32\shell32.dll correct resource file path would be C:\Windows\SystemResources\shell32.dll.mun and you should be able to extract it the same way with 7-Zip."

PS E:\Temp> 7z x C:\Windows\SystemResources\shell32.dll.mun -oE:\Temp\_shell32


E:\Temp\_shell32\.rsrc\ICON

or IcoFX


Last edited:

My Computer

System One

  • Operating System
    Microsoft Windows 10 Home (x64)
    Computer type
    Laptop
    Manufacturer/Model
    MSI GF65 Thin 9SD
    CPU
    Intel Core i5-9300H
    Motherboard
    MSI MS-16W1
    Memory
    2 x Kingston KHX2666C15S4/16G
    Graphics Card(s)
    GeForce GTX 1660 Ti
    Sound Card
    Intel Cannon Lake-H/S - cAVS
    Monitor(s) Displays
    AU Optronics B156HAN13.0
    Screen Resolution
    1920 x 1080
    Hard Drives
    1. Noname 128GB SSD
    2. SAMSUNG MZVLB512HAJQ
    PSU
    180W
    Mouse
    HP USB Fingerprint Mouse
    Internet Speed
    50 Mbps
    Browser
    Firefox
Top Bottom
