Solved Which drive is the boot drive?


blasirl

Bring Order to Chaos
Local time
5:38 AM
Posts
63
OS
Windows 10 Home 10.0.22000.318 upgraded to 11 V:21H2

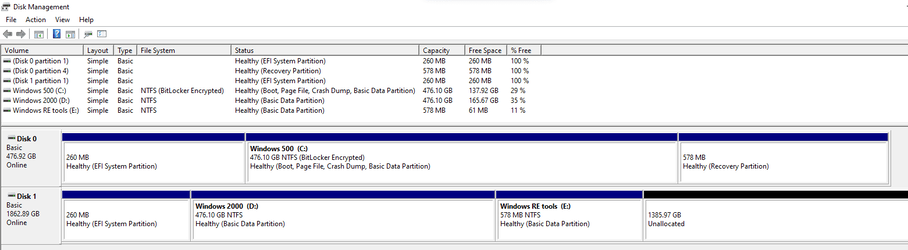

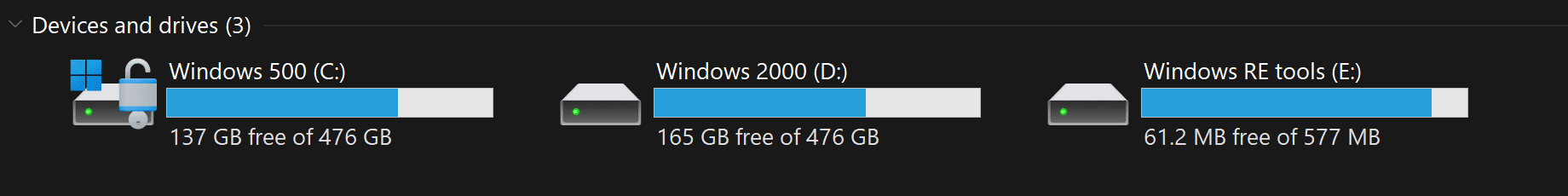

This is a bit more complicated than what my question eludes to.

I have a single drive laptop with Win 11 on it and a cloned drive that also has Win 11 on it. I want to swap the cloned drive in as a primary drive but wanted to test it first. I set the UEFI to allow the USB to be the initial drive to boot. I think it booted, but am not sure if I am correct. The only indication I have is that I cannot eject the external drive.

Windows Build/Version
Version 21H2 (OS Build 22000.493) as of 08FEB2022

My Computers

System One System Two

  • OS
    Windows 10 Home 10.0.22000.318 upgraded to 11 V:21H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 Convertible 15T-eb100
    CPU
    11th Gen Intel(R) Core(TM) i7-1165G7 @ 2.80GHz 2.70 G
    Motherboard
    HP 8812 Version 55.19
    Memory
    16.0 GB (15.6 GB usable)
    Graphics Card(s)
    Intel(R) Iris(R) Xe Graphics (iRISx) - discrete graphics
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    Dell
    Screen Resolution
    HP Laptop: 3840x2160, Dell external 1680x1050
    Hard Drives
    NVMe KXG60ZNV512G KIOXIA (NTFS) SSD
    external Samsung 980 PRO PCle 4.0 NVMe M.2 SSD
    (want to make this the internal drive somehow)
    PSU
    135 W Smart AC power adapter
    Case
    emerald cut
    Keyboard
    external HP USB slim KB - PH0U
    Mouse
    Logitech M510
    Internet Speed
    10.3 mbps download, 0.91mbps upload
    Browser
    Chrome Version 97.0.4692.99 (Official Build) (64-bit)
    Antivirus
    Norton 360
    Other Info
    1. Power AC input
    2. HDMI 2.0b12
    3. Audio combo jack
    4. MicroSD reader
    5. Webcam Kill Switch
    6. USB 3.2 Gen 2 Type-A
    7. USB 3.2 Gen 2 Type-C™
    8. USB 3.2 Gen 2 Type-C™ with Thunderbolt™ 312
    Synaptics Precision Touchpad
    64-bit operating system, x64-based processor
    Pen and touch support with 10 touch points w/Windows Ink installed
  • Operating System
    Windows 10 Pro 64
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360-15t Touch Convertible
    CPU
    i7
    Memory
    16GB
    Graphics card(s)
    Intel Iris - Inteli76560U Processor Intel HD Graphics 16GB
    Monitor(s) Displays
    15.6" UHD WLED Display -Touch S
    Screen Resolution
    3840x2160
    Hard Drives
    1TB PCIe(R) NVMe M.2 SSD
    Browser
    Chrome
    Antivirus
    Norton
    Other Info
    I am currently locked out of this system by Microsoft. I cannot prove ownership so I an stuck at this point

    Web Cam, Dual Mic's, Active Stylus Pen, Backlit KB
    Thunderbolt 3
    One USB-A 3.0 port, two SuperSpeed USB 10Gbps

CornishRattler

Well-known member
Pro User
VIP
Local time
11:38 AM
Posts
1,738
Location
Cornwall UK
OS
Windows 11 Pro Beta, 11 Dev, W10 VHDX Triple Boot

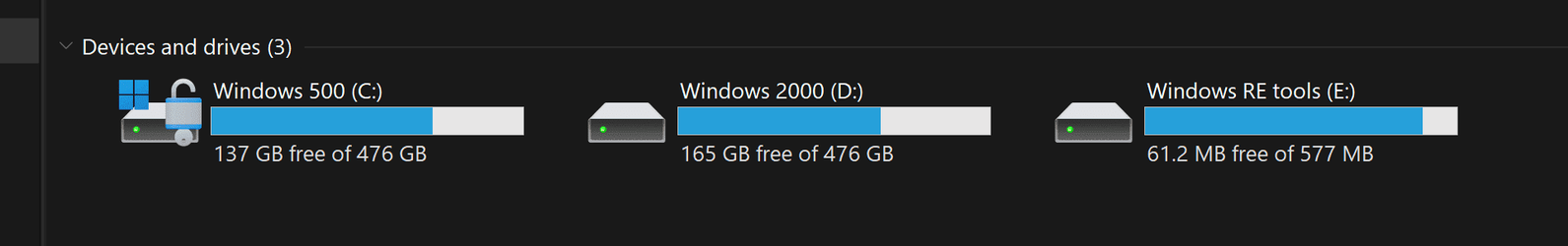

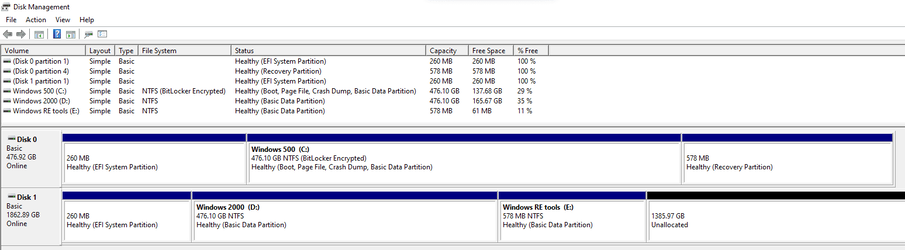

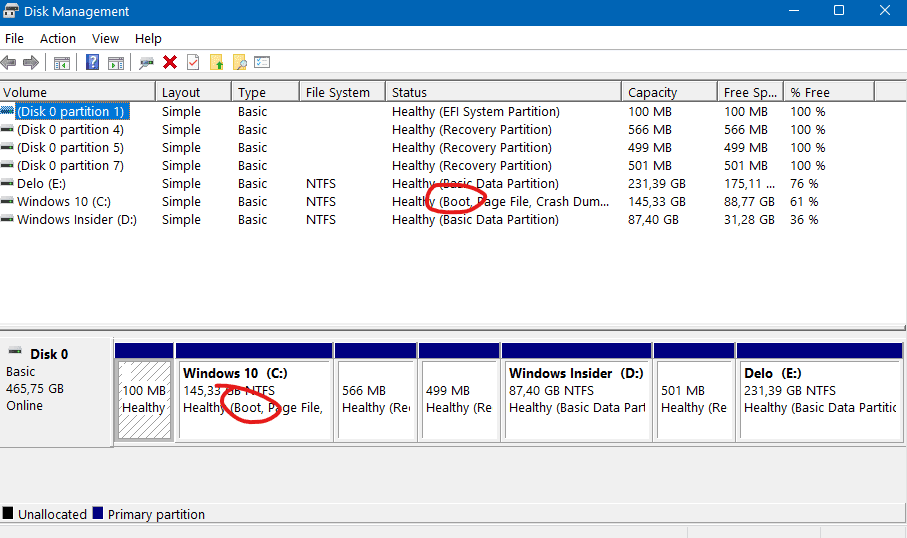

Should be apparent which has booted by looking at your drive assignment. The booted one will have a windows tag on it


My Computer

System One

  • OS
    Windows 11 Pro Beta, 11 Dev, W10 VHDX Triple Boot
    Computer type
    Laptop
    Manufacturer/Model
    Dell Alienware M15 Ryzen Edition R6
    CPU
    AMD Ryzen™ 9 5900HX
    Memory
    32GB
    Graphics Card(s)
    NVIDIA® GeForce RTX™ 3070 8GB GDDR6
    Hard Drives
    1 x Samsung 980 Pro 1TB
    1 x Samsung 970 Evo Plus 1TB

blasirl

Bring Order to Chaos
Thread Starter
Local time
5:38 AM
Posts
63
OS
Windows 10 Home 10.0.22000.318 upgraded to 11 V:21H2

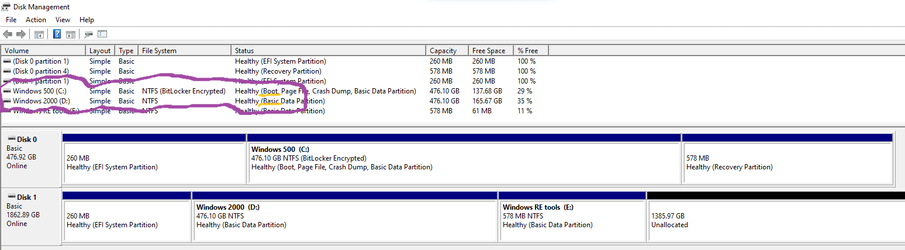

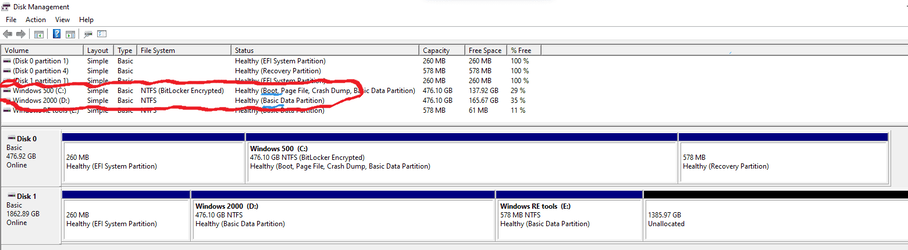

Should be apparent which has booted by looking at your drive assignment. The booted one will have a windows tag on it

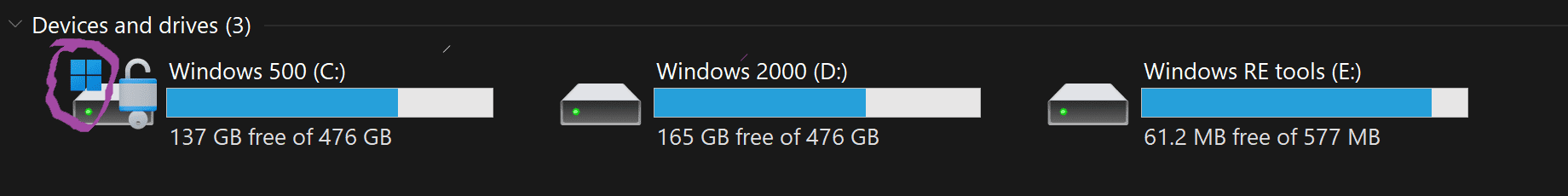

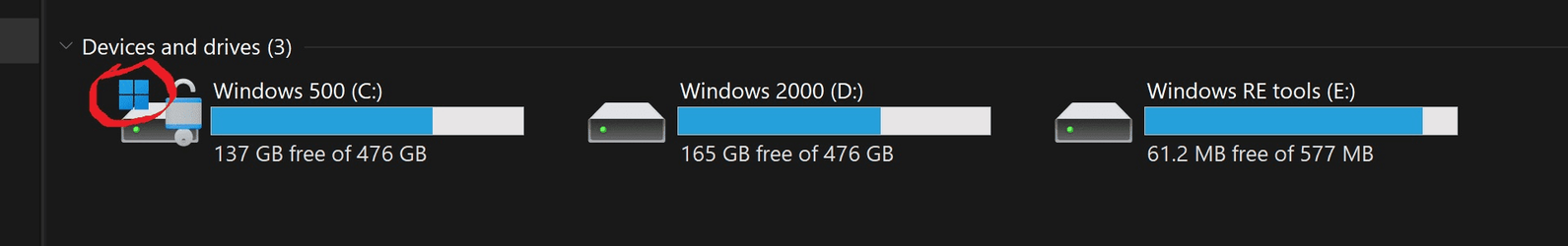

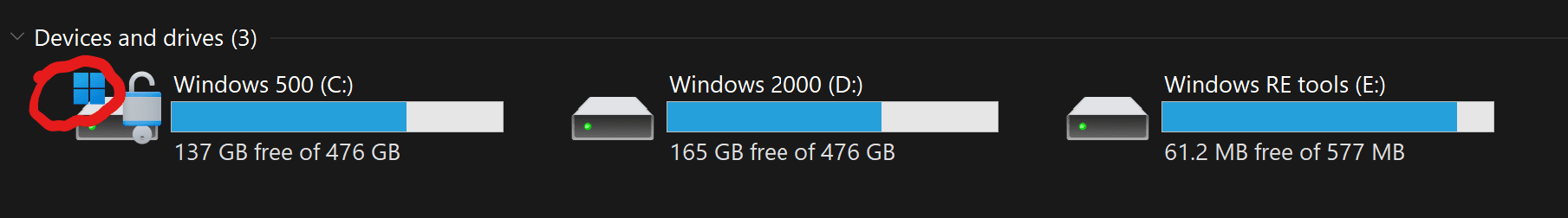

I assume you mean the flag circled in red?



My Computers

System One System Two

  • OS
    Windows 10 Home 10.0.22000.318 upgraded to 11 V:21H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 Convertible 15T-eb100
    CPU
    11th Gen Intel(R) Core(TM) i7-1165G7 @ 2.80GHz 2.70 G
    Motherboard
    HP 8812 Version 55.19
    Memory
    16.0 GB (15.6 GB usable)
    Graphics Card(s)
    Intel(R) Iris(R) Xe Graphics (iRISx) - discrete graphics
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    Dell
    Screen Resolution
    HP Laptop: 3840x2160, Dell external 1680x1050
    Hard Drives
    NVMe KXG60ZNV512G KIOXIA (NTFS) SSD
    external Samsung 980 PRO PCle 4.0 NVMe M.2 SSD
    (want to make this the internal drive somehow)
    PSU
    135 W Smart AC power adapter
    Case
    emerald cut
    Keyboard
    external HP USB slim KB - PH0U
    Mouse
    Logitech M510
    Internet Speed
    10.3 mbps download, 0.91mbps upload
    Browser
    Chrome Version 97.0.4692.99 (Official Build) (64-bit)
    Antivirus
    Norton 360
    Other Info
    1. Power AC input
    2. HDMI 2.0b12
    3. Audio combo jack
    4. MicroSD reader
    5. Webcam Kill Switch
    6. USB 3.2 Gen 2 Type-A
    7. USB 3.2 Gen 2 Type-C™
    8. USB 3.2 Gen 2 Type-C™ with Thunderbolt™ 312
    Synaptics Precision Touchpad
    64-bit operating system, x64-based processor
    Pen and touch support with 10 touch points w/Windows Ink installed
  • Operating System
    Windows 10 Pro 64
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360-15t Touch Convertible
    CPU
    i7
    Memory
    16GB
    Graphics card(s)
    Intel Iris - Inteli76560U Processor Intel HD Graphics 16GB
    Monitor(s) Displays
    15.6" UHD WLED Display -Touch S
    Screen Resolution
    3840x2160
    Hard Drives
    1TB PCIe(R) NVMe M.2 SSD
    Browser
    Chrome
    Antivirus
    Norton
    Other Info
    I am currently locked out of this system by Microsoft. I cannot prove ownership so I an stuck at this point

    Web Cam, Dual Mic's, Active Stylus Pen, Backlit KB
    Thunderbolt 3
    One USB-A 3.0 port, two SuperSpeed USB 10Gbps

CornishRattler

Well-known member
Pro User
VIP
Local time
11:38 AM
Posts
1,738
Location
Cornwall UK
OS
Windows 11 Pro Beta, 11 Dev, W10 VHDX Triple Boot

My Computer

System One

  • OS
    Windows 11 Pro Beta, 11 Dev, W10 VHDX Triple Boot
    Computer type
    Laptop
    Manufacturer/Model
    Dell Alienware M15 Ryzen Edition R6
    CPU
    AMD Ryzen™ 9 5900HX
    Memory
    32GB
    Graphics Card(s)
    NVIDIA® GeForce RTX™ 3070 8GB GDDR6
    Hard Drives
    1 x Samsung 980 Pro 1TB
    1 x Samsung 970 Evo Plus 1TB

blasirl

Bring Order to Chaos
Thread Starter
Local time
5:38 AM
Posts
63
OS
Windows 10 Home 10.0.22000.318 upgraded to 11 V:21H2

My Computers

System One System Two

  • OS
    Windows 10 Home 10.0.22000.318 upgraded to 11 V:21H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 Convertible 15T-eb100
    CPU
    11th Gen Intel(R) Core(TM) i7-1165G7 @ 2.80GHz 2.70 G
    Motherboard
    HP 8812 Version 55.19
    Memory
    16.0 GB (15.6 GB usable)
    Graphics Card(s)
    Intel(R) Iris(R) Xe Graphics (iRISx) - discrete graphics
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    Dell
    Screen Resolution
    HP Laptop: 3840x2160, Dell external 1680x1050
    Hard Drives
    NVMe KXG60ZNV512G KIOXIA (NTFS) SSD
    external Samsung 980 PRO PCle 4.0 NVMe M.2 SSD
    (want to make this the internal drive somehow)
    PSU
    135 W Smart AC power adapter
    Case
    emerald cut
    Keyboard
    external HP USB slim KB - PH0U
    Mouse
    Logitech M510
    Internet Speed
    10.3 mbps download, 0.91mbps upload
    Browser
    Chrome Version 97.0.4692.99 (Official Build) (64-bit)
    Antivirus
    Norton 360
    Other Info
    1. Power AC input
    2. HDMI 2.0b12
    3. Audio combo jack
    4. MicroSD reader
    5. Webcam Kill Switch
    6. USB 3.2 Gen 2 Type-A
    7. USB 3.2 Gen 2 Type-C™
    8. USB 3.2 Gen 2 Type-C™ with Thunderbolt™ 312
    Synaptics Precision Touchpad
    64-bit operating system, x64-based processor
    Pen and touch support with 10 touch points w/Windows Ink installed
  • Operating System
    Windows 10 Pro 64
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360-15t Touch Convertible
    CPU
    i7
    Memory
    16GB
    Graphics card(s)
    Intel Iris - Inteli76560U Processor Intel HD Graphics 16GB
    Monitor(s) Displays
    15.6" UHD WLED Display -Touch S
    Screen Resolution
    3840x2160
    Hard Drives
    1TB PCIe(R) NVMe M.2 SSD
    Browser
    Chrome
    Antivirus
    Norton
    Other Info
    I am currently locked out of this system by Microsoft. I cannot prove ownership so I an stuck at this point

    Web Cam, Dual Mic's, Active Stylus Pen, Backlit KB
    Thunderbolt 3
    One USB-A 3.0 port, two SuperSpeed USB 10Gbps

AdvancedSetup

Malwarebytes Staff
Member
VIP
Local time
3:38 AM
Posts
112
Location
USA
OS
Windows 10
You could also run PowerShell with Admin rights and paste the following code into the window and press the Enter key and it will give you quite a bit of detail about your drives if wanted.

Powershell:
# Function Get-Drive by Raghu Dodda from stackoverflow - minor mods by AS
  function Get-Drive {

    foreach($disk in Get-CimInstance Win32_Diskdrive) {

      $diskMetadata = Get-Disk | Where-Object { $_.Number -eq $disk.Index } | Select-Object -First 1

      $partitions = Get-CimAssociatedInstance -ResultClassName Win32_DiskPartition -InputObject $disk

      foreach($partition in $partitions) {

        $drives = Get-CimAssociatedInstance -ResultClassName Win32_LogicalDisk -InputObject $partition

        foreach($drive in $drives) {

          $totalSpace = [math]::Round($drive.Size / 1GB, 3)
          $freeSpace  = [math]::Round($drive.FreeSpace / 1GB, 3)
          $usedSpace  = [math]::Round($totalSpace - $freeSpace, 3)

          $volume     = Get-Volume |
                        Where-Object { $_.DriveLetter -eq $drive.DeviceID.Trim(":") } |
                        Select-Object -First 1

          [PSCustomObject] @{
                              DriveLetter   = $drive.DeviceID
                              Number        = $disk.Index

                              Label         = $volume.FileSystemLabel
                              Manufacturer  = $diskMetadata.Manufacturer
                              Model         = $diskMetadata.Model
                              SerialNumber  = $diskMetadata.SerialNumber.Trim()
                              Name          = $disk.Caption
                              FirmwareRev   = $disk.FirmwareRevision
                              PnPID         = $disk.PNPDeviceID
                              SCSIPort      = $disk.SCSIPort


                              FileSystem    = $volume.FileSystem
                              MediaType     = $disk.MediaType
                              PartitionKind = $diskMetadata.PartitionStyle
                              BootDisk      = $diskMetadata.BootFromDisk

                              TotalSpace    = $totalSpace
                              FreeSpace     = $freeSpace
                              UsedSpace     = $usedSpace

                              Drive         = $drive
                              Partition     = $partition
                              Disk          = $disk
          }

        }
      }
    }
  }

Get-Drive | Sort -Property DriveLetter | Format-List


My Computer

System One

  • OS
    Windows 10
    Computer type
    PC/Desktop
    Manufacturer/Model
    MSI Custom build
    CPU
    Intel i9-9900K
    Motherboard
    MSI MPG Z390 Gaming Edge AC
    Memory
    64GB
    Graphics Card(s)
    EVGA GeForce GTX 1070 TI
    Internet Speed
    1 Gbps
    Browser
    Firefox
    Antivirus
    Malwarebytes

blasirl

Bring Order to Chaos
Thread Starter
Local time
5:38 AM
Posts
63
OS
Windows 10 Home 10.0.22000.318 upgraded to 11 V:21H2
@AdvancedSetup

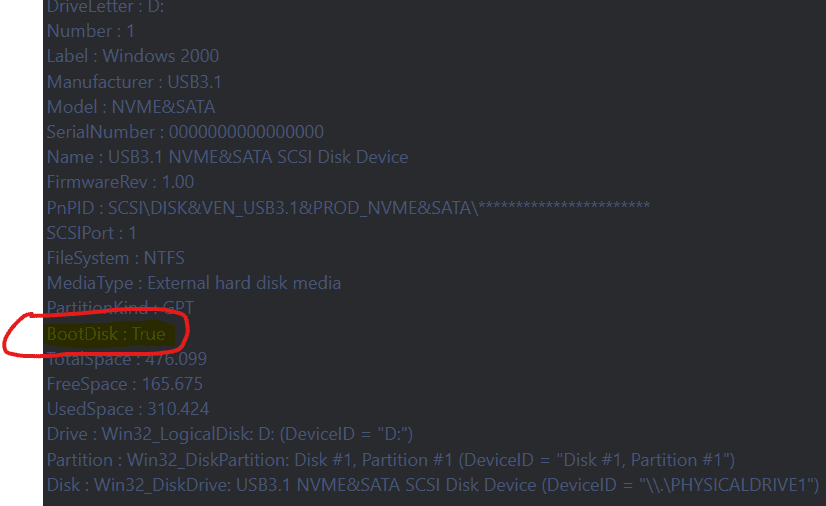

So it looks like the D: drive is the boot drive. Am I seeing this correctly? (I replaced some of the ID numbers with asterisks)


DriveLetter : C:
Number : 0
Label : Windows 500
Manufacturer : NVMe
Model : KXG60ZNV512G KIOXIA
SerialNumber : 0000_0000_0000_0001_*************************************
Name : NVMe KXG60ZNV512G KIOXIA
FirmwareRev : AGHA4101
PnPID : SCSI\DISK&VEN_NVME&PROD_KXG60ZNV512G_KIO\*****************************
SCSIPort : 0
FileSystem : NTFS
MediaType : Fixed hard disk media
PartitionKind : GPT
BootDisk : False
TotalSpace : 476.099
FreeSpace : 137.93
UsedSpace : 338.169
Drive : Win32_LogicalDisk: C: (DeviceID = "C:")
Partition : Win32_DiskPartition: Disk #0, Partition #1 (DeviceID = "Disk #0, Partition #1")
Disk : Win32_DiskDrive: NVMe KXG60ZNV512G KIOXIA (DeviceID = "\\.\PHYSICALDRIVE0")

DriveLetter : D:
Number : 1
Label : Windows 2000
Manufacturer : USB3.1
Model : NVME&SATA
SerialNumber : 0000000000000000
Name : USB3.1 NVME&SATA SCSI Disk Device
FirmwareRev : 1.00
PnPID : SCSI\DISK&VEN_USB3.1&PROD_NVME&SATA\***********************
SCSIPort : 1
FileSystem : NTFS
MediaType : External hard disk media
PartitionKind : GPT
BootDisk : True
TotalSpace : 476.099
FreeSpace : 165.675
UsedSpace : 310.424
Drive : Win32_LogicalDisk: D: (DeviceID = "D:")
Partition : Win32_DiskPartition: Disk #1, Partition #1 (DeviceID = "Disk #1, Partition #1")
Disk : Win32_DiskDrive: USB3.1 NVME&SATA SCSI Disk Device (DeviceID = "\\.\PHYSICALDRIVE1")

DriveLetter : E:
Number : 1
Label : Windows RE tools
Manufacturer : USB3.1
Model : NVME&SATA
SerialNumber : 0000000000000000
Name : USB3.1 NVME&SATA SCSI Disk Device
FirmwareRev : 1.00
PnPID : SCSI\DISK&VEN_USB3.1&PROD_NVME&SATA\*************************
SCSIPort : 1
FileSystem : NTFS
MediaType : External hard disk media
PartitionKind : GPT
BootDisk : True
TotalSpace : 0.564
FreeSpace : 0.06
UsedSpace : 0.504
Drive : Win32_LogicalDisk: E: (DeviceID = "E:")
Partition : Win32_DiskPartition: Disk #1, Partition #2 (DeviceID = "Disk #1, Partition #2")
Disk : Win32_DiskDrive: USB3.1 NVME&SATA SCSI Disk Device (DeviceID = "\\.\PHYSICALDRIVE1")


EDIT: This is what Explorer and Disk Manager is reporting. This seems to be contrary to the above info.

EDIT 2:
And this is what it looked like after I shutdown, removed the external, restarted and plugged the external back in reversing the boot order.



DriveLetter : C:
Number : 0
Label : Windows 500
Manufacturer : NVMe
Model : KXG60ZNV512G KIOXIA
SerialNumber : 0000_0000_0000_0001_***************************
Name : NVMe KXG60ZNV512G KIOXIA
FirmwareRev : AGHA4101
PnPID : SCSI\DISK&VEN_NVME&PROD_KXG60ZNV512G_KIO\********************************
SCSIPort : 0
FileSystem : NTFS
MediaType : Fixed hard disk media
PartitionKind : GPT
BootDisk : True
TotalSpace : 476.099
FreeSpace : 137.68
UsedSpace : 338.419
Drive : Win32_LogicalDisk: C: (DeviceID = "C:")
Partition : Win32_DiskPartition: Disk #0, Partition #1 (DeviceID = "Disk #0, Partition #1")
Disk : Win32_DiskDrive: NVMe KXG60ZNV512G KIOXIA (DeviceID = "\\.\PHYSICALDRIVE0")

DriveLetter : D:
Number : 1
Label : Windows 2000
Manufacturer : USB3.1
Model : NVME&SATA
SerialNumber : 0000000000000000
Name : USB3.1 NVME&SATA SCSI Disk Device
FirmwareRev : 1.00
PnPID : SCSI\DISK&VEN_USB3.1&PROD_NVME&SATA\***********************************
SCSIPort : 1
FileSystem : NTFS
MediaType : External hard disk media
PartitionKind : GPT
BootDisk : False
TotalSpace : 476.099
FreeSpace : 165.675
UsedSpace : 310.424
Drive : Win32_LogicalDisk: D: (DeviceID = "D:")
Partition : Win32_DiskPartition: Disk #1, Partition #1 (DeviceID = "Disk #1, Partition #1")
Disk : Win32_DiskDrive: USB3.1 NVME&SATA SCSI Disk Device (DeviceID = "\\.\PHYSICALDRIVE1")

DriveLetter : E:
Number : 1
Label : Windows RE tools
Manufacturer : USB3.1
Model : NVME&SATA
SerialNumber : 0000000000000000
Name : USB3.1 NVME&SATA SCSI Disk Device
FirmwareRev : 1.00
PnPID : SCSI\DISK&VEN_USB3.1&PROD_NVME&SATA\*****************************
SCSIPort : 1
FileSystem : NTFS
MediaType : External hard disk media
PartitionKind : GPT
BootDisk : False
TotalSpace : 0.564
FreeSpace : 0.06
UsedSpace : 0.504
Drive : Win32_LogicalDisk: E: (DeviceID = "E:")
Partition : Win32_DiskPartition: Disk #1, Partition #2 (DeviceID = "Disk #1, Partition #2")
Disk : Win32_DiskDrive: USB3.1 NVME&SATA SCSI Disk Device (DeviceID = "\\.\PHYSICALDRIVE1")


Attachments

  • 1644358894666.png
    9.3 KB · Views: 1
  • 1644360679576.png
    16.2 KB · Views: 1
  • 1644365715875.png
    8.6 KB · Views: 1
  • 1644365786074.png
    16.3 KB · Views: 1
  • 1644366516806.png
    9.4 KB · Views: 0
Last edited:

My Computers

System One System Two

  • OS
    Windows 10 Home 10.0.22000.318 upgraded to 11 V:21H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 Convertible 15T-eb100
    CPU
    11th Gen Intel(R) Core(TM) i7-1165G7 @ 2.80GHz 2.70 G
    Motherboard
    HP 8812 Version 55.19
    Memory
    16.0 GB (15.6 GB usable)
    Graphics Card(s)
    Intel(R) Iris(R) Xe Graphics (iRISx) - discrete graphics
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    Dell
    Screen Resolution
    HP Laptop: 3840x2160, Dell external 1680x1050
    Hard Drives
    NVMe KXG60ZNV512G KIOXIA (NTFS) SSD
    external Samsung 980 PRO PCle 4.0 NVMe M.2 SSD
    (want to make this the internal drive somehow)
    PSU
    135 W Smart AC power adapter
    Case
    emerald cut
    Keyboard
    external HP USB slim KB - PH0U
    Mouse
    Logitech M510
    Internet Speed
    10.3 mbps download, 0.91mbps upload
    Browser
    Chrome Version 97.0.4692.99 (Official Build) (64-bit)
    Antivirus
    Norton 360
    Other Info
    1. Power AC input
    2. HDMI 2.0b12
    3. Audio combo jack
    4. MicroSD reader
    5. Webcam Kill Switch
    6. USB 3.2 Gen 2 Type-A
    7. USB 3.2 Gen 2 Type-C™
    8. USB 3.2 Gen 2 Type-C™ with Thunderbolt™ 312
    Synaptics Precision Touchpad
    64-bit operating system, x64-based processor
    Pen and touch support with 10 touch points w/Windows Ink installed
  • Operating System
    Windows 10 Pro 64
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360-15t Touch Convertible
    CPU
    i7
    Memory
    16GB
    Graphics card(s)
    Intel Iris - Inteli76560U Processor Intel HD Graphics 16GB
    Monitor(s) Displays
    15.6" UHD WLED Display -Touch S
    Screen Resolution
    3840x2160
    Hard Drives
    1TB PCIe(R) NVMe M.2 SSD
    Browser
    Chrome
    Antivirus
    Norton
    Other Info
    I am currently locked out of this system by Microsoft. I cannot prove ownership so I an stuck at this point

    Web Cam, Dual Mic's, Active Stylus Pen, Backlit KB
    Thunderbolt 3
    One USB-A 3.0 port, two SuperSpeed USB 10Gbps

Scott

Active member
Member
Local time
12:38 AM
Posts
188
Location
Maui, HI
OS
Win 11 Pro 22000.778
So it looks like the D: drive is the boot drive. Am I seeing this correctly? (I replaced some of the ID numbers with asterisks)
Yes

A little off topic, but are the unit badges in your signature units you served with?


My Computer

System One

  • OS
    Win 11 Pro 22000.778
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel(R) Core(TM) i7-8700 CPU @ 3.20GHz
    Motherboard
    ASUS Prime Z370-P II LGA1151
    Memory
    CORSAIR Vengeance LPX 8GB DDR4 3000 (x4)
    Graphics Card(s)
    EVGA GeForce RTX 3050 XC Black Gaming
    Sound Card
    Creative Labs PCIe Sound Blaster X-Fi Titanium (dan_k drivers)
    Monitor(s) Displays
    ASUS TUF Gaming 27" WQHD
    Screen Resolution
    2560 x 1440 @144Hz
    Hard Drives
    SAMSUNG 970 EVO M.2 2280 1TB PCIe Gen3. X4, NVMe (x2)
    SAMSUNG 870 EVO Series 2.5" 2TB SATA III (x2)
    SAMSUNG 870 EVO Series 2.5" 250GB SATA III
    PSU
    CORSAIR HX Series HX750
    Case
    Antec Dark Phantom DP502 FLUX
    Cooling
    Corsair Hydro Series H60 AIO
    Keyboard
    Logitech MK 320
    Mouse
    Logitech MX 1000 Laser
    Internet Speed
    200Mbs
    Browser
    Firefox
    Antivirus
    Winows Security
    Other Info
    UEFI, Secure Boot, TPM 2.0
    MR 8 HE

blasirl

Bring Order to Chaos
Thread Starter
Local time
5:38 AM
Posts
63
OS
Windows 10 Home 10.0.22000.318 upgraded to 11 V:21H2

My Computers

System One System Two

  • OS
    Windows 10 Home 10.0.22000.318 upgraded to 11 V:21H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 Convertible 15T-eb100
    CPU
    11th Gen Intel(R) Core(TM) i7-1165G7 @ 2.80GHz 2.70 G
    Motherboard
    HP 8812 Version 55.19
    Memory
    16.0 GB (15.6 GB usable)
    Graphics Card(s)
    Intel(R) Iris(R) Xe Graphics (iRISx) - discrete graphics
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    Dell
    Screen Resolution
    HP Laptop: 3840x2160, Dell external 1680x1050
    Hard Drives
    NVMe KXG60ZNV512G KIOXIA (NTFS) SSD
    external Samsung 980 PRO PCle 4.0 NVMe M.2 SSD
    (want to make this the internal drive somehow)
    PSU
    135 W Smart AC power adapter
    Case
    emerald cut
    Keyboard
    external HP USB slim KB - PH0U
    Mouse
    Logitech M510
    Internet Speed
    10.3 mbps download, 0.91mbps upload
    Browser
    Chrome Version 97.0.4692.99 (Official Build) (64-bit)
    Antivirus
    Norton 360
    Other Info
    1. Power AC input
    2. HDMI 2.0b12
    3. Audio combo jack
    4. MicroSD reader
    5. Webcam Kill Switch
    6. USB 3.2 Gen 2 Type-A
    7. USB 3.2 Gen 2 Type-C™
    8. USB 3.2 Gen 2 Type-C™ with Thunderbolt™ 312
    Synaptics Precision Touchpad
    64-bit operating system, x64-based processor
    Pen and touch support with 10 touch points w/Windows Ink installed
  • Operating System
    Windows 10 Pro 64
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360-15t Touch Convertible
    CPU
    i7
    Memory
    16GB
    Graphics card(s)
    Intel Iris - Inteli76560U Processor Intel HD Graphics 16GB
    Monitor(s) Displays
    15.6" UHD WLED Display -Touch S
    Screen Resolution
    3840x2160
    Hard Drives
    1TB PCIe(R) NVMe M.2 SSD
    Browser
    Chrome
    Antivirus
    Norton
    Other Info
    I am currently locked out of this system by Microsoft. I cannot prove ownership so I an stuck at this point

    Web Cam, Dual Mic's, Active Stylus Pen, Backlit KB
    Thunderbolt 3
    One USB-A 3.0 port, two SuperSpeed USB 10Gbps

Scott

Active member
Member
Local time
12:38 AM
Posts
188
Location
Maui, HI
OS
Win 11 Pro 22000.778
Wow, 36 years. Thank you for your service.


My Computer

System One

  • OS
    Win 11 Pro 22000.778
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel(R) Core(TM) i7-8700 CPU @ 3.20GHz
    Motherboard
    ASUS Prime Z370-P II LGA1151
    Memory
    CORSAIR Vengeance LPX 8GB DDR4 3000 (x4)
    Graphics Card(s)
    EVGA GeForce RTX 3050 XC Black Gaming
    Sound Card
    Creative Labs PCIe Sound Blaster X-Fi Titanium (dan_k drivers)
    Monitor(s) Displays
    ASUS TUF Gaming 27" WQHD
    Screen Resolution
    2560 x 1440 @144Hz
    Hard Drives
    SAMSUNG 970 EVO M.2 2280 1TB PCIe Gen3. X4, NVMe (x2)
    SAMSUNG 870 EVO Series 2.5" 2TB SATA III (x2)
    SAMSUNG 870 EVO Series 2.5" 250GB SATA III
    PSU
    CORSAIR HX Series HX750
    Case
    Antec Dark Phantom DP502 FLUX
    Cooling
    Corsair Hydro Series H60 AIO
    Keyboard
    Logitech MK 320
    Mouse
    Logitech MX 1000 Laser
    Internet Speed
    200Mbs
    Browser
    Firefox
    Antivirus
    Winows Security
    Other Info
    UEFI, Secure Boot, TPM 2.0
    MR 8 HE

AndreTen

Well-known member
Power User
VIP
Local time
12:38 PM
Posts
512
Location
Slovenia
OS
Windows 10 Pro, Windows 11 Dev
Why don't you start a Disk manager? It'll mark the boot drive



My Computers

System One System Two

  • OS
    Windows 10 Pro, Windows 11 Dev
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    Intel I3 10100
    Motherboard
    ASUS B460M
    Memory
    16 GB DDR4 Crucial
    Graphics Card(s)
    Intel on chip
    Sound Card
    Realtek onboard
    Monitor(s) Displays
    ASUS 24, LG 24
    Screen Resolution
    Full HD x 2
    Hard Drives
    kingston A2000 NVMe PCIe 500 GB
    PSU
    LC Power 650W
    Case
    Noname
    Cooling
    Air 2x 120mm
    Keyboard
    Cherry G-81
    Mouse
    Logitech M500
    Internet Speed
    100/20
    Browser
    Firefox, Vivaldi
    Antivirus
    MS Defender
  • Operating System
    Windows 10 Home
    Computer type
    Laptop
    Manufacturer/Model
    ASUS/Vivobook Flip 14
    CPU
    Ryzen 7 4700u
    Memory
    8 GB DDR4
    Graphics card(s)
    AMD Vega
    Sound Card
    Realtek onboard
    Monitor(s) Displays
    14"
    Screen Resolution
    FullHD
    Hard Drives
    512 Samsung NVMe PCIe
    PSU
    -
    Case
    Laptop
    Mouse
    Touchpad, Touchscreen
    Internet Speed
    100/20
    Browser
    Firefox, Vivaldi
    Antivirus
    MS Defender

blasirl

Bring Order to Chaos
Thread Starter
Local time
5:38 AM
Posts
63
OS
Windows 10 Home 10.0.22000.318 upgraded to 11 V:21H2

My Computers

System One System Two

  • OS
    Windows 10 Home 10.0.22000.318 upgraded to 11 V:21H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 Convertible 15T-eb100
    CPU
    11th Gen Intel(R) Core(TM) i7-1165G7 @ 2.80GHz 2.70 G
    Motherboard
    HP 8812 Version 55.19
    Memory
    16.0 GB (15.6 GB usable)
    Graphics Card(s)
    Intel(R) Iris(R) Xe Graphics (iRISx) - discrete graphics
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    Dell
    Screen Resolution
    HP Laptop: 3840x2160, Dell external 1680x1050
    Hard Drives
    NVMe KXG60ZNV512G KIOXIA (NTFS) SSD
    external Samsung 980 PRO PCle 4.0 NVMe M.2 SSD
    (want to make this the internal drive somehow)
    PSU
    135 W Smart AC power adapter
    Case
    emerald cut
    Keyboard
    external HP USB slim KB - PH0U
    Mouse
    Logitech M510
    Internet Speed
    10.3 mbps download, 0.91mbps upload
    Browser
    Chrome Version 97.0.4692.99 (Official Build) (64-bit)
    Antivirus
    Norton 360
    Other Info
    1. Power AC input
    2. HDMI 2.0b12
    3. Audio combo jack
    4. MicroSD reader
    5. Webcam Kill Switch
    6. USB 3.2 Gen 2 Type-A
    7. USB 3.2 Gen 2 Type-C™
    8. USB 3.2 Gen 2 Type-C™ with Thunderbolt™ 312
    Synaptics Precision Touchpad
    64-bit operating system, x64-based processor
    Pen and touch support with 10 touch points w/Windows Ink installed
  • Operating System
    Windows 10 Pro 64
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360-15t Touch Convertible
    CPU
    i7
    Memory
    16GB
    Graphics card(s)
    Intel Iris - Inteli76560U Processor Intel HD Graphics 16GB
    Monitor(s) Displays
    15.6" UHD WLED Display -Touch S
    Screen Resolution
    3840x2160
    Hard Drives
    1TB PCIe(R) NVMe M.2 SSD
    Browser
    Chrome
    Antivirus
    Norton
    Other Info
    I am currently locked out of this system by Microsoft. I cannot prove ownership so I an stuck at this point

    Web Cam, Dual Mic's, Active Stylus Pen, Backlit KB
    Thunderbolt 3
    One USB-A 3.0 port, two SuperSpeed USB 10Gbps

AdvancedSetup

Malwarebytes Staff
Member
VIP
Local time
3:38 AM
Posts
112
Location
USA
OS
Windows 10
@AdvancedSetup
So it looks like the D: drive is the boot drive. Am I seeing this correctly? (I replaced some of the ID numbers with asterisks)

I wouldn't rely 100% on that code as being correct about the boot drive. In my case it is true but only due to me playing around with a dual boot Linux - Windows build. When I reinstalled Windows last time it placed the boot partition on my D drive.

From an elevated admin command prompt, you can use DISKPART to gather this information to confirm.

Then type in the following and press the Enter key.

LIST DISK


Example
Code:
C:\>diskpart

Microsoft DiskPart version 10.0.19041.964

Copyright (C) Microsoft Corporation.
On computer: COMPUTER

DISKPART> list disk

  Disk ###  Status         Size     Free     Dyn  Gpt
  --------  -------------  -------  -------  ---  ---
  Disk 0    Online           14 TB      0 B        *
  Disk 1    Online          931 GB  1024 KB        *
  Disk 2    Online          931 GB  1024 KB        *
  Disk 3    Online           14 TB  1024 KB        *
  Disk 4    Online         4657 GB      0 B        *

You should have at least two disks. You need to select one of them so start with DISK 0 and press the Enter key after each line.


SELECT DISK 0
DETAIL DISK

You should then see something like the following

Current Read-only State : No
Read-only : No
Boot Disk : Yes
Pagefile Disk : Yes


Then type in the following to check the other disk

SELECT DISK 1
DETAIL DISK


You can type EXIT to get out or close the command prompt window.

Hope that helps


My Computer

System One

  • OS
    Windows 10
    Computer type
    PC/Desktop
    Manufacturer/Model
    MSI Custom build
    CPU
    Intel i9-9900K
    Motherboard
    MSI MPG Z390 Gaming Edge AC
    Memory
    64GB
    Graphics Card(s)
    EVGA GeForce GTX 1070 TI
    Internet Speed
    1 Gbps
    Browser
    Firefox
    Antivirus
    Malwarebytes

AdvancedSetup

Malwarebytes Staff
Member
VIP
Local time
3:38 AM
Posts
112
Location
USA
OS
Windows 10

My Computer

System One

  • OS
    Windows 10
    Computer type
    PC/Desktop
    Manufacturer/Model
    MSI Custom build
    CPU
    Intel i9-9900K
    Motherboard
    MSI MPG Z390 Gaming Edge AC
    Memory
    64GB
    Graphics Card(s)
    EVGA GeForce GTX 1070 TI
    Internet Speed
    1 Gbps
    Browser
    Firefox
    Antivirus
    Malwarebytes

blasirl

Bring Order to Chaos
Thread Starter
Local time
5:38 AM
Posts
63
OS
Windows 10 Home 10.0.22000.318 upgraded to 11 V:21H2
I wouldn't rely 100% on that code as being correct about the boot drive. In my case it is true but only due to me playing around with a dual boot Linux - Windows build. When I reinstalled Windows last time it placed the boot partition on my D drive.

From an elevated admin command prompt, you can use DISKPART to gather this information to confirm.

Then type in the following and press the Enter key.

LIST DISK


Example
Code:
C:\>diskpart

Microsoft DiskPart version 10.0.19041.964

Copyright (C) Microsoft Corporation.
On computer: COMPUTER

DISKPART> list disk

  Disk ###  Status         Size     Free     Dyn  Gpt
  --------  -------------  -------  -------  ---  ---
  Disk 0    Online           14 TB      0 B        *
  Disk 1    Online          931 GB  1024 KB        *
  Disk 2    Online          931 GB  1024 KB        *
  Disk 3    Online           14 TB  1024 KB        *
  Disk 4    Online         4657 GB      0 B        *

You should have at least two disks. You need to select one of them so start with DISK 0 and press the Enter key after each line.


SELECT DISK 0
DETAIL DISK


You should then see something like the following

Current Read-only State : No
Read-only : No
Boot Disk : Yes
Pagefile Disk : Yes


Then type in the following to check the other disk

SELECT DISK 1
DETAIL DISK


You can type EXIT to get out or close the command prompt window.

Hope that helps
Here is the first iteration with the disk in the original state - I.E. 500 is boot drive and 2000 plugged in after bootup.
Microsoft Windows [Version 10.0.22000.493]
(c) Microsoft Corporation. All rights reserved.

C:\windows\system32>DISKPART

Microsoft DiskPart version 10.0.22000.1

Copyright (C) Microsoft Corporation.
On computer: OPTIMUS_PRIME

DISKPART> List Disk

Disk ### Status Size Free Dyn Gpt
-------- ------------- ------- ------- --- ---
Disk 0 Online 476 GB 6144 KB *
Disk 1 Online 1863 GB 1385 GB *

DISKPART>
Microsoft Windows [Version 10.0.22000.493]
(c) Microsoft Corporation. All rights reserved.

C:\windows\system32>DISKPART

Microsoft DiskPart version 10.0.22000.1

Copyright (C) Microsoft Corporation.
On computer: OPTIMUS_PRIME

DISKPART> List Disk

Disk ### Status Size Free Dyn Gpt
-------- ------------- ------- ------- --- ---
Disk 0 Online 476 GB 6144 KB *
Disk 1 Online 1863 GB 1385 GB *

DISKPART> Select Disk 0

Disk 0 is now the selected disk.

DISKPART> Detail Disk

NVMe KXG60ZNV512G KIOXIA
Disk ID: {A9BD7BA3-7DCD-4DE9-9CFC-B2******
Type : RAID
Status : Online
Path : 2
Target : 0
LUN ID : 0
Location Path : PCIROOT(0)#PCI(0E00)#RAID(P02T00L00)
Current Read-only State : No
Read-only : No
Boot Disk : Yes
Pagefile Disk : Yes
Hibernation File Disk : No
Crashdump Disk : Yes
Clustered Disk : No

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
Volume 0 C Windows 500 NTFS Partition 476 GB Healthy Boot
Volume 1 SYSTEM FAT32 Partition 260 MB Healthy System
Volume 2 Windows RE NTFS Partition 578 MB Healthy Hidden

DISKPART> Select Disk 1

Disk 1 is now the selected disk.

DISKPART> Detail Disk

USB3.1 NVME&SATA SCSI Disk Device
Disk ID: {B837D209-6AA6-4EF3-9053-19************
Type : USB
Status : Online
Path : 0
Target : 0
LUN ID : 0
Location Path : UNAVAILABLE
Current Read-only State : No
Read-only : No
Boot Disk : No
Pagefile Disk : No
Hibernation File Disk : No
Crashdump Disk : No
Clustered Disk : No

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
Volume 3 D Windows 200 NTFS Partition 476 GB Healthy
Volume 4 E Windows RE NTFS Partition 578 MB Healthy
Volume 5 SYSTEM FAT32 Partition 260 MB Healthy Hidden

DISKPART>

Last edited:

My Computers

System One System Two

  • OS
    Windows 10 Home 10.0.22000.318 upgraded to 11 V:21H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 Convertible 15T-eb100
    CPU
    11th Gen Intel(R) Core(TM) i7-1165G7 @ 2.80GHz 2.70 G
    Motherboard
    HP 8812 Version 55.19
    Memory
    16.0 GB (15.6 GB usable)
    Graphics Card(s)
    Intel(R) Iris(R) Xe Graphics (iRISx) - discrete graphics
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    Dell
    Screen Resolution
    HP Laptop: 3840x2160, Dell external 1680x1050
    Hard Drives
    NVMe KXG60ZNV512G KIOXIA (NTFS) SSD
    external Samsung 980 PRO PCle 4.0 NVMe M.2 SSD
    (want to make this the internal drive somehow)
    PSU
    135 W Smart AC power adapter
    Case
    emerald cut
    Keyboard
    external HP USB slim KB - PH0U
    Mouse
    Logitech M510
    Internet Speed
    10.3 mbps download, 0.91mbps upload
    Browser
    Chrome Version 97.0.4692.99 (Official Build) (64-bit)
    Antivirus
    Norton 360
    Other Info
    1. Power AC input
    2. HDMI 2.0b12
    3. Audio combo jack
    4. MicroSD reader
    5. Webcam Kill Switch
    6. USB 3.2 Gen 2 Type-A
    7. USB 3.2 Gen 2 Type-C™
    8. USB 3.2 Gen 2 Type-C™ with Thunderbolt™ 312
    Synaptics Precision Touchpad
    64-bit operating system, x64-based processor
    Pen and touch support with 10 touch points w/Windows Ink installed
  • Operating System
    Windows 10 Pro 64
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360-15t Touch Convertible
    CPU
    i7
    Memory
    16GB
    Graphics card(s)
    Intel Iris - Inteli76560U Processor Intel HD Graphics 16GB
    Monitor(s) Displays
    15.6" UHD WLED Display -Touch S
    Screen Resolution
    3840x2160
    Hard Drives
    1TB PCIe(R) NVMe M.2 SSD
    Browser
    Chrome
    Antivirus
    Norton
    Other Info
    I am currently locked out of this system by Microsoft. I cannot prove ownership so I an stuck at this point

    Web Cam, Dual Mic's, Active Stylus Pen, Backlit KB
    Thunderbolt 3
    One USB-A 3.0 port, two SuperSpeed USB 10Gbps

blasirl

Bring Order to Chaos
Thread Starter
Local time
5:38 AM
Posts
63
OS
Windows 10 Home 10.0.22000.318 upgraded to 11 V:21H2
Microsoft Windows [Version 10.0.22000.493]
(c) Microsoft Corporation. All rights reserved.

C:\windows\system32>DISKPART

Microsoft DiskPart version 10.0.22000.1

Copyright (C) Microsoft Corporation.
On computer: OPTIMUS_PRIME

DISKPART> LIST DISK

Disk ### Status Size Free Dyn Gpt
-------- ------------- ------- ------- --- ---
Disk 0 Online 476 GB 6144 KB *
Disk 1 Online 1863 GB 1385 GB *

DISKPART> SELECT DISK 0

Disk 0 is now the selected disk.

DISKPART> DETAIL DISK

NVMe KXG60ZNV512G KIOXIA
Disk ID: {A9BD7BA3-7DCD-4DE9-9CFC-B2******
Type : RAID
Status : Online
Path : 2
Target : 0
LUN ID : 0
Location Path : PCIROOT(0)#PCI(0E00)#RAID(P02T00L00)
Current Read-only State : No
Read-only : No
Boot Disk : Yes
Pagefile Disk : Yes
Hibernation File Disk : No
Crashdump Disk : Yes
Clustered Disk : No

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
Volume 0 C Windows 500 NTFS Partition 476 GB Healthy Boot
Volume 1 SYSTEM FAT32 Partition 260 MB Healthy System
Volume 2 Windows RE NTFS Partition 578 MB Healthy Hidden

DISKPART> SELECT DISK 1

Disk 1 is now the selected disk.

DISKPART> DETAIL DISK

USB3.1 NVME&SATA SCSI Disk Device
Disk ID: {B837D209-6AA6-4EF3-9053-198********
Type : USB
Status : Online
Path : 0
Target : 0
LUN ID : 0
Location Path : UNAVAILABLE
Current Read-only State : No
Read-only : No
Boot Disk : No
Pagefile Disk : No
Hibernation File Disk : No
Crashdump Disk : No
Clustered Disk : No

Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
Volume 3 D Windows 200 NTFS Partition 476 GB Healthy
Volume 4 E Windows RE NTFS Partition 578 MB Healthy
Volume 5 SYSTEM FAT32 Partition 260 MB Healthy Hidden

DISKPART>


My Computers

System One System Two

  • OS
    Windows 10 Home 10.0.22000.318 upgraded to 11 V:21H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 Convertible 15T-eb100
    CPU
    11th Gen Intel(R) Core(TM) i7-1165G7 @ 2.80GHz 2.70 G
    Motherboard
    HP 8812 Version 55.19
    Memory
    16.0 GB (15.6 GB usable)
    Graphics Card(s)
    Intel(R) Iris(R) Xe Graphics (iRISx) - discrete graphics
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    Dell
    Screen Resolution
    HP Laptop: 3840x2160, Dell external 1680x1050
    Hard Drives
    NVMe KXG60ZNV512G KIOXIA (NTFS) SSD
    external Samsung 980 PRO PCle 4.0 NVMe M.2 SSD
    (want to make this the internal drive somehow)
    PSU
    135 W Smart AC power adapter
    Case
    emerald cut
    Keyboard
    external HP USB slim KB - PH0U
    Mouse
    Logitech M510
    Internet Speed
    10.3 mbps download, 0.91mbps upload
    Browser
    Chrome Version 97.0.4692.99 (Official Build) (64-bit)
    Antivirus
    Norton 360
    Other Info
    1. Power AC input
    2. HDMI 2.0b12
    3. Audio combo jack
    4. MicroSD reader
    5. Webcam Kill Switch
    6. USB 3.2 Gen 2 Type-A
    7. USB 3.2 Gen 2 Type-C™
    8. USB 3.2 Gen 2 Type-C™ with Thunderbolt™ 312
    Synaptics Precision Touchpad
    64-bit operating system, x64-based processor
    Pen and touch support with 10 touch points w/Windows Ink installed
  • Operating System
    Windows 10 Pro 64
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360-15t Touch Convertible
    CPU
    i7
    Memory
    16GB
    Graphics card(s)
    Intel Iris - Inteli76560U Processor Intel HD Graphics 16GB
    Monitor(s) Displays
    15.6" UHD WLED Display -Touch S
    Screen Resolution
    3840x2160
    Hard Drives
    1TB PCIe(R) NVMe M.2 SSD
    Browser
    Chrome
    Antivirus
    Norton
    Other Info
    I am currently locked out of this system by Microsoft. I cannot prove ownership so I an stuck at this point

    Web Cam, Dual Mic's, Active Stylus Pen, Backlit KB
    Thunderbolt 3
    One USB-A 3.0 port, two SuperSpeed USB 10Gbps

AdvancedSetup

Malwarebytes Staff
Member
VIP
Local time
3:38 AM
Posts
112
Location
USA
OS
Windows 10
Yes, but I assume you're swapping the booting disk before running this, correct?


My Computer

System One

  • OS
    Windows 10
    Computer type
    PC/Desktop
    Manufacturer/Model
    MSI Custom build
    CPU
    Intel i9-9900K
    Motherboard
    MSI MPG Z390 Gaming Edge AC
    Memory
    64GB
    Graphics Card(s)
    EVGA GeForce GTX 1070 TI
    Internet Speed
    1 Gbps
    Browser
    Firefox
    Antivirus
    Malwarebytes
Top Bottom
