Can I analyze .DMP created in Task Manager with WinDBG? I'm not familiar with using WinDBG.


My Computer

System One

  • OS
    Windows 11 - Release Preview channel
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kol's custom ROG Z590
    CPU
    Intel 10900K @ 5.1 Ghz
    Motherboard
    Asus ROG Maximus XIII Hero Z590
    Memory
    Corsair Dominator Platinum RGB 32GB (4x8) OC to 3866Mhz CL 16
    Graphics Card(s)
    Asus ROG Strix 3080 OC edition
    Sound Card
    SoundBlaster X-AE5
    Monitor(s) Displays
    Asus ROG PG349Q 34" 120hz Gysnc
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung 980 Pro 500GB
    860 EVO's
    Adata SX2000 Pro 1TB
    External RAID enclosure - Seagate 3TB HDD's
    PSU
    Seasonic Prime Ultra 1300W Platinum
    Case
    Phanteks Eclipse P600S
    Cooling
    Custom water cooling. EK Velocity (CPU), EK Quantum Vector (GPU), EK Quantum D5 Pump, 360 + 280 mm rads, 3x120mm Corsair LL, 3x 140mm Corsair LL fans
    Keyboard
    Corsair K70 MK.2 SE
    Mouse
    Corsair Dark Core Pro Wireless
    Antivirus
    Windows Defender

zbook

Well-known member
Power User
VIP
Local time
4:12 AM
Posts
915
OS
Windows 10
As per the posting instructions please run V2 and upload results into this thread.

If you want to troubleshoot yourself then you can follow this tutorial:


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

Kol12

Active member
Member
VIP
Thread Starter
Local time
9:12 PM
Posts
245
OS
Windows 11 - Release Preview channel
As per the posting instructions please run V2 and upload results into this thread.

If you want to troubleshoot yourself then you can follow this tutorial:
I downloaded WinDBG from the MS Store. There wasn't any SDK installation that I'm aware of...


My Computer

System One

  • OS
    Windows 11 - Release Preview channel
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kol's custom ROG Z590
    CPU
    Intel 10900K @ 5.1 Ghz
    Motherboard
    Asus ROG Maximus XIII Hero Z590
    Memory
    Corsair Dominator Platinum RGB 32GB (4x8) OC to 3866Mhz CL 16
    Graphics Card(s)
    Asus ROG Strix 3080 OC edition
    Sound Card
    SoundBlaster X-AE5
    Monitor(s) Displays
    Asus ROG PG349Q 34" 120hz Gysnc
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung 980 Pro 500GB
    860 EVO's
    Adata SX2000 Pro 1TB
    External RAID enclosure - Seagate 3TB HDD's
    PSU
    Seasonic Prime Ultra 1300W Platinum
    Case
    Phanteks Eclipse P600S
    Cooling
    Custom water cooling. EK Velocity (CPU), EK Quantum Vector (GPU), EK Quantum D5 Pump, 360 + 280 mm rads, 3x120mm Corsair LL, 3x 140mm Corsair LL fans
    Keyboard
    Corsair K70 MK.2 SE
    Mouse
    Corsair Dark Core Pro Wireless
    Antivirus
    Windows Defender

x BlueRobot

Member
Member
Local time
10:12 AM
Posts
59
OS
Windows 11
You're using WinDbg Preview then which is technically in beta. It is generally recommended that you use the SDK version of WinDbg since the Preview edition has had some bugs which have affected analysis.

However, to answer your question, yes you can use WinDbg to analyse a dump file created using Task Manager. Although, please bear in mind, you'll only be examining the process address space of the process which you dumped.

Let me know if you have any questions.

@zbook how is the V2 log file collector relevant here? The OP just asked if they can examine a process dump using WinDbg.


My Computer

System One

  • OS
    Windows 11

Stigg

Well-known member
Power User
VIP
Local time
7:12 PM
Posts
747
OS
Windows 11 Pro
I find WinDbg Preview to be very good.
It is very easy to use, and the results are very clear and easy to read and understand.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Stigg's Build
    CPU
    Intel Core i9-10900X
    Motherboard
    GIGABYTE X299X DESIGNARE 10G
    Memory
    Corsair 64 GB (4 x 16 GB) CMW64GX4M4C3000C15 Vengeance RGB Pro 3000Mhz DDR4
    Graphics Card(s)
    GIGABYTE GeForce GTX 1660 Super Mini ITX 6 GB OC
    Sound Card
    Realtek ALC1220
    Monitor(s) Displays
    Samsung 27" FHD LED FreeSync Gaming Monitor (LS27F350FHEXXY)
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsung 970 Pro Series 1TB M.2 2280 NVMe SSD
    Western Digital Red Pro WD8003FFBX-68B9AN0 8 TB, 7200 RPM, SATA-III
    Western Digital Red Pro WD8003FFBX-68B9AN0 8 TB, 7200 RPM, SATA-III
    PSU
    Corsair HX1200 1200W 80 Plus Platinum
    Case
    Fractal Design Define 7 Black Solid Case
    Cooling
    Noctua NH-D15 Chromax Black
    Keyboard
    Razer Ornata V2
    Mouse
    Razer DeathAdder Essential
    Internet Speed
    FTTN 100Mbps / 40Mbps
    Browser
    Mozilla Firefox
    Antivirus
    N/A
    Other Info
    Logitech BRIO 4k Ultra HD USB-C Webcam
  • Operating System
    Windows 10 Pro
    Computer type
    Laptop
    Manufacturer/Model
    ASUS ROG Zephyrus M GM501GS
    CPU
    Core i7-8750H
    Motherboard
    Zephyrus M GM501GS
    Memory
    SK Hynix 32 GB (2 x 16 GB) HMA82GS6CJR8N-VK 16 GB DDR4-2666 DDR4 SDRAM
    Graphics card(s)
    NVIDIA GeForce GTX 1070
    Sound Card
    Realtek ALC294
    Monitor(s) Displays
    AU Optronics B156HAN07.1 [15.6" LCD]
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsung MZVKW512HMJP-00000 512 GB, PCI-E 3.0 x4
    Samsung SSD 860 QVO 4TB 4 TB, SATA-III
    PSU
    N/A
    Case
    N/A
    Cooling
    N/A
    Mouse
    Razer DeathAdder Essential
    Keyboard
    PC/AT Enhanced PS2 Keyboard (101/102-Key)
    Internet Speed
    FTTN 100Mbps / 40Mbps
    Browser
    Mozilla Firefox
    Antivirus
    N/A
    Other Info
    USB2.0 HD UVC Webcam

Kol12

Active member
Member
VIP
Thread Starter
Local time
9:12 PM
Posts
245
OS
Windows 11 - Release Preview channel
Where do I start with WinDBG? I have a .DMP file but I don't see a way to import .DMP in WinDBG.


My Computer

System One

  • OS
    Windows 11 - Release Preview channel
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kol's custom ROG Z590
    CPU
    Intel 10900K @ 5.1 Ghz
    Motherboard
    Asus ROG Maximus XIII Hero Z590
    Memory
    Corsair Dominator Platinum RGB 32GB (4x8) OC to 3866Mhz CL 16
    Graphics Card(s)
    Asus ROG Strix 3080 OC edition
    Sound Card
    SoundBlaster X-AE5
    Monitor(s) Displays
    Asus ROG PG349Q 34" 120hz Gysnc
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung 980 Pro 500GB
    860 EVO's
    Adata SX2000 Pro 1TB
    External RAID enclosure - Seagate 3TB HDD's
    PSU
    Seasonic Prime Ultra 1300W Platinum
    Case
    Phanteks Eclipse P600S
    Cooling
    Custom water cooling. EK Velocity (CPU), EK Quantum Vector (GPU), EK Quantum D5 Pump, 360 + 280 mm rads, 3x120mm Corsair LL, 3x 140mm Corsair LL fans
    Keyboard
    Corsair K70 MK.2 SE
    Mouse
    Corsair Dark Core Pro Wireless
    Antivirus
    Windows Defender

z3r010

Administrator
Staff member
Local time
10:12 AM
Posts
1,884
Location
Worsley, Manchester, UK
OS
Windows 11 Workstation

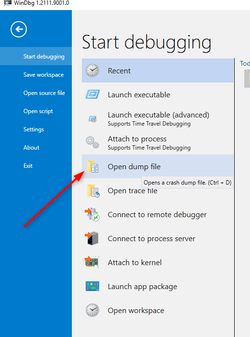

Have you tried double-clicking the dmp file?

or



My Computers

System One System Two

  • OS
    Windows 11 Workstation
    Computer type
    PC/Desktop
    Manufacturer/Model
    doofenshmirtz evil incorporated
    CPU
    Ryzen 9 5950X
    Motherboard
    Asus ROG Crosshair VIII Formula
    Memory
    Corsair Vengeance RGB PRO Black 64GB (4x16GB) 3600MHz AMD Ryzen Tuned DDR4
    Graphics Card(s)
    ASUS AMD Radeon RX 6900 XT 16GB ROG Strix LC OC
    Sound Card
    Sound BlasterX Katana
    Monitor(s) Displays
    3 x27" Dell U2714H & 1 x 34" Dell
    Hard Drives
    Samsung 980 Pro 1TB M.2 2280 PCI-e 4.0 x4 NVMe Solid State
    Drive
    PSU
    ASUS ROG THOR 850W 80 Plus Platinum
    Case
    ASUS ROG Strix Helios Midi-Tower ARGB Gaming Case
    Cooling
    ASUS ROG Strix LC Performance RGB AIO CPU Liquid Cooler - 360mm
    Keyboard
    Logi Ergo
    Mouse
    Logitech MX Master 3
    Internet Speed
    900/100 Mbps
    Browser
    Chrome
    Antivirus
    Windows Defender, Malwarebytes Pro
    Other Info
    HP M281 Printer
    Logitech Brio Stream webcam
    Yeti X mic
  • Operating System
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    Surface Laptop
    CPU
    i7

Kol12

Active member
Member
VIP
Thread Starter
Local time
9:12 PM
Posts
245
OS
Windows 11 - Release Preview channel

My Computer

System One

  • OS
    Windows 11 - Release Preview channel
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kol's custom ROG Z590
    CPU
    Intel 10900K @ 5.1 Ghz
    Motherboard
    Asus ROG Maximus XIII Hero Z590
    Memory
    Corsair Dominator Platinum RGB 32GB (4x8) OC to 3866Mhz CL 16
    Graphics Card(s)
    Asus ROG Strix 3080 OC edition
    Sound Card
    SoundBlaster X-AE5
    Monitor(s) Displays
    Asus ROG PG349Q 34" 120hz Gysnc
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung 980 Pro 500GB
    860 EVO's
    Adata SX2000 Pro 1TB
    External RAID enclosure - Seagate 3TB HDD's
    PSU
    Seasonic Prime Ultra 1300W Platinum
    Case
    Phanteks Eclipse P600S
    Cooling
    Custom water cooling. EK Velocity (CPU), EK Quantum Vector (GPU), EK Quantum D5 Pump, 360 + 280 mm rads, 3x120mm Corsair LL, 3x 140mm Corsair LL fans
    Keyboard
    Corsair K70 MK.2 SE
    Mouse
    Corsair Dark Core Pro Wireless
    Antivirus
    Windows Defender

Kol12

Active member
Member
VIP
Thread Starter
Local time
9:12 PM
Posts
245
OS
Windows 11 - Release Preview channel
I can open the dump file into WinDBG but I have no idea what I'm doing from there. Would anyone like to analyze an sihost.DMP I created?


My Computer

System One

  • OS
    Windows 11 - Release Preview channel
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kol's custom ROG Z590
    CPU
    Intel 10900K @ 5.1 Ghz
    Motherboard
    Asus ROG Maximus XIII Hero Z590
    Memory
    Corsair Dominator Platinum RGB 32GB (4x8) OC to 3866Mhz CL 16
    Graphics Card(s)
    Asus ROG Strix 3080 OC edition
    Sound Card
    SoundBlaster X-AE5
    Monitor(s) Displays
    Asus ROG PG349Q 34" 120hz Gysnc
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung 980 Pro 500GB
    860 EVO's
    Adata SX2000 Pro 1TB
    External RAID enclosure - Seagate 3TB HDD's
    PSU
    Seasonic Prime Ultra 1300W Platinum
    Case
    Phanteks Eclipse P600S
    Cooling
    Custom water cooling. EK Velocity (CPU), EK Quantum Vector (GPU), EK Quantum D5 Pump, 360 + 280 mm rads, 3x120mm Corsair LL, 3x 140mm Corsair LL fans
    Keyboard
    Corsair K70 MK.2 SE
    Mouse
    Corsair Dark Core Pro Wireless
    Antivirus
    Windows Defender

Stigg

Well-known member
Power User
VIP
Local time
7:12 PM
Posts
747
OS
Windows 11 Pro
I can open the dump file into WinDBG but I have no idea what I'm doing from there. Would anyone like to analyze an sihost.DMP I created?
You will notice the following command in blue that you can right click and copy and paste into the command line. Paste it into the command line and press "Enter".
Code:
!analyze -v
Everything else will be done for you from there.

WinDbg Analysis 2.png

After the scan is done, look for the MODULE_NAME and IMAGE_NAME. That is usually the crash cause. Click on MODULE_NAME to expand it.

You will also see PROCESS_NAME. It will show you the crash file, but not the crash cause.

Tip: If you want to make analyzing crash dump files even easier, associate .dmp files with WinDbg. You can then double click them.
Code:
%LocalAppdata%\CrashDumps

Last edited:

My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Stigg's Build
    CPU
    Intel Core i9-10900X
    Motherboard
    GIGABYTE X299X DESIGNARE 10G
    Memory
    Corsair 64 GB (4 x 16 GB) CMW64GX4M4C3000C15 Vengeance RGB Pro 3000Mhz DDR4
    Graphics Card(s)
    GIGABYTE GeForce GTX 1660 Super Mini ITX 6 GB OC
    Sound Card
    Realtek ALC1220
    Monitor(s) Displays
    Samsung 27" FHD LED FreeSync Gaming Monitor (LS27F350FHEXXY)
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsung 970 Pro Series 1TB M.2 2280 NVMe SSD
    Western Digital Red Pro WD8003FFBX-68B9AN0 8 TB, 7200 RPM, SATA-III
    Western Digital Red Pro WD8003FFBX-68B9AN0 8 TB, 7200 RPM, SATA-III
    PSU
    Corsair HX1200 1200W 80 Plus Platinum
    Case
    Fractal Design Define 7 Black Solid Case
    Cooling
    Noctua NH-D15 Chromax Black
    Keyboard
    Razer Ornata V2
    Mouse
    Razer DeathAdder Essential
    Internet Speed
    FTTN 100Mbps / 40Mbps
    Browser
    Mozilla Firefox
    Antivirus
    N/A
    Other Info
    Logitech BRIO 4k Ultra HD USB-C Webcam
  • Operating System
    Windows 10 Pro
    Computer type
    Laptop
    Manufacturer/Model
    ASUS ROG Zephyrus M GM501GS
    CPU
    Core i7-8750H
    Motherboard
    Zephyrus M GM501GS
    Memory
    SK Hynix 32 GB (2 x 16 GB) HMA82GS6CJR8N-VK 16 GB DDR4-2666 DDR4 SDRAM
    Graphics card(s)
    NVIDIA GeForce GTX 1070
    Sound Card
    Realtek ALC294
    Monitor(s) Displays
    AU Optronics B156HAN07.1 [15.6" LCD]
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsung MZVKW512HMJP-00000 512 GB, PCI-E 3.0 x4
    Samsung SSD 860 QVO 4TB 4 TB, SATA-III
    PSU
    N/A
    Case
    N/A
    Cooling
    N/A
    Mouse
    Razer DeathAdder Essential
    Keyboard
    PC/AT Enhanced PS2 Keyboard (101/102-Key)
    Internet Speed
    FTTN 100Mbps / 40Mbps
    Browser
    Mozilla Firefox
    Antivirus
    N/A
    Other Info
    USB2.0 HD UVC Webcam

Kol12

Active member
Member
VIP
Thread Starter
Local time
9:12 PM
Posts
245
OS
Windows 11 - Release Preview channel
You will notice the following command in blue that you can right click and copy and paste into the command line. Paste it into the command line and press "Enter".
Code:
!analyze -v
Everything else will be done for you from there.

View attachment 16829
I left clicked !analyze -v and it started to download a heap[ of files from a server. Is it supposed to be right clicked?


My Computer

System One

  • OS
    Windows 11 - Release Preview channel
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kol's custom ROG Z590
    CPU
    Intel 10900K @ 5.1 Ghz
    Motherboard
    Asus ROG Maximus XIII Hero Z590
    Memory
    Corsair Dominator Platinum RGB 32GB (4x8) OC to 3866Mhz CL 16
    Graphics Card(s)
    Asus ROG Strix 3080 OC edition
    Sound Card
    SoundBlaster X-AE5
    Monitor(s) Displays
    Asus ROG PG349Q 34" 120hz Gysnc
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung 980 Pro 500GB
    860 EVO's
    Adata SX2000 Pro 1TB
    External RAID enclosure - Seagate 3TB HDD's
    PSU
    Seasonic Prime Ultra 1300W Platinum
    Case
    Phanteks Eclipse P600S
    Cooling
    Custom water cooling. EK Velocity (CPU), EK Quantum Vector (GPU), EK Quantum D5 Pump, 360 + 280 mm rads, 3x120mm Corsair LL, 3x 140mm Corsair LL fans
    Keyboard
    Corsair K70 MK.2 SE
    Mouse
    Corsair Dark Core Pro Wireless
    Antivirus
    Windows Defender

Stigg

Well-known member
Power User
VIP
Local time
7:12 PM
Posts
747
OS
Windows 11 Pro
I left clicked !analyze -v and it started to download a heap[ of files from a server. Is it supposed to be right clicked?
Yes, you will see the downloading.
WinDbg is a trusty Microsoft dump file analyzer.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Stigg's Build
    CPU
    Intel Core i9-10900X
    Motherboard
    GIGABYTE X299X DESIGNARE 10G
    Memory
    Corsair 64 GB (4 x 16 GB) CMW64GX4M4C3000C15 Vengeance RGB Pro 3000Mhz DDR4
    Graphics Card(s)
    GIGABYTE GeForce GTX 1660 Super Mini ITX 6 GB OC
    Sound Card
    Realtek ALC1220
    Monitor(s) Displays
    Samsung 27" FHD LED FreeSync Gaming Monitor (LS27F350FHEXXY)
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsung 970 Pro Series 1TB M.2 2280 NVMe SSD
    Western Digital Red Pro WD8003FFBX-68B9AN0 8 TB, 7200 RPM, SATA-III
    Western Digital Red Pro WD8003FFBX-68B9AN0 8 TB, 7200 RPM, SATA-III
    PSU
    Corsair HX1200 1200W 80 Plus Platinum
    Case
    Fractal Design Define 7 Black Solid Case
    Cooling
    Noctua NH-D15 Chromax Black
    Keyboard
    Razer Ornata V2
    Mouse
    Razer DeathAdder Essential
    Internet Speed
    FTTN 100Mbps / 40Mbps
    Browser
    Mozilla Firefox
    Antivirus
    N/A
    Other Info
    Logitech BRIO 4k Ultra HD USB-C Webcam
  • Operating System
    Windows 10 Pro
    Computer type
    Laptop
    Manufacturer/Model
    ASUS ROG Zephyrus M GM501GS
    CPU
    Core i7-8750H
    Motherboard
    Zephyrus M GM501GS
    Memory
    SK Hynix 32 GB (2 x 16 GB) HMA82GS6CJR8N-VK 16 GB DDR4-2666 DDR4 SDRAM
    Graphics card(s)
    NVIDIA GeForce GTX 1070
    Sound Card
    Realtek ALC294
    Monitor(s) Displays
    AU Optronics B156HAN07.1 [15.6" LCD]
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsung MZVKW512HMJP-00000 512 GB, PCI-E 3.0 x4
    Samsung SSD 860 QVO 4TB 4 TB, SATA-III
    PSU
    N/A
    Case
    N/A
    Cooling
    N/A
    Mouse
    Razer DeathAdder Essential
    Keyboard
    PC/AT Enhanced PS2 Keyboard (101/102-Key)
    Internet Speed
    FTTN 100Mbps / 40Mbps
    Browser
    Mozilla Firefox
    Antivirus
    N/A
    Other Info
    USB2.0 HD UVC Webcam

Kol12

Active member
Member
VIP
Thread Starter
Local time
9:12 PM
Posts
245
OS
Windows 11 - Release Preview channel
Yes, you will see the downloading.
WinDbg is a trusty Microsoft dump file analyzer.
What is all the downloading?


My Computer

System One

  • OS
    Windows 11 - Release Preview channel
    Computer type
    PC/Desktop
    Manufacturer/Model
    Kol's custom ROG Z590
    CPU
    Intel 10900K @ 5.1 Ghz
    Motherboard
    Asus ROG Maximus XIII Hero Z590
    Memory
    Corsair Dominator Platinum RGB 32GB (4x8) OC to 3866Mhz CL 16
    Graphics Card(s)
    Asus ROG Strix 3080 OC edition
    Sound Card
    SoundBlaster X-AE5
    Monitor(s) Displays
    Asus ROG PG349Q 34" 120hz Gysnc
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung 980 Pro 500GB
    860 EVO's
    Adata SX2000 Pro 1TB
    External RAID enclosure - Seagate 3TB HDD's
    PSU
    Seasonic Prime Ultra 1300W Platinum
    Case
    Phanteks Eclipse P600S
    Cooling
    Custom water cooling. EK Velocity (CPU), EK Quantum Vector (GPU), EK Quantum D5 Pump, 360 + 280 mm rads, 3x120mm Corsair LL, 3x 140mm Corsair LL fans
    Keyboard
    Corsair K70 MK.2 SE
    Mouse
    Corsair Dark Core Pro Wireless
    Antivirus
    Windows Defender

ish4d0w

Active member
Member
VIP
Local time
11:12 AM
Posts
147
OS
Windows 10
I find WinDbg Preview to be very good.
It is very easy to use, and the results are very clear and easy to read and understand.
Yes, that is the future. It removes some much annoying and unneeded pain from the setup process.
However, as of now, it is not perfect, and you're better off with using the classic WinDBG where you can fine-tune the SDKs with the manual setup.
I agree with the other posters on this.

For the same reason, I am using classic WinDBG too, and NOT the preview/store version.


My Computer

System One

Top Bottom
