CSM support keeps re-enabling itself

GetTheClicker · 2026-07-25T14:34:48-0400

I disable CSM to enable SAM. Resize Bar and Above 4g Coding are on/enabled and they stay that way. Not CSM.

I will disable CSM Support in the bios and SAM does enable but I think whenever I encounter an error it will re-enable itself.
I'm not sure if that's related or is infact the cause.

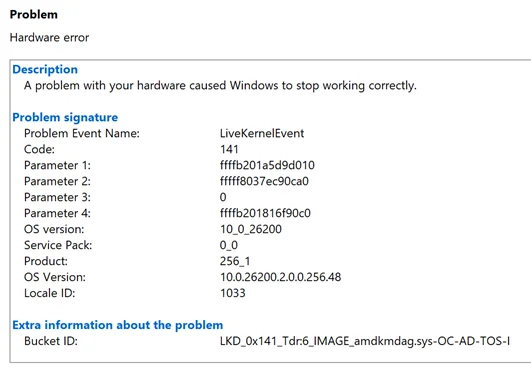

Here is the error I get every couple days. These are clean drivers. I used DDU and the AMDCleanupUtility yet the issue still occurs. The drivers are directly from AMD's website.

siliconbeaver · 2026-07-25T15:04:28-0400

is CMOS battery dying?
or laptop battery dying if a laptop.

GetTheClicker · 2026-07-25T15:34:58-0400

siliconbeaver said:
is CMOS battery dying?
or laptop battery dying if a laptop.

It's a desktop I built. You're probably right... I don't think I've ever changed the CMOS battery in it. Been a good 4 years give or take? I should go look into that!

Ghot · 2026-07-25T15:43:13-0400

GetTheClicker said:
It's a desktop I built. You're probably right... I don't think I've ever changed the CMOS battery in it. Been a good 4 years give or take? I should go look into that!

It's probably not the CMOS battery. If that was going you'd have many more problems than just CSM.
You have a vid card with 24GB vRAM, you probably don't even need Smart Access Memory (SAM).

I have an ASUS x570 board, and it likes CSM enabled. [All my drives are GPT and BIOS is UEFI]

Is there some particular reason you need SAM enabled?

If you insist on changing the CMOS battery, it's a CR 2032 battery.
You can get them almost anywhere. Drug stores, Walmart, Jewelry stores... etc.
The cost about $6 to $8

The CMOS battery in my mobo is over 6 years old, and still going...
The CR2032 batteries are "watch" batteries. They are so common, that they used them in motherboards too.
Because they're watch batteries... they last a loooong time.

$8.99 for a six-pack. (probably last you to the year 2100).

Energizer CR2032 Batteries, 3V Lithium Coin Cell 2032 Watch Battery, (6 Count) - Walmart.com

Buy Energizer CR2032 Batteries, 3V Lithium Coin Cell 2032 Watch Battery, (6 Count) at Walmart.com

www.walmart.com

But as I mentioned above, if it was the CMOS battery going, the BIOS would forget all kinds of things, not just CSM.

zbook · 2026-07-25T16:00:07-0400

1) Please add WMIC:

Code:

DISM /Online /Add-Capability /CapabilityName:WMIC~~~~

Add or Remove WMIC command Feature in Windows 11

This tutorial will show you how to add or remove the WMIC command as an optional feature for all users in Windows 11. The WMI command-line (WMIC) utility provides a command-line interface for Windows Management Instrumentation (WMI). WMIC is compatible with existing shells and utility commands...

www.elevenforum.com

2) Run Tuneup plus > post a share link

https://www.tenforums.com/attachments/bsod-crashes-debugging/360137d1645183388-batch-files-use-bsod-debugging-tuneup_plus_log.bat

Batch files for use in BSOD debugging - Windows 10 Help Forums

Information This thread is for use by the BSOD team to store batch files that can be used to collect additional data, fix settings or anything else that is useful in debugging BSOD problems in Windows 10. The way I see it working is the first

www.tenforums.com

Batch files for use in BSOD debugging - Windows 10 Help Forums

Information This thread is for use by the BSOD team to store batch files that can be used to collect additional data, fix settings or anything else that is useful in debugging BSOD problems in Windows 10. The way I see it working is the first

www.tenforums.com

3) Run the V2 log collector > post a share link

BSOD - Posting Instructions

BSOD - Posting Instructions This will show you how to help provide needed information about your system and dump files. It will not contain any personal or sensitive information about you or your data. To get better help with your Windows BSOD issue, please read these instructions and follow...

www.elevenforum.com

4) Run administrative command prompt: > post share links

wevtutil epl Application "%userprofile%\Desktop\application.evtx"

wevtutil epl System "%userprofile%\Desktop\system.evtx"

GetTheClicker · 2026-07-25T19:31:51-0400

Ghot said:
It's probably not the CMOS battery. If that was going you'd have many more problems than just CSM.
You have a vid card with 24GB vRAM, you probably don't even need Smart Access Memory (SAM).

I have an ASUS x570 board, and it likes CSM enabled. [All my drives are GPT and BIOS is UEFI]

Is there some particular reason you need SAM enabled?

If you insist on changing the CMOS battery, it's a CR 2032 battery.
You can get them almost anywhere. Drug stores, Walmart, Jewelry stores... etc.
The cost about $6 to $8

The CMOS battery in my mobo is over 6 years old, and still going...
The CR2032 batteries are "watch" batteries. They are so common, that they used them in motherboards too.
Because they're watch batteries... they last a loooong time.

View attachment 177549

$8.99 for a six-pack. (probably last you to the year 2100).

Energizer CR2032 Batteries, 3V Lithium Coin Cell 2032 Watch Battery, (6 Count) - Walmart.com

Buy Energizer CR2032 Batteries, 3V Lithium Coin Cell 2032 Watch Battery, (6 Count) at Walmart.com

www.walmart.com

But as I mentioned above, if it was the CMOS battery going, the BIOS would forget all kinds of things, not just CSM.

With sam enabled I get an extra 10-20fps depending on the game I'm playing. Also without SAM I notice micro stutters. Having it enabled makes a noticeable difference which is how I notice when CSM is re-enabled. I did realize if the CMOS battery was bad my BIOS would do a full reset or my computer might not even turn on but still I do think I need to replace it regardless since I think they only have 5 year lifespan? I could be wrong but better safe than no-boot.

Ghot · 2026-07-25T19:44:01-0400

GetTheClicker said:
I think they only have 5 year lifespan?

It's more like ten years, but there's no way to know how long the motherboard sat in the box, before you bought it.

Marie SWE · 2026-07-25T19:53:34-0400

Ghot said:
It's more like ten years, but there's no way to know how long the motherboard sat in the box, before you bought it.

to add.. the lifespan get shorter if the computer is without main-power.
I have a desktop that has my offline backup disks, and i pull the power cable and network cable to protect the disks from powerspikes the lightning can cause.
That desktop eats up an 2032 in about 2 years

Ghot · 2026-07-25T19:56:55-0400

Yep. The CMOS battery is just to hold the BIOS setting for the "brief" time a computer is off.
But if it's off for years... yeah the battery will probably be dead.

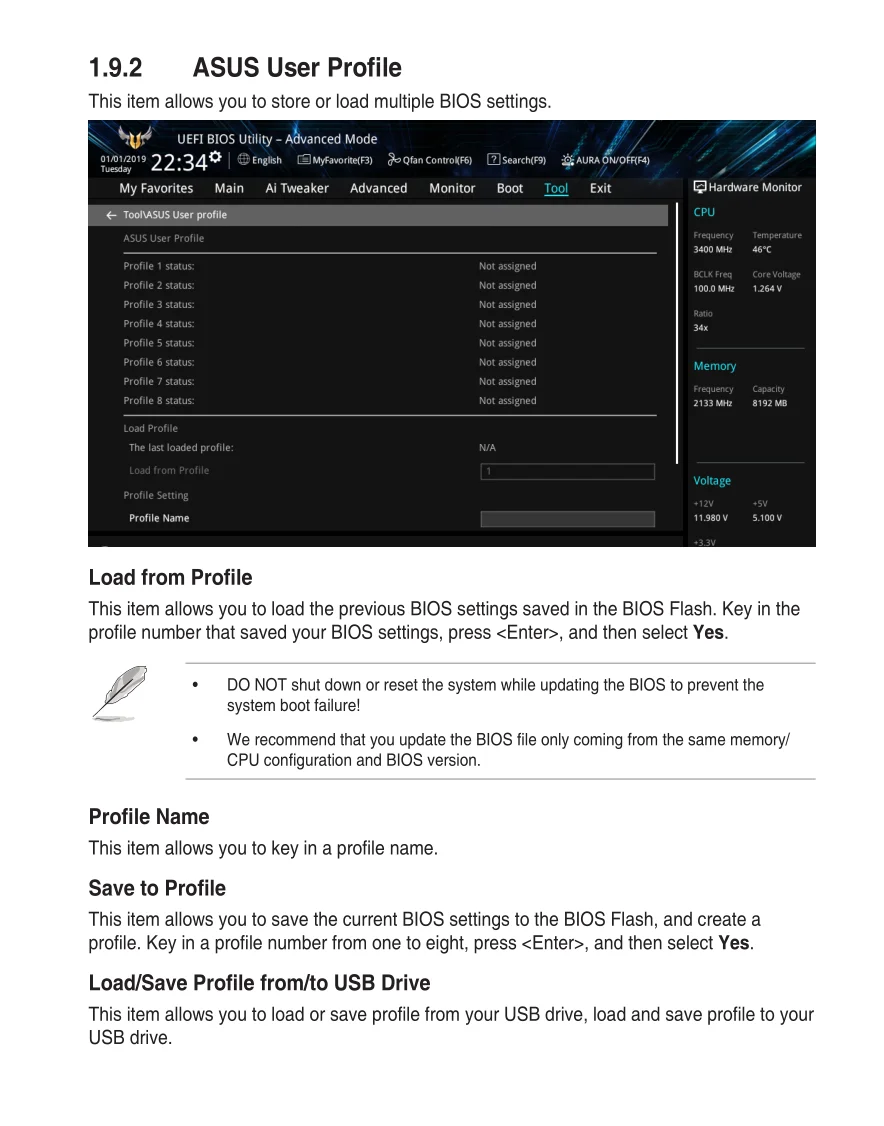

Most BIOSes have a way to save your BIOS settings in a profile.
So if you know the comp will be off for years.. take the battery out.

When you're ready to use the comp again, put the battery in and load the saved profile.

In my BIOS you can save the profile to the BIOS or to a USB stick.
It's found on the Tools tab...

Marie SWE · 2026-07-25T20:03:13-0400

Ghot said:
Yep. The CMOS battery is just to hold the BIOS setting for the "brief" time a computer is off.
But if it's off for years... yeah the battery will probably be dead.

Most BIOSes have a way to save your BIOS settings in a profile.
So if you know the comp will be off for years.. take the battery out.

When you're ready to use the comp again, put the battery in and load the saved profile.

Yeah.. that one only has main power connected when i start it up for the monthly backup sync.. and that is 1-2 hours.. then i unplug it again.
Then on the other side of the coin.... my work desktop i built in 2018 is only without power if there is a short power outage.. that one still have a working battery after 8 years.
