Solved Do I need two recovery partitions?


NavyLCDR

Well-known member
Power User
VIP
Local time
3:53 AM
Posts
1,188
OS
Windows 11
What happens if Windows fails to boot will the troubleshooter screen open to try an automatic boot repair if recovery set to C:?
It works exactly like it does if it is in a partition.

What are benefits of doing this, e.g.,
- cleaner setup
- optimizes disk space (no wasted space in the recovery partition)
Finally, with a good image backup why bother with a recovery environment?
Just a cleaner disk with less partitions. When recovery environment is disabled, the files are stored in C:\Windows\System32\Recovery (or maybe C:\Windows\Recovery, I can't remember). So it might as well be enabled, because it isn't going to save any space by disabling it - unless you manually delete the files.

Everything that recovery environment does, booting from a Windows 10/11 USB flash drive will also do anyway.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

cereberus

Well-known member
Pro User
VIP
Local time
11:53 AM
Posts
3,013
OS
Windows 10 Pro + others in VHDs
It works exactly like it does if it is in a partition.


Just a cleaner disk with less partitions. When recovery environment is disabled, the files are stored in C:\Windows\System32\Recovery (or maybe C:\Windows\Recovery, I can't remember). So it might as well be enabled, because it isn't going to save any space by disabling it - unless you manually delete the files.

Everything that recovery environment does, booting from a Windows 10/11 USB flash drive will also do anyway.
When winre is disabled, winre.wim is temporarily parked in C:\Windows\System32\Recovery.

If winre is reenabled and there is a system recovery partition, winre.wim is moved from above to the recovery partition.

If winre is reenabled and there is not a system recovery partition, winre.wim is moved from above to C:\Recovery

The important thing to remember when messing with recovery partitions is to park winre.wim by running "reagentc \disable" first.

Otherwise, you could end up deleting winre.wim if you delete an active recovery partition in error. Then if you try to reenable winre.wim, it can't as none to re-enable.

PS avoid messing with winre.wim when using dual/multi boot windows pcs. It can get very complicated with versions, locations, and changing one can affect another installation. This is teue with native booting vhds as well.


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

glasskuter

Well-known member
Pro User
VIP
Local time
5:53 AM
Posts
2,957
Location
Paris in the Lone Star State of Texas
OS
Windows 11 Pro 22H2 22621.819
If you will be doing a clean install, ALL partitions should be deleted during the install process making all space on the disk unallocated. Windows should always be installed in unallocated space. Then the install process can properly create the partitions. If you don't believe me see Brink's tutorial. Clean Install Windows 11 Tutorial


My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2 22621.819
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium

man00

Member
Local time
5:53 AM
Posts
52
OS
windows 11
I don't know if it was cleaning up some of the recovery partitions and moving to back of disk or removing the 16mb partitions. But since doing so
I have no more check disk and fixing errors at boot.


My Computer

System One

  • OS
    windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Antec/Case
    CPU
    Intel i5-10600kf
    Motherboard
    GIGABYTE Z590 UD AC
    Memory
    32gb corsair vengerance pro
    Graphics Card(s)
    AMD RX 6500XT
    Sound Card
    onboard
    Monitor(s) Displays
    40" Hisense
    Hard Drives
    Samsung 850
    Samsung 870
    Seagate 2TB
    PSU
    EVGA GQ 750

idainc

Active member
Local time
3:53 AM
Posts
46
OS
windows 11 64
Just for information, when two recovery partitions have been created I just use MiniTool partition wizard. Right clicking the recovery partitions and selecting 'Explore' gives the date and time the recovery partitions were created. Delete the older recovery partition then move/resize partitions as required and all done through the program.

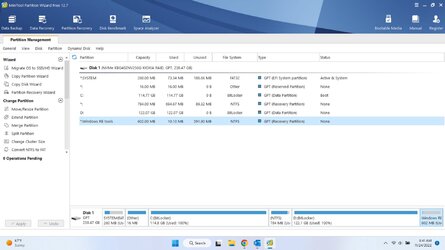

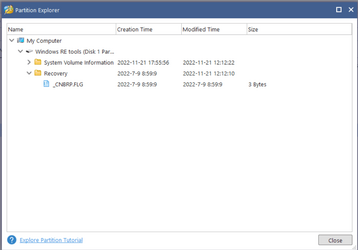

For clarity I've attached two jogs of the recovery partitions I have. Can I safely delete "B" ? Thanks in advance.


Attachments

  • A.jpg
    39.3 KB · Views: 2
  • B.png
    19.2 KB · Views: 2
  • Untitled.jpg
    111.5 KB · Views: 2

My Computer

System One

  • OS
    windows 11 64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Sony SVL24116FXB
    CPU
    i7 3610M
    Memory
    16 GB
    Graphics Card(s)
    Nvidia GeForce 620M
    Monitor(s) Displays
    Sony All in One
    Hard Drives
    WD 256GB SSD
    Keyboard
    USB
    Mouse
    Bluetooth
    Internet Speed
    200 MBS
    Browser
    Chrome
    Antivirus
    MS

zbook

Well-known member
Power User
VIP
Local time
5:53 AM
Posts
1,236
OS
Windows 10
Open administrative command prompt and type or copy and paste:

sfc /scannow
dism /online /cleanup-image /restorehealth
chkdsk /scan
reagentc /info


Type:
ctrl + a
ctrl + c

Paste into this thread typing:
ctrl + v




Open administrative command prompt and type or copy and paste: (all at one time)

diskpart
lis dis
lis vol
sel dis 0
det dis
lis par
sel dis 1
det dis
lis par
sel par 1
det par
sel par 2
det par
sel par 3
det par
sel par 4
det par
sel par 5
det par
sel par 6
det par
sel par 7
det par




Type:
ctrl + a
ctrl + c

Paste into this thread typing:
ctrl + v


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

NavyLCDR

Well-known member
Power User
VIP
Local time
3:53 AM
Posts
1,188
OS
Windows 11
Or run:
reagentc /disable

and then delete both recovery partitions. Whole lot easier.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

idainc

Active member
Local time
3:53 AM
Posts
46
OS
windows 11 64
Or run:
reagentc /disable

and then delete both recovery partitions. Whole lot easier.
Thanks. How can I just delete the last one on the left ? (B) ?


My Computer

System One

  • OS
    windows 11 64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Sony SVL24116FXB
    CPU
    i7 3610M
    Memory
    16 GB
    Graphics Card(s)
    Nvidia GeForce 620M
    Monitor(s) Displays
    Sony All in One
    Hard Drives
    WD 256GB SSD
    Keyboard
    USB
    Mouse
    Bluetooth
    Internet Speed
    200 MBS
    Browser
    Chrome
    Antivirus
    MS

NavyLCDR

Well-known member
Power User
VIP
Local time
3:53 AM
Posts
1,188
OS
Windows 11
Thanks. How can I just delete the last one on the left ? (B) ?
It looks like you have MiniTool Partition Wizard. In MiniTool Partition Wizard, right click on the partition you want to delete and select.....wait for it..... delete. Then don't forget to click the apply button.



My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

NavyLCDR

Well-known member
Power User
VIP
Local time
3:53 AM
Posts
1,188
OS
Windows 11

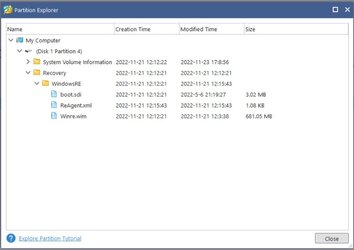

You will notice above that I don't have a standard Windows Recovery partition on my system drive 1. That's because I ran reagentc /disable, then deleted the recovery partition. Then I ran reagentc /enable and the Windows Recovery Environment gets re-installed in a folder under C: drive.

Code:
C:\Windows\System32>reagentc /info
Windows Recovery Environment (Windows RE) and system reset configuration
Information:

    Windows RE status:         Enabled
    Windows RE location:       \\?\GLOBALROOT\device\harddisk1\partition4\Recovery\WindowsRE
    Boot Configuration Data (BCD) identifier: 225258a8-6c40-11ed-a2aa-2c8db1e3769f
    Recovery image location:
    Recovery image index:      0
    Custom image location:
    Custom image index:        0

REAGENTC.EXE: Operation Successful.


C:\Windows\System32>


Last edited:

My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

Winuser

Well-known member
Pro User
VIP
Local time
6:53 AM
Posts
4,065
OS
Windows 11

My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Samsung SAM0A87 Samsung SAM0D32
    Screen Resolution
    1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    PSU
    750 Watts (62.5A)
    Case
    PowerSpec/Lian Li ATX 205
    Keyboard
    Logitech K270
    Mouse
    Logitech M185
    Browser
    Microsoft Edge and Firefox
    Antivirus
    ESET Internet Security
  • Operating System
    Windows 11 Dev
    Computer type
    Laptop
    Manufacturer/Model
    HP Envy x360 15-ds1083cl
    CPU
    AMD Ryzen 7 4700U 2.0GHZ
    Memory
    16 MB DDR 4-2666
    Graphics card(s)
    AMD Radeon
    Monitor(s) Displays
    15.6"
    Screen Resolution
    1920x1080
    Hard Drives
    PCIe NVMe M.2 512GB
    Browser
    Firefox, Edge and Edge Canary
    Antivirus
    ESET Internet Security

NavyLCDR

Well-known member
Power User
VIP
Local time
3:53 AM
Posts
1,188
OS
Windows 11

My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

idainc

Active member
Local time
3:53 AM
Posts
46
OS
windows 11 64
Thanks. How can I just delete the last one on the left ? (B) ?
Sorry folks. Mimosas here too. I meant the last partition on the right. (B).


My Computer

System One

  • OS
    windows 11 64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Sony SVL24116FXB
    CPU
    i7 3610M
    Memory
    16 GB
    Graphics Card(s)
    Nvidia GeForce 620M
    Monitor(s) Displays
    Sony All in One
    Hard Drives
    WD 256GB SSD
    Keyboard
    USB
    Mouse
    Bluetooth
    Internet Speed
    200 MBS
    Browser
    Chrome
    Antivirus
    MS

NavyLCDR

Well-known member
Power User
VIP
Local time
3:53 AM
Posts
1,188
OS
Windows 11
Sorry folks. Mimosas here too. I meant the last partition on the right. (B).
Same answer. Right click on it in MiniTool Partition Wizard and select delete.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

idainc

Active member
Local time
3:53 AM
Posts
46
OS
windows 11 64
Thanks. Done. Much appreciate the help.


My Computer

System One

  • OS
    windows 11 64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Sony SVL24116FXB
    CPU
    i7 3610M
    Memory
    16 GB
    Graphics Card(s)
    Nvidia GeForce 620M
    Monitor(s) Displays
    Sony All in One
    Hard Drives
    WD 256GB SSD
    Keyboard
    USB
    Mouse
    Bluetooth
    Internet Speed
    200 MBS
    Browser
    Chrome
    Antivirus
    MS

ThrashZone

Minor Threat
Power User
VIP
Local time
5:53 AM
Posts
1,189
OS
Linux-Mint-Cinnamon-20.2 Win-7-10-11Pro's
Thanks. Done. Much appreciate the help.
Hi,
If you enlarge the one you left alone windows will stop creating another after large updates
Hell just make it 1gb and be done with it for a long while.

Could of also just merged it with the one after you deleted the older.


My Computer

System One

  • OS
    Linux-Mint-Cinnamon-20.2 Win-7-10-11Pro's
    Computer type
    PC/Desktop
    Manufacturer/Model
    asus x3
    CPU
    10900k & 9940x & 5930k
    Motherboard
    z490-Apex & x299-Apex & x99-Sabertooth
    Memory
    Trident-Z Royal 4000c16 2x16gb & Trident-Z 3600c16 4x8gb & 3200c14 4x8gb
    Graphics Card(s)
    Titan Xp & 1080ti FTW3 & evga 980ti gaming
    Sound Card
    Onboard Realtek x3
    Monitor(s) Displays
    1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
    Screen Resolution
    1920-1080 not sure what the t.v is besides 43" class scales from 1920-1080 perfectly
    Hard Drives
    To many to list
    PSU
    1000p2 & 1200p2 & 850p2
    Case
    D450 x2 & 1 Test bench in cherry Entertainment center
    Cooling
    Custom water loops x3 with 2x mora 360mm rads only 980ti gaming air cooled
    Keyboard
    G710+x3
    Mouse
    Redragon x3
    Internet Speed
    xfinity gigabyte
    Browser
    Firefox
    Antivirus
    mbam pro

Latest Support Threads

Top Bottom
