I have a new Dell inspiration 3891 desktop running Windows 11 Pro.
I would like to add a second operating system to make it a dual boot system.
I have a new Windows 10 Pro disk that I purchased just before my HP desktop crashed and was told that the motherboard was no good.

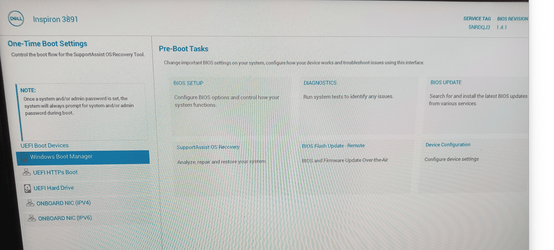

I tried to go into the different function keys to try to figure it out, but the keys are completely then what I am used to.
Any help would be greatly appreciated.

Thanks


My Computer

System One

  • OS
    windows 11 pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    dell
    CPU
    intel core i7-11700f
    Memory
    12 gb
    Monitor(s) Displays
    3
    Hard Drives
    256
    Keyboard
    wireless
    Mouse
    wireless
    Internet Speed
    50 mb

cereberus

Well-known member
Power User
VIP
Local time
11:57 AM
Posts
1,715
OS
Windows 10 Pro + others in VHDs
Install from scratch from a usb installation drive.


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

CornishRattler

Well-known member
Power User
VIP
Local time
11:57 AM
Posts
1,535
Location
Cornwall UK
OS
Windows 11 Pro Beta, 11 Dev, W10 VHDX Triple Boot


My Computer

System One

  • OS
    Windows 11 Pro Beta, 11 Dev, W10 VHDX Triple Boot
    Computer type
    Laptop
    Manufacturer/Model
    Dell Alienware M15 Ryzen Edition R6
    CPU
    AMD Ryzen™ 9 5900HX
    Memory
    32GB
    Graphics Card(s)
    NVIDIA® GeForce RTX™ 3070 8GB GDDR6
    Hard Drives
    1 x Samsung 980 Pro 1TB
    1 x Samsung 970 Evo Plus 1TB

NavyLCDR

Well-known member
Power User
VIP
Local time
3:57 AM
Posts
820
OS
Windows 11
One way to do it is to create a partition for the second OS (Windows 10). Use DISM to apply a Windows image from install.wim or install.esd (in the sources folder) to the partition created. Then use BCDBOOT command to add the new Windows to the boot menu.

You can also create the partition for the second OS, then boot the computer from the install media (DVD or USB flash drive) for the second OS and pick the partition you created to install to. Dual booting should be set up automatically as part of the install process.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

zbook

Well-known member
Power User
VIP
Local time
5:57 AM
Posts
930
OS
Windows 10
1) Post images or share links of Disk Management:
a) Widen these columns: Volume and Status > make sure that no characters are cut off
b) Widen these rows: Disk 0, disk 1, etc. > make sure that no characters are cut off




2) Run:







For share links please use one drive, drop box, or google drive


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

spapakons

Well-known member
Power User
Local time
1:57 PM
Posts
776
Location
Athens
OS
Windows 11 Pro 21H2 64-bit (build 22000.282)
If I understand it correctly, you have a Windows 11 desktop computer and you want to connect a Windows 10 disk and dual boot. I would connect the old hard disk in a spare SATA port and configure boot priority in BIOS so my Windows 11 disk is first and boot to Windows 11 by default. Now you either press F12 or F11 or F8 (consult your motherboard manual) to open boot selection and select the old disk to boot in Windows 10, or you add a boot entry in Windows Boot Manager to run Windows 10. The first option works with mixed UEFI/Legacy installations. The boot entry method only works for same type (both UEFI or both Legacy BIOS) installations. To add a new entry without using the cumbersome bcdedit command, you can use a utility such as EasyBCD (or EasyUEFI for UEFI installations).


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 64-bit (build 22000.282)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    This is my test laptop, not fully updated yet. For my main PC I use everyday see my 2nd system specs
  • Operating System
    Windows 11 Pro v21H2 (build 22000.675)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Asus GT620-1GD3 (nVidia GeForce GT 620 1GB DDR3)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    Patriot Burst Elite 480GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Stock Intel CPU Fan, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 2.3 graphics drivers, WEI score 5.1

NavyLCDR

Well-known member
Power User
VIP
Local time
3:57 AM
Posts
820
OS
Windows 11
The boot entry method only works for same type (both UEFI or both Legacy BIOS) installations.
That is not true. You can mix and match in the Windows boot menu.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

junieman

New member
Thread Starter
Local time
6:57 AM
Posts
10
OS
windows 11 pro
I have new OS CD (on the cd = E drive).
I would like to create the new OS on my "D" data drive without it effecting the OS on my "C" drive.
How do I get the system to load from the CD drive and install the new OS on the "D" drive?
I guess I have to use the EASYUEFI software for the dual boot.


Attachments

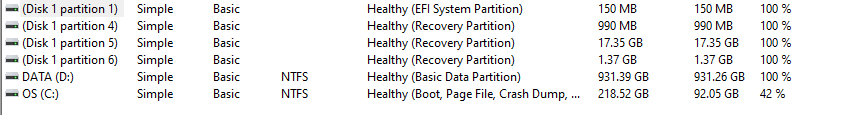

  • DISK MGMT.png
    DISK MGMT.png
    4.4 KB · Views: 2

My Computer

System One

  • OS
    windows 11 pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    dell
    CPU
    intel core i7-11700f
    Memory
    12 gb
    Monitor(s) Displays
    3
    Hard Drives
    256
    Keyboard
    wireless
    Mouse
    wireless
    Internet Speed
    50 mb

spapakons

Well-known member
Power User
Local time
1:57 PM
Posts
776
Location
Athens
OS
Windows 11 Pro 21H2 64-bit (build 22000.282)
Assuming the C drive has Windows, the safest would be to load Windows from C and run Windows Setup. Then you select the second option Advanced where you can select to install Windows on D drive. Windows Setup will add a new entry in Windows Boot Loader to select between the original Windows and the new.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 64-bit (build 22000.282)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    This is my test laptop, not fully updated yet. For my main PC I use everyday see my 2nd system specs
  • Operating System
    Windows 11 Pro v21H2 (build 22000.675)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Asus GT620-1GD3 (nVidia GeForce GT 620 1GB DDR3)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    Patriot Burst Elite 480GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Stock Intel CPU Fan, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 2.3 graphics drivers, WEI score 5.1

AddRAM

This is the way !
Power User
VIP
Local time
6:57 AM
Posts
635
Location
Mandalore
OS
Windows 11 Pro
First thing`s first.
Is D a drive or a partition ? D looks like a 1TB drive, yes ?
But either way is simple, you just choose the D Drive to install W10 on when you start the install.
Do you have any actual data on this Data drive ?

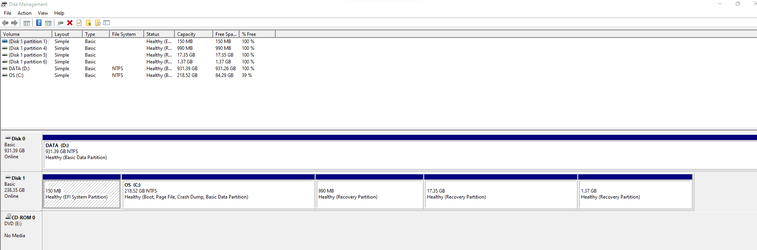

A full shot of Disk Management would be better before you go any further.

Last edited:

My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Skylake Special X299
    CPU
    Intel Core i9 9900X
    Motherboard
    Asus ROG Strix X299-E Gaming II
    Memory
    GSkill Trident Z RGB 32GB 3600 16-16-16-36 (F4-3600C16Q-32GTZR)
    Graphics Card(s)
    EVGA RTX 3080 12GB FTW3 Ultra Gaming (12G-P5-4877-KL)
    Sound Card
    Supreme FX
    Monitor(s) Displays
    Asus PG279Q
    Screen Resolution
    2560 x 1440 165Hz
    Hard Drives
    Samsung 980 Pro 500GB x2, Seagate Barracuda 4TB x2, Western Digital Black 4TB x1
    PSU
    EVGA 1200 P2, EVGA Black Custom Braided Cables
    Case
    Thermaltake View 31 Tempered Glass Limited Edition
    Cooling
    Corsair H115i, Thermal Grizzly Kryonaut
    Keyboard
    Logitech G910 Orion Spark
    Mouse
    Logitech G700s, Asus ROG GX860 Buzzard
    Internet Speed
    Verizon Fios Quantum Gateway 75/75
    Browser
    Edge
    Antivirus
    Windows Defender, Malwarebytes 4.5.2
    Other Info
    Thermaltake Riing Duo 14 x3, Thermaltake Riing Plus 14 x2, Corsair HS70 Pro Wireless Headset
  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Skylake Special Z170
    CPU
    Intel Core i7 6700K
    Motherboard
    Asus Sabertooth Z170 Mark 1
    Memory
    GSkill Trident Z RGB 16GB 3600 16-16-16-36 (F4-3600C16D-16GTZR)
    Graphics card(s)
    EVGA GTX 980 Ti SC x2, EVGA Pro SLI Bridge
    Sound Card
    Realtek High Definition
    Monitor(s) Displays
    AOC G2460PG
    Screen Resolution
    1920 x 1080 144Hz
    Hard Drives
    Samsung 870 Evo 500GB, Seagate Barracuda 4TB x2
    PSU
    EVGA 1000 P2, EVGA White Custom Braided Cables
    Case
    Corsair Vengeance C70 Gunmetal Black
    Cooling
    Corsair H100i v2, Corsair ML120 x2, Thermal Grizzly Kryonaut
    Mouse
    Logitech G500s
    Keyboard
    Logitech G910 Orion Spectrum
    Internet Speed
    Verizon Fios Quantum Gateway 75/75
    Browser
    Edge
    Antivirus
    Windows Defender, Malwarebytes 4.5.2
    Other Info
    Corsair SP120 x4, LG Blu-ray Drive, Durabrand HT-395 100 Watt Dolby Digital Amp

spapakons

Well-known member
Power User
Local time
1:57 PM
Posts
776
Location
Athens
OS
Windows 11 Pro 21H2 64-bit (build 22000.282)
It doesn't make any difference if the D drive is a partition on the same disk or a separate disk, the procedure is the same. If it is formatted as FAT32, convert to NTFS before installing Windows. If it is already in NTFS, choose the partition and proceed without formatting, so you won't lose any existing data.

PS: of course we are talking about a disk installed inside the computer, you are not allowed to install Windows on an external USB or FireWire disk (at least not with the usual method).


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 64-bit (build 22000.282)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    This is my test laptop, not fully updated yet. For my main PC I use everyday see my 2nd system specs
  • Operating System
    Windows 11 Pro v21H2 (build 22000.675)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Asus GT620-1GD3 (nVidia GeForce GT 620 1GB DDR3)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    Patriot Burst Elite 480GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Stock Intel CPU Fan, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 2.3 graphics drivers, WEI score 5.1

AddRAM

This is the way !
Power User
VIP
Local time
6:57 AM
Posts
635
Location
Mandalore
OS
Windows 11 Pro
You are correct :)


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Skylake Special X299
    CPU
    Intel Core i9 9900X
    Motherboard
    Asus ROG Strix X299-E Gaming II
    Memory
    GSkill Trident Z RGB 32GB 3600 16-16-16-36 (F4-3600C16Q-32GTZR)
    Graphics Card(s)
    EVGA RTX 3080 12GB FTW3 Ultra Gaming (12G-P5-4877-KL)
    Sound Card
    Supreme FX
    Monitor(s) Displays
    Asus PG279Q
    Screen Resolution
    2560 x 1440 165Hz
    Hard Drives
    Samsung 980 Pro 500GB x2, Seagate Barracuda 4TB x2, Western Digital Black 4TB x1
    PSU
    EVGA 1200 P2, EVGA Black Custom Braided Cables
    Case
    Thermaltake View 31 Tempered Glass Limited Edition
    Cooling
    Corsair H115i, Thermal Grizzly Kryonaut
    Keyboard
    Logitech G910 Orion Spark
    Mouse
    Logitech G700s, Asus ROG GX860 Buzzard
    Internet Speed
    Verizon Fios Quantum Gateway 75/75
    Browser
    Edge
    Antivirus
    Windows Defender, Malwarebytes 4.5.2
    Other Info
    Thermaltake Riing Duo 14 x3, Thermaltake Riing Plus 14 x2, Corsair HS70 Pro Wireless Headset
  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Skylake Special Z170
    CPU
    Intel Core i7 6700K
    Motherboard
    Asus Sabertooth Z170 Mark 1
    Memory
    GSkill Trident Z RGB 16GB 3600 16-16-16-36 (F4-3600C16D-16GTZR)
    Graphics card(s)
    EVGA GTX 980 Ti SC x2, EVGA Pro SLI Bridge
    Sound Card
    Realtek High Definition
    Monitor(s) Displays
    AOC G2460PG
    Screen Resolution
    1920 x 1080 144Hz
    Hard Drives
    Samsung 870 Evo 500GB, Seagate Barracuda 4TB x2
    PSU
    EVGA 1000 P2, EVGA White Custom Braided Cables
    Case
    Corsair Vengeance C70 Gunmetal Black
    Cooling
    Corsair H100i v2, Corsair ML120 x2, Thermal Grizzly Kryonaut
    Mouse
    Logitech G500s
    Keyboard
    Logitech G910 Orion Spectrum
    Internet Speed
    Verizon Fios Quantum Gateway 75/75
    Browser
    Edge
    Antivirus
    Windows Defender, Malwarebytes 4.5.2
    Other Info
    Corsair SP120 x4, LG Blu-ray Drive, Durabrand HT-395 100 Watt Dolby Digital Amp

junieman

New member
Thread Starter
Local time
6:57 AM
Posts
10
OS
windows 11 pro
See attached for my bios setup. It is a lot different than what I am used to.
What do I click on to get the system to boot from my cd drive and put the OS on my d drive (which is completely empty).


Attachments

  • DELL BOOT MENU.png
    DELL BOOT MENU.png
    375.4 KB · Views: 3

My Computer

System One

  • OS
    windows 11 pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    dell
    CPU
    intel core i7-11700f
    Memory
    12 gb
    Monitor(s) Displays
    3
    Hard Drives
    256
    Keyboard
    wireless
    Mouse
    wireless
    Internet Speed
    50 mb

spapakons

Well-known member
Power User
Local time
1:57 PM
Posts
776
Location
Athens
OS
Windows 11 Pro 21H2 64-bit (build 22000.282)
See attached for my bios setup. It is a lot different than what I am used to.
What do I click on to get the system to boot from my cd drive and put the OS on my d drive (which is completely empty).
If I remember correctly, you have to press F12 on first boot screen to open the boot selection menu. Press it several times to make sure it worked. If it is a laptop you may have to press FN+F12 instead, depending on BIOS configuration (if F1-F12 keys have priority or the other functions). In some systems, it takes several seconds to show anything on the screen when first switched on. To make sure you bypassed boot sequence you have to press F12 (or FN+F12) immediately after switching on, don't wait for the screen, it could be too late.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 64-bit (build 22000.282)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    This is my test laptop, not fully updated yet. For my main PC I use everyday see my 2nd system specs
  • Operating System
    Windows 11 Pro v21H2 (build 22000.675)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Asus GT620-1GD3 (nVidia GeForce GT 620 1GB DDR3)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    Patriot Burst Elite 480GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Stock Intel CPU Fan, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 2.3 graphics drivers, WEI score 5.1

zbook

Well-known member
Power User
VIP
Local time
5:57 AM
Posts
930
OS
Windows 10

My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

spapakons

Well-known member
Power User
Local time
1:57 PM
Posts
776
Location
Athens
OS
Windows 11 Pro 21H2 64-bit (build 22000.282)
Bingo! Dell is F12 (or FN+F12). I remembered correctly.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 64-bit (build 22000.282)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    This is my test laptop, not fully updated yet. For my main PC I use everyday see my 2nd system specs
  • Operating System
    Windows 11 Pro v21H2 (build 22000.675)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Asus GT620-1GD3 (nVidia GeForce GT 620 1GB DDR3)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    Patriot Burst Elite 480GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Stock Intel CPU Fan, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 2.3 graphics drivers, WEI score 5.1

junieman

New member
Thread Starter
Local time
6:57 AM
Posts
10
OS
windows 11 pro
I know that the F12 works to get to the Bios.
Please look at the attachment in my post from Wednesday @3:44 pm to review the bios so that I know how to access to correct area to install the new OS.


My Computer

System One

  • OS
    windows 11 pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    dell
    CPU
    intel core i7-11700f
    Memory
    12 gb
    Monitor(s) Displays
    3
    Hard Drives
    256
    Keyboard
    wireless
    Mouse
    wireless
    Internet Speed
    50 mb

zbook

Well-known member
Power User
VIP
Local time
5:57 AM
Posts
930
OS
Windows 10
When available please update the progress with the steps in post #5.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

junieman

New member
Thread Starter
Local time
6:57 AM
Posts
10
OS
windows 11 pro
I am enclosing the disk management screen shot and the Dell boot menu screen shot.
WHat option do I click on to get t the CD drive to install the new OS?DISK MANAGEMENT.pngDISK MANAGEMENT.pngDELL BOOT MENU.png


My Computer

System One

  • OS
    windows 11 pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    dell
    CPU
    intel core i7-11700f
    Memory
    12 gb
    Monitor(s) Displays
    3
    Hard Drives
    256
    Keyboard
    wireless
    Mouse
    wireless
    Internet Speed
    50 mb

NavyLCDR

Well-known member
Power User
VIP
Local time
3:57 AM
Posts
820
OS
Windows 11
You don't need to boot from the DVD. See first suggestion in post #4.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!
Top Bottom
