Privacy and Security Enable or Disable Core Isolation Memory Integrity in Windows 11


  • Staff

This tutorial will show you how to turn on or off core isolation memory integrity in Windows 11.

Core isolation is a security feature of Microsoft Windows that protects important core processes of Windows from malicious software by isolating them in memory. It does this by running those core processes in a virtualized environment.

Memory integrity, also known as Hypervisor-protected Code Integrity (HVCI) is a Windows security feature that makes it difficult for malicious programs to use low-level drivers to hijack your computer. It is designed to prevent attacks from inserting malicious code into high-security processes.

A driver is a piece of software that lets the operating system (Windows in this case) and a device (like a keyboard or a webcam, for two examples) talk to each other. When the device wants Windows to do something it uses the driver to send that request.

Memory integrity works by creating an isolated environment using hardware virtualization.

In most cases memory integrity is on by default in Windows 11.

References:

In the most recent Insider Preview builds, Windows will notify the user that the Memory integrity feature is currently turned off so that action can be taken for the user to turn it back on so that their device is as secure as possible against malicious attacks.


You must be signed in as an administrator to turn on or off core isolation memory integrity.

Core isolation memory integrity requires CPU virtualization turned on.



Contents

  • Option One: Turn On or Off Core Isolation Memory Integrity in Windows Security
  • Option Two: Turn On or Off Core Isolation Memory Integrity using REG file




Option One

Turn On or Off Core Isolation Memory Integrity in Windows Security


1 Open Windows Security.

2 Click/tap on Device security on the left side, and click/tap on the Core isolation details link on the right side. (see screenshot below)


3 Turn on (default) or off Memory integrity for what you want. (see screenshot below)

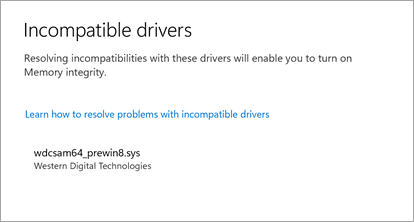

If memory integrity fails to turn on it may tell you that you have an incompatible device driver already installed. Check with the manufacturer of the device to see if they have an updated driver available. If they don’t have compatible driver available, you might be able to remove the device or app that uses that incompatible driver. Otherwise, you can uninstall any incompatible drivers.

Uninstall Driver in Windows 11


Note: If you try to install a device with an incompatible driver after turning on memory integrity, you may see the same message. If so, the same advice applies - check with the device manufacturer to see if they have an updated driver you can download, or don’t install that particular device until a compatible driver is available.



4 If prompted by UAC, click/tap on Yes to approve.

5 Restart the computer to apply. (see screenshots below)





Option Two

Turn On or Off Core Isolation Memory Integrity using REG file


1 Do step 2 (on) or step 3 (off) below for what you want.

2 Turn On Core Isolation Memory Integrity

This is the default setting.


A) Click/tap on the Download button below to download the REG file below, and go to step 4 below.​

Turn_ON_Core_isolation_Memory_integrity.reg


(Contents of REG file for reference)
Code:
Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\DeviceGuard\Scenarios\HypervisorEnforcedCodeIntegrity]
"Enabled"=dword:00000001

3 Turn Off Core Isolation Memory Integrity

A) Click/tap on the Download button below to download the REG file below, and go to step 4 below.​

Turn_OFF_Core_isolation_Memory_integrity.reg


(Contents of REG file for reference)
Code:
Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\DeviceGuard\Scenarios\HypervisorEnforcedCodeIntegrity]
"Enabled"=dword:00000000

4 Save the .reg file to your desktop.

5 Double click/tap on the downloaded .reg file to merge it.

6 When prompted, click/tap on Run, Yes (UAC), Yes, and OK to approve the merge.

7 Restart the computer to apply.

8 You can now delete the downloaded .reg file if you like.


That's it,
Shawn Brink




Attachments

  • Windows_Security.png
    6 KB · Views: 184
  • Turn_OFF_Core_isolation_Memory_integrity.reg
    702 bytes · Views: 291
  • Turn_ON_Core_isolation_Memory_integrity.reg
    702 bytes · Views: 246
Last edited:
Hello Rick,

Memory Integrity will not turn on with incompatible drivers. :(
Hi Brink. Will pushing the regkey cause any issues to those machines with incompatible drivers? I'd wouldn't want my co-workers to get any additional messages or have some other issues.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
Hi Brink. Will pushing the regkey cause any issues to those machines with incompatible drivers? I'd wouldn't want my co-workers to get any additional messages or have some other issues.

It shouldn't, but Memory Integrity will not turn on if there are any incompatible drivers.


My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING (11GB GDDR5X)
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1 14-eu0098nr (2024)
    CPU
    Intel Core Ultra 7 155H 4.8 GHz
    Memory
    16 GB LPDDR5x-7467 MHz
    Graphics card(s)
    Integrated Intel Arc
    Sound Card
    Poly Studio
    Monitor(s) Displays
    14" 2.8K OLED multitouch
    Screen Resolution
    2880 x 1800
    Hard Drives
    2 TB PCIe NVMe M.2 SSD
    Internet Speed
    Intel Wi-Fi 7 BE200 (2x2) and Bluetooth 5.4
    Browser
    Chrome and Edge
    Antivirus
    Windows Defender and Malwarebytes Premium
I went to HP's web site to see if i had any drivers that needed to be updated. I had 4 that HP updated & then i went back and checked again, none were bad so HP said but when i went to see if Memory Integrity could be turned on, nope same message as reported about bad drivers !!! Guess i am going to mark this as unsolved in my books !!


My Computer

System One

  • OS
    Windows11 23H2 (OS Build 22631.2428)
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP HP ENVY TE01
    CPU
    2.90 gigahertz Intel Core i7-10700
    Motherboard
    Board: HP 8767 A (SMVB)
    Memory
    16214 Megabytes Usable Installed Memor
    Hard Drives
    1511.52 Gigabytes Usable Hard Drive Capacity
    1418.15 Gigabytes Hard Drive Free Space
    Keyboard
    Logitech wireless
    Mouse
    M 185 wireless
    Internet Speed
    12 ms Jitter 8 ms Download 10.5 Mbps Upload 1.7
    Browser
    Edge & FF
    Antivirus
    Windows Defender
I went to HP's web site to see if i had any drivers that needed to be updated. I had 4 that HP updated & then i went back and checked again, none were bad so HP said but when i went to see if Memory Integrity could be turned on, nope same message as reported about bad drivers !!! Guess i am going to mark this as unsolved in my books !!
May be old versions and/or HP has not updated them.

I had several .sys drivers listed with different version numbers from old, no longer used, hardware. And some old versions of current devices that were not removed when updated drivers were installed. Doing a search several versions of a couple drivers were found. I only deleted the version that was flagged.


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 16 5630
    CPU
    i7 1360P
    Motherboard
    Dell
    Memory
    16GB
    Graphics Card(s)
    Intel CPU
    Sound Card
    Realtek
    Monitor(s) Displays
    16" Touch Screen
    Screen Resolution
    1920X1080
    Hard Drives
    1TB Samsung NVME SSD
    PSU
    65 Watt Dell
    Case
    Dell
    Cooling
    Dell
    Keyboard
    Dell
    Mouse
    Trackpad
    Internet Speed
    Google Fiber
    Browser
    Edge
    Antivirus
    Defender and Malwarebytes
    Other Info
    Cakewalk by Bandlab and Presonus Studio One 4.6 Pro recording programs. MOTU recording interface
Everything has been updated including drivers !!

Chuck


My Computer

System One

  • OS
    Windows11 23H2 (OS Build 22631.2428)
    Computer type
    PC/Desktop
    Manufacturer/Model
    HP HP ENVY TE01
    CPU
    2.90 gigahertz Intel Core i7-10700
    Motherboard
    Board: HP 8767 A (SMVB)
    Memory
    16214 Megabytes Usable Installed Memor
    Hard Drives
    1511.52 Gigabytes Usable Hard Drive Capacity
    1418.15 Gigabytes Hard Drive Free Space
    Keyboard
    Logitech wireless
    Mouse
    M 185 wireless
    Internet Speed
    12 ms Jitter 8 ms Download 10.5 Mbps Upload 1.7
    Browser
    Edge & FF
    Antivirus
    Windows Defender
Currently, only by uninstalling the incompatible drivers. :(

Thank you for responding, Brink. I guess I just don't understand why selecting Dismiss through Windows Security doesn't turn off the warning messages. What's the purpose, then, of the Dismiss option? It seems to be a very temporary setting that Windows refuses to save or remember, so why bother offering it?


My Computer

System One

  • OS
    Windows 11 Pro
Okay, the greatest mystery I have is when I look something up, It never looks like the menus, shown in the tutorial. I Don't get it Windows 11 should be the same menus as all. Look at mine. Not the same format as what is shown in this tutorial.


in addition the app does not open from here, Spam them nothing.



Also the buttons are not CLICKABLE


SO question is still on the table and NOT addressed by this THREAD. Anyone help?

Last edited:

My Computer

System One

  • OS
    win11
, the greatest mystery I have is when I look something up, It never looks like the menus, shown in the tutorial. I Don't get it Windows 11 should be the same menus as all. Look at mine. Not the same format as what is shown in this tutorial.
Welcome to Eleven Forum.

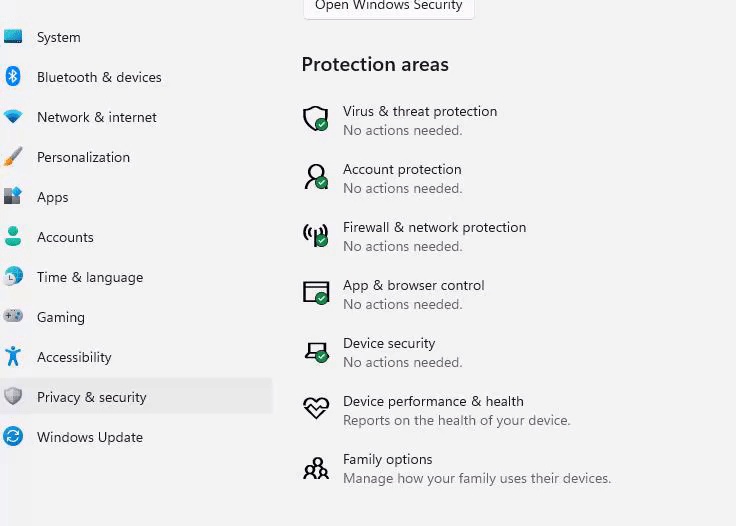

What your screenshot shows is the Windows Settings app. What will be in the tutorial are screenshots of the Windows Security app.

Now it should be possible to open the Windows Security app from Settings, and clicking on each item as you did in the Gyazo video should do that, as should clicking on the 'Open Windows Security' button at the top of that page.

Something may disabling your Windows Security app. That could be a 3rd party AV, either currently installed or previously installed but not fully uninstalled. If so then each 3rd party AV has an uninstall tool available on their website that can remove remnants left behind after a conventional uninstall. If you still cannot open Windows Security then you may need to reset it.



My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Internet Speed
    50 Mbps
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022. It got the 23H2 Feature Update on 4th November 2023 through Windows Update.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro (and all my Hyper-V VMs).

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 256GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro RTM and Insider Beta as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro, plus the Insider Beta, Dev, and Canary builds as a native boot .vhdx.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    Intel® Core™ i5-520M
    Motherboard
    0T6M8G
    Memory
    8GB
    Graphics card(s)
    (integrated graphics) Intel HD Graphics
    Screen Resolution
    1366x768
    Hard Drives
    500GB Crucial MX500 SSD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround. Feature Update to 23H2 by manually installing the Enablement Package.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro (and all my Hyper-V VMs).

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 256GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro RTM and Insider Beta as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro, plus the Insider Beta, Dev, and Canary builds as a native boot .vhdx.
Hello Rick,

Memory Integrity will not turn on with incompatible drivers. :(

For some reason, enabling it through the registry turns it on after reboot. Its greyed out though and managed by your administrator.

Meaning me!:winkt:


My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2
    Computer type
    Laptop
    Manufacturer/Model
    Microsoft Surface Pro 3
    CPU
    Intel® Core™ i5-4300U
    Motherboard
    Microsoft
    Memory
    First: 4 GB DDR Second: 8 GB DDR
    Graphics Card(s)
    Intel HD Family Graphics
    Sound Card
    Realtek High Audio
    Hard Drives
    First: Samsung 128 GB SSD Second: Samsung 256 GB SSD
    Keyboard
    First: Artec Bluetooth 3.0 Second: Type Cover
    Mouse
    Microsoft Surface Mobile
    Antivirus
    Kaspersky Free/WiseVector StopX
  • Operating System
    Windows 11 Pro 24H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Zbook 14 G2
    CPU
    i7-5500U
    Memory
    8 RAM DDR3L
    Graphics card(s)
    Intel HD Graphics 5500 Discrete Graphics AMD FirePro M4150
    Sound Card
    Realtek High Definition Audio
    Hard Drives
    Toshiba 1TB
Currently, only by uninstalling the incompatible drivers. :(

It wanted me to remove my Intel graphics driver. When I enabled it through the registry, it seemed to be able to live with the graphics driver!
There are things Memory Integrity should block by default but your graphics driver shouldn't be among them.


My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2
    Computer type
    Laptop
    Manufacturer/Model
    Microsoft Surface Pro 3
    CPU
    Intel® Core™ i5-4300U
    Motherboard
    Microsoft
    Memory
    First: 4 GB DDR Second: 8 GB DDR
    Graphics Card(s)
    Intel HD Family Graphics
    Sound Card
    Realtek High Audio
    Hard Drives
    First: Samsung 128 GB SSD Second: Samsung 256 GB SSD
    Keyboard
    First: Artec Bluetooth 3.0 Second: Type Cover
    Mouse
    Microsoft Surface Mobile
    Antivirus
    Kaspersky Free/WiseVector StopX
  • Operating System
    Windows 11 Pro 24H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Zbook 14 G2
    CPU
    i7-5500U
    Memory
    8 RAM DDR3L
    Graphics card(s)
    Intel HD Graphics 5500 Discrete Graphics AMD FirePro M4150
    Sound Card
    Realtek High Definition Audio
    Hard Drives
    Toshiba 1TB
:shawn:


My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING (11GB GDDR5X)
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1 14-eu0098nr (2024)
    CPU
    Intel Core Ultra 7 155H 4.8 GHz
    Memory
    16 GB LPDDR5x-7467 MHz
    Graphics card(s)
    Integrated Intel Arc
    Sound Card
    Poly Studio
    Monitor(s) Displays
    14" 2.8K OLED multitouch
    Screen Resolution
    2880 x 1800
    Hard Drives
    2 TB PCIe NVMe M.2 SSD
    Internet Speed
    Intel Wi-Fi 7 BE200 (2x2) and Bluetooth 5.4
    Browser
    Chrome and Edge
    Antivirus
    Windows Defender and Malwarebytes Premium
There are things Memory Integrity should block by default but your graphics driver shouldn't be among them.
That really shouldn't come as a surprise, Intel ceased support for your CPU years ago. Your i5-4300U is a 4th gen processor released in 2013 It has the Intel® HD Graphics 4400. That puts it 2 years before Windows 10 was released and 5 years before Memory Integrity came in with W10 1803.

Intel no longer develops drivers for 4th gen devices, the last available drivers are for Windows 8.1. 6th gen is the oldest generation that Intel currently supports and provides Windows 10/11 drivers.


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Internet Speed
    50 Mbps
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022. It got the 23H2 Feature Update on 4th November 2023 through Windows Update.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro (and all my Hyper-V VMs).

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 256GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro RTM and Insider Beta as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro, plus the Insider Beta, Dev, and Canary builds as a native boot .vhdx.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    Intel® Core™ i5-520M
    Motherboard
    0T6M8G
    Memory
    8GB
    Graphics card(s)
    (integrated graphics) Intel HD Graphics
    Screen Resolution
    1366x768
    Hard Drives
    500GB Crucial MX500 SSD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround. Feature Update to 23H2 by manually installing the Enablement Package.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro (and all my Hyper-V VMs).

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 256GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro RTM and Insider Beta as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro, plus the Insider Beta, Dev, and Canary builds as a native boot .vhdx.
Thank you Bree for Intel Driver Graphics update link....successfully downloaded and now core isolation working.
Dell seem a bit slow to give an update....contacted them before Xmas.


My Computers

System One System Two

  • OS
    W11 Pro 22H2 Insider Preview
    Computer type
    Laptop
    Manufacturer/Model
    Microsoft Surface Go
    CPU
    Intel core i5 - 12400
    Memory
    7GB
  • Operating System
    W11 PRO 22H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Vostro
    CPU
    Intel i5 - 12400
Thank you Bree for Intel Driver Graphics update link....successfully downloaded and now core isolation working.
Glad it helped you. It's no help for my System Two though - that's running 11 on a 1st gen i5 :lmao:


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Internet Speed
    50 Mbps
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022. It got the 23H2 Feature Update on 4th November 2023 through Windows Update.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro (and all my Hyper-V VMs).

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 256GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro RTM and Insider Beta as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro, plus the Insider Beta, Dev, and Canary builds as a native boot .vhdx.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    Intel® Core™ i5-520M
    Motherboard
    0T6M8G
    Memory
    8GB
    Graphics card(s)
    (integrated graphics) Intel HD Graphics
    Screen Resolution
    1366x768
    Hard Drives
    500GB Crucial MX500 SSD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround. Feature Update to 23H2 by manually installing the Enablement Package.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro (and all my Hyper-V VMs).

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 256GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro RTM and Insider Beta as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 512GB NVMe ssd, supported device running Windows 11 Pro, plus the Insider Beta, Dev, and Canary builds as a native boot .vhdx.
That really shouldn't come as a surprise, Intel ceased support for your CPU years ago. Your i5-4300U is a 4th gen processor released in 2013 It has the Intel® HD Graphics 4400. That puts it 2 years before Windows 10 was released and 5 years before Memory Integrity came in with W10 1803.

Intel no longer develops drivers for 4th gen devices, the last available drivers are for Windows 8.1. 6th gen is the oldest generation that Intel currently supports and provides Windows 10/11 drivers.

Yet it runs Windows 11 Pro without issue! To be fair, no one including Intel and Microsoft saw Windows 11 in 2015 when Windows 10 was released.


My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2
    Computer type
    Laptop
    Manufacturer/Model
    Microsoft Surface Pro 3
    CPU
    Intel® Core™ i5-4300U
    Motherboard
    Microsoft
    Memory
    First: 4 GB DDR Second: 8 GB DDR
    Graphics Card(s)
    Intel HD Family Graphics
    Sound Card
    Realtek High Audio
    Hard Drives
    First: Samsung 128 GB SSD Second: Samsung 256 GB SSD
    Keyboard
    First: Artec Bluetooth 3.0 Second: Type Cover
    Mouse
    Microsoft Surface Mobile
    Antivirus
    Kaspersky Free/WiseVector StopX
  • Operating System
    Windows 11 Pro 24H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Zbook 14 G2
    CPU
    i7-5500U
    Memory
    8 RAM DDR3L
    Graphics card(s)
    Intel HD Graphics 5500 Discrete Graphics AMD FirePro M4150
    Sound Card
    Realtek High Definition Audio
    Hard Drives
    Toshiba 1TB


My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING (11GB GDDR5X)
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1 14-eu0098nr (2024)
    CPU
    Intel Core Ultra 7 155H 4.8 GHz
    Memory
    16 GB LPDDR5x-7467 MHz
    Graphics card(s)
    Integrated Intel Arc
    Sound Card
    Poly Studio
    Monitor(s) Displays
    14" 2.8K OLED multitouch
    Screen Resolution
    2880 x 1800
    Hard Drives
    2 TB PCIe NVMe M.2 SSD
    Internet Speed
    Intel Wi-Fi 7 BE200 (2x2) and Bluetooth 5.4
    Browser
    Chrome and Edge
    Antivirus
    Windows Defender and Malwarebytes Premium

Latest Support Threads

Back
Top Bottom
