Here is how the successful commands looked on my computer:

Code:
Microsoft Windows [Version 10.0.22000.434]
(c) Microsoft Corporation. All rights reserved.

C:\windows\system32>diskpart

Microsoft DiskPart version 10.0.22000.1

Copyright (C) Microsoft Corporation.
On computer: RAIDER

DISKPART> select vol c

Volume 2 is the selected volume.

DISKPART> shrink desired=250

DiskPart successfully shrunk the volume by:  250 MB

DISKPART> create part EFI

DiskPart succeeded in creating the specified partition.

DISKPART> format fs=fat32 quick

  100 percent completed

DiskPart successfully formatted the volume.

DISKPART> assign letter=s

DiskPart successfully assigned the drive letter or mount point.

DISKPART> exit

Leaving DiskPart...

C:\windows\system32>bcdboot C:\Windows /s S: /f UEFI
Boot files successfully created.

C:\windows\system32>shutdown /r /fw /t 00


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

William654

Well-known member
Member
Thread Starter
Local time
12:29 PM
Posts
362
Visit site
OS
Windows 11
Here is how the successful commands looked on my computer:

Code:
Microsoft Windows [Version 10.0.22000.434]
(c) Microsoft Corporation. All rights reserved.

C:\windows\system32>diskpart

Microsoft DiskPart version 10.0.22000.1

Copyright (C) Microsoft Corporation.
On computer: RAIDER

DISKPART> select vol c

Volume 2 is the selected volume.

DISKPART> shrink desired=250

DiskPart successfully shrunk the volume by:  250 MB

DISKPART> create part EFI

DiskPart succeeded in creating the specified partition.

DISKPART> format fs=fat32 quick

  100 percent completed

DiskPart successfully formatted the volume.

DISKPART> assign letter=s

DiskPart successfully assigned the drive letter or mount point.

DISKPART> exit

Leaving DiskPart...

C:\windows\system32>bcdboot C:\Windows /s S: /f UEFI
Boot files successfully created.

C:\windows\system32>shutdown /r /fw /t 00

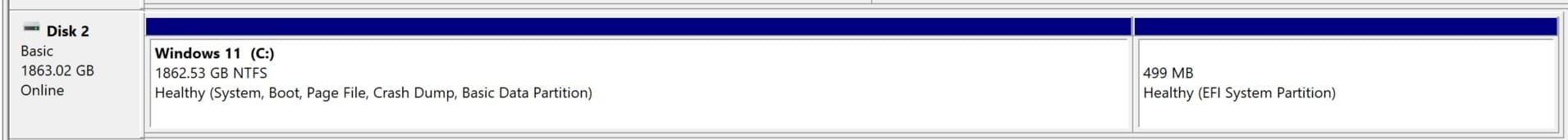

Thanks I followed the steps but I think I still boot from C:\ here is a picture :


Should I set partition type id or something else ?


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    5900x
    Motherboard
    Asus tuf x570
    Memory
    32 GB G.Skill
    Graphics Card(s)
    RX 6800 XT
    Sound Card
    Creative Sound Blaster Z
    Monitor(s) Displays
    Acer and AOC QHD 120Hz
    Screen Resolution
    QHD
    Hard Drives
    2TB Intel 660p and 2TB Sabrent Rokect 4 plus nvme, 4TB HDD HGST
    PSU
    Corsair RM750
    Case
    Bloody rage
    Cooling
    Water cooling gamdias 240
    Keyboard
    razer ornata
    Mouse
    razer da v2
    Browser
    FF and Chrome
    Antivirus
    Malwarebytes

NavyLCDR

Well-known member
Power User
VIP
Local time
2:29 AM
Posts
1,295
Visit site
OS
Windows 11

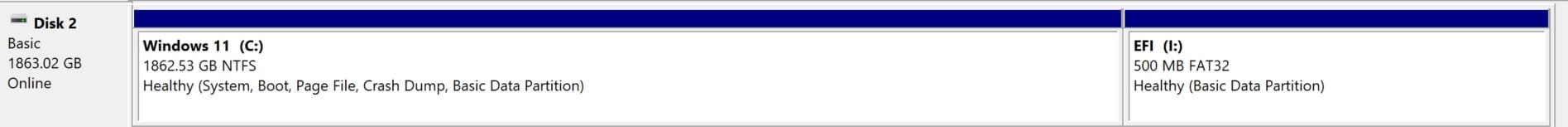

Thanks I followed the steps but I think I still boot from C:\ here is a picture :

View attachment 18542

Should I set partition type id or something else ?
Did you go into your firmware (BIOS) settings and set the new EFI system partition as first in the boot order? Note, that right now you have two identical file locations, \EFI\Microsoft\Boot\bootmgfw.efi, one is on C: drive and one is on the new EFI I: drive. In BIOS you need to set the one in the EFI partition as the first priority.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

William654

Well-known member
Member
Thread Starter
Local time
12:29 PM
Posts
362
Visit site
OS
Windows 11
Did you go into your firmware (BIOS) settings and set the new EFI system partition as first in the boot order? Note, that right now you have two identical file locations, \EFI\Microsoft\Boot\bootmgfw.efi, one is on C: drive and one is on the new EFI I: drive. In BIOS you need to set the one in the EFI partition as the first priority.
In bios I see the nvme sabrent 2TB in boot order ? CSM disabled ?


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    5900x
    Motherboard
    Asus tuf x570
    Memory
    32 GB G.Skill
    Graphics Card(s)
    RX 6800 XT
    Sound Card
    Creative Sound Blaster Z
    Monitor(s) Displays
    Acer and AOC QHD 120Hz
    Screen Resolution
    QHD
    Hard Drives
    2TB Intel 660p and 2TB Sabrent Rokect 4 plus nvme, 4TB HDD HGST
    PSU
    Corsair RM750
    Case
    Bloody rage
    Cooling
    Water cooling gamdias 240
    Keyboard
    razer ornata
    Mouse
    razer da v2
    Browser
    FF and Chrome
    Antivirus
    Malwarebytes

William654

Well-known member
Member
Thread Starter
Local time
12:29 PM
Posts
362
Visit site
OS
Windows 11
Or use Avanced startup menu from windows 11 ?


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    5900x
    Motherboard
    Asus tuf x570
    Memory
    32 GB G.Skill
    Graphics Card(s)
    RX 6800 XT
    Sound Card
    Creative Sound Blaster Z
    Monitor(s) Displays
    Acer and AOC QHD 120Hz
    Screen Resolution
    QHD
    Hard Drives
    2TB Intel 660p and 2TB Sabrent Rokect 4 plus nvme, 4TB HDD HGST
    PSU
    Corsair RM750
    Case
    Bloody rage
    Cooling
    Water cooling gamdias 240
    Keyboard
    razer ornata
    Mouse
    razer da v2
    Browser
    FF and Chrome
    Antivirus
    Malwarebytes

NavyLCDR

Well-known member
Power User
VIP
Local time
2:29 AM
Posts
1,295
Visit site
OS
Windows 11
In your BIOS settings, CSM should be disabled. You should now see two entries for the same SSD as UEFI boot options.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

William654

Well-known member
Member
Thread Starter
Local time
12:29 PM
Posts
362
Visit site
OS
Windows 11
In your BIOS settings, CSM should be disabled. You should now see two entries for the same SSD as UEFI boot options.

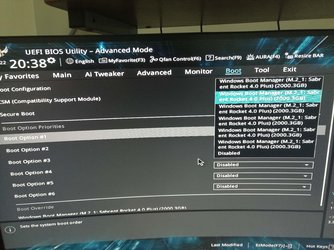

I see 6 and choose second one but same result



My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    5900x
    Motherboard
    Asus tuf x570
    Memory
    32 GB G.Skill
    Graphics Card(s)
    RX 6800 XT
    Sound Card
    Creative Sound Blaster Z
    Monitor(s) Displays
    Acer and AOC QHD 120Hz
    Screen Resolution
    QHD
    Hard Drives
    2TB Intel 660p and 2TB Sabrent Rokect 4 plus nvme, 4TB HDD HGST
    PSU
    Corsair RM750
    Case
    Bloody rage
    Cooling
    Water cooling gamdias 240
    Keyboard
    razer ornata
    Mouse
    razer da v2
    Browser
    FF and Chrome
    Antivirus
    Malwarebytes

NavyLCDR

Well-known member
Power User
VIP
Local time
2:29 AM
Posts
1,295
Visit site
OS
Windows 11
This is my BIOS after I created the second EFI partition on my drive:

Notice I have two entries available on the same SSD. To get a clue as to where you computer is booting from you can run the commands:

Code:
bcdedit
diskpart
list vol

Like this:

Code:
Microsoft Windows [Version 10.0.22000.434]
(c) Microsoft Corporation. All rights reserved.

C:\windows\system32>bcdedit

Windows Boot Manager
--------------------
identifier              {bootmgr}
device                  partition=\Device\HarddiskVolume3
path                    \EFI\MICROSOFT\BOOT\BOOTMGFW.EFI
description             Windows Boot Manager
locale                  en-us
inherit                 {globalsettings}
default                 {current}
resumeobject            {a47003aa-5703-11ec-97ab-2c8db1e3769f}
displayorder            {current}
toolsdisplayorder       {memdiag}
timeout                 0

Windows Boot Loader
-------------------
identifier              {current}
device                  partition=C:
path                    \windows\system32\winload.efi
description             Windows 11
locale                  en-us
inherit                 {bootloadersettings}
recoverysequence        {5c6b1a31-5d04-11ec-97cb-00155d01b400}
displaymessageoverride  Recovery
recoveryenabled         Yes
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
osdevice                partition=C:
systemroot              \windows
resumeobject            {a47003aa-5703-11ec-97ab-2c8db1e3769f}
nx                      OptIn
bootmenupolicy          Standard
hypervisorlaunchtype    Auto

C:\windows\system32>diskpart

Microsoft DiskPart version 10.0.22000.1

Copyright (C) Microsoft Corporation.
On computer: RAIDER

DISKPART> list vol

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     D   Data         NTFS   Partition    945 GB  Healthy
  Volume 1     R   RECOVERY     FAT32  Partition   8191 MB  Healthy
  Volume 2     C   Windows      NTFS   Partition    443 GB  Healthy    Boot
  Volume 3                      FAT32  Partition    100 MB  Healthy    System
  Volume 4                      FAT32  Partition    250 MB  Healthy    Hidden
  Volume 5         WinRE tools  NTFS   Partition    980 MB  Healthy    Hidden
  Volume 6         BIOS_RVY     NTFS   Partition     21 GB  Healthy    Hidden

DISKPART>

Notice in the Boot Manager Section the lines:

device partition=\Device\HarddiskVolume3
path \EFI\MICROSOFT\BOOT\BOOTMGFW.EFI

Then you look to see what the matching volume (3 in my example) is to get a clue which partition it is. In my case I am still booting from my original 100 MB FAT32 partition and not the new 250 MB FAT32 partition that I created. I would have to change my boot priority to the second Windows Boot Manager in my list to change booting to Volume 4 in the list above.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

NavyLCDR

Well-known member
Power User
VIP
Local time
2:29 AM
Posts
1,295
Visit site
OS
Windows 11
SIX?!? Holy Cow. K. Hold on. Let me try something.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

William654

Well-known member
Member
Thread Starter
Local time
12:29 PM
Posts
362
Visit site
OS
Windows 11
C:\Windows\system32>bcdedit
The boot configuration data store could not be opened.
The requested system device cannot be found.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    5900x
    Motherboard
    Asus tuf x570
    Memory
    32 GB G.Skill
    Graphics Card(s)
    RX 6800 XT
    Sound Card
    Creative Sound Blaster Z
    Monitor(s) Displays
    Acer and AOC QHD 120Hz
    Screen Resolution
    QHD
    Hard Drives
    2TB Intel 660p and 2TB Sabrent Rokect 4 plus nvme, 4TB HDD HGST
    PSU
    Corsair RM750
    Case
    Bloody rage
    Cooling
    Water cooling gamdias 240
    Keyboard
    razer ornata
    Mouse
    razer da v2
    Browser
    FF and Chrome
    Antivirus
    Malwarebytes

NavyLCDR

Well-known member
Power User
VIP
Local time
2:29 AM
Posts
1,295
Visit site
OS
Windows 11
Do you get the same error with "bcdedit /enum all"?


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

William654

Well-known member
Member
Thread Starter
Local time
12:29 PM
Posts
362
Visit site
OS
Windows 11
Do you get the same error with "bcdedit /enum all"?
I got it this time here is the output

C:\Windows\system32>bcdedit

Windows Boot Manager
--------------------
identifier {bootmgr}
device partition=\Device\HarddiskVolume2
path \EFI\Microsoft\Boot\bootmgfw.efi
description Windows Boot Manager
locale en-us
inherit {globalsettings}
default {default}
resumeobject {cf64f082-74a4-11ec-b5cc-087190bfe608}
displayorder {default}
toolsdisplayorder {memdiag}
timeout 30

Windows Boot Loader
-------------------
identifier {default}
device partition=C:
path \Windows\system32\winload.efi
description Windows 11
locale en-us
inherit {bootloadersettings}
isolatedcontext Yes
allowedinmemorysettings 0x15000075
osdevice partition=C:
systemroot \Windows
resumeobject {cf64f082-74a4-11ec-b5cc-087190bfe608}
nx OptIn
bootmenupolicy Standard

C:\Windows\system32>bcdedit /enum all

Firmware Boot Manager
---------------------
identifier {fwbootmgr}
displayorder {bootmgr}
{08acb151-74a5-11ec-b5cd-806e6f6e6963}
{08acb155-74a5-11ec-b5cd-806e6f6e6963}
{08acb150-74a5-11ec-b5cd-806e6f6e6963}
{08acb152-74a5-11ec-b5cd-806e6f6e6963}
{08acb153-74a5-11ec-b5cd-806e6f6e6963}
{08acb154-74a5-11ec-b5cd-806e6f6e6963}
timeout 1

Windows Boot Manager
--------------------
identifier {bootmgr}
device partition=\Device\HarddiskVolume2
path \EFI\Microsoft\Boot\bootmgfw.efi
description Windows Boot Manager
locale en-us
inherit {globalsettings}
default {default}
resumeobject {cf64f082-74a4-11ec-b5cc-087190bfe608}
displayorder {default}
toolsdisplayorder {memdiag}
timeout 30

Firmware Application (101fffff)
-------------------------------
identifier {08acb150-74a5-11ec-b5cd-806e6f6e6963}
device partition=C:
path \EFI\Microsoft\Boot\bootmgfw.efi
description Windows Boot Manager

Firmware Application (101fffff)
-------------------------------
identifier {08acb151-74a5-11ec-b5cd-806e6f6e6963}
device partition=C:
path \EFI\Microsoft\Boot\bootmgfw.efi
description Windows Boot Manager

Firmware Application (101fffff)
-------------------------------
identifier {08acb152-74a5-11ec-b5cd-806e6f6e6963}
device partition=C:
path \EFI\Microsoft\Boot\bootmgfw.efi
description Windows Boot Manager

Firmware Application (101fffff)
-------------------------------
identifier {08acb153-74a5-11ec-b5cd-806e6f6e6963}
device partition=C:
path \EFI\MICROSOFT\BOOT\BOOTMGFW.EFI
description Windows Boot Manager

Firmware Application (101fffff)
-------------------------------
identifier {08acb154-74a5-11ec-b5cd-806e6f6e6963}
device partition=C:
path \EFI\MICROSOFT\BOOT\BOOTMGFW.EFI
description Windows Boot Manager

Firmware Application (101fffff)
-------------------------------
identifier {08acb155-74a5-11ec-b5cd-806e6f6e6963}
device partition=\Device\HarddiskVolume2
path \EFI\Microsoft\Boot\bootmgfw.efi
description Windows Boot Manager

Windows Boot Loader
-------------------
identifier {default}
device partition=C:
path \Windows\system32\winload.efi
description Windows 11
locale en-us
inherit {bootloadersettings}
isolatedcontext Yes
allowedinmemorysettings 0x15000075
osdevice partition=C:
systemroot \Windows
resumeobject {cf64f082-74a4-11ec-b5cc-087190bfe608}
nx OptIn
bootmenupolicy Standard

Resume from Hibernate
---------------------
identifier {cf64f082-74a4-11ec-b5cc-087190bfe608}
device partition=C:
path \Windows\system32\winresume.efi
description Windows Resume Application
locale en-us
inherit {resumeloadersettings}
isolatedcontext Yes
allowedinmemorysettings 0x15000075
filepath \hiberfil.sys
bootmenupolicy Standard

Windows Memory Tester
---------------------
identifier {memdiag}
device partition=\Device\HarddiskVolume2
path \EFI\Microsoft\Boot\memtest.efi
description Windows Memory Diagnostic
locale en-us
inherit {globalsettings}
badmemoryaccess Yes

EMS Settings
------------
identifier {emssettings}
bootems No

Debugger Settings
-----------------
identifier {dbgsettings}
debugtype Local

RAM Defects
-----------
identifier {badmemory}

Global Settings
---------------
identifier {globalsettings}
inherit {dbgsettings}
{emssettings}
{badmemory}

Boot Loader Settings
--------------------
identifier {bootloadersettings}
inherit {globalsettings}
{hypervisorsettings}

Hypervisor Settings
-------------------
identifier {hypervisorsettings}
hypervisordebugtype Serial
hypervisordebugport 1
hypervisorbaudrate 115200

Resume Loader Settings
----------------------
identifier {resumeloadersettings}
inherit {globalsettings}


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    5900x
    Motherboard
    Asus tuf x570
    Memory
    32 GB G.Skill
    Graphics Card(s)
    RX 6800 XT
    Sound Card
    Creative Sound Blaster Z
    Monitor(s) Displays
    Acer and AOC QHD 120Hz
    Screen Resolution
    QHD
    Hard Drives
    2TB Intel 660p and 2TB Sabrent Rokect 4 plus nvme, 4TB HDD HGST
    PSU
    Corsair RM750
    Case
    Bloody rage
    Cooling
    Water cooling gamdias 240
    Keyboard
    razer ornata
    Mouse
    razer da v2
    Browser
    FF and Chrome
    Antivirus
    Malwarebytes

William654

Well-known member
Member
Thread Starter
Local time
12:29 PM
Posts
362
Visit site
OS
Windows 11
easybcd can clean this mess ? but which to remove ?


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    5900x
    Motherboard
    Asus tuf x570
    Memory
    32 GB G.Skill
    Graphics Card(s)
    RX 6800 XT
    Sound Card
    Creative Sound Blaster Z
    Monitor(s) Displays
    Acer and AOC QHD 120Hz
    Screen Resolution
    QHD
    Hard Drives
    2TB Intel 660p and 2TB Sabrent Rokect 4 plus nvme, 4TB HDD HGST
    PSU
    Corsair RM750
    Case
    Bloody rage
    Cooling
    Water cooling gamdias 240
    Keyboard
    razer ornata
    Mouse
    razer da v2
    Browser
    FF and Chrome
    Antivirus
    Malwarebytes

NavyLCDR

Well-known member
Power User
VIP
Local time
2:29 AM
Posts
1,295
Visit site
OS
Windows 11
Something is weird in your post #22. The instructions that I gave should have created a 250 MB EFI system partition with drive letter S:. Your disk management screenshot shows a 500 MB partition with drive letter I:. Did you change the commands that I listed?


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

William654

Well-known member
Member
Thread Starter
Local time
12:29 PM
Posts
362
Visit site
OS
Windows 11
Something is weird in your post #22. The instructions that I gave should have created a 250 MB EFI system partition with drive letter S:. Your disk management screenshot shows a 500 MB partition with drive letter I:. Did you change the commands that I listed?
Yes I choose 500mb and I:\


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    5900x
    Motherboard
    Asus tuf x570
    Memory
    32 GB G.Skill
    Graphics Card(s)
    RX 6800 XT
    Sound Card
    Creative Sound Blaster Z
    Monitor(s) Displays
    Acer and AOC QHD 120Hz
    Screen Resolution
    QHD
    Hard Drives
    2TB Intel 660p and 2TB Sabrent Rokect 4 plus nvme, 4TB HDD HGST
    PSU
    Corsair RM750
    Case
    Bloody rage
    Cooling
    Water cooling gamdias 240
    Keyboard
    razer ornata
    Mouse
    razer da v2
    Browser
    FF and Chrome
    Antivirus
    Malwarebytes

William654

Well-known member
Member
Thread Starter
Local time
12:29 PM
Posts
362
Visit site
OS
Windows 11
I repeated the steps and this is the current result



My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    5900x
    Motherboard
    Asus tuf x570
    Memory
    32 GB G.Skill
    Graphics Card(s)
    RX 6800 XT
    Sound Card
    Creative Sound Blaster Z
    Monitor(s) Displays
    Acer and AOC QHD 120Hz
    Screen Resolution
    QHD
    Hard Drives
    2TB Intel 660p and 2TB Sabrent Rokect 4 plus nvme, 4TB HDD HGST
    PSU
    Corsair RM750
    Case
    Bloody rage
    Cooling
    Water cooling gamdias 240
    Keyboard
    razer ornata
    Mouse
    razer da v2
    Browser
    FF and Chrome
    Antivirus
    Malwarebytes

cereberus

Well-known member
Pro User
VIP
Local time
10:29 AM
Posts
3,300
Visit site
OS
Windows 10 Pro + others in VHDs
@NavyLCDR
The main problem is to make the last update get installed
As I said earlier, this has nothing to do with boot files.

Is it crashing during updates or failing to download updates.

The first thing I do when update issues is to delete the softwaredistribution folder fron windows directory. Then check for updates again.

If this fails, do a repair upgrade by downloading latest iso, mounting it as a drive and running setup.exe. Backup critical data first - better make an image backup.


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

NavyLCDR

Well-known member
Power User
VIP
Local time
2:29 AM
Posts
1,295
Visit site
OS
Windows 11
What drive letter did you give the EFI system partition,
As I said earlier, this has nothing to do with boot files.

Is it crashing during updates or failing to download updates.

The first thing I do when update issues is to delete the softwaredistribution folder fron windows directory. Then check for updates again.

If this fails, do a repair upgrade by downloading latest iso, mounting it as a drive and running setup.exe. Backup critical data first - better make an image backup.
Ok, @cereberus. I'll turn it over to you then. Bye! Good luck @William654, hopefully you get it straightened out!


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

Always Why

Active member
Member
Local time
5:29 AM
Posts
70
Visit site
OS
W11 Home - Custom Build
There are so many solutions to this depending on your tech-level knowledge. I suggest a reinstall of Windows using a Flash Drive. You can download W11 or W10 from these links and use the tool to create the Flash Drive. Before or after that is completed. backup up your personal files to an external or second internal SSD or HDD.

Do an advanced installation so Windows will create all your EFT, System and Recovery partitions in GPT. You don't want MBR like the old days.

Having a flash drive of either OS is much better for making repairs or reinstalling options. Yes you can find those in Recovery in Settings but not if you have system-core glitches or infections.

Windows 11

Windows 10
Download Windows 10


My Computer

System One

  • OS
    W11 Home - Custom Build
    Computer type
    PC/Desktop
    Manufacturer/Model
    Asus/Corsair/nVidia/Noctua/Intel/NZXT
    CPU
    Intel Core i7-12700K Socket: LGA 1700
    Motherboard
    ASUS ROG Strix Z690-E
    Memory
    32GB Corsair 3000Mhz
    Graphics Card(s)
    RTX 3070 Ti FTW3 Ultra
    Screen Resolution
    1920 x 1080 (scaled 125%) (144Mhz Refresh Rate)
    PSU
    Corsair 850 Watts Gold Modular
    Cooling
    Noctua D15
    Internet Speed
    942mbps down/40mbps up
    Browser
    Edge, Firefox
    Antivirus
    Malwarebytes Premium

William654

Well-known member
Member
Thread Starter
Local time
12:29 PM
Posts
362
Visit site
OS
Windows 11

My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    5900x
    Motherboard
    Asus tuf x570
    Memory
    32 GB G.Skill
    Graphics Card(s)
    RX 6800 XT
    Sound Card
    Creative Sound Blaster Z
    Monitor(s) Displays
    Acer and AOC QHD 120Hz
    Screen Resolution
    QHD
    Hard Drives
    2TB Intel 660p and 2TB Sabrent Rokect 4 plus nvme, 4TB HDD HGST
    PSU
    Corsair RM750
    Case
    Bloody rage
    Cooling
    Water cooling gamdias 240
    Keyboard
    razer ornata
    Mouse
    razer da v2
    Browser
    FF and Chrome
    Antivirus
    Malwarebytes

Latest Support Threads

Top Bottom
