Solved Macrium Rescue Media doesn't see backup drive


Scott

Well-known member
Member
VIP
Local time
3:31 AM
Posts
367
Location
Maui, HI
OS
Win 11 Pro 22H2 22621.900 | Win 10 Pro 22H2 19045.2311
Aloha from Maui, new member here :) Using Macrium Reflect Home v8.o.6161. The main program sees it just fine.

When I boot to the rescue media, either USB or from the boot menu, it thinks the backup drive has an error.

If I browse for image file, I actually find it on D drive as opposed to my actual backup V drive .

Why is the rescue software reassigning a different drive letter to my backup drive? Does it need to be formatted in a specific manner? It's currently GPT/NTFS. My backup drive is a new 2TB Samsung 870 internal SSD. I'm doing this to prep for Windows 11 upgrade, in case I want to go back. But I'm liking Windows 11 so far, I'm actually dual booting it on a separate drive.

Thoughts?

Also, whats the average backup size of a typical Win 10 install with a few games, MS Office, etc.? Mine is 241GB.

Windows Build/Version
Windows 10 21H1 19043.1288 / Windows 11 22000.194
Last edited:

My Computers

System One System Two

  • OS
    Win 11 Pro 22H2 22621.900 | Win 10 Pro 22H2 19045.2311
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel® Core™ i5-11600KF
    Motherboard
    ASUS TUF GAMING Z590-PLUS WIFI
    Memory
    CORSAIR Vengeance LPX 64GB (4x16GB)
    Graphics Card(s)
    EVGA GeForce RTX 3050 XC Black Gaming
    Sound Card
    Creative Labs PCIe Sound Blaster X-Fi Titanium (dan_k drivers)
    Monitor(s) Displays
    ASUS TUF Gaming 27" WQHD
    Screen Resolution
    2560 x 1440
    Hard Drives
    SAMSUNG 980 SSD 1TB PCle 4.0 NVMe
    SAMSUNG 970 EVO 1TB PCle 3.0 NVMe (x2)
    SAMSUNG 870 EVO 2TB SATA III (x2)
    SAMSUNG 870 EVO 250GB SATA III
    PSU
    CORSAIR HX750
    Case
    Antec Dark Phantom DP502 FLUX
    Cooling
    Corsair Hydro Series H60 AIO
    Keyboard
    Logitech MK 320
    Mouse
    Razer Basilisk V3
    Internet Speed
    200Mbs
    Browser
    Firefox
    Antivirus
    Winows Security
    Other Info
    UEFI, Secure Boot, TPM 2.0
    MR 8 HE
  • Operating System
    Win 11 Pro 22H2 22621.819
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel Core i7-8700
    Motherboard
    Asus Prime Z370 P-II
    Memory
    32 GB DDR4
    Graphics card(s)
    EVGA GeForce GTX 760
    Sound Card
    Realtek
    Monitor(s) Displays
    Samsung SMT27A300
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung 870 EVO 500GB SSD
    Seagate Barracuda 7200rpm 1TB HDD
    PSU
    Corsair CX550M
    Case
    Old Antec, unknown model
    Cooling
    Hyper 212 EVO
    Browser
    Firefox
    Antivirus
    Windows Security

jimbo45

Well-known member
Power User
VIP
Local time
1:31 PM
Posts
2,283
Location
Hafnarfjörður IS
OS
Windows XP,7,10,11 Linux Arch Linux
Aloha from Maui, new user here :) Using Macrium Reflect Home v8.o.6161. The main program sees it just fine.

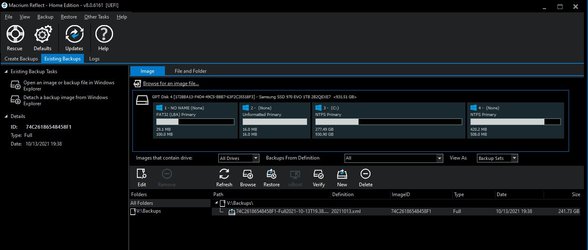

View attachment 9990

When I boot to the rescue media, either USB or from the boot menu, it thinks the backup drive has an error.
View attachment 9982

If I browse for image file, I actually find it on D drive as opposed to my actual backup V drive .
View attachment 9986

Why is the rescue software reassigning a different drive letter to my backup drive? Does it need to be formatted in a specific manner? It's currently GPT/NTFS. My backup drive is a new 2TB Samsung 870 internal SSD. I'm doing this to prep for Windows 11 upgrade, in case I want to go back. But I'm liking Windows 11 so far, I'm actually dual booting it on a separate drive.

Thoughts?

Also, whats the average backup size of a typical Win 10 install with a few games, MS Office, etc.? Mine is 241GB.
Hi there

@Scott

The software assigns a different drive because it's based on a Windows PE / RE environment -- a minimum "Windows bare rescue" OS with drivers etc with its own boot manager which will assign volumes according to how the program loads and the order it finds the drivers --I wouldn't worry about it -- simply use the diskpart command with listvol from the command box if you get confused as to what drive is what.

I find as for size of Windows -- I have Office2019, some old W7 games, VLC, some SAP software to connect to clients SAP systems, VmWare workstation, Photoshop and a few other things and I'm using 50GB of an 80GB size disk. I have another Windows install -- defined as 80GB and the third at 60 GB (Windows 2k22 Server) .

I'm using these as "VHDX" drives on a 256GB SSD -- you could have separate partitions if using VHDX "Virtual drives" (not Virtual machines) if you want - but if you only use a single version of Windows --use a small OS partition and keep all your data etc on a separate partition -- if you hose up the OS / have to restore etc you don't lose your data when restoring (also makes backups quicker and easier).

So the backup size is around 20 - 30 GB for these Windows systems. Yours is large because you probably have a lot of data on the OS drive (private data e.g music files /. videos etc) -- always better to separate those off the OS partition.

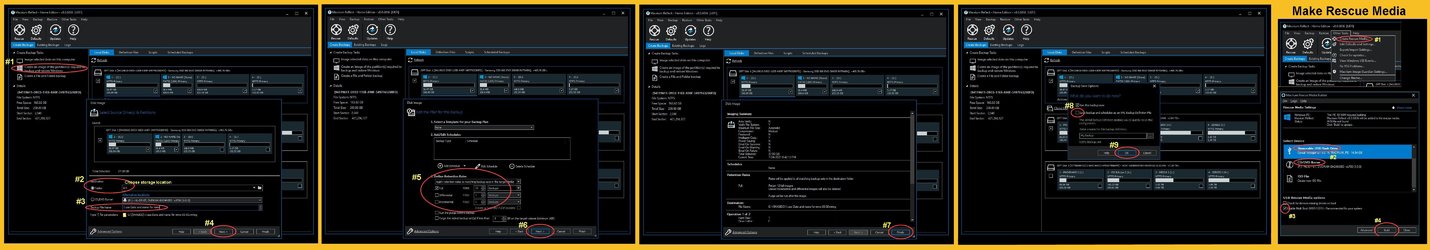

When creating the backup USB -- choose the relevant version in the "BUILD" option -- I've found chosing the appropriate based on PE rather than the RE versions is usually far better for W10 / W11 etc -- also create the ISO and use Rufus to create a bootable USB from the ISO. Use an 8GB USB stick (max) --using bigger sticks can cause problems with NTFS boot -- shouldn't do but I've found some computers just don't like booting with USB sticks > 8GB with NTFS format -- nothing in the boot spec that should be a problem for EFI boot but some computers for one reason or another just don't like it.

Skjámynd 2021-10-14 101035.png


For Rufus :




Cheers
jimbo

Last edited:

My Computer

System One

  • OS
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7

Ghot

Well-known member
Pro User
VIP
Local time
8:31 AM
Posts
4,963
Location
PA, USA
OS
Win 11 Home ♦♦♦22621.900 ♦♦♦♦♦♦22H2
@Scott

At default compression settings (medium), the backup size will be about 1/2 the size of the data on the C:\ drive.
If you right click the C:\ drive and choose Properties, just divide the "Used Space" by two, to get the approx. size of the backups.


My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22621.900 ♦♦♦♦♦♦22H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE (BIOS 4201)
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    Cooler Master ATCS 840 Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® (not in use)
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Scott

Well-known member
Member
VIP
Thread Starter
Local time
3:31 AM
Posts
367
Location
Maui, HI
OS
Win 11 Pro 22H2 22621.900 | Win 10 Pro 22H2 19045.2311
Thanks for the replies guys.

@jimbo45

I went a ahead and created rescue media under the WinPE environment per your recommendation. I didn't realize Rufus 3.16 could create bootable USB's that work with secure boot turned on. v3.14 couldn't.

@Ghot

So I moved my library folders to a different drive, about 200GB worth, and that brought my backup size down to 106GB. The strange thing is I tried a backup with high compression and the file size was the same.


My Computers

System One System Two

  • OS
    Win 11 Pro 22H2 22621.900 | Win 10 Pro 22H2 19045.2311
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self Built
    CPU
    Intel® Core™ i5-11600KF
    Motherboard
    ASUS TUF GAMING Z590-PLUS WIFI
    Memory
    CORSAIR Vengeance LPX 64GB (4x16GB)
    Graphics Card(s)
    EVGA GeForce RTX 3050 XC Black Gaming
    Sound Card
    Creative Labs PCIe Sound Blaster X-Fi Titanium (dan_k drivers)
    Monitor(s) Displays
    ASUS TUF Gaming 27" WQHD
    Screen Resolution
    2560 x 1440
    Hard Drives
    SAMSUNG 980 SSD 1TB PCle 4.0 NVMe
    SAMSUNG 970 EVO 1TB PCle 3.0 NVMe (x2)
    SAMSUNG 870 EVO 2TB SATA III (x2)
    SAMSUNG 870 EVO 250GB SATA III
    PSU
    CORSAIR HX750
    Case
    Antec Dark Phantom DP502 FLUX
    Cooling
    Corsair Hydro Series H60 AIO
    Keyboard
    Logitech MK 320
    Mouse
    Razer Basilisk V3
    Internet Speed
    200Mbs
    Browser
    Firefox
    Antivirus
    Winows Security
    Other Info
    UEFI, Secure Boot, TPM 2.0
    MR 8 HE
  • Operating System
    Win 11 Pro 22H2 22621.819
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel Core i7-8700
    Motherboard
    Asus Prime Z370 P-II
    Memory
    32 GB DDR4
    Graphics card(s)
    EVGA GeForce GTX 760
    Sound Card
    Realtek
    Monitor(s) Displays
    Samsung SMT27A300
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung 870 EVO 500GB SSD
    Seagate Barracuda 7200rpm 1TB HDD
    PSU
    Corsair CX550M
    Case
    Old Antec, unknown model
    Cooling
    Hyper 212 EVO
    Browser
    Firefox
    Antivirus
    Windows Security

Ghot

Well-known member
Pro User
VIP
Local time
8:31 AM
Posts
4,963
Location
PA, USA
OS
Win 11 Home ♦♦♦22621.900 ♦♦♦♦♦♦22H2
So I moved my library folders to a different drive, about 200GB worth, and that brought my backup size down to 106GB. The strange thing is I tried a backup with high compression and the file size was the same.


Yeah, I've only made backups with compression set to medium. The higher the compression, the slower the backup.
I have 36GB on my C:\ drive. On medium compression, my backups are about 18GB.



000000 MACRIUM 2.jpg
