New 12700K Build initial installation setup questions


spartanz1080

Member
Local time
12:05 AM
Posts
47
OS
windows 11
can I use my old windows 10 key to install windows 11 from a usb or do I need to buy a new os. Also how do I make sure all my drives are all GPT and Ueifi upon installation I want to use resizable bar and make sure my EFI BCD boot partion manager is only my OS drive I have like 5 drives.


My Computer

System One

  • OS
    windows 11

Ghot

Well-known member
Pro User
VIP
Local time
3:05 AM
Posts
3,481
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.856
1. Yes you can use your old Windows 10 key to install Windows 11
2. Please fill out your computer specs (especially your motherboard make/model)

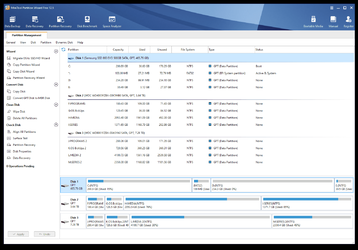

3. Get Minitool Partition Wizard, install it... run the program and post a screenshot , showing all your drives.

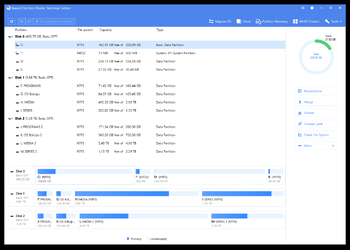

4. You could post a screen shot of EaseUS Partition Master instead.



Pic should look like one of these...




Other things...

1. Clean install Windows 11
2. To make sure all Win 11 partitions are on the same drive... just unhook all the other drives during install.
3. For answers to the GPT question... we need the screenshot mentioned.
4. For answer to UEFI settings we need motherboard make/model.


Bill Murray - blank.png

Last edited:

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.856
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

badrobot

Well-known member
MVP
Power User
VIP
Local time
3:05 AM
Posts
889
Location
Toronto, CANADA
OS
Windows 11 Pro
A piece of advice, detach all other drives before you install any OS. Make sure you only have one drive. Your target OS drive. It will make your life easier and no need for boot manager app.


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 9 3900X
    Motherboard
    MSI MPG Gaming Edge Wifi (X570)
    Memory
    32GB Adata XPG DDR4
    Graphics Card(s)
    ASUS GTX 1070 8GB ROG
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Main Boot Drive : 512GB Adata XPG RGB Gen3x4 NVMe M.2 SSD
    PSU
    EVGA 600 Watts Gold
    Case
    Deepcool Genome II
    Cooling
    Deepcool Fryzen
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    "Moderna"
  • Operating System
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    i7-4790K
    Motherboard
    ASRock Xtreme6 Z97
    Memory
    16GB Corsair Vengeance Pro
    Graphics card(s)
    MSI R9 290
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung M.2
    PSU
    Thermaltake 475 Watts 80 Bronze
    Case
    Thermaltake Commander I Snow Edition
    Cooling
    Deep Cool Archer Air Cooler
    Mouse
    Logitech G402
    Keyboard
    Armageddon MKA-5R RGB-Hornet
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    Moderna :)

spartanz1080

Member
Thread Starter
Local time
12:05 AM
Posts
47
OS
windows 11
It’s a new build I don’t have the parts yet they are on their way I just want to make sure the drives will be GPT all of them when I format them and such especially the OS drive which will be an 970 evo nvme m.2. The rest are sata ssds. I assume since it’s a very recent build (12700k) everything is already UEFI. I can’t take any pics right now

This is the mobo I’m getting

I didn’t know if I needed to buy a new windows since I think my current key was win 10 Oem or if it would work with win 11 on a USB install


My Computer

System One

  • OS
    windows 11

Ernimus Prime

Active member
Member
VIP
Local time
4:05 AM
Posts
140
OS
Windows 11 Pro
Your OEM key is tied to your old motherboard. Which will mean you may have to buy a new key. Or try to activate it by phone and tell them your mobo died and needed a new system. Work for me a while back. 😁


My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    DIY
    CPU
    Ryzen 7 3700x
    Motherboard
    ASUS TUF GAMING X570-PLUS WiFi
    Memory
    CORSAIR Vengeance RGB Pro 32GB (4 x 8GB) DDR4-3600
    Graphics Card(s)
    MSI Ventus 3x RTX 3080 OC
    Sound Card
    Onboard DTS custom chipset
    Monitor(s) Displays
    MSI MAG27QRF-QD, 2nd monitor Acer Predator 27"
    Screen Resolution
    Main monitor: 1440p@165hz, 2nd 1440p@144hz
    Hard Drives
    ADATA XPG SX8200 1TB,. 2TB Samsung 970 Evo plus, 4TB WD Black.
    PSU
    Corsair RM750x
    Case
    Phanteks Enthroo Pro Tempered glass
    Keyboard
    Logitech 910 ORION SPECTRUM
    Mouse
    Logitech 502 PROTEUS SPECTRUM
    Internet Speed
    1 gigabyte
    Browser
    Chrome
    Antivirus
    Kaspersky

Ghot

Well-known member
Pro User
VIP
Local time
3:05 AM
Posts
3,481
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.856
Ok what about my other GPT and uefi questions and stuff


It's up to you whether the drives are GPT or MBR. You can set them either way.
As for the UEFI... that depends on the settings in the BIOS.


My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.856
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Ghot

Well-known member
Pro User
VIP
Local time
3:05 AM
Posts
3,481
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.856

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.856
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

Ghot

Well-known member
Pro User
VIP
Local time
3:05 AM
Posts
3,481
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.856
What are they out of the box how do I tell in the windows install menu

Here...



And in the BIOS you'll probably see something like this...

1. Enable CSM so you can see the other settings.
2. The choose either: UEFI or UEFI and Legacy... either will work.
3. Personally, I always pick UEFI and Legacy. That gives me more options... down the road.





The reason I've linked these items in post #9 and this post... is so I don't have to type them out.
Just read them. Read the one in this post first. Then if you need to... read the one in post #9. :)



In post #2 the Clean Install link...

If the BIOS is set to UEFI or UEFI and Legacy... and when booting from the USB, you choose the UEFI option...
It should configure the drive as GPT automatically.

When starting the clean install... you need to tell the computer to boot from the USB stick that has the Windows installation media on it. On an ASUS board for example... as soon as the computer starts to boot, you would hit the F8 key.

You will see a list of all bootable devices. The USB stick with Windows on it, will show as "two" USB sticks. One will be UEFI the other won't. You want to choose the UEFI one.

That's pretty much all there is to it.


You can pre-pepare the drives as GPT, from within Windows or from bootable partitioning software, like Minitool Partition Wizard. Actually you can also do it from the command prompt as shown with the command in the item linked in post #9.

Last edited:

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.856
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    DRW-24B1ST CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

spartanz1080

Member
Thread Starter
Local time
12:05 AM
Posts
47
OS
windows 11
So once I configure the bios it will dictate what the drives are correct in the install menu


My Computer

System One

  • OS
    windows 11

glasskuter

Well-known member
Pro User
VIP
Local time
2:05 AM
Posts
2,272
Location
The Lone Star State of Texas
OS
Windows 11 Pro 21H2 22000.832
how do I tell in the windows install menu
You don't, as everyone said make sure ONLY the system drive is installed during a clean install of windows. In the installation process, you delete all the partitions on the drive making it unallocated space. When asked where you want to install windows you select unallocated space. You always install Windows in unallocated space. The process will then format and build all the necessary operating system partitions for you. If your bios is set to UEFI, it will properly partition your drive accordingly.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 22000.832
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium

spartanz1080

Member
Thread Starter
Local time
12:05 AM
Posts
47
OS
windows 11
okay so setting my csm to disabled and uefi in bios first should make that os drive GPT when install windows then connect my other drives and format them and they should be GPT too


My Computer

System One

  • OS
    windows 11

glasskuter

Well-known member
Pro User
VIP
Local time
2:05 AM
Posts
2,272
Location
The Lone Star State of Texas
OS
Windows 11 Pro 21H2 22000.832
then connect my other drives and format them and they should be GPT too
No, it is not an automatic process. You can format and partition all your other drives however you like by using any partitioning software or Windows own Disk Management.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 22000.832
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium

spartanz1080

Member
Thread Starter
Local time
12:05 AM
Posts
47
OS
windows 11
ok so just setting my BIOS mode to UEFI and csm to disable should make the OS drive GPT though


My Computer

System One

  • OS
    windows 11

glasskuter

Well-known member
Pro User
VIP
Local time
2:05 AM
Posts
2,272
Location
The Lone Star State of Texas
OS
Windows 11 Pro 21H2 22000.832
This is why @Ghot requested a screenshot of your current disk layout. By seeing what you have, he can best tell you what you need to do.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 22000.832
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 7080
    CPU
    i9-10900 10 core 20 threads
    Motherboard
    DELL 0J37VM
    Memory
    32 gb
    Graphics Card(s)
    none-Intel UHD Graphics 630
    Sound Card
    Integrated Realtek
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 m.2 2230-256+1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell Premium
    Keyboard
    Logitech wired
    Mouse
    Logitech wireless
    Internet Speed
    so slow I'm too embarrassed to tell
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium
  • Operating System
    Windows 10 Pro 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell Optiplex 9020
    CPU
    i7-4770
    Memory
    24 gb
    Monitor(s) Displays
    Benq 27
    Screen Resolution
    2560x1440
    Hard Drives
    256 gb Toshiba BG4 M.2 NVE SSB and 1 tb hdd
    PSU
    500w
    Case
    MT
    Cooling
    Dell factory
    Mouse
    Logitech wireless
    Keyboard
    Logitech wired
    Internet Speed
    still not telling
    Browser
    Firefox
    Antivirus
    Defender+MWB Premium

bobkn

Well-known member
Power User
VIP
Local time
3:05 AM
Posts
789
Location
Danbury, CT, USA
OS
Windows 11 22000.708
I haven't done this a lot, but I recall that new bare drives come as all unallocated space.

When Windows detects them, you'll be asked to set them up. The default should be GPT. I'd make one partition per drive, and do quick format to NTFS.

Quick and painless.


My Computers

System One System Two

  • OS
    Windows 11 22000.708
    Computer type
    PC/Desktop
    Manufacturer/Model
    homebuilt
    CPU
    Intel I9-12900K
    Motherboard
    Asus Prime Z690-A
    Memory
    64GB Kingston DDR5-5600
    Graphics Card(s)
    Gigabyte RTX 3090 ti
    Sound Card
    none (USB to speakers), Realtek
    Monitor(s) Displays
    Viewsonic XG320U
    Screen Resolution
    3840 X 2160 @ 144Hz
    Hard Drives
    WB Black SN850 1TB M.2 NVME SSD
    Seagate Iron Wolf 8TB
    PSU
    eVGA SuperNOVA 1300 GT
    Case
    Corsair 5000D AIrflow
    Cooling
    Corsair iCUE H150i ELITE CAPELLIX Liquid CPU Cooler
    Internet Speed
    1200 Mbps
  • Operating System
    windows 11 22000.708
    Computer type
    PC/Desktop
    Manufacturer/Model
    homebuilt
    CPU
    Ryzen 9 5950X
    Motherboard
    Asus Tuf Gaming X570-Plus
    Memory
    64GB DDR4 3800 (@ 3600)
    Graphics card(s)
    Zotac RTX 3080
    Sound Card
    built in Realtek
    Monitor(s) Displays
    Asus PA329C
    Screen Resolution
    3840 X 2160
    Hard Drives
    Sabrent 1 TB PCI-E 4.0 X4 NVME M.2
    4 GB Seagate Ironwolf
    PSU
    eVGA SuperNOVA 850 G6
    Case
    Phanteks ENTHOO Pro M
    Cooling
    iCUE H115i RGB PRO XT Liquid CPU Cooler

spartanz1080

Member
Thread Starter
Local time
12:05 AM
Posts
47
OS
windows 11
But its gonna be in a new PC so it doesent do anything in my current PC right now that are all GPT and a new motherboard

but right now in my current they are all GPT and I have CSM disabled and 4G encoding enabled because I am using resizable BAR with my rtx 3090 which I want to do on the New PC and mobo


My Computer

System One

  • OS
    windows 11
Top Bottom
