Solved New Build Can't accept Windows 11


PenPusher

Active member
VIP
Local time
4:48 PM
Posts
75
Location
Portsmouth, UK
Visit site
OS
Windows 11 Pro 22H2 (22621.963)

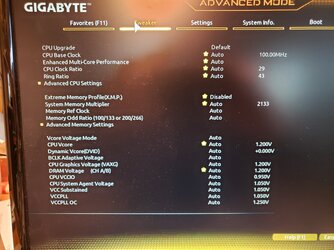

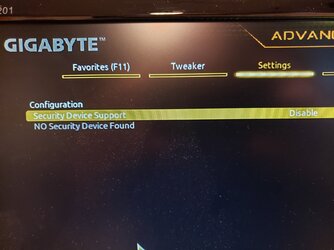

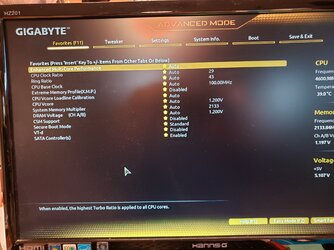

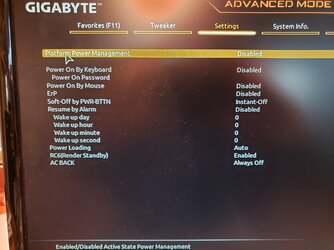

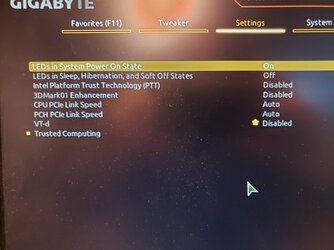

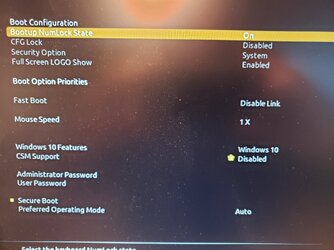

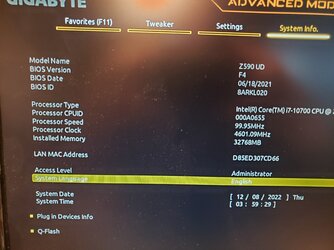

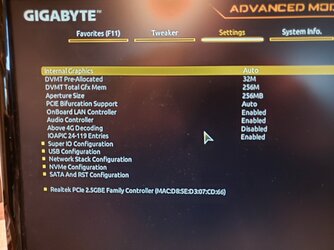

Do you have a pic showing bios settings


My Computer

System One

  • OS
    Windows 11 Pro 22H2 (22621.963)
    Computer type
    PC/Desktop
    Manufacturer/Model
    My Self
    CPU
    Intel Alder lake i7 12700K
    Motherboard
    Asus z690 Gaming WiFi D4, Bios Ver 2204
    Memory
    32 Gb Corsair Vengeance LPX DDR4 3200 XMP
    Graphics Card(s)
    EVGA 3070ti FTW3 Ultra Gaming
    Sound Card
    Via Display port
    Monitor(s) Displays
    Dell S2417DG
    Screen Resolution
    2560 x 1440 @ 165Hz G-Sync mode
    Hard Drives
    WD Black SN850 1Tb NVME
    Samsung 980 Pro with heatsink 1Tb NVME
    Samsung 870 Qvo 1Tb SSD,
    Seagate ST2000DM001 2Gb
    Pioneer DVD-RW DVR-219L
    PSU
    Corsair RM850
    Case
    Phanteks Enthoo Pro M Tempered Glass
    Cooling
    Be Quiet Shadow Rock 3
    Keyboard
    Logitech G Pro
    Mouse
    Logitech G903, Lightspeed + Powerplay Mat
    Internet Speed
    40Mb
    Browser
    Firefox
    Antivirus
    MS Defender
    Other Info
    Logitech C930e webcam
    Synology DS218 play 2 x 4Tb WD Red WD40EFAX

hsehestedt

Well-known member
Power User
VIP
Local time
11:48 AM
Posts
1,446
Location
Texas, USA
Visit site
OS
Win11 Pro 22H2, Moment 2
A suggestion:

If you have not done so already, please run the Windows 11 Installation Assistant from here:


If nothing else, it should at least tell you why it does not seem to think your system is ready for Windows 11.

As far as I can think of off the top of my head, the requirements it looks for are:

1) Sufficient storage space
2) Sufficient RAM
3) A version 2.0 TPM
4) A system capable of secure boot (does not need to be enabled, just capable of secure boot)
5) A supported CPU

From what is described so far, it sounds like you meet all these requirements, so the only other thing that I can think of is some incompatible piece of hardware for which a blocking hold has been placed on installation. Would be interesting to see if the assistant provides any more info to you.

EDIT: If you are doing a clean install, you won't be able to do this. In that case, would you be able to snap a pic (maybe using phone) of the error screen you are seeing?


My Computers

System One System Two

  • OS
    Win11 Pro 22H2, Moment 2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Win11 Pro 22H2, Moment 2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 15-BL012DX
    CPU
    Intel i7-7500U
    Memory
    32GB
    Graphics card(s)
    Dual Intel HD 620 and Nvidia GeForce 940MX
    Sound Card
    Built-in Realtek HD Audio
    Monitor(s) Displays
    4k 15-inch
    Screen Resolution
    4k (3840 x 2160)
    Hard Drives
    1TB Seagate FireCuda 510 NVMe SSD
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    RAM Upgraded from 16GB to 32GB WiFi Upgraded from WiFi 5 to WiFi 6 SSD upgraded from 512GB NVMe SSD to 1TB Seagate FireCuda 510 NVMe SSD

ShamrockRig

R H Semi
Power User
Local time
4:48 PM
Posts
1,256
Location
Scotland/Eire
Visit site
OS
11

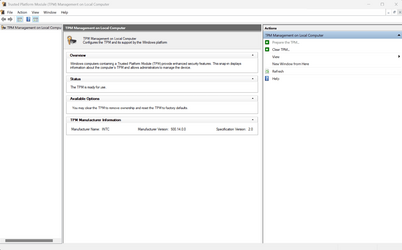

open up run , type tpm.msc and hit Enter should show this
What does it show for you?
Screenshot 2022-12-08 182857.png


My Computer

System One

  • OS
    11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom
    CPU
    10700k@5.2
    Motherboard
    Gigabyte Gaming X Z490
    Memory
    Viper Steelseries 32gb@ 3600mhz
    Graphics Card(s)
    Gigabyte 2070 Super 8GB, +200 core + 600 memory
    Monitor(s) Displays
    ASUS 4k HDR, Two 1080p Benq and Samsung
    Screen Resolution
    3840x2160/2560x1440/1920x1080
    Hard Drives
    Adata XPG SX8200 PRO 1tb
    Samsung EVO 870 500GB
    PSU
    Corsair RX 650
    Case
    NZXT h510
    Cooling
    CM HYPER 212 RGB
    Keyboard
    Razer Ornata Chroma
    Mouse
    Steelseries Rival 710

NavyLCDR

Well-known member
Pro User
VIP
Local time
9:48 AM
Posts
1,392
Visit site
OS
Windows 11

My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!

Bree

Well-known member
Guru
VIP
Local time
4:48 PM
Posts
9,147
Location
S/E England, UK
Visit site
OS
Windows 11 Home
please run the Windows 11 Installation Assistant....
open up run , type tpm.msc and hit Enter....
You have both missed the fact that the OP has no OS installed yet on this machine. Anything that is to be run can only be run while booting from the install usb. WhyNotWin11 is one that can be run in this way as per my post #14.


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Internet Speed
    50 Mbps
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta, and the release build of Win11 22H2, both as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    8GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, supported device running Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 Insider Beta, and the release build of Win11 22H2, both as native boot vhdx.

    My SYSTEM FIVE is a Dell Latitude 3190 2-in-1, Pentium Silver N5030, 4GB RAM, 128GB NVMe ssd, supported device running Windows 11 Pro.

hsehestedt

Well-known member
Power User
VIP
Local time
11:48 AM
Posts
1,446
Location
Texas, USA
Visit site
OS
Win11 Pro 22H2, Moment 2
I noted in my last response the things that Windows installation looks for. If you simply cannot determine what requirement is not being met, you could do this:

Start an installation of Windows that bypasses all of those system requirements, but don't actually install it. Let me explain ....

When you perform a clean install of Windows, it performs the compliance checks very early on. If requirements are not met, it will tell you before it actually starts installation to your HDD / SSD. We could perform actions that bypass all those requirements right at the start of Windows setup. If setup gets to the point where it asks you what disk you wish to install Windows to, then we know for sure that the problem was that one of those requirements were not met. If it still refuses to install, then the problem is something else.

With that in mind, you could do this:

1) Boot from your Windows installation media.

2) At the very first static screen (where installation pauses and asks for information like language, etc.) press SHIFT + F10. This will result in a command prompt being opened.

3) At the command prompt, run these commands:

Code:
reg add HKLM\System\Setup\LabConfig /v BypassTPMCheck /t reg_dword /d 0x00000001 /f
reg add HKLM\System\Setup\LabConfig /v BypassSecureBootCheck /t reg_dword /d 0x00000001 /f
reg add HKLM\System\Setup\LabConfig /v BypassRAMCheck /t reg_dword /d 0x00000001 /f
reg add HKLM\System\Setup\LabConfig /v BypassStorageCheck /t reg_dword /d 0x00000001 /f
reg add HKLM\System\Setup\LabConfig /v BypassCPUCheck /t reg_dword /d 0x00000001 /f

EDIT: TIP - After you enter one of the above commands, just hit the UP arrow key and change the one word that changes in each command. This way you don't have to type all the lines from scratch.
END TIP

This sets a bypass for the Windows 11 specific requirements.

4) Close the command prompt and continue with the installation up to the point where the disks in the system are shown. If you get to this point, then one of the items that we bypassed was the cause of the problem since it would normally complain before it got to this screen.

5) If you want to narrow down which one of the five items we bypassed was the source of the problem, then repeat the above procedure, but enter ONLY ONE of the above commands at the command prompt. If setup fails to get to the screen where the disks are shown, then the line you entered was not the correct one. Try again with the next item in the list until you get to the one that does not fail.

One more final thought: There is one other possibility. It's possible that in order to see your drive(s), the system may need you to load a driver. If you are getting to the screen where disks should be displayed but none are present, then this is the case. However, that screen should tell you that no storage was found, and you have not indicated that this is what is happening, so I have dismissed that as a possibility up until now.


My Computers

System One System Two

  • OS
    Win11 Pro 22H2, Moment 2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Win11 Pro 22H2, Moment 2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 15-BL012DX
    CPU
    Intel i7-7500U
    Memory
    32GB
    Graphics card(s)
    Dual Intel HD 620 and Nvidia GeForce 940MX
    Sound Card
    Built-in Realtek HD Audio
    Monitor(s) Displays
    4k 15-inch
    Screen Resolution
    4k (3840 x 2160)
    Hard Drives
    1TB Seagate FireCuda 510 NVMe SSD
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    RAM Upgraded from 16GB to 32GB WiFi Upgraded from WiFi 5 to WiFi 6 SSD upgraded from 512GB NVMe SSD to 1TB Seagate FireCuda 510 NVMe SSD

PenPusher

Active member
VIP
Local time
4:48 PM
Posts
75
Location
Portsmouth, UK
Visit site
OS
Windows 11 Pro 22H2 (22621.963)
You have both missed the fact that the OP has no OS installed yet on this machine. Anything that is to be run can only be run while booting from the install usb. WhyNotWin11 is one that can be run in this way as per my post #14.
;-)


My Computer

System One

  • OS
    Windows 11 Pro 22H2 (22621.963)
    Computer type
    PC/Desktop
    Manufacturer/Model
    My Self
    CPU
    Intel Alder lake i7 12700K
    Motherboard
    Asus z690 Gaming WiFi D4, Bios Ver 2204
    Memory
    32 Gb Corsair Vengeance LPX DDR4 3200 XMP
    Graphics Card(s)
    EVGA 3070ti FTW3 Ultra Gaming
    Sound Card
    Via Display port
    Monitor(s) Displays
    Dell S2417DG
    Screen Resolution
    2560 x 1440 @ 165Hz G-Sync mode
    Hard Drives
    WD Black SN850 1Tb NVME
    Samsung 980 Pro with heatsink 1Tb NVME
    Samsung 870 Qvo 1Tb SSD,
    Seagate ST2000DM001 2Gb
    Pioneer DVD-RW DVR-219L
    PSU
    Corsair RM850
    Case
    Phanteks Enthoo Pro M Tempered Glass
    Cooling
    Be Quiet Shadow Rock 3
    Keyboard
    Logitech G Pro
    Mouse
    Logitech G903, Lightspeed + Powerplay Mat
    Internet Speed
    40Mb
    Browser
    Firefox
    Antivirus
    MS Defender
    Other Info
    Logitech C930e webcam
    Synology DS218 play 2 x 4Tb WD Red WD40EFAX

ShamrockRig

R H Semi
Power User
Local time
4:48 PM
Posts
1,256
Location
Scotland/Eire
Visit site
OS
11
You have both missed the fact that the OP has no OS installed yet on this machine. Anything that is to be run can only be run while booting from the install usb. WhyNotWin11 is one that can be run in this way as per my post #14.
He did mention about installing win 11 on another ssd on another pc and then putting that into the one in question so its still valid if he does so.


My Computer

System One

  • OS
    11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom
    CPU
    10700k@5.2
    Motherboard
    Gigabyte Gaming X Z490
    Memory
    Viper Steelseries 32gb@ 3600mhz
    Graphics Card(s)
    Gigabyte 2070 Super 8GB, +200 core + 600 memory
    Monitor(s) Displays
    ASUS 4k HDR, Two 1080p Benq and Samsung
    Screen Resolution
    3840x2160/2560x1440/1920x1080
    Hard Drives
    Adata XPG SX8200 PRO 1tb
    Samsung EVO 870 500GB
    PSU
    Corsair RX 650
    Case
    NZXT h510
    Cooling
    CM HYPER 212 RGB
    Keyboard
    Razer Ornata Chroma
    Mouse
    Steelseries Rival 710

friendlyphil

Member
Thread Starter
Local time
11:48 AM
Posts
20
Visit site
OS
Windows11
I tried running the Installation Assistant from a thumb drive. No luck. The only reponse I get when I try to install Win11 is a message right after I type the installation code. It tells me I do not meet the requirements for Win11. I can get no further. I will post a bunch of pictures of the BIOS settings and maybe that will help.


My Computer

System One

  • OS
    Windows11
    Computer type
    PC/Desktop
    CPU
    Intel Core i7 - 10700
    Motherboard
    Gigabyte Z590 UD
    Memory
    G.Skil 32 GB Ripjaws V series DDR PC4-25600 3200Mhz for Intel Z170
    Graphics Card(s)
    Onboard
    Sound Card
    none
    Hard Drives
    WD 2TB SSD
    Case
    Cooler Master

cereberus

Well-known member
Pro User
VIP
Local time
4:48 PM
Posts
3,846
Visit site
OS
Windows 10 Pro + others in VHDs
OP could clean install W10 and then try and upgrade. Then we would have an OS to do further tests.


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

friendlyphil

Member
Thread Starter
Local time
11:48 AM
Posts
20
Visit site
OS
Windows11
Here are some screenshots. When I try to enable Intel Platform Trust Technology in the BIOS, it does not accept that. Each time I save and exit, it comes up disabled.
I appreciate everyone's help on this. And I emphasize, I have little expertise here.


Attachments

  • 20221208_140635.jpg
    754.6 KB · Views: 2
  • 20221208_140624.jpg
    891.6 KB · Views: 2
  • 20221208_140616.jpg
    651.4 KB · Views: 2
  • 20221208_135246.jpg
    694.6 KB · Views: 2
  • 20221208_135214.jpg
    793.4 KB · Views: 2
  • 20221208_135201.jpg
    701.3 KB · Views: 2
  • 20221208_135139.jpg
    879.6 KB · Views: 2
  • 20221208_135130.jpg
    871.9 KB · Views: 2
  • 20221208_135119.jpg
    998.7 KB · Views: 2
  • 20221208_140645.jpg
    786.7 KB · Views: 2

My Computer

System One

  • OS
    Windows11
    Computer type
    PC/Desktop
    CPU
    Intel Core i7 - 10700
    Motherboard
    Gigabyte Z590 UD
    Memory
    G.Skil 32 GB Ripjaws V series DDR PC4-25600 3200Mhz for Intel Z170
    Graphics Card(s)
    Onboard
    Sound Card
    none
    Hard Drives
    WD 2TB SSD
    Case
    Cooler Master

hsehestedt

Well-known member
Power User
VIP
Local time
11:48 AM
Posts
1,446
Location
Texas, USA
Visit site
OS
Win11 Pro 22H2, Moment 2
I tried running the Installation Assistant from a thumb drive. No luck. The only reponse I get when I try to install Win11 is a message right after I type the installation code. It tells me I do not meet the requirements for Win11. I can get no further. I will post a bunch of pictures of the BIOS settings and maybe that will help.
Could you clarify what you mean by "the installation code"? Also, a screenshot of the entire screen with the error showing might be helpful.


My Computers

System One System Two

  • OS
    Win11 Pro 22H2, Moment 2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Win11 Pro 22H2, Moment 2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 15-BL012DX
    CPU
    Intel i7-7500U
    Memory
    32GB
    Graphics card(s)
    Dual Intel HD 620 and Nvidia GeForce 940MX
    Sound Card
    Built-in Realtek HD Audio
    Monitor(s) Displays
    4k 15-inch
    Screen Resolution
    4k (3840 x 2160)
    Hard Drives
    1TB Seagate FireCuda 510 NVMe SSD
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    RAM Upgraded from 16GB to 32GB WiFi Upgraded from WiFi 5 to WiFi 6 SSD upgraded from 512GB NVMe SSD to 1TB Seagate FireCuda 510 NVMe SSD

hsehestedt

Well-known member
Power User
VIP
Local time
11:48 AM
Posts
1,446
Location
Texas, USA
Visit site
OS
Win11 Pro 22H2, Moment 2
So, let's go back to a much earlier post of mine. I noted that you should update the BIOS a long ways back in this thread. You are running an ancient version of the BIOS from BEFORE the critical vulnerability was fixed AND before the BIOS was set to automatically configure for Win 11 support. Before you go any further I would strongly suggest updating to the latest version to address these issues, then reassess where you stand.


My Computers

System One System Two

  • OS
    Win11 Pro 22H2, Moment 2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Win11 Pro 22H2, Moment 2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 15-BL012DX
    CPU
    Intel i7-7500U
    Memory
    32GB
    Graphics card(s)
    Dual Intel HD 620 and Nvidia GeForce 940MX
    Sound Card
    Built-in Realtek HD Audio
    Monitor(s) Displays
    4k 15-inch
    Screen Resolution
    4k (3840 x 2160)
    Hard Drives
    1TB Seagate FireCuda 510 NVMe SSD
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    RAM Upgraded from 16GB to 32GB WiFi Upgraded from WiFi 5 to WiFi 6 SSD upgraded from 512GB NVMe SSD to 1TB Seagate FireCuda 510 NVMe SSD

friendlyphil

Member
Thread Starter
Local time
11:48 AM
Posts
20
Visit site
OS
Windows11
I meant the product key.
I will update the BIOS. I've never done that and am nervous about it.


My Computer

System One

  • OS
    Windows11
    Computer type
    PC/Desktop
    CPU
    Intel Core i7 - 10700
    Motherboard
    Gigabyte Z590 UD
    Memory
    G.Skil 32 GB Ripjaws V series DDR PC4-25600 3200Mhz for Intel Z170
    Graphics Card(s)
    Onboard
    Sound Card
    none
    Hard Drives
    WD 2TB SSD
    Case
    Cooler Master

bobkn

Well-known member
Power User
VIP
Local time
12:48 PM
Posts
1,188
Location
Danbury, CT, USA
Visit site
OS
Windows 11 22621.1265
I meant the product key.
I will update the BIOS. I've never done that and am nervous about it.
Looking at the support page for your motherboard, BIOS F5 made enabling PTT the default. I presume that newer ones will include that. (Updates are usually cumulative.) That may fix things for you.

There is a small risk that the BIOS update will cause problems, but it's unlikely. IF you could connect the PC to a UPS (uninterruptable power supply) during the BIOS flash, that would eliminate one unlikely potential problem.


My Computers

System One System Two

  • OS
    Windows 11 22621.1265
    Computer type
    PC/Desktop
    Manufacturer/Model
    homebuilt
    CPU
    Intel I9-13900K
    Motherboard
    Asus RoG Strix Z690-E
    Memory
    64GB G.Skill DDR5-6000
    Graphics Card(s)
    Gigabyte RTX 4090 OC
    Sound Card
    none (USB to speakers), Realtek
    Monitor(s) Displays
    Viewsonic XG320U
    Screen Resolution
    3840 X 2160 @ 144Hz
    Hard Drives
    WB Black SN850 1TB M.2 NVME SSD
    WD 4TB Blue SATA SSD
    Seagate 18TB IronWolf Pro
    PSU
    eVGA SuperNOVA 1300 GT
    Case
    Lian Li 011 Dynamic Evo
    Cooling
    Corsair iCUE H150i ELITE CAPELLIX Liquid CPU Cooler
    Keyboard
    Logitech K120 (wired)
    Mouse
    Logitech M500s (wired)
    Internet Speed
    1200 Mbps
  • Operating System
    windows 11 22621.1265
    Computer type
    PC/Desktop
    Manufacturer/Model
    homebuilt
    CPU
    Ryzen 9 5950X
    Motherboard
    Asus Tuf Gaming X570-Plus
    Memory
    64GB (4 X 16GB) DDR4 3800 (@ 3600)
    Graphics card(s)
    Gigabyte RTX 3090 ti
    Sound Card
    built in Realtek
    Monitor(s) Displays
    Asus PA329C
    Screen Resolution
    3840 X 2160
    Hard Drives
    Sabrent 1 TB PCI-E 4.0 X4 NVME M.2
    8 TB Seagate Ironwolf
    4TB Seagate Ironwolf
    PSU
    eVGA SuperNOVA 850 G6
    Case
    Phanteks ENTHOO Pro M
    Cooling
    iCUE H115i RGB PRO XT Liquid CPU Cooler
    Mouse
    Logitech M500s (wired)
    Keyboard
    Logitech K120 (wired)

friendlyphil

Member
Thread Starter
Local time
11:48 AM
Posts
20
Visit site
OS
Windows11
I just tried to run the QFlash. It told me "Can't find file"


My Computer

System One

  • OS
    Windows11
    Computer type
    PC/Desktop
    CPU
    Intel Core i7 - 10700
    Motherboard
    Gigabyte Z590 UD
    Memory
    G.Skil 32 GB Ripjaws V series DDR PC4-25600 3200Mhz for Intel Z170
    Graphics Card(s)
    Onboard
    Sound Card
    none
    Hard Drives
    WD 2TB SSD
    Case
    Cooler Master

SIW2

Well-known member
Power User
VIP
Local time
4:48 PM
Posts
716
Visit site
OS
Win7
I think ptt is under the bios tab called "peripherals" on gigabyte mobos.


My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450

SIW2

Well-known member
Power User
VIP
Local time
4:48 PM
Posts
716
Visit site
OS
Win7
I just tried to run the QFlash. It told me "Can't find file"
The usual way is to put the bios file on a fat32 usb stick, then navigate to it. Some gigabyte bios can also find it on ntfs devices, but use fat32 in case your current bios can't.

extract the zip and put the Z590UD.F7a file on the root of the fat32 usb so it is easier to navigate to.

Last edited:

My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450

friendlyphil

Member
Thread Starter
Local time
11:48 AM
Posts
20
Visit site
OS
Windows11
The HDD is clean, never used. There is no OS installed.


My Computer

System One

  • OS
    Windows11
    Computer type
    PC/Desktop
    CPU
    Intel Core i7 - 10700
    Motherboard
    Gigabyte Z590 UD
    Memory
    G.Skil 32 GB Ripjaws V series DDR PC4-25600 3200Mhz for Intel Z170
    Graphics Card(s)
    Onboard
    Sound Card
    none
    Hard Drives
    WD 2TB SSD
    Case
    Cooler Master

SIW2

Well-known member
Power User
VIP
Local time
4:48 PM
Posts
716
Visit site
OS
Win7
ptt might be like this in your bios


My Computers

System One System Two

  • OS
    Win7
    Computer type
    PC/Desktop
    CPU
    i5-8400
    Motherboard
    gigabyte b365m ds3h
    Memory
    2x8gb 3200mhz
    Monitor(s) Displays
    benq gw2480
    PSU
    bequiet pure power 11 400CM
    Cooling
    cryorig m9i
  • Operating System
    win7
    Computer type
    PC/Desktop
    CPU
    pentium g5400
    Motherboard
    gigabyte b365m ds3h
    Memory
    1x8gb 2400
    PSU
    xfx pro 450

Latest Support Threads

Top Bottom
