On VM get choice of Versions to install on Bare metal none

jimbo45

Well-known member
Member
VIP
Local time
9:15 PM
Posts
646
Location
Hafnarfjörður IS
Hi folks
is it just me but using the standard iso that most people are using when installing on a VM I get a choice of which version to install but on install to bare metal when creating bootable USB stick via RUFUS (or ventoy) install gives no version options when wanting to do a clean install on a PC with a completely re-formatted SSD.

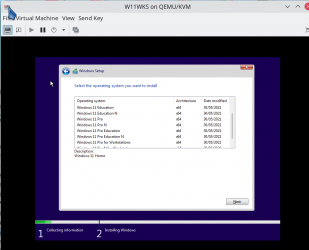

on a VM I get this :Screenshot_20210619_092436.png

Anybody had same issues.

Is it rufus / ventoy or what -- I'm not sure why installing on a VM should be different at this stage on just selecting the version of Windows to install from an iso.


The iso I'm using is : 21996.1.210529-1541.co_release_CLIENT_CONSUMER_x64FRE_en-us which I think is the one most are using.

Cheers

jimbo

Last edited:

My Computer

System One

  • Operating System
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7

badrobot

Well-known member
MVP
Member
VIP
Local time
5:15 PM
Posts
367
Location
Toronto, CANADA

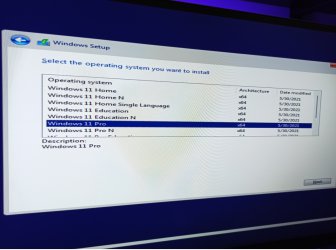

I did not run into this issue. I was given the option to choose the windows version during the clean install process on a physical drive.IMG_20210619_094954.jpg


My Computers

System One System Two

  • Operating System
    Windows 10/11 Pro
    Computer type
    PC/Desktop
    CPU
    i7-4790K
    Motherboard
    ASRock Xtreme6 Z97
    Memory
    16GB Corsair Vengeance Pro
    Graphics Card(s)
    MSI R9 290
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Samsung M.2
    PSU
    Thermaltake 475 Watts 80 Bronze
    Case
    Thermaltake Commander I Snow Edition
    Cooling
    Deep Cool Archer Air Cooler
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    "Moderna"
  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 9 3900X
    Motherboard
    MSI MPG Gaming Edge Wifi (X570)
    Memory
    32GB Adata XPG DDR4
    Graphics card(s)
    ASUS GTX 1070 8GB ROG Strix
    Monitor(s) Displays
    LG Ultrawide 34"
    Screen Resolution
    3440x1440
    Hard Drives
    Main Boot Drive : 512GB Adata XPG RGB Gen3x4 NVMe M.2 SSD
    PSU
    EVGA 600 Watts Gold
    Case
    Deepcool Genome II
    Cooling
    Deepcool Fryzen
    Mouse
    Logitech G402
    Keyboard
    Armageddon MKA-5R RGB-Hornet
    Internet Speed
    1Gbps
    Browser
    Chrome
    Antivirus
    Moderna :)

jimbo45

Well-known member
Member
VIP
Thread Starter
Local time
9:15 PM
Posts
646
Location
Hafnarfjörður IS
Not sure why -- but I've installed via another method now --but thanks anyway.

Cheers
jimbo


My Computer

System One

  • Operating System
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7

johnlgalt

Antidisestablishmentarianistentarianist
Power User
VIP
Local time
5:15 PM
Posts
1,929
Location
3rd Rock
Yeah, I added the same thing on 10F - I got all options on both VM and bare metal install.

Could your system have pre-installed keys in the Secure boot info that prevented showing unrelated version?


My Computers

System One System Two

  • Operating System
    Windows 10 Pro X64
    Computer type
    PC/Desktop
    Manufacturer/Model
    HomeBrew
    CPU
    AMD Ryzen 9 3950X
    Motherboard
    MSI MEG X570 GODLIKE
    Memory
    4 * Corsair Vengeance 32 GB 3600 MHz
    Graphics Card(s)
    eVGA GeForce GTX 970 SSC ACX 2.0 (04G-P4-3979-KB)
    Sound Card
    Realtek® ALC1220 Codec
    Monitor(s) Displays
    2 * Lenovo LT2323pwA Widescreeen
    Screen Resolution
    2* 1920*1080
    Hard Drives
    3x Sabrent Rocket PCIe Gen4 NVMe M.2 1 TB SSD (SB-ROCKET-NVMe4-1TB)
    SanDisk Ultra SDSSDHII-960G-G25 960 GB SATA III SSD
    Crucial MX100 CT256MX100SSD1 256GB SATA III SSD
    2 * Seagate Barracuda 7200.12 ST31000528AS 1TB 7200 RPM --> RAID1
    PSU
    PC Power & Cooling’s Silencer Series 1050 Watt, 80 Plus Platinum
    Case
    Fractal Design Define 7 XL Dark ATX Full Tower Case
  • Operating System
    Windows 10 x64 Pro build 21H1
    Computer type
    Laptop
    Manufacturer/Model
    Dell Latitude E5470
    CPU
    Intel(R) Core(TM) i5-6300U CPU @ 2.40GHz, 2501 Mhz, 2 Core(s), 4 Logical Processor(s)
    Motherboard
    Dell
    Memory
    16 GB
    Graphics card(s)
    Intel(R) HD Graphics 520
    Sound Card
    Intel(R) HD Graphics 520 + RealTek Audio
    Monitor(s) Displays
    Dell laptop display 15"
    Screen Resolution
    1920 * 1080
    Hard Drives
    Toshiba 128GB M.2 22300 drive
    INTEL Cherryvill 520 Series SSDSC2CW180A 180 GB SATA III SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Mouse
    Logitech MX Master (shared) | Dell TouchPad
    Keyboard
    Dell
    Internet Speed
    AT&T LightSpeed Gigabit Duplex
    Browser
    Edge Chromium | Chrome | Firefox Nightly | Brave
    Antivirus
    Defender + MB4

Bree

Well-known member
Power User
VIP
Local time
10:15 PM
Posts
960
Location
S/E England, UK
when installing on a VM I get a choice of which version to install but on install to bare metal ... install gives no version options when wanting to do a clean install on a PC with a completely re-formatted SSD.
That would most likely be Setup detecting an embedded W8 or W10 key in the bios and using that to determine the edition (Home or Pro) to install. If you were never asked for a key then that would confirm that Setup had already found one in the bios. W10 install media behaves the same way.


My Computers

System One System Two

  • Operating System
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB HDD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround.


    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.

hsehestedt

Well-known member
Member
VIP
Local time
4:15 PM
Posts
287
Location
Texas, USA
I suspect that what Bree has noted is exactly right.

The workaround:

Copy the contents of the ISO to a folder on a HD. In my example, I'll say C:\ISO_Files.

Create a text file, making sure to use something like notepad that won't add any special formatting characters. Name that file "ei.cfg" and place the following two lines in the file:

[Channel]
Retail

Place that file in the C:\ISO_Files\Sources folder.

Recreate your media or ISO image using the files in C:\ISO_Files.

NOTE: If you have the ADK installed, you can use the Microsoft OSCDIMG utility to create the ISO image like this:

oscdimg.exe -m -o -u2 -udfver102 -l"VolumeName" -bootdata:2#p0,e,b"c:\iso_files\boot\etfsboot.com"#pEF,e,b"c:\iso_files\efi\microsoft\boot\efisys.bin" "c:\iso_files" "C:\ISO Images\My Image.iso"

CAUTION: The above is a single long command. Also, be aware that the syntax is a bit odd. There are some spots in that command where you might be tempted to add a space but none exists. Observe the syntax very carefully. If you used a folder other than C:\ISO_Files note that there are 3 occurrences of this in the command that need to be changed. Also, I am using "C:\ISO Images\My Image.iso" as the path and file name of the final ISO image I am creating. Change this as you see fit. Finally, if you do not want to assign a volume name to image you can omit this portion of the command or feel free to change the volume name to anything you want (32 characters max):

-l"VolumeName"

Bottom line:

Adding the ei.cfg to the \sources folder of your image should force installation to prompt you for the edition to install even on a system with a predefined BIOS / UEFI signature.


My Computers

System One System Two

  • Operating System
    Windows 11 21H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    300Mb down / 20Mb up
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Windows 11 21H2
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 15-BL012DX
    CPU
    Intel i7-7500U
    Memory
    32GB
    Graphics card(s)
    Dual Intel HD 620 and Nvidia GeForce 940MX
    Sound Card
    Built-in Realtek HD Audio
    Monitor(s) Displays
    4k 15-inch
    Screen Resolution
    4k (3840 x 2160)
    Hard Drives
    1TB Seagate FireCuda 510 NVMe SSD
    Internet Speed
    300Mb down / 20Mb up
    Browser
    Chromium Edge
    Antivirus
    Windows Defender
    Other Info
    RAM Upgraded from 16GB to 32GB WiFi Upgraded from WiFi 5 to WiFi 6 SSD upgraded from 512GB NVMe SSD to 1TB Seagate FireCuda 510 NVMe SSD

johnlgalt

Antidisestablishmentarianistentarianist
Power User
VIP
Local time
5:15 PM
Posts
1,929
Location
3rd Rock
@jimbo45 actually posted the info on using a modified efi.cfg in another post already. He was just wondering why it was happening, not how to get around it.

As we responded, we suspect embedded keys are the issue.

If I had the time to do so, I'd give it a shot with my machine, as I can remove all the keys that are embedded in my UEFI-based MSI mobo, but it will be well after tomorrow's announcement that I get a chance to do so, as I have work and home-related work to do in the interim.
