Solved Question regarding CLONING a drive


Lou

Lou

Well-known member
Member
Local time
1:45 AM
Posts
91
Location
East Coast
OS
WIN11 HOME Version 23H2
I'm using the freeware version of Macrium and have a question pertaining to CLONING.
I use Marcium for normal BACK-UPS and IMAGES and store these files on a portable 5TB drive.
I've purchased a replacement SSD for my Desktop--it's an OE replacement from DELL. It's the same capacity but is the larger size (2280 verses the existing 2230) and made by a different manufacturer. Long story but I'm chasing a hardware issue with my desktop.
QUESTION-
When cloning the existing SSD, in my desktop, can I set the destination drive to my portable 5TB drive.
When I was attempting to clone a message popped up stating that all data on the destination drive would be lost. At this point I stopped the process..
Does this mean I need to have another portable drive to save a clone.
NO laughing now---this is all very new to me.


My Computer

System One

  • OS
    WIN11 HOME Version 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    DELL XPS 8940
    CPU
    11th Gen Intel(R) Core(TM) i7-11700 @ 2.50GHz 2.50 GH
    Motherboard
    Dell OE
    Memory
    32GB
    Graphics Card(s)
    NVIDIA GeForce GTX 1650 SUPER
    Sound Card
    Realtek Audio (on board)
    Monitor(s) Displays
    (2) DELL 2007FP
    Screen Resolution
    1600 X 1200
    Hard Drives
    C: (OS and APPS) 512GB SSD
    D: (data) 1TB SATA
    PSU
    360W
    Case
    DELL OE
    Cooling
    Noctua NF-A9 PWM 92mm case fan and NH-D9L CPU Cooler with 92mm fan
    Keyboard
    Dell
    Mouse
    Logitech M705
    Internet Speed
    500Mbps DWN 120Mbps UP
    Browser
    EDGE-- once in a while will use FIREFOX
    Antivirus
    MS
    Other Info
    The case fan and CPU cooler were after purchase upgrades...the i7 cpu runs hot and the OE solution can best be described as marginal when CPU intensive apps are used.
    ALSO added a VRM and SSD passive heatsinks.
Hi,
You wouldn't want to clone to a storage device
Clones are just that pretty much a replacement of what's on the device
You could try,
Make a folder/ name it and point to it to place a system image or in your case clone into it.
But you're better off just creating a system image and restoring it to the new ssd.


My Computer

System One

  • OS
    Win-7-10-11Pro's
    Computer type
    PC/Desktop
    Manufacturer/Model
    Acer 17" Nitro 7840sn/ 2x16gb 5600c40/ 4060/ stock 1tb-os/ 4tb sn850x
    CPU
    10900k & 9940x & 5930k
    Motherboard
    z490-Apex & x299-Apex & x99-Sabertooth
    Memory
    Trident-Z Royal 4000c16 2x16gb & Trident-Z 3600c16 4x8gb & 3200c14 4x8gb
    Graphics Card(s)
    Titan Xp & 1080ti FTW3 & evga 980ti gaming
    Sound Card
    Onboard Realtek x3
    Monitor(s) Displays
    1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
    Screen Resolution
    1920-1080 not sure what the t.v is besides 43" class scales from 1920-1080 perfectly
    Hard Drives
    2-WD-sn850x 4tb/ 970evo+500gb/ 980 pro 2tb.
    PSU
    1000p2 & 1200p2 & 850p2
    Case
    D450 x2 & 1 Test bench in cherry Entertainment center
    Cooling
    Custom water loops x3 with 2x mora 360mm rads only 980ti gaming air cooled
    Keyboard
    G710+x3
    Mouse
    Redragon x3
    Internet Speed
    xfinity gigabyte
    Browser
    Firefox
    Antivirus
    mbam pro
I tried to load my latest IMAGE to the new SSD and it didn't work---The PC would not boot up.
That's the reason for my question on CLONING---the folks on the DELL forum advised that I need a CLONE not an image
FWIW-
I tested my ability to use MACRIUM to restore my PC with an IMAGE a week earlier(no change in the desktop SSD)---It worked then.


My Computer

System One

  • OS
    WIN11 HOME Version 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    DELL XPS 8940
    CPU
    11th Gen Intel(R) Core(TM) i7-11700 @ 2.50GHz 2.50 GH
    Motherboard
    Dell OE
    Memory
    32GB
    Graphics Card(s)
    NVIDIA GeForce GTX 1650 SUPER
    Sound Card
    Realtek Audio (on board)
    Monitor(s) Displays
    (2) DELL 2007FP
    Screen Resolution
    1600 X 1200
    Hard Drives
    C: (OS and APPS) 512GB SSD
    D: (data) 1TB SATA
    PSU
    360W
    Case
    DELL OE
    Cooling
    Noctua NF-A9 PWM 92mm case fan and NH-D9L CPU Cooler with 92mm fan
    Keyboard
    Dell
    Mouse
    Logitech M705
    Internet Speed
    500Mbps DWN 120Mbps UP
    Browser
    EDGE-- once in a while will use FIREFOX
    Antivirus
    MS
    Other Info
    The case fan and CPU cooler were after purchase upgrades...the i7 cpu runs hot and the OE solution can best be described as marginal when CPU intensive apps are used.
    ALSO added a VRM and SSD passive heatsinks.
Lou said:
I tried to load my latest IMAGE to the new SSD and it didn't work---The PC would not boot up.
That's the reason for my question on CLONING---the folks on the DELL forum advised that I need a CLONE not an image
FWIW-
I tested my ability to use MACRIUM to restore my PC with an IMAGE a week earlier(no change in the desktop SSD)---It worked then.
Click to expand...
How did you try to load your image? Did you boot off a Macrium rescue USB and restore from there?


My Computers

System One System Two

  • OS
    Windows 11 build 10.0.26635.3566 Beta
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 14 5430
    CPU
    Intel i7-1355U
    Motherboard
    Dell 0GMW80
    Memory
    16GB
    Graphics Card(s)
    Intel Iris XE
    Sound Card
    Realtek
    Monitor(s) Displays
    Dell 14" and LG Ultrawide 26"
    Screen Resolution
    1920 x 1200 and 2560 x 1080
    Hard Drives
    Samsung 990 Pro 1TB NVME Gen 4 M.2 SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Keyboard
    Dell KM3322W
    Mouse
    Dell Trackpad or Dell KM3322W
    Internet Speed
    900mb down / 400mb up FTTP
    Browser
    Edge 124.0.2478.67 Beta
    Antivirus
    Windows Defender
    Other Info
    Windows 365
    1TB OneDrive
    Outlook
    Visual Studio Code
    Visual Studio
    Python 3.12.2
    Macrium Reflect
    Dell Update
    MyDell
    Dell SupportAssist
    Dell TB16 Thunderbolt dock
  • Operating System
    Windows 11
    Computer type
    Tablet
    Manufacturer/Model
    Microsoft Surface Pro 7
    CPU
    Core i5 - 1035G4
    Motherboard
    Microsoft
    Memory
    8GB
    Graphics card(s)
    Intel Iris Plus
    Monitor(s) Displays
    Surface touch
    Screen Resolution
    2736 x 1824
    Hard Drives
    128GB
    PSU
    Microsoft
    Case
    Microsoft Keyboard
    Cooling
    None
    Mouse
    Microsoft Arc Intellimouse
    Keyboard
    Microsoft Surface Keyboard
    Internet Speed
    900mb / 400mb FTTP
    Browser
    Edge
    Antivirus
    Windows Defender
Lou said:
I tried to load my latest IMAGE to the new SSD and it didn't work---The PC would not boot up.
That's the reason for my question on CLONING---the folks on the DELL forum advised that I need a CLONE not an image
FWIW-
I tested my ability to use MACRIUM to restore my PC with an IMAGE a week earlier(no change in the desktop SSD)---It worked then.
Click to expand...
I also have a Dell Inspiron and when I upgraded the OEM SSD with a Samsung 2280 NVME 990 Pro, I simply boot from a Macrium rescue USB and then restore the image from my external storage.


My Computers

System One System Two

  • OS
    Windows 11 build 10.0.26635.3566 Beta
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 14 5430
    CPU
    Intel i7-1355U
    Motherboard
    Dell 0GMW80
    Memory
    16GB
    Graphics Card(s)
    Intel Iris XE
    Sound Card
    Realtek
    Monitor(s) Displays
    Dell 14" and LG Ultrawide 26"
    Screen Resolution
    1920 x 1200 and 2560 x 1080
    Hard Drives
    Samsung 990 Pro 1TB NVME Gen 4 M.2 SSD
    PSU
    Dell
    Case
    Dell
    Cooling
    Dell
    Keyboard
    Dell KM3322W
    Mouse
    Dell Trackpad or Dell KM3322W
    Internet Speed
    900mb down / 400mb up FTTP
    Browser
    Edge 124.0.2478.67 Beta
    Antivirus
    Windows Defender
    Other Info
    Windows 365
    1TB OneDrive
    Outlook
    Visual Studio Code
    Visual Studio
    Python 3.12.2
    Macrium Reflect
    Dell Update
    MyDell
    Dell SupportAssist
    Dell TB16 Thunderbolt dock
  • Operating System
    Windows 11
    Computer type
    Tablet
    Manufacturer/Model
    Microsoft Surface Pro 7
    CPU
    Core i5 - 1035G4
    Motherboard
    Microsoft
    Memory
    8GB
    Graphics card(s)
    Intel Iris Plus
    Monitor(s) Displays
    Surface touch
    Screen Resolution
    2736 x 1824
    Hard Drives
    128GB
    PSU
    Microsoft
    Case
    Microsoft Keyboard
    Cooling
    None
    Mouse
    Microsoft Arc Intellimouse
    Keyboard
    Microsoft Surface Keyboard
    Internet Speed
    900mb / 400mb FTTP
    Browser
    Edge
    Antivirus
    Windows Defender
Lou said:
I tried to load my latest IMAGE to the new SSD and it didn't work---The PC would not boot up.
That's the reason for my question on CLONING---the folks on the DELL forum advised that I need a CLONE not an image
FWIW-
I tested my ability to use MACRIUM to restore my PC with an IMAGE a week earlier(no change in the desktop SSD)---It worked then.
Click to expand...
Hi,
Use the reflect winpe recovery media to create and then restore the system image to the new.

Doing a clone in the os windows disabled the duplicate boot loader is why you couldn't boot
You'd need to use the winpe and use startup repair

Rule #1 of cloning is power off after the clone has completed.

Then swap out the drives.


My Computer

System One

  • OS
    Win-7-10-11Pro's
    Computer type
    PC/Desktop
    Manufacturer/Model
    Acer 17" Nitro 7840sn/ 2x16gb 5600c40/ 4060/ stock 1tb-os/ 4tb sn850x
    CPU
    10900k & 9940x & 5930k
    Motherboard
    z490-Apex & x299-Apex & x99-Sabertooth
    Memory
    Trident-Z Royal 4000c16 2x16gb & Trident-Z 3600c16 4x8gb & 3200c14 4x8gb
    Graphics Card(s)
    Titan Xp & 1080ti FTW3 & evga 980ti gaming
    Sound Card
    Onboard Realtek x3
    Monitor(s) Displays
    1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
    Screen Resolution
    1920-1080 not sure what the t.v is besides 43" class scales from 1920-1080 perfectly
    Hard Drives
    2-WD-sn850x 4tb/ 970evo+500gb/ 980 pro 2tb.
    PSU
    1000p2 & 1200p2 & 850p2
    Case
    D450 x2 & 1 Test bench in cherry Entertainment center
    Cooling
    Custom water loops x3 with 2x mora 360mm rads only 980ti gaming air cooled
    Keyboard
    G710+x3
    Mouse
    Redragon x3
    Internet Speed
    xfinity gigabyte
    Browser
    Firefox
    Antivirus
    mbam pro
OK-
I must have done something VERY wrong--I'll have to try using an IMAGE again
Is there a DETAILED tutorial (for dummies) I can follow...Not sure how I got things to work a week ago.....
Some more questions--
How do I get to WINPE
ALSO
Can I use an existing portable drive for a clone without losing the data already on that portable drive
I guess I don't know the difference between a clone and an image and when to use which...
Like I said---This is all new to me......
PS-
"Did you boot off a Macrium rescue USB and restore from there?"---YES I did...
REALLY appreciate the input here--THANK-YOU all

Last edited:

My Computer

System One

  • OS
    WIN11 HOME Version 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    DELL XPS 8940
    CPU
    11th Gen Intel(R) Core(TM) i7-11700 @ 2.50GHz 2.50 GH
    Motherboard
    Dell OE
    Memory
    32GB
    Graphics Card(s)
    NVIDIA GeForce GTX 1650 SUPER
    Sound Card
    Realtek Audio (on board)
    Monitor(s) Displays
    (2) DELL 2007FP
    Screen Resolution
    1600 X 1200
    Hard Drives
    C: (OS and APPS) 512GB SSD
    D: (data) 1TB SATA
    PSU
    360W
    Case
    DELL OE
    Cooling
    Noctua NF-A9 PWM 92mm case fan and NH-D9L CPU Cooler with 92mm fan
    Keyboard
    Dell
    Mouse
    Logitech M705
    Internet Speed
    500Mbps DWN 120Mbps UP
    Browser
    EDGE-- once in a while will use FIREFOX
    Antivirus
    MS
    Other Info
    The case fan and CPU cooler were after purchase upgrades...the i7 cpu runs hot and the OE solution can best be described as marginal when CPU intensive apps are used.
    ALSO added a VRM and SSD passive heatsinks.
Hi,

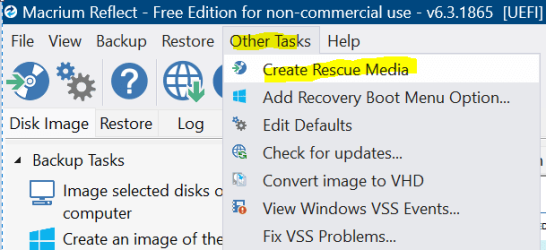

Have a usb flash drive ready it can be as small as 1gb default fat32


My Computer

System One

  • OS
    Win-7-10-11Pro's
    Computer type
    PC/Desktop
    Manufacturer/Model
    Acer 17" Nitro 7840sn/ 2x16gb 5600c40/ 4060/ stock 1tb-os/ 4tb sn850x
    CPU
    10900k & 9940x & 5930k
    Motherboard
    z490-Apex & x299-Apex & x99-Sabertooth
    Memory
    Trident-Z Royal 4000c16 2x16gb & Trident-Z 3600c16 4x8gb & 3200c14 4x8gb
    Graphics Card(s)
    Titan Xp & 1080ti FTW3 & evga 980ti gaming
    Sound Card
    Onboard Realtek x3
    Monitor(s) Displays
    1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
    Screen Resolution
    1920-1080 not sure what the t.v is besides 43" class scales from 1920-1080 perfectly
    Hard Drives
    2-WD-sn850x 4tb/ 970evo+500gb/ 980 pro 2tb.
    PSU
    1000p2 & 1200p2 & 850p2
    Case
    D450 x2 & 1 Test bench in cherry Entertainment center
    Cooling
    Custom water loops x3 with 2x mora 360mm rads only 980ti gaming air cooled
    Keyboard
    G710+x3
    Mouse
    Redragon x3
    Internet Speed
    xfinity gigabyte
    Browser
    Firefox
    Antivirus
    mbam pro

My Computer

System One

  • OS
    Win-7-10-11Pro's
    Computer type
    PC/Desktop
    Manufacturer/Model
    Acer 17" Nitro 7840sn/ 2x16gb 5600c40/ 4060/ stock 1tb-os/ 4tb sn850x
    CPU
    10900k & 9940x & 5930k
    Motherboard
    z490-Apex & x299-Apex & x99-Sabertooth
    Memory
    Trident-Z Royal 4000c16 2x16gb & Trident-Z 3600c16 4x8gb & 3200c14 4x8gb
    Graphics Card(s)
    Titan Xp & 1080ti FTW3 & evga 980ti gaming
    Sound Card
    Onboard Realtek x3
    Monitor(s) Displays
    1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
    Screen Resolution
    1920-1080 not sure what the t.v is besides 43" class scales from 1920-1080 perfectly
    Hard Drives
    2-WD-sn850x 4tb/ 970evo+500gb/ 980 pro 2tb.
    PSU
    1000p2 & 1200p2 & 850p2
    Case
    D450 x2 & 1 Test bench in cherry Entertainment center
    Cooling
    Custom water loops x3 with 2x mora 360mm rads only 980ti gaming air cooled
    Keyboard
    G710+x3
    Mouse
    Redragon x3
    Internet Speed
    xfinity gigabyte
    Browser
    Firefox
    Antivirus
    mbam pro
OK-
I need to do somemore reading---I'll post a follow-up
THANKS folks for your guidance here


My Computer

System One

  • OS
    WIN11 HOME Version 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    DELL XPS 8940
    CPU
    11th Gen Intel(R) Core(TM) i7-11700 @ 2.50GHz 2.50 GH
    Motherboard
    Dell OE
    Memory
    32GB
    Graphics Card(s)
    NVIDIA GeForce GTX 1650 SUPER
    Sound Card
    Realtek Audio (on board)
    Monitor(s) Displays
    (2) DELL 2007FP
    Screen Resolution
    1600 X 1200
    Hard Drives
    C: (OS and APPS) 512GB SSD
    D: (data) 1TB SATA
    PSU
    360W
    Case
    DELL OE
    Cooling
    Noctua NF-A9 PWM 92mm case fan and NH-D9L CPU Cooler with 92mm fan
    Keyboard
    Dell
    Mouse
    Logitech M705
    Internet Speed
    500Mbps DWN 120Mbps UP
    Browser
    EDGE-- once in a while will use FIREFOX
    Antivirus
    MS
    Other Info
    The case fan and CPU cooler were after purchase upgrades...the i7 cpu runs hot and the OE solution can best be described as marginal when CPU intensive apps are used.
    ALSO added a VRM and SSD passive heatsinks.

My Computer

System One

  • OS
    Win-7-10-11Pro's
    Computer type
    PC/Desktop
    Manufacturer/Model
    Acer 17" Nitro 7840sn/ 2x16gb 5600c40/ 4060/ stock 1tb-os/ 4tb sn850x
    CPU
    10900k & 9940x & 5930k
    Motherboard
    z490-Apex & x299-Apex & x99-Sabertooth
    Memory
    Trident-Z Royal 4000c16 2x16gb & Trident-Z 3600c16 4x8gb & 3200c14 4x8gb
    Graphics Card(s)
    Titan Xp & 1080ti FTW3 & evga 980ti gaming
    Sound Card
    Onboard Realtek x3
    Monitor(s) Displays
    1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
    Screen Resolution
    1920-1080 not sure what the t.v is besides 43" class scales from 1920-1080 perfectly
    Hard Drives
    2-WD-sn850x 4tb/ 970evo+500gb/ 980 pro 2tb.
    PSU
    1000p2 & 1200p2 & 850p2
    Case
    D450 x2 & 1 Test bench in cherry Entertainment center
    Cooling
    Custom water loops x3 with 2x mora 360mm rads only 980ti gaming air cooled
    Keyboard
    G710+x3
    Mouse
    Redragon x3
    Internet Speed
    xfinity gigabyte
    Browser
    Firefox
    Antivirus
    mbam pro
Follow-up---I'm doing this from my desktop with it's new SSD.
Boy am I a bit slooooow.
The image restore indeed works when the source is correctly chosen....DAMN
I did that wrong TWICE
We're all set here---THANKS folks for you time and help here!!!!!


My Computer

System One

  • OS
    WIN11 HOME Version 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    DELL XPS 8940
    CPU
    11th Gen Intel(R) Core(TM) i7-11700 @ 2.50GHz 2.50 GH
    Motherboard
    Dell OE
    Memory
    32GB
    Graphics Card(s)
    NVIDIA GeForce GTX 1650 SUPER
    Sound Card
    Realtek Audio (on board)
    Monitor(s) Displays
    (2) DELL 2007FP
    Screen Resolution
    1600 X 1200
    Hard Drives
    C: (OS and APPS) 512GB SSD
    D: (data) 1TB SATA
    PSU
    360W
    Case
    DELL OE
    Cooling
    Noctua NF-A9 PWM 92mm case fan and NH-D9L CPU Cooler with 92mm fan
    Keyboard
    Dell
    Mouse
    Logitech M705
    Internet Speed
    500Mbps DWN 120Mbps UP
    Browser
    EDGE-- once in a while will use FIREFOX
    Antivirus
    MS
    Other Info
    The case fan and CPU cooler were after purchase upgrades...the i7 cpu runs hot and the OE solution can best be described as marginal when CPU intensive apps are used.
    ALSO added a VRM and SSD passive heatsinks.
Hi,
Yep selecting the entire disk source and to the correct destination helps :cool:


My Computer

System One

  • OS
    Win-7-10-11Pro's
    Computer type
    PC/Desktop
    Manufacturer/Model
    Acer 17" Nitro 7840sn/ 2x16gb 5600c40/ 4060/ stock 1tb-os/ 4tb sn850x
    CPU
    10900k & 9940x & 5930k
    Motherboard
    z490-Apex & x299-Apex & x99-Sabertooth
    Memory
    Trident-Z Royal 4000c16 2x16gb & Trident-Z 3600c16 4x8gb & 3200c14 4x8gb
    Graphics Card(s)
    Titan Xp & 1080ti FTW3 & evga 980ti gaming
    Sound Card
    Onboard Realtek x3
    Monitor(s) Displays
    1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
    Screen Resolution
    1920-1080 not sure what the t.v is besides 43" class scales from 1920-1080 perfectly
    Hard Drives
    2-WD-sn850x 4tb/ 970evo+500gb/ 980 pro 2tb.
    PSU
    1000p2 & 1200p2 & 850p2
    Case
    D450 x2 & 1 Test bench in cherry Entertainment center
    Cooling
    Custom water loops x3 with 2x mora 360mm rads only 980ti gaming air cooled
    Keyboard
    G710+x3
    Mouse
    Redragon x3
    Internet Speed
    xfinity gigabyte
    Browser
    Firefox
    Antivirus
    mbam pro
You must log in or register to reply here.

Similar threads

Solved Macrium reflect just wiped out my destination drive failed to do the clone
Replies
19
Views
792
sdowney717
S
Can I use the Winpe Bootable Aomei media to restore an image to a new ssd drive that has no partition or format.
Replies
4
Views
288
Cowboy
C
Solved Clone or image second drive
Replies
10
Views
796
Wynona
Wynona
New SSD on a win 11 computer, need to clone the HDD problem drive to new SSD
Replies
16
Views
836
glasskuter
glasskuter
looking for some advice--Motherboard and SSD replacement
Replies
12
Views
523
Lou
Lou

Latest Support Threads

Latest Tutorials

Back
Top Bottom
