Random, Intermittent BSODs - Windows 11

BLG56 · Sep 29, 2024

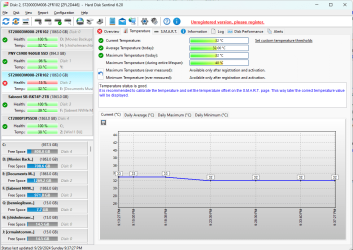

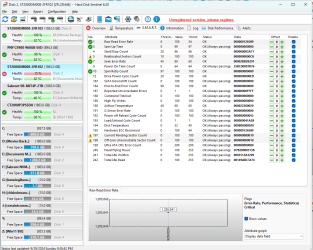

Results of HD Sentinel - E: drive obviously has issues.

BLG56 · Sep 29, 2024

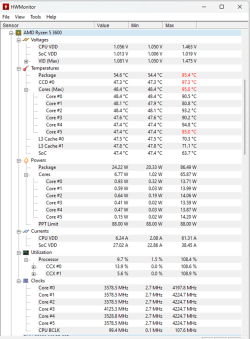

HWMonitor results - no notable issues highlighted HWMonitor.txt will use HW Monitor tomorrow while running Prime 95

zbook · Sep 29, 2024

Backup important files on ST2000DM008-2FR102.

chkdsk E:

Code:

Adding 2 bad clusters to the Bad Clusters File.
Correcting errors in the Volume Bitmap.

Windows has made corrections to the file system.
No further action is required.

1953497087 KB total disk space.
 621443464 KB in 211976 files.
     75616 KB in 113419 indexes.
         8 KB in bad sectors.
   1059035 KB in use by the system.
     65536 KB occupied by the log file.
1330918964 KB available on disk.

Hold testing.

Detach ST2000DM008-2FR102 > monitor the computer for unexpected shutdowns and restarts with and without BSOD > post new V2

View Reliability History in Windows 11

This tutorial will show you how to view reliability history for your Windows 11 device. The Reliability Monitor provides a system stability overview and details about events that impact reliability. It calculates the Stability Index shown in the System Stability Chart. Reliability Monitor...

www.elevenforum.com

BLG56 · Sep 29, 2024

Data is backed up nightly.... Replacing that drive is now on my to-do list -I'll need to replace it before testing as I use the computer daily for work that depends on user files on this drive. Should only take a day or two to get transferred over to new drive.

I'm intrigued how this drive hasn't shown up as problematic prior to running HD Sentinel - thoughts?

cheaterslick · Sep 29, 2024

So the gist of all this is a faulty drive was causing the BSOD errors.

Correct?

zbook · Sep 29, 2024

BLG56 said:
I'm intrigued how this drive hasn't shown up as problematic prior to running HD Sentinel - thoughts?

Please post event viewer share links:

How to share event logs in case of a computer issue - Your Windows Guide

This article explains How to share event logs in case of a computer issue

www.yourwindowsguide.com

zbook · Sep 29, 2024

cheaterslick said:
So the gist of all this is a faulty drive was causing the BSOD errors.

Correct?

The problematic drive is to be detached.

If there is computer stability then this identifies / supports the drive as the cause of the BSOD.

If computer instability continues then hardware component testing will restart.

BLG56 · Sep 30, 2024

cheaterslick said:
So the gist of all this is a faulty drive was causing the BSOD errors.

Correct?

We will see. Testing after swap yer to happen.

BLG56 · Oct 1, 2024

UPDATE - just finished cloning to new drive. Beginning test with old, faulty drive removed today. Reminder - these crashes are intermittent and don't happen with any specific event. So, it may be today or next week before next crash (if one happens). Will update accordingly.

BLG56 · Oct 1, 2024

UPDATE - new crash today (KMODE_EXCEPTION_NOT_HANDLED (1e)) about 12 hours after removing the faulty hard drive.
V2log link: FRANKENPUTER-(2024-10-01_12-10-09).zip

Also @zbook - I apparently missed your request to post event viewer logs - what log records would you like?

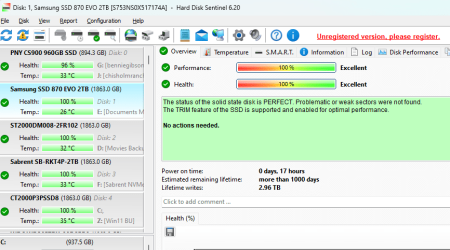

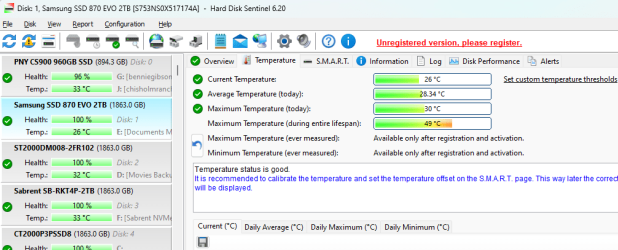

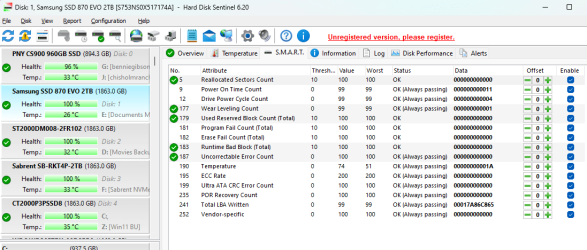

New HD Sentinal info below to confirm the faulty drive is no longer attached.

zbook · Oct 1, 2024

Please update the progress with post #66: event viewer

share links: system and applications

The collected mini dump file dated 10/01 were BSOD bugchecks

IRQL_NOT_LESS_OR_EQUAL (a)

KMODE_EXCEPTION_NOT_HANDLED (1e)

Please resume the hardware stress testing.

BLG56 · Oct 1, 2024

Below is link to the event log for system/applications for past 7 days - critical, error and warnings. Let me know if you need other events.

Event Log for past 7 days.evtx

drive.google.com

results of Furmark test below - I see nothing of note

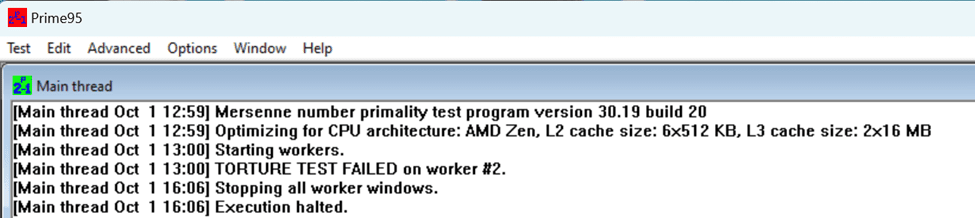

Results of Prime95 test below - one notable item (worker #2 failed early in test). Unsure of significance. Have run 2 other CPU testing tools extensively with no issues noted but this does get my attention. Temps got up to 95, 96C a few times throughout test but did not stay there log. I didn't see anything of note in voltages.

zbook · Oct 1, 2024

BLG56 said:
Results of Prime95 test below - one notable item (worker #2 failed early in test). Unsure of significance. Have run 2 other CPU testing tools extensively with no issues noted but this does get my attention. Temps got up to 95, 96C a few times throughout test but did not stay there log. I didn't see anything of note in voltages.
View attachment 110768

It's ok to have 50,000 event viewer entries > collect each 2 share links: system and application > zip as needed

For all steps / tests > post images or share links

BLG56 · Oct 1, 2024

OK - I think below is what you're looking for:
link to ALL System and Application events: All System and Application Events.evtx
link to Prime95 results.txt: results.txt

zbook · Oct 1, 2024

The event viewer menu options allow the creation of various files.

If possible post
a) one share with system events
b) one share with application events

zbook · Oct 2, 2024

The event viewer link started 06/29/2004.

There were problematic drive (bad blocks) entries seen on 09/28, 09/29 and 10/01.

Run the multiple OCCT 1 hour tests > post images or share links

OCBASE/OCCT : Free, all-in-one stability, stress test, benchmark and monitoring tool for your PC

Ocbase is the home of OCCT, the most popular all-in-one stability / stress testing / benchmarking / monitoring tool available for PC

www.ocbase.com

A
50
109
7E
133
139
2001
1E
3B

BLG56 · Oct 2, 2024

Link to separate event viewer logs here - you mentioned the start date.... If you want, I can resave with a limited date range

All System Events.evtx

drive.google.com

All Application Events.evtx

drive.google.com

Regarding bad blocks - all those errors were during the period the faulty drive was still attached. I am pretty certain those errors refer to the now removed faulty drive.

correcting previous post... I've run OCCT before but will do so again. Will update with results.

BLG56 · Oct 2, 2024

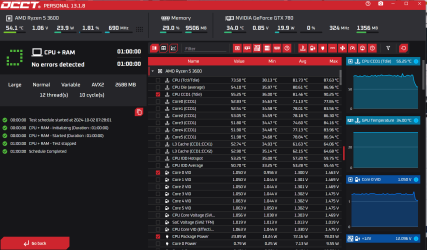

Result of CPU/RAM test below - beginning GPU test now

zbook · Oct 2, 2024

Which post has Memtest86+ results with the current RAM modules BL16G32C16U4B.M16FE?

BLG56 · Oct 2, 2024

@zbook - I ran several memtests for both sets of memory shortly before starting this thread (no errors in any of the tests). However, I can do another run tonight and post tomorrow.
Also... FYI - I will be posting the OCCT GPU test results around 3:30PM CT today. Are there any other OCCT tests you'd like to see
