Solved Resize C: D: partitions that have been encrypted with Bitlocker


msmcintosh

New member
Local time
11:06 AM
Posts
17
Location
Tampa, FL
OS
Windows 11
I would like to increase the size of my C partition with space from my D partition. Both these partitions are encrypted using Windows 11 Home Bitlocker. I have unallocated space after the D partition. I see in Window's Settings that I can change the size of the partitions. I can't add space to my C partition, because there is no unallocated space after it to use. It's all after the D partition.

In older versions of Windows, I think there was the ability to move a partition, such as my D partition into some of the unallocated space after it. I own MiniTool Partition Wizard Pro. It's unable to move or resize the C and D partitions. I Imagine it has to do with the partitions being encrypted.

Is it possible to move and resize my C and D partitions, while they're encrypted? Or would I need to turn off the Bitlocker encryption to decrypt the partitions, move and resize them and then encrypt them again?


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Samsung Galaxie Book Pro 360
    CPU
    i7-1165G7
    Motherboard
    Samsung
    Memory
    16 GB
    Hard Drives
    Samsung SSD 970 EVO Plus 1TB
    Browser
    Edge
    Antivirus
    Norton 360

SIW2

Active member
Member
VIP
Local time
4:06 PM
Posts
269
Or would I need to turn off the Bitlocker encryption to decrypt the partitions, move and resize them and then encrypt them again?
From what I have read , I think you do have to do it that way. I can't confirm that from experience.



My Computer

zbook

Well-known member
Power User
VIP
Local time
10:06 AM
Posts
1,086
OS
Windows 10
What is the time consumption for decrypting the partition?

Can it be performed overnight while sleeping?
Or does it continue into the next day for the partition involved?

Please make a free backup image before attempting to resize a bitlocker encrypted drive and save the image to another disk drive or the cloud.


Technology is a moving target.


It may be possible to resize encrypted disk drives using third party software.
Some third party software may have an unlock feature before resizing.
The time consumption for this feature was not displayed.
Reliability / unreliability when using this feature was not displayed.


Older threads from 2019 and 2021 had suggested bitlocker decryption first and others had reported problems without decryption first:


This was for Windows 7 and may or may not be applicable to Windows 11:


EaseUS has a Bitlocker unlock feature before resizing:





My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

msmcintosh

New member
Thread Starter
Local time
11:06 AM
Posts
17
Location
Tampa, FL
OS
Windows 11
I tried the free version of EaseUS Partition Master. After I selected how I wanted the partition configured, It popped up a message indicating it will turn off Bitlocker Drive Encryption before continuing. Maybe the unlock feature works with Bitlocker from the Pro version of Windows, not the Home version. The popup also indicated that encryption would need to be manually turned back on after the process.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Samsung Galaxie Book Pro 360
    CPU
    i7-1165G7
    Motherboard
    Samsung
    Memory
    16 GB
    Hard Drives
    Samsung SSD 970 EVO Plus 1TB
    Browser
    Edge
    Antivirus
    Norton 360

Ghot

Well-known member
Pro User
VIP
Local time
11:06 AM
Posts
3,159
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.778
As for the encryption, I would decrypt them first.

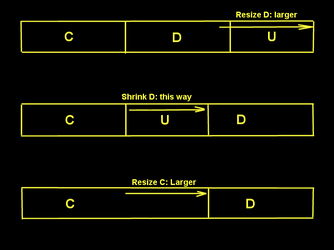

As for resizing, etc., think of partitions like dominoes.
If you have space after the D: partition, add it to D: first.

Then resize D: by grabbing the left handle and shrinking D: to the right.
That will leave unallocated between C: and D:

THEN you can resize C: to use that new unallocated space.





Some partitioning programs will let you just "slide" the D: partition to the right, without changing it's size.
But ALL partitioning programs will let you do it like shown in the picture.

Last edited:

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.778
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

zbook

Well-known member
Power User
VIP
Local time
10:06 AM
Posts
1,086
OS
Windows 10

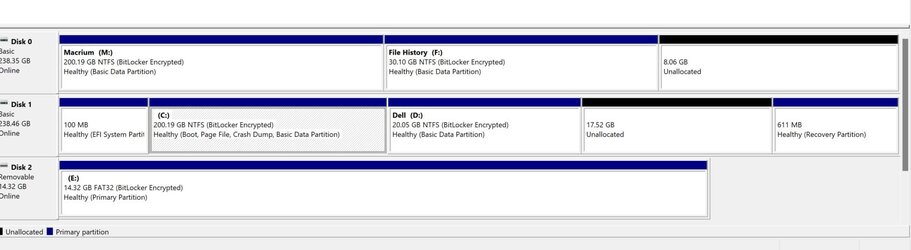

Please post images or share links displaying disk management.
(by default rows and columns are compressed and characters are cut off)

a) widen these rows: disk 0, disk 1, disk 2, etc. > make sure that no characters are cut off
b) widen these columns: Status and Volume > make sure that no characters are cut off




Run: (currently requires a Ten Forums logon)
Post a share link into this thread.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

msmcintosh

New member
Thread Starter
Local time
11:06 AM
Posts
17
Location
Tampa, FL
OS
Windows 11

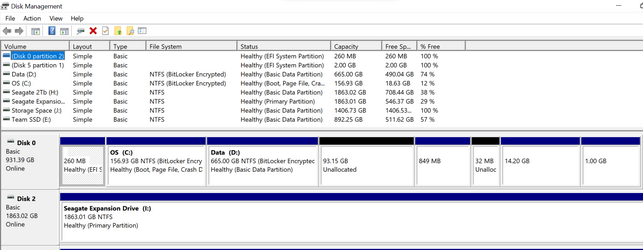

I think I will only need to decrypt D:. Once I have unallocated space before D:, I can use Window's System > Storage > Disks & volumes > C: "Change size" to make C: larger without decrypting.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Samsung Galaxie Book Pro 360
    CPU
    i7-1165G7
    Motherboard
    Samsung
    Memory
    16 GB
    Hard Drives
    Samsung SSD 970 EVO Plus 1TB
    Browser
    Edge
    Antivirus
    Norton 360

msmcintosh

New member
Thread Starter
Local time
11:06 AM
Posts
17
Location
Tampa, FL
OS
Windows 11


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Samsung Galaxie Book Pro 360
    CPU
    i7-1165G7
    Motherboard
    Samsung
    Memory
    16 GB
    Hard Drives
    Samsung SSD 970 EVO Plus 1TB
    Browser
    Edge
    Antivirus
    Norton 360

Ghot

Well-known member
Pro User
VIP
Local time
11:06 AM
Posts
3,159
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.778
Here's another option.... start using backup software, like Macrium Reflect.
Then... instead of encrypting C: and D:, you can just encrypt the backups of C: and D:

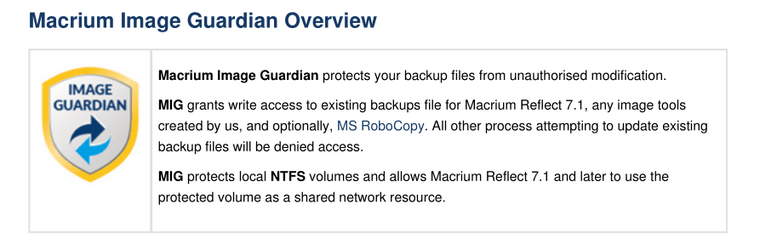

AND... if you use the paid version of Macrium Reflect, you will also get Image Guardian.
Then you won't even have to encrypt the backups of C: and D:

With decent "guarded" backups... you don't even need Bitlocker.



And since a backup of C: is only about 1/2 the size of C:, backups and restores (if needed) are... fast.

Last edited:

My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.778
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

msmcintosh

New member
Thread Starter
Local time
11:06 AM
Posts
17
Location
Tampa, FL
OS
Windows 11

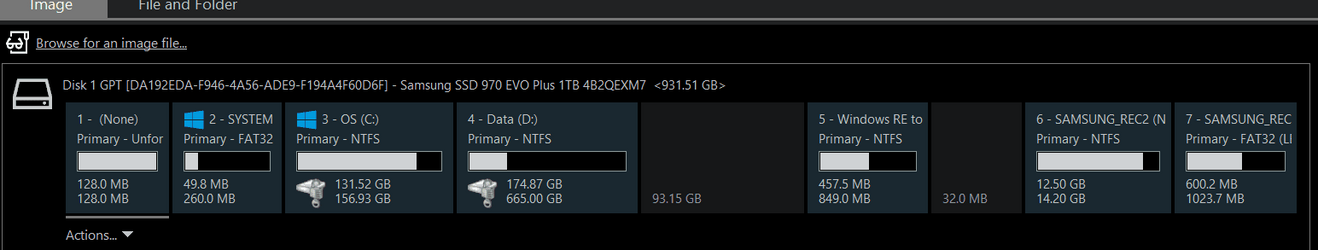

I have the paid version of Macrium Reflect. I back up every day. The backup is password protected.

Not that this has ever happened to me. Logging into Windows requires a PIN or my fingerprint. While the drive is in my laptop, that would protect the contents. But if someone removed the drive from my laptop, they could use a PCIe to USB adapter and read the contents.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Samsung Galaxie Book Pro 360
    CPU
    i7-1165G7
    Motherboard
    Samsung
    Memory
    16 GB
    Hard Drives
    Samsung SSD 970 EVO Plus 1TB
    Browser
    Edge
    Antivirus
    Norton 360

Ghot

Well-known member
Pro User
VIP
Local time
11:06 AM
Posts
3,159
Location
PA, USA
OS
Win 11 Home ♦♦♦22000.778
I have the paid version of Macrium Reflect. I back up every day. The backup is password protected.

Not that this has ever happened to me. Logging into Windows requires a PIN or my fingerprint. While the drive is in my laptop, that would protect the contents. But if someone removed the drive from my laptop, they could use a PCIe to USB adapter and read the contents.


You just have to set your drives up... properly. :)






All kidding aside... if you are in a situation where someone may get your drive... then yes... Bitlocker is a good idea.


My Computers

System One System Two

  • OS
    Win 11 Home ♦♦♦22000.778
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot® [May 2020]
    CPU
    AMD Ryzen 7 3700X
    Motherboard
    Asus Pro WS X570-ACE
    Memory
    G.Skill (F4-3200C14D-16GTZKW)
    Graphics Card(s)
    EVGA RTX 2070 (08G-P4-2171-KR)
    Sound Card
    (onboard) Realtek ALC1220P / ALC S1220A
    Monitor(s) Displays
    Dell U3011 30"
    Screen Resolution
    2560 x 1600
    Hard Drives
    2x Samsung 860 EVO 500GB,
    WD 4TB Black FZBX - SATA III,
    WD 8TB Black FZBX - SATA III,
    LG GH22LS30 CD/DVD Burner
    PSU
    PC Power & Cooling 750W Quad EPS12V
    Case
    COOLER MASTER ATCS 840 Full Tower
    Cooling
    CM Hyper 212 EVO (push/pull)
    Keyboard
    Ducky DK9008 Shine II Blue LED
    Mouse
    Logitech Optical M-100
    Internet Speed
    100/100
    Browser
    Firefox (latest)
    Antivirus
    Bitdefender Internet Security (latest)
    Other Info
    Speakers: Klipsch Pro Media 2.1
  • Operating System
    Windows XP Pro 32bit w/SP3
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built by Ghot®
    CPU
    AMD Athlon 64 X2 5000+ (OC'd @ 3.2Ghz)
    Motherboard
    ASUS M2N32-SLI Deluxe Wireless Edition
    Memory
    TWIN2X2048-6400C4DHX (2 x 1GB, DDR2 800)
    Graphics card(s)
    EVGA 256-P2-N758-TR GeForce 8600GT SSC
    Sound Card
    Onboard
    Monitor(s) Displays
    ViewSonic G90FB Black 19" Professional (CRT)
    Screen Resolution
    up to 2048 x 1536
    Hard Drives
    WD 36GB 10,000rpm Raptor SATA
    Seagate 80GB 7200rpm SATA
    Lite-On LTR-52246S CD/RW
    Lite-On LH-18A1P CD/DVD Burner
    PSU
    PC Power & Cooling Silencer 750 Quad EPS12V
    Case
    Generic Beige case, 80mm fans
    Cooling
    ZALMAN 9500A 92mm CPU Cooler
    Mouse
    Logitech Optical M-BT96a
    Keyboard
    Logitech Classic Keybooard 200
    Internet Speed
    100/100
    Browser
    Firefox 3.x ??
    Antivirus
    Symantec (Norton)
    Other Info
    Still assembled, still runs. Haven't turned it on for 13 years?

    http://www.xtremesystems.org/forums/showthread.php?183088-5000-B-E-on-M2N32-SLI-Dlx-Overclocked&p=2891724#post2891724

zbook

Well-known member
Power User
VIP
Local time
10:06 AM
Posts
1,086
OS
Windows 10
When the script results are available it should confirm the multiple recovery partitions.
The orphaned recovery partition can be deleted.
This adds approximately 1 GB.

It's best to have a recovery partition immediately to the right of the Windows partition.

This way Windows will no longer create multiple recovery partitions when there is limited disk drive space.


Once D: is decrypted move it to the right.

The desired amount of unallocated space is then between C: and D:

This completes the D: drive decryption and now D: can be encrypted.


Decrypt C: then extend into the unallocated partition leaving 1 GB unallocated space between C: and D:

Disable the enabled windows recovery partition then delete both windows recovery partitions (849MB and 1 GB)

Recreate the new Windows recovery partition by performing an in place upgrade repair.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

msmcintosh

New member
Thread Starter
Local time
11:06 AM
Posts
17
Location
Tampa, FL
OS
Windows 11
This is a better drive image.



Attachments

  • DiskParInfo.log
    18.6 KB · Views: 1
Last edited:

My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Samsung Galaxie Book Pro 360
    CPU
    i7-1165G7
    Motherboard
    Samsung
    Memory
    16 GB
    Hard Drives
    Samsung SSD 970 EVO Plus 1TB
    Browser
    Edge
    Antivirus
    Norton 360

zbook

Well-known member
Power User
VIP
Local time
10:06 AM
Posts
1,086
OS
Windows 10
The reserved and system partition sizes appear to have been resized and repositioned as they are not the typical default values / locations.

The script results indicated that the active recovery partition is partition 5 (849 MB)



This method should merge these areas of the disk drive into one unallocated space: 93.15 GB + 849 MB + 32 MB = ~94 GB

What are the Samsung partitions at the end of the drive 0?
SAMSUNG_REC NTFS
SAMSUNG_REC FAT32

Open administrative command prompt and type or copy and paste:

sfc /scannow
dism /online /cleanup-image /restorehealth
chkdsk /scan
reagentc /info
reagentc /disable
reagentc /info

Post an image or share link displaying the commands with results.


After D: drive decryption:
a) delete the disabled recovery partition 849 MB
b) move the D: partition to the right creating the desired unallocated space to its right and left sides

The D: drive can be encrypted again.


These are trial and error steps:
After C: drive decryption:
a) extend the C: partition to the right leaving approximately 1 GB unallocated space to its right
b) perform an in place upgrade repair

If this creates a new recovery partition immediately to the right of C: then you're set.
The new recovery partition does not fill the unallocated space it can be disabled and moved to the right.
Then C: can be extend to fill the space so that the C: is immediately to the left of the recovery partition followed by enabling the recovery partition.
Then C: can be encrypted again.

The outcome should have this architecture: Reserved, System, C:, Recovery, D:, unallocated, Samsung ntfs, Samsung Fat32




Code:
  Partition ###  Type              Size     Offset
  -------------  ----------------  -------  -------
  Partition 1    Reserved           128 MB    17 KB
  Partition 2    System             260 MB   129 MB
  Partition 3    Primary            156 GB   389 MB
  Partition 4    Primary            664 GB   157 GB
  Partition 5    Recovery           849 MB   915 GB
  Partition 6    Recovery            14 GB   916 GB
  Partition 7    Recovery          1023 MB   930 GB

Code:
  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 1     C   OS           NTFS   Partition    156 GB  Healthy    Boot
  Volume 2     D   Data         NTFS   Partition    664 GB  Healthy
  Volume 3         SYSTEM       FAT32  Partition    260 MB  Healthy    System
  Volume 4         Windows RE   NTFS   Partition    849 MB  Healthy    Hidden
  Volume 5         SAMSUNG_REC  NTFS   Partition     14 GB  Healthy    Hidden
  Volume 6         SAMSUNG_REC  FAT32  Partition   1023 MB  Healthy    Hidden

Last edited:

My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

Mooly

Active member
VIP
Local time
4:06 PM
Posts
122
OS
W11 Pro x64 21H2
Unless I've missed it somewhere, what a trying this. No 3rd party tools required.

1/ Copy D to an external drive.

2/ Delete D taking it down to unallocated space in Disk Management Console and then merge into C.

3/ Make C the size you want.

4/ Recreate D using the space left.

5/ Copy contents back.

As to Bitlocker, well I've just done something similar with a new laptop and didn't hit any issues with Bitlocker on.


My Computer

System One

  • OS
    W11 Pro x64 21H2
    Computer type
    Laptop
    Manufacturer/Model
    Dell 7760 Mobile Precision 17"
    CPU
    Intel i5
    Motherboard
    Unknown
    Memory
    8Gb
    Graphics Card(s)
    Intel HD Graphics
    Sound Card
    Realtek
    Monitor(s) Displays
    Internal
    Hard Drives
    2 x 256Gb SSD
    PSU
    Dell 240 watt
    Mouse
    Dell Premier Bluetooth
    Internet Speed
    50Mbps
    Browser
    Edge
    Antivirus
    Default Microsoft Security

cereberus

Well-known member
Pro User
VIP
Local time
4:06 PM
Posts
2,048
OS
Windows 10 Pro + others in VHDs
Unless I've missed it somewhere, what a trying this. No 3rd party tools required.

1/ Copy D to an external drive.

2/ Delete D taking it down to unallocated space in Disk Management Console and then merge into C.

3/ Make C the size you want.

4/ Recreate D using the space left.

5/ Copy contents back.

As to Bitlocker, well I've just done something similar with a new laptop and didn't hit any issues with Bitlocker on.

This is simplest approach as D is hardly used. It is hard to tell of other partitions past D are useful but tidying them up is a bit tricky. Safest to move them all to far right using minitool partition wizard free if not sure which to delete (e.g. the oem partitions).


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

zbook

Well-known member
Power User
VIP
Local time
10:06 AM
Posts
1,086
OS
Windows 10
Unless I've missed it somewhere, what a trying this. No 3rd party tools required.

1/ Copy D to an external drive.

2/ Delete D taking it down to unallocated space in Disk Management Console and then merge into C.

3/ Make C the size you want.

4/ Recreate D using the space left.

5/ Copy contents back.

As to Bitlocker, well I've just done something similar with a new laptop and didn't hit any issues with Bitlocker on.


Did you use diskpart or disk management to extend the size of the encrypted C: partition?
Are you moving D: as an encrypted or decrypted partition?

Were there other threads or links indicating the success in resizing bitlocker encrypted partitions without decryption?
Or were there some with problematic results?

Did you use up to date backup images before you did something similar?


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

Mooly

Active member
VIP
Local time
4:06 PM
Posts
122
OS
W11 Pro x64 21H2
Did you use diskpart or disk management to extend the size of the encrypted C: partition?
Are you moving D: as an encrypted or decrypted partition?
I used Disk Management only, however this was a new laptop with two internal drives, one C and one D. I had a bit of a play around tbh as I thought through what I wanted.

For what you showed earlier I would just try doing as I outlined. I can't see any issues doing it that way really.

This was my first time with Bitlocker and I left it set to encrypted while playing around.

No backup images when I was resizing everything because I knew I was going to clean install.

I find the hardest part is getting the partition sizes correct so they show as exact numbers (its just me, I like 'em exact) when viewed in File Explorer.

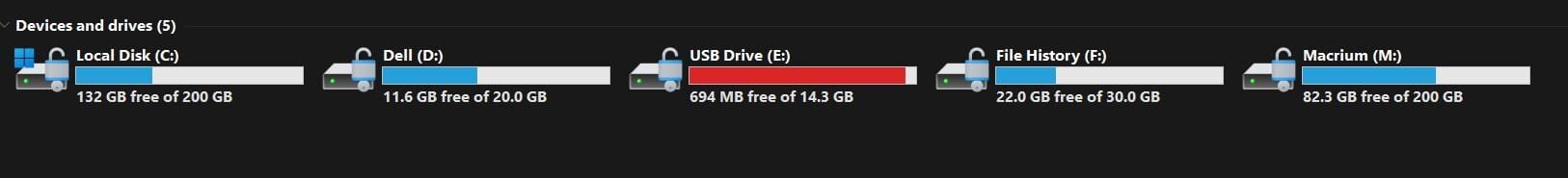

Screenshot 2022-06-19 135433.jpg

Screenshot 2022-06-19 135559.jpg


My Computer

System One

  • OS
    W11 Pro x64 21H2
    Computer type
    Laptop
    Manufacturer/Model
    Dell 7760 Mobile Precision 17"
    CPU
    Intel i5
    Motherboard
    Unknown
    Memory
    8Gb
    Graphics Card(s)
    Intel HD Graphics
    Sound Card
    Realtek
    Monitor(s) Displays
    Internal
    Hard Drives
    2 x 256Gb SSD
    PSU
    Dell 240 watt
    Mouse
    Dell Premier Bluetooth
    Internet Speed
    50Mbps
    Browser
    Edge
    Antivirus
    Default Microsoft Security

msmcintosh

New member
Thread Starter
Local time
11:06 AM
Posts
17
Location
Tampa, FL
OS
Windows 11
In Settings it's either the whole drive is encrypted or it's decrypted. I decrypted the whole drive. I thought it was by partition, but it's not. It's a Samsung laptop and the last two partitions came with it.

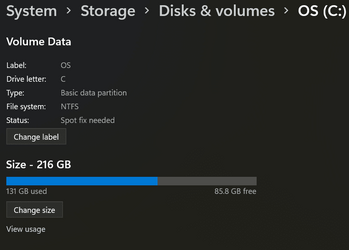

This is the new layout with the expanded C:.


These are the results of the commands I ran from post #14.


Attachments

  • Cmds part 2.txt
    1.1 KB · Views: 1
  • Cmds.txt
    20.3 KB · Views: 1

My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Samsung Galaxie Book Pro 360
    CPU
    i7-1165G7
    Motherboard
    Samsung
    Memory
    16 GB
    Hard Drives
    Samsung SSD 970 EVO Plus 1TB
    Browser
    Edge
    Antivirus
    Norton 360

msmcintosh

New member
Thread Starter
Local time
11:06 AM
Posts
17
Location
Tampa, FL
OS
Windows 11
This is where I could resize partitions while the drive is encrypted.



My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Samsung Galaxie Book Pro 360
    CPU
    i7-1165G7
    Motherboard
    Samsung
    Memory
    16 GB
    Hard Drives
    Samsung SSD 970 EVO Plus 1TB
    Browser
    Edge
    Antivirus
    Norton 360
Top Bottom
