Severe Windows 11 Corruption on ASUS Vivobook K513EQ: In-Place Upgrade Fails, and Storage Invisible


1) Please run these bat scripts > post share links



a) diskparinfo.bat






b) Rerun: tuneup_plus_log.bat

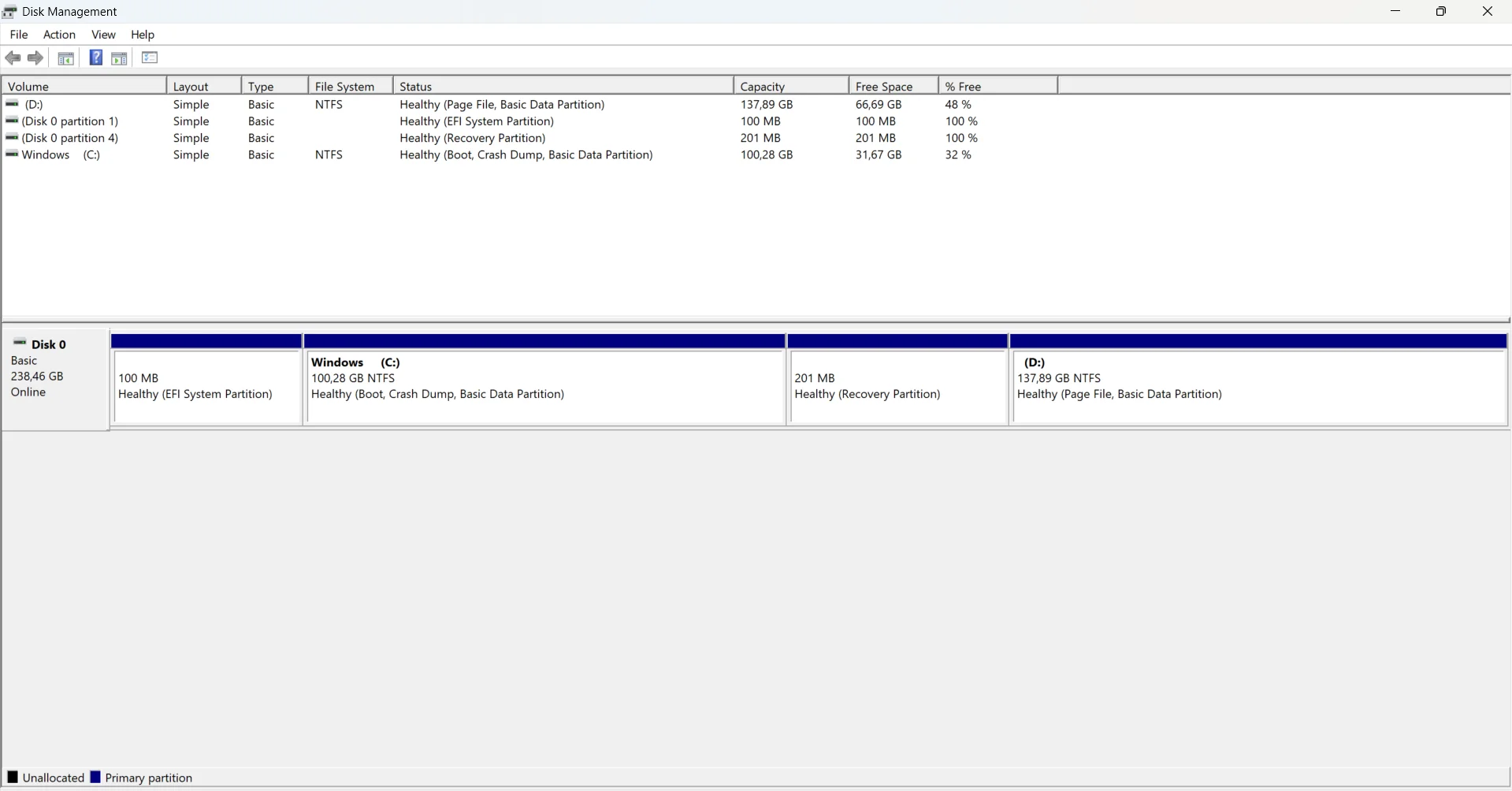

2)Open disk management > widen rows and columns > make sure that characters are not cutoff > post a share link

c) How to Post a Screenshot of Disk Management




3) Run > post share links

dism /online /get-currentedition

dir C:\Windows\System32\Recovery

dir C:\Recovery\WindowsRE


My Computer My Computer

At a glance

Windows 10Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz16 GB Total: Manufacturer : Samsung MemoryTyp...NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
OS
Windows 10
Computer type
Laptop
Manufacturer/Model
HP
CPU
Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
Motherboard
Product : 190A Version : KBC Version 94.56
Memory
16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
Graphics Card(s)
NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
Sound Card
IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
Hard Drives
Model Hitachi HTS727575A9E364
Antivirus
Microsoft Defender
Other Info
Mobile Workstation
Media Creation Tool (USB): Created a bootable installation USB. When launching the recovery options from it, it just restarted the loop.

There is a bug in version 26200.8653.

Windows 11 installation ISO/USB created with the Media Creation Tool
- Build 26200.8653

Download Windows 11 Disk Image (ISO) for x64 devices
- Build 26200.8037

On the "Select setup option" screen, you can open a Command Prompt by pressing Shift + F10. However, if you need installation media that provides access to the recovery options (Repair my PC > Next), go to the Windows 11 download page, select the "Download Windows 11 Disk Image (ISO) for x64 devices" option, and then create a bootable USB flash drive using Rufus (Partition scheme: GPT).


My Computers My Computers

  • At a glance

    Windows 11 ProAMD Ryzen 9 9950X3DKingston FURY Beast 64GB (2x32GB) DDR5 6000MT/sASUS TUF Gaming Radeon RX 9070 OC Edition 16G...
    OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 9 9950X3D
    Motherboard
    ASRock B650E Taichi Lite
    Memory
    Kingston FURY Beast 64GB (2x32GB) DDR5 6000MT/s
    Graphics Card(s)
    ASUS TUF Gaming Radeon RX 9070 OC Edition 16GB GDDR6
    Hard Drives
    Solidigm P44 Pro 2TB M.2 NVMe SSD
  • At a glance

    Windows 11 HomeIntel Core Ultra 9 275HX64GB (2x 32GB) DDR5-6400NVIDIA GeForce RTX 5080 16GB GDDR7 Laptop GPU
    Operating System
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo Legion Pro 7i Gen 10 16"
    CPU
    Intel Core Ultra 9 275HX
    Memory
    64GB (2x 32GB) DDR5-6400
    Graphics card(s)
    NVIDIA GeForce RTX 5080 16GB GDDR7 Laptop GPU
    Hard Drives
    2x 1TB M.2 NVMe SSD (SK Hynix)
Code:
    Disk 0 : SSD. It has 5 partition(s). Model: NVMe WDC PC SN530 SDBPNPZ-256G-1002

    The script has found the above 1 storage device(s) in total.
=======================================================================

Microsoft DiskPart version 10.0.26100.1150

Copyright (C) Microsoft Corporation.
On computer: ASUS

  Disk ###  Status         Size     Free     Dyn  Gpt
  --------  -------------  -------  -------  ---  ---
  Disk 0    Online          238 GB  3072 KB        *

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   Windows      NTFS   Partition     99 GB  Healthy    Boot
  Volume 1     D                NTFS   Partition    137 GB  Healthy    Pagefile
  Volume 2                      FAT32  Partition    100 MB  Healthy    System
  Volume 3                      RAW    Partition    979 MB  Healthy    Hidden

Disk 0 is now the selected disk.

NVMe WDC PC SN530 SDBPNPZ-256G-1002
Disk ID: {16BD3E62-96B8-45CE-9B7E-6438808227E2}
Type   : RAID
Status : Online
Path   : 3
Target : 0
LUN ID : 0
Location Path : PCIROOT(0)#PCI(0E00)#RAID(P03T00L00)
Current Read-only State : No
Read-only  : No
Boot Disk  : Yes
Pagefile Disk  : Yes
Hibernation File Disk  : No
Crashdump Disk  : Yes
Clustered Disk  : No

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   Windows      NTFS   Partition     99 GB  Healthy    Boot
  Volume 1     D                NTFS   Partition    137 GB  Healthy    Pagefile
  Volume 2                      FAT32  Partition    100 MB  Healthy    System
  Volume 3                      RAW    Partition    979 MB  Healthy    Hidden

  Partition ###  Type              Size     Offset
  -------------  ----------------  -------  -------
  Partition 1    System             100 MB  1024 KB
  Partition 2    Reserved            16 MB   101 MB
  Partition 3    Primary             99 GB   117 MB
  Partition 4    Recovery           979 MB    99 GB
  Partition 5    Primary            137 GB   100 GB

Partition 1 is now the selected partition.

Partition 1
Type    : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden  : Yes
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 1048576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 2                      FAT32  Partition    100 MB  Healthy    System

Partition 2 is now the selected partition.

Partition 2
Type    : e3c9e316-0b5c-4db8-817d-f92df00215ae
Hidden  : Yes
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 105906176

There is no volume associated with this partition.

Partition 3 is now the selected partition.

Partition 3
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 122683392

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 0     C   Windows      NTFS   Partition     99 GB  Healthy    Boot

Partition 4 is now the selected partition.

Partition 4
Type    : de94bba4-06d1-4d40-a16a-bfd50179d6ac
Hidden  : Yes
Required: Yes
Attrib  : 0X8000000000000001
Offset in Bytes: 106974674944

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 3                      RAW    Partition    979 MB  Healthy    Hidden

Partition 5 is now the selected partition.

Partition 5
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 108004376576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 1     D                NTFS   Partition    137 GB  Healthy    Pagefile

===============================================================================

Windows Recovery Environment (Windows RE) and system reset configuration
Information:

    Windows RE status:         Disabled
    Windows RE location:
    Boot Configuration Data (BCD) identifier: e50f9416-95c9-11ef-bfe0-a3425c97b477
    Recovery image location:
    Recovery image index:      0
    Custom image location:
    Custom image index:        0
    Windows RE Version:        0.0.0.0

REAGENTC.EXE: Operation Successful.

===============================================================================

Firmware Boot Manager
---------------------
identifier              {fwbootmgr}
displayorder            {bootmgr}
timeout                 1

Windows Boot Manager
--------------------
identifier              {bootmgr}
device                  partition=\Device\HarddiskVolume1
path                    \EFI\Microsoft\Boot\bootmgfw.efi
description             Windows Boot Manager
locale                  ru-RU
inherit                 {globalsettings}
default                 {current}
resumeobject            {e50f941c-95c9-11ef-bfe0-a3425c97b477}
displayorder            {current}
toolsdisplayorder       {memdiag}
timeout                 5

Windows Boot Loader
-------------------
identifier              {23fff7ec-ed80-11ec-883d-c6208a87c835}
device                  ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{23fff7ed-ed80-11ec-883d-c6208a87c835}
path                    \windows\system32\winload.efi
description             Windows Recovery Environment
locale                  ru-RU
inherit                 {bootloadersettings}
displaymessage          Recovery
osdevice                ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{23fff7ed-ed80-11ec-883d-c6208a87c835}
systemroot              \windows
nx                      OptIn
bootmenupolicy          Standard
winpe                   Yes

Windows Boot Loader
-------------------
identifier              {current}
device                  partition=C:
path                    \WINDOWS\system32\winload.efi
description             Windows 11
locale                  ru-RU
inherit                 {bootloadersettings}
recoverysequence        {e50f9416-95c9-11ef-bfe0-a3425c97b477}
displaymessageoverride  Recovery
recoveryenabled         Yes
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
osdevice                partition=C:
systemroot              \WINDOWS
resumeobject            {e50f9414-95c9-11ef-bfe0-a3425c97b477}
nx                      OptIn
bootmenupolicy          Standard
hypervisorlaunchtype    Auto

Windows Boot Loader
-------------------
identifier              {e50f9416-95c9-11ef-bfe0-a3425c97b477}
device                  ramdisk=[\Device\HarddiskVolume4]\Recovery\WindowsRE\Winre.wim,{e50f9417-95c9-11ef-bfe0-a3425c97b477}
path                    \windows\system32\winload.efi
description             Windows Recovery Environment
locale                  ru-RU
inherit                 {bootloadersettings}
displaymessage          Recovery
osdevice                ramdisk=[\Device\HarddiskVolume4]\Recovery\WindowsRE\Winre.wim,{e50f9417-95c9-11ef-bfe0-a3425c97b477}
systemroot              \windows
nx                      OptIn
bootmenupolicy          Standard
winpe                   Yes

Resume from Hibernate
---------------------
identifier              {e50f9414-95c9-11ef-bfe0-a3425c97b477}
device                  partition=C:
path                    \WINDOWS\system32\winresume.efi
description             Windows Resume Application
locale                  ru-RU
inherit                 {resumeloadersettings}
recoverysequence        {e50f9416-95c9-11ef-bfe0-a3425c97b477}
recoveryenabled         Yes
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
filedevice              partition=C:
custom:21000026         partition=C:
filepath                \hiberfil.sys
bootmenupolicy          Standard
debugoptionenabled      No

Resume from Hibernate
---------------------
identifier              {e50f941c-95c9-11ef-bfe0-a3425c97b477}
device                  partition=C:
path                    \$WINDOWS.~BT\NewOS\WINDOWS\system32\winresume.efi
description             Windows Resume Application
locale                  ru-RU
inherit                 {resumeloadersettings}
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
filepath                \hiberfil.sys
bootmenupolicy          Standard

Windows Memory Tester
---------------------
identifier              {memdiag}
device                  partition=\Device\HarddiskVolume1
path                    \EFI\Microsoft\Boot\memtest.efi
description                    ⨪
locale                  ru-RU
inherit                 {globalsettings}
badmemoryaccess         Yes

EMS Settings
------------
identifier              {emssettings}
bootems                 No

Debugger Settings
-----------------
identifier              {dbgsettings}
debugtype               Local

RAM Defects
-----------
identifier              {badmemory}

Global Settings
---------------
identifier              {globalsettings}
inherit                 {dbgsettings}
                        {emssettings}
                        {badmemory}

Boot Loader Settings
--------------------
identifier              {bootloadersettings}
inherit                 {globalsettings}
                        {hypervisorsettings}

Hypervisor Settings
-------------------
identifier              {hypervisorsettings}
hypervisordebugtype     Serial
hypervisordebugport     1
hypervisorbaudrate      115200

Resume Loader Settings
----------------------
identifier              {resumeloadersettings}
inherit                 {globalsettings}

Device options
--------------
identifier              {e50f9417-95c9-11ef-bfe0-a3425c97b477}
description             Windows Recovery
ramdisksdidevice        partition=\Device\HarddiskVolume4
ramdisksdipath          \Recovery\WindowsRE\boot.sdi

Device options
--------------
identifier              {e50f941e-95c9-11ef-bfe0-a3425c97b477}
description             Windows Setup
ramdisksdidevice        partition=C:
ramdisksdipath          \$WINDOWS.~BT\Sources\SafeOS\boot.sdi

Code:
 Њ ©Єа®б®дв Windows 11 Pro  Version 24H2 (OS Build 26100.8737)

==================================================================

    Started on 10.07.2026 at 11:41:30,64

        [SFC /ScanNow]

Beginning system scan.  This process will take some time.

Results:

Windows Resource Protection did not find any integrity violations.

==================================================================

    Started on 10.07.2026 at 11:43:54,55

        [DISM /online /cleanup-image /ScanHealth]

Deployment Image Servicing and Management tool
Version: 10.0.26100.8737

Image Version: 10.0.26100.8737

No component store corruption detected.

The operation completed successfully.

==================================================================

    Started on 10.07.2026 at 11:46:50,52

        [DISM /online /cleanup-image /RestoreHealth]

Deployment Image Servicing and Management tool
Version: 10.0.26100.8737

Image Version: 10.0.26100.8737

The restore operation completed successfully.

The operation completed successfully.

==================================================================

The second "SFC /ScanNow" was skipped, as the first output the following:

Windows Resource Protection did not find any integrity violations.

==================================================================

    Started on 10.07.2026 at 12:12:27,53

        [ChkDsk /Scan]

The type of the file system is NTFS.
Volume label is Windows   .

Stage 1: Examining basic file system structure ...
2489856 file records processed.
File verification completed.
Phase duration (File record verification): 20.79 seconds.
31880 large file records processed.
Phase duration (Orphan file record recovery): 22.48 milliseconds.
0 bad file records processed.
Phase duration (Bad file record checking): 0.07 milliseconds.

Stage 2: Examining file name linkage ...
70382 reparse records processed.
2727044 index entries processed.
Index verification completed.
Phase duration (Index verification): 48.70 seconds.
0 unindexed files scanned.
Phase duration (Orphan reconnection): 8.27 seconds.
0 unindexed files recovered to lost and found.
Phase duration (Orphan recovery to lost and found): 1.01 milliseconds.
70382 reparse records processed.
Phase duration (Reparse point and Object ID verification): 3.37 seconds.

Stage 3: Examining security descriptors ...
Security descriptor verification completed.
Phase duration (Security descriptor verification): 82.74 milliseconds.
118595 data files processed.
Phase duration (Data attribute verification): 0.05 milliseconds.
CHKDSK is verifying Usn Journal...
40746080 USN bytes processed.
Usn Journal verification completed.
Phase duration (USN journal verification): 132.34 milliseconds.

Windows has scanned the file system and found no problems.

No further action is required.

104347647 KB total disk space.
65806924 KB in 1027101 files.
662940 KB in 118596 indexes.
0 KB in bad sectors.
2611371 KB in use by the system.
65536 KB occupied by the log file.
35266412 KB available on disk.

4096 bytes in each allocation unit.
26086911 total allocation units on disk.
8816603 allocation units available on disk.
Total duration: 1.35 minutes (81396 ms).

==================================================================

    Started on 10.07.2026 at 12:13:58,11

AutoReboot

FALSE

==================================================================

        [Set AutoReboot = False]

Updating property(s) of '\\ASUS\ROOT\CIMV2:Win32_OSRecoveryConfiguration.Name="Microsoft Windows 11 Pro|C:\\WINDOWS|\\Device\\Harddisk0\\Partition3"'
Property(s) update successful.
==================================================================

AutoReboot

FALSE

==================================================================

DebugInfoType

7

==================================================================

        [Set DebugInfoType = 7]

Updating property(s) of '\\ASUS\ROOT\CIMV2:Win32_OSRecoveryConfiguration.Name="Microsoft Windows 11 Pro|C:\\WINDOWS|\\Device\\Harddisk0\\Partition3"'
Property(s) update successful.
==================================================================

DebugInfoType

7

==================================================================

        [WMIC PageFile list]

AllocatedBaseSize=11264
CurrentUsage=1278
Description=D:\pagefile.sys
InstallDate=20260709144939.023457+180
Name=D:\pagefile.sys
PeakUsage=1335
Status=
TempPageFile=FALSE

==================================================================

AutomaticManagedPagefile

TRUE

==================================================================

        [Set AutomaticManagedPagefile = True]

Updating property(s) of '\\ASUS\ROOT\CIMV2:Win32_ComputerSystem.Name="ASUS"'
Property(s) update successful.
==================================================================

AutomaticManagedPagefile

TRUE

==================================================================

        [BcdEdit /enum {badmemory}]

RAM Defects
-----------
identifier              {badmemory}

==================================================================

    Finished on 10.07.2026 at 12:14:02,88
    It took 32 minutes and 32 seconds to complete the operations.


C:\Users\User>dism /online /get-currentedition

Deployment Image Servicing and Management tool
Version: 10.0.26100.8737

Image Version: 10.0.26100.8737

Current edition is:

Current Edition : Professional

The operation completed successfully.

C:\Users\User>
C:\Users\User>dir C:\Windows\System32\Recovery
Volume in drive C is Windows
Volume Serial Number is 18E5-DE43

Directory of C:\Windows\System32\Recovery

23.06.2026 13:04 <DIR> .
10.07.2026 11:35 <DIR> ..
08.07.2026 09:22 1 109 ReAgent.xml
13.05.2025 16:53 1 109 ReAgent_Merged.xml1
23.06.2026 12:45 <DIR> Settings
23.06.2026 13:03 0 SrSettings.ini
3 File(s) 2 218 bytes
3 Dir(s) 32 046 108 672 bytes free

C:\Users\User>
C:\Users\User>dir C:\Recovery\WindowsRE
Volume in drive C is Windows
Volume Serial Number is 18E5-DE43

Directory of C:\Recovery

File Not Found


My Computer My Computer

At a glance

Windows 11Intel Core i5-1135G78GBNvidia MX350
OS
Windows 11
Computer type
Laptop
Manufacturer/Model
Asus K513EQ
CPU
Intel Core i5-1135G7
Memory
8GB
Graphics Card(s)
Nvidia MX350
Antivirus
Microsoft Defender
As it turned out, StartAllBack was the cause of the UI errors, the update fixed everything.

I'll try upgrading to 25H2 and see if the update errors are gone.


My Computer My Computer

At a glance

Windows 11Intel Core i5-1135G78GBNvidia MX350
OS
Windows 11
Computer type
Laptop
Manufacturer/Model
Asus K513EQ
CPU
Intel Core i5-1135G7
Memory
8GB
Graphics Card(s)
Nvidia MX350
Antivirus
Microsoft Defender
As it turned out, StartAllBack was the cause of the UI errors, the update fixed everything.

I'll try upgrading to 25H2 and see if the update errors are gone.

Please post a new V2 share link into the newest post.


My Computer My Computer

At a glance

Windows 10Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz16 GB Total: Manufacturer : Samsung MemoryTyp...NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
OS
Windows 10
Computer type
Laptop
Manufacturer/Model
HP
CPU
Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
Motherboard
Product : 190A Version : KBC Version 94.56
Memory
16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
Graphics Card(s)
NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
Sound Card
IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
Hard Drives
Model Hitachi HTS727575A9E364
Antivirus
Microsoft Defender
Other Info
Mobile Workstation
The update failed, and the system was rolled back to its previous state with error 0xC1900101 - 0x20017: Installation failed in the SAFE_OS phase with an error during the BOOT operation


My Computer My Computer

At a glance

Windows 11Intel Core i5-1135G78GBNvidia MX350
OS
Windows 11
Computer type
Laptop
Manufacturer/Model
Asus K513EQ
CPU
Intel Core i5-1135G7
Memory
8GB
Graphics Card(s)
Nvidia MX350
Antivirus
Microsoft Defender
Please post share links:


fltmc


dism /online /get-drivers /format:table >c:\drivers.txt


My Computer My Computer

At a glance

Windows 10Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz16 GB Total: Manufacturer : Samsung MemoryTyp...NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
OS
Windows 10
Computer type
Laptop
Manufacturer/Model
HP
CPU
Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
Motherboard
Product : 190A Version : KBC Version 94.56
Memory
16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
Graphics Card(s)
NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
Sound Card
IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
Hard Drives
Model Hitachi HTS727575A9E364
Antivirus
Microsoft Defender
Other Info
Mobile Workstation
Code:
Filter Name                     Num Instances    Altitude    Frame
------------------------------  -------------  ------------  -----
bindflt                                 1       409800         0
UCPD                                    4       385250.5       0
ahflt                                   4       385250.1       0
WdFilter                                4       328010         0
storqosflt                              0       244000         0
wcifs                                   1       189900         0
CldFlt                                  0       180451         0
bfs                                     6       150000         0
FileCrypt                               1       141100         0
luafv                                   1       135000         0
UnionFS                                 0       130850         0
npsvctrig                               1        46000         0
Wof                                     2        40700         0
FileInfo                                4        40500         0


Attachments

My Computer My Computer

At a glance

Windows 11Intel Core i5-1135G78GBNvidia MX350
OS
Windows 11
Computer type
Laptop
Manufacturer/Model
Asus K513EQ
CPU
Intel Core i5-1135G7
Memory
8GB
Graphics Card(s)
Nvidia MX350
Antivirus
Microsoft Defender
This evening I'll scan the logs (posts #26 and #28) and comment.


My Computer My Computer

At a glance

Windows 10Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz16 GB Total: Manufacturer : Samsung MemoryTyp...NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
OS
Windows 10
Computer type
Laptop
Manufacturer/Model
HP
CPU
Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
Motherboard
Product : 190A Version : KBC Version 94.56
Memory
16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
Graphics Card(s)
NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
Sound Card
IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
Hard Drives
Model Hitachi HTS727575A9E364
Antivirus
Microsoft Defender
Other Info
Mobile Workstation
1) Please free up space on C: so that there is > 25 - 30 GB free space


2) Run admin command prompt > post share links

Code:
reagentc /disable
diskpart
sel dis 0
sel par 3
shrink desired=200
sel par 4
del par override
create partition primary id=de94bba4-06d1-4d40-a16a-bfd50179d6ac
gpt attributes =0x8000000000000001
format quick fs=ntfs label=”Windows RE”
lis vol
exit



3) Temporarily uninstall:

a) Malwarebytes

b) WireGuard



4) Place the computer into clean boot:




5) Perform an in place upgrade repair:





Volume 3 RAW Partition 979 MB Healthy Hidden
Partition 4 Recovery 979 MB 99 GB

Last edited:

My Computer My Computer

At a glance

Windows 10Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz16 GB Total: Manufacturer : Samsung MemoryTyp...NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
OS
Windows 10
Computer type
Laptop
Manufacturer/Model
HP
CPU
Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
Motherboard
Product : 190A Version : KBC Version 94.56
Memory
16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
Graphics Card(s)
NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
Sound Card
IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
Hard Drives
Model Hitachi HTS727575A9E364
Antivirus
Microsoft Defender
Other Info
Mobile Workstation
Code:
C:\Users\User>reagentc /disable
REAGENTC.EXE: Windows RE is already disabled.


C:\Users\User>diskpart

Microsoft DiskPart version 10.0.26100.1150

Copyright (C) Microsoft Corporation.
On computer: ASUS

DISKPART> sel dis 0

Disk 0 is now the selected disk.

DISKPART> sel par 3

Partition 3 is now the selected partition.

DISKPART> shrink desired=200

DiskPart successfully shrunk the volume by:  200 MB

DISKPART> sel par 4

The specified partition is not valid.
Please select a valid partition.

There is no partition selected.

DISKPART> del par override

There are no partitions selected.
Please select a partition, and try again.

DISKPART> create partition primary id=de94bba4-06d1-4d40-a16a-bfd50179d6ac

DiskPart succeeded in creating the specified partition.

DISKPART> gpt attributes =0x8000000000000001

DiskPart successfully assigned the attributes to the selected GPT partition.

DISKPART> format quick fs=ntfs label=”Windows RE”

    0 percent completed

DiskPart has encountered an error: The parameter is incorrect.
See the System Event Log for more information.

DISKPART> lis vol

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   Windows      NTFS   Partition    100 GB  Healthy    Boot
  Volume 1     D                NTFS   Partition    137 GB  Healthy    Pagefile
  Volume 2                      FAT32  Partition    100 MB  Healthy    System
* Volume 3                      RAW    Partition    201 MB  Healthy    Hidden

Last edited:

My Computer My Computer

At a glance

Windows 11Intel Core i5-1135G78GBNvidia MX350
OS
Windows 11
Computer type
Laptop
Manufacturer/Model
Asus K513EQ
CPU
Intel Core i5-1135G7
Memory
8GB
Graphics Card(s)
Nvidia MX350
Antivirus
Microsoft Defender
1) Please run > post share links

diskparinfo.bat







2) Open disk management > widen rows and columns > make sure that characters are not cutoff > post a share link




3) Run > post share links

dir C:\Windows\System32\Recovery

dir C:\Recovery\WindowsRE


My Computer My Computer

At a glance

Windows 10Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz16 GB Total: Manufacturer : Samsung MemoryTyp...NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
OS
Windows 10
Computer type
Laptop
Manufacturer/Model
HP
CPU
Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
Motherboard
Product : 190A Version : KBC Version 94.56
Memory
16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
Graphics Card(s)
NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
Sound Card
IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
Hard Drives
Model Hitachi HTS727575A9E364
Antivirus
Microsoft Defender
Other Info
Mobile Workstation

3)
Code:
C:\Users\User>dir C:\Windows\System32\Recovery
 Volume in drive C is Windows
 Volume Serial Number is 18E5-DE43

 Directory of C:\Windows\System32\Recovery

23.06.2026  13:04    <DIR>          .
14.07.2026  10:18    <DIR>          ..
08.07.2026  09:22             1 109 ReAgent.xml
13.05.2025  16:53             1 109 ReAgent_Merged.xml1
23.06.2026  12:45    <DIR>          Settings
23.06.2026  13:03                 0 SrSettings.ini
               3 File(s)          2 218 bytes
               3 Dir(s)  34 009 006 080 bytes free

C:\Users\User>
C:\Users\User>dir C:\Recovery\WindowsRE
 Volume in drive C is Windows
 Volume Serial Number is 18E5-DE43

 Directory of C:\Recovery

File Not Found


Attachments

My Computer My Computer

At a glance

Windows 11Intel Core i5-1135G78GBNvidia MX350
OS
Windows 11
Computer type
Laptop
Manufacturer/Model
Asus K513EQ
CPU
Intel Core i5-1135G7
Memory
8GB
Graphics Card(s)
Nvidia MX350
Antivirus
Microsoft Defender
Please run > post share links
Code:
diskpart

sel dis 0

sel par 4

del par override

sel par 3

shrink desired=900

create partition primary id=de94bba4-06d1-4d40-a16a-bfd50179d6ac

gpt attributes =0x8000000000000001

format quick fs=ntfs label="Windows RE tools"

lis vol

select partition 4

assign letter=w

exit

dir w:\


My Computer My Computer

At a glance

Windows 10Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz16 GB Total: Manufacturer : Samsung MemoryTyp...NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
OS
Windows 10
Computer type
Laptop
Manufacturer/Model
HP
CPU
Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
Motherboard
Product : 190A Version : KBC Version 94.56
Memory
16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
Graphics Card(s)
NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
Sound Card
IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
Hard Drives
Model Hitachi HTS727575A9E364
Antivirus
Microsoft Defender
Other Info
Mobile Workstation
Code:
C:\Users\User>diskpart

Microsoft DiskPart version 10.0.26100.1150

Copyright (C) Microsoft Corporation.
On computer: ASUS

DISKPART>

DISKPART> sel dis 0

Disk 0 is now the selected disk.

DISKPART>

DISKPART> sel par 4

Partition 4 is now the selected partition.

DISKPART>

DISKPART> del par override

DiskPart successfully deleted the selected partition.

DISKPART>

DISKPART> sel par 3

Partition 3 is now the selected partition.

DISKPART>

DISKPART> shrink desired=900

DiskPart successfully shrunk the volume by:  900 MB

DISKPART>

DISKPART> create partition primary id=de94bba4-06d1-4d40-a16a-bfd50179d6ac

DiskPart succeeded in creating the specified partition.

DISKPART>

DISKPART> gpt attributes =0x8000000000000001

DiskPart successfully assigned the attributes to the selected GPT partition.

DISKPART>

DISKPART> format quick fs=ntfs label="Windows RE tools"

    0 percent completed

DiskPart has encountered an error: The parameter is incorrect.
See the System Event Log for more information.

DISKPART>

DISKPART> lis vol

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   Windows      NTFS   Partition     99 GB  Healthy    Boot
  Volume 1     D                NTFS   Partition    137 GB  Healthy    Pagefile
  Volume 2                      FAT32  Partition    100 MB  Healthy    System
* Volume 4                      RAW    Partition   1101 MB  Healthy    Hidden

DISKPART>

DISKPART> select partition 4

Partition 4 is now the selected partition.

DISKPART>

DISKPART> assign letter=w

DiskPart successfully assigned the drive letter or mount point.

DISKPART>

DISKPART> exit

Leaving DiskPart...

C:\Users\User>dir w:\
The device is not ready.


My Computer My Computer

At a glance

Windows 11Intel Core i5-1135G78GBNvidia MX350
OS
Windows 11
Computer type
Laptop
Manufacturer/Model
Asus K513EQ
CPU
Intel Core i5-1135G7
Memory
8GB
Graphics Card(s)
Nvidia MX350
Antivirus
Microsoft Defender
DISKPART> format quick fs=ntfs label="Windows RE tools"

0 percent completed

DiskPart has encountered an error: The parameter is incorrect.
See the System Event Log for more information.

diskpart
select volume c
shrink desired=1000
create partition primary size=1000
format quick fs=ntfs
set id=DE94BBA4-06D1-4D40-A16A-BFD50179D6AC
gpt attributes=0x8000000000000001
exit

or

diskpart
select volume c
shrink desired=1000
create partition primary size=1000
set id=DE94BBA4-06D1-4D40-A16A-BFD50179D6AC
gpt attributes=0x8000000000000001
format quick fs=ntfs
exit

ChatGPT:

Both sequences will usually result in the same partition, but the first sequence is the recommended and more reliable one.

Why format before setting the partition ID?​

  • create partition primary creates a normal GPT partition.
  • format quick fs=ntfs formats it while it's still treated as a standard data partition.
  • set id=DE94BBA4-06D1-4D40-A16A-BFD50179D6AC changes it to the Windows Recovery (WinRE) partition type.
  • gpt attributes=0x8000000000000001 marks it as required and hides it from normal users.
If you set the ID before formatting (your second example), DiskPart often still formats it successfully, but on some Windows versions it may refuse or produce messages like the partition is protected or not intended for normal use because it's already identified as a recovery partition.


My Computers My Computers

  • At a glance

    Windows 11 ProAMD Ryzen 9 9950X3DKingston FURY Beast 64GB (2x32GB) DDR5 6000MT/sASUS TUF Gaming Radeon RX 9070 OC Edition 16G...
    OS
    Windows 11 Pro
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 9 9950X3D
    Motherboard
    ASRock B650E Taichi Lite
    Memory
    Kingston FURY Beast 64GB (2x32GB) DDR5 6000MT/s
    Graphics Card(s)
    ASUS TUF Gaming Radeon RX 9070 OC Edition 16GB GDDR6
    Hard Drives
    Solidigm P44 Pro 2TB M.2 NVMe SSD
  • At a glance

    Windows 11 HomeIntel Core Ultra 9 275HX64GB (2x 32GB) DDR5-6400NVIDIA GeForce RTX 5080 16GB GDDR7 Laptop GPU
    Operating System
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo Legion Pro 7i Gen 10 16"
    CPU
    Intel Core Ultra 9 275HX
    Memory
    64GB (2x 32GB) DDR5-6400
    Graphics card(s)
    NVIDIA GeForce RTX 5080 16GB GDDR7 Laptop GPU
    Hard Drives
    2x 1TB M.2 NVMe SSD (SK Hynix)
diskpart
select volume c
shrink desired=1000
create partition primary size=1000
format quick fs=ntfs
set id=DE94BBA4-06D1-4D40-A16A-BFD50179D6AC
gpt attributes=0x8000000000000001
exit

or

diskpart
select volume c
shrink desired=1000
create partition primary size=1000
set id=DE94BBA4-06D1-4D40-A16A-BFD50179D6AC
gpt attributes=0x8000000000000001
format quick fs=ntfs
exit

Both failed with the same error:
Code:
0 percent completed

DiskPart has encountered an error: The parameter is incorrect.
See the System Event Log for more information.

Last edited:

My Computer My Computer

At a glance

Windows 11Intel Core i5-1135G78GBNvidia MX350
OS
Windows 11
Computer type
Laptop
Manufacturer/Model
Asus K513EQ
CPU
Intel Core i5-1135G7
Memory
8GB
Graphics Card(s)
Nvidia MX350
Antivirus
Microsoft Defender
Please run admin PS > post a share link

mountvol W: /L

format W: /FS:NTFS /Q /V:WinRE

Get-Volume


My Computer My Computer

At a glance

Windows 10Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz16 GB Total: Manufacturer : Samsung MemoryTyp...NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
OS
Windows 10
Computer type
Laptop
Manufacturer/Model
HP
CPU
Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
Motherboard
Product : 190A Version : KBC Version 94.56
Memory
16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
Graphics Card(s)
NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
Sound Card
IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
Hard Drives
Model Hitachi HTS727575A9E364
Antivirus
Microsoft Defender
Other Info
Mobile Workstation
Code:
PS C:\Users\User> mountvol W: /L
    \\?\Volume{fd7083ef-eb33-47ba-951c-935cec17c39b}\
PS C:\Users\User>
PS C:\Users\User> format W: /FS:NTFS /Q /V:WinRE
The type of the file system is RAW.
The new file system is NTFS.

WARNING, ALL DATA ON NON-REMOVABLE DISK
DRIVE W: WILL BE LOST!
Proceed with Format (Y/N)? y
QuickFormatting 1,1 GB
Creating file system structures.
Incorrect write at offset 0x1154481664 for 0x200 bytes but wrote 0x0 bytes.
Incorrect write at offset 0x384827392 for 0x4000 bytes but wrote 0x0 bytes.
Format failed.
Incorrect write at offset 0x0 for 0x4000 bytes but wrote 0x0 bytes.
Incorrect write at offset 0x32768 for 0x200 bytes but wrote 0x0 bytes.
Incorrect write at offset 0x379658240 for 0x100000 bytes but wrote 0x0 bytes.
Format failed.
PS C:\Users\User>
PS C:\Users\User> Get-Volume

DriveLetter FriendlyName FileSystemType DriveType HealthStatus OperationalStatus SizeRemaining Size
----------- ------------ -------------- --------- ------------ ----------------- ------------- ----
D                        NTFS           Fixed     Healthy      OK                     66.74 GB ...B
                         FAT32          Fixed     Healthy      OK                     42.38 MB ...B
C           Windows      NTFS           Fixed     Healthy      OK                     30.82 GB ...B
                         Unknown        Fixed     Healthy      Unknown                     0 B  0 B


My Computer My Computer

At a glance

Windows 11Intel Core i5-1135G78GBNvidia MX350
OS
Windows 11
Computer type
Laptop
Manufacturer/Model
Asus K513EQ
CPU
Intel Core i5-1135G7
Memory
8GB
Graphics Card(s)
Nvidia MX350
Antivirus
Microsoft Defender
Please post share links:


Admin command prompt (ACP):
diskpart
select disk 0
select volume C
shrink desired=1000
create partition primary
assign letter=T
exit

format T: /FS:NTFS /Q /V:TEST





Admin PS:
Get-WinEvent -LogName System -MaxEvents 50 |
Where-Object {$_.ProviderName -match "disk|ntfs|stor|volmgr|iaStor|stornvme"} |
Format-List TimeCreated,ProviderName,Id,Message

pnputil /enum-drivers | findstr /i "iaStor VMD rst nvme"

Get-PnpDevice -Class SCSIAdapter

Get-PhysicalDisk | Format-List FriendlyName,SerialNumber,HealthStatus,OperationalStatus,Size


My Computer My Computer

At a glance

Windows 10Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz16 GB Total: Manufacturer : Samsung MemoryTyp...NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
OS
Windows 10
Computer type
Laptop
Manufacturer/Model
HP
CPU
Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
Motherboard
Product : 190A Version : KBC Version 94.56
Memory
16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
Graphics Card(s)
NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
Sound Card
IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
Hard Drives
Model Hitachi HTS727575A9E364
Antivirus
Microsoft Defender
Other Info
Mobile Workstation

Latest Support Threads

Back
Top Bottom
