Severe Windows 11 Corruption on ASUS Vivobook K513EQ: In-Place Upgrade Fails, and Storage Invisible

Seeker · Tuesday at 10:34 AM

Code:

C:\Users\User>diskpart

Microsoft DiskPart version 10.0.26100.1150

Copyright (C) Microsoft Corporation.
On computer: ASUS

DISKPART> select disk 0

Disk 0 is now the selected disk.

DISKPART> select volume C

Volume 0 is the selected volume.

DISKPART> shrink desired=1000

DiskPart successfully shrunk the volume by: 1000 MB

DISKPART> create partition primary

DiskPart succeeded in creating the specified partition.

DISKPART> assign letter=T

DiskPart successfully assigned the drive letter or mount point.

DISKPART> exit

Leaving DiskPart...

C:\Users\User>
C:\Users\User>format T: /FS:NTFS /Q /V:TEST
The type of the file system is RAW.
The new file system is NTFS.

WARNING, ALL DATA ON NON-REMOVABLE DISK
DRIVE T: WILL BE LOST!
Proceed with Format (Y/N)? y
QuickFormatting 1001,0 MB
Creating file system structures.
Format complete.
    1001,0 MB total disk space.
     996,0 MB are available.


PS C:\Users\User> Get-WinEvent -LogName System -MaxEvents 50 |
>> Where-Object {$_.ProviderName -match "disk|ntfs|stor|volmgr|iaStor|stornvme"} |
>> Format-List TimeCreated,ProviderName,Id,Message


TimeCreated  : 14.07.2026 17:32:52
ProviderName : Microsoft-Windows-Ntfs
Id           : 98
Message      : Volume T: (\Device\HarddiskVolume24) is healthy.  No action is needed.

TimeCreated  : 14.07.2026 12:01:01
ProviderName : Microsoft-Windows-Ntfs
Id           : 98
Message      : Volume R: (\Device\HarddiskVolume19) is healthy.  No action is needed.

TimeCreated  : 14.07.2026 12:00:45
ProviderName : Microsoft-Windows-Ntfs
Id           : 98
Message      : Volume R: (\Device\HarddiskVolume19) is healthy.  No action is needed.

TimeCreated  : 14.07.2026 11:51:50
ProviderName : Microsoft-Windows-Ntfs
Id           : 98
Message      : Volume \\?\Volume{f32f9ddc-6e89-41eb-901a-d3a1047cb625} (\Device\HarddiskVolume18) i
               s healthy.  No action is needed.

TimeCreated  : 14.07.2026 11:51:49
ProviderName : Microsoft-Windows-Ntfs
Id           : 98
Message      : Volume \\?\Volume{f32f9ddc-6e89-41eb-901a-d3a1047cb625} (\Device\HarddiskVolume18) i
               s healthy.  No action is needed.

TimeCreated  : 14.07.2026 11:51:07
ProviderName : Microsoft-Windows-Ntfs
Id           : 98
Message      : Volume R: (\Device\HarddiskVolume18) is healthy.  No action is needed.



PS C:\Users\User>
PS C:\Users\User> pnputil /enum-drivers | findstr /i "iaStor VMD rst nvme"
Original Name:      iastorvd.inf
PS C:\Users\User>
PS C:\Users\User> Get-PnpDevice -Class SCSIAdapter

Status     Class           FriendlyName
------     -----           ------------
OK         SCSIAdapter     Microsoft Storage Spaces Controller
OK         SCSIAdapter     Intel RST VMD Managed Controller 09AB
OK         SCSIAdapter     Intel RST VMD Managed Controller 09AB
Unknown    SCSIAdapter     Microsoft VHD Loopback Controller
OK         SCSIAdapter     Intel RST VMD Controller 9A0B


PS C:\Users\User>
PS C:\Users\User> Get-PhysicalDisk | Format-List FriendlyName,SerialNumber,HealthStatus,OperationalStatus,Size


FriendlyName      : NVMe WDC PC SN530 SDBPNPZ-256G-1002
SerialNumber      : E823_8FA6_BF53_0001_001B_444A_46F2_27F5.
HealthStatus      : Healthy
OperationalStatus : OK
Size              : 256060514304

zbook · Tuesday at 10:52 AM

Please rerun:

https://www.tenforums.com/attachmen...atch-files-use-bsod-debugging-diskparinfo.bat

Seeker · Tuesday at 10:56 AM

Code:

    Disk 0 : SSD. It has 6 partition(s). Model: NVMe WDC PC SN530 SDBPNPZ-256G-1002

    The script has found the above 1 storage device(s) in total.
=======================================================================

Microsoft DiskPart version 10.0.26100.1150

Copyright (C) Microsoft Corporation.
On computer: ASUS

  Disk ###  Status         Size     Free     Dyn  Gpt
  --------  -------------  -------  -------  ---  ---
  Disk 0    Online          238 GB      0 B        *

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   Windows      NTFS   Partition     98 GB  Healthy    Boot
  Volume 1     T   TEST         NTFS   Partition   1001 MB  Healthy
  Volume 2     D                NTFS   Partition    137 GB  Healthy    Pagefile
  Volume 3                      FAT32  Partition    100 MB  Healthy    System
  Volume 4     W                RAW    Partition   1101 MB  Healthy    Hidden

Disk 0 is now the selected disk.

NVMe WDC PC SN530 SDBPNPZ-256G-1002
Disk ID: {16BD3E62-96B8-45CE-9B7E-6438808227E2}
Type   : RAID
Status : Online
Path   : 3
Target : 0
LUN ID : 0
Location Path : PCIROOT(0)#PCI(0E00)#RAID(P03T00L00)
Current Read-only State : No
Read-only  : No
Boot Disk  : Yes
Pagefile Disk  : Yes
Hibernation File Disk  : No
Crashdump Disk  : Yes
Clustered Disk  : No

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   Windows      NTFS   Partition     98 GB  Healthy    Boot
  Volume 1     T   TEST         NTFS   Partition   1001 MB  Healthy
  Volume 2     D                NTFS   Partition    137 GB  Healthy    Pagefile
  Volume 3                      FAT32  Partition    100 MB  Healthy    System
  Volume 4     W                RAW    Partition   1101 MB  Healthy    Hidden

  Partition ###  Type              Size     Offset
  -------------  ----------------  -------  -------
  Partition 1    System             100 MB  1024 KB
  Partition 2    Reserved            16 MB   101 MB
  Partition 3    Primary             98 GB   117 MB
  Partition 6    Primary           1001 MB    98 GB
  Partition 4    Recovery          1101 MB    99 GB
  Partition 5    Primary            137 GB   100 GB

Partition 1 is now the selected partition.

Partition 1
Type    : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden  : Yes
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 1048576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 3                      FAT32  Partition    100 MB  Healthy    System

Partition 2 is now the selected partition.

Partition 2
Type    : e3c9e316-0b5c-4db8-817d-f92df00215ae
Hidden  : Yes
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 105906176

There is no volume associated with this partition.

Partition 3 is now the selected partition.

Partition 3
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 122683392

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 0     C   Windows      NTFS   Partition     98 GB  Healthy    Boot

Partition 6 is now the selected partition.

Partition 6
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0000000000000000
Offset in Bytes: 105800269824

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 1     T   TEST         NTFS   Partition   1001 MB  Healthy

Partition 4 is now the selected partition.

Partition 4
Type    : de94bba4-06d1-4d40-a16a-bfd50179d6ac
Hidden  : Yes
Required: Yes
Attrib  : 0X8000000000000001
Offset in Bytes: 106849894400

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 4     W                RAW    Partition   1101 MB  Healthy    Hidden

Partition 5 is now the selected partition.

Partition 5
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 108004376576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 2     D                NTFS   Partition    137 GB  Healthy    Pagefile

===============================================================================

Windows Recovery Environment (Windows RE) and system reset configuration
Information:

    Windows RE status:         Disabled
    Windows RE location:
    Boot Configuration Data (BCD) identifier: e50f9416-95c9-11ef-bfe0-a3425c97b477
    Recovery image location:
    Recovery image index:      0
    Custom image location:
    Custom image index:        0
    Windows RE Version:        0.0.0.0

REAGENTC.EXE: Operation Successful.

===============================================================================

Firmware Boot Manager
---------------------
identifier              {fwbootmgr}
displayorder            {bootmgr}
timeout                 1

Windows Boot Manager
--------------------
identifier              {bootmgr}
device                  partition=\Device\HarddiskVolume1
path                    \EFI\Microsoft\Boot\bootmgfw.efi
description             Windows Boot Manager
locale                  ru-RU
inherit                 {globalsettings}
default                 {current}
resumeobject            {e50f941c-95c9-11ef-bfe0-a3425c97b477}
displayorder            {current}
toolsdisplayorder       {memdiag}
timeout                 5

Windows Boot Loader
-------------------
identifier              {23fff7ec-ed80-11ec-883d-c6208a87c835}
device                  ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{23fff7ed-ed80-11ec-883d-c6208a87c835}
path                    \windows\system32\winload.efi
description             Windows Recovery Environment
locale                  ru-RU
inherit                 {bootloadersettings}
displaymessage          Recovery
osdevice                ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{23fff7ed-ed80-11ec-883d-c6208a87c835}
systemroot              \windows
nx                      OptIn
bootmenupolicy          Standard
winpe                   Yes

Windows Boot Loader
-------------------
identifier              {current}
device                  partition=C:
path                    \WINDOWS\system32\winload.efi
description             Windows 11
locale                  ru-RU
inherit                 {bootloadersettings}
recoverysequence        {e50f9416-95c9-11ef-bfe0-a3425c97b477}
displaymessageoverride  Recovery
recoveryenabled         Yes
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
osdevice                partition=C:
systemroot              \WINDOWS
resumeobject            {e50f9414-95c9-11ef-bfe0-a3425c97b477}
nx                      OptIn
bootmenupolicy          Standard
hypervisorlaunchtype    Auto

Windows Boot Loader
-------------------
identifier              {e50f9416-95c9-11ef-bfe0-a3425c97b477}
device                  ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{e50f9417-95c9-11ef-bfe0-a3425c97b477}
path                    \windows\system32\winload.efi
description             Windows Recovery Environment
locale                  ru-RU
inherit                 {bootloadersettings}
displaymessage          Recovery
osdevice                ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{e50f9417-95c9-11ef-bfe0-a3425c97b477}
systemroot              \windows
nx                      OptIn
bootmenupolicy          Standard
winpe                   Yes

Resume from Hibernate
---------------------
identifier              {e50f9414-95c9-11ef-bfe0-a3425c97b477}
device                  partition=C:
path                    \WINDOWS\system32\winresume.efi
description             Windows Resume Application
locale                  ru-RU
inherit                 {resumeloadersettings}
recoverysequence        {e50f9416-95c9-11ef-bfe0-a3425c97b477}
recoveryenabled         Yes
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
filedevice              partition=C:
custom:21000026         partition=C:
filepath                \hiberfil.sys
bootmenupolicy          Standard
debugoptionenabled      No

Resume from Hibernate
---------------------
identifier              {e50f941c-95c9-11ef-bfe0-a3425c97b477}
device                  partition=C:
path                    \$WINDOWS.~BT\NewOS\WINDOWS\system32\winresume.efi
description             Windows Resume Application
locale                  ru-RU
inherit                 {resumeloadersettings}
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
filepath                \hiberfil.sys
bootmenupolicy          Standard

Windows Memory Tester
---------------------
identifier              {memdiag}
device                  partition=\Device\HarddiskVolume1
path                    \EFI\Microsoft\Boot\memtest.efi
description                    ⨪
locale                  ru-RU
inherit                 {globalsettings}
badmemoryaccess         Yes

EMS Settings
------------
identifier              {emssettings}
bootems                 No

Debugger Settings
-----------------
identifier              {dbgsettings}
debugtype               Local

RAM Defects
-----------
identifier              {badmemory}

Global Settings
---------------
identifier              {globalsettings}
inherit                 {dbgsettings}
                        {emssettings}
                        {badmemory}

Boot Loader Settings
--------------------
identifier              {bootloadersettings}
inherit                 {globalsettings}
                        {hypervisorsettings}

Hypervisor Settings
-------------------
identifier              {hypervisorsettings}
hypervisordebugtype     Serial
hypervisordebugport     1
hypervisorbaudrate      115200

Resume Loader Settings
----------------------
identifier              {resumeloadersettings}
inherit                 {globalsettings}

zbook · Tuesday at 11:11 AM

diskpart
select disk 0
select partition 4
delete partition override

Rerun:

https://www.tenforums.com/attachmen...atch-files-use-bsod-debugging-diskparinfo.bat

Seeker · Tuesday at 11:16 AM

Code:

    Disk 0 : SSD. It has 5 partition(s). Model: NVMe WDC PC SN530 SDBPNPZ-256G-1002

    The script has found the above 1 storage device(s) in total.
=======================================================================

Microsoft DiskPart version 10.0.26100.1150

Copyright (C) Microsoft Corporation.
On computer: ASUS

  Disk ###  Status         Size     Free     Dyn  Gpt
  --------  -------------  -------  -------  ---  ---
  Disk 0    Online          238 GB  1101 MB        *

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   Windows      NTFS   Partition     98 GB  Healthy    Boot
  Volume 1     T   TEST         NTFS   Partition   1001 MB  Healthy
  Volume 2     D                NTFS   Partition    137 GB  Healthy    Pagefile
  Volume 3                      FAT32  Partition    100 MB  Healthy    System

Disk 0 is now the selected disk.

NVMe WDC PC SN530 SDBPNPZ-256G-1002
Disk ID: {16BD3E62-96B8-45CE-9B7E-6438808227E2}
Type   : RAID
Status : Online
Path   : 3
Target : 0
LUN ID : 0
Location Path : PCIROOT(0)#PCI(0E00)#RAID(P03T00L00)
Current Read-only State : No
Read-only  : No
Boot Disk  : Yes
Pagefile Disk  : Yes
Hibernation File Disk  : No
Crashdump Disk  : Yes
Clustered Disk  : No

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   Windows      NTFS   Partition     98 GB  Healthy    Boot
  Volume 1     T   TEST         NTFS   Partition   1001 MB  Healthy
  Volume 2     D                NTFS   Partition    137 GB  Healthy    Pagefile
  Volume 3                      FAT32  Partition    100 MB  Healthy    System

  Partition ###  Type              Size     Offset
  -------------  ----------------  -------  -------
  Partition 1    System             100 MB  1024 KB
  Partition 2    Reserved            16 MB   101 MB
  Partition 3    Primary             98 GB   117 MB
  Partition 6    Primary           1001 MB    98 GB
  Partition 5    Primary            137 GB   100 GB

Partition 1 is now the selected partition.

Partition 1
Type    : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden  : Yes
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 1048576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 3                      FAT32  Partition    100 MB  Healthy    System

Partition 2 is now the selected partition.

Partition 2
Type    : e3c9e316-0b5c-4db8-817d-f92df00215ae
Hidden  : Yes
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 105906176

There is no volume associated with this partition.

Partition 3 is now the selected partition.

Partition 3
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 122683392

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 0     C   Windows      NTFS   Partition     98 GB  Healthy    Boot

Partition 6 is now the selected partition.

Partition 6
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0000000000000000
Offset in Bytes: 105800269824

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 1     T   TEST         NTFS   Partition   1001 MB  Healthy

Partition 5 is now the selected partition.

Partition 5
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 108004376576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 2     D                NTFS   Partition    137 GB  Healthy    Pagefile

===============================================================================

Windows Recovery Environment (Windows RE) and system reset configuration
Information:

    Windows RE status:         Disabled
    Windows RE location:
    Boot Configuration Data (BCD) identifier: e50f9416-95c9-11ef-bfe0-a3425c97b477
    Recovery image location:
    Recovery image index:      0
    Custom image location:
    Custom image index:        0
    Windows RE Version:        0.0.0.0

REAGENTC.EXE: Operation Successful.

===============================================================================

Firmware Boot Manager
---------------------
identifier              {fwbootmgr}
displayorder            {bootmgr}
timeout                 1

Windows Boot Manager
--------------------
identifier              {bootmgr}
device                  partition=\Device\HarddiskVolume1
path                    \EFI\Microsoft\Boot\bootmgfw.efi
description             Windows Boot Manager
locale                  ru-RU
inherit                 {globalsettings}
default                 {current}
resumeobject            {e50f941c-95c9-11ef-bfe0-a3425c97b477}
displayorder            {current}
toolsdisplayorder       {memdiag}
timeout                 5

Windows Boot Loader
-------------------
identifier              {23fff7ec-ed80-11ec-883d-c6208a87c835}
device                  ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{23fff7ed-ed80-11ec-883d-c6208a87c835}
path                    \windows\system32\winload.efi
description             Windows Recovery Environment
locale                  ru-RU
inherit                 {bootloadersettings}
displaymessage          Recovery
osdevice                ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{23fff7ed-ed80-11ec-883d-c6208a87c835}
systemroot              \windows
nx                      OptIn
bootmenupolicy          Standard
winpe                   Yes

Windows Boot Loader
-------------------
identifier              {current}
device                  partition=C:
path                    \WINDOWS\system32\winload.efi
description             Windows 11
locale                  ru-RU
inherit                 {bootloadersettings}
recoverysequence        {e50f9416-95c9-11ef-bfe0-a3425c97b477}
displaymessageoverride  Recovery
recoveryenabled         Yes
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
osdevice                partition=C:
systemroot              \WINDOWS
resumeobject            {e50f9414-95c9-11ef-bfe0-a3425c97b477}
nx                      OptIn
bootmenupolicy          Standard
hypervisorlaunchtype    Auto

Windows Boot Loader
-------------------
identifier              {e50f9416-95c9-11ef-bfe0-a3425c97b477}
device                  ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{e50f9417-95c9-11ef-bfe0-a3425c97b477}
path                    \windows\system32\winload.efi
description             Windows Recovery Environment
locale                  ru-RU
inherit                 {bootloadersettings}
displaymessage          Recovery
osdevice                ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{e50f9417-95c9-11ef-bfe0-a3425c97b477}
systemroot              \windows
nx                      OptIn
bootmenupolicy          Standard
winpe                   Yes

Resume from Hibernate
---------------------
identifier              {e50f9414-95c9-11ef-bfe0-a3425c97b477}
device                  partition=C:
path                    \WINDOWS\system32\winresume.efi
description             Windows Resume Application
locale                  ru-RU
inherit                 {resumeloadersettings}
recoverysequence        {e50f9416-95c9-11ef-bfe0-a3425c97b477}
recoveryenabled         Yes
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
filedevice              partition=C:
custom:21000026         partition=C:
filepath                \hiberfil.sys
bootmenupolicy          Standard
debugoptionenabled      No

Resume from Hibernate
---------------------
identifier              {e50f941c-95c9-11ef-bfe0-a3425c97b477}
device                  partition=C:
path                    \$WINDOWS.~BT\NewOS\WINDOWS\system32\winresume.efi
description             Windows Resume Application
locale                  ru-RU
inherit                 {resumeloadersettings}
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
filepath                \hiberfil.sys
bootmenupolicy          Standard

Windows Memory Tester
---------------------
identifier              {memdiag}
device                  partition=\Device\HarddiskVolume1
path                    \EFI\Microsoft\Boot\memtest.efi
description                    ⨪
locale                  ru-RU
inherit                 {globalsettings}
badmemoryaccess         Yes

EMS Settings
------------
identifier              {emssettings}
bootems                 No

Debugger Settings
-----------------
identifier              {dbgsettings}
debugtype               Local

RAM Defects
-----------
identifier              {badmemory}

Global Settings
---------------
identifier              {globalsettings}
inherit                 {dbgsettings}
                        {emssettings}
                        {badmemory}

Boot Loader Settings
--------------------
identifier              {bootloadersettings}
inherit                 {globalsettings}
                        {hypervisorsettings}

Hypervisor Settings
-------------------
identifier              {hypervisorsettings}
hypervisordebugtype     Serial
hypervisordebugport     1
hypervisorbaudrate      115200

Resume Loader Settings
----------------------
identifier              {resumeloadersettings}
inherit                 {globalsettings}

zbook · Tuesday at 11:27 AM

diskpart
sel dis 0
sel par 6
set id=de94bba4-06d1-4d40-a16a-bfd50179d6ac
gpt attributes=0x8000000000000001
remove letter=T
lis par
lis vol
exit

Rerun:

https://www.tenforums.com/attachmen...atch-files-use-bsod-debugging-diskparinfo.bat

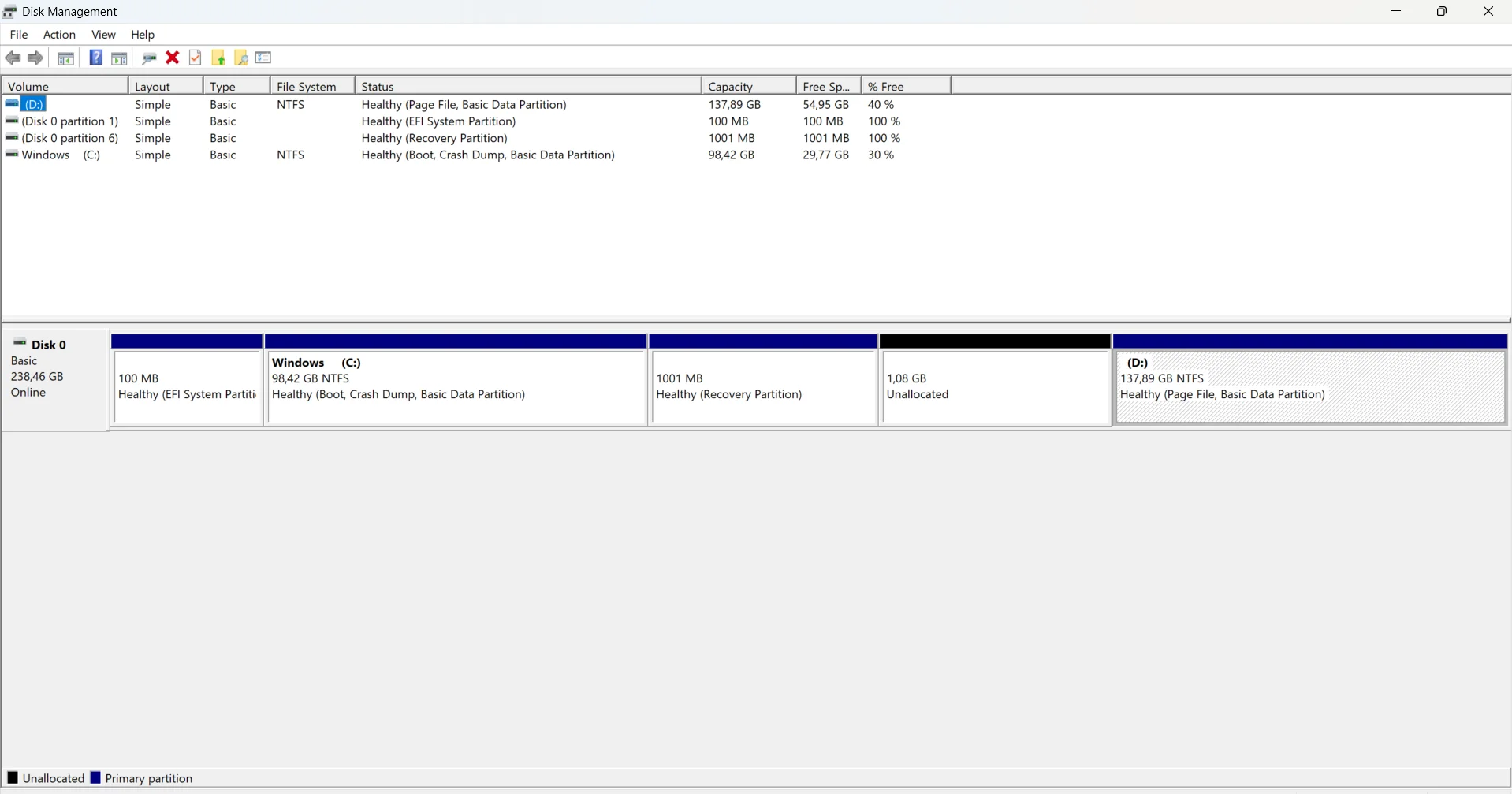

Post a new disk management share link into the newest post.

Seeker · Tuesday at 11:38 AM

Code:

    Disk 0 : SSD. It has 5 partition(s). Model: NVMe WDC PC SN530 SDBPNPZ-256G-1002

    The script has found the above 1 storage device(s) in total.
=======================================================================

Microsoft DiskPart version 10.0.26100.1150

Copyright (C) Microsoft Corporation.
On computer: ASUS

  Disk ###  Status         Size     Free     Dyn  Gpt
  --------  -------------  -------  -------  ---  ---
  Disk 0    Online          238 GB  1101 MB        *

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   Windows      NTFS   Partition     98 GB  Healthy    Boot
  Volume 1     D                NTFS   Partition    137 GB  Healthy    Pagefile
  Volume 2                      FAT32  Partition    100 MB  Healthy    System
  Volume 3         TEST         NTFS   Partition   1001 MB  Healthy    Hidden

Disk 0 is now the selected disk.

NVMe WDC PC SN530 SDBPNPZ-256G-1002
Disk ID: {16BD3E62-96B8-45CE-9B7E-6438808227E2}
Type   : RAID
Status : Online
Path   : 3
Target : 0
LUN ID : 0
Location Path : PCIROOT(0)#PCI(0E00)#RAID(P03T00L00)
Current Read-only State : No
Read-only  : No
Boot Disk  : Yes
Pagefile Disk  : Yes
Hibernation File Disk  : No
Crashdump Disk  : Yes
Clustered Disk  : No

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   Windows      NTFS   Partition     98 GB  Healthy    Boot
  Volume 1     D                NTFS   Partition    137 GB  Healthy    Pagefile
  Volume 2                      FAT32  Partition    100 MB  Healthy    System
  Volume 3         TEST         NTFS   Partition   1001 MB  Healthy    Hidden

  Partition ###  Type              Size     Offset
  -------------  ----------------  -------  -------
  Partition 1    System             100 MB  1024 KB
  Partition 2    Reserved            16 MB   101 MB
  Partition 3    Primary             98 GB   117 MB
  Partition 6    Recovery          1001 MB    98 GB
  Partition 5    Primary            137 GB   100 GB

Partition 1 is now the selected partition.

Partition 1
Type    : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden  : Yes
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 1048576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 2                      FAT32  Partition    100 MB  Healthy    System

Partition 2 is now the selected partition.

Partition 2
Type    : e3c9e316-0b5c-4db8-817d-f92df00215ae
Hidden  : Yes
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 105906176

There is no volume associated with this partition.

Partition 3 is now the selected partition.

Partition 3
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 122683392

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 0     C   Windows      NTFS   Partition     98 GB  Healthy    Boot

Partition 6 is now the selected partition.

Partition 6
Type    : de94bba4-06d1-4d40-a16a-bfd50179d6ac
Hidden  : Yes
Required: Yes
Attrib  : 0X8000000000000001
Offset in Bytes: 105800269824

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 3         TEST         NTFS   Partition   1001 MB  Healthy    Hidden

Partition 5 is now the selected partition.

Partition 5
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 108004376576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 1     D                NTFS   Partition    137 GB  Healthy    Pagefile

===============================================================================

Windows Recovery Environment (Windows RE) and system reset configuration
Information:

    Windows RE status:         Disabled
    Windows RE location:
    Boot Configuration Data (BCD) identifier: e50f9416-95c9-11ef-bfe0-a3425c97b477
    Recovery image location:
    Recovery image index:      0
    Custom image location:
    Custom image index:        0
    Windows RE Version:        0.0.0.0

REAGENTC.EXE: Operation Successful.

===============================================================================

Firmware Boot Manager
---------------------
identifier              {fwbootmgr}
displayorder            {bootmgr}
timeout                 1

Windows Boot Manager
--------------------
identifier              {bootmgr}
device                  partition=\Device\HarddiskVolume1
path                    \EFI\Microsoft\Boot\bootmgfw.efi
description             Windows Boot Manager
locale                  ru-RU
inherit                 {globalsettings}
default                 {current}
resumeobject            {e50f941c-95c9-11ef-bfe0-a3425c97b477}
displayorder            {current}
toolsdisplayorder       {memdiag}
timeout                 5

Windows Boot Loader
-------------------
identifier              {23fff7ec-ed80-11ec-883d-c6208a87c835}
device                  ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{23fff7ed-ed80-11ec-883d-c6208a87c835}
path                    \windows\system32\winload.efi
description             Windows Recovery Environment
locale                  ru-RU
inherit                 {bootloadersettings}
displaymessage          Recovery
osdevice                ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{23fff7ed-ed80-11ec-883d-c6208a87c835}
systemroot              \windows
nx                      OptIn
bootmenupolicy          Standard
winpe                   Yes

Windows Boot Loader
-------------------
identifier              {current}
device                  partition=C:
path                    \WINDOWS\system32\winload.efi
description             Windows 11
locale                  ru-RU
inherit                 {bootloadersettings}
recoverysequence        {e50f9416-95c9-11ef-bfe0-a3425c97b477}
displaymessageoverride  Recovery
recoveryenabled         Yes
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
osdevice                partition=C:
systemroot              \WINDOWS
resumeobject            {e50f9414-95c9-11ef-bfe0-a3425c97b477}
nx                      OptIn
bootmenupolicy          Standard
hypervisorlaunchtype    Auto

Windows Boot Loader
-------------------
identifier              {e50f9416-95c9-11ef-bfe0-a3425c97b477}
device                  ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{e50f9417-95c9-11ef-bfe0-a3425c97b477}
path                    \windows\system32\winload.efi
description             Windows Recovery Environment
locale                  ru-RU
inherit                 {bootloadersettings}
displaymessage          Recovery
osdevice                ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{e50f9417-95c9-11ef-bfe0-a3425c97b477}
systemroot              \windows
nx                      OptIn
bootmenupolicy          Standard
winpe                   Yes

Resume from Hibernate
---------------------
identifier              {e50f9414-95c9-11ef-bfe0-a3425c97b477}
device                  partition=C:
path                    \WINDOWS\system32\winresume.efi
description             Windows Resume Application
locale                  ru-RU
inherit                 {resumeloadersettings}
recoverysequence        {e50f9416-95c9-11ef-bfe0-a3425c97b477}
recoveryenabled         Yes
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
filedevice              partition=C:
custom:21000026         partition=C:
filepath                \hiberfil.sys
bootmenupolicy          Standard
debugoptionenabled      No

Resume from Hibernate
---------------------
identifier              {e50f941c-95c9-11ef-bfe0-a3425c97b477}
device                  partition=C:
path                    \$WINDOWS.~BT\NewOS\WINDOWS\system32\winresume.efi
description             Windows Resume Application
locale                  ru-RU
inherit                 {resumeloadersettings}
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
filepath                \hiberfil.sys
bootmenupolicy          Standard

Windows Memory Tester
---------------------
identifier              {memdiag}
device                  partition=\Device\HarddiskVolume1
path                    \EFI\Microsoft\Boot\memtest.efi
description                    ⨪
locale                  ru-RU
inherit                 {globalsettings}
badmemoryaccess         Yes

EMS Settings
------------
identifier              {emssettings}
bootems                 No

Debugger Settings
-----------------
identifier              {dbgsettings}
debugtype               Local

RAM Defects
-----------
identifier              {badmemory}

Global Settings
---------------
identifier              {globalsettings}
inherit                 {dbgsettings}
                        {emssettings}
                        {badmemory}

Boot Loader Settings
--------------------
identifier              {bootloadersettings}
inherit                 {globalsettings}
                        {hypervisorsettings}

Hypervisor Settings
-------------------
identifier              {hypervisorsettings}
hypervisordebugtype     Serial
hypervisordebugport     1
hypervisorbaudrate      115200

Resume Loader Settings
----------------------
identifier              {resumeloadersettings}
inherit                 {globalsettin

zbook · Tuesday at 12:08 PM

Please perform the steps in post #30 (skip step #2).

(The unallocated can be addressed after troubleshooting the in place upgrade)

Seeker · Wednesday at 7:13 AM

Windows 11, version 24H2 (repair version) Successfully installed.
What to do with unallocated space?
UPDATE:
And what is this disk that appeared after the reboot?

UPDATE 2:
New errors have appeared in the Event Log.

errors.evtx

drive.google.com

zbook · Wednesday at 10:17 AM

Nice progress.

Please post new share links for:

diskpar info

V2

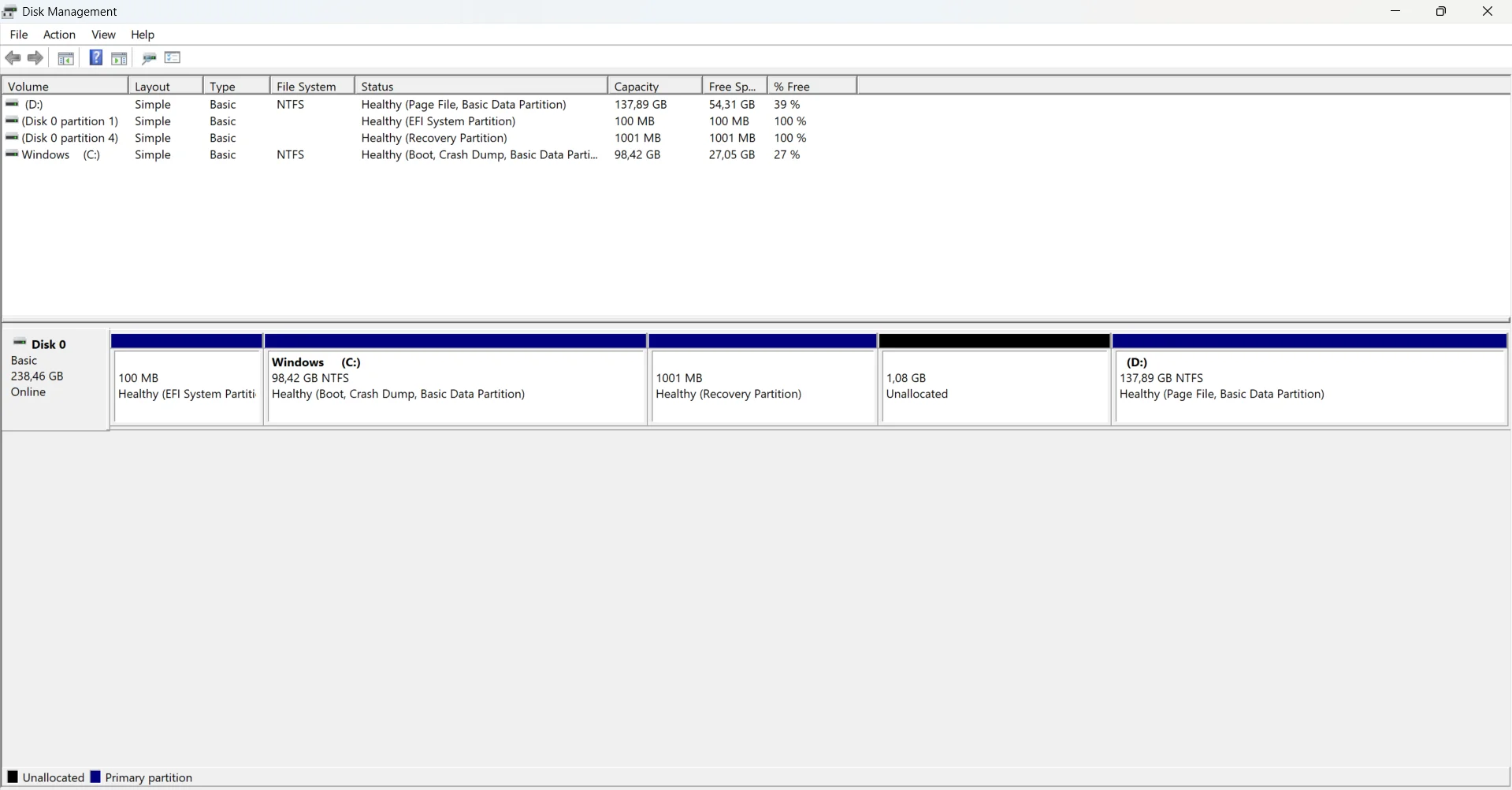

Disk management

Tuneup plus

Seeker · Wednesday at 11:16 AM

1)

Code:

    Disk 0 : SSD. It has 5 partition(s). Model: NVMe WDC PC SN530 SDBPNPZ-256G-1002

    The script has found the above 1 storage device(s) in total.
=======================================================================

Microsoft DiskPart version 10.0.26100.1150

Copyright (C) Microsoft Corporation.
On computer: ASUS

  Disk ###  Status         Size     Free     Dyn  Gpt
  --------  -------------  -------  -------  ---  ---
  Disk 0    Online          238 GB  1101 MB        *

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   Windows      NTFS   Partition     98 GB  Healthy    Boot
  Volume 1     D                NTFS   Partition    137 GB  Healthy    Pagefile
  Volume 2                      FAT32  Partition    100 MB  Healthy    System
  Volume 3     T   TEST         NTFS   Partition   1001 MB  Healthy    Hidden

Disk 0 is now the selected disk.

NVMe WDC PC SN530 SDBPNPZ-256G-1002
Disk ID: {16BD3E62-96B8-45CE-9B7E-6438808227E2}
Type   : RAID
Status : Online
Path   : 3
Target : 0
LUN ID : 0
Location Path : PCIROOT(0)#PCI(0E00)#RAID(P03T00L00)
Current Read-only State : No
Read-only  : No
Boot Disk  : Yes
Pagefile Disk  : Yes
Hibernation File Disk  : No
Crashdump Disk  : Yes
Clustered Disk  : No

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   Windows      NTFS   Partition     98 GB  Healthy    Boot
  Volume 1     D                NTFS   Partition    137 GB  Healthy    Pagefile
  Volume 2                      FAT32  Partition    100 MB  Healthy    System
  Volume 3     T   TEST         NTFS   Partition   1001 MB  Healthy    Hidden

  Partition ###  Type              Size     Offset
  -------------  ----------------  -------  -------
  Partition 1    System             100 MB  1024 KB
  Partition 2    Reserved            16 MB   101 MB
  Partition 3    Primary             98 GB   117 MB
  Partition 4    Recovery          1001 MB    98 GB
  Partition 5    Primary            137 GB   100 GB

Partition 1 is now the selected partition.

Partition 1
Type    : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden  : Yes
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 1048576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 2                      FAT32  Partition    100 MB  Healthy    System

Partition 2 is now the selected partition.

Partition 2
Type    : e3c9e316-0b5c-4db8-817d-f92df00215ae
Hidden  : Yes
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 105906176

There is no volume associated with this partition.

Partition 3 is now the selected partition.

Partition 3
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 122683392

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 0     C   Windows      NTFS   Partition     98 GB  Healthy    Boot

Partition 4 is now the selected partition.

Partition 4
Type    : de94bba4-06d1-4d40-a16a-bfd50179d6ac
Hidden  : Yes
Required: Yes
Attrib  : 0X8000000000000001
Offset in Bytes: 105800269824

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 3     T   TEST         NTFS   Partition   1001 MB  Healthy    Hidden

Partition 5 is now the selected partition.

Partition 5
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 108004376576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 1     D                NTFS   Partition    137 GB  Healthy    Pagefile

===============================================================================

Windows Recovery Environment (Windows RE) and system reset configuration
Information:

    Windows RE status:         Enabled
    Windows RE location:       \\?\GLOBALROOT\device\harddisk0\partition3\Recovery\WindowsRE
    Boot Configuration Data (BCD) identifier: a59f096f-7e91-11f1-92fc-38fc98805952
    Recovery image location:
    Recovery image index:      0
    Custom image location:
    Custom image index:        0
    Windows RE Version:        10.0.26100.8875

REAGENTC.EXE: Operation Successful.

===============================================================================

Firmware Boot Manager
---------------------
identifier              {fwbootmgr}
displayorder            {bootmgr}
timeout                 1

Windows Boot Manager
--------------------
identifier              {bootmgr}
device                  partition=\Device\HarddiskVolume1
path                    \EFI\Microsoft\Boot\bootmgfw.efi
description             Windows Boot Manager
locale                  ru-RU
inherit                 {globalsettings}
default                 {current}
resumeobject            {a59f096c-7e91-11f1-92fc-38fc98805952}
displayorder            {current}
toolsdisplayorder       {memdiag}
timeout                 5

Windows Boot Loader
-------------------
identifier              {23fff7ec-ed80-11ec-883d-c6208a87c835}
device                  ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{23fff7ed-ed80-11ec-883d-c6208a87c835}
path                    \windows\system32\winload.efi
description             Windows Recovery Environment
locale                  ru-RU
inherit                 {bootloadersettings}
displaymessage          Recovery
osdevice                ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{23fff7ed-ed80-11ec-883d-c6208a87c835}
systemroot              \windows
nx                      OptIn
bootmenupolicy          Standard
winpe                   Yes

Windows Boot Loader
-------------------
identifier              {current}
device                  partition=C:
path                    \WINDOWS\system32\winload.efi
description             Windows 11
locale                  ru-RU
inherit                 {bootloadersettings}
recoverysequence        {a59f096f-7e91-11f1-92fc-38fc98805952}
displaymessageoverride  Recovery
recoveryenabled         Yes
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
osdevice                partition=C:
systemroot              \WINDOWS
resumeobject            {a59f096c-7e91-11f1-92fc-38fc98805952}
nx                      OptIn
bootmenupolicy          Standard
hypervisorlaunchtype    Auto

Windows Boot Loader
-------------------
identifier              {a59f096f-7e91-11f1-92fc-38fc98805952}
device                  ramdisk=[C:]\Recovery\WindowsRE\Winre.wim,{a59f0970-7e91-11f1-92fc-38fc98805952}
path                    \windows\system32\winload.efi
description             Windows Recovery Environment
locale                  ru-RU
inherit                 {bootloadersettings}
displaymessage          Recovery
osdevice                ramdisk=[C:]\Recovery\WindowsRE\Winre.wim,{a59f0970-7e91-11f1-92fc-38fc98805952}
systemroot              \windows
nx                      OptIn
bootmenupolicy          Standard
winpe                   Yes

Resume from Hibernate
---------------------
identifier              {a59f096c-7e91-11f1-92fc-38fc98805952}
device                  partition=C:
path                    \WINDOWS\system32\winresume.efi
description             Windows Resume Application
locale                  ru-RU
inherit                 {resumeloadersettings}
recoverysequence        {a59f096f-7e91-11f1-92fc-38fc98805952}
recoveryenabled         Yes
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
filedevice              partition=C:
custom:21000026         partition=C:
filepath                \hiberfil.sys
bootmenupolicy          Standard
debugoptionenabled      No

Resume from Hibernate
---------------------
identifier              {e50f941c-95c9-11ef-bfe0-a3425c97b477}
device                  partition=C:
path                    \$WINDOWS.~BT\NewOS\WINDOWS\system32\winresume.efi
description             Windows Resume Application
locale                  ru-RU
inherit                 {resumeloadersettings}
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
filepath                \hiberfil.sys
bootmenupolicy          Standard

Windows Memory Tester
---------------------
identifier              {memdiag}
device                  partition=\Device\HarddiskVolume1
path                    \EFI\Microsoft\Boot\memtest.efi
description                    ⨪
locale                  ru-RU
inherit                 {globalsettings}
badmemoryaccess         Yes

EMS Settings
------------
identifier              {emssettings}
bootems                 No

Debugger Settings
-----------------
identifier              {dbgsettings}
debugtype               Local

RAM Defects
-----------
identifier              {badmemory}

Global Settings
---------------
identifier              {globalsettings}
inherit                 {dbgsettings}
                        {emssettings}
                        {badmemory}

Boot Loader Settings
--------------------
identifier              {bootloadersettings}
inherit                 {globalsettings}
                        {hypervisorsettings}

Hypervisor Settings
-------------------
identifier              {hypervisorsettings}
hypervisordebugtype     Serial
hypervisordebugport     1
hypervisorbaudrate      115200

Resume Loader Settings
----------------------
identifier              {resumeloadersettings}
inherit                 {globalsettings}

Device options
--------------
identifier              {a59f0970-7e91-11f1-92fc-38fc98805952}
description             Windows Recovery
ramdisksdidevice        partition=C:
ramdisksdipath          \Recovery\WindowsRE\boot.sdi

3)

zbook · Wednesday at 4:25 PM

Please run administrative command prompt.

(for any command problems stop. Commands/results can be viewed before continuing)

Code:

reagentc /disable
reagentc /info

diskpart
sel dis 0
sel par 4
del par override
sel par 3
ext
shr desired=1024
cre par pri
for quick fs=ntfs label="Recovery"
set id=de94bba4-06d1-4d40-a16a-bfd50179d6ac
gpt attributes=0x8000000000000001
lis par
lis vol
exit
reagentc /enable
reagentc /info

Post a new diskpar info

Seeker · 2026-07-16T02:11:34-0400

It still fails on formatting

Code:

C:\Users\User>reagentc /disable
REAGENTC.EXE: Operation Successful.


C:\Users\User>reagentc /info
Windows Recovery Environment (Windows RE) and system reset configuration
Information:

    Windows RE status:         Disabled
    Windows RE location:
    Boot Configuration Data (BCD) identifier: 00000000-0000-0000-0000-000000000000
    Recovery image location:
    Recovery image index:      0
    Custom image location:
    Custom image index:        0
    Windows RE Version:        0.0.0.0

REAGENTC.EXE: Operation Successful.


C:\Users\User>
C:\Users\User>diskpart

Microsoft DiskPart version 10.0.26100.1150

Copyright (C) Microsoft Corporation.
On computer: ASUS

DISKPART> sel dis 0

Disk 0 is now the selected disk.

DISKPART> sel par 4

Partition 4 is now the selected partition.

DISKPART> del par override

DiskPart successfully deleted the selected partition.

DISKPART> sel par 3

Partition 3 is now the selected partition.

DISKPART> ext

DiskPart successfully extended the volume.

DISKPART> shr desired=1024

DiskPart successfully shrunk the volume by: 1024 MB

DISKPART> cre par pri

DiskPart succeeded in creating the specified partition.

DISKPART> for quick fs=ntfs label="Recovery"

    0 percent completed

DiskPart has encountered an error: The parameter is incorrect.
See the System Event Log for more information.

zbook · 2026-07-16T04:39:35-0400

Seeker said:

It still fails on formatting

Code:

C:\Users\User>reagentc /disable
REAGENTC.EXE: Operation Successful.


C:\Users\User>reagentc /info
Windows Recovery Environment (Windows RE) and system reset configuration
Information:

    Windows RE status:         Disabled
    Windows RE location:
    Boot Configuration Data (BCD) identifier: 00000000-0000-0000-0000-000000000000
    Recovery image location:
    Recovery image index:      0
    Custom image location:
    Custom image index:        0
    Windows RE Version:        0.0.0.0

REAGENTC.EXE: Operation Successful.


C:\Users\User>
C:\Users\User>diskpart

Microsoft DiskPart version 10.0.26100.1150

Copyright (C) Microsoft Corporation.
On computer: ASUS

DISKPART> sel dis 0

Disk 0 is now the selected disk.

DISKPART> sel par 4

Partition 4 is now the selected partition.

DISKPART> del par override

DiskPart successfully deleted the selected partition.

DISKPART> sel par 3

Partition 3 is now the selected partition.

DISKPART> ext

DiskPart successfully extended the volume.

DISKPART> shr desired=1024

DiskPart successfully shrunk the volume by: 1024 MB

DISKPART> cre par pri

DiskPart succeeded in creating the specified partition.

DISKPART> for quick fs=ntfs label="Recovery"

    0 percent completed

DiskPart has encountered an error: The parameter is incorrect.
See the System Event Log for more information.

Post a new diskpar info

Seeker · 2026-07-16T04:44:53-0400

Code:

с    Disk 0 : SSD. It has 5 partition(s). Model: NVMe WDC PC SN530 SDBPNPZ-256G-1002

    The script has found the above 1 storage device(s) in total.
=======================================================================

Microsoft DiskPart version 10.0.26100.1150

Copyright (C) Microsoft Corporation.
On computer: ASUS

  Disk ###  Status         Size     Free     Dyn  Gpt
  --------  -------------  -------  -------  ---  ---
  Disk 0    Online          238 GB      0 B        *

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   Windows      NTFS   Partition     99 GB  Healthy    Boot
  Volume 1                             Partition   1024 MB  Healthy    Offline
  Volume 2     D                NTFS   Partition    137 GB  Healthy    Pagefile
  Volume 3                      FAT32  Partition    100 MB  Healthy    System

Disk 0 is now the selected disk.

NVMe WDC PC SN530 SDBPNPZ-256G-1002
Disk ID: {16BD3E62-96B8-45CE-9B7E-6438808227E2}
Type   : RAID
Status : Online
Path   : 3
Target : 0
LUN ID : 0
Location Path : PCIROOT(0)#PCI(0E00)#RAID(P03T00L00)
Current Read-only State : No
Read-only  : No
Boot Disk  : Yes
Pagefile Disk  : Yes
Hibernation File Disk  : No
Crashdump Disk  : Yes
Clustered Disk  : No

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   Windows      NTFS   Partition     99 GB  Healthy    Boot
  Volume 1                             Partition   1024 MB  Healthy    Offline
  Volume 2     D                NTFS   Partition    137 GB  Healthy    Pagefile
  Volume 3                      FAT32  Partition    100 MB  Healthy    System

  Partition ###  Type              Size     Offset
  -------------  ----------------  -------  -------
  Partition 1    System             100 MB  1024 KB
  Partition 2    Reserved            16 MB   101 MB
  Partition 3    Primary             99 GB   117 MB
  Partition 4    Primary           1024 MB    99 GB
  Partition 5    Primary            137 GB   100 GB

Partition 1 is now the selected partition.

Partition 1
Type    : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden  : Yes
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 1048576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 3                      FAT32  Partition    100 MB  Healthy    System

Partition 2 is now the selected partition.

Partition 2
Type    : e3c9e316-0b5c-4db8-817d-f92df00215ae
Hidden  : Yes
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 105906176

There is no volume associated with this partition.

Partition 3 is now the selected partition.

Partition 3
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 122683392

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 0     C   Windows      NTFS   Partition     99 GB  Healthy    Boot

Partition 4 is now the selected partition.

Partition 4
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0000000000000000
Offset in Bytes: 106930634752

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 1                             Partition   1024 MB  Healthy    Offline

Partition 5 is now the selected partition.

Partition 5
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 108004376576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 2     D                NTFS   Partition    137 GB  Healthy    Pagefile

===============================================================================

Windows Recovery Environment (Windows RE) and system reset configuration
Information:

    Windows RE status:         Disabled
    Windows RE location:
    Boot Configuration Data (BCD) identifier: 00000000-0000-0000-0000-000000000000
    Recovery image location:
    Recovery image index:      0
    Custom image location:
    Custom image index:        0
    Windows RE Version:        0.0.0.0

REAGENTC.EXE: Operation Successful.

===============================================================================

Firmware Boot Manager
---------------------
identifier              {fwbootmgr}
displayorder            {bootmgr}
timeout                 1

Windows Boot Manager
--------------------
identifier              {bootmgr}
device                  partition=\Device\HarddiskVolume1
path                    \EFI\Microsoft\Boot\bootmgfw.efi
description             Windows Boot Manager
locale                  ru-RU
inherit                 {globalsettings}
default                 {current}
resumeobject            {a59f096c-7e91-11f1-92fc-38fc98805952}
displayorder            {current}
toolsdisplayorder       {memdiag}
timeout                 5

Windows Boot Loader
-------------------
identifier              {23fff7ec-ed80-11ec-883d-c6208a87c835}
device                  ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{23fff7ed-ed80-11ec-883d-c6208a87c835}
path                    \windows\system32\winload.efi
description             Windows Recovery Environment
locale                  ru-RU
inherit                 {bootloadersettings}
displaymessage          Recovery
osdevice                ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{23fff7ed-ed80-11ec-883d-c6208a87c835}
systemroot              \windows
nx                      OptIn
bootmenupolicy          Standard
winpe                   Yes

Windows Boot Loader
-------------------
identifier              {current}
device                  partition=C:
path                    \WINDOWS\system32\winload.efi
description             Windows 11
locale                  ru-RU
inherit                 {bootloadersettings}
displaymessageoverride  Recovery
recoveryenabled         No
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
osdevice                partition=C:
systemroot              \WINDOWS
resumeobject            {a59f096c-7e91-11f1-92fc-38fc98805952}
nx                      OptIn
bootmenupolicy          Standard
hypervisorlaunchtype    Auto

Resume from Hibernate
---------------------
identifier              {a59f096c-7e91-11f1-92fc-38fc98805952}
device                  partition=C:
path                    \WINDOWS\system32\winresume.efi
description             Windows Resume Application
locale                  ru-RU
inherit                 {resumeloadersettings}
recoveryenabled         No
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
filedevice              partition=C:
custom:21000026         partition=C:
filepath                \hiberfil.sys
bootmenupolicy          Standard
debugoptionenabled      No

Resume from Hibernate
---------------------
identifier              {e50f941c-95c9-11ef-bfe0-a3425c97b477}
device                  partition=C:
path                    \$WINDOWS.~BT\NewOS\WINDOWS\system32\winresume.efi
description             Windows Resume Application
locale                  ru-RU
inherit                 {resumeloadersettings}
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
filepath                \hiberfil.sys
bootmenupolicy          Standard

Windows Memory Tester
---------------------
identifier              {memdiag}
device                  partition=\Device\HarddiskVolume1
path                    \EFI\Microsoft\Boot\memtest.efi
description                    ⨪
locale                  ru-RU
inherit                 {globalsettings}
badmemoryaccess         Yes

EMS Settings
------------
identifier              {emssettings}
bootems                 No

Debugger Settings
-----------------
identifier              {dbgsettings}
debugtype               Local

RAM Defects
-----------
identifier              {badmemory}

Global Settings
---------------
identifier              {globalsettings}
inherit                 {dbgsettings}
                        {emssettings}
                        {badmemory}

Boot Loader Settings
--------------------
identifier              {bootloadersettings}
inherit                 {globalsettings}
                        {hypervisorsettings}

Hypervisor Settings
-------------------
identifier              {hypervisorsettings}
hypervisordebugtype     Serial
hypervisordebugport     1
hypervisorbaudrate      115200

Resume Loader Settings
----------------------
identifier              {resumeloadersettings}
inherit                 {globalsettings}

zbook · 2026-07-16T04:50:42-0400

Please run:

Code:

diskpart
sel dis 0
sel vol 1
online volume
assign letter=R
exit

format R: /FS:NTFS /Q /V:Recovery

Post a share link and rerun diskpar info

Seeker · 2026-07-16T04:52:57-0400

Code:

C:\Users\User>diskpart

Microsoft DiskPart version 10.0.26100.1150

Copyright (C) Microsoft Corporation.
On computer: ASUS

DISKPART> sel dis 0

Disk 0 is now the selected disk.

DISKPART> sel vol 1

Volume 1 is the selected volume.

DISKPART> online volume

DiskPart successfully onlined the selected volume.

DISKPART> assign letter=R

DiskPart successfully assigned the drive letter or mount point.

DISKPART> exit

Leaving DiskPart...

C:\Users\User>
C:\Users\User>format R: /FS:NTFS /Q /V:Recovery
The type of the file system is RAW.
The new file system is NTFS.

WARNING, ALL DATA ON NON-REMOVABLE DISK
DRIVE R: WILL BE LOST!
Proceed with Format (Y/N)? y
QuickFormatting 1024,0 MB
Creating file system structures.
Format complete.
    1024,0 MB total disk space.
    1019,0 MB are available.

Code:

    Disk 0 : SSD. It has 5 partition(s). Model: NVMe WDC PC SN530 SDBPNPZ-256G-1002

    The script has found the above 1 storage device(s) in total.
=======================================================================

Microsoft DiskPart version 10.0.26100.1150

Copyright (C) Microsoft Corporation.
On computer: ASUS

  Disk ###  Status         Size     Free     Dyn  Gpt
  --------  -------------  -------  -------  ---  ---
  Disk 0    Online          238 GB      0 B        *

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   Windows      NTFS   Partition     99 GB  Healthy    Boot
  Volume 1     R   Recovery     NTFS   Partition   1024 MB  Healthy
  Volume 2     D                NTFS   Partition    137 GB  Healthy    Pagefile
  Volume 3                      FAT32  Partition    100 MB  Healthy    System

Disk 0 is now the selected disk.

NVMe WDC PC SN530 SDBPNPZ-256G-1002
Disk ID: {16BD3E62-96B8-45CE-9B7E-6438808227E2}
Type   : RAID
Status : Online
Path   : 3
Target : 0
LUN ID : 0
Location Path : PCIROOT(0)#PCI(0E00)#RAID(P03T00L00)
Current Read-only State : No
Read-only  : No
Boot Disk  : Yes
Pagefile Disk  : Yes
Hibernation File Disk  : No
Crashdump Disk  : Yes
Clustered Disk  : No

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   Windows      NTFS   Partition     99 GB  Healthy    Boot
  Volume 1     R   Recovery     NTFS   Partition   1024 MB  Healthy
  Volume 2     D                NTFS   Partition    137 GB  Healthy    Pagefile
  Volume 3                      FAT32  Partition    100 MB  Healthy    System

  Partition ###  Type              Size     Offset
  -------------  ----------------  -------  -------
  Partition 1    System             100 MB  1024 KB
  Partition 2    Reserved            16 MB   101 MB
  Partition 3    Primary             99 GB   117 MB
  Partition 4    Primary           1024 MB    99 GB
  Partition 5    Primary            137 GB   100 GB

Partition 1 is now the selected partition.

Partition 1
Type    : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden  : Yes
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 1048576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 3                      FAT32  Partition    100 MB  Healthy    System

Partition 2 is now the selected partition.

Partition 2
Type    : e3c9e316-0b5c-4db8-817d-f92df00215ae
Hidden  : Yes
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 105906176

There is no volume associated with this partition.

Partition 3 is now the selected partition.

Partition 3
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 122683392

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 0     C   Windows      NTFS   Partition     99 GB  Healthy    Boot

Partition 4 is now the selected partition.

Partition 4
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0000000000000000
Offset in Bytes: 106930634752

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 1     R   Recovery     NTFS   Partition   1024 MB  Healthy

Partition 5 is now the selected partition.

Partition 5
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 108004376576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 2     D                NTFS   Partition    137 GB  Healthy    Pagefile

===============================================================================

Windows Recovery Environment (Windows RE) and system reset configuration
Information:

    Windows RE status:         Disabled
    Windows RE location:
    Boot Configuration Data (BCD) identifier: 00000000-0000-0000-0000-000000000000
    Recovery image location:
    Recovery image index:      0
    Custom image location:
    Custom image index:        0
    Windows RE Version:        0.0.0.0

REAGENTC.EXE: Operation Successful.

===============================================================================

Firmware Boot Manager
---------------------
identifier              {fwbootmgr}
displayorder            {bootmgr}
timeout                 1

Windows Boot Manager
--------------------
identifier              {bootmgr}
device                  partition=\Device\HarddiskVolume1
path                    \EFI\Microsoft\Boot\bootmgfw.efi
description             Windows Boot Manager
locale                  ru-RU
inherit                 {globalsettings}
default                 {current}
resumeobject            {a59f096c-7e91-11f1-92fc-38fc98805952}
displayorder            {current}
toolsdisplayorder       {memdiag}
timeout                 5

Windows Boot Loader
-------------------
identifier              {23fff7ec-ed80-11ec-883d-c6208a87c835}
device                  ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{23fff7ed-ed80-11ec-883d-c6208a87c835}
path                    \windows\system32\winload.efi
description             Windows Recovery Environment
locale                  ru-RU
inherit                 {bootloadersettings}
displaymessage          Recovery
osdevice                ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{23fff7ed-ed80-11ec-883d-c6208a87c835}
systemroot              \windows
nx                      OptIn
bootmenupolicy          Standard
winpe                   Yes

Windows Boot Loader
-------------------
identifier              {current}
device                  partition=C:
path                    \WINDOWS\system32\winload.efi
description             Windows 11
locale                  ru-RU
inherit                 {bootloadersettings}
displaymessageoverride  Recovery
recoveryenabled         No
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
osdevice                partition=C:
systemroot              \WINDOWS
resumeobject            {a59f096c-7e91-11f1-92fc-38fc98805952}
nx                      OptIn
bootmenupolicy          Standard
hypervisorlaunchtype    Auto

Resume from Hibernate
---------------------
identifier              {a59f096c-7e91-11f1-92fc-38fc98805952}
device                  partition=C:
path                    \WINDOWS\system32\winresume.efi
description             Windows Resume Application
locale                  ru-RU
inherit                 {resumeloadersettings}
recoveryenabled         No
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
filedevice              partition=C:
custom:21000026         partition=C:
filepath                \hiberfil.sys
bootmenupolicy          Standard
debugoptionenabled      No

Resume from Hibernate
---------------------
identifier              {e50f941c-95c9-11ef-bfe0-a3425c97b477}
device                  partition=C:
path                    \$WINDOWS.~BT\NewOS\WINDOWS\system32\winresume.efi
description             Windows Resume Application
locale                  ru-RU
inherit                 {resumeloadersettings}
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
filepath                \hiberfil.sys
bootmenupolicy          Standard

Windows Memory Tester
---------------------
identifier              {memdiag}
device                  partition=\Device\HarddiskVolume1
path                    \EFI\Microsoft\Boot\memtest.efi
description                    ⨪
locale                  ru-RU
inherit                 {globalsettings}
badmemoryaccess         Yes

EMS Settings
------------
identifier              {emssettings}
bootems                 No

Debugger Settings
-----------------
identifier              {dbgsettings}
debugtype               Local

RAM Defects
-----------
identifier              {badmemory}

Global Settings
---------------
identifier              {globalsettings}
inherit                 {dbgsettings}
                        {emssettings}
                        {badmemory}

Boot Loader Settings
--------------------
identifier              {bootloadersettings}
inherit                 {globalsettings}
                        {hypervisorsettings}

Hypervisor Settings
-------------------
identifier              {hypervisorsettings}
hypervisordebugtype     Serial
hypervisordebugport     1
hypervisorbaudrate      115200

Resume Loader Settings
----------------------
identifier              {resumeloadersettings}
inherit                 {globalsettings}

zbook · 2026-07-16T04:58:15-0400

Please run:

Code:

diskpart
sel dis 0
sel par 4
set id=de94bba4-06d1-4d40-a16a-bfd50179d6ac
gpt attributes=0x8000000000000001
remove letter=R
exit

reagentc /enable
reagentc /info

Post a share link and rerun diskpar info

And Disk management

Seeker · 2026-07-16T04:59:54-0400

Code:

C:\Users\User>diskpart

Microsoft DiskPart version 10.0.26100.1150

Copyright (C) Microsoft Corporation.
On computer: ASUS

DISKPART> sel dis 0

Disk 0 is now the selected disk.

DISKPART> sel par 4

Partition 4 is now the selected partition.

DISKPART> set id=de94bba4-06d1-4d40-a16a-bfd50179d6ac

DiskPart successfully set the partition ID.

DISKPART> gpt attributes=0x8000000000000001

DiskPart successfully assigned the attributes to the selected GPT partition.

DISKPART> remove letter=R

DiskPart successfully removed the drive letter or mount point.

DISKPART> exit

Leaving DiskPart...

C:\Users\User>
C:\Users\User>reagentc /enable
REAGENTC.EXE: Operation Successful.


C:\Users\User>reagentc /info
Windows Recovery Environment (Windows RE) and system reset configuration
Information:

    Windows RE status:         Enabled
    Windows RE location:       \\?\GLOBALROOT\device\harddisk0\partition3\Recovery\WindowsRE
    Boot Configuration Data (BCD) identifier: a59f0971-7e91-11f1-92fc-38fc98805952
    Recovery image location:
    Recovery image index:      0
    Custom image location:
    Custom image index:        0
    Windows RE Version:        10.0.26100.8875

REAGENTC.EXE: Operation Successful.

Code:

    Disk 0 : SSD. It has 5 partition(s). Model: NVMe WDC PC SN530 SDBPNPZ-256G-1002

    The script has found the above 1 storage device(s) in total.
=======================================================================

Microsoft DiskPart version 10.0.26100.1150

Copyright (C) Microsoft Corporation.
On computer: ASUS

  Disk ###  Status         Size     Free     Dyn  Gpt
  --------  -------------  -------  -------  ---  ---
  Disk 0    Online          238 GB      0 B        *

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   Windows      NTFS   Partition     99 GB  Healthy    Boot
  Volume 1     D                NTFS   Partition    137 GB  Healthy    Pagefile
  Volume 2                      FAT32  Partition    100 MB  Healthy    System
  Volume 3         Recovery     NTFS   Partition   1024 MB  Healthy    Hidden

Disk 0 is now the selected disk.

NVMe WDC PC SN530 SDBPNPZ-256G-1002
Disk ID: {16BD3E62-96B8-45CE-9B7E-6438808227E2}
Type   : RAID
Status : Online
Path   : 3
Target : 0
LUN ID : 0
Location Path : PCIROOT(0)#PCI(0E00)#RAID(P03T00L00)
Current Read-only State : No
Read-only  : No
Boot Disk  : Yes
Pagefile Disk  : Yes
Hibernation File Disk  : No
Crashdump Disk  : Yes
Clustered Disk  : No

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 0     C   Windows      NTFS   Partition     99 GB  Healthy    Boot
  Volume 1     D                NTFS   Partition    137 GB  Healthy    Pagefile
  Volume 2                      FAT32  Partition    100 MB  Healthy    System
  Volume 3         Recovery     NTFS   Partition   1024 MB  Healthy    Hidden

  Partition ###  Type              Size     Offset
  -------------  ----------------  -------  -------
  Partition 1    System             100 MB  1024 KB
  Partition 2    Reserved            16 MB   101 MB
  Partition 3    Primary             99 GB   117 MB
  Partition 4    Recovery          1024 MB    99 GB
  Partition 5    Primary            137 GB   100 GB

Partition 1 is now the selected partition.

Partition 1
Type    : c12a7328-f81f-11d2-ba4b-00a0c93ec93b
Hidden  : Yes
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 1048576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 2                      FAT32  Partition    100 MB  Healthy    System

Partition 2 is now the selected partition.

Partition 2
Type    : e3c9e316-0b5c-4db8-817d-f92df00215ae
Hidden  : Yes
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 105906176

There is no volume associated with this partition.

Partition 3 is now the selected partition.

Partition 3
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 122683392

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 0     C   Windows      NTFS   Partition     99 GB  Healthy    Boot

Partition 4 is now the selected partition.

Partition 4
Type    : de94bba4-06d1-4d40-a16a-bfd50179d6ac
Hidden  : Yes
Required: Yes
Attrib  : 0X8000000000000001
Offset in Bytes: 106930634752

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 3         Recovery     NTFS   Partition   1024 MB  Healthy    Hidden

Partition 5 is now the selected partition.

Partition 5
Type    : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7
Hidden  : No
Required: No
Attrib  : 0X8000000000000000
Offset in Bytes: 108004376576

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
* Volume 1     D                NTFS   Partition    137 GB  Healthy    Pagefile

===============================================================================

Windows Recovery Environment (Windows RE) and system reset configuration
Information:

    Windows RE status:         Enabled
    Windows RE location:       \\?\GLOBALROOT\device\harddisk0\partition3\Recovery\WindowsRE
    Boot Configuration Data (BCD) identifier: a59f0971-7e91-11f1-92fc-38fc98805952
    Recovery image location:
    Recovery image index:      0
    Custom image location:
    Custom image index:        0
    Windows RE Version:        10.0.26100.8875

REAGENTC.EXE: Operation Successful.

===============================================================================

Firmware Boot Manager
---------------------
identifier              {fwbootmgr}
displayorder            {bootmgr}
timeout                 1

Windows Boot Manager
--------------------
identifier              {bootmgr}
device                  partition=\Device\HarddiskVolume1
path                    \EFI\Microsoft\Boot\bootmgfw.efi
description             Windows Boot Manager
locale                  ru-RU
inherit                 {globalsettings}
default                 {current}
resumeobject            {a59f096c-7e91-11f1-92fc-38fc98805952}
displayorder            {current}
toolsdisplayorder       {memdiag}
timeout                 5

Windows Boot Loader
-------------------
identifier              {23fff7ec-ed80-11ec-883d-c6208a87c835}
device                  ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{23fff7ed-ed80-11ec-883d-c6208a87c835}
path                    \windows\system32\winload.efi
description             Windows Recovery Environment
locale                  ru-RU
inherit                 {bootloadersettings}
displaymessage          Recovery
osdevice                ramdisk=[unknown]\Recovery\WindowsRE\Winre.wim,{23fff7ed-ed80-11ec-883d-c6208a87c835}
systemroot              \windows
nx                      OptIn
bootmenupolicy          Standard
winpe                   Yes

Windows Boot Loader
-------------------
identifier              {current}
device                  partition=C:
path                    \WINDOWS\system32\winload.efi
description             Windows 11
locale                  ru-RU
inherit                 {bootloadersettings}
recoverysequence        {a59f0971-7e91-11f1-92fc-38fc98805952}
displaymessageoverride  Recovery
recoveryenabled         Yes
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
osdevice                partition=C:
systemroot              \WINDOWS
resumeobject            {a59f096c-7e91-11f1-92fc-38fc98805952}
nx                      OptIn
bootmenupolicy          Standard
hypervisorlaunchtype    Auto

Windows Boot Loader
-------------------
identifier              {a59f0971-7e91-11f1-92fc-38fc98805952}
device                  ramdisk=[C:]\Recovery\WindowsRE\Winre.wim,{a59f0972-7e91-11f1-92fc-38fc98805952}
path                    \windows\system32\winload.efi
description             Windows Recovery Environment
locale                  ru-RU
inherit                 {bootloadersettings}
displaymessage          Recovery
osdevice                ramdisk=[C:]\Recovery\WindowsRE\Winre.wim,{a59f0972-7e91-11f1-92fc-38fc98805952}
systemroot              \windows
nx                      OptIn
bootmenupolicy          Standard
winpe                   Yes

Resume from Hibernate
---------------------
identifier              {a59f096c-7e91-11f1-92fc-38fc98805952}
device                  partition=C:
path                    \WINDOWS\system32\winresume.efi
description             Windows Resume Application
locale                  ru-RU
inherit                 {resumeloadersettings}
recoverysequence        {a59f0971-7e91-11f1-92fc-38fc98805952}
recoveryenabled         Yes
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
filedevice              partition=C:
custom:21000026         partition=C:
filepath                \hiberfil.sys
bootmenupolicy          Standard
debugoptionenabled      No

Resume from Hibernate
---------------------
identifier              {e50f941c-95c9-11ef-bfe0-a3425c97b477}
device                  partition=C:
path                    \$WINDOWS.~BT\NewOS\WINDOWS\system32\winresume.efi
description             Windows Resume Application
locale                  ru-RU
inherit                 {resumeloadersettings}
isolatedcontext         Yes
allowedinmemorysettings 0x15000075
filepath                \hiberfil.sys
bootmenupolicy          Standard

Windows Memory Tester
---------------------
identifier              {memdiag}
device                  partition=\Device\HarddiskVolume1
path                    \EFI\Microsoft\Boot\memtest.efi
description                    ⨪
locale                  ru-RU
inherit                 {globalsettings}
badmemoryaccess         Yes

EMS Settings
------------
identifier              {emssettings}
bootems                 No

Debugger Settings
-----------------
identifier              {dbgsettings}
debugtype               Local

RAM Defects
-----------
identifier              {badmemory}

Global Settings
---------------
identifier              {globalsettings}
inherit                 {dbgsettings}
                        {emssettings}
                        {badmemory}

Boot Loader Settings
--------------------
identifier              {bootloadersettings}
inherit                 {globalsettings}
                        {hypervisorsettings}

Hypervisor Settings
-------------------
identifier              {hypervisorsettings}
hypervisordebugtype     Serial
hypervisordebugport     1
hypervisorbaudrate      115200

Resume Loader Settings
----------------------
identifier              {resumeloadersettings}
inherit                 {globalsettings}

Device options
--------------
identifier              {a59f0972-7e91-11f1-92fc-38fc98805952}
description             Windows Recovery
ramdisksdidevice        partition=C:
ramdisksdipath          \Recovery\WindowsRE\boot.sdi

zbook · 2026-07-16T05:04:54-0400

Please run > post a share link

Code:

dir C:\Recovery\WindowsRE

Severe Windows 11 Corruption on ASUS Vivobook K513EQ: In-Place Upgrade Fails, and Storage Invisible

Member

My Computer My Computer

At a glance

Well-known member

My Computer My Computer

At a glance

Member

My Computer My Computer

At a glance

Well-known member

My Computer My Computer

At a glance

Member

My Computer My Computer

At a glance

Well-known member

My Computer My Computer

At a glance

Member

My Computer My Computer

At a glance

Well-known member

My Computer My Computer

At a glance

Member

My Computer My Computer

At a glance

Well-known member

My Computer My Computer

At a glance

Member

Attachments

My Computer My Computer

At a glance

Well-known member

My Computer My Computer

At a glance

Member

My Computer My Computer

At a glance

Well-known member

My Computer My Computer

At a glance

Member

My Computer My Computer

At a glance

Well-known member

My Computer My Computer

At a glance

Member

My Computer My Computer

At a glance

Well-known member

My Computer My Computer

At a glance

Member

My Computer My Computer

At a glance

Well-known member

My Computer My Computer

At a glance

Similar threads

My Computer

My Computer

My Computer

My Computer

My Computer

My Computer

My Computer

My Computer

My Computer

My Computer

My Computer

My Computer

My Computer

My Computer

My Computer

My Computer

My Computer

My Computer

My Computer

My Computer
