The usable memory may be less than the installed memory.


salim

Member
Local time
4:41 PM
Posts
5
OS
windows 11
Is there anyone who can help me with this problem.
What should I do to make the device read the entire usable memory.

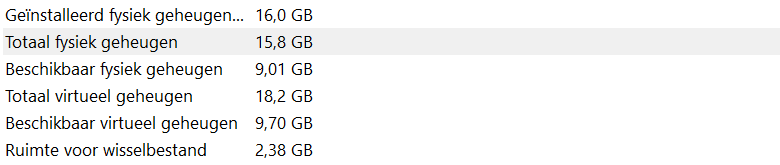

Schermafbeelding 2022-06-03 175856.png

(Sorry the system is not English, but this is a screenshot from System properties so the titles follow each other the same way.)


My Computer

System One

  • OS
    windows 11
    Computer type
    Laptop

glockster

Member
Local time
9:41 AM
Posts
15
OS
Windows 11 Pro 22H2

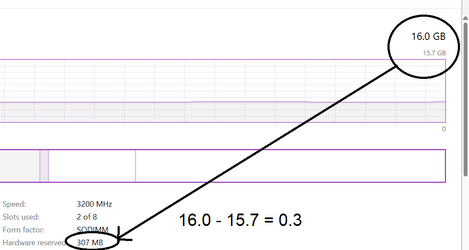

On the memory tab of task manager, does it show hardware reserved? That will likely explain why your system doesn't show that all memory is available for use.


Attachments

  • Screenshot 2022-06-03 110859.png
    Screenshot 2022-06-03 110859.png
    1.7 KB · Views: 2

My Computers

System One System Two

  • OS
    Windows 11 Pro 22H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homegrown
    CPU
    AMD 5950X
    Motherboard
    Asus ROG Crosshair VIII Dark Hero
    Memory
    128GB
    Graphics Card(s)
    NVidia RTX 3060TI
    Sound Card
    Built-in Realtec Audio
    Monitor(s) Displays
    2x Dell 27"
    Screen Resolution
    2560x1440
    Hard Drives
    OS = Western Digital Black NVME 2TB
    DATA = Sabrent Rocket NVME 1TB
    2x Samsung SSD (Virtual Machines)
    3x Western Digital (4TB, 6TB & 8TB)
    PSU
    Corsair CM1000
    Case
    Corsair 700D
    Cooling
    Corsair H115i RGB Pro XT
    Keyboard
    Corsair Strafe 2
    Mouse
    Logitech Trackball
  • Operating System
    Pop!_OS 22.04
    Computer type
    Laptop
    Manufacturer/Model
    System76/Gazelle
    CPU
    i7-10750H
    Memory
    64GB
    Graphics card(s)
    NVIDIA GeForce GTX 1650 Ti Mobile
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 Evo Plus

RFS

Well-known member
Member
VIP
Local time
3:41 PM
Posts
262
Location
Derbyshire, UK
OS
Windows 11 Home

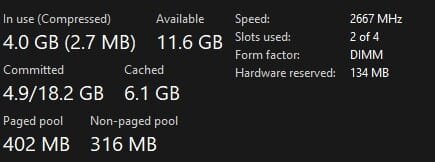

Mine shows 134 Mb reserved by the hardware

Screenshot 2022-06-03 171859.jpg


My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self-build
    CPU
    Intel I3-10100
    Motherboard
    MSI H410M-PRO
    Memory
    16 GB
    Graphics Card(s)
    Nvidia GT 1030
    Sound Card
    Motherboard default
    Monitor(s) Displays
    Philips 27 inch
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung EVO 970 NVMe SSD 256 Gb
    Samsung QVO 870 SATA SSD 2 Tb
    PSU
    ATX 450W
    Keyboard
    Logitech
    Mouse
    Logitech Wireless
    Internet Speed
    930 Mb down / 120 Mb up
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    Microsoft Office 2021 Plus
  • Operating System
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self-build
    CPU
    Intel i3-8100
    Motherboard
    Gigabyte Z370 D3
    Memory
    16 Gb
    Graphics card(s)
    Nvidia GT 720
    Sound Card
    Motherboard default
    Monitor(s) Displays
    Philips 27-inch
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung 960 NVMe SSD 256 Gb
    Seagate 2 Tb HDD
    PSU
    ATX 450W
    Mouse
    Logitech Wireless
    Keyboard
    Microsoft
    Internet Speed
    930 Mb down / 120 Mb up
    Browser
    Edge
    Antivirus
    Windows Defender

salim

Member
Thread Starter
Local time
4:41 PM
Posts
5
OS
windows 11
Thanks for all your answer.
I thought there was a problem with my memory.


My Computer

System One

  • OS
    windows 11
    Computer type
    Laptop

cereberus

Well-known member
Pro User
VIP
Local time
3:41 PM
Posts
2,546
OS
Windows 10 Pro + others in VHDs
There is always some memory reserved for the GPU if you have an integral gpu with motherboard.



My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

Bree

Well-known member
Guru
VIP
Local time
3:41 PM
Posts
6,387
Location
S/E England, UK
OS
Windows 11 Home
What should I do to make the device read the entire usable memory....

(Sorry the system is not English....

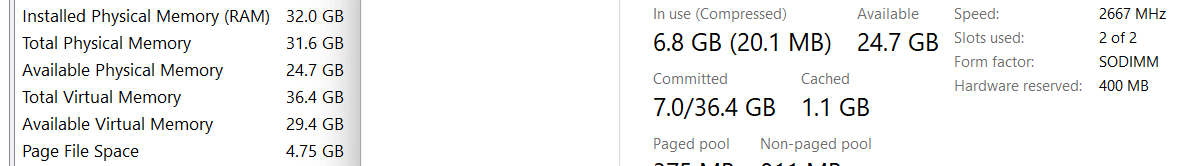

Here's your screenshot with the English titles along side it.


Are you worried that the 'Available Physical Memory' is a lot less than the 'Installed Physical Memory'? You shouldn't be. In System Information the word 'available' here means that part of the installed memory that is not already in use running your system and apps.

Compare System Information with Task Manager and you'll see that the memory in use, plus the available memory adds up to near enough the installed physical RAM. There will be a small difference due to some memory being Hardware Reserved, the system uses this to communicate with physical devices such as your display.



My Computers

System One System Two

  • OS
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    Acer Aspire 3 A315-23
    CPU
    AMD Athlon Silver 3050U
    Memory
    8GB
    Graphics Card(s)
    Radeon Graphics
    Monitor(s) Displays
    laptop screen
    Screen Resolution
    1366x768 native resolution, up to 2560x1440 with Radeon Virtual Super Resolution
    Hard Drives
    1TB Samsung EVO 870 SSD
    Browser
    Edge, Firefox
    Antivirus
    Defender
    Other Info
    fully 'Windows 11 ready' laptop. Windows 10 C: partition migrated from my old unsupported 'main machine' then upgraded to 11. A test migration ran Insider builds for 2 months. When 11 was released on 5th October it was re-imaged back to 10 and was offered the upgrade in Windows Update on 20th October. Windows Update offered the 22H2 Feature Update on 20th September 2022.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 RTM as a native boot vhdx.
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Dell Lattitude E4310
    CPU
    i5 M 520
    Motherboard
    0T6M8G
    Memory
    4GB
    Screen Resolution
    1366x768
    Hard Drives
    500GB HDD
    Browser
    Firefox, Edge
    Antivirus
    Defender
    Other Info
    unsupported machine: Legacy bios, MBR, TPM 1.2, upgraded from W10 to W11 using W10/W11 hybrid install media workaround. In-place upgrade to 22H2 using ISO and a workaround.

    My SYSTEM THREE is a Dell Latitude 5410, i7-10610U, 32GB RAM, 512GB ssd, Windows 11 Pro.

    My SYSTEM FOUR is a 2-in-1 convertible Lenovo Yoga 11e 20DA, Celeron N2930, 4GB RAM, 128GB ssd. Unsupported device: currently running Win10 Pro, plus Win11 Pro 22H2 RTM as a native boot vhdx.
Top Bottom
