Using Customizer God to change system icons


spapakons

Well-known member
Power User
Local time
3:47 AM
Posts
934
Location
Athens
OS
Windows 11 Pro 21H2 64-bit (build 22000.856)
Hello!

There is a utility called Customizer God that can open any system file (exe or dll) and extract the icons or replace the icons with custom ones. I used that in Windows 10 to replace the ugly flat icons of Windows 10 with the respective icons from Windows 7 or Windows 8.1 I first tried this utility on an Insider's Preview version of Windows 11 and didn't work, the application window was blank and I could do nothing but end task from Task Manager to close it. I then tried it on my main PC (see 2nd PC specs) running the official release of Windows 11, fully updated and it did run! I then tried to replace the network/WiFi icons by opening the file pnidui.dll in C:\Windows\System32 folder. The icons were replaced successfully without any incompatibility and then I restarted my computer to see the result. Unfortunately, the Wi-Fi icon at the taskbar did not change, so it looks like Windows 11 uses a different system file for the network icons.

In Windows 10 most icons (folder icon etc) are in imageres.dll, network icons are in pnidui.dll, USB safe removal icon is in stobject.dll

Does anyone know which system files contains the system icons in Windows 11?

Thanks.

Windows Build/Version
22000.348

My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 64-bit (build 22000.856)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    Legacy MBR installation, no TPM, no Secure Boot, no WDDM 2.0 graphics drivers, cannot get more unsupported ;) This is only my test laptop. I had installed Windows 11 here before upgrading my main PC. For my main PC I use everyday see my 2nd system specs.
  • Operating System
    Windows 11 Pro v21H2 (build 22000.856)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Gainward NE5105T018G1-1070F (nVidia GeForce GTX 1050Ti 4GB GDDR5)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    Patriot Burst Elite 480GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Stock Intel CPU Fan, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 3.0 graphics drivers, WEI score 7.4

imanlien2020

EternalSoul
Member
Local time
7:47 PM
Posts
215
Location
USA
OS
Windows 11 Pro Version 21H2(OS Build 22000.795)
Hello!

There is a utility called Customizer God that can open any system file (exe or dll) and extract the icons or replace the icons with custom ones. I used that in Windows 10 to replace the ugly flat icons of Windows 10 with the respective icons from Windows 7 or Windows 8.1 I first tried this utility on an Insider's Preview version of Windows 11 and didn't work, the application window was blank and I could do nothing but end task from Task Manager to close it. I then tried it on my main PC (see 2nd PC specs) running the official release of Windows 11, fully updated and it did run! I then tried to replace the network/WiFi icons by opening the file pnidui.dll in C:\Windows\System32 folder. The icons were replaced successfully without any incompatibility and then I restarted my computer to see the result. Unfortunately, the Wi-Fi icon at the taskbar did not change, so it looks like Windows 11 uses a different system file for the network icons.

In Windows 10 most icons (folder icon etc) are in imageres.dll, network icons are in pnidui.dll, USB safe removal icon is in stobject.dll

Does anyone know which system files contains the system icons in Windows 11?

Thanks.
if you want to use that software thats fine. But Im just giving my opinion here but go to Deviantart.com and download 7tsp. its a portable app. then find a 7tsp icon pack download that, then i place the 7tsp portable app somewhere like the main C:/ drive or like the Documents folder. Place the Icon pack which is in rar format in the same location of the software. Open 7tsp browse for the Icon rar file and install it. Done, easy and you can uninstall it through the portable app also.


My Computer

System One

  • OS
    Windows 11 Pro Version 21H2(OS Build 22000.795)
    Computer type
    PC/Desktop
    Manufacturer/Model
    AMD
    CPU
    AMD Ryzen 7 5800X 8 Core
    Motherboard
    Gigabyte X570 Aorus Pro WiFi
    Memory
    32 GB
    Graphics Card(s)
    PCI Express 3.0 x16: PowerColor RX Vega 56 Red Dragon
    Sound Card
    Realtek ALC1220 and AMD Greenland - High Definition Audio Controller
    Monitor(s) Displays
    2 - 27 inch Westinghouse
    Screen Resolution
    1920 x 1080
    Hard Drives
    2 SSD - 2 TB each
    1 HDD - 2 TB
    Keyboard
    logitech
    Mouse
    logitech
    Internet Speed
    1 GB
    Browser
    Microsoft Edge
    Antivirus
    Avast Premium

Try3

Well-known member
Power User
VIP
Local time
1:47 AM
Posts
661
Location
The proper part of London
OS
Windows 11 Home x64 Version 21H2 Build 22000.739
In Windows 10 most icons (folder icon etc) are in imageres.dll, network icons are in pnidui.dll, USB safe removal icon is in stobject.dll
That changed a couple of years ago. As I recall, the change started with Windows 10 Version 1803 and more & more icons moved over the next few Versions.

When you look at, say, C:\Windows\System32\imageres.dll to chose an icon for a shortcut, Windows silently redirects you to C:\Windows\SystemResources\imageres.dll.mun
It is that collection of .mun files that now holds Windows icons.
Compare the sizes of C:\Windows\System32\imageres.dll & C:\Windows\SystemResources\imageres.dll.mun to appreciate this.​
And you can, if you want, make a copy of an .mun then rename it back to a .dll then you'll be able to see its icons directly when trying to chose one for a shortcut etc.​

Customizer god has not been updated for years and it probably does not know how to work with the new icon files. This would account for the comment on its webpage about not being updated for v1903 & later.

All the best,
Denis

Last edited:

My Computer

System One

  • OS
    Windows 11 Home x64 Version 21H2 Build 22000.739

spapakons

Well-known member
Power User
Thread Starter
Local time
3:47 AM
Posts
934
Location
Athens
OS
Windows 11 Pro 21H2 64-bit (build 22000.856)
I tried to open a .MUN file with Customizer God and it displayed all the icons. I wouldn't dare touch anything before taking a backup. I'll report back if I have succeeded.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 64-bit (build 22000.856)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    Legacy MBR installation, no TPM, no Secure Boot, no WDDM 2.0 graphics drivers, cannot get more unsupported ;) This is only my test laptop. I had installed Windows 11 here before upgrading my main PC. For my main PC I use everyday see my 2nd system specs.
  • Operating System
    Windows 11 Pro v21H2 (build 22000.856)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Gainward NE5105T018G1-1070F (nVidia GeForce GTX 1050Ti 4GB GDDR5)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    Patriot Burst Elite 480GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Stock Intel CPU Fan, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 3.0 graphics drivers, WEI score 7.4

spapakons

Well-known member
Power User
Thread Starter
Local time
3:47 AM
Posts
934
Location
Athens
OS
Windows 11 Pro 21H2 64-bit (build 22000.856)
Unlike the .DLL files in C:\Windows\System32 Customizer God cannot modify directly the . MUN files in C:\Windows\SystemResources. So I copied the file imageres.dll.mun to another folder and replaced the icons. Then I restarted in Command prompt to rename the original file for backup and replace it with the modified file. Upon restart, success! Now I have Windows 8.1 system icons in Windows 11. I have not yet figured out which system files I must modify to replace the network and battery icons. Any help appreciated.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 64-bit (build 22000.856)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    Legacy MBR installation, no TPM, no Secure Boot, no WDDM 2.0 graphics drivers, cannot get more unsupported ;) This is only my test laptop. I had installed Windows 11 here before upgrading my main PC. For my main PC I use everyday see my 2nd system specs.
  • Operating System
    Windows 11 Pro v21H2 (build 22000.856)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Gainward NE5105T018G1-1070F (nVidia GeForce GTX 1050Ti 4GB GDDR5)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    Patriot Burst Elite 480GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Stock Intel CPU Fan, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 3.0 graphics drivers, WEI score 7.4

The-Hive

The First Three Star Guru
Guru
VIP
Local time
1:47 AM
Posts
10,330
Location
Wiltshire UK
OS
Windows 11 Pro
Best battery replacement app is called Battery Mode
Screenshot 2022-01-14 193612.jpg


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Alienware Area 51m R2
    CPU
    10th Gen Core i9 10900K
    Memory
    32GB
    Graphics Card(s)
    Geforce RTX 2080 Super
    Sound Card
    Nvidia HD
    Screen Resolution
    1920x1080
    Hard Drives
    C: Samsung 2TB P981A
    D: Samsung 2TB 970 Evo
    Case
    Dark side of the moon
    Mouse
    Alienware AW610M
    Browser
    Chrome and Firefox
    Antivirus
    Norton
    Other Info
    Killer E3000 Ethernet Controller
    Killer AX1650i Wi-Fi Network Adaptor
    Alienware Z01G Graphic Amplifier
    Tobii Eye Tracker
  • Operating System
    Dual Boot Windows 11 Pro / Windows 11 Pro Dev build
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 3501
    CPU
    11th Gen i-7 2.80 gb
    Memory
    16Gb
    Screen Resolution
    1920 x 1080
    Hard Drives
    512Gb SSD
    WD 2GB EXT
    Browser
    Chrome
    Antivirus
    Norton

spapakons

Well-known member
Power User
Thread Starter
Local time
3:47 AM
Posts
934
Location
Athens
OS
Windows 11 Pro 21H2 64-bit (build 22000.856)
I don't want to replace the battery app, I want to replace the battery/AC power icons with those of Windows 7 or 8.1 which were nicer. Anyone knows which .DLL or .MUN files contain the battery, network and speaker icons in Windows 11? Thanks.

PS: I have already tried to replace the icons in pnidui.dll for the network, but it didn't work. After restarting the Wi-Fi icons in the taskbar were unchanged. I opened the modified file, the icons were those of Windows 8.1, but in the taskbar were still the original Windows 11 icons.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 64-bit (build 22000.856)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    Legacy MBR installation, no TPM, no Secure Boot, no WDDM 2.0 graphics drivers, cannot get more unsupported ;) This is only my test laptop. I had installed Windows 11 here before upgrading my main PC. For my main PC I use everyday see my 2nd system specs.
  • Operating System
    Windows 11 Pro v21H2 (build 22000.856)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Gainward NE5105T018G1-1070F (nVidia GeForce GTX 1050Ti 4GB GDDR5)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    Patriot Burst Elite 480GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Stock Intel CPU Fan, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 3.0 graphics drivers, WEI score 7.4

The-Hive

The First Three Star Guru
Guru
VIP
Local time
1:47 AM
Posts
10,330
Location
Wiltshire UK
OS
Windows 11 Pro
Just thought it would help if you couldn't find the answer


My Computers

System One System Two

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Alienware Area 51m R2
    CPU
    10th Gen Core i9 10900K
    Memory
    32GB
    Graphics Card(s)
    Geforce RTX 2080 Super
    Sound Card
    Nvidia HD
    Screen Resolution
    1920x1080
    Hard Drives
    C: Samsung 2TB P981A
    D: Samsung 2TB 970 Evo
    Case
    Dark side of the moon
    Mouse
    Alienware AW610M
    Browser
    Chrome and Firefox
    Antivirus
    Norton
    Other Info
    Killer E3000 Ethernet Controller
    Killer AX1650i Wi-Fi Network Adaptor
    Alienware Z01G Graphic Amplifier
    Tobii Eye Tracker
  • Operating System
    Dual Boot Windows 11 Pro / Windows 11 Pro Dev build
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 3501
    CPU
    11th Gen i-7 2.80 gb
    Memory
    16Gb
    Screen Resolution
    1920 x 1080
    Hard Drives
    512Gb SSD
    WD 2GB EXT
    Browser
    Chrome
    Antivirus
    Norton

Edwin

♦ ♦
Pro User
VIP
Local time
8:47 PM
Posts
4,632
Location
Chatham
OS
Windows 10/11
Only thing I use CG for is to get rid of those stoopid push pins!!!



My Computers

System One System Two

  • OS
    Windows 10/11
    Computer type
    PC/Desktop
    Manufacturer/Model
    ASUS ROG Strix
  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    ASUS VivoBook

spapakons

Well-known member
Power User
Thread Starter
Local time
3:47 AM
Posts
934
Location
Athens
OS
Windows 11 Pro 21H2 64-bit (build 22000.856)
Too bad CG developer has switched to Linux and has no Windows system to build a new version... Linux is the dark side... Be nice and stay in Windows, the light side of the Force...


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 64-bit (build 22000.856)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    Legacy MBR installation, no TPM, no Secure Boot, no WDDM 2.0 graphics drivers, cannot get more unsupported ;) This is only my test laptop. I had installed Windows 11 here before upgrading my main PC. For my main PC I use everyday see my 2nd system specs.
  • Operating System
    Windows 11 Pro v21H2 (build 22000.856)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Gainward NE5105T018G1-1070F (nVidia GeForce GTX 1050Ti 4GB GDDR5)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    Patriot Burst Elite 480GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Stock Intel CPU Fan, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 3.0 graphics drivers, WEI score 7.4

TizianoMad

Active member
Member
Local time
2:47 AM
Posts
106
Location
France
OS
Windows 10 Enterprise LTSC  Dual Boot  21H2 + 1809
Hi everyone there,

I'm using the latest W10 version (21H2) in which system icons also migrated to C:\Windows\SystemResources, like in W11.

I used iPack Builder to first patch the W11 icons, exactly like until the 1809 version, which modifies (concretely replaces) DLL in C:\Windows\System32 > imageres.dll (& imagesp1 +zpfldr), and it still apparently does work (!)
What I did was uninstalling the iPack icon theme after having saved the 3 DLL files, and then went back into System32 to replace them back again.

I first tried C:\Windows\SystemResources, but replacement was refused, with of course "ownership" first taken.
I posted in detail what I did in the Custom Icon Thread, and also added an edit just after.

Thanx @Try3 & @spapakons for highlighting this new location.
I discovered them while thoroughly searching into the system a few months ago.
I still don't know where "PC settings" (bitmap or PNG ?) icons are located. If anyone knows, that would be cool.
I found a few you might be interested in C:\Windows\SystemResources\Windows.UI.ShellCommon\Images (you can also check out in many other parent folders where there is an "images" folder. Though, they are white & black PNGs. Some others are in directly in System32, and C:\Windows\ImmersiveControlPanel\images. I'm sorry I cannot find the Battery yet. Maybe @davidvkimball knows the environment better. I'll search more thoroughly when I have time as this task requires pretty much (!)

This just shows that icons from DLLs in C:\Windows\System32 have priority upon C:\Windows\SystemResources, even if it originally has no icons, and does seem to also act as redirectioning, as it is still the same imageres.dll file you use to choose these system icons.

If anyone knows a way for directly replace the .mun file in C:\Windows\SystemResources, I'll be happy to know it.
I haven't tried replacing them "offline" yet (using command prompt Windows X:> ) before startup.
(edit: thanx for your #5 post confirmation @spapakons)


Thanx @Edwin for the trick, but I probably don't have the right version/build to use CustomizerGod.
I agree with @paradoxum's suggestion. Do you or anyone know a REG command to do it manually ?
I found an answer suggesting simply getting rid of the icon in imageres.dll, but this also deletes the big icon on the top ribbon of Explorer.
I also found out that the app only works on W11 build 22581.1 (maybe it's an Insider release) on reddit, and unfortunately seem to be problematic on others.



Theme Presentation.png



I don't know yet how 7tsp does the job, but I will soon need to use it (and iPack also) to provide the coming soon theme I'm finishing working on. By the way, I came across this other thread about Stardocks' Icon Packager. In addition to any tutorials I could find on YouTube, if anyone here have some experience here with these apps (for rebuilding icons any OS), I'll be happy to have it shared.



Thank you for reading.

Last edited:

My Computers

System One System Two

  • OS
    Windows 10 Enterprise LTSC  Dual Boot  21H2 + 1809
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self-made 2013
    CPU
    Intel Core i5-2550K
    Motherboard
    Intel DH67CL
    Memory
    8 GB
    Graphics Card(s)
    NVIDIA GeForce GTS 450
    Sound Card
    EmuPMX
    Monitor(s) Displays
    16/9 Samsung + 4/3 iiyama
    Screen Resolution
    1360 x 768 + 1024 x 768
    Hard Drives
    Western Digital :
    (Purple 4 TB + Blue 2 TB) x2
    + Green 0.5 TB
    Case
    Antec
    Keyboard
    Dell
    Mouse
    Advance
    Browser
    Chrome
    Antivirus
    Windows Security
  • Operating System
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    HP
    Other Info
    Using W11 OS on customers' computers more and more often, and sometimes on my mum's new laptop.

TizianoMad

Active member
Member
Local time
2:47 AM
Posts
106
Location
France
OS
Windows 10 Enterprise LTSC  Dual Boot  21H2 + 1809
I don't want to replace the battery app, I want to replace the battery/AC power icons with those of Windows 7 or 8.1 which were nicer. Anyone knows which .DLL or .MUN files contain the battery, network and speaker icons in Windows 11? Thanks.

I think I found it, but the display is pretty tricky !!
Looks like old versions are also part of the file.

I just guess the registry commands which version to display.
Maybe @abactuon could help with this ?






C:\Windows\SystemResources\batmeter.dll.mun

Last edited:

My Computers

System One System Two

  • OS
    Windows 10 Enterprise LTSC  Dual Boot  21H2 + 1809
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self-made 2013
    CPU
    Intel Core i5-2550K
    Motherboard
    Intel DH67CL
    Memory
    8 GB
    Graphics Card(s)
    NVIDIA GeForce GTS 450
    Sound Card
    EmuPMX
    Monitor(s) Displays
    16/9 Samsung + 4/3 iiyama
    Screen Resolution
    1360 x 768 + 1024 x 768
    Hard Drives
    Western Digital :
    (Purple 4 TB + Blue 2 TB) x2
    + Green 0.5 TB
    Case
    Antec
    Keyboard
    Dell
    Mouse
    Advance
    Browser
    Chrome
    Antivirus
    Windows Security
  • Operating System
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    HP
    Other Info
    Using W11 OS on customers' computers more and more often, and sometimes on my mum's new laptop.

spapakons

Well-known member
Power User
Thread Starter
Local time
3:47 AM
Posts
934
Location
Athens
OS
Windows 11 Pro 21H2 64-bit (build 22000.856)
Replacing the battery icons in SystemResources only works in Windows 10, not 11. Thankfully replacing the imageres.dll.mun icons works also in Windows 11, so I have Windows 8 icons in 11. From what I have seen, any icon that appears on the taskbar (battery, sound, network) cannot be changed on 11. Any changes are ignored.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 64-bit (build 22000.856)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    Legacy MBR installation, no TPM, no Secure Boot, no WDDM 2.0 graphics drivers, cannot get more unsupported ;) This is only my test laptop. I had installed Windows 11 here before upgrading my main PC. For my main PC I use everyday see my 2nd system specs.
  • Operating System
    Windows 11 Pro v21H2 (build 22000.856)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Gainward NE5105T018G1-1070F (nVidia GeForce GTX 1050Ti 4GB GDDR5)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    Patriot Burst Elite 480GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Stock Intel CPU Fan, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 3.0 graphics drivers, WEI score 7.4

spapakons

Well-known member
Power User
Thread Starter
Local time
3:47 AM
Posts
934
Location
Athens
OS
Windows 11 Pro 21H2 64-bit (build 22000.856)
SUCCESS!!!!

I downloaded and installed Explorer Patcher for GitHub: GitHub - valinet/ExplorerPatcher: This project aims to enhance the working environment on Windows This is a utility that restores the Windows 10 style in Windows 11. This means that the network, sound and battery/power icons are ungrouped (separate) and that right-clicking on the taskbar gives you the familiar menu with the Task Manager etc. In practice this means that all modified system icons (network, sound, battery/power) show the modified icons which were ignored when the three icons were grouped together! So first install Explorer Patcher to ungroup the icons, then replace the default icons with Customizer God or any other similar utility, restart and ta-da!

PS: direct download link: https://github.com/valinet/ExplorerPatcher/releases/latest/download/ep_setup.exe


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 64-bit (build 22000.856)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    Legacy MBR installation, no TPM, no Secure Boot, no WDDM 2.0 graphics drivers, cannot get more unsupported ;) This is only my test laptop. I had installed Windows 11 here before upgrading my main PC. For my main PC I use everyday see my 2nd system specs.
  • Operating System
    Windows 11 Pro v21H2 (build 22000.856)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Gainward NE5105T018G1-1070F (nVidia GeForce GTX 1050Ti 4GB GDDR5)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    Patriot Burst Elite 480GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Stock Intel CPU Fan, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 3.0 graphics drivers, WEI score 7.4

paradoxum

Member
Member
Local time
1:47 AM
Posts
88
OS
Windows 11
Thank you for reading.
Lots of good info in here thanks.

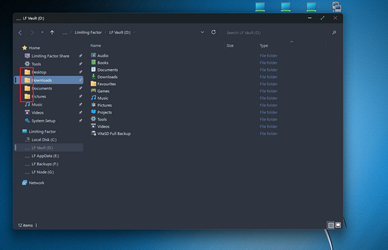

I don't suppose you know where the information for these icons are stored?

More info;

The 'Home' on the sidebar is Quick Access renamed.

I have NO idea why the Music and Videos icons are kept when adding the libraries to the side.

Related possibly relevant information:
I have all my libraries and AppData on another partition and dropped them in the windows appdatalocalroaming places using Junctions.

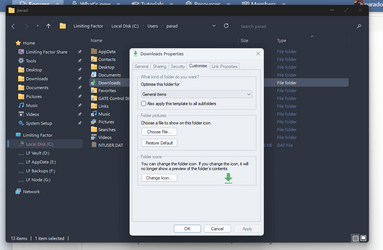

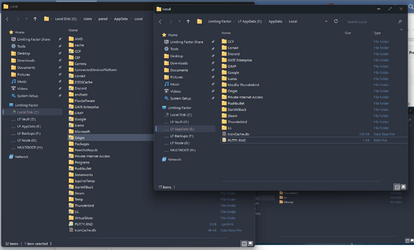

Here are the junctions, I have tried setting the icon on the junction shortcuts too - but when I add the junction to quick access, it has the junction icon on the icon:
I'm using Winaero Tweaker to remove the shortcut icon from shortcuts but I can't find anything about removing the junction icon.

Any help would be appreciated.

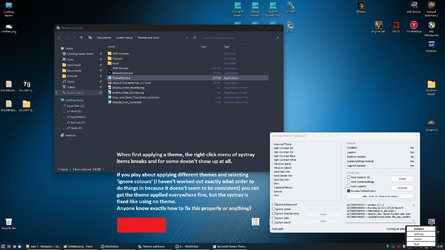

I also have another theming problem, just check this out:

Unrealted to icons, but if anyone knows anything about this please chime in.

ADDITIONALLY, is there a forum anywhere for Winaero Tweaker? because I've found a few settings that do not work and would like to report them.

Thanks.

Edit again:

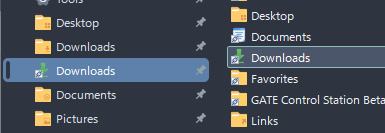

I am still looking for a way to get rid of the pins here:


Attachments

  • 1653998829998.png
    14.8 KB · Views: 2
Last edited:

My Computer

System One

  • OS
    Windows 11

paradoxum

Member
Member
Local time
1:47 AM
Posts
88
OS
Windows 11
If anyone is willing to collaborate and provide info they know, I may hire someone on Fiverr to create a tool to do all this stuff for is - but it'd be cheaper if I could provide them with as much info as needed etc.


My Computer

System One

  • OS
    Windows 11

spapakons

Well-known member
Power User
Thread Starter
Local time
3:47 AM
Posts
934
Location
Athens
OS
Windows 11 Pro 21H2 64-bit (build 22000.856)
The folder icons are in file C:\Windows\SystemResources\imageres.dll.mun. You can't modify this directly, so you have to copy it on another folder say C:\temp, change the icons with Customizer God or similar, then restart in Command Prompt to replace it. To do that you hold the left SHIFT key and restart. Select Troubleshoot from the List, then select the Command Prompt. Then give these commands:
Code:
dir c:\
dir d:\
c:
cd \windows\systemresources
ren imageres.dll.mun imageres.mun.dll.old
copy c:\temp\imageres.dll.mun .
exit
The first line lists contents of drive c: and the second of drive d: The rest lines assume the Windows folder is in drive C: otherwise substitute C: for D:. The next line changes to the System Resources subfolder of the Windows folder were the original file is located. The next line renames the original file as backup in case you have any issues. The next line copies the modified file from the temp folder (change as appropriate) into the SystemResources subfolder. Exit to close the command line. Now restart your computer to load Windows, the icons should have changed.

PS: Change the file C:\Windows\SystemResources\batmeter.dll.mun similarly if you want to modify the power/battery icons and the file C:\Windows\SystemResources\SndVolSSO.dll.mun to modify the sound icons. Remember to first ungroup the icons, see my previous posts, or any changes are ignored.


My Computers

System One System Two

  • OS
    Windows 11 Pro 21H2 64-bit (build 22000.856)
    Computer type
    Laptop
    Manufacturer/Model
    Acer Extensa 5630EZ
    CPU
    Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
    Motherboard
    Acer Extensa 5630
    Memory
    4GB
    Graphics Card(s)
    Mobile Intel(R) GMA 4500M (Mobile 4 series)
    Sound Card
    Realtek ALC268 @ Intel 82801IB ICH9 - High Definition Audio Controller
    Monitor(s) Displays
    1
    Screen Resolution
    1280x800
    Hard Drives
    Samsung SSD 850 EVO 250GB SATA Device (250 GB, SATA-III)
    Internet Speed
    VDSL 50 Mbps
    Browser
    MICROSOFT EDGE
    Antivirus
    WINDOWS DEFENDER
    Other Info
    Legacy MBR installation, no TPM, no Secure Boot, no WDDM 2.0 graphics drivers, cannot get more unsupported ;) This is only my test laptop. I had installed Windows 11 here before upgrading my main PC. For my main PC I use everyday see my 2nd system specs.
  • Operating System
    Windows 11 Pro v21H2 (build 22000.856)
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom-built PC
    CPU
    Intel Core-i7 3770 3.40GHz s1155 (3rd generation)
    Motherboard
    Asus P8H61 s1155 ATX
    Memory
    2x Kingston Hyper-X Blu 8GB DDR3-1600
    Graphics card(s)
    Gainward NE5105T018G1-1070F (nVidia GeForce GTX 1050Ti 4GB GDDR5)
    Sound Card
    Realtek HD audio (ALC887)
    Monitor(s) Displays
    Sony Bravia KDL-19L4000 19" LCD TV via VGA
    Screen Resolution
    1440x900 32-bit 60Hz
    Hard Drives
    Patriot Burst Elite 480GB SSD as system disk, Western Digital Caviar Purple 4TB SATA III (WD40PURZ) as second
    PSU
    Thermaltake Litepower RGB 550W Full Wired
    Case
    SUPERCASE MIDI-TOWER
    Cooling
    Stock Intel CPU Fan, 1x 8cm fan at the back
    Mouse
    Sunnyline OptiEye PS/2
    Keyboard
    Mitsumi 101-key PS/2
    Internet Speed
    100Mbps
    Browser
    Microsoft Edge, Mozilla Firefox
    Antivirus
    Microsoft Windows Defender
    Other Info
    Legacy BIOS (MBR) installation, no TPM, no Secure Boot, WDDM 3.0 graphics drivers, WEI score 7.4

TizianoMad

Active member
Member
Local time
2:47 AM
Posts
106
Location
France
OS
Windows 10 Enterprise LTSC  Dual Boot  21H2 + 1809
Hello @paradoxum,

& thanx for your feedback.

1 : I don't suppose you know where the information for these icons are stored?

I have NO idea why the Music and Videos icons are kept when adding the libraries to the side.
I have all my libraries and AppData on another partition and dropped them in the windows appdatalocalroaming places using Junctions.

2 : I'm using Winaero Tweaker to remove the shortcut icon from shortcuts but I can't find anything about removing the junction icon.
is there a forum anywhere for Winaero Tweaker?

* : The 'Home' on the sidebar is Quick Access renamed.

3 : I am still looking for a way to get rid of the pins here:


1 : In fact, default user icons keep being displayed in priority.
@spapakons indications are tip top.
Music & Video folders are also often reset after a windows update.
Desktop : #183 - Downloads : #184 - Documents : #112 - Pictures : #113 - Music : #108 - Videos : #189 - Shortcut : #163 - Pin : #5100
In addition (and also maybe as an alternative), apply icons to original folders located in your other drives (which can be pinned).

Though, the rest of the user folders of C:\Users\%userprofile% seem customizable, apart from "Contacts".
We recently discussed this subject with @JohnnyGui in a conversation you might be interested, so I just invited you.

2 : I guess you shouldn't create shortcuts in your Users profile folder, edit your Home (ex Quick Access) libraries by going to :
Properties > Location > Move > Choose location > I recommend you choose "No" in the confirmation box which asks you if you want to move all the file. Do this after manually. Otherwise original folders disappear and it may cause conflicts if you edit this back.

Of course, you can contact Winaero's author Sergey Tkachenko by leaving him a message down his page, like I did concerning the new Home icon and its title I would like to switch.

To get rid out of the pins, you just have to replace the icon with a blanc icon. Like you, I don't like them too much at this place, and will remove them but I still would like to keep the bigger view in the Explorer ribbon, so I will specially make one with only these visible.

See ya ✌️


My Computers

System One System Two

  • OS
    Windows 10 Enterprise LTSC  Dual Boot  21H2 + 1809
    Computer type
    PC/Desktop
    Manufacturer/Model
    Self-made 2013
    CPU
    Intel Core i5-2550K
    Motherboard
    Intel DH67CL
    Memory
    8 GB
    Graphics Card(s)
    NVIDIA GeForce GTS 450
    Sound Card
    EmuPMX
    Monitor(s) Displays
    16/9 Samsung + 4/3 iiyama
    Screen Resolution
    1360 x 768 + 1024 x 768
    Hard Drives
    Western Digital :
    (Purple 4 TB + Blue 2 TB) x2
    + Green 0.5 TB
    Case
    Antec
    Keyboard
    Dell
    Mouse
    Advance
    Browser
    Chrome
    Antivirus
    Windows Security
  • Operating System
    Windows 11 Home
    Computer type
    Laptop
    Manufacturer/Model
    HP
    Other Info
    Using W11 OS on customers' computers more and more often, and sometimes on my mum's new laptop.

paradoxum

Member
Member
Local time
1:47 AM
Posts
88
OS
Windows 11
Thanks, I'll give that a go soon.
But again, regarding having a tool made to help us customize icons and export/import the configuration across windows installs, it's something I'd seriously hire someone to create, because everything else is years out of date or just doesn't work great, has extra features I don't need, etc etc.

If anyone wants to help, I'm paradox#9343 on discord or zakalwe on libera.chat IRC.

Properties > Location > Move > Choose location >
I do this *as well* as adding junctions, because it is just so easy to just drop junctions for everything.

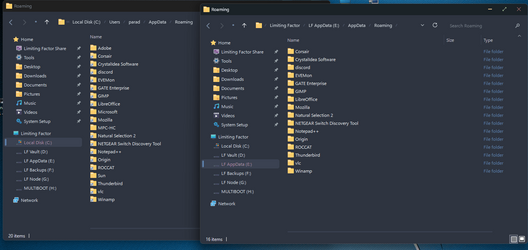

Changing the library location helps windows to open the right location in save dialogue boxes etc. And having the junctions there means this:



So much easier when reinstalling.

>To get rid out of the pins, you just have to replace the icon with a blanc icon. Like you, I don't like them too much at this place, and will remove them but I still would like to keep the bigger view in the Explorer ribbon, so I will specially make one with only these visible.

Is that icon in the imageres icon file along with everything else?


My Computer

System One

  • OS
    Windows 11
Top Bottom
