Windows 11 Home - TPM Encryption


Bigs

Member
Thread Starter
Local time
9:07 PM
Posts
21
OS
Windows 11 Home
Here is my article that shows how to use bitlocker on Win10/11 Home despite the lack of "modern standby" or whatever MS thinks is needed:
Thank you for the comprehensive information.
I followed all your steps to the letter.
After the cmd command "manage-bd -on c: -used",
I had the "Used Space Only encryption is now in progress" come up in the same cmd window.
I then rebooted to Win11 Home, and ran the cmd command "manage-bde c: -protectors -add -rp -tpm".
The following cmd line came up, showing an error:
Microsoft Windows [Version 10.0.22000.613]
(c) Microsoft Corporation. All rights reserved.

C:\Windows\system32>manage-bde c: -protectors -add -rp -tpm
BitLocker Drive Encryption: Configuration Tool version 10.0.22000
Copyright (C) 2013 Microsoft Corporation. All rights reserved.

Key Protectors Added:

ERROR: An error occurred (code 0x8031005a):
This version of Windows does not support this feature of BitLocker Drive Encryption. To use this feature, upgrade the operating system.

C:\Windows\system32>


Would this have anything to with the fact that I'm running Windows 11 Home?
Bear in mind, I have just added a "GC-TPM2.0_S 2.0" module to my existing Gigabyte board.
Apparently I didn't need it, as my system shows TPM is active, and the above cmd of yours verified it was active and working.
But it's the correct module for my board (Z390-UD rev.1).
Any hints on the error message would be greatly appreciated.
Even tho I got the error, would my drive be encrypted (as per the cmd message)?
I assume not, as there'es no LOCK showing over the Drive icon in Folder view.


Attachments

  • After Successful encryption and reboot.png
    After Successful encryption and reboot.png
    31.4 KB · Views: 2

My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    Intel Core i5 p400F
    Motherboard
    Gigabyte Z390-UD rev.1
    Memory
    Kingston HyperX Fury 16GB (2x8) DDR4-2400
    Graphics Card(s)
    NVidia GeForce GTX 1050 Ti (4GB)
    Sound Card
    Onboard
    Monitor(s) Displays
    27" Samsung
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsun SSD 970 EVO 500GB
    PSU
    450W Corsair
    Case
    Coolermaster Masterbox MB530P
    Cooling
    Fans x 6
    Keyboard
    Logitech wireless
    Mouse
    Logitech wireless
    Internet Speed
    25mbps
    Browser
    Edge, Opera
    Antivirus
    Windows Defender, Malwarebytes (free)

Bigs

Member
Thread Starter
Local time
9:07 PM
Posts
21
OS
Windows 11 Home
Also, when I Shift/Restarted and picked "Troubleshoot/Advanced Op/Command Prompt", it didn't ask me for a Admin account password.
Maybe this is because I auto login?
But it took the following "manage-bde -on c: -used" command no problem.
Everything up to adding "Protectors" command went no problems, but produced ther "error" message above.


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    Intel Core i5 p400F
    Motherboard
    Gigabyte Z390-UD rev.1
    Memory
    Kingston HyperX Fury 16GB (2x8) DDR4-2400
    Graphics Card(s)
    NVidia GeForce GTX 1050 Ti (4GB)
    Sound Card
    Onboard
    Monitor(s) Displays
    27" Samsung
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsun SSD 970 EVO 500GB
    PSU
    450W Corsair
    Case
    Coolermaster Masterbox MB530P
    Cooling
    Fans x 6
    Keyboard
    Logitech wireless
    Mouse
    Logitech wireless
    Internet Speed
    25mbps
    Browser
    Edge, Opera
    Antivirus
    Windows Defender, Malwarebytes (free)

Comport Colin

Member
Local time
3:07 AM
Posts
37
OS
Win11
That is weird. As indicated, it works on the current version of Win11 home, tested yesterday. I see no reason, why it would work differently on your machine, since Bitlocker (not device encryption, but Bitlocker) does not care for your hardware capabilities. Please see which TPM is active and see what state it is in: open tpm.msc and share a screenshot.


My Computer

System One

  • OS
    Win11

Bigs

Member
Thread Starter
Local time
9:07 PM
Posts
21
OS
Windows 11 Home


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    Intel Core i5 p400F
    Motherboard
    Gigabyte Z390-UD rev.1
    Memory
    Kingston HyperX Fury 16GB (2x8) DDR4-2400
    Graphics Card(s)
    NVidia GeForce GTX 1050 Ti (4GB)
    Sound Card
    Onboard
    Monitor(s) Displays
    27" Samsung
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsun SSD 970 EVO 500GB
    PSU
    450W Corsair
    Case
    Coolermaster Masterbox MB530P
    Cooling
    Fans x 6
    Keyboard
    Logitech wireless
    Mouse
    Logitech wireless
    Internet Speed
    25mbps
    Browser
    Edge, Opera
    Antivirus
    Windows Defender, Malwarebytes (free)

Comport Colin

Member
Local time
3:07 AM
Posts
37
OS
Win11
Looks good. I will install win11 home on hardware (that is unsupported for device encryption) now and test again, hang on.


My Computer

System One

  • OS
    Win11

Bigs

Member
Thread Starter
Local time
9:07 PM
Posts
21
OS
Windows 11 Home
thx, will check back later. Have to go out.
Wouldn't be because my hardware is a few years old? (Z390-UD)


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    Intel Core i5 p400F
    Motherboard
    Gigabyte Z390-UD rev.1
    Memory
    Kingston HyperX Fury 16GB (2x8) DDR4-2400
    Graphics Card(s)
    NVidia GeForce GTX 1050 Ti (4GB)
    Sound Card
    Onboard
    Monitor(s) Displays
    27" Samsung
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsun SSD 970 EVO 500GB
    PSU
    450W Corsair
    Case
    Coolermaster Masterbox MB530P
    Cooling
    Fans x 6
    Keyboard
    Logitech wireless
    Mouse
    Logitech wireless
    Internet Speed
    25mbps
    Browser
    Edge, Opera
    Antivirus
    Windows Defender, Malwarebytes (free)

Comport Colin

Member
Local time
3:07 AM
Posts
37
OS
Win11
I found the glitch.
Took a USB stick to install windows and left it plugged in when entering the recovery environment (as you'll see, that makes a diefference), did manage-bde -on d: -used (since windows PE sees c: as d: when you install in MBR partitioning as I did)
Booted to windows, tried manage-bde -protectors -add c: -rp -tpm and got the same error like you, BUT: the USB stick (d:) was being encrypted :)
So I found what the problem was: winPE and windows had different associations what d: was. Repeated the same without the stick being plugged in - all works.

Please see if that solves it for you.


My Computer

System One

  • OS
    Win11

Comport Colin

Member
Local time
3:07 AM
Posts
37
OS
Win11
Yep, this just works as indicated in the tutorial, when UEFI partitioning is used (this is a requirement for TPM2.0 as described). With UEFI (=GPT) partioning, c: is seen as c: on WInPE as well and when booting into windows, this problem of yours does not occur, AT LEAST NOT WITH a SINGLE DISK!

When MBR partitioning is used (only possible with TPM 1.2), when no stick (or 2nd hard drive that occupies volume d is attached, it will work as well. Your situation must have occured because c: on WinPE was not the windows OS drive.
So all you need to do is retry and use dir c:/dir d: / dir e: on WinPE to ensure which drive is which.

Last edited:

My Computer

System One

  • OS
    Win11

Bigs

Member
Thread Starter
Local time
9:07 PM
Posts
21
OS
Windows 11 Home
Thank you so much for your time and effort, very much appreciated.
I won't get to try it out until tomorrow late, but will get back to you with the outcome.


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    Intel Core i5 p400F
    Motherboard
    Gigabyte Z390-UD rev.1
    Memory
    Kingston HyperX Fury 16GB (2x8) DDR4-2400
    Graphics Card(s)
    NVidia GeForce GTX 1050 Ti (4GB)
    Sound Card
    Onboard
    Monitor(s) Displays
    27" Samsung
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsun SSD 970 EVO 500GB
    PSU
    450W Corsair
    Case
    Coolermaster Masterbox MB530P
    Cooling
    Fans x 6
    Keyboard
    Logitech wireless
    Mouse
    Logitech wireless
    Internet Speed
    25mbps
    Browser
    Edge, Opera
    Antivirus
    Windows Defender, Malwarebytes (free)

Bigs

Member
Thread Starter
Local time
9:07 PM
Posts
21
OS
Windows 11 Home
Well, I found H: drive to be my System drive, on running Dir command. (I have a few extra disks and partitions mounted)
So then I tried the "manage-bde -on h: -used" command and received an error saying:
"Bitlocker cannot be enabled on the Volume because it contains a Volume Shadow Copy".
Amongst other text, it then said to use "-RemoveVolumeShadowCopies".
I tried the "H: -RemoveVolumeShadowCopies" syntax, but that isnt the correct way.
Any ideas on how to remove Volume Shadow Copies?
Seem to be getting further now, anyway :)


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    Intel Core i5 p400F
    Motherboard
    Gigabyte Z390-UD rev.1
    Memory
    Kingston HyperX Fury 16GB (2x8) DDR4-2400
    Graphics Card(s)
    NVidia GeForce GTX 1050 Ti (4GB)
    Sound Card
    Onboard
    Monitor(s) Displays
    27" Samsung
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsun SSD 970 EVO 500GB
    PSU
    450W Corsair
    Case
    Coolermaster Masterbox MB530P
    Cooling
    Fans x 6
    Keyboard
    Logitech wireless
    Mouse
    Logitech wireless
    Internet Speed
    25mbps
    Browser
    Edge, Opera
    Antivirus
    Windows Defender, Malwarebytes (free)

Bigs

Member
Thread Starter
Local time
9:07 PM
Posts
21
OS
Windows 11 Home

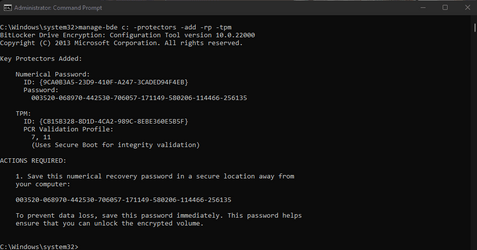

Got rid of Volume Shadow Copies, and ran commands again.
It worked this time. Thanks for all your help !!!
Only problem now is, the C: Drive does NOT show the LOCK icon in Folder Explorer View.

Last edited:

My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    Intel Core i5 p400F
    Motherboard
    Gigabyte Z390-UD rev.1
    Memory
    Kingston HyperX Fury 16GB (2x8) DDR4-2400
    Graphics Card(s)
    NVidia GeForce GTX 1050 Ti (4GB)
    Sound Card
    Onboard
    Monitor(s) Displays
    27" Samsung
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsun SSD 970 EVO 500GB
    PSU
    450W Corsair
    Case
    Coolermaster Masterbox MB530P
    Cooling
    Fans x 6
    Keyboard
    Logitech wireless
    Mouse
    Logitech wireless
    Internet Speed
    25mbps
    Browser
    Edge, Opera
    Antivirus
    Windows Defender, Malwarebytes (free)

Bigs

Member
Thread Starter
Local time
9:07 PM
Posts
21
OS
Windows 11 Home
The only place I can find that tells me I have Encryption on System Drive:

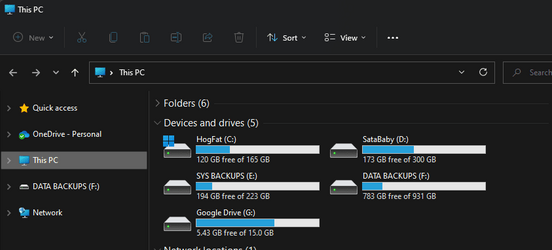

Note the lack of Lock icon on File manager snapshot.


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    Intel Core i5 p400F
    Motherboard
    Gigabyte Z390-UD rev.1
    Memory
    Kingston HyperX Fury 16GB (2x8) DDR4-2400
    Graphics Card(s)
    NVidia GeForce GTX 1050 Ti (4GB)
    Sound Card
    Onboard
    Monitor(s) Displays
    27" Samsung
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsun SSD 970 EVO 500GB
    PSU
    450W Corsair
    Case
    Coolermaster Masterbox MB530P
    Cooling
    Fans x 6
    Keyboard
    Logitech wireless
    Mouse
    Logitech wireless
    Internet Speed
    25mbps
    Browser
    Edge, Opera
    Antivirus
    Windows Defender, Malwarebytes (free)

Bigs

Member
Thread Starter
Local time
9:07 PM
Posts
21
OS
Windows 11 Home
Is this enough to show I have Encryption on?
And should Lock Status show "Unlocked" ?
Still not able to work out why System Drive C: doesn't show Lock icon, tho.


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    Intel Core i5 p400F
    Motherboard
    Gigabyte Z390-UD rev.1
    Memory
    Kingston HyperX Fury 16GB (2x8) DDR4-2400
    Graphics Card(s)
    NVidia GeForce GTX 1050 Ti (4GB)
    Sound Card
    Onboard
    Monitor(s) Displays
    27" Samsung
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsun SSD 970 EVO 500GB
    PSU
    450W Corsair
    Case
    Coolermaster Masterbox MB530P
    Cooling
    Fans x 6
    Keyboard
    Logitech wireless
    Mouse
    Logitech wireless
    Internet Speed
    25mbps
    Browser
    Edge, Opera
    Antivirus
    Windows Defender, Malwarebytes (free)

Bigs

Member
Thread Starter
Local time
9:07 PM
Posts
21
OS
Windows 11 Home
yes, a few times
is it because I don't actually have Bitlocker?
or I don't actually have Modern Standby?
And it is Win11 Home


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    Intel Core i5 p400F
    Motherboard
    Gigabyte Z390-UD rev.1
    Memory
    Kingston HyperX Fury 16GB (2x8) DDR4-2400
    Graphics Card(s)
    NVidia GeForce GTX 1050 Ti (4GB)
    Sound Card
    Onboard
    Monitor(s) Displays
    27" Samsung
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsun SSD 970 EVO 500GB
    PSU
    450W Corsair
    Case
    Coolermaster Masterbox MB530P
    Cooling
    Fans x 6
    Keyboard
    Logitech wireless
    Mouse
    Logitech wireless
    Internet Speed
    25mbps
    Browser
    Edge, Opera
    Antivirus
    Windows Defender, Malwarebytes (free)

cereberus

Well-known member
Pro User
VIP
Local time
2:07 AM
Posts
2,590
OS
Windows 10 Pro + others in VHDs
The only place I can find that tells me I have Encryption on System Drive:
Note the lack of Lock icon on File manager snapshot.
View attachment 28014View attachment 28016
That is because this method is bypassing the gui based method for doing encryption.

In the end, you have to recognise this is an unsupported way of using device encryption.

I do not really see point of using encryption on a desktop. It is more geared to laptops.
yes, a few times
is it because I don't actually have Bitlocker?
or I don't actually have Modern Standby?
And it is Win11 Home
Boot from a windows installation drive, press shift+f10 to get to command prompt at first screen, the see of you can access C drive by typing

dir c:

If it is encrypted, it will not display directory


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

Bigs

Member
Thread Starter
Local time
9:07 PM
Posts
21
OS
Windows 11 Home
I've done a WInPE boot, and with an elevated command prompt, it tells me it is Encrypted.
Also a "Dir" shows Folders, which is how I verified it was my System Disc, which is H: drive under WinPE boot.
Also with WinPE boot, and UNelevated command prompt, it says "It's locked with Bitlocker Encryption" and does NOT show drive contents.
Which I guess, is what you were referring to.

Last edited:

My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    Intel Core i5 p400F
    Motherboard
    Gigabyte Z390-UD rev.1
    Memory
    Kingston HyperX Fury 16GB (2x8) DDR4-2400
    Graphics Card(s)
    NVidia GeForce GTX 1050 Ti (4GB)
    Sound Card
    Onboard
    Monitor(s) Displays
    27" Samsung
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsun SSD 970 EVO 500GB
    PSU
    450W Corsair
    Case
    Coolermaster Masterbox MB530P
    Cooling
    Fans x 6
    Keyboard
    Logitech wireless
    Mouse
    Logitech wireless
    Internet Speed
    25mbps
    Browser
    Edge, Opera
    Antivirus
    Windows Defender, Malwarebytes (free)

cereberus

Well-known member
Pro User
VIP
Local time
2:07 AM
Posts
2,590
OS
Windows 10 Pro + others in VHDs
I've done a WInPE boot, and with an elevated command prompt, it tells me it is Encrypted.
Also a "Dir" shows Folders, which is how I verified it was my System Disc, which is H: drive under WinPE boot.
Also with WinPE boot, and UNelevated command prompt, it says "It's locked with Bitlocker Encryption" and does NOT show drive contents.
Which I guess, is what you were referring to.
Did you boot from a usb drive, not via the menus?

I could be wrong but I would be surprised if you could access a bitlocked drive from a usb drive.


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0

Bigs

Member
Thread Starter
Local time
9:07 PM
Posts
21
OS
Windows 11 Home
I did a Shift/Restart from Win11 Start menu, then picked Troubleshoot/Advanced Options/Command Prompt.
It asked for Recovery key to get Elevated Command Prompt, but last reboot I skipped that, and got normal Command Prompt.


My Computer

System One

  • OS
    Windows 11 Home
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    Intel Core i5 p400F
    Motherboard
    Gigabyte Z390-UD rev.1
    Memory
    Kingston HyperX Fury 16GB (2x8) DDR4-2400
    Graphics Card(s)
    NVidia GeForce GTX 1050 Ti (4GB)
    Sound Card
    Onboard
    Monitor(s) Displays
    27" Samsung
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsun SSD 970 EVO 500GB
    PSU
    450W Corsair
    Case
    Coolermaster Masterbox MB530P
    Cooling
    Fans x 6
    Keyboard
    Logitech wireless
    Mouse
    Logitech wireless
    Internet Speed
    25mbps
    Browser
    Edge, Opera
    Antivirus
    Windows Defender, Malwarebytes (free)

Latest Tutorials

Top Bottom
