Hi folks --
For testing all these builds etc - if you have any spare old USB3 HDD's / SSD's etc - I suggest you use latest version of Rufus to create WindowstoGo systems of W11 builds etc -- great way of testing on REAL hardware without hosing up your current system.

Rufus does it really simply for new installs -- even from WITHIN VM's == you just need RUFUS, the iso of the windows build you want to install and a USB device

Then simply from within Rufus select advanced - show USB disks, the select iso and "Windows To Go" for type of Windows install


When it finishes just boot the device and it will finish setting up windows -- great testing tool if you have some spare drives -- easy to move to different machines as well !!!. You can re-size partitions etc afterwards if you only want to use small partitions.

Cheers
jimbo


My Computer

System One

  • Operating System
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7

galileo

Member
Local time
9:38 PM
Posts
37
When you reboot, how are you selecting the boot drive?


My Computer

System One

  • Operating System
    Windows 11 Insider
    Computer type
    PC/Desktop
    Manufacturer/Model
    Dell 7459 AIO
    CPU
    i6700HQ
    Motherboard
    Dell
    Memory
    12.0 GB
    Graphics Card(s)
    Intel HD Graphics 530 + NVIDIA GeForce 940M

Winuser

Well-known member
Member
VIP
Local time
9:38 PM
Posts
906
I think I'll give it a try when I have some free time. I'll use EasyBCD to setup a dual boot.


My Computer

System One

  • Operating System
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    PowerSpec B746
    CPU
    Intel Core i7-10700K
    Motherboard
    ASRock Z490 Phantom Gaming 4/ax
    Memory
    16GB (8GB PC4-19200 DDR4 SDRAM x2)
    Graphics Card(s)
    NVIDIA GeForce GTX 1050 TI
    Sound Card
    Realtek Audio
    Monitor(s) Displays
    Samsung SAM0A87
    Screen Resolution
    1920 x 1080
    Hard Drives
    NVMe WDC WDS100T2B0C-00PXH0 1TB
    Samsung SSD 860 EVO 1TB
    Keyboard
    HP USB Kekboard
    Mouse
    2.4 wireless mouse
    Browser
    Microsoft Edge and Firefox

Hopachi

Active member
Local time
3:38 AM
Posts
61
When you reboot, how are you selecting the boot drive?
BIOS/UEFI boot selection menu. Before your main-os boot loader.
It says it's a USB connected HDD/SSD drive. Works the same way as a flash stick booting though better for 'to go' read/write setups.
Some of these drives will be detected as SATA on the boot menu since those are mostly USB to SATA controllers.


My Computers

System One System Two

  • Operating System
    Linux: Fedora 3x 64-bit / Windows 10 Pro 64-bit in VM
    Computer type
    Laptop
    Manufacturer/Model
    TOSHIBA Tecra W50-A
    CPU
    Intel i7-4810MQ
    Motherboard
    TOSHIBA, Intel QM87 Express Chipset
    Memory
    32GB DDR3 @1600
    Graphics Card(s)
    Nvidia Quadro K2100M - 2GB
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    15.6' built-in + LG-32ML600M
    Screen Resolution
    1920x1080
    Hard Drives
    Samsung SSD 840 250GB + Samsung SSD QVO 2TB
    PSU
    180W adapter
    Cooling
    The usual airflow + docked to station - PA5117E-1PRP
    Keyboard
    Backlit built-in + Logitech Orion G610
    Mouse
    SteelSeries Rival 100 Red
    Internet Speed
    Good enough
    Browser
    Chromium, Edge, Firefox
    Antivirus
    Windows Defender
  • Operating System
    Windows 10 Pro 64-bit
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom Build
    CPU
    AMD Ryzen 7 1800X
    Motherboard
    MSI Mortar B350M
    Memory
    32GB DDR4 @2666
    Graphics card(s)
    GYGABYTE AORUS Radeon RX580 8G
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    Medion 27'
    Screen Resolution
    1920x1080
    Hard Drives
    WD Black 3D NAND SSD 250 GB NVMe + 4x HDD WD Blue 500GB 2.5'
    PSU
    Corsair Builder CX550M
    Case
    Fractal Design Define Mini (Black)
    Cooling
    Noctua NH-D15S
    Mouse
    Good one, with cable / long tail
    Keyboard
    Lenovo SK-8825(L)
    Internet Speed
    N/A
    Browser
    Firefox
    Antivirus
    Windows Defender

Ed Tittel

Active member
MVP
Member
VIP
Local time
8:38 PM
Posts
91
Great suggestion, @jimbo45. I'm definitely going to try this out. Getting ready to rebuild my production desktop with Ryzen 5800X, B550 mobo, 64GB RAM and PCIe x4 SSD. This way, I can try Win11 out on the hardware, while still keeping my production environment intact. Good stuff!
--Ed--


My Computer

System One

  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo X380 Yoga
    CPU
    i7-8650U (8th Gen/Kaby Lake)
    Motherboard
    20LH000MUS (U3E1)
    Memory
    16 GB
    Graphics Card(s)
    Intel UHD Graphics 620
    Sound Card
    Integrated Conexant SmartAudio HD
    Monitor(s) Displays
    FlexView Display
    Screen Resolution
    1920x1080
    Hard Drives
    Toshiba 1 TB PCIe x3 NVMe SSD
    external 5TB Seagate USB-C attached HDD
    PSU
    Lenovo integrated 65W power brick
    Case
    Laptop
    Cooling
    Laptop
    Keyboard
    Integrated Lenovo ThinkPad keyboard
    Mouse
    touchscreen, touchpad
    Internet Speed
    GbE (Spectrum/Charter)
    Browser
    all of em
    Antivirus
    Defender
    Other Info
    Purchased early 2019 as Windows Insider test PC

jimbo45

Well-known member
Member
VIP
Local time
1:38 AM
Posts
597
Location
Hafnarfjörður IS
Great suggestion, @jimbo45. I'm definitely going to try this out. Getting ready to rebuild my production desktop with Ryzen 5800X, B550 mobo, 64GB RAM and PCIe x4 SSD. This way, I can try Win11 out on the hardware, while still keeping my production environment intact. Good stuff!
--Ed--
Hi there

Tested - works with latest W11 builds -- get iso's via UUPDUMP, and also W2K19 and W2K22 servers.
Not sure though on "Secure boot" -- UEFI is no problem but I haven't been able to test this with sec boot = although presumably if that's enabled in the Real BIOS the Windows install should take care of it !!!

I've also around 5 or 6 spare older 128 GB SSD's that I would otherwise have junked - makes great testing scenarios -- otherwise I would have just thrown those away. On USB3->SATA response is perfectly good.

Cheers
jimbo


My Computer

System One

  • Operating System
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7

GaryW

Active member
Local time
9:38 PM
Posts
36
Location
Central Florida
Hi there

Tested - works with latest W11 builds -- get iso's via UUPDUMP, and also W2K19 and W2K22 servers.
Not sure though on "Secure boot" -- UEFI is no problem but I haven't been able to test this with sec boot = although presumably if that's enabled in the Real BIOS the Windows install should take care of it !!!

I've also around 5 or 6 spare older 128 GB SSD's that I would otherwise have junked - makes great testing scenarios -- otherwise I would have just thrown those away. On USB3->SATA response is perfectly good.

Cheers
jimbo
I just tried it out. Much easier than any other method I've used previously, especially the command line!


My Computers

System One System Two

  • Operating System
    Windows 11 Insider Preview (VM on Hyper-V), Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home brew
    CPU
    i5-8500
    Motherboard
    Gigabyte B360M DS3H
    Memory
    32 GB
    Graphics Card(s)
    System
    Sound Card
    System
    Monitor(s) Displays
    Asus 27" on KVM switch
    Screen Resolution
    1920x1080
    Hard Drives
    Kingston 120 GB SSD system dr., 1TB Gigabyte M.2 MVNe data and 1 TB M.2 PCie @ 20 Gb/s virtual drive storage, 2 TB WD HDD
    PSU
    Thermatake 500w
    Case
    Mid Tower
    Cooling
    fans
    Keyboard
    Logitech on KVM
    Mouse
    Logitech on KVM
    Internet Speed
    30 - 40 down, 4 up
    Browser
    Usually Chrome, Edge On insider Preview
    Antivirus
    Defender
    Other Info
    3'rd system is a Kodlux mini that is 11 capable, running W10 pro.
  • Operating System
    Windows 10
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Brew
    CPU
    Intel i5-7600
    Motherboard
    Asus H270-Plus
    Memory
    16 GB
    Graphics card(s)
    System
    Sound Card
    System
    Monitor(s) Displays
    Asus 27 inch on KVM
    Screen Resolution
    1920 x 1080
    Hard Drives
    SPCC 120 GB SSD, 1TB and 2TB WD Sata III
    PSU
    Thermaltech 500w
    Case
    Mid Tower
    Cooling
    fans
    Mouse
    Logitech on KVM
    Keyboard
    Logitech on KVM
    Internet Speed
    30 - 40 down, 4 up
    Browser
    Usually Chrome, occasionally Edge
    Antivirus
    Windows
    Other Info
    Also have 2 seldom used laptops: HP Pavilion 11M-AD113DX Laptop (W11 Capable), W10 Home, Dell Inspiron 13-5368 Laptop, W10 Home + Apple mini, circa 2012

Stigg

Well-known member
Member
VIP
Local time
11:38 AM
Posts
299
Hi folks --
For testing all these builds etc - if you have any spare old USB3 HDD's / SSD's etc - I suggest you use latest version of Rufus to create WindowstoGo systems of W11 builds etc -- great way of testing on REAL hardware without hosing up your current system.
Why wouldn't you use a UFD for Windows To Go?


My Computers

System One System Two

  • Operating System
    Windows 10 Pro
    Computer type
    PC/Desktop
    Manufacturer/Model
    Stigg's Build
    CPU
    Intel Core i9-10900X
    Motherboard
    GIGABYTE X299X DESIGNARE 10G
    Memory
    Corsair 64 GB (4 x 16 GB) CMW64GX4M4C3000C15 Vengeance RGB Pro 3000Mhz DDR4
    Graphics Card(s)
    GIGABYTE GeForce GTX 1660 Super Mini ITX 6 GB OC
    Sound Card
    Realtek ALC1220
    Monitor(s) Displays
    Samsung 27" FHD LED FreeSync Gaming Monitor (LS27F350FHEXXY)
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsung 970 Pro Series 1TB M.2 2280 NVMe SSD
    Western Digital Red Pro WD8003FFBX-68B9AN0 8 TB, 7200 RPM, SATA-III
    Western Digital Red Pro WD8003FFBX-68B9AN0 8 TB, 7200 RPM, SATA-III
    PSU
    Corsair HX1200 1200W 80 Plus Platinum
    Case
    Fractal Design Define 7 Black Solid Case
    Cooling
    Noctua NH-D15 Chromax Black
    Keyboard
    Razer Ornata V2
    Mouse
    Razer DeathAdder Essential
    Internet Speed
    FTTN 100Mbps / 40Mbps
    Browser
    Mozilla Firefox
    Antivirus
    N/A
    Other Info
    Logitech BRIO 4k Ultra HD USB-C Webcam
  • Operating System
    Windows 10 Pro
    Computer type
    Laptop
    Manufacturer/Model
    ASUS ROG Zephyrus M GM501GS
    CPU
    Core i7-8750H
    Motherboard
    Zephyrus M GM501GS
    Memory
    SK Hynix 32 GB (2 x 16 GB) HMA82GS6CJR8N-VK 16 GB DDR4-2666 DDR4 SDRAM
    Graphics card(s)
    NVIDIA GeForce GTX 1070
    Sound Card
    Realtek ALC294
    Monitor(s) Displays
    AU Optronics B156HAN07.1 [15.6" LCD]
    Screen Resolution
    1920 x 1080
    Hard Drives
    Samsung MZVKW512HMJP-00000 512 GB, PCI-E 3.0 x4
    Samsung SSD 860 QVO 4TB 4 TB, SATA-III
    PSU
    N/A
    Case
    N/A
    Cooling
    N/A
    Mouse
    Razer DeathAdder Essential
    Keyboard
    PC/AT Enhanced PS2 Keyboard (101/102-Key)
    Internet Speed
    FTTN 100Mbps / 40Mbps
    Browser
    Mozilla Firefox
    Antivirus
    N/A
    Other Info
    USB2.0 HD UVC Webcam

Ed Tittel

Active member
MVP
Member
VIP
Local time
8:38 PM
Posts
91
NVMe (M.2) or mSATA SSDs are faster than spinning media, and ditto for flash media. The fastest USB peripheral you can run these days is a PCIe x3 or better NVMe in a Thunderbolt 3 or 4 or USB-C enclosure. It runs at least an order of magnitude faster than the fastest UFD. If that doesn't matter to you, UFD is fine. But if speed counts, it's the only way to go.
HTH,
--Ed--

PS: I've tried numerous NVMe enclosures and can provide input on which ones are worth buying and which ones have disappointed me. PM me if you're interested in that info...


My Computer

System One

  • Operating System
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo X380 Yoga
    CPU
    i7-8650U (8th Gen/Kaby Lake)
    Motherboard
    20LH000MUS (U3E1)
    Memory
    16 GB
    Graphics Card(s)
    Intel UHD Graphics 620
    Sound Card
    Integrated Conexant SmartAudio HD
    Monitor(s) Displays
    FlexView Display
    Screen Resolution
    1920x1080
    Hard Drives
    Toshiba 1 TB PCIe x3 NVMe SSD
    external 5TB Seagate USB-C attached HDD
    PSU
    Lenovo integrated 65W power brick
    Case
    Laptop
    Cooling
    Laptop
    Keyboard
    Integrated Lenovo ThinkPad keyboard
    Mouse
    touchscreen, touchpad
    Internet Speed
    GbE (Spectrum/Charter)
    Browser
    all of em
    Antivirus
    Defender
    Other Info
    Purchased early 2019 as Windows Insider test PC

barman58

Moderator
Staff member
Local time
2:38 AM
Posts
521

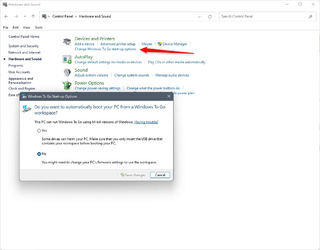

Rather than use the BIOS to access the WtG install, there is an entry in the old control Panel (Windows 10) in the Hardware and Sound section (not sure if it even exists in W11)

This allows your next boot to be from the Windows to Go USB connection

Screenshot 2021-10-11 073756.png

A little more elegant ;)


My Computers

System One System Two

  • Operating System
    Windows 10 Pro x64 [Latest Release Preview]
    Computer type
    PC/Desktop
    Manufacturer/Model
    Chillblast to my design
    CPU
    Ryzen 9 5950X, 4.9GHz
    Motherboard
    Asus Prime X570-Pro Motherboard
    Memory
    64GB DDR4 3200MHz
    Graphics Card(s)
    4GB NVIDIA GEFORCE GTX 1650 Ti - HDMI, DP
    Sound Card
    On motherboard Feeding SPDiF 5.1 system
    Monitor(s) Displays
    32" UHD 32 Bit HDR Monitor + 43" UHD 4K 32Bit HDR TV
    Screen Resolution
    2 x 3840 x 2160
    Hard Drives
    1TB M2 SSD OS, 500GB Fast Access SSD, 2 x 8TB Data + Various Externals from 1TB to 4TB, 10TB NAS
    PSU
    NZXT C750 80 PLUS Gold 750W Modular PSU
    Case
    Chillblast Silent Workstation PC Case - Black
    Cooling
    NZXT Kraken X63 280mm CPU Cooler, Quiet Case fans Fan
    Keyboard
    Wireless Logitec MX Keys + K830 [Depending on where I'm Sat]
    Mouse
    Wireless Logitec - MX Master 3 + M570 Trackball
    Internet Speed
    72 MB Down 18.5 MB Up
    Browser
    Latest Chrome
    Antivirus
    BitDefender Total Security 2021
    Other Info
    Also run...
    Laptop - Quad 8GB - Windows 10 Pro x64 HP 15.2"
    Nexus 7 Android tablet
    Samsung 10.2" tablet
    Sony Z3 Android Smartphone
    Samsung S9 Plus Smartphone
    Samsung Note S20
    Wacom Pro Medium Pen Pad
    Wacom Pro Small Pen Pad
    Wacom ExpressKey Remote
    Loopdeck+ Graphics Controller
    Shuttle Pro v2 Control Pad
  • Operating System
    Windows 10 Pro x64 [Latest release]
    Computer type
    Laptop
    Manufacturer/Model
    Dell XPS 17 9700
    CPU
    i7 10750H
    Motherboard
    Stock
    Memory
    32 GB
    Graphics card(s)
    Stock Intel + GTX 1650 Ti
    Sound Card
    Stock 4 speaker
    Monitor(s) Displays
    Stock 17"
    Screen Resolution
    3840 x 2160 HDR touchscreen
    Hard Drives
    2TB M2
    PSU
    Stock
    Case
    Stock Aluminium / Carbon Fibre
    Cooling
    Stock + 2 fan cooling pad
    Mouse
    Stock Trackpad
    Keyboard
    Stock Illuminated
    Internet Speed
    72 MB Down 18.5 MB Up
    Browser
    Latest Chrome
    Antivirus
    BitDefender Total Security 2021

z3r010

Administrator
Staff member
Local time
2:38 AM
Posts
1,061
Location
Worsley, Manchester, UK
Rather than use the BIOS to access the WtG install, there is an entry in the old control Panel (Windows 10) in the Hardware and Sound section (not sure if it even exists in W11)

Yep, it's still there.



My Computers

System One System Two

  • Operating System
    Windows 11 Workstation
    Computer type
    PC/Desktop
    Manufacturer/Model
    doofenshmirtz evil incorporated
    CPU
    Ryzen 9 5950X
    Motherboard
    Asus ROG Crosshair VIII Formula
    Memory
    Corsair Vengeance RGB PRO Black 32GB (2x16GB) 3600MHz AMD Ryzen Tuned DDR4
    Graphics Card(s)
    ASUS AMD Radeon RX 6900 XT 16GB ROG Strix LC OC
    Sound Card
    Sound BlasterX Katana
    Monitor(s) Displays
    3 x27" Dell U2714H & 1 x 34" Dell
    Hard Drives
    Samsung 980 Pro 1TB M.2 2280 PCI-e 4.0 x4 NVMe Solid State
    Drive
    PSU
    ASUS ROG THOR 850W 80 Plus Platinum
    Case
    ASUS ROG Strix Helios Midi-Tower ARGB Gaming Case
    Cooling
    ASUS ROG Strix LC Performance RGB AIO CPU Liquid Cooler - 360mm
    Keyboard
    Logi Ergo
    Mouse
    Logitech MX Vertical
    Internet Speed
    900/100 Mbps
    Browser
    Chrome
    Antivirus
    Windows Defender, Malwarebytes Pro
    Other Info
    HP M281 Printer
    Logitech Brio Stream webcam
    Yeti X mic
  • Operating System
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    Surface Laptop
    CPU
    i7

jimbo45

Well-known member
Member
VIP
Local time
1:38 AM
Posts
597
Location
Hafnarfjörður IS
Hi folks

Good info -- however I'm actually finding now that using physical Virtual "VHDX" drives (Not Virtual Machines) is often a simpler and more flexible way if you say want to test several Windows versions. You don't need to dedicate a whole external device -- you just need to ensure that the virtual disk file you create for the relevant Windows install is large enough. The only downside is that at boot you will get presented with a boot menu asking you to choose what system you want to boot. A 512GB external SSD is a great place to store about 5 or 6 different Windows versions while the unused space can be used for something else e.g a LINUX OS or just data ehich is acessible to any of the Windows systems.

Simply create a VHDX file for each windows system -- use Disk mgmt (right mouse click on the Windows icon) -- make sure you choose fixed size, attach the VHDX and clone the system / install system.

After cloning / install boot up a winpe disk, and install the bootloader. If it's all done on the external drive your internal "C" drive will not be touched - however in this case you will then need to use the BIOS to select boot from external drive. You can also change the bootr entries menu to more memorable names with bcdedit.

Both approaches have their merit -- I used to use WintoGo but find especially with larger external SSD's the "VHDX" physical disk apprach is better -- YMMV of course. !! --Remember also that the Windows systems need to be activated -- but having different builds of say W10 won't normally affect activation.

Cheers
jimbo




Cheers


My Computer

System One

  • Operating System
    Windows XP,7,10,11 Linux Arch Linux
    Computer type
    PC/Desktop
    CPU
    2 X Intel i7
Top Bottom
