Solved Bluescreen Issues After Upgrading to Windows 11


Please restart WDV with these customized tests:

Code:
    [ ] 0x00000001 Special pool.
    [ ] 0x00000002 Force IRQL checking.
    [ ] 0x00000008 Pool tracking.
    [ ] 0x00000010 I/O verification.
    [ ] 0x00000020 Deadlock detection.
    [ ] 0x00000080 DMA checking.
    [ ] 0x00000100 Security checks.
    [ ] 0x00000800 Miscellaneous checks.
    [ ] 0x00020000 DDI compliance checking.
    [ ] 0x00002000 Invariant MDL checking for stack.
    [ ] 0x00004000 Invariant MDL checking for driver.
    [ ] 0x00080000 DDI compliance checking (additional).





If there is no immediate BSOD then open administrative command prompt and copy and paste:

verifier /querysettings

Post a share link.



For any BSOD post a new V2 share link into the newest post.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
Had another Bluescreen with these settings:

Code:
Verifier Flags: 0x001a69bb

  Standard Flags:

    [X] 0x00000001 Special pool.
    [X] 0x00000002 Force IRQL checking.
    [X] 0x00000008 Pool tracking.
    [X] 0x00000010 I/O verification.
    [X] 0x00000020 Deadlock detection.
    [X] 0x00000080 DMA checking.
    [X] 0x00000100 Security checks.
    [X] 0x00000800 Miscellaneous checks.
    [X] 0x00020000 DDI compliance checking.

  Additional Flags:

    [ ] 0x00000004 Randomized low resources simulation.
    [ ] 0x00000200 Force pending I/O requests.
    [ ] 0x00000400 IRP logging.
    [X] 0x00002000 Invariant MDL checking for stack.
    [X] 0x00004000 Invariant MDL checking for driver.
    [ ] 0x00008000 Power framework delay fuzzing.
    [ ] 0x00010000 Port/miniport interface checking.
    [ ] 0x00040000 Systematic low resources simulation.
    [X] 0x00080000 DDI compliance checking (additional).
    [ ] 0x00200000 NDIS/WIFI verification.
    [ ] 0x00800000 Kernel synchronization delay fuzzing.
    [ ] 0x01000000 VM switch verification.
    [ ] 0x02000000 Code integrity checks.

  Internal Flags:

    [X] 0x00100000 Extended Verifier flags (internal).

    [X] Indicates flag is enabled.

  Boot Mode:

    Persistent

  Rules:

    All rules are using default settings

  Extensions:

    wdm: rules.all

  Verified Drivers:

    amdpsp.sys
    amdxe.sys
    amdfendr.sys
    amdsafd.sys
    rtcx21x64.sys
    amdkmdag.sys
    amdpcidev.sys
    amdgpio2.sys
    amdgpio3.sys
    amdfendrmgr.sys
    atihdwt6.sys
    rtkvhd64.sys
    rtwlanu.sys
    mt7612us.sys
    logi_lamparray.sys
    dump_diskdump.sys
    dump_storahci.sys
    dump_dumpfve.sys
    amdryzenmasterdriver.sys

Here is the V2 Log: Dropbox


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    B450M-A PRO MAX (MS-7C52)
    Memory
    2x Crucial 16GB DDR4-3200 (CP16G4DFRA32A.C8FF)
    Graphics Card(s)
    AMD Radeon RX 6650 XT
    Monitor(s) Displays
    Xiaomi Mi Curved 34'' / Dell P2422H
    Hard Drives
    Samsung SSD 860 QVO 1TB
    SanDisk Ultra 3d NVMe 2TB
    PSU
    Thermaltake Smart RGB 700W ATX 2.3
Open administrative command prompt and copy and paste:

Code:
PowerShell $D=(New-Object -ComObject Wscript.Shell).SpecialFolders(4);Compress-Archive "%WinDir%\MEMORY.DMP" "$D\Memory_dmp"

Post a separate share link.




Please restart WDV with these customized tests:

Code:
    [ ] 0x00008000 Power framework delay fuzzing.
    [ ] 0x00010000 Port/miniport interface checking.
    [ ] 0x00040000 Systematic low resources simulation.
    [ ] 0x00200000 NDIS/WIFI verification.
    [ ] 0x00800000 Kernel synchronization delay fuzzing.
    [ ] 0x01000000 VM switch verification.
    [ ] 0x02000000 Code integrity checks.


If there is no immediate BSOD then open administrative command prompt and copy and paste:

verifier /querysettings

Post a share link.



For any BSOD post a new V2 share link into the newest post.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
Thanks for the help so far.

First here is the memory.dmp zip asked: Dropbox

The WDV settings caused a boot loop. This time it said that logi_lamparray.sys was the cause for a DRIVER_VERIFIER_DETECTED_VIOLATION:

Dropbox

www.dropbox.com www.dropbox.com

Should I exclude it from WDV?

I installed the G-HUB Software and deactivated the dynamic Lighting in Windows 11.

Had another bluescreen that completely destroyed my windows installation and needed to restore a recover point: BAD_SYSTEM_CONFIG_INFO: Dropbox

Last edited:

My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    B450M-A PRO MAX (MS-7C52)
    Memory
    2x Crucial 16GB DDR4-3200 (CP16G4DFRA32A.C8FF)
    Graphics Card(s)
    AMD Radeon RX 6650 XT
    Monitor(s) Displays
    Xiaomi Mi Curved 34'' / Dell P2422H
    Hard Drives
    Samsung SSD 860 QVO 1TB
    SanDisk Ultra 3d NVMe 2TB
    PSU
    Thermaltake Smart RGB 700W ATX 2.3
1) Run Tuneup plus > post a share link


Batch files for use in BSOD debugging - Windows 10 Help Forums

Information This thread is for use by the BSOD team to store batch files that can be used to collect additional data, fix settings or anything else that is useful in debugging BSOD problems in Windows 10. The way I see it working is the first
www.tenforums.com www.tenforums.com

Batch files for use in BSOD debugging - Windows 10 Help Forums

Information This thread is for use by the BSOD team to store batch files that can be used to collect additional data, fix settings or anything else that is useful in debugging BSOD problems in Windows 10. The way I see it working is the first
www.tenforums.com www.tenforums.com




2) If possible, temporarily use another keyboard.




3) Uninstall or uninstall and reinstall the Logitech driver

logi_lamparray Logitech LampArray Device Driver c:\windows\system32\driverstore\filerepository\logi_lamparray_usb.inf_amd64_cdf3ca3c77d5f267\logi_lamparray.sys

c:\windows\system32\driverstore\filerepository\logi_lamparray_usb.inf_amd64_cdf3ca3c77d5f267\logi_lamparray_service.exe




4) Create a new restore point




5) Restart WDV with the same customized tests



Code:
| +-+ G815
| | | Vendor/Product ID: 0x046D, 0xC33F
| | | Location: Port_#0004.Hub_#0006
| | | Matching Device ID: USB\VID_046D&PID_C33F
| | | Lower Filters: vhf, logi_lamparray
| | | Service: usbccgp
| | | Driver: logi_lamparray.sys, 4/18/2024 00:21:56, 98864 bytes
| | | Driver: logi_lamparray_service.exe, 4/18/2024 00:21:58, 9903656 bytes
| | | Driver: usbccgp.sys, 9/4/2024 18:22:16, 226800 bytes

logi_lamparray.sys Mon Apr 15 13:33:13 2024 (661D72E9)


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
I uninstalled the driver and started WDV.

Here is the TuneUp Log:

Code:
Microsoft Windows 11 Pro  Version 23H2 (OS Build 22631.4169)

==================================================================


    Started on Wed 09/18/2024 at 20:32:52.61

        [SFC /ScanNow]

Beginning system scan.  This process will take some time.


Results:

Windows Resource Protection did not find any integrity violations.

==================================================================


    Started on Wed 09/18/2024 at 20:34:49.07


        [DISM /online /cleanup-image /ScanHealth]


Deployment Image Servicing and Management tool
Version: 10.0.22621.2792


Image Version: 10.0.22631.4169

No component store corruption detected.


The operation completed successfully.

==================================================================


    Started on Wed 09/18/2024 at 20:36:39.00


        [DISM /online /cleanup-image /RestoreHealth]


Deployment Image Servicing and Management tool
Version: 10.0.22621.2792


Image Version: 10.0.22631.4169

The restore operation completed successfully.


The operation completed successfully.

==================================================================


The second "SFC /ScanNow" was skipped, as the first output the following:


Windows Resource Protection did not find any integrity violations.

==================================================================


    Started on Wed 09/18/2024 at 20:38:00.54


        [ChkDsk /Scan]

The type of the file system is NTFS.

Stage 1: Examining basic file system structure ...
515328 file records processed.
File verification completed.
Phase duration (File record verification): 6.84 seconds.
12056 large file records processed.
Phase duration (Orphan file record recovery): 5.38 milliseconds.
0 bad file records processed.
Phase duration (Bad file record checking): 0.03 milliseconds.

Stage 2: Examining file name linkage ...
255 reparse records processed.
677084 index entries processed.
Index verification completed.
Phase duration (Index verification): 20.14 seconds.
0 unindexed files scanned.
Phase duration (Orphan reconnection): 338.12 milliseconds.
0 unindexed files recovered to lost and found.
Phase duration (Orphan recovery to lost and found): 0.07 milliseconds.
255 reparse records processed.
Phase duration (Reparse point and Object ID verification): 1.88 milliseconds.

Stage 3: Examining security descriptors ...
Security descriptor verification completed.
Phase duration (Security descriptor verification): 70.33 milliseconds.
80879 data files processed.
Phase duration (Data attribute verification): 0.04 milliseconds.
CHKDSK is verifying Usn Journal...
33867488 USN bytes processed.
Usn Journal verification completed.
Phase duration (USN journal verification): 117.03 milliseconds.


Windows has scanned the file system and found no problems.


No further action is required.

975839231 KB total disk space.
448595384 KB in 312348 files.
229224 KB in 80880 indexes.
0 KB in bad sectors.
648699 KB in use by the system.
65536 KB occupied by the log file.
526365924 KB available on disk.

4096 bytes in each allocation unit.
243959807 total allocation units on disk.
131591481 allocation units available on disk.
Total duration: 27.52 seconds (27520 ms).

==================================================================

    Started on Wed 09/18/2024 at 20:38:37.18

AutoReboot

FALSE

==================================================================

        [Set AutoReboot = False]

Updating property(s) of '\\PC\ROOT\CIMV2:Win32_OSRecoveryConfiguration.Name="Microsoft Windows 11 Pro|C:\\Windows|\\Device\\Harddisk0\\Partition3"'
Property(s) update successful.
==================================================================

AutoReboot

FALSE

==================================================================

DebugInfoType

7

==================================================================


        [Set DebugInfoType = 7]


Updating property(s) of '\\PC\ROOT\CIMV2:Win32_OSRecoveryConfiguration.Name="Microsoft Windows 11 Pro|C:\\Windows|\\Device\\Harddisk0\\Partition3"'
Property(s) update successful.
==================================================================

DebugInfoType

7

==================================================================


        [WMIC PageFile list]


AllocatedBaseSize=14848
CurrentUsage=0
Description=C:\pagefile.sys
InstallDate=20240904175931.683190+120
Name=C:\pagefile.sys
PeakUsage=0
Status=
TempPageFile=FALSE

==================================================================

AutomaticManagedPagefile

TRUE

==================================================================


        [Set AutomaticManagedPagefile = True]


Updating property(s) of '\\PC\ROOT\CIMV2:Win32_ComputerSystem.Name="PC"'
Property(s) update successful.
==================================================================

AutomaticManagedPagefile

TRUE

==================================================================


        [BcdEdit /enum {badmemory}]


RAM Defects
-----------
identifier              {badmemory}

==================================================================


    Finished on Wed 09/18/2024 at 20:38:38.22
    It took 5 minutes and 46 seconds to complete the operations.

Last edited:

My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    B450M-A PRO MAX (MS-7C52)
    Memory
    2x Crucial 16GB DDR4-3200 (CP16G4DFRA32A.C8FF)
    Graphics Card(s)
    AMD Radeon RX 6650 XT
    Monitor(s) Displays
    Xiaomi Mi Curved 34'' / Dell P2422H
    Hard Drives
    Samsung SSD 860 QVO 1TB
    SanDisk Ultra 3d NVMe 2TB
    PSU
    Thermaltake Smart RGB 700W ATX 2.3
Another V2 Log: Dropbox

with following WDV settings:

Code:
Verifier Flags: 0x03b58000

  Standard Flags:

    [ ] 0x00000001 Special pool.
    [ ] 0x00000002 Force IRQL checking.
    [ ] 0x00000008 Pool tracking.
    [ ] 0x00000010 I/O verification.
    [ ] 0x00000020 Deadlock detection.
    [ ] 0x00000080 DMA checking.
    [ ] 0x00000100 Security checks.
    [ ] 0x00000800 Miscellaneous checks.
    [ ] 0x00020000 DDI compliance checking.

  Additional Flags:

    [ ] 0x00000004 Randomized low resources simulation.
    [ ] 0x00000200 Force pending I/O requests.
    [ ] 0x00000400 IRP logging.
    [ ] 0x00002000 Invariant MDL checking for stack.
    [ ] 0x00004000 Invariant MDL checking for driver.
    [X] 0x00008000 Power framework delay fuzzing.
    [X] 0x00010000 Port/miniport interface checking.
    [X] 0x00040000 Systematic low resources simulation.
    [ ] 0x00080000 DDI compliance checking (additional).
    [X] 0x00200000 NDIS/WIFI verification.
    [X] 0x00800000 Kernel synchronization delay fuzzing.
    [X] 0x01000000 VM switch verification.
    [X] 0x02000000 Code integrity checks.

  Internal Flags:

    [X] 0x00100000 Extended Verifier flags (internal).

    [X] Indicates flag is enabled.

  Boot Mode:

    Resetonbootfail

  Rules:

    All rules are using default settings

  Extensions:

    ndis: rules.default

  Verified Drivers:

    amdpsp.sys
    amdxe.sys
    amdfendr.sys
    amdsafd.sys
    rtcx21x64.sys
    amdkmdag.sys
    amdpcidev.sys
    amdgpio2.sys
    amdgpio3.sys
    amdfendrmgr.sys
    logi_joy_bus_enum.sys
    logi_joy_xlcore.sys
    atihdwt6.sys
    rtkvhd64.sys
    rtwlanu.sys
    mt7612us.sys
    dump_diskdump.sys
    dump_storahci.sys
    dump_dumpfve.sys
    amdryzenmasterdriver.sys
    logi_joy_vir_hid.sys
    ndis.sys
    netadaptercx.sys
    mbbcx.sys
    wificx.sys
    wdiwifi.sys


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    B450M-A PRO MAX (MS-7C52)
    Memory
    2x Crucial 16GB DDR4-3200 (CP16G4DFRA32A.C8FF)
    Graphics Card(s)
    AMD Radeon RX 6650 XT
    Monitor(s) Displays
    Xiaomi Mi Curved 34'' / Dell P2422H
    Hard Drives
    Samsung SSD 860 QVO 1TB
    SanDisk Ultra 3d NVMe 2TB
    PSU
    Thermaltake Smart RGB 700W ATX 2.3
Create a new restore point.



If there were no major performance problems or very slow boot then restart WDV with all customized tests except:

Code:
[ ] 0x00000004 Randomized low resources simulation.


If there is no immediate BSOD then open administrative command prompt and copy and paste:

verifier /querysettings

Post a share link.



For any BSOD post a new V2 share link into the newest post.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
With those settings i collected 4 BSOD with SYSTEM_THREAD_EXCEPTION_NOT_HANDLED. They keep coming around 1 minute after windows booted.

V2 Logs: Dropbox

I uninstalled G HUB again because their drivers cause lots of Bluescreens with WDV:

Code:
SYMBOL_NAME:  logi_joy_vir_hid+1409
MODULE_NAME: logi_joy_vir_hid
IMAGE_NAME:  logi_joy_vir_hid.sys
STACK_COMMAND:  .cxr 0xffff9702eff6a530 ; kb
BUCKET_ID_FUNC_OFFSET:  1409
FAILURE_BUCKET_ID:  AV_VRF_logi_joy_vir_hid!unknown_function
OS_VERSION:  10.0.22621.1
BUILDLAB_STR:  ni_release
OSPLATFORM_TYPE:  x64
OSNAME:  Windows 10
FAILURE_ID_HASH:  {8187ef21-82e3-8777-c354-8b08b9fe2fe5}
Followup:     MachineOwner

Last edited:

My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    B450M-A PRO MAX (MS-7C52)
    Memory
    2x Crucial 16GB DDR4-3200 (CP16G4DFRA32A.C8FF)
    Graphics Card(s)
    AMD Radeon RX 6650 XT
    Monitor(s) Displays
    Xiaomi Mi Curved 34'' / Dell P2422H
    Hard Drives
    Samsung SSD 860 QVO 1TB
    SanDisk Ultra 3d NVMe 2TB
    PSU
    Thermaltake Smart RGB 700W ATX 2.3
Here is a V2 Log and one BSOD after uninstalling G HUB and with those setting:

Dropbox

www.dropbox.com www.dropbox.com

Code:
Verifier Flags: 0x03bfefbb

  Standard Flags:

    [X] 0x00000001 Special pool.
    [X] 0x00000002 Force IRQL checking.
    [X] 0x00000008 Pool tracking.
    [X] 0x00000010 I/O verification.
    [X] 0x00000020 Deadlock detection.
    [X] 0x00000080 DMA checking.
    [X] 0x00000100 Security checks.
    [X] 0x00000800 Miscellaneous checks.
    [X] 0x00020000 DDI compliance checking.

  Additional Flags:

    [ ] 0x00000004 Randomized low resources simulation.
    [X] 0x00000200 Force pending I/O requests.
    [X] 0x00000400 IRP logging.
    [X] 0x00002000 Invariant MDL checking for stack.
    [X] 0x00004000 Invariant MDL checking for driver.
    [X] 0x00008000 Power framework delay fuzzing.
    [X] 0x00010000 Port/miniport interface checking.
    [X] 0x00040000 Systematic low resources simulation.
    [X] 0x00080000 DDI compliance checking (additional).
    [X] 0x00200000 NDIS/WIFI verification.
    [X] 0x00800000 Kernel synchronization delay fuzzing.
    [X] 0x01000000 VM switch verification.
    [X] 0x02000000 Code integrity checks.

  Internal Flags:

    [X] 0x00100000 Extended Verifier flags (internal).

    [X] Indicates flag is enabled.

  Boot Mode:

    Persistent

  Rules:

    All rules are using default settings

  Extensions:

    wdm: rules.all
    ndis: rules.default

  Verified Drivers:

    amdpsp.sys
    amdxe.sys
    amdfendr.sys
    amdsafd.sys
    rtcx21x64.sys
    amdkmdag.sys
    amdpcidev.sys
    amdgpio2.sys
    amdgpio3.sys
    amdfendrmgr.sys
    atihdwt6.sys
    rtkvhd64.sys
    rtwlanu.sys
    mt7612us.sys
    dump_diskdump.sys
    dump_storahci.sys
    dump_dumpfve.sys
    amdryzenmasterdriver.sys
    ndis.sys
    netadaptercx.sys
    mbbcx.sys
    wificx.sys
    wdiwifi.sys


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    B450M-A PRO MAX (MS-7C52)
    Memory
    2x Crucial 16GB DDR4-3200 (CP16G4DFRA32A.C8FF)
    Graphics Card(s)
    AMD Radeon RX 6650 XT
    Monitor(s) Displays
    Xiaomi Mi Curved 34'' / Dell P2422H
    Hard Drives
    Samsung SSD 860 QVO 1TB
    SanDisk Ultra 3d NVMe 2TB
    PSU
    Thermaltake Smart RGB 700W ATX 2.3
Please detach any / all non-essential attached devices.


Uninstall or uninstall and reinstall:

logi_joy_vir_hid Logitech G HUB Virtual HID Device Driver c:\windows\system32\drivers\logi_joy_vir_hid.sys



Restart WDV with the same customized tests.


logi_joy_vir_hid.sys Fri Sep 2 15:38:50 2022 (631269DA)


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
FuriousPet said:
Here is a V2 Log and one BSOD after uninstalling G HUB and with those setting:

Dropbox

www.dropbox.com www.dropbox.com

Code:
Verifier Flags: 0x03bfefbb

  Standard Flags:

    [X] 0x00000001 Special pool.
    [X] 0x00000002 Force IRQL checking.
    [X] 0x00000008 Pool tracking.
    [X] 0x00000010 I/O verification.
    [X] 0x00000020 Deadlock detection.
    [X] 0x00000080 DMA checking.
    [X] 0x00000100 Security checks.
    [X] 0x00000800 Miscellaneous checks.
    [X] 0x00020000 DDI compliance checking.

  Additional Flags:

    [ ] 0x00000004 Randomized low resources simulation.
    [X] 0x00000200 Force pending I/O requests.
    [X] 0x00000400 IRP logging.
    [X] 0x00002000 Invariant MDL checking for stack.
    [X] 0x00004000 Invariant MDL checking for driver.
    [X] 0x00008000 Power framework delay fuzzing.
    [X] 0x00010000 Port/miniport interface checking.
    [X] 0x00040000 Systematic low resources simulation.
    [X] 0x00080000 DDI compliance checking (additional).
    [X] 0x00200000 NDIS/WIFI verification.
    [X] 0x00800000 Kernel synchronization delay fuzzing.
    [X] 0x01000000 VM switch verification.
    [X] 0x02000000 Code integrity checks.

  Internal Flags:

    [X] 0x00100000 Extended Verifier flags (internal).

    [X] Indicates flag is enabled.

  Boot Mode:

    Persistent

  Rules:

    All rules are using default settings

  Extensions:

    wdm: rules.all
    ndis: rules.default

  Verified Drivers:

    amdpsp.sys
    amdxe.sys
    amdfendr.sys
    amdsafd.sys
    rtcx21x64.sys
    amdkmdag.sys
    amdpcidev.sys
    amdgpio2.sys
    amdgpio3.sys
    amdfendrmgr.sys
    atihdwt6.sys
    rtkvhd64.sys
    rtwlanu.sys
    mt7612us.sys
    dump_diskdump.sys
    dump_storahci.sys
    dump_dumpfve.sys
    amdryzenmasterdriver.sys
    ndis.sys
    netadaptercx.sys
    mbbcx.sys
    wificx.sys
    wdiwifi.sys
Click to expand...

How come no Logitech drivers were tested?

Were you able to detach all Logitech hardware and uninstall all Logitech drivers?


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
Yes, I uninstalled G Hub and the previous Logitech driver after i turned off automatic drivers from Windows Update.

The latest V2 Log Dump happened without them installed.


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    B450M-A PRO MAX (MS-7C52)
    Memory
    2x Crucial 16GB DDR4-3200 (CP16G4DFRA32A.C8FF)
    Graphics Card(s)
    AMD Radeon RX 6650 XT
    Monitor(s) Displays
    Xiaomi Mi Curved 34'' / Dell P2422H
    Hard Drives
    Samsung SSD 860 QVO 1TB
    SanDisk Ultra 3d NVMe 2TB
    PSU
    Thermaltake Smart RGB 700W ATX 2.3
Run WDV for approximately 8 - 12 hrs.

The findings are typical of malfunctioning or incompatible hardware.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
Continue posting V2 for any BSOD.


Most often swap testing is required to identify malfunctioning or incompatible hardware.





Download and install one or more of these temperature monitoring software:


Download Speccy | Find your computer specs, free!

Speccy - find the details of your computer's specs. Great for spotting issues or finding compatible upgrades. Download the latest version today.
www.ccleaner.com www.ccleaner.com

www.cpuid.com

HWMONITOR | Softwares | CPUID

HWMonitor for Windows® x86/x64 is a hardware monitoring program that reads PC systems main health sensors : voltages, temperatures, powers, currents, fans speed, utilizations, clock speeds ... The program handles : CPU and GPU-level hardware monitoring...
www.cpuid.com www.cpuid.com




After WDV testing has completed run these tests:



1) Prime95 > 3 hours or more > record Temp max, continuous testing time > post images or share links

www.tenforums.com

Prime95 - Stress Test Your CPU

Stress test your CPU for stability issues with Prime95
www.tenforums.com www.tenforums.com



2) Furmark > 30 min > > record Temp max, continuous testing time > post images or share links

www.tenforums.com

FurMark - GPU Stress Test

Stress test your GPU for stability issues with FurMark
www.tenforums.com www.tenforums.com



3) Sea Tools for Windows Long generic test (all drives)





4) OCCT > multiple 1 hour tests > post images or share links

OCBASE/OCCT : Free, all-in-one stability, stress test, benchmark and monitoring tool for your PC

Ocbase is the home of OCCT, the most popular all-in-one stability / stress testing / benchmarking / monitoring tool available for PC
www.ocbase.com www.ocbase.com


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
I took your last idea with unplugging all Logitech Hardware and changed my setup a bit.

Previously I had my Acer Mouse conntected to the Logitech Keyboard and that was connected to the USB Port of my monitor. I directly conntected them to the Tower and didn't have any Bluescreens since then (With WDV and after turning it off).

I still started the tests. Here are the first results of Prime95. I had 1 error after 30 minutes.
The highest temperature was 94.4°C.
The average was 84.2°C:



My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    B450M-A PRO MAX (MS-7C52)
    Memory
    2x Crucial 16GB DDR4-3200 (CP16G4DFRA32A.C8FF)
    Graphics Card(s)
    AMD Radeon RX 6650 XT
    Monitor(s) Displays
    Xiaomi Mi Curved 34'' / Dell P2422H
    Hard Drives
    Samsung SSD 860 QVO 1TB
    SanDisk Ultra 3d NVMe 2TB
    PSU
    Thermaltake Smart RGB 700W ATX 2.3
Please continue with post #35 steps 2,3,and 4.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation
I continued with the Furmark Test and got 1 reboot without a bluescreen, one crash of the software and the third time produced a bluescreen.

Here is the V2 Log: Dropbox

Max Temp GPU: 70°C
Max Temp GPU Hotspot: 85°C


My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    B450M-A PRO MAX (MS-7C52)
    Memory
    2x Crucial 16GB DDR4-3200 (CP16G4DFRA32A.C8FF)
    Graphics Card(s)
    AMD Radeon RX 6650 XT
    Monitor(s) Displays
    Xiaomi Mi Curved 34'' / Dell P2422H
    Hard Drives
    Samsung SSD 860 QVO 1TB
    SanDisk Ultra 3d NVMe 2TB
    PSU
    Thermaltake Smart RGB 700W ATX 2.3
Sea Tools for Windows Long generic test can run overnight while sleeping.

OCCT tests pending.

Plan hardware component swap tests.


My Computer

System One

  • OS
    Windows 10
    Computer type
    Laptop
    Manufacturer/Model
    HP
    CPU
    Intel(R) Core(TM) i7-4800MQ CPU @ 2.70GHz
    Motherboard
    Product : 190A Version : KBC Version 94.56
    Memory
    16 GB Total: Manufacturer : Samsung MemoryType : DDR3 FormFactor : SODIMM Capacity : 8GB Speed : 1600
    Graphics Card(s)
    NVIDIA Quadro K3100M; Intel(R) HD Graphics 4600
    Sound Card
    IDT High Definition Audio CODEC; PNP Device ID HDAUDIO\FUNC_01&VEN_111D&DEV_76E0
    Hard Drives
    Model Hitachi HTS727575A9E364
    Antivirus
    Microsoft Defender
    Other Info
    Mobile Workstation

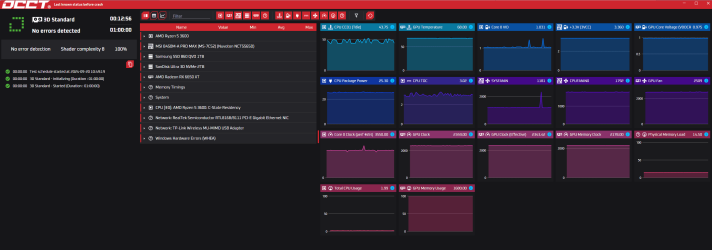

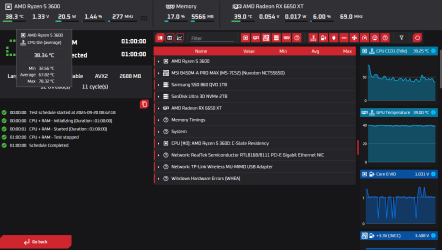

Here are some results from OCCT:

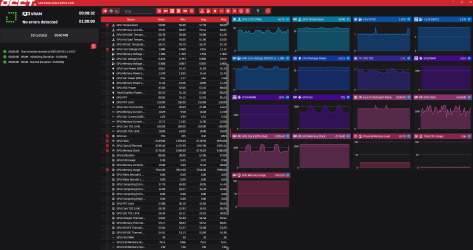

And I had a Bluescreen testing 3D Standard or VRAM:
V2 Log: Dropbox

I think it looks like the GPU is damaged or is the PSU too weak?

Last edited:

My Computer

System One

  • OS
    Windows 11
    Computer type
    PC/Desktop
    CPU
    AMD Ryzen 5 3600
    Motherboard
    B450M-A PRO MAX (MS-7C52)
    Memory
    2x Crucial 16GB DDR4-3200 (CP16G4DFRA32A.C8FF)
    Graphics Card(s)
    AMD Radeon RX 6650 XT
    Monitor(s) Displays
    Xiaomi Mi Curved 34'' / Dell P2422H
    Hard Drives
    Samsung SSD 860 QVO 1TB
    SanDisk Ultra 3d NVMe 2TB
    PSU
    Thermaltake Smart RGB 700W ATX 2.3
You must log in or register to reply here.

Similar threads

Solved My computer freeze after upgrading to Win 11 24h2.
Replies
15
Views
1K
Megahertz
Megahertz
Solved "No printers were found" on network after upgrading to Windows 11
2
Replies
24
Views
3K
garlin
G
A couple of issues after switching to Windows 11
Replies
6
Views
953
Bonzo
B
After Upgrading to 24H2, I Cannot Remove Over 8Gb in Disk Cleanup
Replies
12
Views
2K
pjtikkanen
pjtikkanen
WSL won't install after upgrading to 24H2
Replies
5
Views
5K
Beamrider
Beamrider

Latest Support Threads

Latest Tutorials

Back
Top Bottom
