Installation and Upgrade Create Windows 11 Bootable USB Installation Media


  • Staff
Win11USB Banner.png

This tutorial will show you how to create a bootable USB flash drive used to install Windows 11 with UEFI support.

You can use a Windows 11 installation USB flash drive to clean install, upgrade, reset, or repair Windows 11.

The installation USB can also be used as a recovery drive to boot to WinRE (aka: advanced startup).


You must be signed in as an administrator to create a bootable Windows 11 installation USB.

The USB flash drive needs to be at least 8 GB or larger in size.



Contents

  • Option One: Create Windows 11 Bootable USB Installation Media with Media Creation Tool
  • Option Two: Create Windows 11 Bootable USB Installation Media with Rufus
  • Option Three: Create Windows 11 Bootable USB Installation Media in Command Prompt





OPTION ONE

Create Windows 11 Bootable USB Installation Media with Media Creation Tool


This will be for a Windows 11 Version 23H2 build 22631.2861 USB.


1 Click/tap on the Download button below, and click/tap on the Download Now button at Microsoft's site below Create Windows 11 Installation Media. (see screenshot below)



2 Save the MediaCreationTool_Win11_23H2.exe file to your desktop, and run it.


3 If prompted by UAC, click/tap on Yes.

4 Click/tap on Accept for the license terms. (see screenshot below)


5 Uncheck the Use the recommended options for this PC box. (see screenshot below)

Leaving the Use the recommended options for this PC box checked will have the Media Creation Tool download an ISO that's the same language, edition, and architecture as the current PC.



6 Select (dot) USB flash drive, and click/tap on Next. (see screenshot below)


7 Connect your USB flash drive, click/tap on the Refresh drive list link, select the USB flash drive, and click/tap on Next. (see screenshot below)


8 It will now start Downloading Windows 11 and Creating Windows 11 media. (see screenshot below)


9 Click/tap on Finish when the USB flash drive is ready. (see screenshot below)






OPTION TWO

Create Windows 11 Bootable USB Installation Media with Rufus


1 If you have not already, you will need to download a Windows 11 ISO file.

2 Download the latest version of Rufus, and save its .exe file to your desktop.


This is a standalone exe file that doesn't install anything to your PC. For Rufus FAQs, see: rufus FAQ on GitHub


3 Connect the 8 GB or larger USB flash drive.

This USB flash drive will be formatted and lose all data on it.


4 Run the Rufus .exe file, and click/tap on Yes if prompted by UAC.

5 Change the following settings in Rufus, and click/tap on Start when finished. (see screenshot below)
  • Under Device, select the USB flash drive you want to format and use.
  • Under Boot selection, click/tap on the SELECT button, and navigate to and select the Windows 11 ISO file.
  • Under Image option (if available), select Standard Windows installation.
  • Under Partition scheme, select GPT.
  • Under Target system, select UEFI (non CSM).
  • Under Volume label, you can enter any name you like for the USB flash drive, or leave the default name.
  • Under File system, select NTFS.
  • Under Cluster size, select the (Default) (ex: 4096 bytes) it has listed.

6 Check or uncheck the "Customize Windows installation" options you want, and click/tap on OK. (see screenshot below)
  • Remove Requirement for 4GB+ RAM, Secure Boot and TPM 2.0 – Check this option if you want to install Windows 11 on a computer with unsupported hardware.
  • Remove requirement for an online Microsoft account - Check this option to skip the Microsoft Account requirement. Windows 11 will not ask you to sign in with a Microsoft Account during the initial setup.
  • Disable data collection (Skip privacy questions) – Windows 11 will not ask you to send diagnostic data, enable location, advertisement ID, and other things some users consider privacy-invading.
  • Set a local account using the same name as this user's – Rufus will copy the current local account to the new installation.
  • Set regional options using the same values as this user's – Rufus will copy the current regional settings to the new installation.

7 Click/tap on OK to confirm. (see screenshot below)


8 Rufus will now start creating the bootable USB flash drive. (see screenshot below)


9 When finished, click/tap on Close to close Rufus. (see screenshot below)






OPTION THREE

Create Windows 11 Bootable USB Installation Media in Command Prompt


This option will use the dual FAT32 and NTFS partitions on the USB since the install.wim file for Windows 11 is usually over 4GB in size that prevents using only the FAT32 file system.


learn.microsoft.com

Install Windows from a Flash Drive

Install Windows from a Flash Drive
learn.microsoft.com

1 If you have not already, you will need to download a Windows 11 ISO file.

2 Connect the 8 GB or larger USB flash drive.

This USB flash drive will be formatted and lose all data on it.


3 Open an elevated Windows Terminal, and select Windows PowerShell or Command Prompt.

4 Type diskpart into the elevated terminal, and press Enter. (see screenshot below step 18)

5 Type list disk into the elevated terminal, press Enter, and make note of the Disk # (ex: 3) for the USB flash drive from step 2.

6 Type select disk # into the elevated terminal, and press Enter.

Substitute # in the command above with the actual Disk # (ex: 3) from step 5) above for the USB flash drive.

For example: select disk 3


7 Type clean into the elevated terminal, and press Enter.

8 Type convert mbr into the elevated terminal, and press Enter.

9 Type create partition primary size=1024 into the elevated terminal, and press Enter.

10 Type create partition primary into the elevated terminal, and press Enter.

11 Type select partition 1 into the elevated terminal, and press Enter.

12 Type format fs=fat32 quick into the elevated terminal, and press Enter.

13 Type assign letter=X into the elevated terminal, and press Enter.

14 Type active into the elevated terminal and press Enter.

15 Type select partition 2 into the elevated terminal, and press Enter.

16 Type format fs=ntfs quick into the elevated terminal, and press Enter.

17 Type assign letter=Y into the elevated terminal, and press Enter.

18 You can now close the elevated Windows terminal.


19 Open File Explorer (Win+E) to This PC. You will see the USB has two partitions. Partition "X" with FAT32 file system, and partition "Y" with NTFS file system. (see screenshot below)


20 Mount the ISO file from step 1.

21 Perform the following steps to copy the mounted ISO contents to the USB X: (FAT32) partition:
  1. Click/tap on the mounted ISO in the navigation pane of File Explorer to open it.
  2. Select everything except the sources folder in the mounted ISO.
  3. Right click or press and hold on the selected files.
  4. Click/tap on Show more options (Shift+F10).

22 Click/tap on Send to, and click/tap on the USB Drive (X: ). (see screenshot below)


23 Perform the following steps to copy the "sources" folder from the mounted ISO to the USB Y: (NTFS) partition:
  1. Click/tap on the mounted ISO in the navigation pane of File Explorer to open it.
  2. Select only the sources folder in the mounted ISO.
  3. Right click or press and hold on the selected sources folder.
  4. Click/tap on Show more options (Shift+F10).

24 Click/tap on Send to, and click/tap on the USB Drive (Y: ). (see screenshot below)

It may take a while to finish copying the sources folder to the USB Y: (NTFS) partition.



25 Open the USB X: (FAT32) partition, and create a new folder (Ctrl+Shift+N) named sources. (see screenshots below)


26 Open the Y:\sources folder from the USB Y: (NTFS) partition, and Cut (Win+X) the boot.wim file. (see screenshots below)


27 Paste (Ctrl+V) the boot.wim file from the USB Y: (NTFS) partition in step 24 into the new sources folder in the USB X: (FAT32) partition from step 23. (see screenshot below)


28 The Windows 11 bootable USB installation media is now ready.

29 You can unmount the ISO file.

30 You can now close all File Explorer windows.


That's it,
Shawn Brink


Related Tutorials



Attachments

  • win11usb.png
    10.1 KB · Views: 334
Last edited:
Click to expand...
Media Creation Tool now available for Windows 11.


My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING (11GB GDDR5X)
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1 14-eu0098nr (2024)
    CPU
    Intel Core Ultra 7 155H 4.8 GHz
    Memory
    16 GB LPDDR5x-7467 MHz
    Graphics card(s)
    Integrated Intel Arc
    Sound Card
    Poly Studio
    Monitor(s) Displays
    14" 2.8K OLED multitouch
    Screen Resolution
    2880 x 1800
    Hard Drives
    2 TB PCIe NVMe M.2 SSD
    Internet Speed
    Intel Wi-Fi 7 BE200 (2x2) and Bluetooth 5.4
    Browser
    Chrome and Edge
    Antivirus
    Windows Defender and Malwarebytes Premium
There's another step missing within "Option Three: Create Windows 11 Bootable USB Installation Media in Command Prompt"
So you may need an elevated command prompt in \boot folder from iso and run this command:
bootsect /nt60 X: /force /mbr
No matter if run this before or after copied all files.


My Computer

System One

  • OS
    Windows 10 21H1
josefrancklin said:
There's another step missing within "Option Three: Create Windows 11 Bootable USB Installation Media in Command Prompt"
So you may need an elevated command prompt in \boot folder from iso and run this command:
bootsect /nt60 X: /force /mbr
No matter if run this before or after copied all files.
Click to expand...

The instructions in step 3 have you perform a "convert mbr" and an "active". If you follow those instructions as stated then the bootsect command is not needed. Those commands effectively perform the same thing.


My Computers

System One System Two

  • OS
    Win11 Pro 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
Kari said:
It really is interesting to see how much false information is out there. If you look my specs (My Computers, System Two, link at bottom left in my posts), I always use an NTFS formatted, single partition USB for my clean installs / deployments on this laptop. My customized WIM files can be up to 15 - 18 GB, no problems to copy them to USB flash drive and boot from it.

Kari
Click to expand...
I have tried this on my new ASUS and it just does not work. Sp this is not universal - it really depends on the individual pc.

The two partition method works on all systems. I have a batch file as I presented earlier that does all the work.


My Computer

System One

  • OS
    Windows 10 Pro + others in VHDs
    Computer type
    Laptop
    Manufacturer/Model
    ASUS Vivobook 14
    CPU
    I7
    Motherboard
    Yep, Laptop has one.
    Memory
    16 GB
    Graphics Card(s)
    Integrated Intel Iris XE
    Sound Card
    Realtek built in
    Monitor(s) Displays
    N/A
    Screen Resolution
    1920x1080
    Hard Drives
    1 TB Optane NVME SSD, 1 TB NVME SSD
    PSU
    Yep, got one
    Case
    Yep, got one
    Cooling
    Stella Artois
    Keyboard
    Built in
    Mouse
    Bluetooth , wired
    Internet Speed
    72 Mb/s :-(
    Browser
    Edge mostly
    Antivirus
    Defender
    Other Info
    TPM 2.0
cereberus said:
I know - I wrote the tutorial in tenforums with a diskpart script to do the job LOL.

I never use rufus. The diskpart method is just as quick and works without changing secure boot.

I never bother convertin .wim to .esd as that takes far longer than running the script in my tutorial.
Click to expand...
Can you put a link to the tutorial.
Thank you.


My Computer

System One

  • OS
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    Asus
    CPU
    Intel i5 1035G1
    Memory
    32 GB
    Graphics Card(s)
    NVIDIA®
    Monitor(s) Displays
    15.6" LED-backlit FHD
    Screen Resolution
    1920x1080
    Hard Drives
    INTEL SSDPEKNW 512GB
    Keyboard
    Logitech Wireless
    Mouse
    Logitech Wirelss
    Internet Speed
    850 Mbps
    Browser
    Chrome, Edge
    Antivirus
    Malwarebytes Premium, Windows Defender
Hary said:
Can you put a link to the tutorial.
Thank you.
Click to expand...
Here is a link to cereberus' tutorial. It remains one of my favorite tricks to this day!

www.tenforums.com

Create bootable USB installer if install.wim is greater than 4GB

Information As discussed in tutorial DISM - Split install.wim file | Windows 10 Tutorials, it is not possible to create a bootable flash drive in fat32 format if the install.wim file is over 4GB in size. That tutorial presents a method to spl
www.tenforums.com www.tenforums.com


My Computers

System One System Two

  • OS
    Win11 Pro 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
cereberus said:
I have tried this on my new ASUS and it just does not work. Sp this is not universal - it really depends on the individual pc.

The two partition method works on all systems. I have a batch file as I presented earlier that does all the work.
Click to expand...
Absolutely correct. The UEFI spec says nowhere that NFTS formatted media cannot be bootable, however, some manufacturers simply choose not to implement this capability. Thus, cereberus tutorial is such a good one because it works around that issue and has thus far worked on every system I ever tried it on.

BTW, the issue regarding some systems not booting from NTFS formatted media is discussed in a little more detail on the Rufus web site. It's been a little since I read it, but I seem to recall there being some good information on the topic for anyone interested in learning more.


My Computers

System One System Two

  • OS
    Win11 Pro 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
My Lenovo laptop cannot boot from NTFS bootable drive according to my test. Also, this won't work on Mac if you want to install Windows on it manually.


My Computer

System One

  • OS
    Windows 10
    Computer type
    PC/Desktop
    Manufacturer/Model
    DIY
    CPU
    Intel i5 7500
    Motherboard
    ASRock B250M
    Memory
    Kingston 8 GB DDR4
    Graphics Card(s)
    Intel Graphics HD 630
    Monitor(s) Displays
    HKC M242
    Hard Drives
    SanDisk SSD PLus 240
    Browser
    Chrome
Steve311 said:
My Lenovo laptop cannot boot from NTFS bootable drive according to my test. Also, this won't work on Mac if you want to install Windows on it manually.
Click to expand...
Yep, it's for machines like that where the tutorial I linked to comes in handy. Since the boot partition on the thumb drive is FAT32, it will work.


My Computers

System One System Two

  • OS
    Win11 Pro 23H2
    Computer type
    PC/Desktop
    Manufacturer/Model
    Home Built
    CPU
    Intel i7-11700K
    Motherboard
    ASUS Prime Z590-A
    Memory
    128GB Crucial Ballistix 3200MHz DRAM
    Graphics Card(s)
    No GPU - CPU graphics only (for now)
    Sound Card
    Realtek (on motherboard)
    Monitor(s) Displays
    HP Envy 32
    Screen Resolution
    2560 x 1440
    Hard Drives
    1 x 1TB NVMe Gen 4 x 4 SSD
    1 x 2TB NVMe Gen 3 x 4 SSD
    2 x 512GB 2.5" SSDs
    2 x 8TB HD
    PSU
    Corsair HX850i
    Case
    Corsair iCue 5000X RGB
    Cooling
    Noctua NH-D15 chromax.black cooler + 10 case fans
    Keyboard
    CODE backlit mechanical keyboard
    Mouse
    Logitech MX Master 3
    Internet Speed
    1Gb Up / 1 Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    Additional options installed:
    WiFi 6E PCIe adapter
    ASUS ThunderboltEX 4 PCIe adapter
  • Operating System
    Win11 Pro 23H2
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo ThinkBook 13x Gen 2
    CPU
    Intel i7-1255U
    Memory
    16 GB
    Graphics card(s)
    Intel Iris Xe Graphics
    Sound Card
    Realtek® ALC3306-CG codec
    Monitor(s) Displays
    13.3-inch IPS Display
    Screen Resolution
    WQXGA (2560 x 1600)
    Hard Drives
    2 TB 4 x 4 NVMe SSD
    PSU
    USB-C / Thunderbolt 4 Power / Charging
    Mouse
    Buttonless Glass Precision Touchpad
    Keyboard
    Backlit, spill resistant keyboard
    Internet Speed
    1Gb Up / 1Gb Down
    Browser
    Edge
    Antivirus
    Windows Defender
    Other Info
    WiFi 6e / Bluetooth 5.1 / Facial Recognition / Fingerprint Sensor / ToF (Time of Flight) Human Presence Sensor
Brink said:
When Rufus has finished creating the USB, click/tap on Close for the "Important notice about Secure Boot".
Click to expand...

Rufus 3.17 (2021.10.23)
- Update UEFI:NTFS to latest and remove Secure Boot notice since this version is Secure Boot signed.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Laptop
    Manufacturer/Model
    Lenovo Yoga C940
    CPU
    Intel Core i7-1065G7
    Memory
    16GB
Media Creation Tool (MCT) will now install and create an ISO or USB for Windows 11 build 22000.318.



www.elevenforum.com

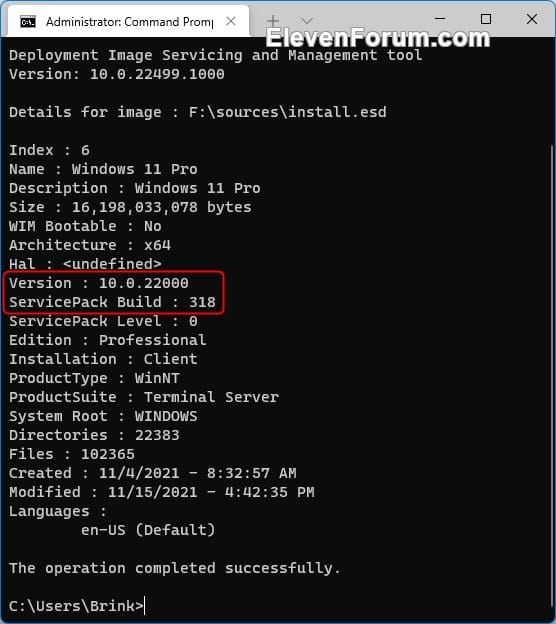

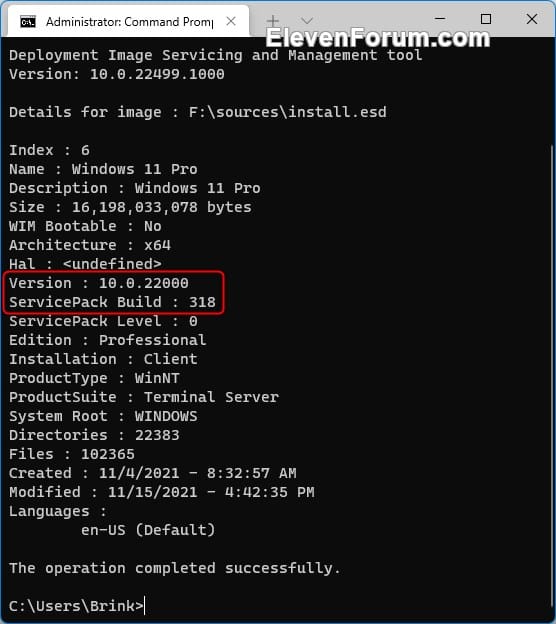

Find Build and Version of Windows 11 Installation ISO or USB Tutorial

This tutorial will show you how to see full details such as language, edition, build, version, architecture, and more for a Windows 11 installation ISO or USB. A Windows 11 ISO file is a disc image file that can be used to create a Windows 11 installation USB or DVD to install Windows 11 with...
www.elevenforum.com www.elevenforum.com


My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING (11GB GDDR5X)
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1 14-eu0098nr (2024)
    CPU
    Intel Core Ultra 7 155H 4.8 GHz
    Memory
    16 GB LPDDR5x-7467 MHz
    Graphics card(s)
    Integrated Intel Arc
    Sound Card
    Poly Studio
    Monitor(s) Displays
    14" 2.8K OLED multitouch
    Screen Resolution
    2880 x 1800
    Hard Drives
    2 TB PCIe NVMe M.2 SSD
    Internet Speed
    Intel Wi-Fi 7 BE200 (2x2) and Bluetooth 5.4
    Browser
    Chrome and Edge
    Antivirus
    Windows Defender and Malwarebytes Premium
Does anyone think that Ventoy can be added as option four? I would prefer it over options one, two, and three.

Ventoy iso bootloader EASY installs from usb for any iso os file - Windows 10 Help Forums

Ventoy All you do is run ventoy to install it to the usb drive as a bootloader. Then copy as many ISO install files as you want on the usb. ventoy boots and shows a menu of the iso files, pick one and it will boot the iso and install whatever OS you selec
www.tenforums.com www.tenforums.com

It is so user-friendly that even an idiot like me can use it with ease.
I entirely agree with Paul Black's opinion below:

"I have created a USB using Ventoy and find it an invaluable resource. It is probably the best thing that has ever happened to Bootable Media!"—quoted from What's a recommended USB drive for a dedicated Windows 10 boot device? - Windows 10 Help Forums


My Computer

System One

  • OS
    Windows 10
josefrancklin said:
There's another step missing within "Option Three: Create Windows 11 Bootable USB Installation Media in Command Prompt"
So you may need an elevated command prompt in \boot folder from iso and run this command:
bootsect /nt60 X: /force /mbr
No matter if run this before or after copied all files.
Click to expand...
That command is not needed.


My Computers

System One System Two

  • OS
    Windows 11
    Computer type
    PC/Desktop
    Manufacturer/Model
    Homebuilt
    CPU
    AMD Ryzen 7 3800XT
    Motherboard
    ASUS ROG Crosshair VII Hero (WiFi)
    Memory
    32GB
    Graphics Card(s)
    EVGA GeForce GTX 1080 Ti
  • Operating System
    Windows 11 Education
    Computer type
    Laptop
    Manufacturer/Model
    Dell Inspiron 7773
    CPU
    Intel i7-8550U
    Memory
    32GB
    Graphics card(s)
    Nvidia Geforce MX150
    Sound Card
    Realtek
    Monitor(s) Displays
    17"
    Screen Resolution
    1920 x 1080
    Hard Drives
    Toshiba 512GB NVMe SSD
    SK Hynix 512GB SATA SSD
    Internet Speed
    Fast!
Hi everyone

I have a Surface Pro X that I'm trying to do a clean install. I thought I did every step of the 3rd method correct (I tried the first two without success) and I FINALLY managed to get the purple screen to do a clean install. The problem is that I can't move the touchpad, keys, or even the touchscreen when trying to install it so it gets me nowhere.

Any suggestions to what I might be doing wrong?
Thanks in advanced for any help received.


My Computer

System One

  • OS
    Windows 11
    Computer type
    Tablet
    Manufacturer/Model
    Microsoft Surface Pro X
    Memory
    16gb
Gaudi Gabriev said:
Hi everyone

I have a Surface Pro X that I'm trying to do a clean install. I thought I did every step of the 3rd method correct (I tried the first two without success) and I FINALLY managed to get the purple screen to do a clean install. The problem is that I can't move the touchpad, keys, or even the touchscreen when trying to install it so it gets me nowhere.

Any suggestions to what I might be doing wrong?
Thanks in advanced for any help received.
Click to expand...

Hello Gaudi, and welcome to Eleven Forum. :-)

Are you able to reset Windows 11 below using the "Remove everything" option instead?

www.elevenforum.com

Reset Windows 11 PC Tutorial

This tutorial will show you how to reset Windows 11 and Remove everything or Keep my files. You can reset Windows 11 when your PC isn’t working well and it’s been a while since you installed an app, driver, or update. Resetting reinstalls Windows 11, but lets you choose whether to keep your...
www.elevenforum.com www.elevenforum.com


My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING (11GB GDDR5X)
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1 14-eu0098nr (2024)
    CPU
    Intel Core Ultra 7 155H 4.8 GHz
    Memory
    16 GB LPDDR5x-7467 MHz
    Graphics card(s)
    Integrated Intel Arc
    Sound Card
    Poly Studio
    Monitor(s) Displays
    14" 2.8K OLED multitouch
    Screen Resolution
    2880 x 1800
    Hard Drives
    2 TB PCIe NVMe M.2 SSD
    Internet Speed
    Intel Wi-Fi 7 BE200 (2x2) and Bluetooth 5.4
    Browser
    Chrome and Edge
    Antivirus
    Windows Defender and Malwarebytes Premium
Brink said:
Media Creation Tool (MCT) will now install and create an ISO or USB for Windows 11 build 22000.318.

View attachment 13735

www.elevenforum.com

Find Build and Version of Windows 11 Installation ISO or USB Tutorial

This tutorial will show you how to see full details such as language, edition, build, version, architecture, and more for a Windows 11 installation ISO or USB. A Windows 11 ISO file is a disc image file that can be used to create a Windows 11 installation USB or DVD to install Windows 11 with...
www.elevenforum.com www.elevenforum.com
Click to expand...
What about 22000.348?


My Computers

System One System Two

  • OS
    Windows 11 Pro x64 23H2 v22631.3447
    Computer type
    PC/Desktop
    Manufacturer/Model
    Built Myself in 2013
    CPU
    AMD Ryzen 1800X 8-Core @ 3.60GHz
    Motherboard
    Asus Crosshair VI Hero
    Memory
    16GB G.Skill Trident Z RGB Series
    Graphics Card(s)
    AMD Radeon RX 580 8GB GDDR5
    Sound Card
    On Board
    Monitor(s) Displays
    Samsung 27" , PLANAR 22", eMachine 22"
    Screen Resolution
    1920 X 1080
    Hard Drives
    ~~~~~~~~~~~~~~~~~~~~~~~~~~
    ~ P34A60 512GB NVMe PCIe Gen3x4 M.2
    ~ 3TB WD Red HDD (extra storage)
    ~ SanDisk 250GB SSD
    ~ 2 X 1TB HDD
    ~~~~~~~~~~
    PSU
    Corsair RM850 Fully Modular (850watts)
    Case
    NZXT Phantom 630 CA-PH630-W1
    Cooling
    CORSAIR iCUE H100i RGB PRO XT
    Keyboard
    Logitech K860
    Mouse
    Logitech MX Master
    Internet Speed
    752Mbps (Download) / 537Mbps (Upload)
    Browser
    Firefox
    Antivirus
    Malwarebytes
    Other Info
    *This is my Main Computer That I use*
  • Operating System
    Windows 10 Pro x64
    Computer type
    PC/Desktop
    Manufacturer/Model
    Asus
    CPU
    AMD A10-5700 APU @ 3.40Ghz
    Motherboard
    Asus CM1745
    Memory
    8GB
    Graphics card(s)
    AMD Radeon R7 350x GDDR5 4 GB
    Sound Card
    On Board
    Monitor(s) Displays
    Dual Monitor Setup ONN 22" Monitors
    Screen Resolution
    1920 X 1080
    Hard Drives
    ~~~~~~~~
    250GB SSD

    500GB HDD
    ~~~~~~~~
    PSU
    350Watt PSU
    Cooling
    Air Cooling
    Mouse
    MX Master
    Keyboard
    Microsoft Ergonomic 4000
    Internet Speed
    752Mbps (Download) / 537Mbps (Upload)
    Browser
    Firefox
    Antivirus
    Malwarebytes
    Other Info
    *Computer for Weather Software*
JMedlock83 said:
What about 22000.348?
Click to expand...
22000.348 hasn't officially been released to ISO by Microsoft yet.

You can get an ISO from UUP Dump at the bottom of the first post below though.

www.elevenforum.com

KB5007262 Cumulative Update for Windows 11 Build 22000.348 - Nov. 22

UPDATE 12/14: https://www.elevenforum.com/t/kb5008215-cumulative-update-for-windows-11-build-22000-376-dec-14.3380/ November 22, 2021 - KB5007262 (OS Build 22000.348) Preview IMPORTANT Because of minimal operations during the holidays and the upcoming Western new year, there won’t be a...
www.elevenforum.com www.elevenforum.com


My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING (11GB GDDR5X)
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1 14-eu0098nr (2024)
    CPU
    Intel Core Ultra 7 155H 4.8 GHz
    Memory
    16 GB LPDDR5x-7467 MHz
    Graphics card(s)
    Integrated Intel Arc
    Sound Card
    Poly Studio
    Monitor(s) Displays
    14" 2.8K OLED multitouch
    Screen Resolution
    2880 x 1800
    Hard Drives
    2 TB PCIe NVMe M.2 SSD
    Internet Speed
    Intel Wi-Fi 7 BE200 (2x2) and Bluetooth 5.4
    Browser
    Chrome and Edge
    Antivirus
    Windows Defender and Malwarebytes Premium
Brink said:
Hello Gaudi, and welcome to Eleven Forum. :)

Are you able to reset Windows 11 below using the "Remove everything" option instead?

www.elevenforum.com

Reset Windows 11 PC Tutorial

This tutorial will show you how to reset Windows 11 and Remove everything or Keep my files. You can reset Windows 11 when your PC isn’t working well and it’s been a while since you installed an app, driver, or update. Resetting reinstalls Windows 11, but lets you choose whether to keep your...
www.elevenforum.com www.elevenforum.com
Click to expand...

No, it was one of the firsts one I tried but I kept getting an error after "Step 5" couldn't go any further

EDIT: Forgot to be polite, mb. Thank you for the welcome.
EDIT: I want to change my previous statement. I tried something similar to 3rd method. I had the full OS on the second partition instead of only the sources folder without the .wim file. Tried this 3rd method and it goes straight to recovery mode.

Last edited:

My Computer

System One

  • OS
    Windows 11
    Computer type
    Tablet
    Manufacturer/Model
    Microsoft Surface Pro X
    Memory
    16gb
Gaudi Gabriev said:
No, it was one of the firsts one I tried but I kept getting an error after "Step 5" couldn't go any further

EDIT: Forgot to be polite, mb. Thank you for the welcome.
Click to expand...
What error message are you getting?


My Computers

System One System Two

  • OS
    Windows 11 Pro for Workstations
    Computer type
    PC/Desktop
    Manufacturer/Model
    Custom self build
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    64 GB (4x16GB) G.SKILL TridentZ RGB DDR4 3600 MHz (F4-3600C18D-32GTZR)
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING (11GB GDDR5X)
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G75 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 990 PRO M.2,
    4TB Samsung 990 PRO M.2,
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3 wall mounted
    Cooling
    Corsair Hydro H115i
    Keyboard
    Logitech wireless K800
    Mouse
    Logitech MX Master 3
    Internet Speed
    1 Gbps Download and 35 Mbps Upload
    Browser
    Google Chrome
    Antivirus
    Microsoft Defender and Malwarebytes Premium
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Galaxy S23 Plus phone
  • Operating System
    Windows 11 Pro
    Computer type
    Laptop
    Manufacturer/Model
    HP Spectre x360 2in1 14-eu0098nr (2024)
    CPU
    Intel Core Ultra 7 155H 4.8 GHz
    Memory
    16 GB LPDDR5x-7467 MHz
    Graphics card(s)
    Integrated Intel Arc
    Sound Card
    Poly Studio
    Monitor(s) Displays
    14" 2.8K OLED multitouch
    Screen Resolution
    2880 x 1800
    Hard Drives
    2 TB PCIe NVMe M.2 SSD
    Internet Speed
    Intel Wi-Fi 7 BE200 (2x2) and Bluetooth 5.4
    Browser
    Chrome and Edge
    Antivirus
    Windows Defender and Malwarebytes Premium
Brink said:
What error message are you getting?
Click to expand...
Hi

I'm missing something in the translation since it's in Spanish. I'm getting "Error at restoring(restablecer) this device". I get it just after taping "local reinstall"


My Computer

System One

  • OS
    Windows 11
    Computer type
    Tablet
    Manufacturer/Model
    Microsoft Surface Pro X
    Memory
    16gb
You must log in or register to reply here.

Similar Windows 11 Tutorials

  • Article
Browsers and Mail Uninstall or Reinstall New Outlook for Windows app in Windows 11
Replies
0
Views
2K
Brink
Brink
  • Article
Apps Reset Windows Terminal Settings to Default in Windows 11
Replies
0
Views
2K
Brink
Brink
  • Article
General Move or Restore Default Location of Screenshots Folder in Windows 11
Replies
2
Views
1K
Brink
Brink
  • Article
System Remove Storage Space from Storage Pool in Windows 11
Replies
0
Views
844
Brink
Brink
  • Article
System Create New Storage Pool of Storage Spaces in Windows 11
Replies
1
Views
769
hsehestedt
hsehestedt
  • Article
System Optimize Storage Pool of Storage Spaces in Windows 11
Replies
0
Views
958
Brink
Brink
  • Article
System Rename Storage Pool of Storage Spaces in Windows 11
Replies
0
Views
763
Brink
Brink

Latest Support Threads

Latest Tutorials

Back
Top Bottom
